HunterDouglas Standard Cordlock, Moveable Slat Specialty... User guide
Horizontal Blinds
Standard Cordlock, Moveable Slat Specialty Shape,
LiteRise® , SimpleLift™, and UltraGlide®
Operating Systems
Installation •Operation •Care
CONTENTS
© 2016 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas or their
respective owners.
Questions?
Call the Hunter Douglas Customer Information Center at
1-888-501-8364.
Getting Started:
Product View — Standard Cordlock & Moveable Slat Specialty Shape.............. 1
Product View — LiteRise®, SimpleLift™, and UltraGlide®................................. 2
Tools and Fasteners Needed .......................................................................... 3
Unpack the Blind........................................................................................... 3
Installation:
Installation Overview ..................................................................................... 4
Mount the Installation Brackets — Inside Mount and Ceiling Mount ................. 6
Mount the Installation Brackets — Outside Mount .......................................... 9
Install the Blind ........................................................................................... 12
Complete the Installation ............................................................................. 16
Operation:
Operate the Blind........................................................................................ 21
Troubleshooting .......................................................................................... 24
Care:
Removing the Blind (If Necessary) ................................................................ 27
Cleaning Procedures ................................................................................... 27
Child Safety:
Cord Connector........................................................................................... 28
Reassembly of Cord Connecter .................................................................... 28
Cord Cleats................................................................................................. 29
GETTING STARTED
1
Product View — Standard Cordlock & Moveable Slat Specialty Shape
Standard Cordlock
Moveable Slat Specialty Shape
2" or 4" Extension
Brackets (Optional)
End
Bracket
2
End
Bracket
2
End Bracket
Spacer Block
1
End Bracket
Spacer Block
1
Intermediate
Bracket
Spacer Block
1
Intermediate Bracket
(If Required)
End
Brackets
3
Corner Clips for
Valance Returns
(If Required)
Valance Clips
(Alternative Wood &
Aluminum Blinds)
Magnetic Valance Clips
(Wood and
Natural Elements™
Blinds)
Hold-Down
Bracket
and Pin
(Optional)
2
Hold-Down
Bracket
and Pin
(Optional)
3
Valance Splice
(If Required)
1
Required with 2
1
/
2
" slat size; optional with 2" slat size
2
2" and 2
1
/
2
" slat sizes
3
1
3
/
8
" slat size
* Valance, valance clips, bottom rail, tassel, and wand design varies by product
Valance*
Bracket
Shim
2
GETTING STARTED
Product View — LiteRise®, SimpleLift™, and UltraGlide®
2" or 4" Extension
Brackets (Optional)
End
Bracket
2
End
Bracket
2
End Bracket
Spacer Block
1
End Bracket
Spacer Block
1
Intermediate
Bracket
Spacer Block
1
Intermediate Bracket
(If Required)
Corner Clips for
Valance Returns
(If Required)
Valance Clips
(Alternative Wood &
Aluminum Blinds)
Hold-Down
Bracket
and Pin
(Optional)
2
Valance Splice
(If Required)
1
Required with 2
1
/
2
" slat size; optional with 2" slat size
2
2" and 2
1
/
2
" slat sizes
*
Valance, valance clips, bottom rail, tassel, and wand design varies by product
UltraGlide®
LiteRise
®
V
alance*
SimpleLift
Hold-Down
Bracket
(Optional)
Bracket
Shim
SimpleLift
™
Magnetic Valance Clips
(Wood and
Natural Elements™Blinds)
GETTING STARTED
3
Thank you for purchasing Hunter Douglas horizontal blinds. With proper installation, operation,
and care, your new blinds will provide years of beauty andperformance.
Please thoroughly review this instruction booklet and the enclosed packing list before beginning
the installation.
Tools and Fasteners Needed
■Flat blade and Phillips screwdrivers
■Level (laser level is recommended)
■Measuring tape and pencil
■Power drill, drill bits, and
1
/
4
" hex driver (or socket wrench with
1
/
4
" hex socket)
In addition, you will need fasteners designed to work with your specific mounting surface(s).
■#6 Hex Head Screws (Provided). Two 1
1
/
2
" screws are provided per installation bracket.
■Longer #6 Hex Head Screws (Not Provided). If using spacer blocks, use #6 screws long
enough for a secure attachment.
■Drywall Anchors (Not Provided). Use drywall anchors when mounting into drywall.
Unpack the Blind
■Remove the blind from the package. Keep the packaging
until the blind operates to your satisfaction.
■Refer to the diagrams on the previous pages and check
for all necessary parts.
■Contents of your hardware package may vary
depending upon the options chosen.
■Do not remove the slat protector tape. Doing
so will damage the slat finish.
16
Do Not
Remove
Slat Protector
Tape
#6 x 1
1
/
2
"
Hex Head Screw
(Provided)
Longer #6 Hex Head Screw
for Use with Spacer Blocks
(Not Provided)
Remove Cardboard
Before Installing
INSTALLATION
4
Installation Overview
■Two end brackets are used to mount horizontal blinds. Wider
blinds also require one or two intermediate brackets, as
shown in the tables below.
Standard Cordlock Hardware System
LiteRise®Operating System
SimpleLift™Operating System
UltraGlide®Operating System
Intermediate
Bracket
End
Bracket
Width of Blind Intermediate Brackets
Up to 48" 0
48
1
/
8
" – 60" 1
60
1
/
8
" – 96" 2
1
3
/
8
", 2", and 2
1
/
2
" Wood Blinds
2" and 2
1
/
2
" Alternative Wood Blinds
Width of Blind Intermediate Brackets
Up to 48" 0
48
1
/
8
" – 60" 1
60
1
/
8
" – 78" 2
2" and 2
1
/
2
" Wood Blinds
2" and 2
1
/
2
" Alternative Wood Blinds
2" Wood Blinds
2" Alternative Wood Blinds
Width of Blind Intermediate Brackets
Up to 48" 0
48
1
/
8
" – 60" 1
60
1
/
8
" – 96" 2
Width of Blind Intermediate Brackets
Up to 48" 0
48
1
/
8
" – 96" 1
96
1
/
8
" – 144" 2
2" Macro Aluminum Blinds
2" Natural Elements™Aluminum Blinds
Width of Blind Intermediate Brackets
Up to 48" 0
48
1
/
8
" – 90" 1
2" Macro Aluminum Blinds
2" Natural Elements Aluminum Blinds
Width of Blind Intermediate Brackets
Up to 48" 0
48
1
/
8
" – 96" 1
96
1
/
8
" – 112" 2
2" Macro Aluminum Blinds
2" Natural Elements Aluminum Blinds
2" Wood Blinds
2" Alternative Wood Blinds
Width of Blind Intermediate Brackets
Up to 48" 0
48
1
/
8
" – 60" 1
60
1
/
8
" – 96" 2
Width of Blind Intermediate Brackets
Up to 48" 0
48
1
/
8
" – 96" 1
96
1
/
8
" – 120" 2
2" Macro Aluminum Blinds
INSTALLATION
5
2" Macro Aluminum Blinds
2" Natural Elements Aluminum Blinds
Spacer Blocks for 2
1
/
2
" Slat Size
NOTE: Spacer blocks are required for the
2
1
/
2
" slat size and optional for 2" and 1
3
/
8
"
slat sizes.
■Attach a spacer block to each of the two
end brackets.
■If one or more intermediate brackets is
required (see chart on previous page),
attach a spacer block to each intermediate
bracket.
■If extension brackets will be used, it is not
necessary to attach spacer blocks.
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process follows
easily. To prepare for this important first step, review the mounting types and basic window
terminology illustrated below.
■Refer to the appropriate page below based on your order:
➤Inside Mount and Ceiling Mount — Page 6
➤Outside Mount — Page 9
Outside Mount
Blind mounts
outside window
opening.
Inside Mount
Blind fits within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Molding
Head Jamb
Sill
Jamb Jamb
2" and 2
1
/
2
"
End Bracket
2" and 2
1
/
2
"
Intermediate
Bracket
1
3
/
8
" End and
Intermediate
Brackets
2" Macro Aluminum Blinds
INSTALLATION
6
Mount the Installation Brackets — Inside Mount and Ceiling Mount
Attach End Brackets
With inside mounts or ceiling mounts, attach the two end brackets flush against the sides of the
window casement or to the ceiling. (See page 9 of the outside mount section for positioning the
brackets for ceiling mounting.) Choose the most appropriate of the following mounting methods:
■Inside mount only: Mount the end brackets with one screw through a side hole and one
screw through a top hole, as shown below left.
■Inside mount only: Mount the end brackets with two screws through diagonal side holes.
■Inside mount or ceiling mount: Top mount the end brackets with screws through the two
top holes, as shown below right.
■Ceiling mount only: If the brackets are flush with the back wall, attach them with one
screw through a top hole and one through a rear hole.
■Use a
3
/
32
" drill bit to drill holes for the mounting screws.
CAUTION: Use drywall anchors when mounting into drywall.
2" and 2
1
/
2
"
Side/Top
Mount
2" and 2
1
/
2
"
Top Mount
1
3
/
8
"
Side/Top
Mount
1
3
/
8
"
Top Mount
INSTALLATION
7
■Attach the end brackets using the screws provided.
IMPORTANT: The front edges of the brackets must be level and aligned to eachother.
NOTE: For blinds with 2
1
/
2
" slats, spacer blocks are used with inside mounts to position the
brackets a minimum of
3
/
8
" from the glass. This prevents the slats from rubbing the glass
when they are tilted open.
■Moveable Specialty Shapes with sloped headrail:
Only the top of each end bracket can be flush against the casement.
Attach Intermediate Brackets (If Required)
■Evenly space the intermediate bracket(s) between the two end brackets.
➤Adjust spacing if needed to avoid interference with internal headrail mechanisms.
■Attach the intermediate bracket(s) with two screws through diagonal top holes.
IMPORTANT: The rear of the end brackets and intermediate bracket(s) must align.
Intermediate
Bracket
End
Bracket
End
Bracket
Space Evenly Space Evenly
INSTALLATION
8

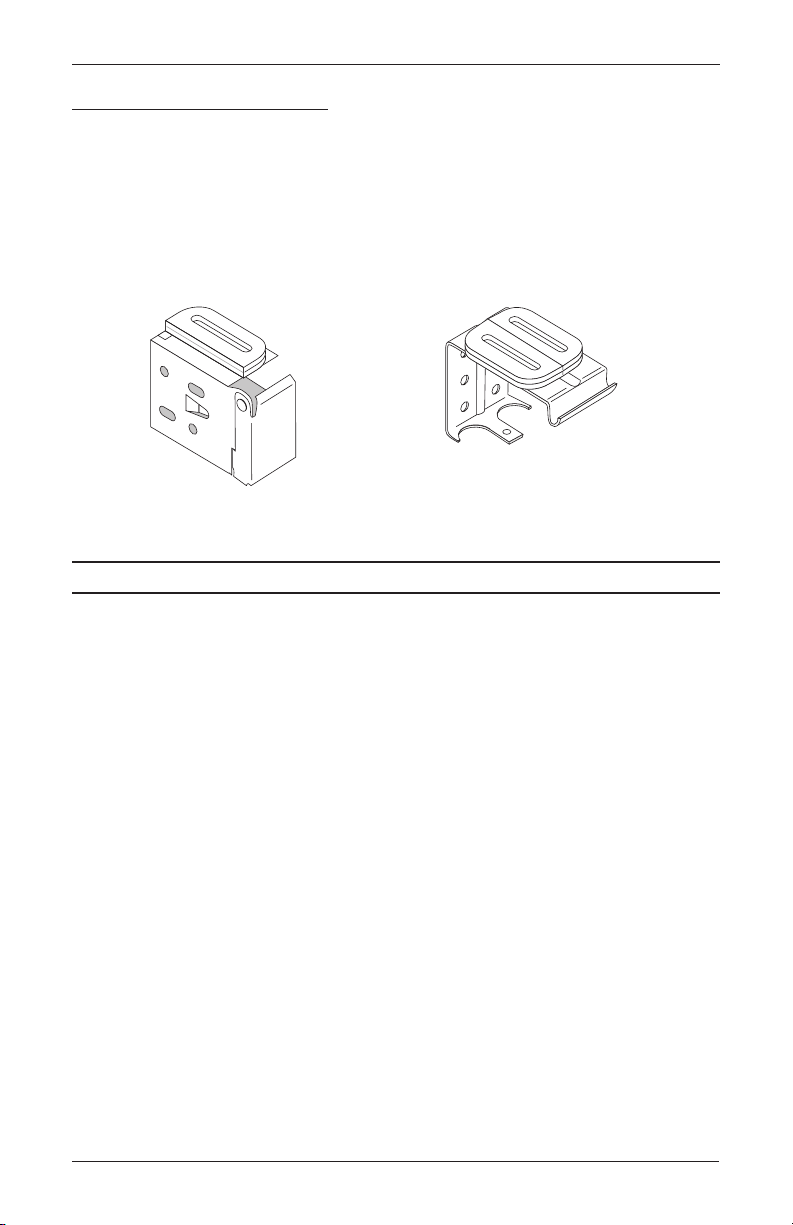

Use Bracket Shims (If Required)
Bracket shims are used to gain clearance for universal valance clips with inside mounts and
ceiling mounts. Shims are included with your order (one for each end bracket and two for each
intermediate bracket).
■With each end bracket, first fold the shim and then position it on top of the bracket to gain
the required clearance.
■With each intermediate bracket, stack two unfolded shims.
NOTE: Bracket shims may also be used whenever the mounting surface is uneven in order to
mount the blind level. The shims can be cut along their fold line to make them thinner.
Proceed to “Install the Blind” on page 12.
One Shim
Folded Over
Two Shims
Stacked
End
Bracket
Intermediate
Bracket
This manual suits for next models
3
Table of contents
Other HunterDouglas Window Blind manuals
HunterDouglas
HunterDouglas SCG 64 User manual
HunterDouglas
HunterDouglas Silhouette Nantucket PowerView Gen 3... Parts list manual
HunterDouglas
HunterDouglas VS 100 Guide rail Maintenance and service guide
HunterDouglas
HunterDouglas 5-257 User manual
HunterDouglas
HunterDouglas Duolite Shades Parts list manual
HunterDouglas
HunterDouglas Reveal with MagnaView Operation manual
HunterDouglas
HunterDouglas Wood Blinds User manual
HunterDouglas
HunterDouglas Duette Honeycomb Shades User manual
HunterDouglas
HunterDouglas Vignette Traditional User manual
HunterDouglas
HunterDouglas RB 500 User manual
HunterDouglas
HunterDouglas DecoFlex WireFree Telis Operating instructions
HunterDouglas
HunterDouglas Silhouette Halo Duolite Parts list manual
HunterDouglas
HunterDouglas PowerView M40T User manual
HunterDouglas
HunterDouglas 5-151 User manual
HunterDouglas
HunterDouglas Skyline Parts list manual
HunterDouglas
HunterDouglas EverWood User guide
HunterDouglas
HunterDouglas Reveal Parts list manual
HunterDouglas
HunterDouglas Luminette Privacy Sheers Parts list manual
HunterDouglas
HunterDouglas Luminette PowerView Assembly instructions
HunterDouglas
HunterDouglas Palmetto Horizontal Shadings Manual
Popular Window Blind manuals by other brands
Current
Current E-WAND Installation manual and user's guide
weinor
weinor VertiTex ZipR Maintenance Instructions and Directions for use for the end user
Roto
Roto ZAR M R4/R7 Mounting instructions
SOMFY
SOMFY Movelite WT Series instructions
Acmeda
Acmeda RF400 Series instructions
Motura
Motura Pli_353/3 manual
