Hunter 47905 User manual

Owner’s Manual

Model

47905

Form# 44119-01

20121010

English

7 Day Programmable

INSTALLATION

5 MINUTE

M T WT F S S

Table of Contents

At A Glance

Know Your ermostat � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3

Setup

Setting Date and Time � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8

Scheduling

Setting Your Schedule� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �10

Temporary Temperature Change� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �18

Turning O Scheduling � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �20

Home Today ��22

Save Away��24

Features

Alerts ��26

Menu Options ��30

Energy Savings Bar��46

Additional Features � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �48

ermostat Assistance

Troubleshooting and Support� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �50

Technical Support��52

Warranty

1 Year Guarantee��53

Your thermostat has been pre-programmed from the factory with no programming necessary.

We recommend using these pre-programmed settings for a few days before altering them as

they offer maximum energy saving benets. If you do decide to alter your programs, use the

charts on page 11 to write out your scheduled times and temperatures. After you have recorded

your preferences, follow the instructions on page 12 to alter your temperature settings.

There is no need to program the thermostat at the wall it is mounted to! Remove the thermostat

from the backplate by gripping the sides rmly and pulling it straight off. This allows you to

program the thermostat in comfort.

After you have programmed your thermostat, no other setting changes are necessary unless you

wish to browse through the menu to see how you may further adjust the independent settings of

your thermostat to meet your lifestyle. The features section starting on page 30 of this manual

will describe these settings. Most setting have been preset for optimal performance.

If you need any assistance with installation or setup of your new Hunter Thermostat, please call

us, our technical support staff are ready to help!

USA: 1-888-830-1326

Canada: 1-866-268-1936

Hours of operation are from 7:00 am to 7:00 pm Monday - Friday and 8:00 am to 5:00 pm on

Saturday, Central Time. You may also contact us over the Internet at:

www.HunterFan.com

Know Your ermostat

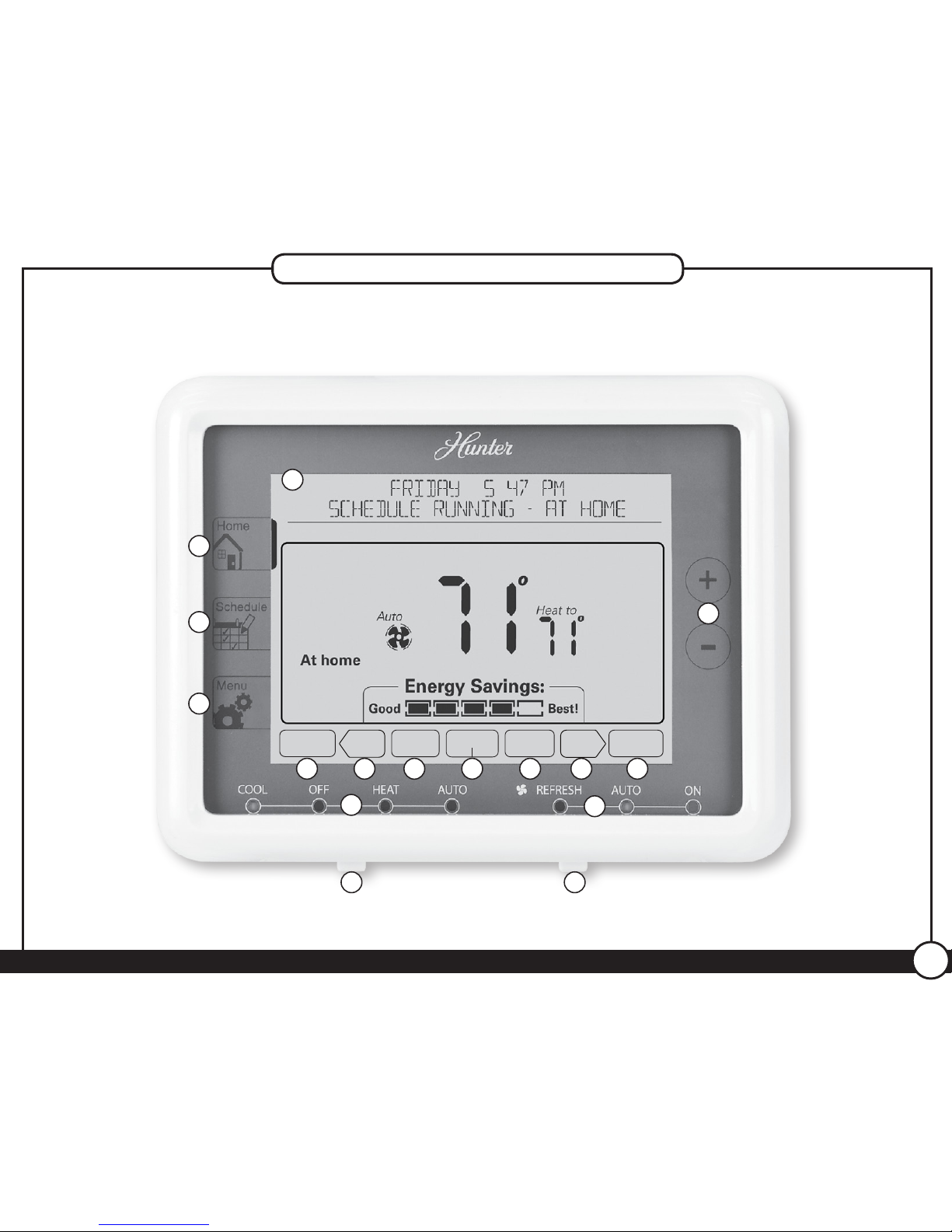

1. Returns you to the Home screen.

2. Main display.

3. Allows access to scheduling options.

4. Adjusts time and temperature settings as well as moving up or down menu lists.

5. Allows access to the advanced features of the thermostat.

6. Escapes to the home screen or resumes normal schedule from overrides.

7. Moves you back to the previous step while setting up features or schedules.

8. Sets the Home Today feature for when you are home during a regularly scheduled

away period.

9. Allows you to turn on or off your set schedules.

10. Sets the Save Away feature for when you will not be home during a regularly

programmed time.

11. Takes you to the next step while setting up features or schedules.

12. Conrms completion of an action or returns you to the Home screen.

13. Indicates whether the system is set to Auto, Cool, Off, or Heat.

14. Shows if the fan is set to Auto, Refresh, or On modes.

15. Allows you to switch between Auto, Cool, Off, or Heat modes.

16. Allows you to switch between fan Auto, Refresh, and On modes.

Know Your ermostat

7 119 106

1615

Know Your ermostat

Cancel Back

Home

Today

Turn

Schedule

On Off

Save

Away

Done

Resume

1. Will show when your thermostat or system is reporting a problem.

2. Displays time/day, instructions, help messages, and warnings.

3. Indicates help messages are available for this screen.

4. Shows when the thermostat is on the Home screen.

5. Indicates you are in scheduling options.

6. Shows the current mode of the fan: Auto, Refresh, On, or Off.

7. Indicates the current room temperature.

8. C will display when in Celsius mode. Nothing will display when set to Fahrenheit.

9. On when the current operating mode, Heat or Cool, is running.

10. Current operating mode, Heat or Cool.

11. Indicates the active schedule period.

12. Shows the system fan is running.

13. Current Set temperature.

14. Indicates you are in the Menu options.

15. Energy Savings Bar helps you make decisions on conserving energy.

16. Indicates the thermostat is locked and will not accept input without a passcode.

Know Your ermostat

Energy Savings:

Good Best!

Auto Heat to

At home

70O

FRIDAY 10:53 AM

SCHEDULE RUNNING -AT HOME

15 16

11 12

Know Your ermostat

Setting Day and Time

Once you install the batteries, the thermostat will prompt you to set the current date,

time, and system type.

1. “01” for current day will be ashing. Use the or button to select your current

day, then

to move to month, and then year, until each is set.

will advance

you to time setup.

2. Use the or buttons to set the current time of day, AM or PM and then use

to advance to hours, and again to set minutes. Pressing

again will advance

you to system setup.

3. Press [conventl] or [heat pump] to select your system type. You may also use the

or buttons to make your selection.

Note: At anytime, if you see the ?icon on the screen, you can press it for more

information about that setup, scheduling step, or menu option.

4. If you selected [conventl], select [gas/oil] or [electric] as your furnace type.

Note: Furnace type should be [electric] for heat pump systems.

5. Press

. Choose [Schedule] if you want to setup your schedules or [manual]

to set one temperature and ignore scheduling. Press

and See “Setting Your

Schedule” on page 12 if you chose [Schedule] or use the or buttons to set

your temperature and press

Done

for [manual] mode.

Setting Day and Time

ome

Set current date

01/01/2010

Home

Schedul

Set current time

00:00 AM

Back

pick system type

[ conventl] [ heat pump]

Back

chedul

Pick Furnace type

[ gas/oil] [ electric]

Back

Setting your Schedule

Read the scheduling section thoroughly to ensure you understand your scheduling

options and which will best fit with your lifestyle. The following notes should help you

with scheduling:

*The schedule time can be set in 15 minute increments, and remains the same for both

Heat and Cool programs.

*The scheduled temperature can be set in increments of 1°F (1°C).

*After 10 minute without a key press, the thermostat will return to the home display

screen.

*When setting the schedule time, note the AM / PM indicator.

*At any stage during your scheduling, you can use the Back or

buttons to move

forward or backwards through the steps. Home/

Done will save any changes, even if you

have not scheduled or altered all settings.

*Arrows beside each schedule mode and beside heat/cool modes will indicate which

ones are active.

*This thermostat has been pre-programmed to provide optimal energy savings. No

programming is necessary. We recommend you run these programs for a few days

before adjusting your programming. If it is necessary to change these settings, use

the scheduling table on the next page to record your new settings. You will also find

the default schedule there as well.

Table of contents
