HP ProLiant ML350e Gen 8 v2 Assembly instructions

EL-MF877-00 Page 1

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Product End-of-Life Disassembly Instructions

Product Category: Servers

Marketing Name / Model

[List multiple models if applicable.]

HP ProLiant ML350e Gen 8 v2

Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions

for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU

directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).

1.0 Items Requiring Selective Treatment

1.1 Items listed below are classified as requiring selective treatment.

1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as

applicable.

Item Description

Notes

Quantity

of items

included

in product

Printed Circuit Boards (PCB) or Printed Circuit

Assemblies (PCA)

With a surface greater than 10 sq cm

Batteries

All types including standard alkaline and lithium coin

or button style batteries

Mercury-containing components

For example, mercury in lamps, display backlights,

scanner lamps, switches, batteries

Liquid Crystal Displays (LCD) with a surface greater

than 100 sq cm

Includes background illuminated displays with gas

discharge lamps

Cathode Ray Tubes (CRT)

Capacitors / condensers (Containing PCB/PCT)

Electrolytic Capacitors / Condensers measuring

greater than 2.5 cm in diameter or height

Depending on Power Supply Model

External electrical cables and cords

Gas Discharge Lamps

Plastics containing Brominated Flame Retardants

weighing > 25 grams (not including PCBs or PCAs

already listed as a separate item above)

Components and parts containing toner and ink,

including liquids, semi-liquids (gel/paste) and toner

Include the cartridges, print heads, tubes, vent

chambers, and service stations.

Components and waste containing asbestos

EL-MF877-00 Page 2

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Components, parts and materials containing

refractory ceramic fibers

Components, parts and materials containing

radioactive substances

2.0 Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a point where components

and materials requiring selective treatment can be removed.

Tool Description

Tool Size (if

applicable)

Torx Driver

T-15

Philps screw driver

Flat Head screw driver

Medium

3.0 Product Disassembly Process

3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:

1. System Board Battery - Remove the top cover and locate the battery on the system board.

2. Capacitors in 460W ATX power supply=> 2.5 cm () - Remove the power supply from the system with a T-15 torx

driver. With a #2 Philips screw driver remove the screws securing the top cover then locate the capacitors and pry from

the PCB with a flat head screw driver or Long Nose Plier () and dispose of properly.

3. Capacitors in 460W and 750W redundant power supply=> 2.5 cm () - Remove the power supply from the system with

a T-15 torx driver. With a #2 Philips screw driver remove the screws securing the top cover then locate the capacitors

and pry from the PCB with a flat head screw driver or Long Nose Plier and dispose of properly.

3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items

contained in the product that require selective treatment (with descriptions and arrows identifying locations).

Attachment 1 –RTC location

Attachment 2-4- 2.5cm Capacitor location

EL-MF877-00 Page 3

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Attachement 1

EL-MF877-00 Page 4

Template Revision B

PSG instructions for this template are available at EL-MF877-01

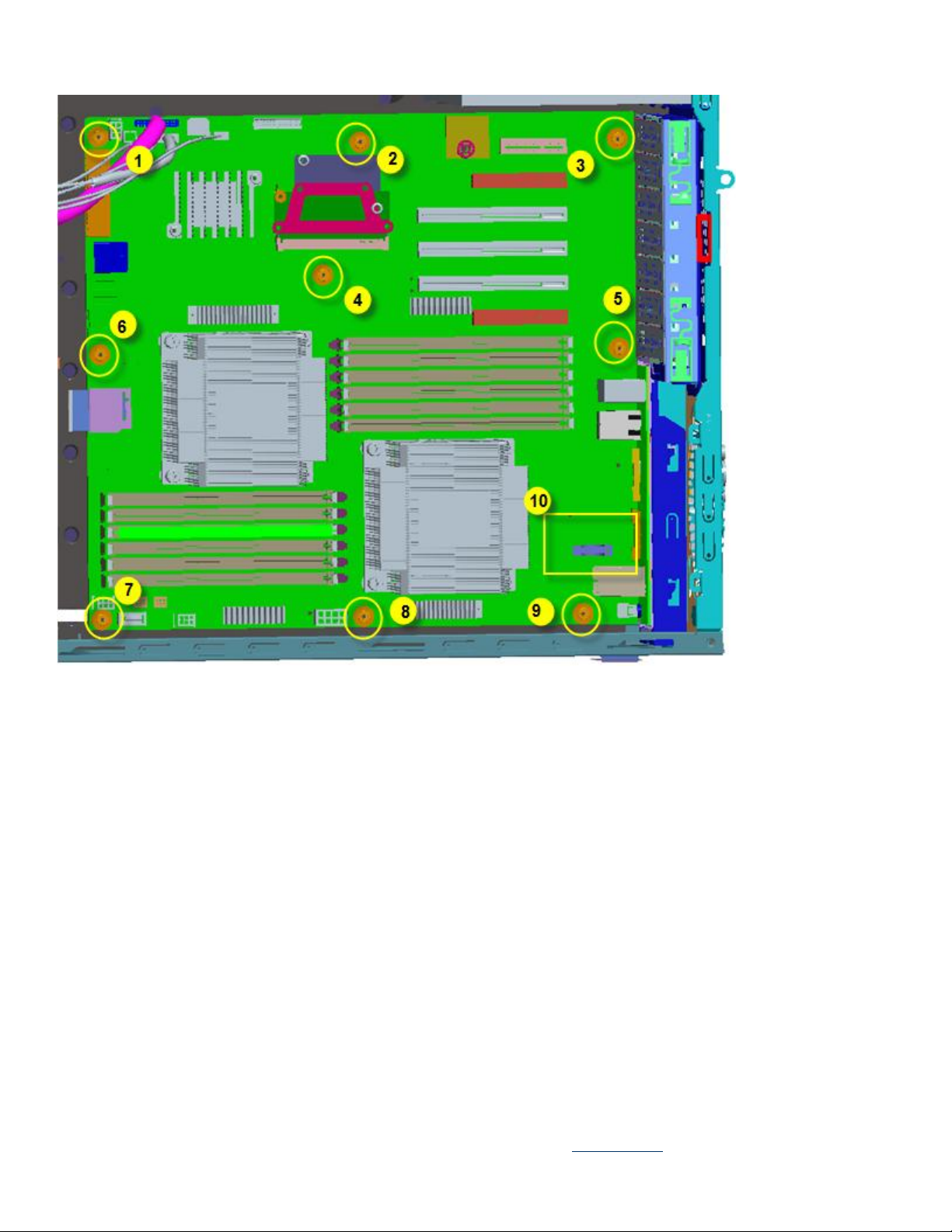

Number 10 is RTC battery.

EL-MF877-00 Page 5

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Attachment 2

POWER CAPACITOR –460W ATX PSU

EL-MF877-00 Page 6

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Attachment 3

POWER CAPACITOR –460W RPSU

Attachment 4

POWER CAPACITOR –750W RPSU
