HP S5220F - Pavilion Slimline - Desktop PC Manual

Printed in

Upgrading and Servicing Guide

Removing and Replacing the

Front Panel

2537498-001 — Removing and Replacing the Front Panel

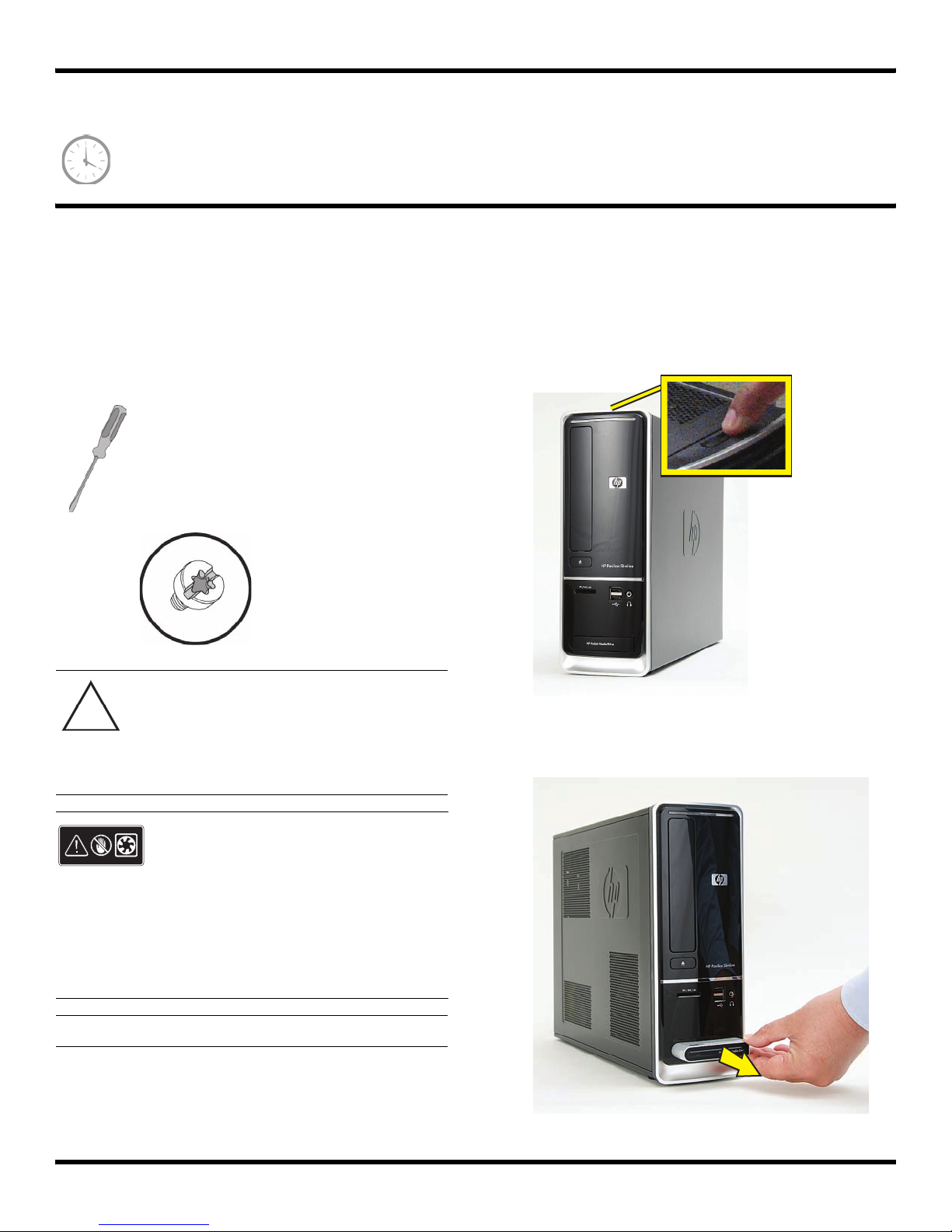

Removing and Replacing the Front Panel

15 minutes

Before You Begin

Observe the following requirements before removing and

replacing the front panel.

Removing the Front Panel

1Turn off the computer.

2If your system has one, remove the HP Pocket Media

Drive from the bay.

Tools Needed

Flathead screwdriver

You can use a flathead screwdriver or a

T15 TORX screwdriver with the following

screw (Torque screw).

CAUTION: Static electricity can damage

the electronic components inside the

computer. Discharge static electricity by

touching the metal cage of the computer

before touching any internal parts or

electronic components.

WARNING:

Never open the cover with the

power cord attached or power

applied. You may damage your

computer or be injured from the

spinning fan blades.

Avoid touching sharp edges

inside the computer.

NOTE: Computer features may vary by model.

537498-001 — Removing and Replacing the Front Panel 3

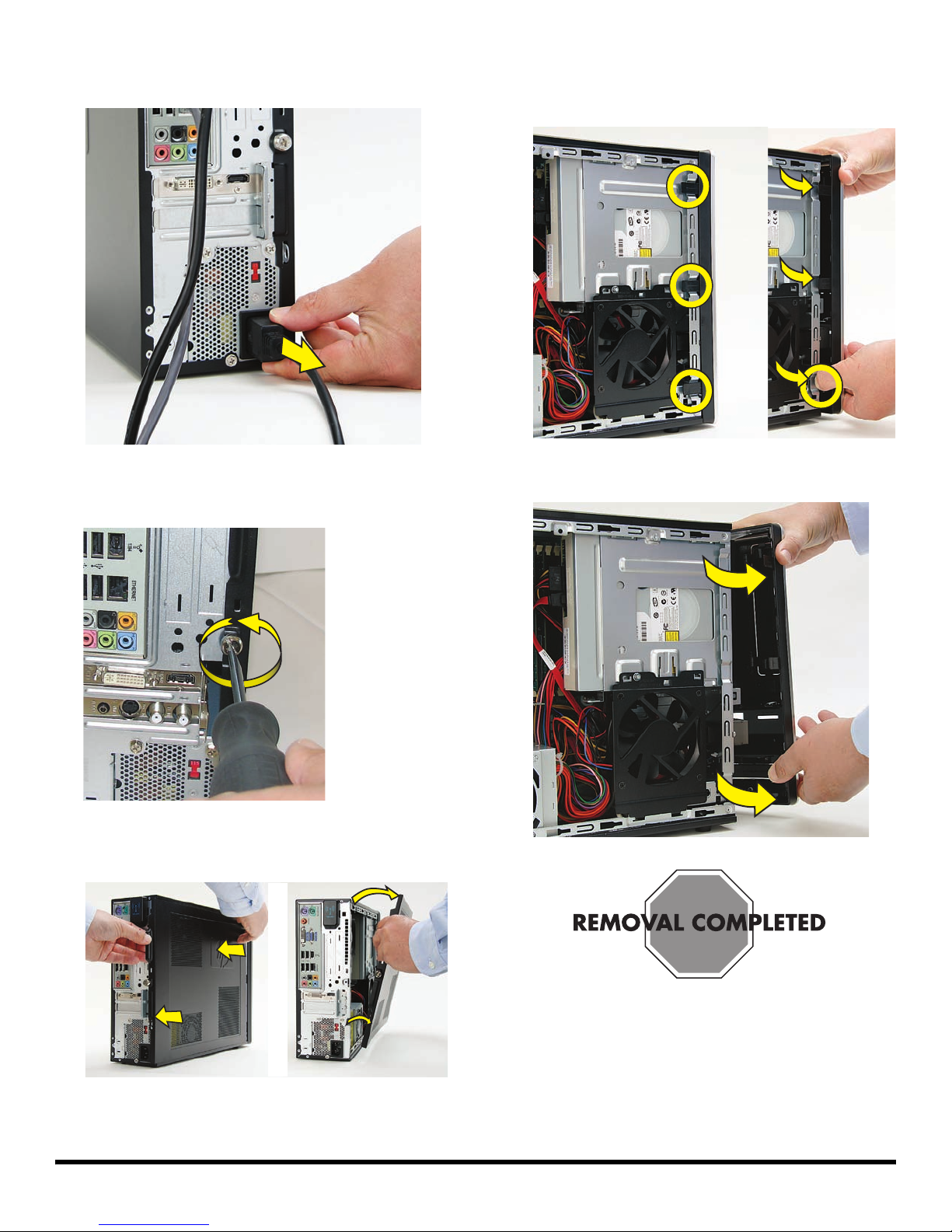

3Disconnect all peripherals and cables, including the

power cord.

4With a screwdriver, loosen the side panel thumbscrew

on the back of the computer.

5Slide the side cover toward the back of the computer,

lift it off, and set it aside.

6Locate the three tabs that secure the front panel to the

computer. Pull each of the tabs out slightly, away from

the computer, to release the panel.

7Swing the panel open and off the computer.

4537498-001 — Removing and Replacing the Front Panel

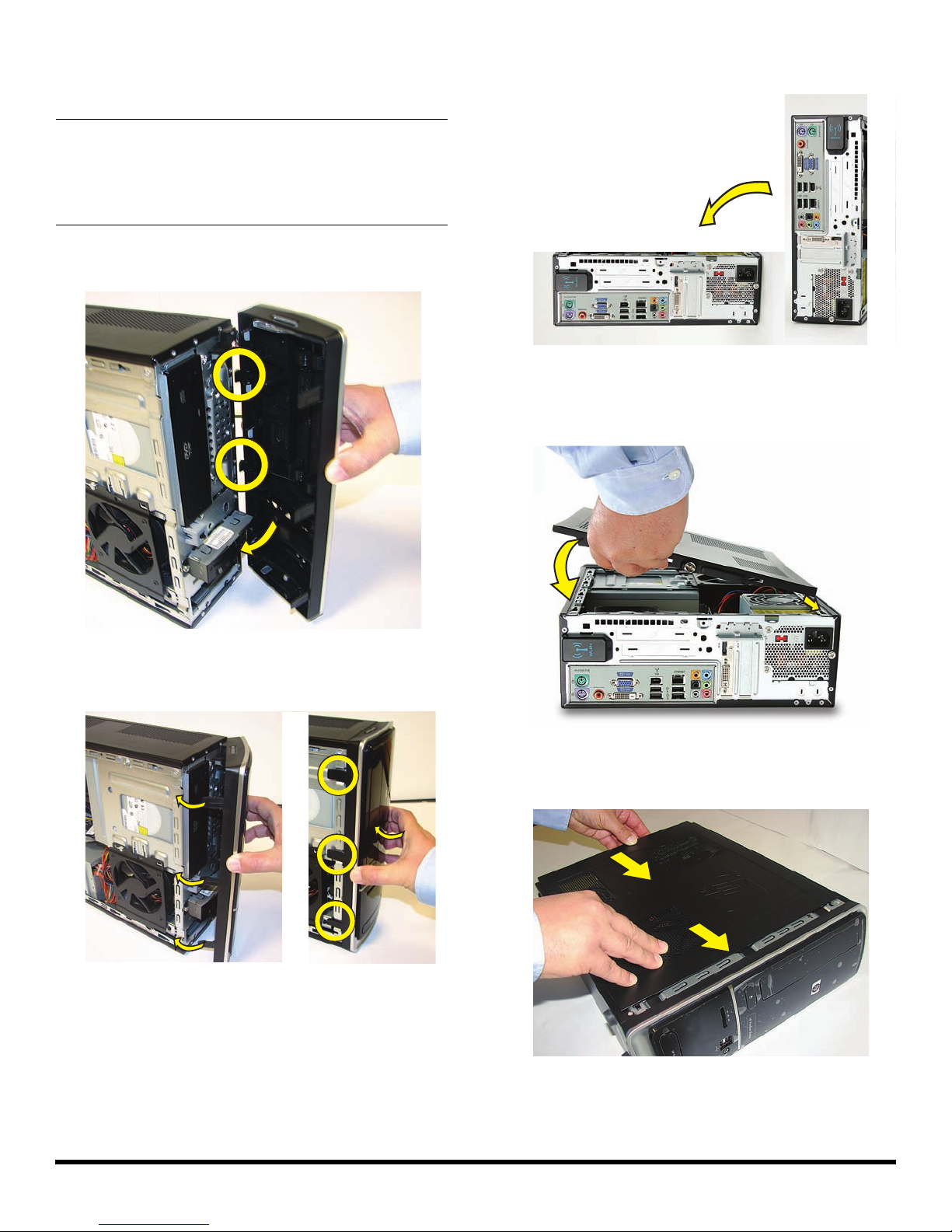

Replacing the Front Panel

1Insert the three tabs on the front panel into the slots on

the computer.

2Swing the front panel toward the computer, and press

it into place.

3Lay the computer on its side.

4Insert the bottom of the side panel into the slots in the

computer rail, and then swing the panel down onto

the computer.

5Slide the panel toward the front of the computer until

there is no gap.

IMPORTANT: The new (replacement) part may not look

the same as the original part, due to different

manufacturers or models. Hewlett-Packard always

provides quality parts that meet or exceed your original

computer specifications.

537498-001 — Removing and Replacing the Front Panel 5

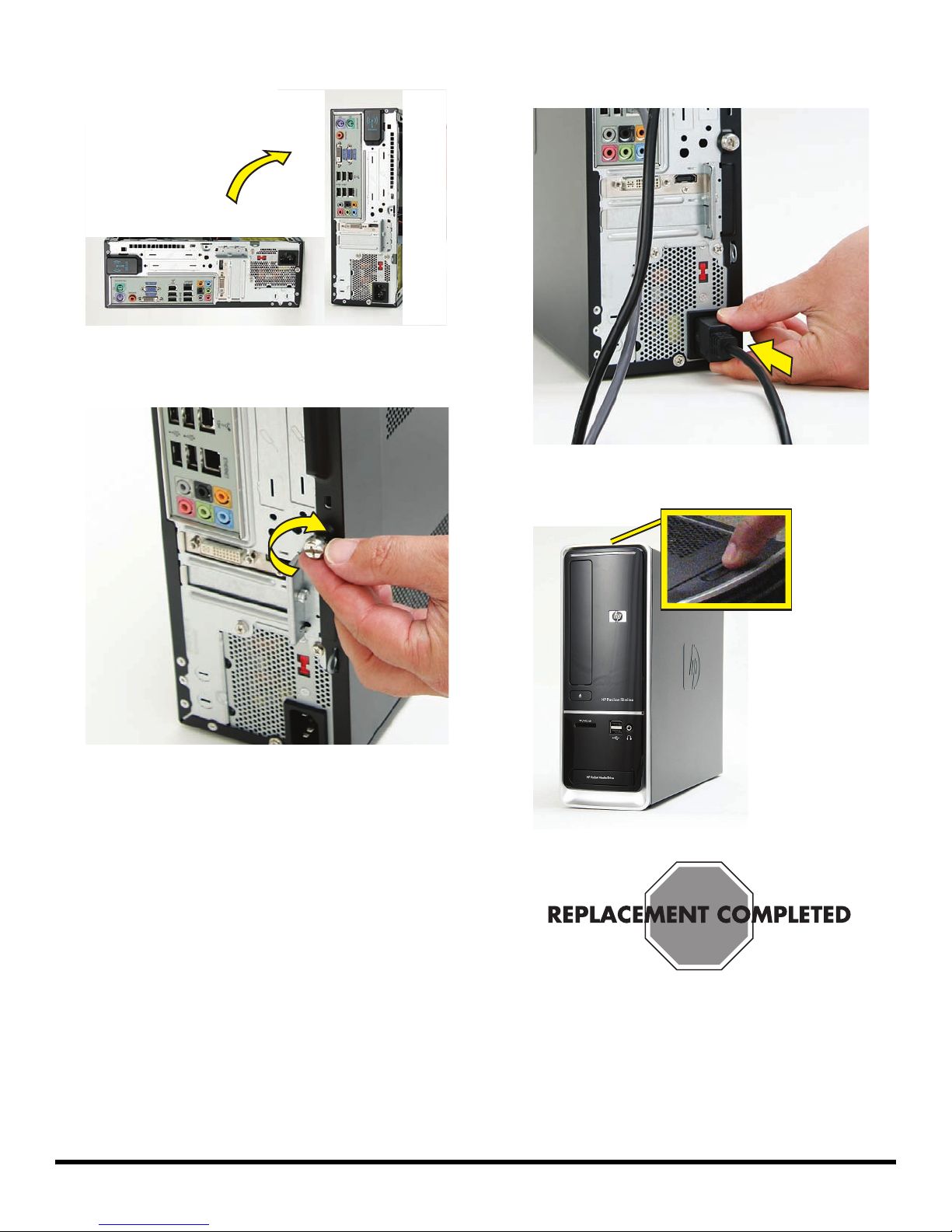

6Set the computer upright.

7Tighten the side panel thumbscrew on the back of the

computer.

8Reconnect all peripherals and cables, including the

power cord.

9Turn on the computer.

6537498-001 — Removing and Replacing the Front Panel

Removing and Replacing the

CD/DVD Drive

2537495-001 — Removing and Replacing the CD/DVD Drive

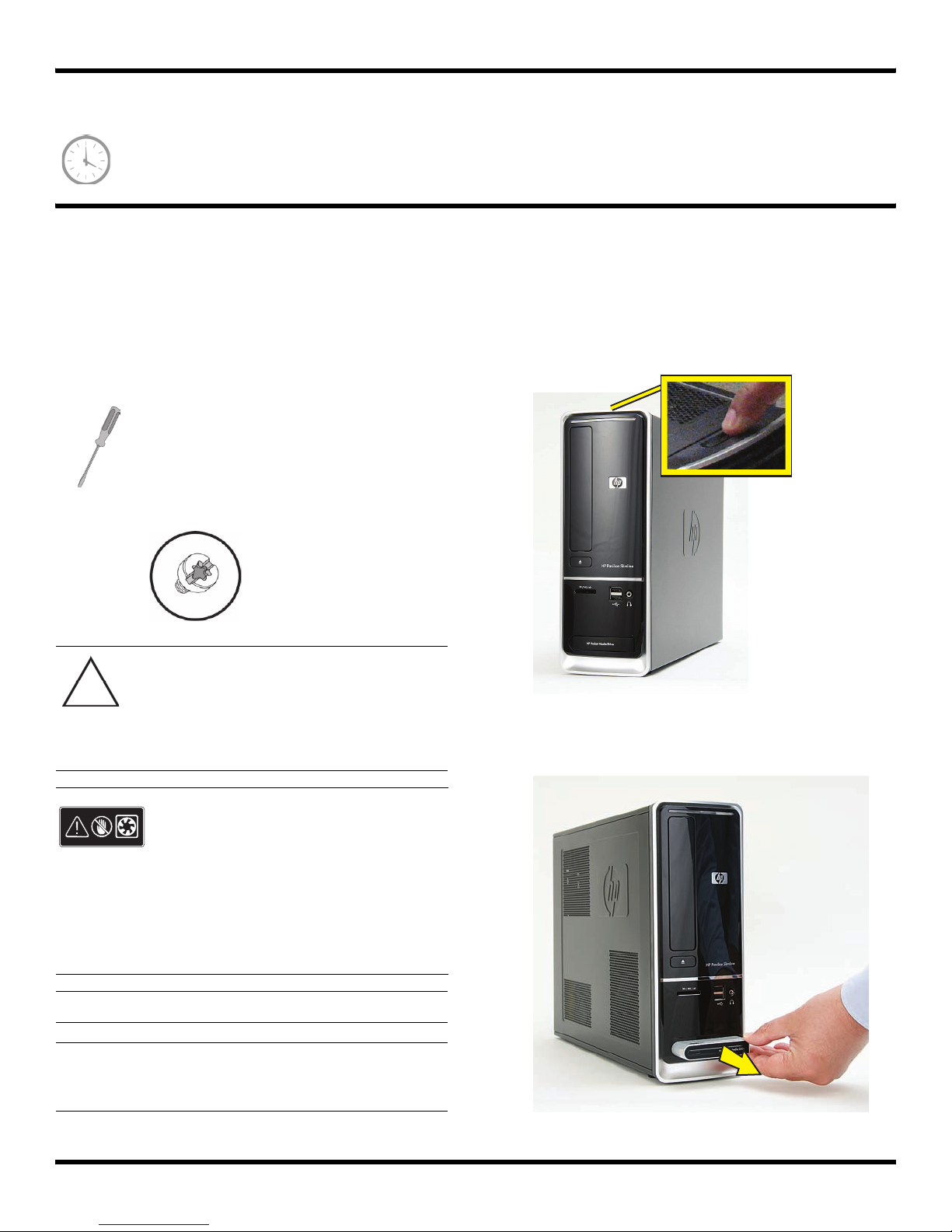

Removing and Replacing the CD/DVD Drive

20 to 45 minutes

Before You Begin

Observe the following requirements before removing and

replacing the CD/DVD optical disc drive.

Removing the CD/DVD Drive

1Turn off the computer.

2If your system has one, remove the HP Pocket Media

Drive from the bay.

Tools Needed

Flathead screwdriver

You can use a flathead screwdriver or a

T15 TORX screwdriver with the following

screw (Torque screw).

CAUTION: Static electricity can damage

the electronic components inside the

computer. Discharge static electricity by

touching the metal cage of the computer

before touching any internal parts or

electronic components.

WARNING:

Never open the cover with the

power cord attached or power

applied. You may damage your

computer or be injured from the

spinning fan blades.

Avoid touching sharp edges

inside the computer.

NOTE: Computer features may vary by model.

IMPORTANT: Treat the CD/DVD drive with care. It is

easy to damage. It is sensitive to shock impact. Do not

bang or drop it.
