HP COMPAQ PRO 6300 ALL-IN-ONE PC

FRONT

Dual microphone array

2.0 MP Webcam (optional)

Webcam Activity LED (only on models with Webcam)

21-inch diagonal Full HD capable screen

Optical drive opening

Power button

Capacitive Controls for Brightness, Volume, Mic Mute, Speaker Mute

Stand (can be configured with no stand, basic stand, or height adjustable/reclining stand)

QuickSpecs

HP COMPAQ PRO 6300 ALL-IN-ONE PC

Overview

DA - 14351 Worldwide — Version 35 — November 21, 2013

Page 1

HP COMPAQ PRO 6300 ALL-IN-ONE PC

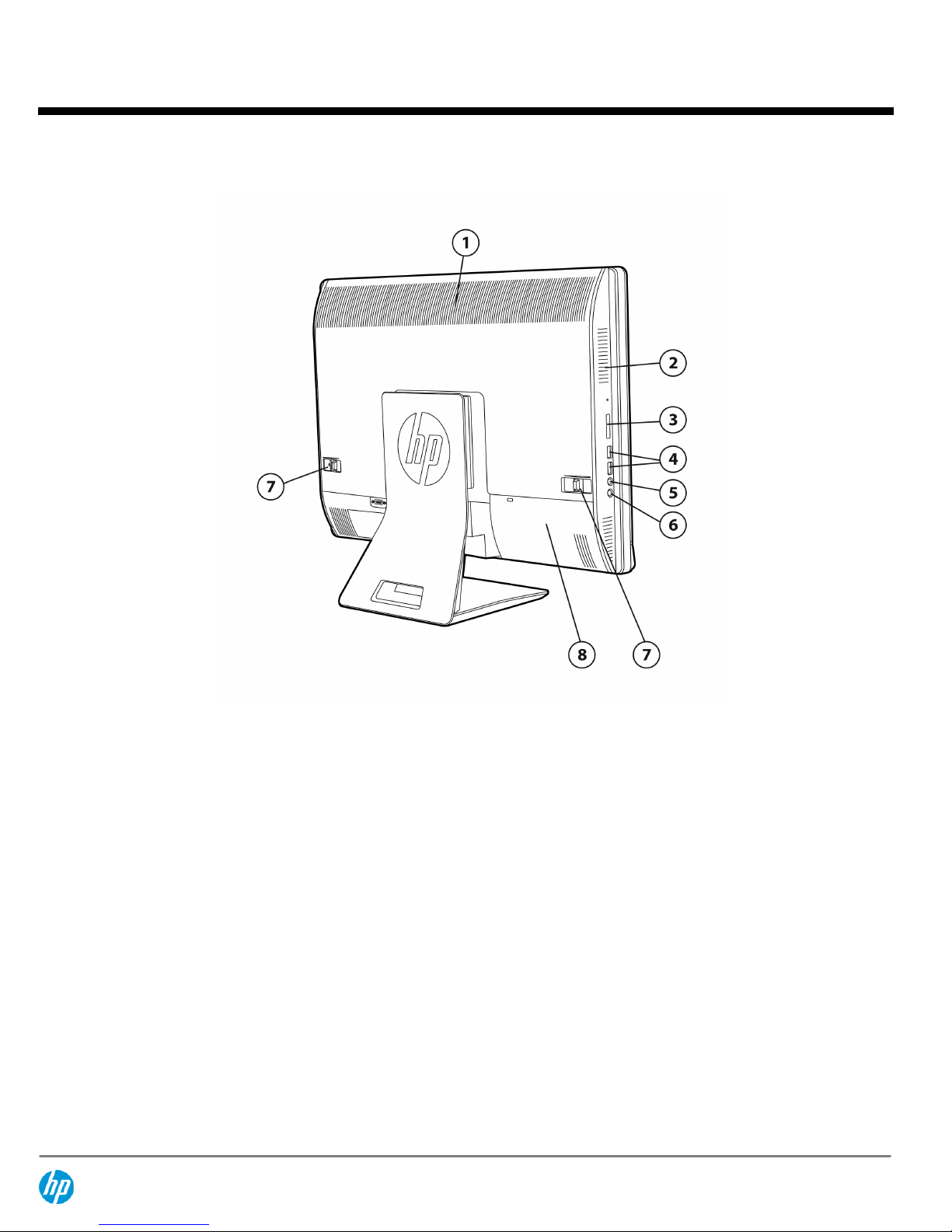

BACK

Vent slots

Side venting

SD Media Card Reader (optional)

(2) USB 3.0 ports

Mic input jack

Headphone jack

Access panel latches

Rear port cover

QuickSpecs

HP COMPAQ PRO 6300 ALL-IN-ONE PC

Overview

DA - 14351 Worldwide — Version 35 — November 21, 2013

Page 2

HP COMPAQ PRO 6300 ALL-IN-ONE PC

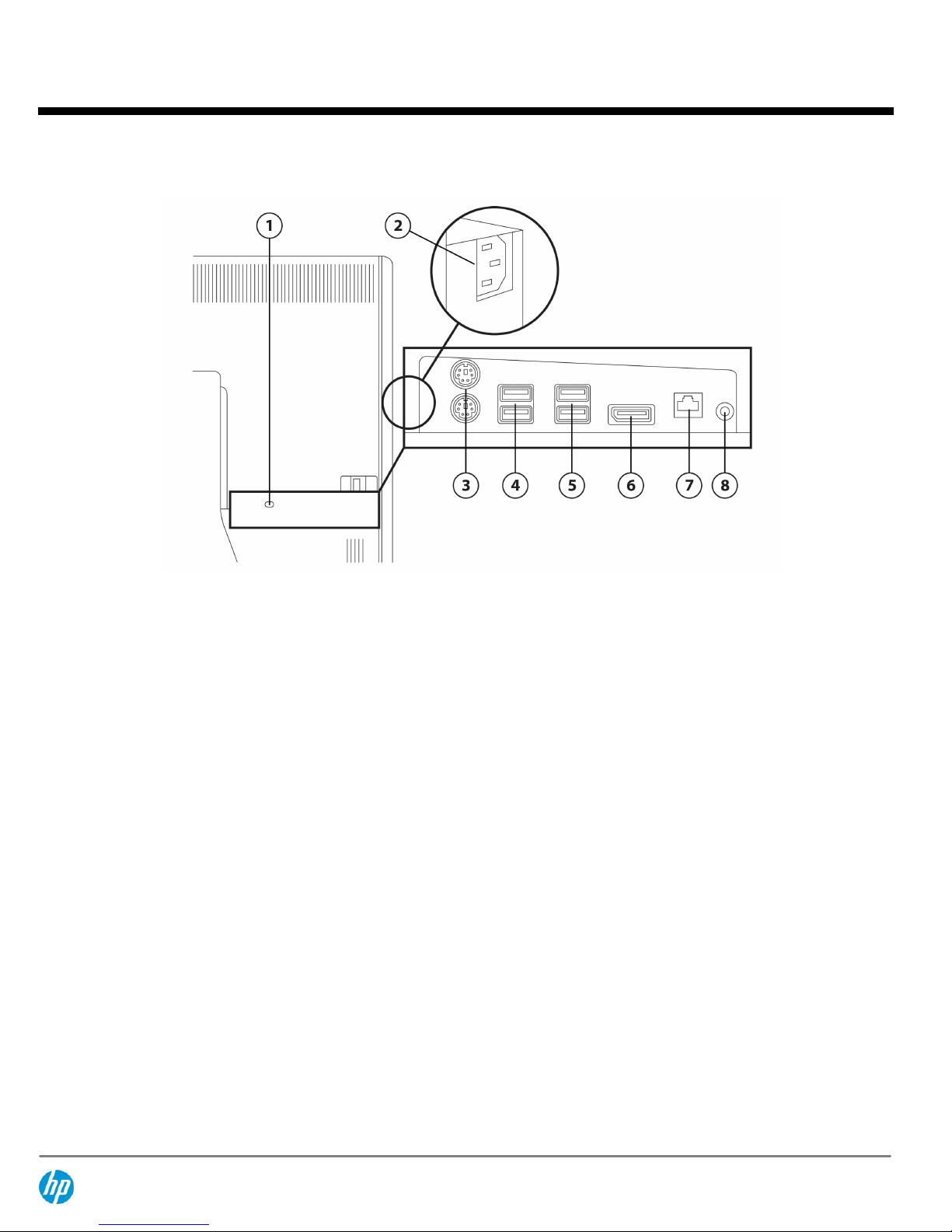

REAR PORTS (BEHIND COVER)

Security lock slot

Power connector

PS/2 mouse and keyboard connectors

(2) USB 2.0 ports

(2) USB 3.0 ports

DisplayPort connector

RJ-45 Gigabit Ethernet port

Stereo line out

QuickSpecs

HP COMPAQ PRO 6300 ALL-IN-ONE PC

Overview

DA - 14351 Worldwide — Version 35 — November 21, 2013

Page 3

HP COMPAQ PRO 6300 ALL-IN-ONE PC

SIDE

Slim tray-load optical drive

Security screw

Optional serial port

Power button

QuickSpecs

HP COMPAQ PRO 6300 ALL-IN-ONE PC

Overview

DA - 14351 Worldwide — Version 35 — November 21, 2013

Page 4

At A Glance

Windows 7 or Windows 8

UEFI BIOS developed and engineered by HP for better security, manageability and software image stability

Integrated all-in-one form factor

21.5-inch Full HD (1920 x 1080) diagonal widescreen WLED backlit anti-glare LCD

Landscape or portrait display orientation

Optional height adjustable/reclining stand

Intel® Q75 chipset

Intel 2nd & 3rd generation Core™ processors

Integrated Intel HD Graphics

Optional MXM Discrete graphics

Integrated Intel 82579LM Gigabit Network Connection

Optional wireless connectivity:

Intel Advanced-N 6205 WLAN (mini PCI Express)

Intel 802.11 a/b/g/n

WLAN (mini PCI Express)

HP 802.11 b/g/n

WLAN and Bluetooth Combo Card

HP 802.11 a/b/g/n

Bluetooth® 4.0

WiDi support (with Intel 6205 WLAN)

Optional Integrated 2.0 MP webcam & Dual Microphone Array

High performance integrated stereo speakers

Optional SRS Premium Sound™

Up to 16 GB of DDR3 SDRAM, dual channel memory support, two SODIMM slots

Support for up to 3 storage drives (2 SATA, 1 mSATA)

Up to 1 TB SATA hard drive, up to 128GB solid state drive, and 256GB Self-Encrypting Solid State Drive

Optional Slim Tray-load SuperMulti Optical Disc Drive or DVD ROM Optical Disc Drive

Optional SD Media Card Reader

Optional serial port

DisplayPort out

Integrated VESA 100min x 100max mounting hole

Lockable rear access panel with intrusion sensor

ENERGY STAR® qualified. EPEAT® registered where applicable/supported. See www.epeat.net for registration status by country.

CCC, CECP & SEPA Certified

Qualified for Microsoft Lync

TCO AiO and Edge

Arsenic Free

Protected by HP Services, including standard warranties up to 5-5-5 (terms and conditions vary by country; certain restrictions

and exclusions apply)

QuickSpecs

HP COMPAQ PRO 6300 ALL-IN-ONE PC

Overview

DA - 14351 Worldwide — Version 35 — November 21, 2013

Page 5

OPERATING SYSTEM

Preinstalled

Windows 8 Pro (64-bit)*

Windows 8 (64-bit)*

Windows® 7 Ultimate (32-bit)**

Windows® 7 Ultimate (64-bit)**

Windows® 7 Professional (32-bit)**

Windows® 7 Professional (64-bit)**

Windows® 7 Professional (32-bit) (available through downgrade rights from Windows 8 Pro)***

Windows® 7 Professional (64-bit) (available through downgrade rights from Windows 8 Pro)***

Windows® 7 Home Premium (32-bit)**

Windows® 7 Home Premium (64-bit)**

Windows® 7 Home Basic (32-bit)**

FreeDOS 2.0

Novell SUSE Linux Enterprise Desktop 11

*Not all features are available in all editions of Windows 8. Systems may require upgraded and/or

separately purchased hardware, drivers and/or software to take full advantage of Windows 8

functionality. See

http://www.microsoft.com

**Not all features are available in all editions of Windows 7. This system may require upgraded and/or

separately purchased hardware to take full advantage of Windows 7 functionality. See

http://windows.microsoft.com/en-us/windows7/products/home

for details.

***This system is preinstalled with Windows® 7 Pro software and also comes with a license and media

for Windows 8 Pro software. You may only use one version of the Windows software at a time.

Switching between versions will require you to uninstall one version and install the other version. You

must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid

loss of your data.

PROCESSOR

Intel® 3rd Generation Core™ i7 Processors

Intel® Core™ i7-3770S

Up to 3.9 GHz Max. Turbo Frequency (3.1 GHz base frequency), 8 MB cache, 4 cores, 8 threads

Intel HD Graphics 4000

Supports DDR3 memory up to 1600 MT/s data rate

Intel Stable Image Platform Program (SIPP)

Intel® 3rd Generation Core™ i5 Processors

Intel® Core™ i5-3570S

Up to 3.8 GHz Max. Turbo Frequency (3.1 GHz base frequency), 6 MB cache, 4 cores, 4 threads

Intel HD Graphics 2500

Supports DDR3 memory up to 1600 MT/s data rate

Intel Stable Image Platform Program (SIPP)

QuickSpecs

HP COMPAQ PRO 6300 ALL-IN-ONE PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14351 Worldwide — Version 35 — November 21, 2013

Page 6

Intel® Core™ i5-3475S

Up to 3.6 GHz Max. Turbo Frequency (2.9 GHz base frequency), 6 MB cache, 4 cores, 4 threads

Intel HD Graphics 4000

Supports DDR3 memory up to 1600 MT/s data rate

Intel Stable Image Platform Program (SIPP)

Intel® Core™ i5-3470S

Up to 3.6 GHz Max. Turbo Frequency (2.9 GHz base frequency), 6 MB cache, 4 cores, 4 threads

Intel HD Graphics 2500

Supports DDR3 memory up to 1600 MT/s data rate

Intel Stable Image Platform Program (SIPP)

Intel® 3rd Generation Core™ i3 Processors

Intel® Core™ i3-3240

3.4 GHz base frequency, 3 MB cache, 2 cores, 4 threads

Intel HD Graphics 2500

Supports DDR3 memory up to 1600 MT/s data rate

Intel® Core™ i3-3225

3.3 GHz base frequency, 3 MB cache, 2 cores, 4 threads

Intel HD Graphics 4000

Supports DDR3 memory up to 1600 MT/s data rate

Intel® Core™ i3-3220

3.3 GHz base frequency, 3 MB cache, 2 cores, 4 threads

Intel HD Graphics 2500

Supports DDR3 memory up to 1600 MT/s data rate

Intel® Core™ i3-3210

3.2 GHz base frequency, 3 MB cache, 2 cores, 4 threads

Intel HD Graphics 2500

Supports DDR3 memory up to 1600 MT/s data rate

Intel

® 3

Generation Pentium® Processors

Intel® Pentium® G2120

3.1 GHz base frequency, 3 MB cache, 2 cores, 2 threads

Intel HD Graphics

Supports DDR3 memory up to 1600 MT/s data rate

Intel® Pentium® G2020

2.9 GHz base frequency, 3 MB cache, 2 cores, 2 threads

Intel HD Graphics

Supports DDR3 memory up to 1333 MT/s data rate

Intel® Pentium® G2010

2.8 GHz base frequency, 3 MB cache, 2 cores, 2 threads

Intel HD Graphics

Supports DDR3 memory up to 1333 MT/s data rate

Intel® 2

Generation Pentium® Processors

Intel® Pentium® G870

3.1 GHz base frequency, 3 MB cache, 2 cores, 2 threads

Intel HD Graphics

Supports DDR3 memory up to 1333 MT/s data rate

QuickSpecs

HP COMPAQ PRO 6300 ALL-IN-ONE PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14351 Worldwide — Version 35 — November 21, 2013

Page 7

Intel® Pentium® G860

3.0 GHz base frequency, 3 MB cache, 2 cores, 2 threads

Intel HD Graphics

Supports DDR3 memory up to 1333 MT/s data rate

Intel® Pentium® G645

2.9 GHz base frequency, 3 MB cache, 2 cores, 2 threads

Intel HD Graphics

Supports DDR3 memory up to 1066 MT/s data rate

Intel® Pentium® G640

2.8 GHz base frequency, 3 MB cache, 2 cores, 2 threads

Intel HD Graphics

Supports DDR3 memory up to 1066 MT/s data rate

Intel® 3rd Generation Celeron® Processors

Intel® Celeron® G1620

2.7 GHz base frequency, 2 MB cache, 2 cores, 2 threads

Intel HD Graphics

Supports DDR3 memory up to 1333 MT/s data rate

Intel® Celeron® G1610

2.6 GHz base frequency, 2 MB cache, 2 cores, 2 threads

Intel HD Graphics

Supports DDR3 memory up to 1333 MT/s data rate

Intel® 2nd Generation Celeron® Processors

Intel® Celeron® G555

2.7 GHz base frequency, 2 MB cache, 2 cores, 2 threads

Intel HD Graphics

Supports DDR3 memory up to 1066 MT/s data rate

Intel® Celeron® G550

2.6 GHz base frequency, 2 MB cache, 2 cores, 2 threads

Intel HD Graphics

Supports DDR3 memory up to 1066 MT/s data rate

Intel® Celeron® G540

2.5 GHz base frequency, 2 MB cache, 2 cores, 2 threads

Intel HD Graphics

Supports DDR3 memory up to 1066 MT/s data rate

Intel® Celeron® G465

1.90 GHz base frequency, 1.5 MB cache, 1 core, 2 threads

Intel HD Graphics

Supports DDR3 memory up to 1066 MT/s data rate

Intel® Celeron® G460

1.80 GHz base frequency, 1.5 MB cache, 1 core, 1 thread

Intel HD Graphics

Supports DDR3 memory up to 1066 MT/s data rate

QuickSpecs

HP COMPAQ PRO 6300 ALL-IN-ONE PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14351 Worldwide — Version 35 — November 21, 2013

Page 8

CHIPSET

Intel® Q75

INTEL® STANDARD MANAGEABILITY

Includes DASH 1.0/1.1 compliance plus:

System Defense

Agent Presence

SOL/IDE Redirection

CISCO NAC/SDN support

ME Wake on LAN

Host Based Configuration

ME Firmware Rollback

IPv6 Support

DASH 1.0/1.1 compliance:

Boot Control

HW Inventory

SW Inventory

Power State Management

HW Alerting

SMBIOS

System Management BIOS, previously known as DMI BIOS, is used to store system management information.

GRAPHICS

Integrated

(depends on processor)

Intel HD Graphics: Basic, 2000, 2500, or 4000

Models with Intel Core i3/i5/i7 processors include HD 2000, 2500, or 4000 graphics. Models with Pentium or Celeron processors

include HD graphics. Please see specific processors for graphics configuration.

Discrete (optional)

AMD Radeon HD 7650A 2GB DDR3 MXM Graphics

Graphics controller

AMD Radeon HD 7650A

Core clock

600MHz max

Memory clock

800MHz max

Memory frame buffer

2GB, DDR3, 128-bit wide

Memory

2GB DDR3

Supported Graphics APIs

DX11, OpenGL, full 1080p Blu-Ray Disc

(H264) playback in hardware, Multi-

Stream DisplayPort support (supports up

to 4 displays total - 4 independent video

and audio streams)

QuickSpecs

HP COMPAQ PRO 6300 ALL-IN-ONE PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14351 Worldwide — Version 35 — November 21, 2013

Page 9

NVIDIA GeForce GT 630M 2GB DDR3 MXM Graphics

Graphics controller

NVIDIA GF108

Core clock

675MHz

Memory clock

900MHz

Memory frame buffer

2GB, DDR3, 128-bit wide

Memory

2GB DDR3

Supported Graphics APIs

DX11, OpenGL, full 1080p Blu-Ray Disc

(H264) playback in hardware

WIRELESS DISPLAY

WiDi support with Intel Advanced-N 6205 WLAN (mini PCI Express)

Desktop system requirements for Intel Wireless Display

System Component

Requirement

Processor

3rd generation Intel® Core processor

Graphics

Intel® HD Graphics

Wireless

Intel Advanced-N 6205 WLAN (mini PCI Express)

Software

Intel® My WiFi Technology and Intel® Wireless Display must be pre-installed and enabled.

Windows 7 64-bit, Home Premium, Ultimate or Professional

DISPLAY

21.5"diagonal TN widescreen WLED backlit anti-glare LCD; orientation designed to operate in portrait or landscape

Display Panel

Type

TN (Twisted Nematic) LED Backlit LCD

Viewable image area

(horizontal & vertical)

476.64 (H) x 268.11 (V)

Screen opening

(H x V)

479.8 (H) x 271.3 (V)

Resolution

1920 x 1080

Aspect ratio

16:9

Contrast ratio

(typical)

1000:1

Brightness

(typical)

250 nits (cd/m

)

Viewing angle

(typical)

85/85/80/80 (L/R/U/D)

Pixel pitch

0.248(H) x 0.248(V)

Backlight lamp life

(to half brightness)

30,000 hours minimum

Color support

Over 16 million colors (through FRC)

Color gamut

(typical)

72%

QuickSpecs

HP COMPAQ PRO 6300 ALL-IN-ONE PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14351 Worldwide — Version 35 — November 21, 2013

Page 10

Other manuals for Net PC 20

This manual suits for next models

Table of contents

Other HP Desktop manuals

HP Compaq dx2810 Microtower Setup guide

HP Xw4200 - Workstation - 1 GB RAM User manual

HP Pavilion Slimline s7400 - Desktop PC How to use

HP Compaq dx6050 MT Operating and maintenance manual

HP 175753-002 - iPAQ - 64 MB RAM Quick reference guide

HP Workstation xw4100 Use and care manual

HP Pavilion w1100 - Desktop PC User manual

HP Compaq Elite 8300 All-in-One Installation guide

HP IQ524 - TouchSmart - 4 GB RAM User manual

HP b2600 User manual

HP Media Center User manual

HP Pavilion Elite m9040n User manual

HP Presario SR1600 - Desktop PC Installation instructions

HP Compaq Presario User manual

HP Compaq Presario Manual

HP 510B - Minitower PC Manual

HP Compaq Presario Installation instructions

HP Vectra XA 5/xxx User manual

HP Vectra VL410 User manual

HP A524x - Pavilion - 512 MB RAM Installation instructions

HP Compaq Presario Manual

HP dx2200 - Microtower PC User manual

HP Pavilion a6000 User manual

HP Pavilion t408cl User manual

Popular Desktop manuals by other brands

Asus

Asus E210 Series user guide

Dell

Dell Inspiron 600m quick start

Dell

Dell Inspiron 3662 Service manual

TotalFlow

TotalFlow uFLO user manual

Logitech

Logitech MK320 quick start guide

Dell

Dell XPS 730 H2C Service manual

Sony

Sony Vaio Series operating instructions

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer quick start

Alto

Alto MD 250 instruction manual

Lenovo

Lenovo ThinkCentre Edge 72 Manual

Lenovo

Lenovo ThinkStation D20 Manual

Arbor Technology

Arbor Technology FPC-7800 Series user manual

Sony

Sony VAIO VGX-TP1 Series user guide

Asus

Asus Eee Box B204 user manual

Dell

Dell Optiplex 9010 All In One owner's manual

Everex

Everex eXplora user manual

Lenovo

Lenovo ThinkCentre M75e user guide

Dell

Dell Alienware Area-51 R4 Service manual
