HP Kayak XA 05xx PC Workstation—
Installing Accessories
In Your HP Minitower PC Workstation
Explains in detail how to install accessories, such as extra memory,
accessory boards, and additional disk drives.
Asmt-in.fm Page 1 Friday, March 26, 1999 10:22 AM
HP Kayak XA 05xx PC Workstation — Installing Accessories In Your HP Minitower PC
Workstation
Supported HP Accessories
2English
Supported HP Accessories
Contact your dealer for an up-to-date list of supported devices.
Up to six accessory boards
can be installed:
- One AGP slot (graphics)
- Three 32-bit PCI slots (one used by SCSI/LAN board on some models)
- One combination PCI or ISA slot
- One 16-bit ISA slot (used by audio board)

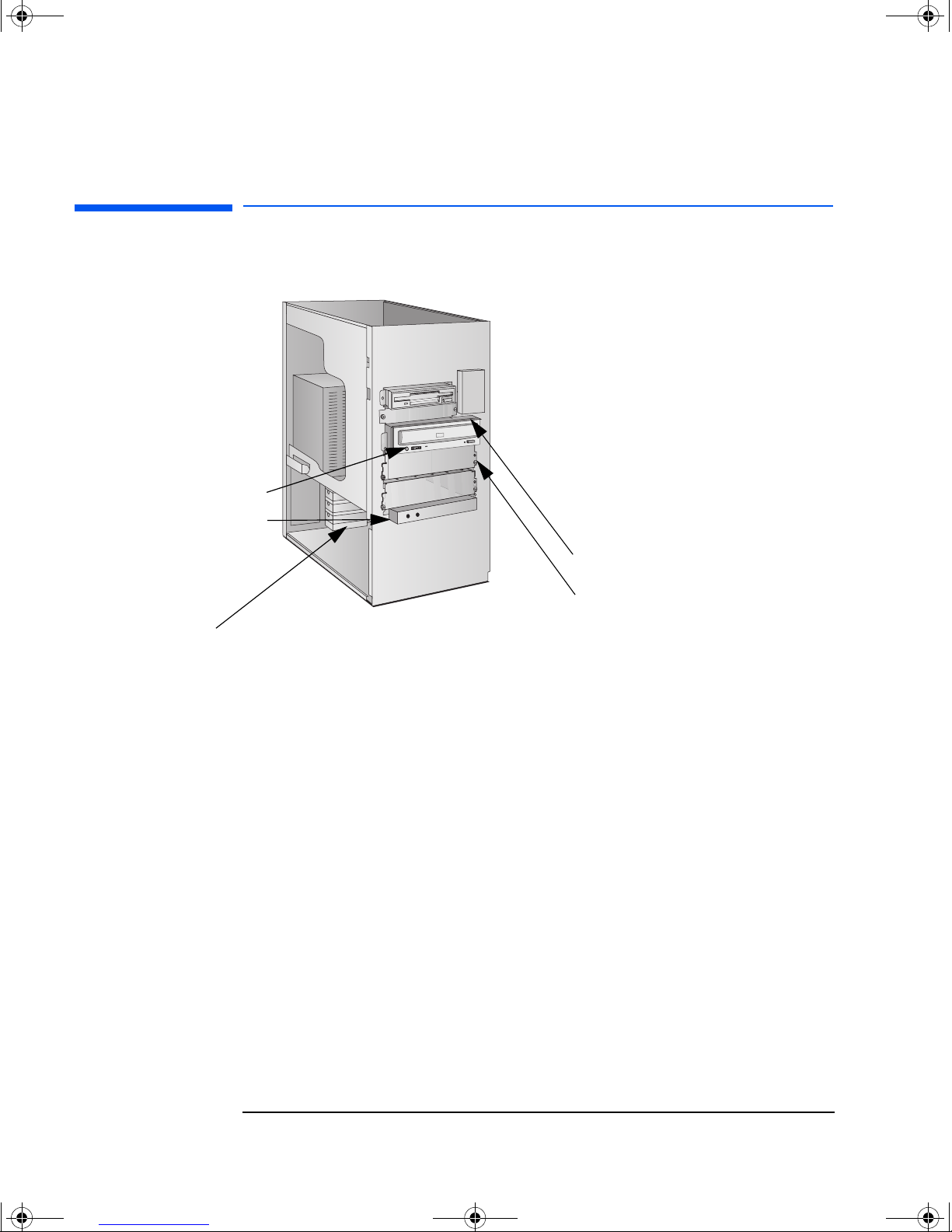

Front Access Drives, for example:
- 3.5-inch 1.44 MB flexible disk drive
(one third height)
- 5.25-inch DDS tape drive (half height)
Pack of five pairs of rails for
Front Access Devices:
- 3.5-inch disk drives (D3566A)
- 5.25-inch disk drives (D2880A)
Main Memory Upgrades
DIMM slots for 100 MHz SDRAM:
- 32 MB SDRAM (D6521A)
- 64 MB SDRAM (D6522A)
- 128 MB SDRAM (D6523A)
- 256 MB SDRAM (D6743A)
Asmt-in.fm Page 2 Friday, March 26, 1999 10:22 AM
English 3
HP Kayak XA 05xx PC Workstation — Installing Accessories In Your HP Minitower PC Workstation
Removing and Replacing the Cover
Removing and Replacing the Cover
WARNING For your safety, never remove the PC Workstation’s cover without first
removing the power cord from the power outlet, and any connection to
a telecommunications network. Always replace the cover on the
PC Workstation before switching it on again.

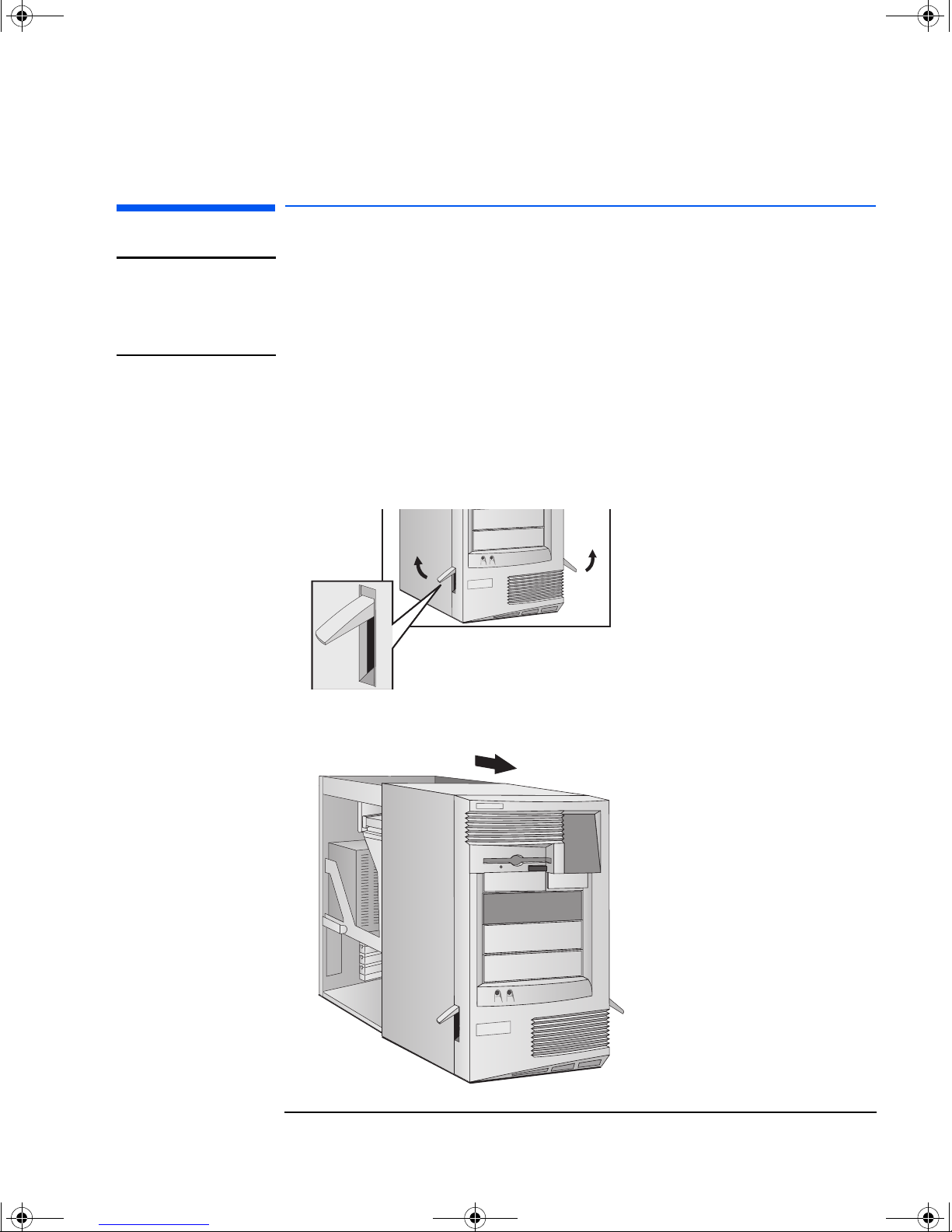

Removing the Cover
1Switch off the display and computer.
2Disconnect all power cables and any LAN or telecommunications
cables.
3If necessary, unlock the cover using the key on the back panel.
4Lift the two latches on the front sides of the computer upwards.
5Grasp the cover on the sides at the back of the computer and slide
it forwards and off the computer.
Asmt-in.fm Page 3 Friday, March 26, 1999 10:22 AM
HP Kayak XA 05xx PC Workstation — Installing Accessories In Your HP Minitower PC
Workstation
Removing and Replacing the Cover
4English

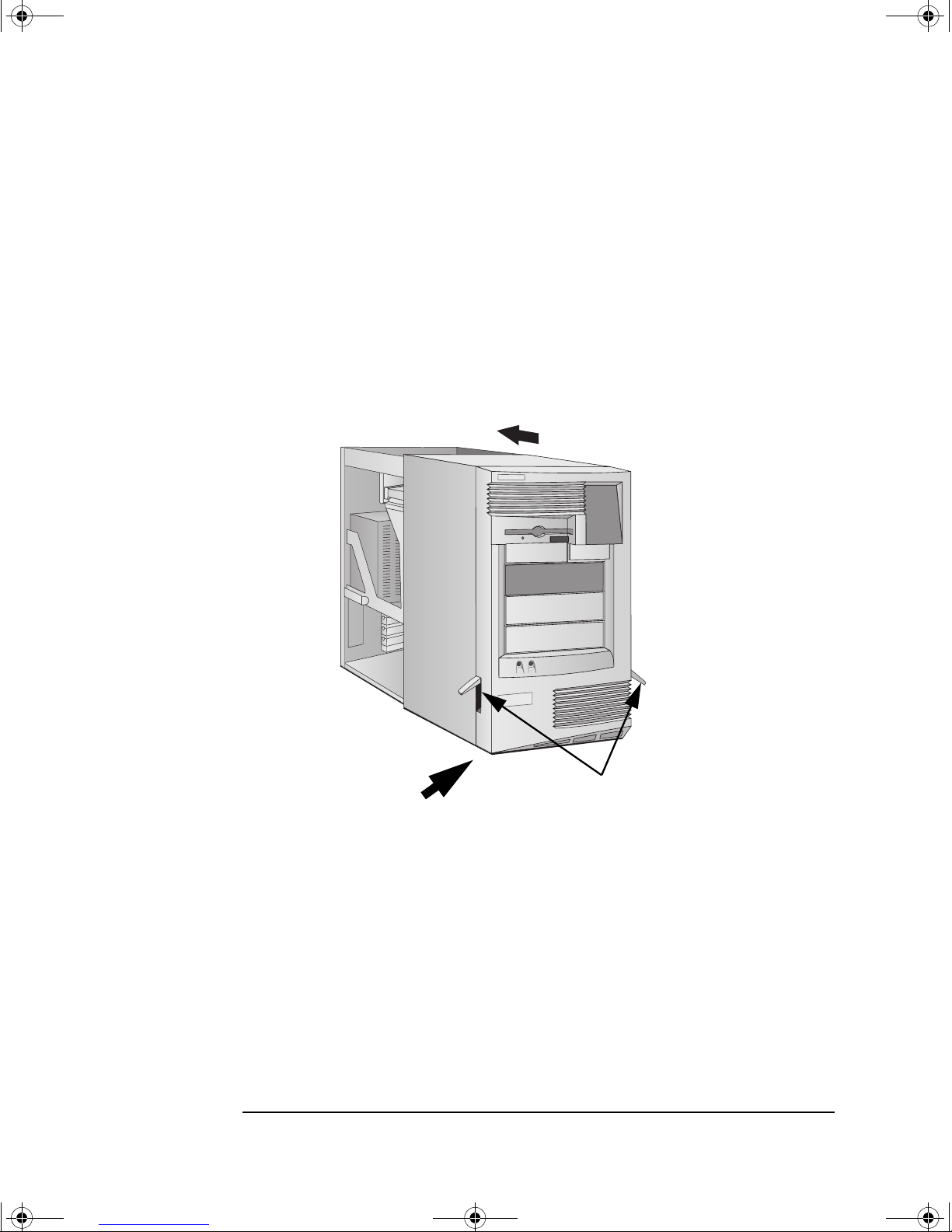

Replacing the Cover
1Ensure that you have installed all your accessories and that all
internal cables are properly connected and safely routed.
2Ensure that the two latches on the front sides of the cover are lifted
up, and that the lock is unlocked.
3Slide the cover onto the computer, making sure that the two guides
at the bottom of the case slide into the two rails at the base of the
computer. Firmly slide the cover backwards into position.
4Lower the latches on the front sides of the cover.
5If required, lock the cover using the key provided.
6Reconnect all the power and telecommunications cables.
Step 3. Press here on both
sides of the PC’s cover.
Step 4. Lower these two
latches to secure the cover.
Asmt-in.fm Page 4 Friday, March 26, 1999 10:22 AM
English 5
HP Kayak XA 05xx PC Workstation — Installing Accessories In Your HP Minitower PC Workstation

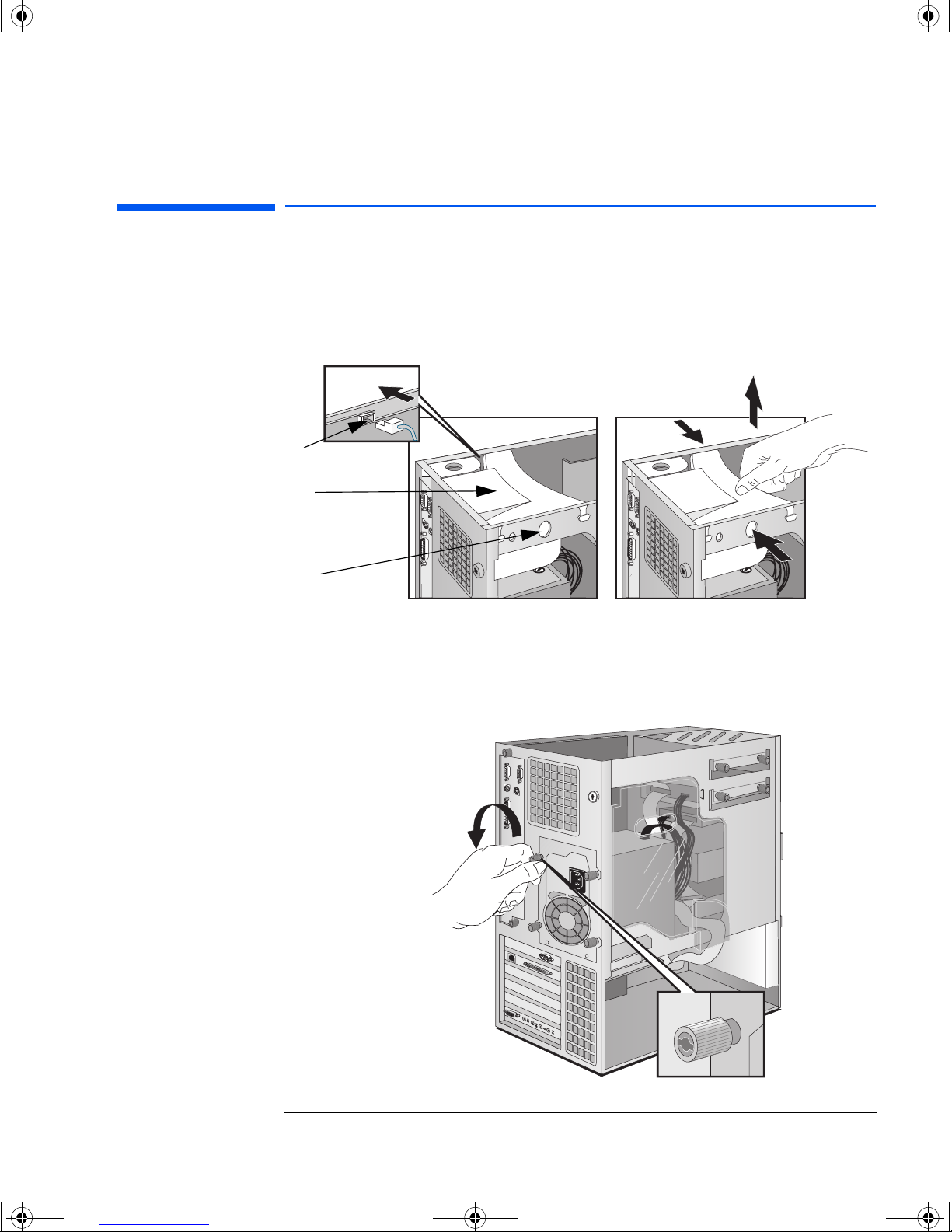

Moving the Power Supply
Moving the Power Supply
1Disconnect the computer’s power cord and any LAN cable.
2Remove the computer’s cover (see page 3).
3Remove the fan connection to the system board.
4Press the retaining buttons on each side of the HP UltraFlow airflow
guide and lift it out of the PC Workstation’s case.
5Unscrew the four self-retaining screws at the back of the power
supply.
HP UltraFlow
Airflow Guide
Retaining button
Fan connection to
system board
Unscrew the
self-retaining screws
Asmt-in.fm Page 5 Friday, March 26, 1999 10:22 AM
HP Kayak XA 05xx PC Workstation — Installing Accessories In Your HP Minitower PC
Workstation
Moving the Power Supply
6English
WARNING To avoid electrical shock, do not open the power supply.

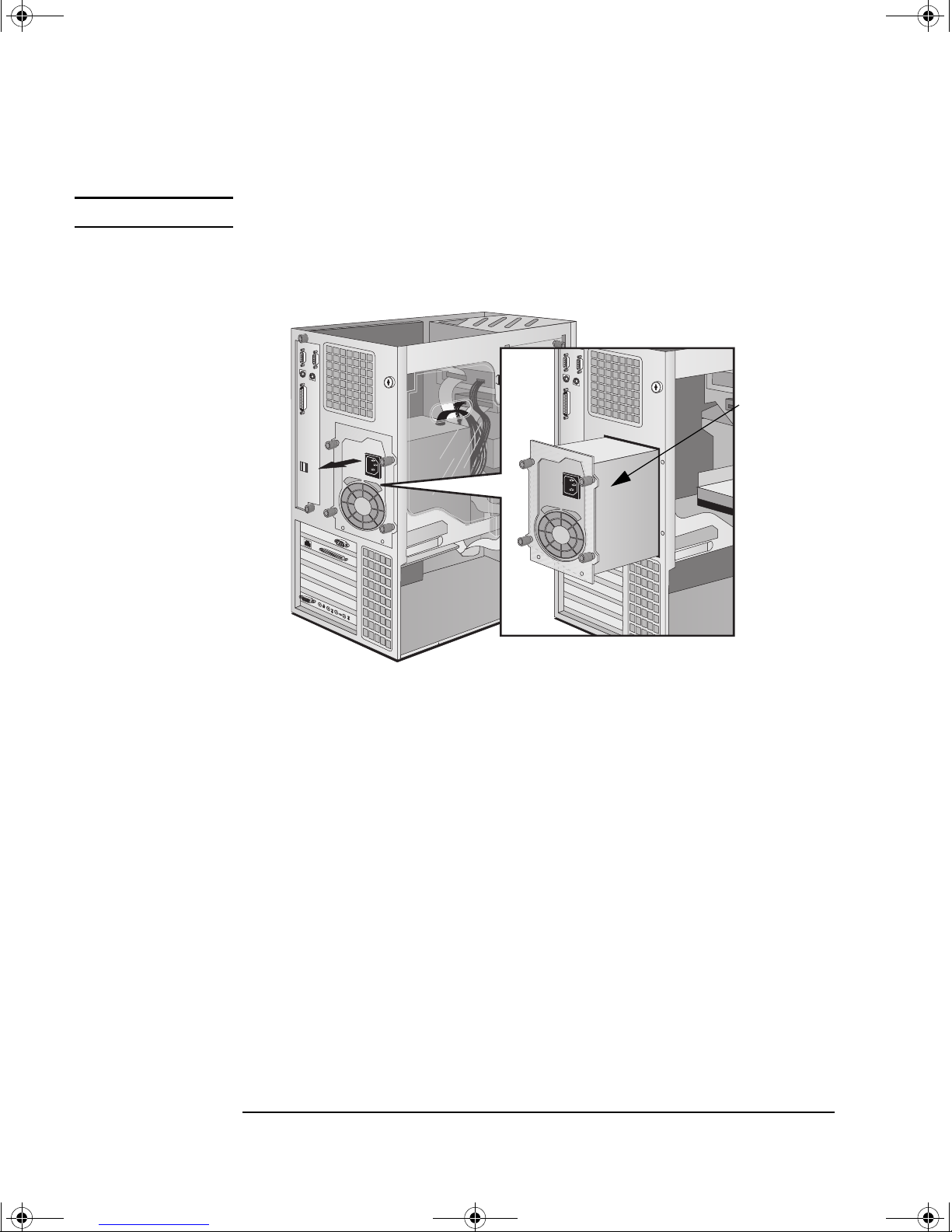

6Slide the power supply out of the computer until it stops—the
power supply unit remains connected to the computer.
Replacing the Power
Supply after Installing
Accessories
1Check that all internal cables are safely routed.
2Slide the power supply back into the computer.
3Tighten the four self-retaining screws.
4Replace the HP UltraFlow airflow guide.
5Reconnect the fan to the system board.
Slide the power
supply unit clear of
the computer
Power Supply
Asmt-in.fm Page 6 Friday, March 26, 1999 10:22 AM
English 7
HP Kayak XA 05xx PC Workstation — Installing Accessories In Your HP Minitower PC Workstation
Installing Memory
Installing Memory
Main Memory Modules
If you need more main memory, you can install up to 768 MB of
memory in three 100 MHz DIMM slots.
Main memory upgrades are available in single unbuffered 32 MB,
64 MB, 128 MB or 256 MB SDRAM memory modules.
CAUTION Static electricity can damage electronic components. Turn off all
equipment. Do not let your clothes touch the accessory.
To equalize the static electricity, rest the accessory bag on top of the
power supply while you are removing the accessory from the bag.
Handle the accessory as little as possible and with car
To install a main memory module:
1Disconnect the computer’s power cord and any LAN or
telecommunications cable.
2Remove the computer’s cover (see page 3).
3Remove the fan connection to the system board (see the illustration
on page 5).
4Press the retaining buttons on each side of the HP UltraFlow airflow
guide and lift it out of the PC Workstation’s case.
5Remove the airflow guide covering the processor sockets (if
needed).
6Remove the transparent SCSI holder to provide easy access to the
memory module slots.
Asmt-in.fm Page 7 Friday, March 26, 1999 10:22 AM
HP Kayak XA 05xx PC Workstation — Installing Accessories In Your HP Minitower PC
Workstation
Installing Memory
8English
7The location of the memory module slots is shown here.
8Slide the memory module into the slot at 90° to the system board
(with the cutouts furthest away from the processor).
9Firmly press the memory module completely into the connector
until the retaining clips click into position.
10 Repeat this procedure for each additional memory module you want
to install.
Slide the memory module
into the slot at 90oto the
system board
Push the module until
the retaining clips click
into position
Memory module
cutouts
Asmt-in.fm Page 8 Friday, March 26, 1999 10:22 AM
English 9
HP Kayak XA 05xx PC Workstation — Installing Accessories In Your HP Minitower PC Workstation
Installing Memory
11 Install any other accessories if necessary, then replace all units and
reconnect all cables and power cords. Replace the cover (see page
4).
12 Check the HP Summary Screen to verify the new configuration.
Video Adapter
Accessories Available
from Other Sources
Additional accessories, including a video MPEG module, are available
for your video adapter. However, these accessories cannot be ordered
from HP. Contact your dealer for more details about these accessories.
NOTE A video MPEG module is only available if your PC is equipped with the
Matrox Millennium G200 graphics accelerator.
Asmt-in.fm Page 9 Friday, March 26, 1999 10:22 AM
HP Kayak XA 05xx PC Workstation — Installing Accessories In Your HP Minitower PC
Workstation
Installing Mass Storage Devices
10 English
Installing Mass Storage Devices

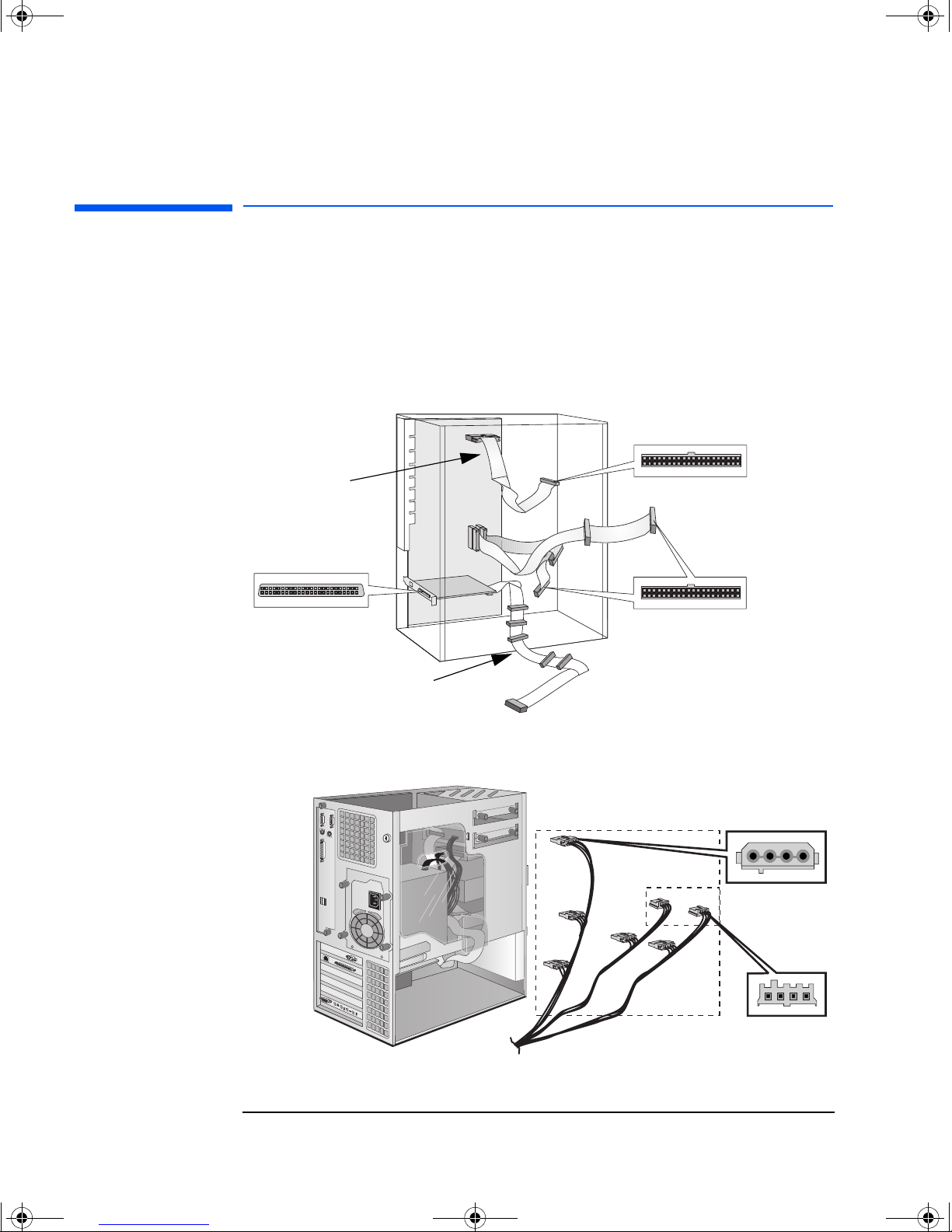

Connecting Devices
If you add an IDE Zip drive, hard disk drive, CD-ROM drive, CD-RW
drive, or tape drive, you need to connect it to power and data cables.
The data cables and connectors provided are shown below:
Cable with two 40-pin connectors for
IDE Drives, such as CD-ROM Drives,
Zip Drives or Hard Disk Drives.
34-pin connector
Cable with one
connector for
3.5-inch Flexible
Disk Drive
On selected models, a 16-bit SCSI with
five 68-pin SCSI connectors
On selected models, a
16-bit External 68-pin
SCSI connector
40-pin connectors
Power Cables for Hard Disk
Drives, Zip Drives, Tape Drives,
CD-RW, and CD-ROM Drives
Power Cable for 3.5-inch
Flexible Disk Drive
Asmt-in.fm Page 10 Friday, March 26, 1999 10:22 AM
