HP Compaq Elite 8300 All-in-One Installation guide

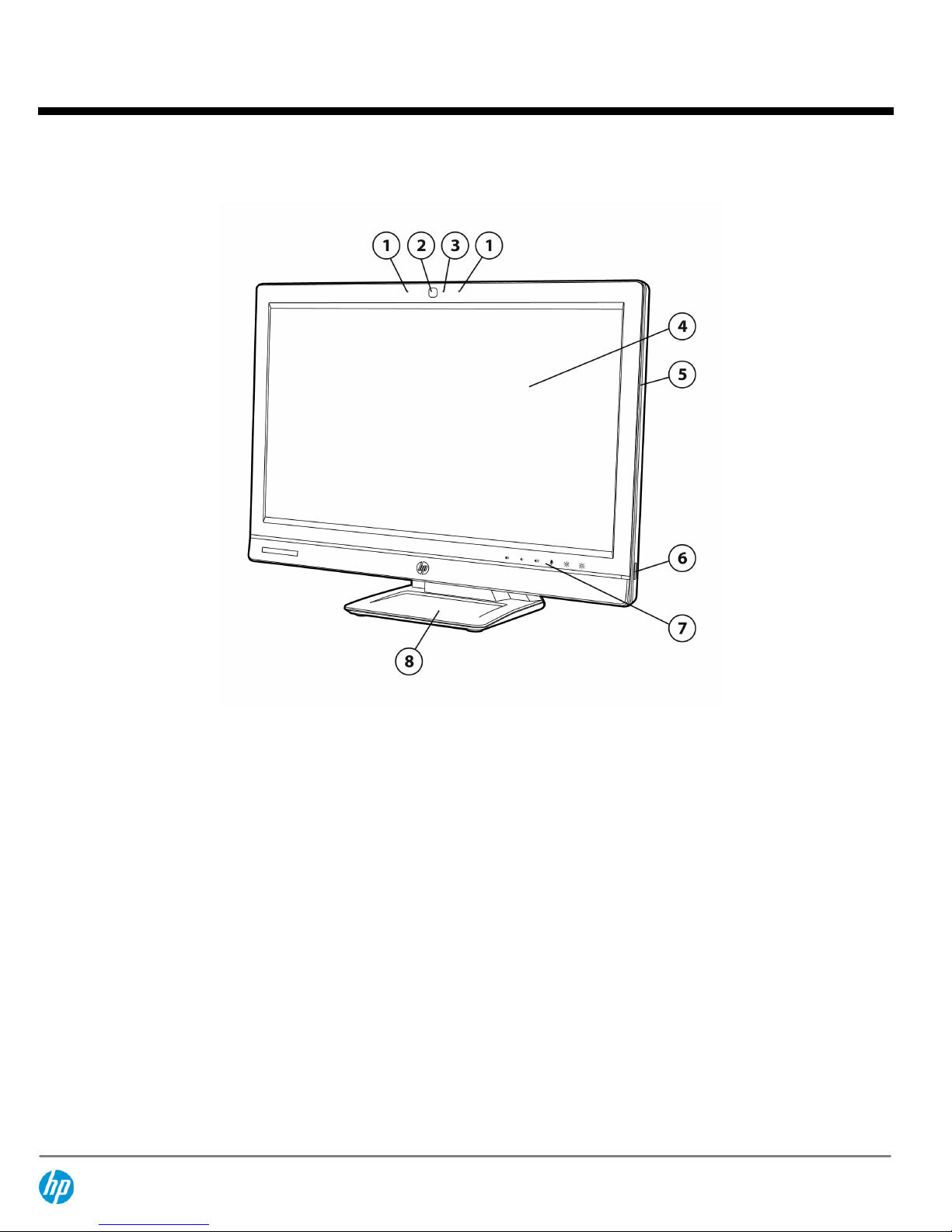

FRONT

Dual microphone array

2.0 MP Webcam (optional)

Webcam Activity LED (only on models with Webcam)

23-inch Full HD capable screen (with or without optical touch panel option)

Optical drive opening

Power button

Capacitive Controls for Brightness, Volume, Mic Mute, Speaker Mute

Stand(Can be configured with no stand, basic stand, or height adjustable/reclining stand)

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Overview

DA - 14352 EMEA — Version 38 — November 21, 2013

Page 1

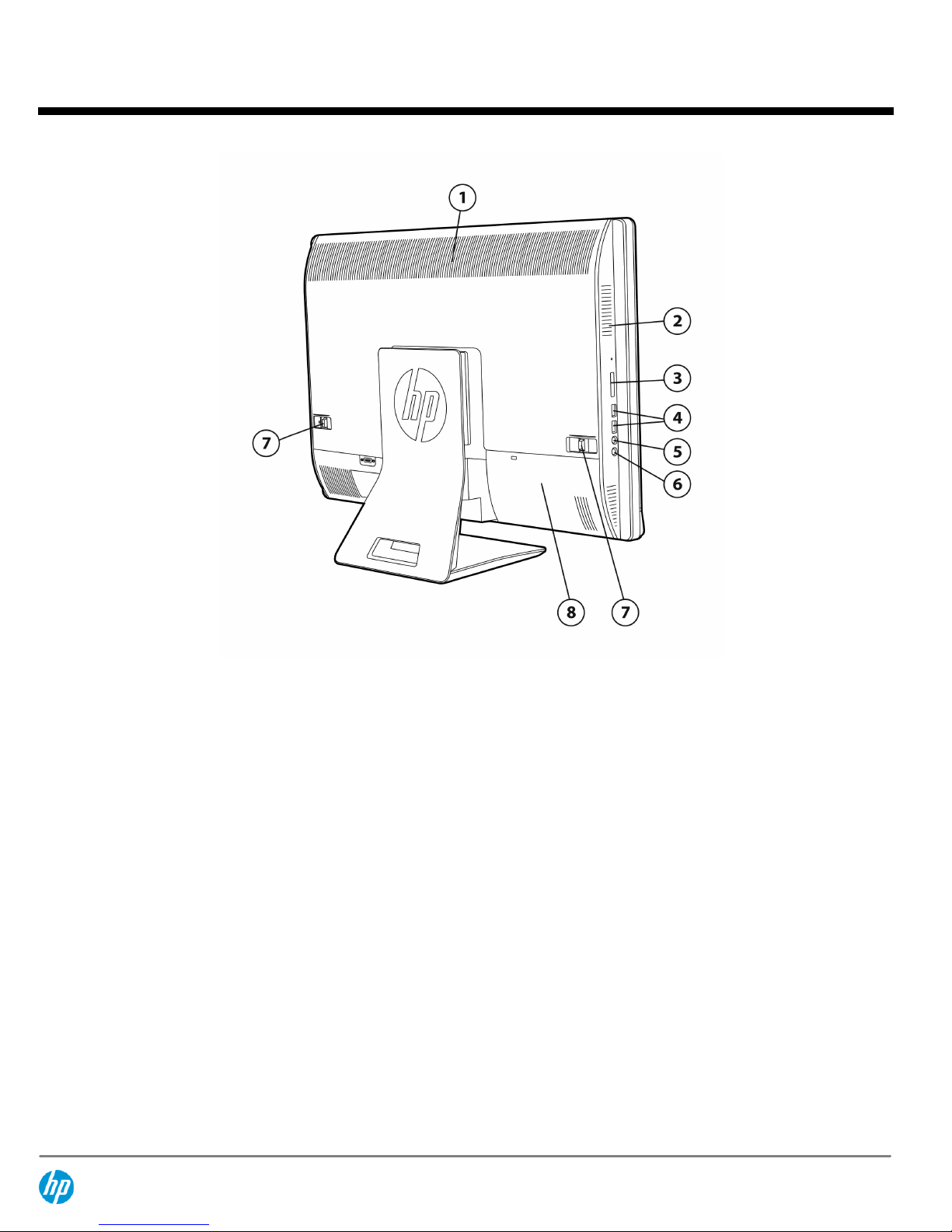

BACK

Vent slots

Side venting

SD Media Card Reader (optional)

(2) USB 3.0 ports

Mic input jack

Headphone jack

Access panel latches

Rear port cover

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Overview

DA - 14352 EMEA — Version 38 — November 21, 2013

Page 2

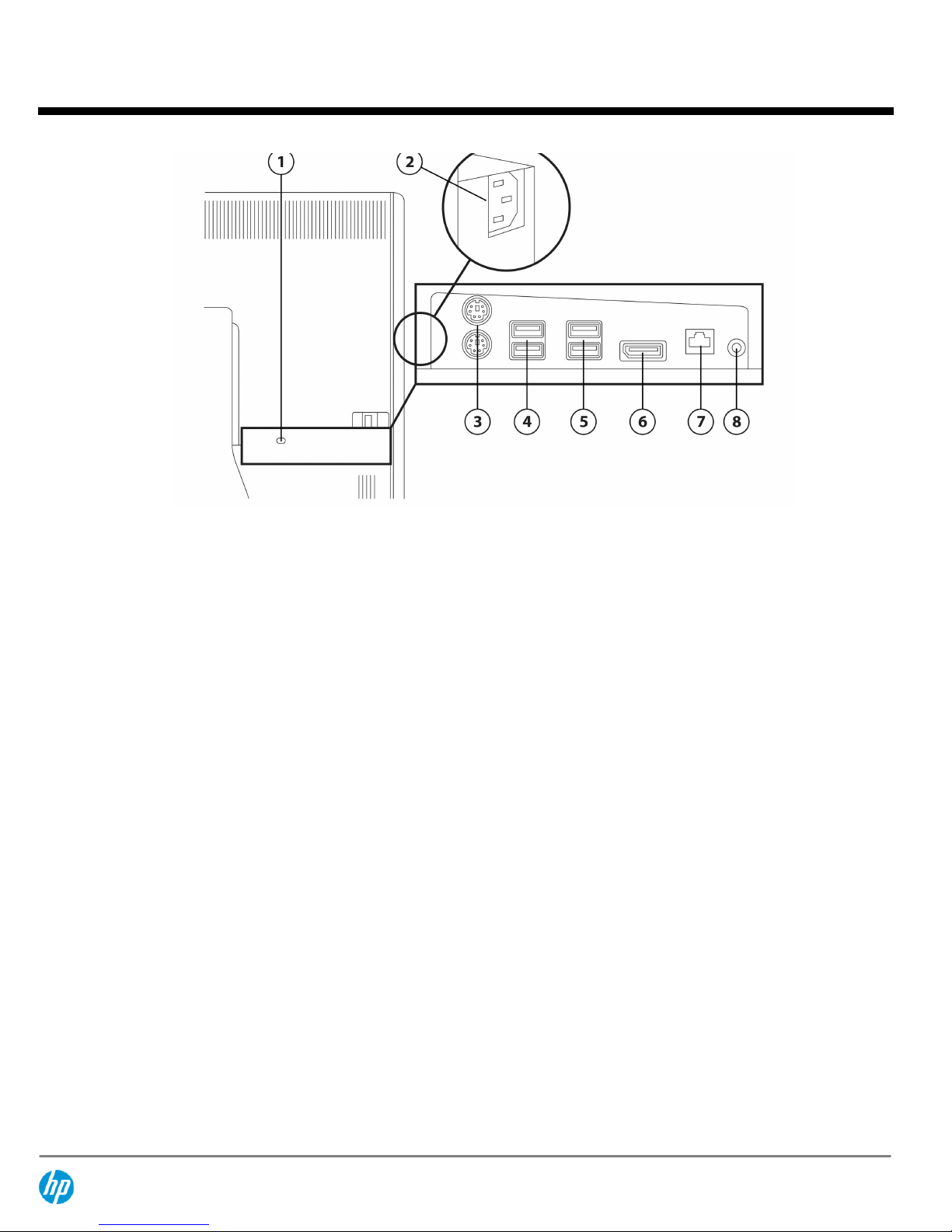

REAR PORTS (BEHIND COVER)

Security lock slot

Power connector

PS/2 mouse and keyboard connectors

(2) USB 2.0 ports

(2) USB 3.0 ports

DisplayPort connector

RJ-45 Gigabit Ethernet port

Stereo line out

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Overview

DA - 14352 EMEA — Version 38 — November 21, 2013

Page 3

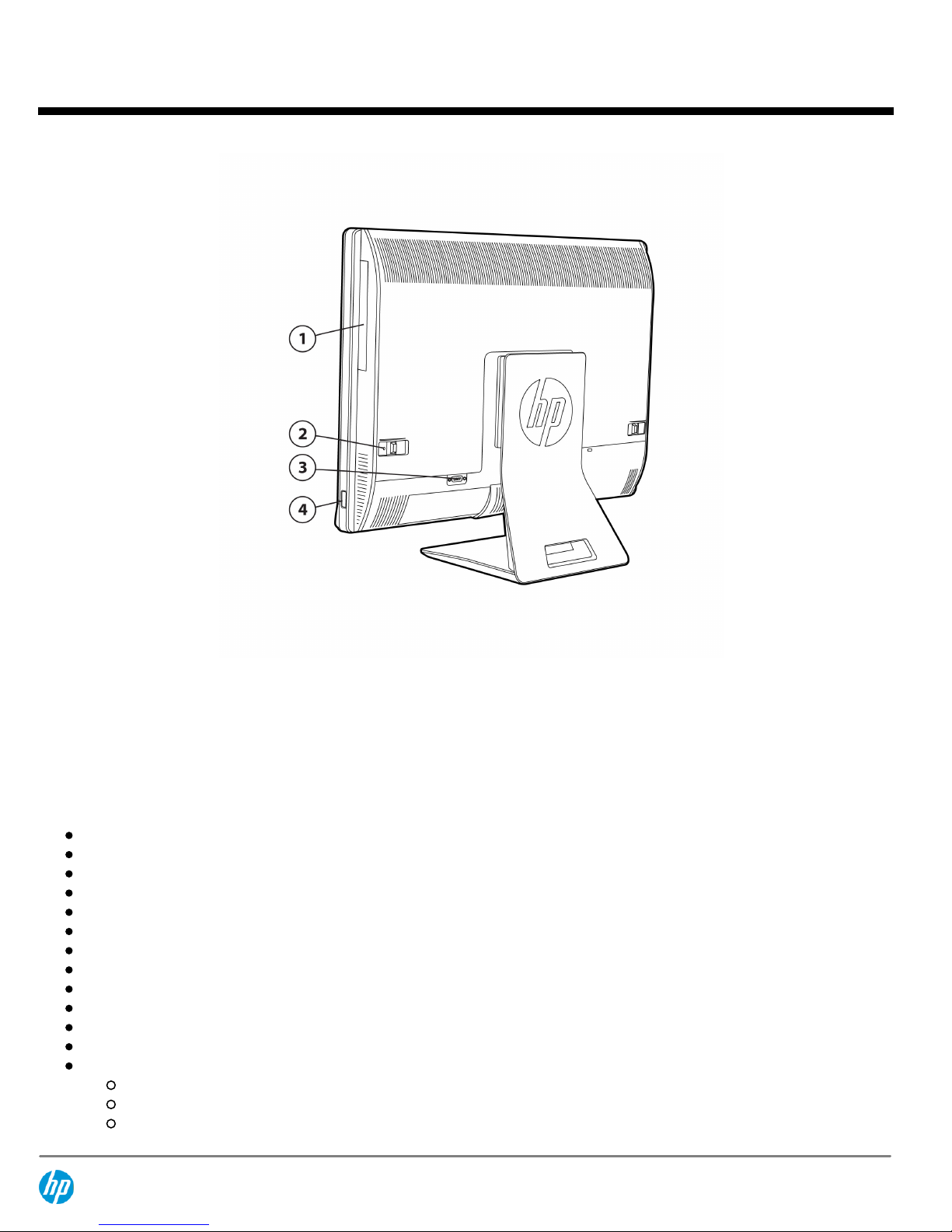

SIDE

Slim tray-load optical drive

Security screw

Optional serial port

Power button

At A Glance

Windows 7 or Windows 8

UEFI BIOS developed and engineered by HP for better security, manageability and software image stability

Integrated all-in-one form factor

23-inch (1920 x 1080) diagonal widescreen WLED backlit anti-glare LCD, with or without Optical Touch Panel option

Landscape or portrait display orientation

Optional height adjustable/reclining stand

Intel® Q77 chipset

Intel 2nd & 3rd generation Core™ processors

Intel vPro™ Technology available with select processors

Integrated Intel HD Graphics

Optional MXM Discrete graphics

Integrated Intel 82579LM Gigabit Network Connection

Optional wireless connectivity:

Intel Advanced-N 6205 WLAN (mini PCI Express) - Intel 802.11 a/b/g/n

WLAN (mini PCI Express) - HP 802.11 b/g/n

WLAN and Bluetooth Combo Card - HP 802.11 a/b/g/n and Bluetooth® 4.0

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Overview

DA - 14352 EMEA — Version 38 — November 21, 2013

Page 4

WiDi support (with Intel 6205 WLAN)

Optional Integrated 2.0 MP webcam & Dual Microphone Array

High performance integrated stereo speakers

SRS Premium Sound PRO™

Up to 16 GB of DDR3 SDRAM, dual channel memory support, two SODIMM slots

Support for up to 3 storage drives (2 SATA, 1 mSATA) with RAID support

Up to 1 TB SATA hard drive, up to 128GB Solid State Drive and 256GB Self-Encrypting Solid State Drive

Optional Intel Smart Response Technology support with 24GB mSATA SSD Flash Cache Module

Optional slim Tray-load SuperMulti Optical Disc Drive or DVD ROM Optical Disc Drive

Optional SD Media Card Reader

Optional serial port

DisplayPort out

Integrated VESA 100min x 100max mounting holes

Lockable rear access panel with intrusion sensor

ENERGY STAR® qualified. EPEAT® registered where applicable/supported. See www.epeat.net for registration status by country.

CCC, CECP & SEPA Certified

Qualified for Microsoft Lync

TCO AiO and Edge

Arsenic Free

Protected by HP Services, including standard warranties up to 5-5-5 (terms and conditions vary by country; certain restrictions

and exclusions apply)

Portrait orientation not recommended for Touch

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Overview

DA - 14352 EMEA — Version 38 — November 21, 2013

Page 5

OPERATING SYSTEM

Preinstalled

Windows 8 Pro (64-bit)*, ±

Windows 8 (64-bit)*, ±

Windows® 7 Ultimate (32-bit)**

Windows® 7 Ultimate (64-bit)**

Windows® 7 Professional (32-bit)**

Windows® 7 Professional (64-bit)**

Windows® 7 Professional (32-bit) (available through downgrade rights from Windows 8 Pro)***, ±

Windows® 7 Professional (64-bit) (available through downgrade rights from Windows 8 Pro)***, ±

Windows® 7 Home Premium (32-bit)**

Windows® 7 Home Premium (64-bit)**

Windows® 7 Home Basic (32-bit)** , ±

FreeDOS 2.0

Novell SUSE Linux Enterprise Desktop 11

±Not available with Touch option.

*Not all features are available in all editions of Windows 8. Systems may require upgraded and/or

separately purchased hardware, drivers and/or software to take full advantage of Windows 8

functionality. See

http://www.microsoft.com

**Not all features are available in all editions of Windows 7. This system may require upgraded and/or

separately purchased hardware to take full advantage of Windows 7 functionality. See

http://windows.microsoft.com/en-us/windows7/products/home

for details.

***This system is preinstalled with Windows® 7 Pro software and also comes with a license and media

for Windows 8 Pro software. You may only use one version of the Windows software at a time.

Switching between versions will require you to uninstall one version and install the other version. You

must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid

loss of your data.

PROCESSOR

Intel® 3rd Generation Core™ i7 Processors

Intel® Core™ i7-3770

Up to 3.9 GHz Max. Turbo Frequency (3.4 GHz base frequency), 8 MB cache, 4 cores, 8 threads

Intel HD Graphics 4000

Supports DDR3 memory up to 1600 MT/s data rate

Supports Intel vPro Technologies and Intel's Stable Image Platform Program (SIPP)

Intel® 3rd Generation Core™ i5 Processors

Intel® Core™ i5-3570

Up to 3.8 GHz Max. Turbo Frequency (3.4 GHz base frequency), 6 MB cache, 4 cores, 4 threads

Intel HD Graphics 2500

Supports DDR3 memory up to 1600 MT/s data rate

Supports Intel vPro Technologies and Intel's Stable Image Platform Program (SIPP)

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Standard Features

DA - 14352 EMEA — Version 38 — November 21, 2013

Page 6

Intel® Core™ i5-3470

Up to 3.6 GHz Max. Turbo Frequency (3.2 GHz base frequency), 6 MB cache, 4 cores, 4 threads

Intel HD Graphics 2500

Supports DDR3 memory up to 1600 MT/s data rate

Supports Intel vPro Technologies and Intel's Stable Image Platform Program (SIPP)

Intel® 3rd Generation Core™ i3 Processors

Intel® Core™ i3-3240

3.4 GHz base frequency, 3 MB cache, 2 cores, 4 threads

Intel HD Graphics 2500

Supports DDR3 memory up to 1600 MT/s data rate

Intel® Core™ i3-3225

3.3 GHz base frequency, 3 MB cache, 2 cores, 4 threads

Intel HD Graphics 4000

Supports DDR3 memory up to 1600 MT/s data rate

Intel® Core™ i3-3220

3.3 GHz base frequency, 3 MB cache, 2 cores, 4 threads

Intel HD Graphics 2500

Supports DDR3 memory up to 1600 MT/s data rate

Intel® Core™ i3-3210

3.2 GHz base frequency, 3 MB cache, 2 cores, 4 threads

Intel HD Graphics 2500

Supports DDR3 memory up to 1600 MT/s data rate

Intel® 3

Generation Pentium® Processors

Intel® Pentium® G2120

3.1 GHz base frequency, 3 MB cache, 2 cores, 2 threads

Intel HD Graphics

Supports DDR3 memory up to 1600 MT/s data rate.

Intel® Pentium® G2020

2.9 GHz base frequency, 3 MB cache, 2 cores, 2 threads

Intel HD Graphics

Supports DDR3 memory up to 1333 MT/s data rate

Intel® Pentium® G2010

2.8 GHz base frequency, 3 MB cache, 2 cores, 2 threads

Intel HD Graphics

Supports DDR3 memory up to 1333 MT/s data rate

Intel® 2

Generation Pentium® Processors

Intel® Pentium® G870

3.1 GHz base frequency, 3 MB cache, 2 cores, 2 threads

Intel HD Graphics

Supports DDR3 memory up to 1333 MT/s data rate

Intel® Pentium® G860

3.0 GHz base frequency, 3 MB cache, 2 cores, 2 threads

Intel HD Graphics

Supports DDR3 memory up to 1333 MT/s data rate

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Standard Features

DA - 14352 EMEA — Version 38 — November 21, 2013

Page 7

Intel® Pentium® G645

2.9 GHz base frequency, 3 MB cache, 2 cores, 2 threads

Intel HD Graphics

Supports DDR3 memory up to 1066 MT/s data rate

Intel® Pentium® G640

2.8 GHz base frequency, 3 MB cache, 2 cores, 2 threads

Intel HD Graphics

Supports DDR3 memory up to 1066 MT/s data rate

CHIPSET

Intel® Q77

INTEL VPRO TECHNOLOGY CAPABLE

Intel Core i5 with vPro and Core i7 with vPro technology is a selectable feature that is available on units configured with select

processors, and a preinstalled Windows operating system. It provides advances in remote manageability, security, energy

efficient performance, and wireless connectivity. Intel Active Management Technology 8.0 (iAMT) offers an advanced set of

remote management features and functionality which provides network administrators the latest and most effective tools to

remotely discover, heal, and protect networked client systems regardless of the system's health or power state. AMT 8.0 includes

the following advanced management functions:

Power Management (on, off, reset)

Hardware Inventory (includes BIOS and firmware revisions

Hardware Alerting

Agent Presence

System Defense Filters

SOL/IDER

Cisco NAC/SDN Support

ME Wake-on-LAN

DASH 1.1 compliance

IPv6 Support

Fast Call for Help - a client inside or outside the firewall may initiate a call for help via BIOS screen, periodic connections, or

alert triggered connection

Remote Scheduled Maintenance - pre-schedule when the PC connects to the IT or service provider console for maintenance.

Remote PCs can get required patches, be inventoried, etc by connecting to their IT console or Service Provider when it's

convenient

Remote Alerts - automatically alert IT or service provider if issues arise

Access Monitor - Provides oversight into Intel® AMT actions to support security requirements

PC Alarm Clock

Microsoft NAP Support

Host Base set-up and configuration

Management Engine (ME) firmware roll back

Wireless AMT functionality on Desktop (WoDT)*

Enhanced KVM resolution

* Requires Intel Advanced-N 6205 WLAN 802.11a/b/g/n PCIe Minicard Wireless Module

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Standard Features

DA - 14352 EMEA — Version 38 — November 21, 2013

Page 8

INTEL® STANDARD MANAGEABILITY

Includes DASH 1.0/1.1 compliance plus:

System Defense

Agent Presence

SOL/IDE Redirection

CISCO NAC/SDN support

ME Wake on LAN

Host Based Configuration

ME Firmware Rollback

IPv6 Support

DASH 1.0/1.1 compliance:

Boot Control

HW Inventory

SW Inventory

Power State Management

HW Alerting

SMBIOS

System Management BIOS, previously known as DMI BIOS, is used to store system management information

GRAPHICS

Integrated

(depends on processor)

Intel HD Graphics: Basic, 2000, 2500, or 4000

Models with Intel Core i3/i5/i7 processors include HD 2000, 2500, or 4000 graphics. Models with Pentium or Celeron processors

include HD graphics. Please see specific processors for graphics configuration.

Discrete (optional)

AMD Radeon HD 7650A 2GB DDR3 MXM Graphics

Graphics controller

AMD Radeon HD 7650A

Core clock

600MHz max

Memory clock

800MHz max

Memory frame buffer

2GB, DDR3, 128-bit wide

Memory

2GB DDR3

Supported Graphics APIs

DX11, OpenGL, full 1080p Blu-Ray Disc

(H264) playback in hardware, Multi-

Stream DisplayPort support (supports up

to 4 displays total - 4 independent video

and audio streams)

NVIDIA GeForce GT 630M 2GB DDR3 MXM Graphics

Graphics controller

NVIDIA GF108

Core clock

675MHz

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Standard Features

DA - 14352 EMEA — Version 38 — November 21, 2013

Page 9

Memory clock

900MHz

Memory frame buffer

2GB, DDR3, 128-bit wide

Memory

2GB DDR3

Supported Graphics APIs

DX11, OpenGL, full 1080p Blu-Ray Disc

(H264) playback in hardware

WIRELESS DISPLAY

WiDi support with Intel Advanced-N 6205 WLAN (mini PCI Express)

Desktop system requirements for Intel Wireless Display

System Component

Requirement

Processor

3rd generation Intel® Core processor

Graphics

Intel® HD Graphics

Wireless

Intel Advanced-N 6205 WLAN (mini PCI Express)

Software

Intel® My WiFi Technology and Intel® Wireless Display must be pre-installed and enabled.

Windows 7 64-bit, Home Premium, Ultimate or Professional

DISPLAY

Optical and non-touch

23"diagonal TN widescreen WLED backlit anti-glare

LCD; orientation designed to operate in portrait or landscape; with or without

Optical Touch Panel option

Display Panel

Type

TN (Twisted Nematic) LED Backlit LCD

Viewable image area - 23" models

(horizontal & vertical)

509.76(H) x 286.74(V)

Screen opening 23" models

(H x V)

513.8 (H) x 290.8 (V)

Native Resolution

1920 x 1080

Aspect ratio

16:9

Contrast ratio

(typical)

1000:1

Brightness

(typical)

250 nits (cd/m

)

Viewing angle

(typical)

85/85/80/80 (L/R/U/D)

Pixel pitch

0.2655(H) x 0.2655(V)

Backlight lamp life

(to half brightness)

30,000 hours minimum

Color support

Over 16 million colors (through FRC)

Color gamut

(typical)

72%

Anti-glare

Yes

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Standard Features

DA - 14352 EMEA — Version 38 — November 21, 2013

Page 10

Other manuals for Compaq Elite 8300 All-in-One

Table of contents

Other HP Desktop manuals

HP 330 How to use

HP Compaq dc5750 Series User instructions

HP i2000 Quick start guide

HP Pavilion 9690C User manual

HP Slate 21 User manual

HP Compaq dc5750 SFF Manual

HP Z600 - Workstation - 6 GB RAM User manual

HP s3700f - Pavilion - Slimline Use and maintenance manual

HP A1710n - Pavilion - 1 GB RAM User manual

HP Compaq dc5700 MT Operating and maintenance manual

HP Pavilion 512 Manual

HP 280 Pro G2 Small Form Factor Assembly instructions

HP 9000 200 Series User manual

HP D6030A - NetServer - E50 User manual

HP Pro 3000 MT Operating and maintenance manual

HP Pavilion t207 User manual

HP D6030A - NetServer - E50 User manual

HP ms6005 Operating and maintenance manual

HP EliteDesk 800 G3 Installation instructions

HP Visualize J5000 Manual

HP Vectra VL6 7 User manual

HP 742n - Pavilion - 512 MB RAM User manual

HP Xw6200 - Workstation - 2 GB RAM Use and care manual

HP Pavilion dv9000 Manual

Popular Desktop manuals by other brands

Asus

Asus E210 Series user guide

Dell

Dell Inspiron 600m quick start

Dell

Dell Inspiron 3662 Service manual

TotalFlow

TotalFlow uFLO user manual

Logitech

Logitech MK320 quick start guide

Dell

Dell XPS 730 H2C Service manual

Sony

Sony Vaio Series operating instructions

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer quick start

Alto

Alto MD 250 instruction manual

Lenovo

Lenovo ThinkCentre Edge 72 Manual

Lenovo

Lenovo ThinkStation D20 Manual

Arbor Technology

Arbor Technology FPC-7800 Series user manual

Sony

Sony VAIO VGX-TP1 Series user guide

Asus

Asus Eee Box B204 user manual

Dell

Dell Optiplex 9010 All In One owner's manual

Everex

Everex eXplora user manual

Lenovo

Lenovo ThinkCentre M75e user guide

Dell

Dell Alienware Area-51 R4 Service manual
