Hoover HNC180-80 User manual

DRYER

31100198 HNC180-80

Service Manual

31100198 HNC180-80 0637 (12/09/2006)

Ref. Descrizione - Description - Beschreibung - Descripcion

Fine

Ending

Fin

End

Fin

Inizio

Beginning

Debut

Begin

Inicio

Ricambio

Part No.

Piece

E-Teil

Pieza

14a Drying knob 40001287

19a Button on/off 40001290

31 Control panel 40004683

48 R/H side frame 40001549

48a L/H side frame 40001550

49 Top rear frame 40001551

49g Trade mark plate 91617795

51 Work top 40001548

60 Hinge 40001064

76 Cabinet-assy 40004167 0730 (27/07/2007)

76 Cabinet-assy 40004998 0730 (27/07/2007)

77 Rear panel 97921738 0644 (01/11/2006)

77 Rear panel 40004062 0644 (01/11/2006)

79 Rear foot 40002885

82 Door panel 40001285

88 Front panel 40004099

133 Hose clip 92470012 0730 (27/07/2007)

135 Water valve 03860531 0730 (27/07/2007)

135 Water valve 40004935 0730 (27/07/2007)

135a Valve body 03860530 0730 (27/07/2007)

135b Foam ring 03620295 0730 (27/07/2007)

136 Water container valve 03860523 0730 (27/07/2007)

136 Water container valve 40004933 0730 (27/07/2007)

136a OR (O-Ring) 25156026 0730 (27/07/2007)

136b O-Ring small 25156027 0730 (27/07/2007)

136c O-Ring large 25156025 0730 (27/07/2007)

153 Pressure switch 28375043 0730 (27/07/2007)

155 Indicator liht 91209510

156c Capacitor 8 MF 09069857

157 Harness 40004120 0730 (27/07/2007)

157 Harness 40004995 0730 (27/07/2007)

158 Main block 91623678

162 Microswitch 28353502

31100198 HNC180-80 0637 (12/09/2006)

Ref. Descrizione - Description - Beschreibung - Descripcion

Fine

Ending

Fin

End

Fin

Inizio

Beginning

Debut

Begin

Inicio

Ricambio

Part No.

Piece

E-Teil

Pieza

163 Microswitch holder 03870737

164 Anti jamming filter radio 91200489

171 Main motor 09200642

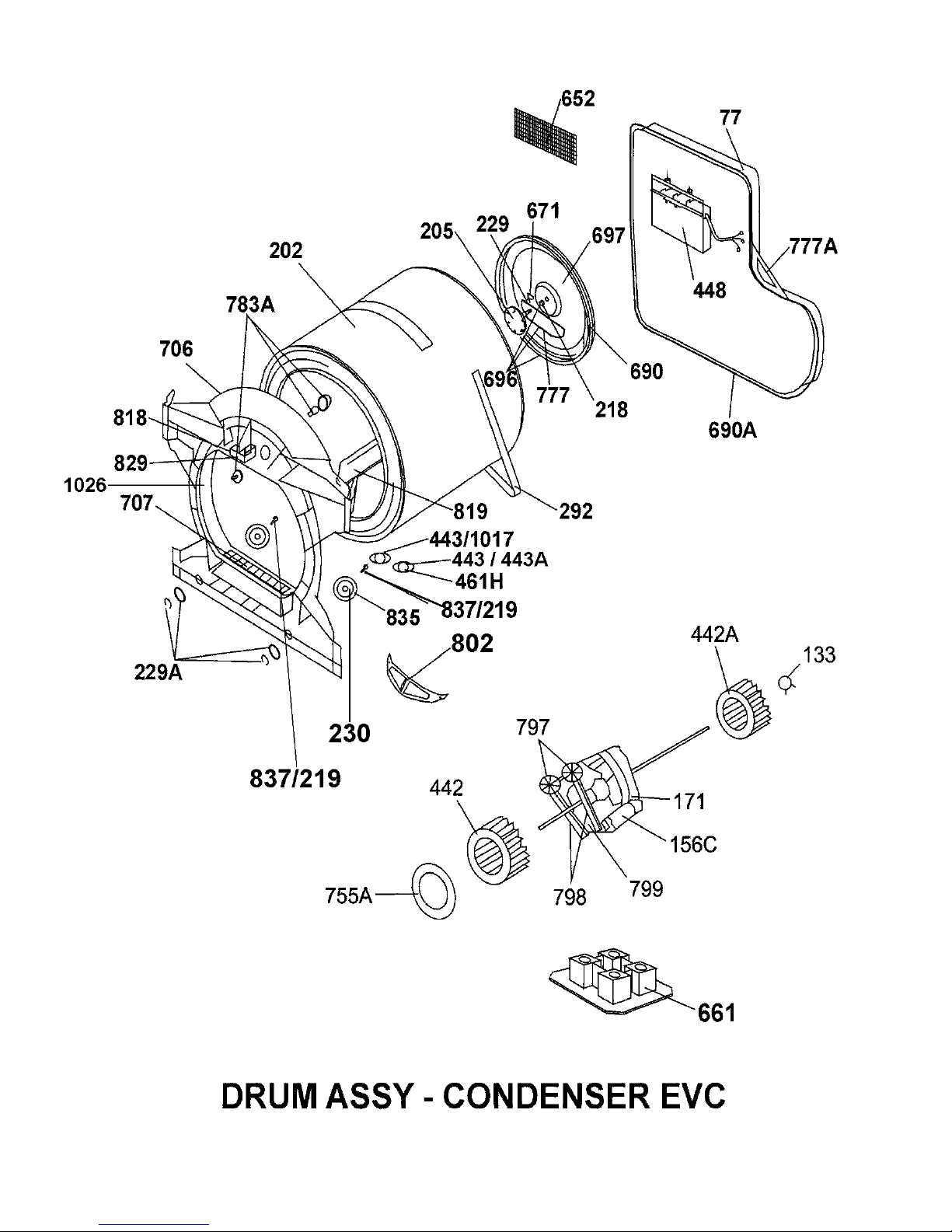

202 Drum 40002637

205 Drum shaft assy 09200336

218 Bearing 03210179

219 Bolt 21446068 0649 (04/12/2006)

229 Circlip 97911424

229a Circlip/washer kit for wheels 09200457 0649 (04/12/2006)

230 Bearing clamp 40004306 0649 (04/12/2006)

265 Relay 91201247

271 Door gasket 40001055

292 Drive belt 40001012

420 Time lag device 97923304 0730 (27/07/2007)

420 Time lag device 40005009 0730 (27/07/2007)

442 Fan 03870702 0730 (27/07/2007)

442 Fan 40004669 0730 (27/07/2007)

442a Rear fan 40001069

443 Thermostat 40001954 0730 (27/07/2007)

443 Thermostat 40003336 0730 (27/07/2007)

448 Heather 40004317 0730 (27/07/2007)

448 Heather 40004316 0730 (27/07/2007)

491 Main cable 91201807

494 Red window 40001365

520 Door coupler 09200399

618 Unipolar NC switch 41006060

619 Bipolar switch NA 41012643

631 Stopper 03730696

647 Water condenser 04350217

671 Washer 03610428

690 Rear sealing felt 03870676

690a Rear cover seal 97921746 0644 (01/11/2006)

690a Rear cover seal 40004577 0644 (01/11/2006)
