Honeywell VISTA-128BPT Installation guide

RadioRA 2 Interfacing with Honeywell Vista-128BPT Security Syste s Page 1

Interfacing Lutron RadioRA 2

Systems with

Honeywell Vista-128BPT Security Systems

revision A

RadioRA 2 Interfacing with Honeywell Vista-128BPT Security Syste s Page 2

Interfacing Lutron RadioRA 2

Systems with

Honeywell Vista-128BPT Security Systems

Overview

RadioRA 2

is capable of direct integration with the Honeywell Vista-128BPT security panel. Integrating RadioRA 2 with a

security system enables many new features beyond intrusion alert. By incorporating lighting control, shades, temperature,

and small appliance control, RadioRA 2 offers energy savings, convenience, and ambiance that the homeowner can enjoy

every day.

Required components

In order to interface RadioRA 2 with a Vista-128BPT security panel, you will need the following items:

•RadioRA 2 system installed

•RadioRA 2 programming software version 5.0 or higher.

•Honeywell Vista-128BPT security panel installed and programmed (to enable the extra settings to allow

integration—not covered in the Honeywell instructions—see Appendix 2)

•Null Modem Serial cable or straight-through Serial cable with a Null Modem adapter

RadioRA 2 Interfacing with Honeywell Vista-128BPT Security Syste s Page 3

Wiring

RadioRA 2 Interfacing with Honeywell Vista-128BPT Security Syste s Page 4

Programming Overview

Programming a RadioRA 2 system to interface with a Honeywell Vista-128BPT security panel is done in four phases:

1.) Install and program the Honeywell Vista-128BPT security system according to Honeywell instructions.

2.) Program the Vista-128BPT to enable the extra settings to allow the integration, not covered in the Honeywell instructions

(see Appendix 2).

3.) Install and program the Lutron RadioRA 2 system using RadioRA 2 programming software version 5.0 or higher.

4.) Program appropriate phantom buttons associated with each security action, as described in the following section.

Programming Phantom Buttons for Security

Actions in the Honeywell Vista-128BPT security panel will send RS-232 commands to the RadioRA 2 system. Each command is

associated with a specific phantom button, and each phantom button may be programmed to deliver a desired scene. When a

command is received from the security system, the corresponding phantom button is automatically “pressed”. For certain

buttons, a Time of Day feature has been pre-programmed so that the most appropriate action takes place.

The RadioRA 2 Main Repeater has 100 phantom buttons available for use with integration. Buttons 76-100 are configured to

receive commands from the Honeywell Vista Turbo system. Table 1 shows how each security action is associated with RadioRA

2 phantom buttons and Table 2 offers a recommended scene for each phantom button. The Time of Day, when various actions

will take place, is also specified. Table 3 provides a timeline illustrating how the RadioRA 2 system will automatically respond to

various security commands throughout the day.

Note: If the Honeywell Vista-128BPT system has no partitions, use phantom buttons associated with partition 1. See Table 2 for

the phantom button to partition mapping.

RadioRA 2 Interfacing with Honeywell Vista-128BPT Security Syste s Page 5

Table 1: Security Actions and associated Phantom Buttons (Partition 1)

This table illustrates the various possible actions from a security system and the phantom buttons they will activate depending on Time of

Day. The recommended phantom button scene name is also matched to the phantom button number.

Security Action Time of Day Phantom Button(s) Activated Phantom Button Scene Name

Day 95 + 92 Away Scene + Away Timeclock Mode

Arm Away

Night 95 + 92 Away Scene + Away Timeclock Mode

Day - -

Arm Stay

Night 93 Goodnight

Day 92 turned off (Away Timeclock turned off)

Disarm

Night 92 turned off; 94 (Away Timeclock turned off); Welcome

Day 98 + 99 Exterior Flash, Interior Full

Intrusion

Night 98 + 99 Exterior Flash, Interior Full

Day 100 + 98 Emergency, Exterior Flash

Emergency

Night 100 + 98 Emergency, Exterior Flash

RadioRA 2 Interfacing with Honeywell Vista-128BPT Security Syste s Page 6

Table 2: Phantom Buttons and Recommended Programming

This table provides the recommended programming for each phantom button associated with security on the Main Repeater.

Button Type Recommended Programming

Phantom

Button

Security

System

Partition Recommended

Scene Lights Shades HVAC Plug-in

Modules Time Clock

100 All Single/Multi-

room scene Emergency* Interior lights at 25% Open - - -

99 All Security mode Interior Full Interior lights at 100% Open - - -

98 All Security mode Exterior Flash Exterior lights flash - - - -

97 All Reserved for

future use - - - - -

96 All Reserved for

future use - - - - -

95 1 Single/Multi-

room scene Away Scene Lights off (delayed off on exit

pathway) Close - Off -

94 1 Single/Multi-

room scene Welcome Entry, foyer, kitchen lights on to

75% - - -

93 1 Single/Multi-

room scene Goodnight Evening light levels Close Set Back Off -

92 1 Timeclock mode Away Timeclock

Mode - - Set Back - Away Mode

91 1 Reserved for

future use - - - - -

90 2 Single/Multi-

room scene Away Scene Lights off (delayed off on exit

pathway) Close - Off -

89 2 Single/Multi-

room scene Welcome Entry, foyer, kitchen lights on to

75% - - -

88 2 Single/Multi-

room scene Goodnight Evening light levels Close Set Back Off -

87 2 Timeclock mode Away Timeclock

Mode - - Set Back - Away Mode

86 2 Reserved for

future use - - - - -

RadioRA 2 Interfacing with Honeywell Vista-128BPT Security Syste s Page 7

Button Type Recommended Programming

Phantom

Button

Security

System

Partition Recommended

Scene Lights Shades HVAC Plug-in

Modules Time Clock

85 3 Single/Multi-

room scene Away Scene Lights off (delayed off on exit

pathway) Close - Off -

84 3 Single/Multi-

room scene Welcome Entry, foyer, kitchen lights on to

75% - - -

83 3 Single/Multi-

room scene Goodnight Evening light levels Close Set Back Off -

82 3 Timeclock mode Away Timeclock

Mode - - Set Back - Away Mode

81 3 Reserved for

future use - - - - -

80 4 Single/Multi-

room scene Away Scene Lights off (delayed off on exit

pathway) Close - Off -

79 4 Single/Multi-

room scene Welcome Entry, foyer, kitchen lights on to

75% - - -

78 4 Single/Multi-

room scene Goodnight Evening light levels Close Set Back Off -

77 4 Timeclock mode Away Timeclock

Mode - - Set Back - Away Mode

76 4 Reserved for

future use - - - - -

RadioRA 2 Interfacing with Honeywell Vista-128BPT Security Syste s Page 8

Table 3: Security Programming Timelines

When configured according to this tech tip, the RadioRA 2 system will automatically respond to commands from the security keypad

as outlined in the tables below.

RadioRA 2 Interfacing with Honeywell Vista-128BPT Security Syste s Page 9

RadioRA 2 Interfacing with Honeywell Vista-128BPT Security Syste s Page 10

Appendix 1: Programming the Phantom Buttons

Coming soon: for more in-depth programming instructions, a corresponding Security Training Module can be found online

at resi.lutron.com/radiora2 by following the RadioRA 2 Software Online Training Modules link.

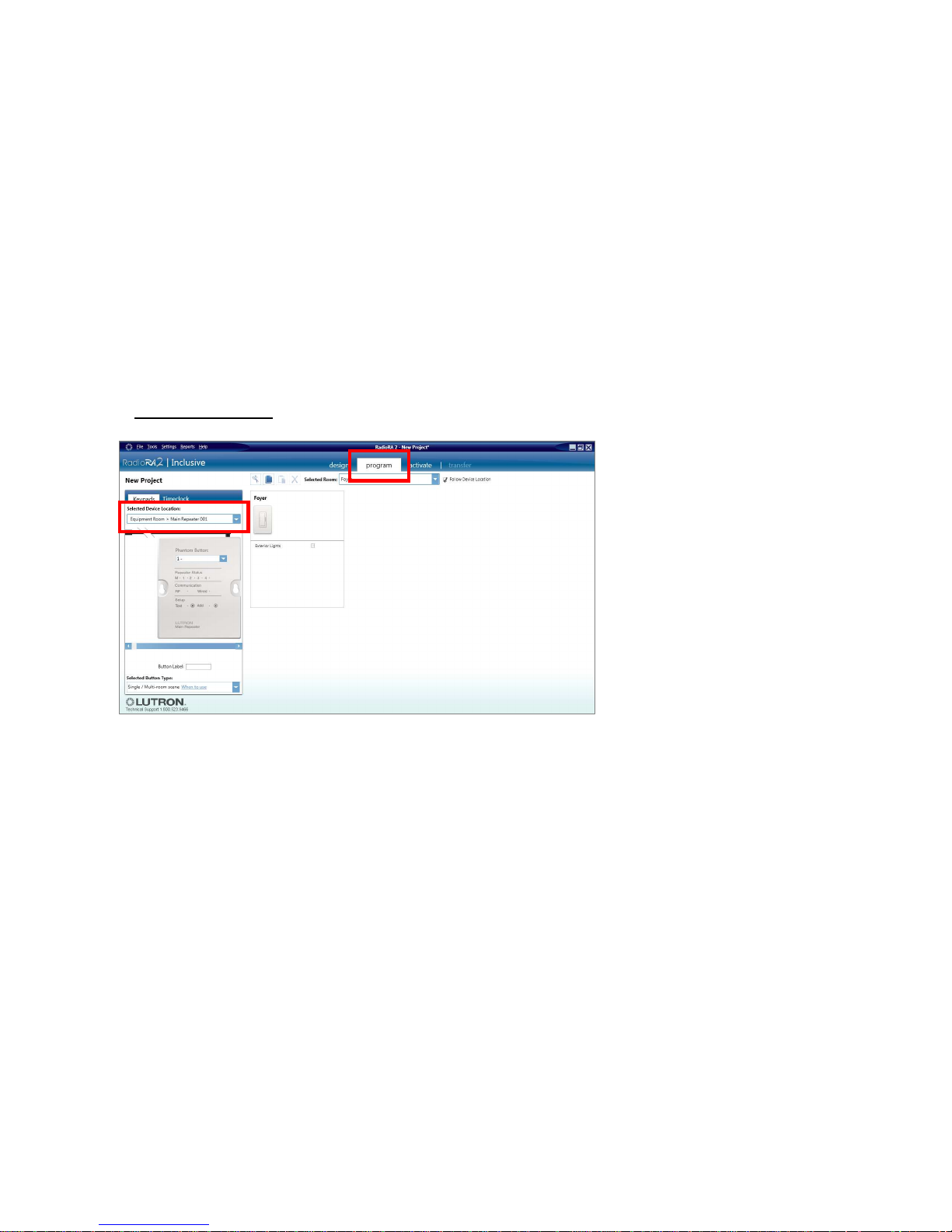

Once the project has been designed in the RadioRA 2 programming software, select the “Program” tab (1) and then find

the Main Repeater using the “Selected Device Location” drop-down menu (2).
