Honeywell Le Sucre User manual
2
Contents
Introduction...............................................................................3
Controlling your system..........................................................4
Badge reader ......................................................................................................... 4
Keypad (only available on Sucre Box) ................................................................ 7
Keyfobs................................................................................................................ 10
Sucre Box light indication.................................................................................. 12
Installing Detectors & Sirens ................................................13
Door contact........................................................................................................ 13
Motion detectors ................................................................................................. 13
Motion detector with Image................................................................................ 14
Glass break detector........................................................................................... 15
Shock sensor....................................................................................................... 17
Carbon monoxide detector................................................................................. 19
Smoke detector ................................................................................................... 22
Indoor siren ......................................................................................................... 24
FAQ..........................................................................................26
3
Introduction
This document is intended to help you with the installation and the operation of your Le
Sucre system.
The system comprises three types of components:
Le Sucre central unit which is the core of the system: it communicates with all the
other components of the system and transmits the alarms in case of a problem.
Control & Indication Equipments enable to operate the system (arming and
disarming for example).
Detectors are installed in the premises and communicate with the central unit in
case of problem (intrusion, fire, etc). Sirens are used to sound locally when an
alarm occurs.
4
Controlling your system
Badge reader
The Badge reader comprises an integrated siren that will sound in case of alarm.
Installation requirements
Install the Badge reader:
Near the door generally used to enter into the house
With at least 30 cm clear space around it
About 1.50 m from the floor (for a person 1.70 m to 1.80 m tall)
On a wall
Do not install the Badge reader:
Outdoors
Near a source of heat (e.g. chimney, radiator, convector, oven, cooking hob)
Near a water point (e.g. bathroom)
How to install
A help video can be found here:
http://honeywell.total-connect.eu/video/SPR-S8EZ.mp4
How to use the Badge reader
The system can be set in two different modes:
- Total arm / total set: this mode is used when you leave your premises.
- Partial arm / partial set: this mode is used when you want to use your system while
in your premises (at night for example). In this case the motion detectors are not
active and only the door contacts are operational (or the detectors that you have set
to “night mode”)
5
To set the system when you leave your premises: Total arm
1. Press this button.
2. Present your fob in front of this area on the Badge reader.
3. The green light flashes during the exit delay.
4. Exit the premises before the end of the beeps (faster at the
end).
To set the system when you are still in your premises: Partial arm
1. Press this button.
2. Present your fob in front of this area on the Badge reader.
3. The green light flashes during the exit delay and remains
flashing.
To unset the system
1. The green light is turned on (lit or flashing).
2. Present your badge in front of this area on the Badge reader.
3. The green light turns off.
6
The Badge reader lights
Set/Unset status (green):
Fast flashing during the entry/exit delay
Slow flashing when the system is in partial arm mode
Off when the system is unset and after the exit delay
Defaults status (red):
On when a default is present (detailed on the webserver)
Slow flashing in case of Badge reader low battery
Off in normal situation
Intrusion status (orange):
On when an intruder alarm occurred when the system was set
Will be reset at the next set action
Technical status (orange):
On when an alarm smoke detection occurred
Fast flashing during for other alarms (detailed on the webserver)
7
Keypad (only available on Sucre Box)
The Keypad comprises an integrated siren that will sound in case of alarm.
Installation requirements
Install the keypad:
Near the door generally used to enter into the house
With at least 30 cm clear space around it
About 1.50 m from the floor (for a person 1.70 m to 1.80 m tall)
On a wall
Do not install the keypad:
Outdoors
Near a source of heat (e.g. chimney, radiator, convector, oven, cooking hob)
Near a water point (e.g. bathroom)
How to install
A help video can be found here:
http://honeywell.total-connect.eu/video/GKP-S8M.mp4
How to use and program the keypad
The following section describes how to install and use your wireless keypad. The keypad is
used to arm and disarm your security system using a valid access code or a key TAG.
The first step is to register your keypad and tags on the system via the web portal as for all
other devices.
If you want to use codes to arm and disarm your system you will need to program the
keypad. Please refer to the printed manual that is downloadable here:
http://www.honeywell.com/security/emea/hscdownload
8

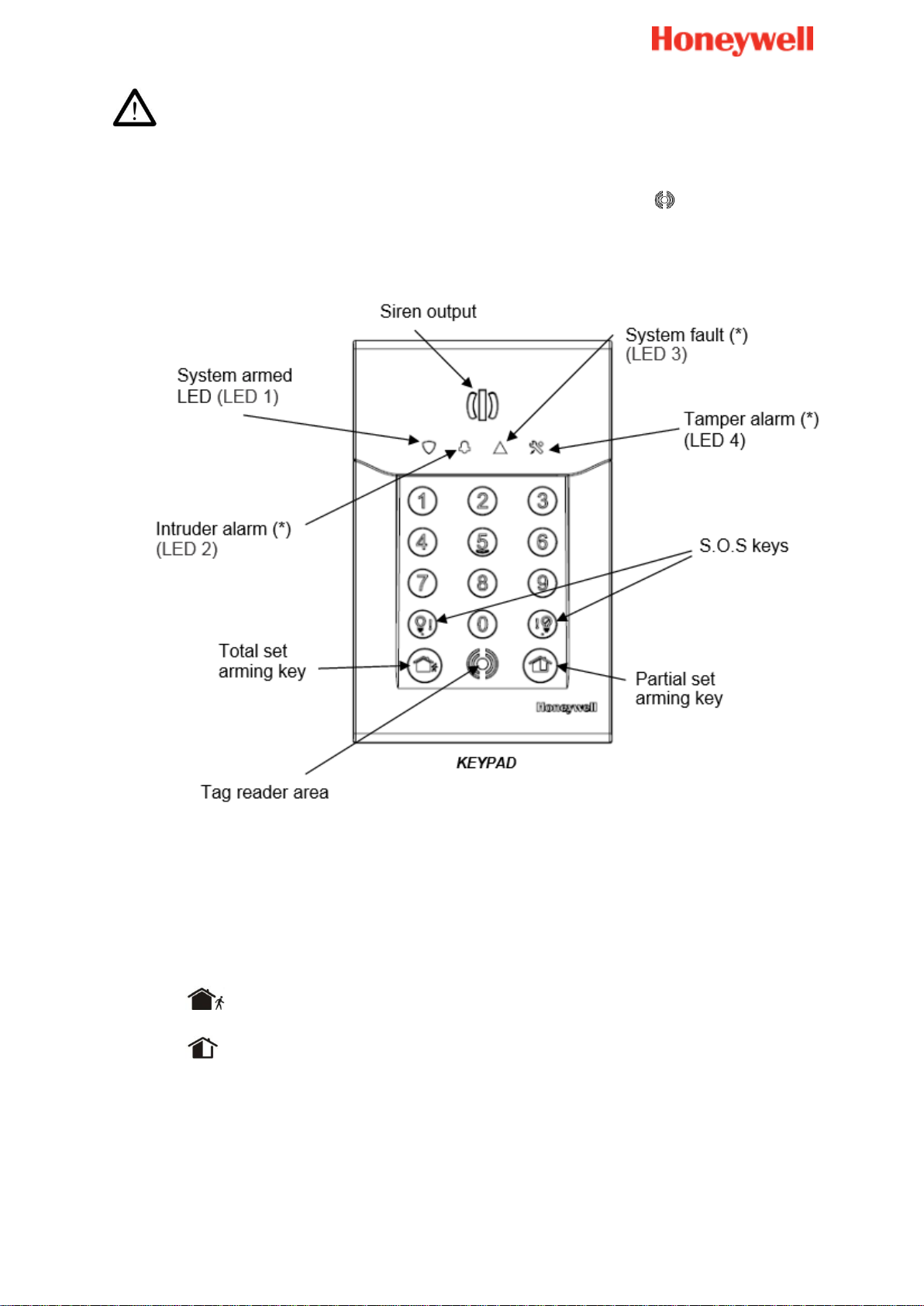

By default, user 1 has code 1234. Don’t forget to change it at installation!
The keypad is equipped with a proximity tag reader, located next to the symbol; the
keypad also features an integrated siren as a deterrent and 4 LEDs to inform you on system
status.
Arming using your code or tag
Press an arming key on the keypad and enter the code or present a registered TAG.
Arms the total set
Arms the partial set
The arming tone is emitted by the keypad followed by the exit delay beeps.
The zone set arming is completed automatically at the end of the exit delay.
Note:
Always make sure that your Total arming request is followed by the arming tone.
9
Disarming using your code or tag
To disarm your system:
Enter a valid code or present a registered TAG.
The disarming tone is emitted by the keypad siren.
Disarming the system will also stop the sirens if an alarm is triggered.
Notes:
Always make sure that your disarming request is followed by the disarming tone.
Always disarm the system when re-entering the premises.
Holding the TAG in front of the keypad will not reverse the status.
10

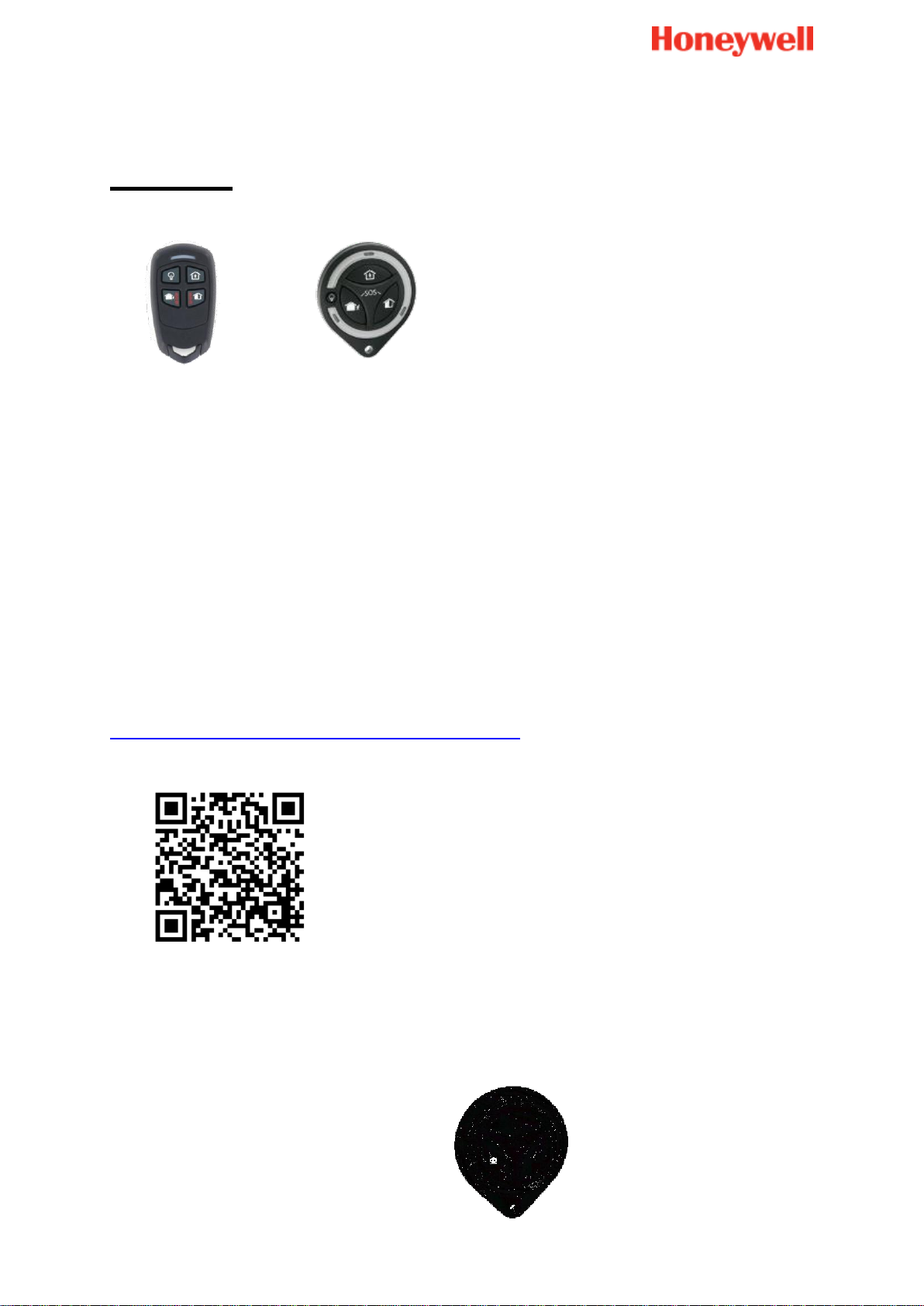

Keyfobs
Caution
Do not place the keyfob in a location where it may be subjected to high
temperatures
Be careful not to drop your keyfob. Handle it with care otherwise you may damage it,
discharge the battery, or cause a malfunction
Keep the keyfob away from moisture, dust and water
Use only the recommended battery (CR2032 by Panasonic or GP)
How to install
A help video can be found here:
http://honeywell.total-connect.eu/video/TCC800M.mp4
To register the keyfob:
Whilst in the installation mode, Press total arm and partial arm buttons
simultaneously for 2 seconds.
