Honeywell HD3USX User manual

Document 800-13599 – Rev B – 12/2012

Configuration Guide

HD3US(X)

Ultra Wide Dynamic

Indoor Minidome Camera

Revisions

Issue Date Revisions

A 11/2012 New document.

B 12/2012 Change to document title. UL/CSA certification added to

Specifications section.

TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION:

DO NOT OPEN

RISK OF ELECTRIC SHOCK

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Programming the Camera. . . . . . . . . . . . . . . . . . . . . . . . . 4

Exposure Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Color Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Day&Night Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Function Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Motion Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Privacy Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Sync Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Exit Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Introduction

This document provides instructions for configuring the HD3US(X) minidome camera

settings. These instructions are intended for system installers, administrators, and

operators. For information about installing the camera, refer to the HD3US(X) Ultra WDR

Indoor Minidome Camera Quick Installation Guide (800-13598).

Programming the Camera

The camera is programmed using the on-screen display (OSD) menus. You can connect a

portable monitor during installation using the supplied adapter cable.

To show the OSD main menu, press the OSD

controller joystick located on the camera

control board.

Move the joystick up or down to navigate

through the menu options. Move the joystick

right to change a menu setting.

When a menu option or setting is followed by

two dots (..), press the joystick to access the

next screen. To go back to the main menu,

select RETURN.., and then press the joystick.

DOWN

RIGHTLEFT

The camera has the following OSD menu structure:

1. EXPOSURE

LENS

AE PREFERENCE

BLC

WDR

AGC

SENSE-UP

METER ZONE

EXIT JUMP

2. COLOR

WB MODE

COLOR GAIN

EXIT JUMP

3. DAY&NIGHT

D&N MODE

BW BURST

EXIT JUMP

4. FUNCTION

MIRROR

SHARPNESS

GAMMA

3D DNR

D-ZOOM

EXIT JUMP

5. MOTION

MOTION

MOTION ZONE

EXIT JUMP

6. PRIVACY

PRIVACY MASK

MASK COLOR

EXIT JUMP

7. SYNC

INT1

INT2

EXIT JUMP

8. SETUP

PC CONTROL

TITLE

LANGUAGE

OMNI LENS

FLUORESCENT

DIGITAL VIDEO OUTPUT

EXIT JUMP

9. EXIT

EXIT

SAVE&EXIT

FACTORY SET

Exposure Menu

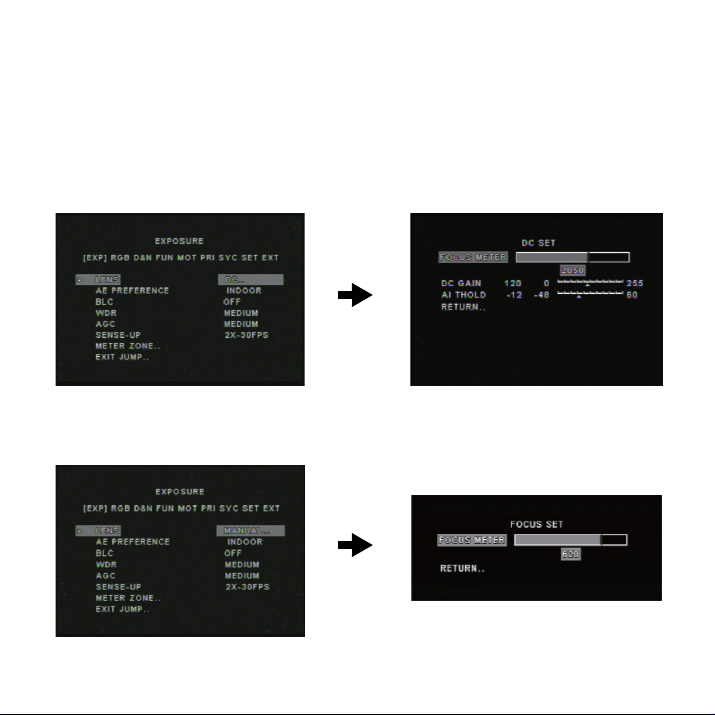

EXPOSURE LENS

Select DC or MANUAL. Press the OSD controller joystick to set the lens FOCUS METER.

Set the FOCUS METER to the maximum value for a clear image.

DC:

DC GAIN adjusts iris speed (0–255). AI THOLD defines the gain level (-48–60).

MANUAL:

EXPOSURE AE PREFERENCE

Set AE PREFERENCE to INDOOR or OUTDOOR depending on the camera environment.

EXPOSURE BLC (Backlight Compensation)

Set BLC to ON or OFF. When BLC is ON, adjust SHADOW GAIN as desired. A higher value

decreases foreground brightness; a lower value increases it.

EXPOSURE WDR (Wide Dynamic Range)

Set WDR to LOW, NORMAL, MEDIUM (default), HIGH, or CUSTOM.

CUSTOM mode lets you adjust BIAS and LIMIT as desired. BIAS defines the WDR level in

the range of LIMIT (-30–30). LIMIT defines the WDR level (0–36).

CUSTOM MODE

EXPOSURE AGC (Auto Gain Control)

Set AGC to LOW, MEDIUM, or HIGH (default). A high AGC setting produces a brighter

image in low light but also produces more noise.

EXPOSURE SENSE-UP

SENSE UP automatically activates slow shutter function when a scene is too dark. Select a

value from X2 to X64 to set the frame integration level. The default setting is X4.

EXPOSURE METER ZONE

Note For advanced users only.

METER ZONE defines the specific zone to which AE or WB is applied.

WHITE: Adjust the location of the zone.

GREEN: Reduce the zone area.

RED: Enlarge the zone area.

Press and hold down the joystick to exit.
