Honeywell HD3DH User manual

Document 800-20540V1 – Rev A – 06/2015

Configuration Guide

960H Series Fixed

Mini Dome Camera

HD3DH HD3DHX

HD3HRH HD3HRHX

HD4D3H HD4D3HX

HD4DIRH HD4DIRHX

Revisions

Issue Date Revisions

A 06/2015 Updated from 800-20540. Corrected some Specifications,

including temperatures, minimum illumination, AES range,

power consumption, and construction materials.

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Configuring the Camera. . . . . . . . . . . . . . . . . . . . . . . . . . 5

Exposure Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Color Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Day&Night Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Function Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Motion Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Privacy Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Exit Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Introduction

This document describes how to configure the camera settings for the following Honeywell

960H Series cameras:

•HD3DH(X) High Resolution, VFAI Lens, True Day/Night, Indoor, Mini Dome

•HD3HRH(X) High Resolution, VFAI Lens, Day/Night, Indoor/Outdoor, Mini Dome

•HD4D3H(X) High Resolution, VFAI Lens, True Day/Night, Rugged Indoor/Outdoor,

Mini Dome

•HD4HIRH(X) High Resolution, VFAI Lens, True Day/Night, Rugged Indoor/Outdoor,

IR Mini Dome

These instructions are intended for system installers, administrators, and operators. For

information about installing the camera, please to the Quick Installation Guide for your

camera.

Configuring the Camera

The camera is configured using the on-screen display (OSD) menus. You can connect a

portable monitor during installation using the supplied adapter cable.

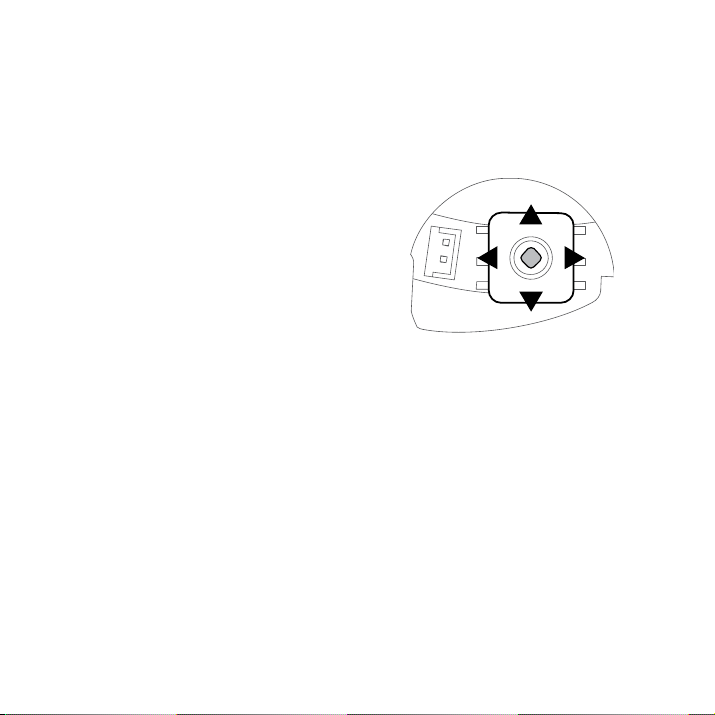

To display the OSD main menu, press the

OSD controller joystick located on the

camera control board.

Move the joystick up or down to navigate

through the menu options. Move the joystick

right to change a menu setting.

When a menu option or setting is followed by

, press the joystick to access the next

screen. To go back to the main menu, select

RETURNor EXIT JUMP and then press the

joystick.

DOWN

RIGHTLEFT

The camera has the following OSD menu structure:

1. EXPOSURE

LENS: MANUAL/DC

BACKLIGHT: OFF/BLC/HME

WDR/DEFOG: OFF/WDR/

DEFOG

AGC: 0 to 20

SENSE-UP: OFF/×2 to ×512

3D DNR: OFF/LOW/MID/HIGH

2. COLOR

WB BAL.:ATW/MANUAL/

PUSHLOCK

COLOR GAIN: 0 to 20

3. DAY&NIGHT

D&N MODE: AUTO/COLOR/

B&W

CONTROL: AUTO/EXTERN

DELAY: 0 to 15

B/W BURST: OFF/ON

SMART IR: ANTI-SAT/SAT.

AREA

4. FUNCTION

MIRROR: OFF/ON

SHARPNESS: 0 to 20

GAMMA: 0.35 to 0.70

POSI/NEGA: POSI/NEGA

SLC: 0 to 20

5. MOTION

MOTION: OFF/ON

SENSITIV.: 1 to 30

MOTION SET: AREA NO./

AREA USE/TOP/BOTTOM/

LEFT/RIGHT

6. PRIVACY

COLOR: BLACK/GRAY-1/

GRAY-2/GRAY-4/WHITE/

YELLOW/GREEN/BLUE/RED/

CYAN/MAGENTA

PRIVACY SET: AREA SET/

DISPLAY/TOP/BOTTOM/

LEFT/RIGHT/RET/INI.

7. SETUP

CAMERA TITLE: OFF/ON

SYNC: INT/LINE LOCK

COMMUNICA: CAM ID/ID

DISP./BAUDRATE/

PROTOCOL/UTC

LANGUAGE: ENGLISH

FONT COLOR: BLUE/GREEN/

CYAN/RED/MAGENTA/

YELLOW/BLACK/GRAY

SPECIAL.: O.L.P.F/DPC

8. EXIT

SAVE

RESTORE

EXIT

Exposure Menu

LENS

Note Only DC mode is supported at this time.

Choosing MANUAL mode may cause the camera

to operate incorrectly.

1. Select DC.

2. Set the BRIGHTNESS (0–20). The higher

the number, the brighter the image will

appear.

3. Set the SHUTTER speed (1/60–1/120000).

Note The SENSE-UP menu cannot be

controlled if the SHUTTER setting is

above 1/60.

4. Set FLC to ON or OFF. Setting FLC to ON

prevents image flickering.

5. Set FOCUS SET to the highest value for a

clear image.

BACKLIGHT

Backlight Compensation (BLC) prevents subjects in defined areas of the scene from

appearing too dark when backlighting is present. Highlight Masking Exposure (HME)

masks bright areas of the scene to allow objects to appear clearly.

BACKLIGHT is set to OFF by default. To enable this feature, select BLC or HME.

If BLC is selected:

1. Set LEVEL to LOW, MIDDLE, or HIGH.

2. Set DISPLAY to ON or OFF to show or hide

the BLC mask.

3. If DISPLAY is set to ON, adjust the values

for TOP, BOTTOM, LEFT, and RIGHT to

set the size and position of the BLC mask.

4. Set RET/INI. to RETURN or INITIAL.

• Select RETURN to go back to the main

menu.

• Select INITIAL to reset the settings to

the factory defaults.

If HME is selected:

•SetLEVEL to LOW, MIDDLE, or HIGH.

WDR/DEFOG

1. WDR/DEFOG is set to OFF by default. To enable this feature, select D-WDR or

DEFOG.

2. Set D-WDR or DEFOG to AUTO or MANUAL.

•IfAUTO is selected, the WDR or DEFOG level is set automatically based on the

environment.

•IfMANUAL is selected, set LEVEL to LOW, MIDDLE, or HIGH.

3. Set MODE to ONLY DAY or ALL DAY.

•IfONLY DAY is selected, WDR or DEFOG is enabled during the day only.

•IfALL DAY is selected, WDR or DEFOG is enabled during daytime and

nighttime.

AGC

Auto Gain Control (AGC) enhances the picture brightness in low-light conditions, but also

increases picture noise.

Set AGC (0–20).

SENSE-UP

Note The SENSE-UP menu cannot be controlled if the SHUTTER setting is

above 1/60.

Sense-Up automatically activates slow shutter function when a scene is too dark.

Set SENSE-UP to OFF or to a value from×2 to ×512. Selecting a value over ×4 is not

recommended as it may cause the image to lag.

3D DNR

3D Digital Noise Reduction (3D DNR) improves image clarity in low-light conditions.

Set 3D DNR to OFF, LOW, MID, or HIGH.
