Honeywell HD3C User manual

Document 800-00788 – Rev C – 07/08

User Guide

3 Inch Dome Camera

NTSC / PAL

HD3C, HD3CB HD3CX, HD3CBX

HD3D, HD3DB HD3DX, HD3DBX

HD3CH, HD3CHB HD3CHX, HD3CHBX

Revisions

Issue Date Revisions

A 09/07 New document.

B 10/07 Updated Figure 2, Figure 3, and Figure 4.

Added metric screws to surface and flush

mount installations.

C 07/08 Updated regulatory to Class B.

Document 800-00788 Rev C 3

07/08

Warnings

Installation and servicing should be performed only by qualified and experienced

technicians to conform to all local codes and to maintain your warranty.

WARNING! The Use of CSA Certified/UL Listed Class 2 power adapters is

required to ensure compliance with electrical safety standards.

WEEE (Waste Electrical and Electronic Equipment). Correct disposal of this

product (applicable in the European Union and other European countries with

separate collection systems). This product should be disposed of, at the end of its

useful life, as per applicable local laws, regulations, and procedures.

Explanation of Graphical Symbols

RISK OF ELECTRIC

SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE THE COVER.

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL

THIS SYMBOL INDICATES THAT

DANGEROUS VOLTAGE

CONSTITUTING A RISK OF

ELECTRIC SHOCK IS PRESENT

WITHIN THE UNIT.

THIS SYMBOL INDICATES THAT

IMPORTANT OPERATING AND

MAINTENANCE INSTRUCTIONS

ACCOMPANY THIS UNIT.

CAUTION

FCC Compliance Statement

Information to the User: This equipment has been tested and found to comply with

the limits for a Class B digital device. Pursuant to Part 15 of the FCC Rules, these

limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to

try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected

• Consult the dealer or a radio/TV technician for help.

Caution Changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate the

equipment.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada.

Manufacturer’s Declaration of Conformance

The manufacturer declares that the equipment supplied with this guide is compliant

with the essential protection requirements of the EMA directive 89/336/EEC and the

Low Voltage Directive LVD 73/23 EEC, conforming to the requirements of standards

EN 55022 for emissions.

Document 800-00788 Rev C 5

07/08

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Unpack Everything . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Cautions and Operating Notes . . . . . . . . . . . . . . . . . . . . . . . 7

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Removing the Dome Cover . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Mounting the Camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Preparing the Mounting Surface

(Surface or Flush Mount) . . . . . . . . . . . . . . . . . . . . 10

Connecting the Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4S Electrical Junction Box . . . . . . . . . . . . . . . . . . . 12

Surface Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Flush Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Adjusting the Camera Position. . . . . . . . . . . . . . . . . . . . . . . 15

Optional Camera Settings . . . . . . . . . . . . . . . . . . . 16

Attaching the Dome Cover. . . . . . . . . . . . . . . . . . . . . . . . . . 18

Routine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Product Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Warranty and Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Cable Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Document 800-00788 Rev C 7

07/08

Introduction

The unobtrusive, compact design of the HD3 Series 3 Inch Dome Camera

(HD3) is ideal for indoor installations in commercial and residential

environments.

Before You Begin

Unpack Everything

Check that the items received match those listed on the order form and

packing slip. The HD3 packing box should include, in addition to this Install

Guide:

• One fully assembled camera

• One hardware kit

• One 2nd video monitor output cable

• One mounting template

If any parts are missing or damaged, contact the dealer you purchased the

camera from or call Honeywell Customer Service (see p. 27 for contact

information).

Please read this guide carefully before you

install the HD3 Series 3 Inch Dome Camera.

Keep this guide for future reference.

Cautions and Operating Notes

Power Supply This dome camera can operate on 24 VAC or 12 VDC.

Operating Conditions Avoid:

• Viewing bright objects (example, light fixtures) for extended periods.

• Operating or storing the unit in the following locations:

• Extremely humid, dusty, hot/cold environments (where the

operating temperature is outside the recommended range of

14°F to 122°F [-10°C to +50°C])

• Close to sources of powerful electromagnetic radiation, such as

radio or TV transmitters

• Close to fluorescent lamps or objects reflecting light

• Under unstable light sources (may cause flickering)

Document 800-00788 Rev C 9

07/08

Installation

The HD3 is a fully-integrated enclosure with camera and lens.

Note See Figure 7 for an explanation of the camera board settings.

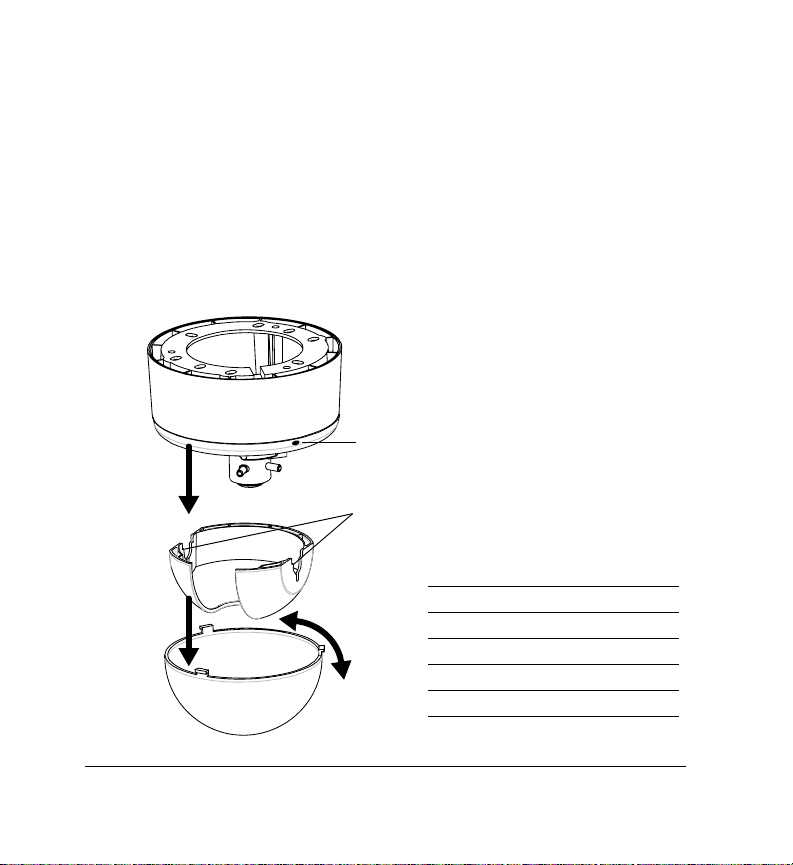

Removing the Dome Cover

1. Gently turn the dome cover counter-clockwise (#5 on Figure 1) to

unlock, and pull free of the housing. If required, loosen the security

screw (#2) first.

2. Remove the inner liner (#4) by gently pulling it free of the two notches

(#3) in the housing (#1). Set the dome (and liner) aside.

Figure 1 Dome Cover Removal

4Legend

1Camera housing

2Security screw

3Notches (x2)

4Inner liner

5Dome cover
