Honeywell Xenon 1932 User manual

Xenon™ 1932/Xenon™ 1932BF

CCB04-010BT/CCB05-010BT

Cordless Area-Imaging Scanner and Charge Bases

Quick Start Guide

1932-EN-QS Rev (a)

3/18

Note: Refer to your user’s guide for information about cleaning

your device.

Getting Started

Turn off computer’s power before connecting the scanner, then

power up the computer once the scanner is fully connected.

When the base is connected and powered up, put the scanner in

the base to establish a link. The green LED on the base flashes

to indicate the scanner’s battery or charge pack is charging.

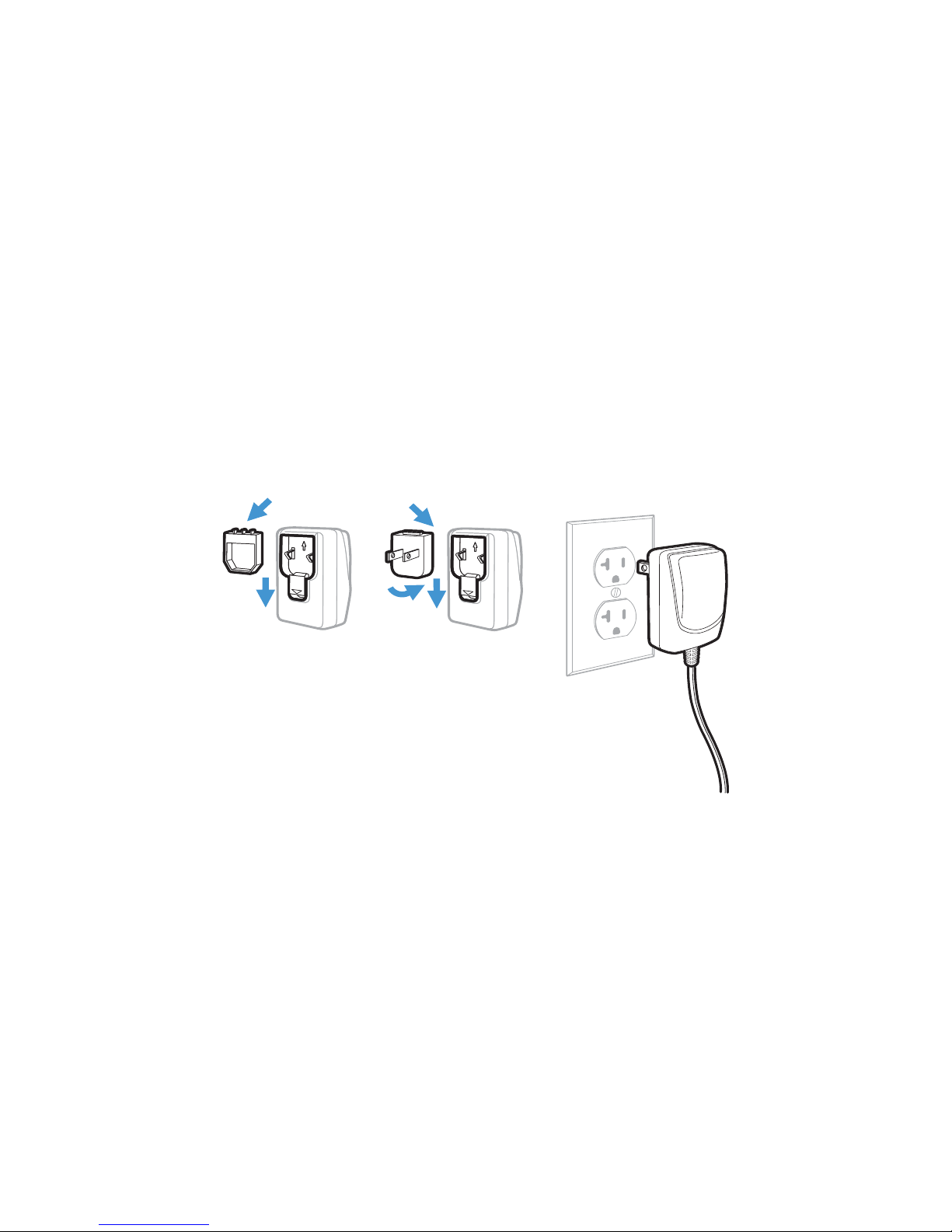

Power Supply Assembly (if included)

Note: The power supply must be ordered separately, if needed.

CCB05-010BT Base:

CCB04-010BT Base:

Connecting the Scanner

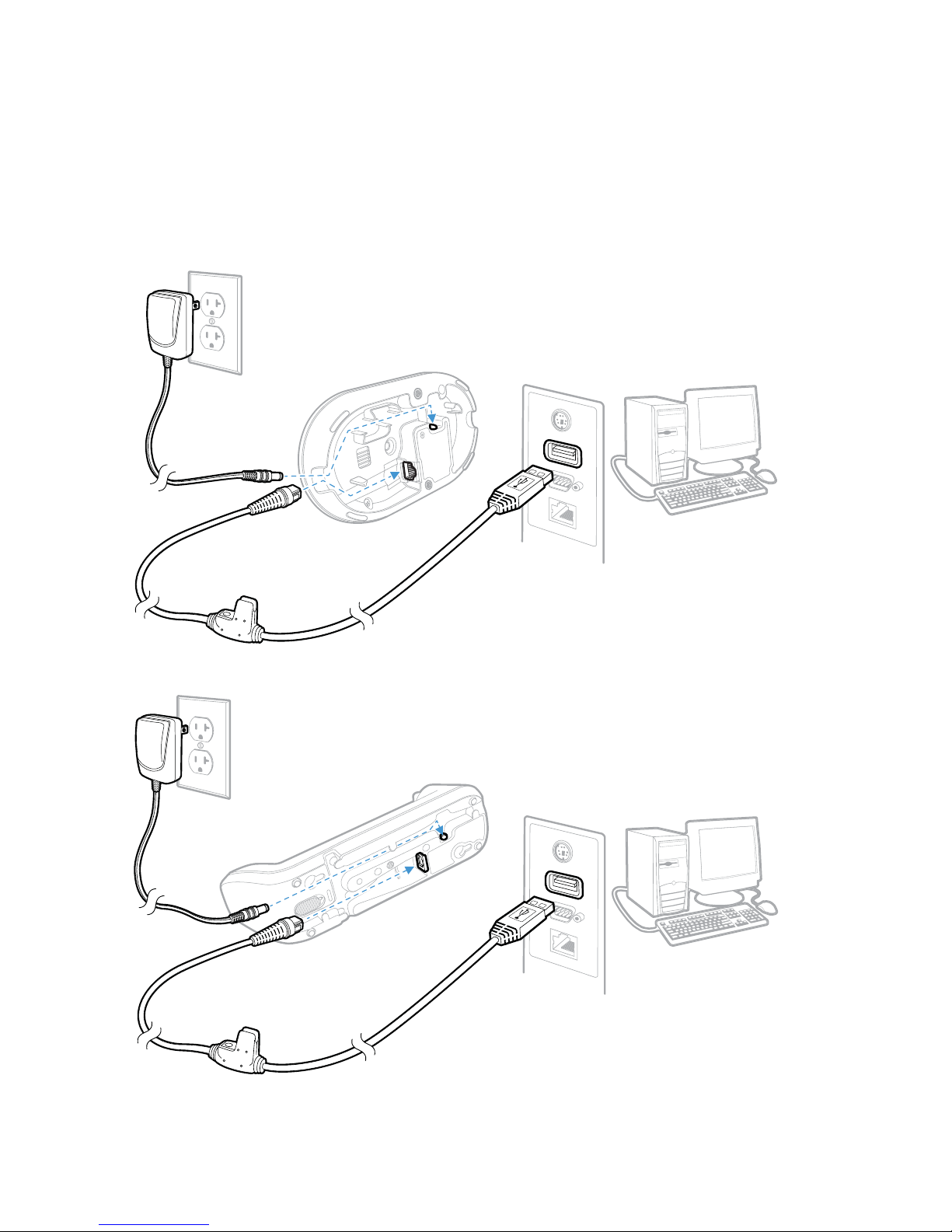

USB:

CCB05-010BT Base:

CCB04-010BT Base:

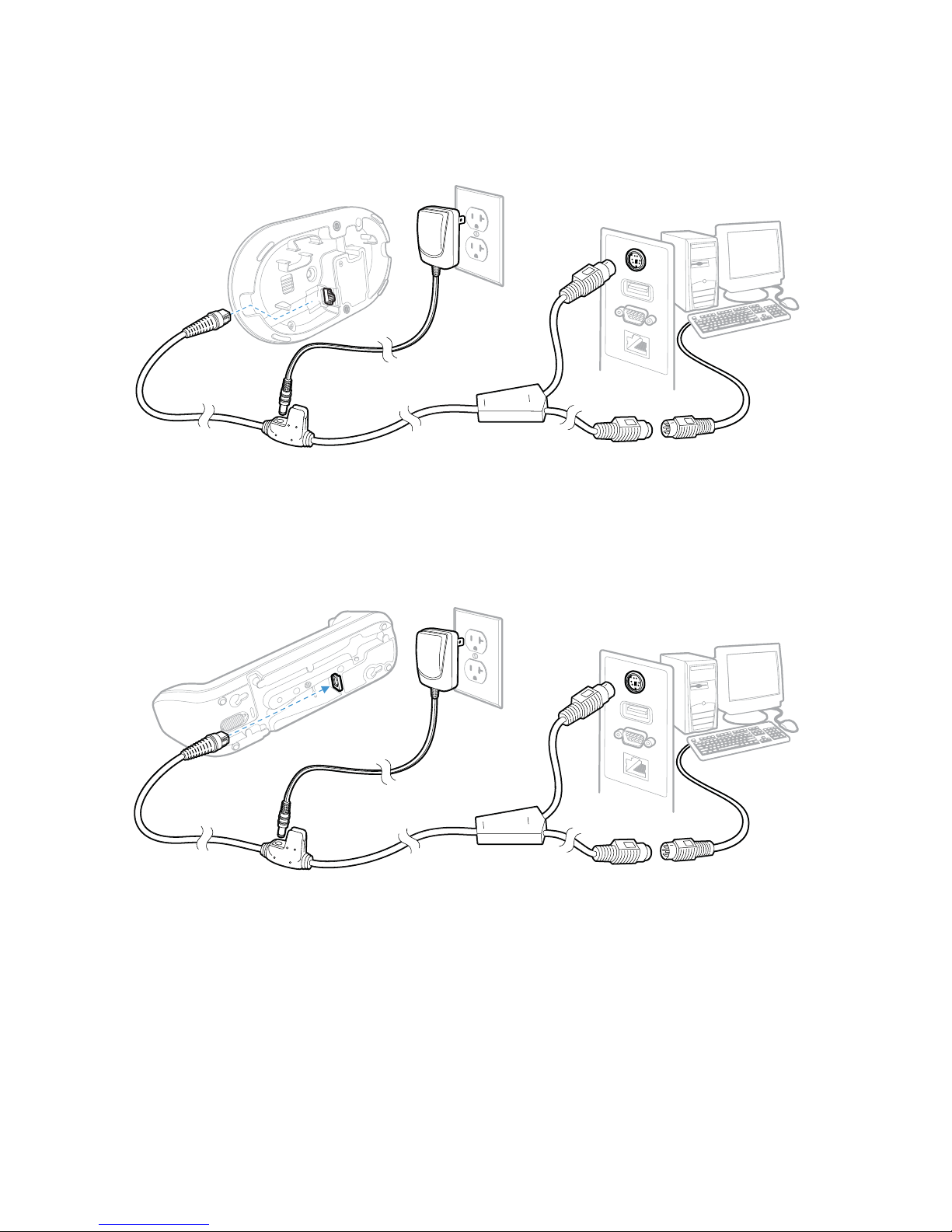

Keyboard Wedge:

CCB05-010BT Base:

CCB04-010BT Base:

RS232 Serial Port:

CCB05-010BT Base:

CCB04-010BT Base:

RS485:

Reading Techniques

The view finder projects an aiming beam that

should be centered over the bar code, but it

can be positioned in any direction for a good

read.

Standard Product Defaults

The following bar code resets all standard

product default settings.

RS485 Interface

The RS485 interface defaults to port 5B. If you have an IBM POS

terminal using port 9B, scan the appropriate code below to pro-

gram the terminal, then power cycle the cash register.

Note: For additional RS485 interface selections, see the User’s

Guide for your product.

Standard Product Defaults

IBM Port 9B HHBCR-1

Interface

IBM Port 9B HHBCR-2

Interface

USB Serial

Scan the following code to program the scanner to emulate a

regular RS232-based COM Port. Apple® Macintosh computers

recognize the scanner as a USB CDC class device and automati-

cally use a class driver.

Note: No extra configuration (e.g., baud rate) is necessary.

USB PC Keyboard

Scan the following code to program the scanner for a USB PC

Keyboard.

Keyboard Country

Scan the appropriate country code below to program the key-

board layout for your country or language. By default, national

character replacements are used for the following characters:

If you are using a Microsoft® Windows® PC, you must

download a driver from the Honeywell website. The

driver will use the next available COM Port number.

USB Serial

USB PC Keyboard

#$@[\]^‘{|}~ Refer to the ISO 646 Character Replacements chart

in your User’s Guide to view the character replacements for each

country.

USA (Default)

Belgium

Denmark

Finland

France

Germany/Austria

Great Britain

Italy

Note: For a complete list of country codes, see the User’s Guide

for your product.

Locked Link

If you link a scanner to a base using the Locked Link Mode,

other scanners are blocked from being linked if they are inad-

vertently placed into the base. If you do place a different scan-

ner into the base, it will charge the scanner, but the scanner will

not be linked.

To use a different scanner, you need to unlink the original scan-

ner by scanning the Unlink Scanner bar code.

Norway

Spain

Switzerland

Locked Link Mode

(Single Scanner)
