Honeywell CL30XC User manual

Portable Evaporative Air Cooler

OWNER’S MANUAL

Read and save these instructions before use

Model: CL30XC

Power rating: 252 Watts

Voltage rating: 220-240 Volt AC, 50Hz

For product enquiry or support contact:

E-mail: [email protected]

Customer Service Hotline: 1300 8000 32

www.honeywellaircoolers.com

This page is intentionally left blank

SECTION PAGE

1. THANK YOU .........................................................................................................

2. USER TIPS ...........................................................................................................

3. SAFETY INSTRUCTIONS ...................................................................................................

4. PARTS DESCRIPTION ........................................................................................

5. USE & OPERATION .............................................................................................

6. CLEANING & MAINTENANCE .............................................................................

7. TROUBLESHOOTING GUIDE .............................................................................

8. TECHNICAL SPECIFICATIONS ...........................................................................

9. ELECTRICAL WIRING DIAGRAM ........................................................................

10. SERVICE AND WARRANTY ................................................................................ 20

INDEX

Read all instructions carefully before setting up and operating the unit, and please keep

this instruction manual for future reference. This manual is designed to provide you with

important information needed to setup, operate, maintain, and troubleshoot your cooler.

Failure to follow these instructions may damage and/or impair its operation and void the

warranty.

Fill Water ......................................................... .................... ...............

Function Buttons .................................................................................................

Low water alarm and cooler location ...................................................................

Remote Control ...................................................................................................

.... ............ 14

Control Panel ..................................................................................................... 8

Room Cooling and Humidifying ........................................................................... 12

THANK YOU!

Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler.

For optimum cooling performance from your unit, fill the water tank with water & ice (if available)

to increase its cooling performance.

The unit should be positioned in a location that will create a 'flow through' air effect.The greatest

cooling effect will be felt if the unit is operated in a partly opened doorway or window.

Please read these instructions carefully.

THANK YOU

USER TIPS

Pump

Water

Honeycomb Cooling Media

Evaporative Air Cooling Mechanism

Warm and

dry air

Cold and

humid air

Evaporative air cooling is the natural way of cooling, similar to a breeze blowing across a lake. This

breeze drops the temperature and has a relaxing cooling effect.

The evaporative air cooler cools the air by means of the evaporation of water. When water

evaporates into the air, the result is a mixture of air and water molecules. This chemical change

requires heat which is taken from the water molecules, resulting in cooler air propelled from the

unit.

NATURAL ENERG Y EFFICIENT COOLING ..

The recommended maximum relative humidity level is 60% or

less, which allows a noticeable temperature decrease. The

temperature decrease will be greater in drier climates because

higher evaporation occurs when the humidity is low.

NOTE

USER TIPS

The evaporative air cooler should not be used in enclosed

spaces. It must be kept level and there must be water in the

water tank. The room should have doors and windows opened

to allow free air flow. The evaporative air cooler works best

when placed near an open window, so that outside air is drawn

into the evaporative air cooler, the air circulates in the room,

then exits via the door. The maximum cooling effect is felt

when a person is in the flow of air coming out of the evaporative

air cooler.

The evaporative air cooler can also be used to humidify dry air

during cool weather. To be used for humidification the

windows and doors should be closed to allow the humidified

air to accumulate. The evaporative air cooler is not an air

conditioner as it does not use a compressor or refrigerant gas.

It should not be expected to cool as efficiently as a refrigerated

air conditioner.

When the product is used for the first time the Honeycomb

cooling media will have an odour which will dissipate in a week

or so of initial use.

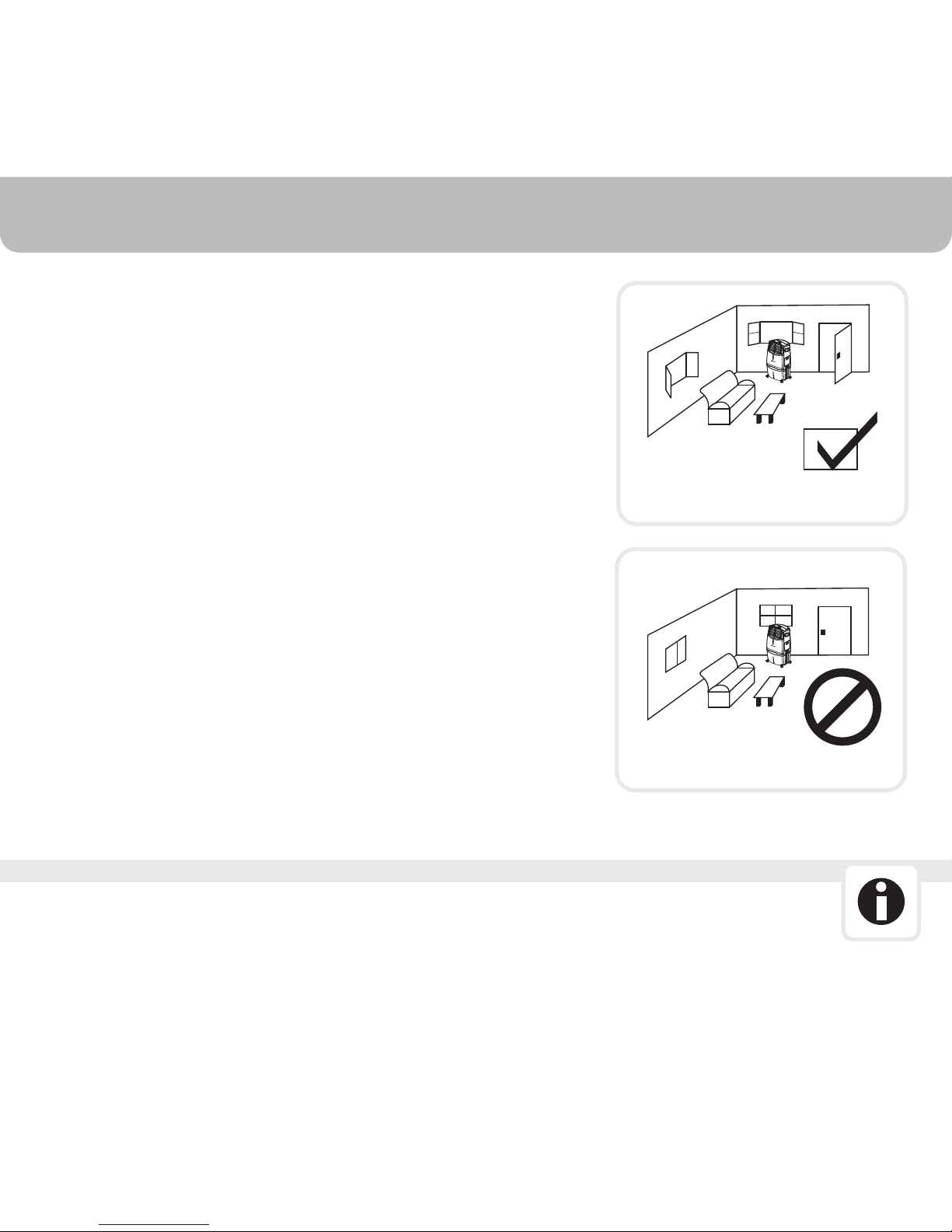

Room with open windows & door

Room with closed windows & door

READ AND SAVE THESE INSTRUCTIONS:

When using electrical appliances, basic safety precautions should always be followed:

SAFETY RULES

220-240 Volt AC, 50 Hz

SHOCK HAZARD

Always unplug the product before refilling the water tank.

•

Always unplug the appliance from the power source before

cleaning, servicing or relocating the unit.

•

Remove the power cord from the electrical receptacle by

grasping and pulling on the power cord plug-end only, never

pull the cord.

•

DO NOT use the product in areas where gasoline, paint or

other flammable goods and objects are stored.

•

WATER LEVEL INDICATOR

When using the ''COOL'' setting, please check the water tank

to ensure it is full. Operation of this unit on the ''COOL'' setting

with an empty tank may result in damage to the water pump.

•

DO NOT run power cord under carpeting, or cover it with

rugs or runners. Keep the cord away from areas where it

may be tripped over.

•

•Your unit runs on 220-240 Volt AC, 50 Hz current. Check the

household voltage to ensure it matches the appliance's rate

specification.

•Before operating the product remove it from its packaging

and check it is in good condition.

•DO NOT operate any product with a damaged cord or plug.

We recommend not using an extension cord with this

appliance.

may cause motor damage.

This appliance is not intended for use by persons (including

children or elderly) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of

the appliance by a person responsible for their safety.

•

When the unit is not in use always store in a dry area.

•

This product is not intended for use in wet or damp locations.

•

DO NOT let children play with this appliance, packaging or

plastic bags.

•

DO NOT leave the appliance operating unattended for any

extended period of time.

•

DO NOT operate with the Honeycomb media removed as this

will overload and damage the motor.

•

DO NOT insert or allow objects to enter any ventilation or

exhaust opening as this may damage the product and could

cause an electrical shock or fire.

•

DO NOT attempt to repair or adjust any electrical or mechanical

functions of the cooler, as this may void the warranty.

•

DO NOT cover the air inlet or outlet on the appliance as this

•

FLOOR LEVEL

If the unit is damaged or it malfunctions, do not continue to

operate it. Refer to the troubleshooting section and /or please

seek professional advice.

•

Place the unit on a level floor.

•

Never locate the product where it may fall into a bathtub or

other water container. DO NOT use in bathrooms or outdoors.

•

Always grip the side handles to move the unit.

•

SAFETY INSTRUC TIONS

Control Panel

Handle

Louvers

Left Side Panel

Water Tank

Power Cord

Power Plug

Casters

Back Grill

Front Panel

Water Level Indicator

Remote Control

Latch

Right Side Panel

Water Fill Door

Ice Compartment Lid

Water Regulator

PARTS DESCRIPTION

ACCESSORIES:

Remote Control ( Batteries not included)

Drainage Tube / Cap

CONTROL PANEL

USE & OPERATION

Icons on LCD

Low water level in tank

Cool

Fan operating Sleep

Low speed

Medium speed

High speed

Swing

Time delay set

Ionizer

COOL

SPEED

SLEEP

TIMER

SWING

IONIZER
