Honeywell CHL30XC User manual

OWNER’S MANUAL

Read and save these instructions before use

Model: CHL30XC

Power rating: 252W (Cooling) / 2000W (Heating)

Voltage rating: 220-240V ~ 50 Hz

For product inquiries or support, visit

www.honeywellaircoolers.com

Portable Evaporative Air Cooler with Heater

for indoor use

Customer Service Center:

+44 (0)1477 539500 / www.scott-air-cooling.co.uk

Made in China

QUICK START GUIDE

Fill with water and plug into standard

power outlet.

Place near open door or window.

Note : Please make sure that the power outlet is

set to correct settings as per product specifications.

Note : Evaporative Air Coolers work on evaporative

cooling mechanism which requires cross ventillation.

Turn ON and enjoy the cooling breeze.

Note: Start with LOW speed and gradually increase

to higher speed for optimum cooling performance.

SECTION PAGE

1. THANK YOU ...........................................................................................................

2. USER TIPS .............................................................................................................

3. SAFETY RULES .....................................................................................................

4. PARTS DESCRIPTION ..........................................................................................

5. USE & OPERATION ...............................................................................................

6. CLEANING & MAINTENANCE ...............................................................................

7. TROUBLESHOOTING GUIDE ...............................................................................

8. TECHNICAL SPECIFICATIONS ............................................................................

9. ELECTRICAL WIRING DIAGRAM .........................................................................

Remote Control....................................................................................................

Function Buttons..................................................................................................

Room Cooling and Humidifying .............................................................................

Filling with Water.................................................................................................. 14

Control Panel ...................................................................................................... 9

INDEX

Read all instructions carefully before setting up and operating the unit, and please keep

this instruction manual for future reference. This manual is designed to provide you with

important information needed to setup, operate, maintain, and troubleshoot your cooler.

Failure to follow these instructions may damage and/or impair its operation and void the

warranty.

THANK YOU

Congratulations on your purchase of this versatile Honeywell Evaporative Air

Cooler and Heater. For optimum cooling & heating performance from your unit, fill

the water tank with water & ice (if available) to increase its cooling power and turn

off the Cool mode at least 15 minutes before you turn on the heater. The unit should

be positioned in a location that will create a Flow Through Air effect.The greatest

cooling effect will be felt if the unit is operated in a partly opened doorway or window.

Cooler Location - Indoors (Important - Please Read!)

Place the cooler in front of an open door or window. Ensure that there is adequate

cross - ventilation in the room by leaving a door or window open opposite the cooler.

Following these guidelines will ensure your cooler will work as effectively as possible.

Not an Air Conditioner (Important - Please Read!)

The evaporative air cooler is not an air conditioner as it does not use a compressor

or refrigerant gas. It should not be expected to cool as efficiently as a refrigerated air

conditioner.

USER TIPS

Energy Efficient, No Compressor

EVAPORATIVE AIR COOLER

Evaporative air cooling is the natural way of cooling, similar to a breeze blowing across a lake.

This breeze drops the temperature and has a relaxing cooling effect. The evaporative air cooler

cools the air by means of the evaporation of water. When water evaporates into the air, the result

is a mixture of air and water molecules. This chemical change requires heat which is taken from

the water molecules, resulting in cooler air propelled from the unit.

HEATER

A fan heater is a variety of convection heater that includes an electric fan to speed up the

airflow(air circulation). This reduces the thermal resistance between the heating element and the

surroundings and is faster than passive convection, allowing heat to be transferred more quickly.

They operate with considerable noise caused by the fan. They have a moderate risk of ignition

hazard in the event that they make unintended contact with furnishings. This type of heater is a

good choice for quick heating of enclosed space.

Pump

Water

Honeycomb Cooling Media

Evaporative Air Cooling Mechanism

Warm and

dry air

Cool and

humid air

USER TIPS

The recommended maximum relative humidity level is 60% or

less, which allows a noticeable temperature decrease. The

temperature decrease will be greater in drier climates because

higher evaporation occurs when the humidity is low.

The evaporative air cooler should not be used in enclosed

spaces. It must be kept level and there must be water in the

water tank. The room should have doors and windows opened

to allow free air flow. The evaporative air cooler works best

when placed near an open window, so that outside air is drawn

into the evaporative air cooler, circulates in the room, then

exits via the door. The maximum cooling effect is felt when a

person is in the flow of air coming out of the evaporative air

cooler.

The evaporative air cooler can also be used to humidify dry

air during cool weather. To be used for humidification the

windows and doors should be closed to allow the humidified

air to accumulate.

When the product is used for the first time the Honeycomb Cooling Media will have an

odor which will dissipate in a few hours or so of initial use.

Room with open windows & door

(RECOMMENDED)

Room with closed windows & door

(NOT-RECOMMENDED)

NOTE

WATER LEVEL INDICATOR

220-240V AC 50Hz

SHOCK HAZARD

SAFETY

READ AND SAVE THESE INSTRUCTIONS:

When using electrical appliances, basic safety precautions should always be followed:

Your cooler runs on 220-240 Volt AC, 50 Hz current. Check

the household voltage to ensure it matches the appliance's

rate specification.

Before operating the product remove it from its packaging

and check that it is in good condition.

DO NOT operate any product with a damaged cord or plug.

We recommend not using an extension cord with this

appliance.

DO NOT run power cord under carpeting, or cover it with

rugs or runners. Keep the cord away from areas where it

may be tripped over.

Always unplug the product before refilling the water tank.

Always unplug the appliance from the power source before

cleaning, servicing or relocating the unit.

Remove the power cord from the electrical receptacle by

grasping and pulling on the power cord plug-end only, never

pull the cord.

DO NOT use the product in areas where gasoline, paint or

other flammable goods and objects are stored.

When using the COOL setting, check the water tank to

ensure that it is full. Operation of this cooler on the COOL

setting with an empty tank may result in damage to the

water pump.

WARNING: To reduce the risk of fire or electric shock, do

not use this appliance with any solid state speed control

device.

•

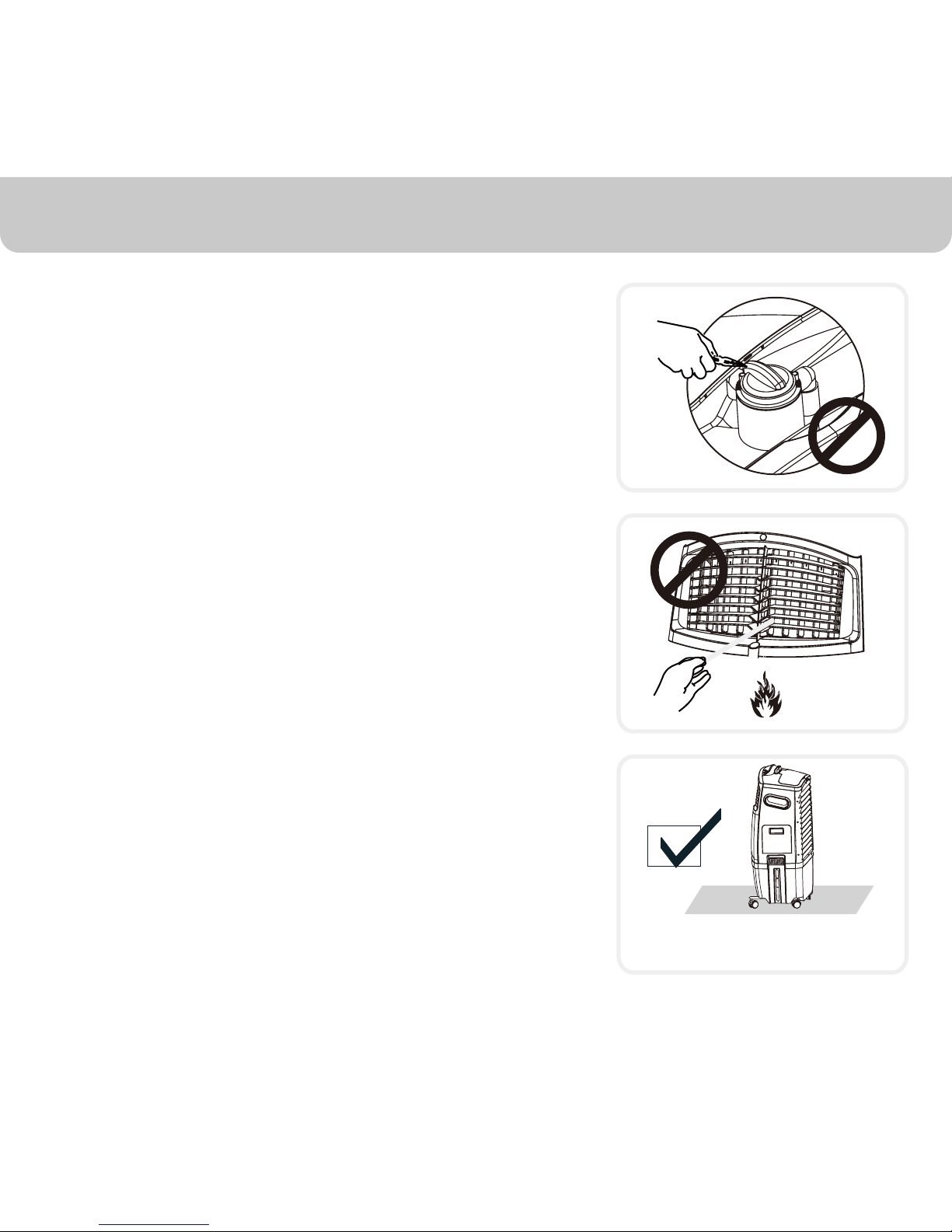

FLOOR LEVEL

SAFETY

DO NOT attempt to repair or adjust any electrical or

mechanical functions of the cooler, as this may void the

warranty.

DO NOT cover the air inlet or outlet on the appliance as this

may cause motor damage.

DO NOT insert or allow objects to enter any ventilation or

exhaust opening as this may damage the product and could

cause electrical shock or fire.

DO NOT operate with the Honeycomb Cooling Media

removed as this will overload and damage the motor.

DO NOT leave the operating appliance unattended for any

extended period of time.

DO NOT let children play with this appliance, packaging or

plastic bags.

If the unit is damaged or it malfunctions, do not continue to

operate it. Refer to the troubleshooting section and seek

professional advice.

Place the unit on a level floor.

This product is not intended for use in wet or damp

locations.

DO NOT use in bathrooms. Never locate the product where

it may fall into a bathtub or other water container.

Store in a dry area when not in use.

This appliance is not intended for use by persons (including

children or elderly) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless

they have been given supervision or instructions concerning

the use of the appliance by a person responsible for their

safety.

Always grip the side handles to move the cooler.

•

SAFETY RULES

•

WHEN OPERATING AS HEATER

DO NOT put any combustible item over the unit, when operating on the HEAT mode,

as it may catch fire.

DO NOT use this heater close to curtains and other combustible material and keep a

safe distance. Keep the appliance at least 15cm (6 inches) from walls and any other

thing, to permit a good air circulation.

Never immerse the product in water or any other liquid for any reasons. Do not use in

the shower, bath tub, or a swimming pool.

DO NOT use if you have wet hands.

Never use the appliance on or near hot surfaces.

The heater must not be located immediately below the socket outlet.

PARTS DESCRIPTION

ACCESSORIES

Remote Control (2 AAA Batteries not included)

1 Control Panel

2 Handle

3 Louvers for Manual Adjustment

4 Left Side Panel

5 Water Tank

6 Power Cord

7 Power Plug

8 Casters

9 Ice Compartment Lid

10 Back Grill

11 Front Panel

12 Water Level Indicator

13 Remote Control Holder

14 Latch (To Detach Water Tank)

15 Right Side Panel

16 Water Fill Door

17 Water Drain Plug

18 Water Regulator

19 Power Switch
