Holzwurm GERA ADDITION User manual

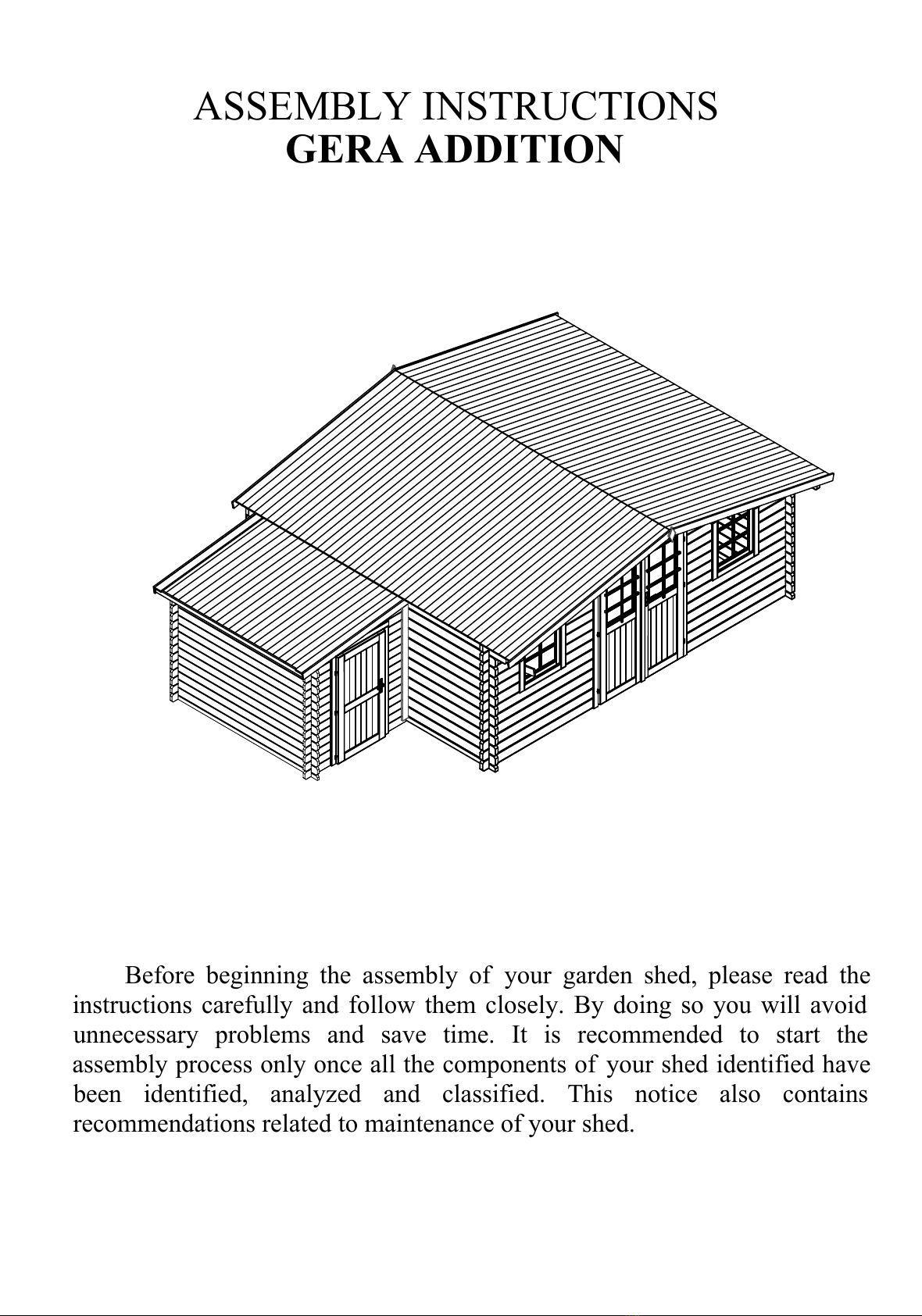

ASSEMBLY INSTRUCTIONS

GERA ADDITION

Before beginning the assembly of your garden shed, please read the

instructions carefully and follow them closely. By doing so you will avoid

unnecessary problems and save time. It is recommended to start the

assembly process only once all the components of your shed identified have

been identified, analyzed and classified. This notice also contains

recommendations related to maintenance of your shed.

All manuals and user guides at all-guides.com

GERA ADDITION P2

P4.1

P5.2

PA3.2 x 13+1 2350 110 28

PA4 x 14 1600 110 28

PA5 x 1 2350 110 28

Dimension, mm Details

A B C

PA1 x 13 320 110 28

PA2 x 13 450 110 28

x 1 2350

1680

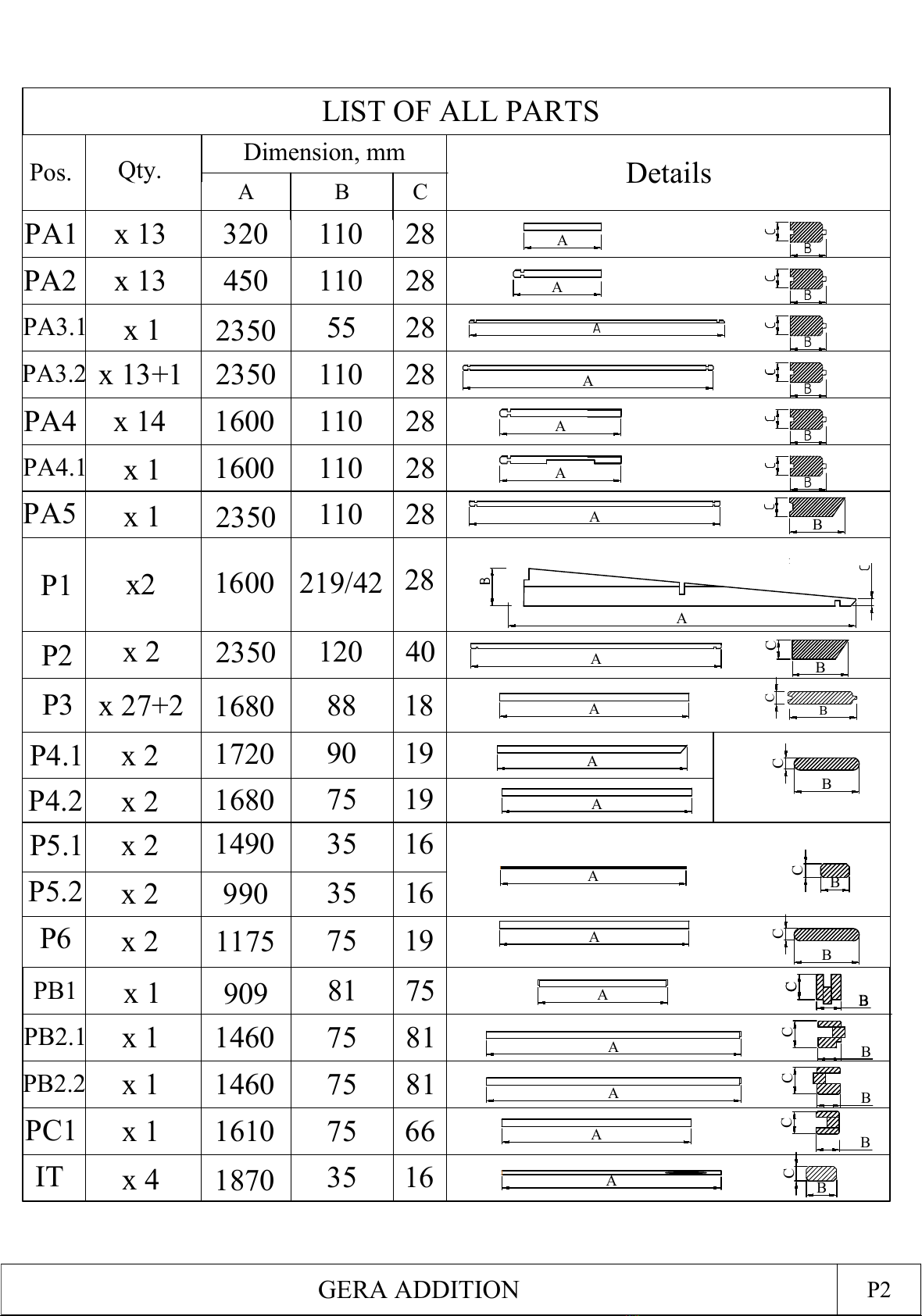

LIST OF ALL PARTS

Pos. Qty.

x2 1600

55 28

219/42 28

88 18

x 27+2 B

x 2 1720 90 19

x 2 990 35 16

x 2 1175 75 19

2350 120 40

x 2

P2 A

PA3.1

x 1 909 81 75

PB2.1 x 1 1460 75 81

PC1 x 1 1610 75 66

x 4 1870 35 16

PB1

P4.2 x 2 1680 75 19

P5.1 x 2 1490 35 16

PB2.2 x 1 1460 75 81

IT B

PA4.1 x 1 1600 110 28

All manuals and user guides at all-guides.com

GERA ADDITION P3

Dimension, mm Details

A B C

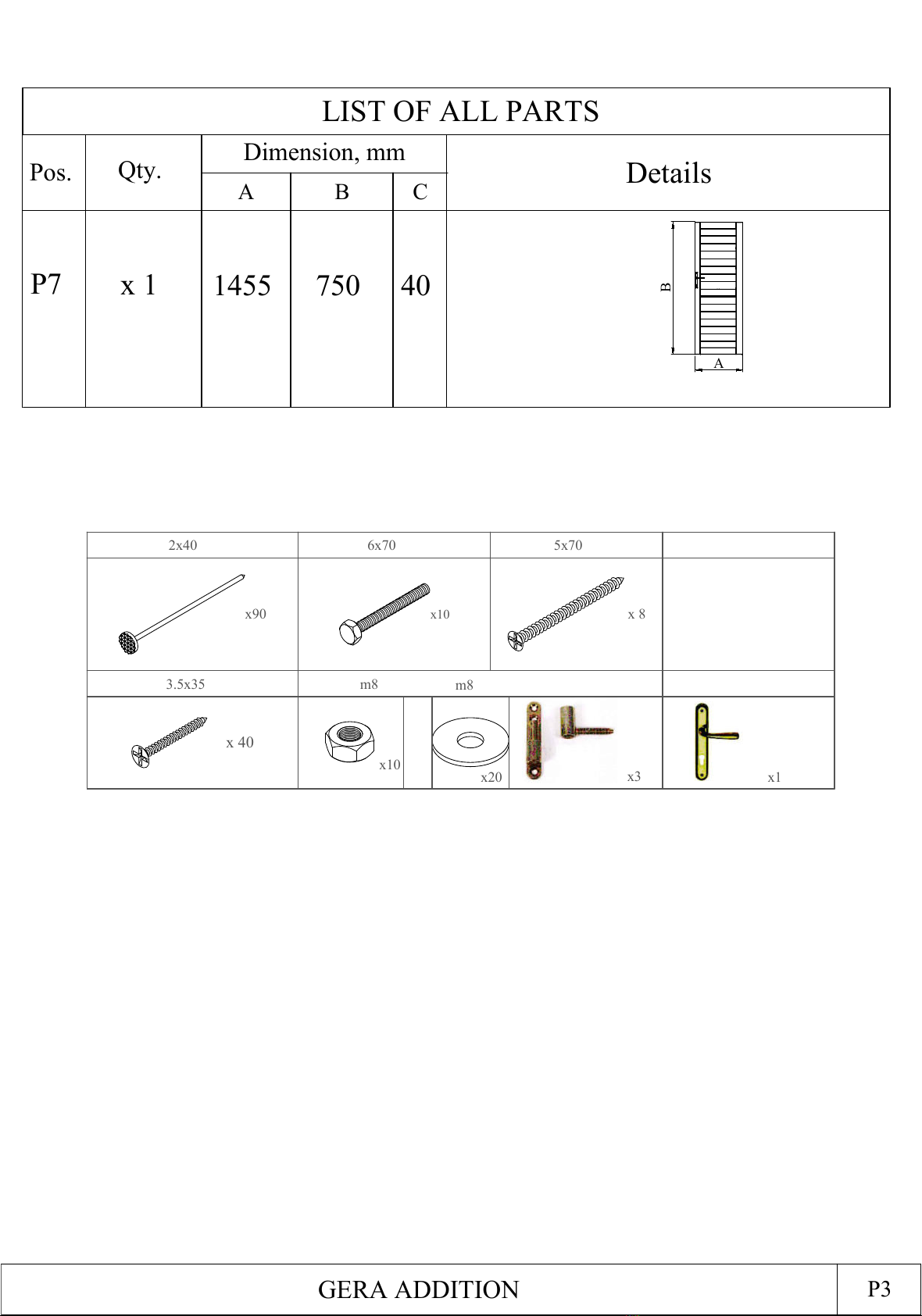

LIST OF ALL PARTS

Pos. Qty.

x90 x10 x 8

5x702x40 6x70

x 40

3.5x35 m8 m8

x10 x20

x 1 1455 750 40

x3 x1

All manuals and user guides at all-guides.com

GERA ADDITION P4

Position Dimension (mm) Quantity

PA1 320 x 110 x 28 13

PA2 450 x 110 x 28 13

PA3.1 2350 x 55 x 28 1

PA3.2 2350 x 110 x 28 13+1

PA4 1600 x 110 x 28 14

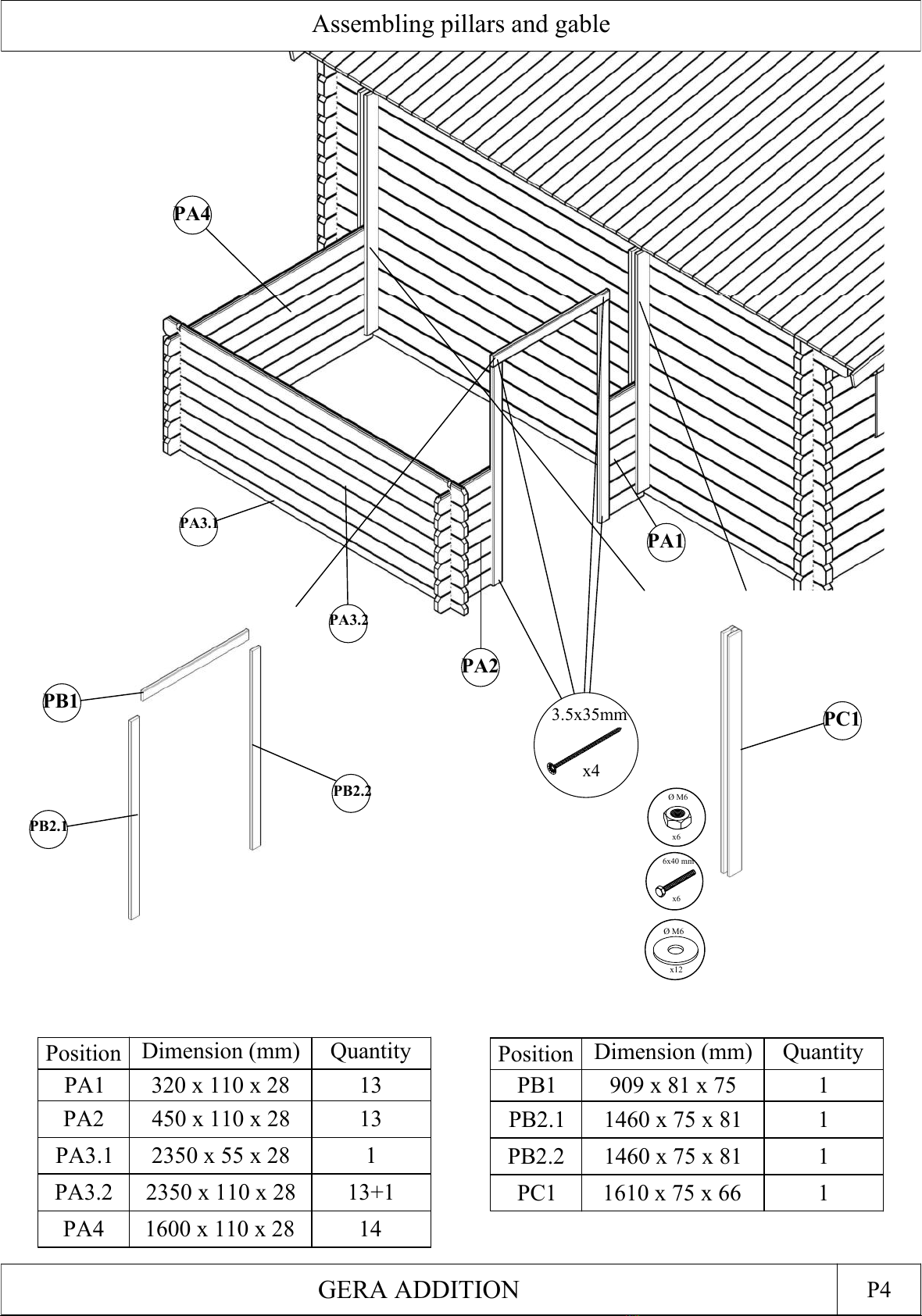

Assembling pillars and gable

PB1

PB2.1

PC1

PA1

PA2

PA3.2

PA4

PA3.1

Position Dimension (mm) Quantity

PB1 909 x 81 x 75 1

PB2.1 1460 x 75 x 81 1

PB2.2 1460 x 75 x 81 1

PC1 1610 x 75 x 66 1

PB2.2

3.5x35mm

Ø M6

x12

6x40 mm

Ø M6

All manuals and user guides at all-guides.com

GERA ADDITION P5

Position Dimension (mm) Quantity

PA4.1 1600 x 110 x 28 1

PA5 2350 x 110 x 28 1

Assembling walls

PA5

5x70mm

PA2

PA5

5x70mm

PA3.2

PA4.1

All manuals and user guides at all-guides.com

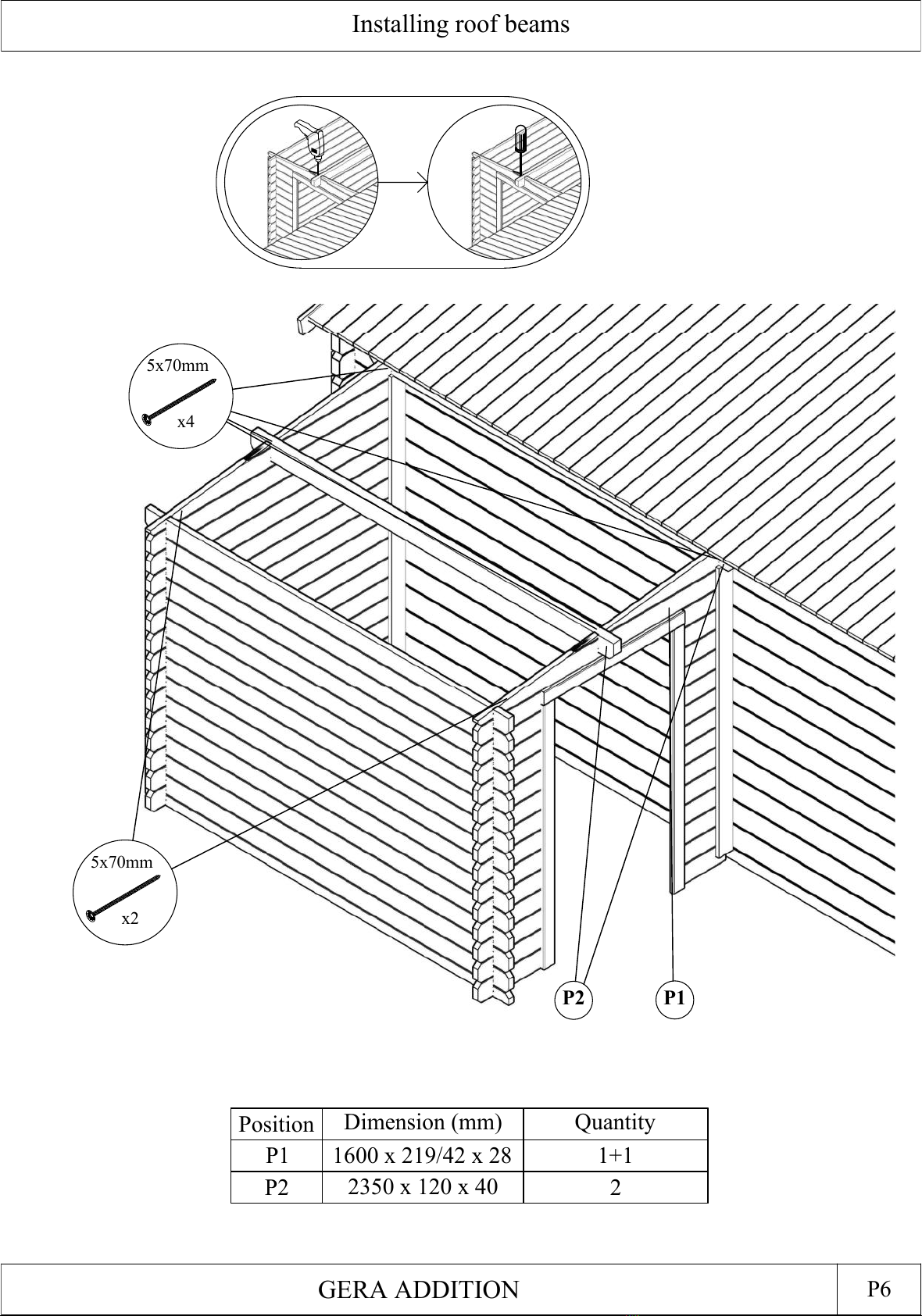

GERA ADDITION P6

Position Dimension (mm) Quantity

P1 1600 x 219/42 x 28 1+1

P2 2350 x 120 x 40 2

Installing roof beams

5x70mm

All manuals and user guides at all-guides.com

GERA ADDITION P7

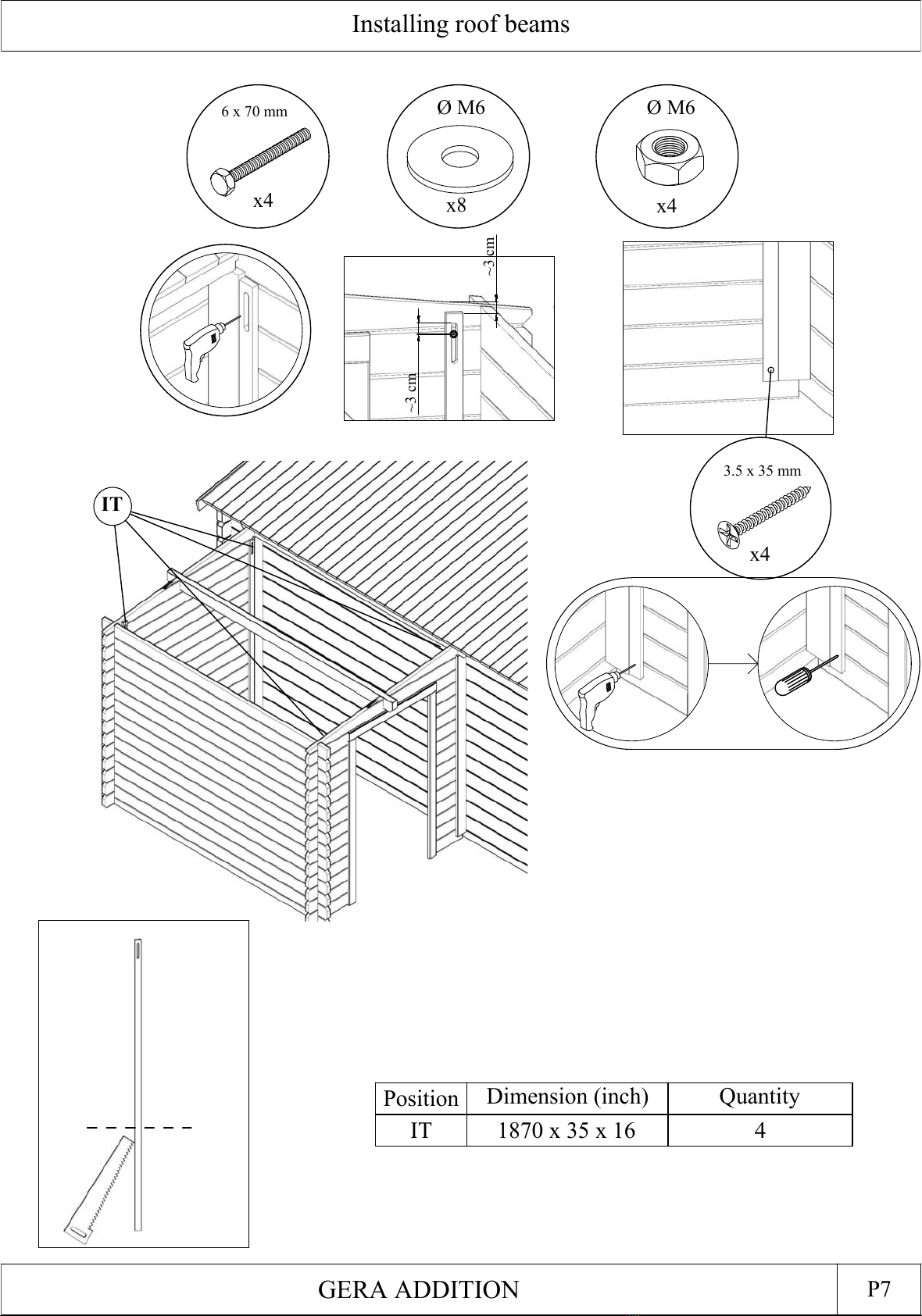

Installing roof beams

Ø M6

~3 cm

6 x 70 mm

3.5 x 35 mm

Position Dimension (inch) Quantity

IT 1870 x 35 x 16 4

All manuals and user guides at all-guides.com

GERA ADDITION P8

Position Dimension (mm) Quantity

P3 1680 x 88 x 18 27+2

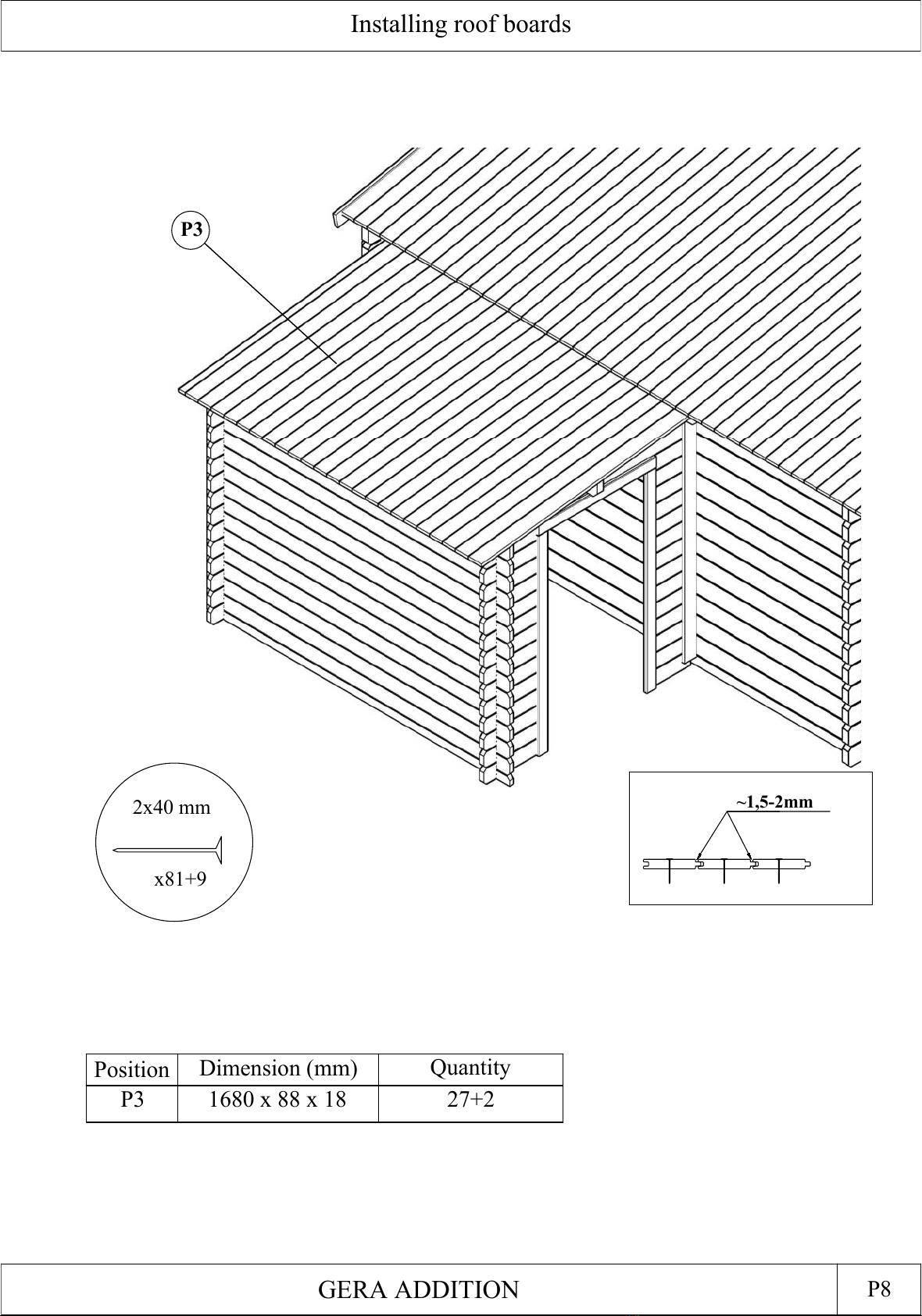

Installing roof boards

~1,5-2mm

2x40 mm

x81+9

All manuals and user guides at all-guides.com

GERA ADDITION P9

Position Dimension (mm) Quantity

P4.1 1720 x 90 x 19 2

P4.2 1680 x 75 x 19 2

P5.1 1490 x 35 x 16 1

P5.2 990 x 35 x 16 1

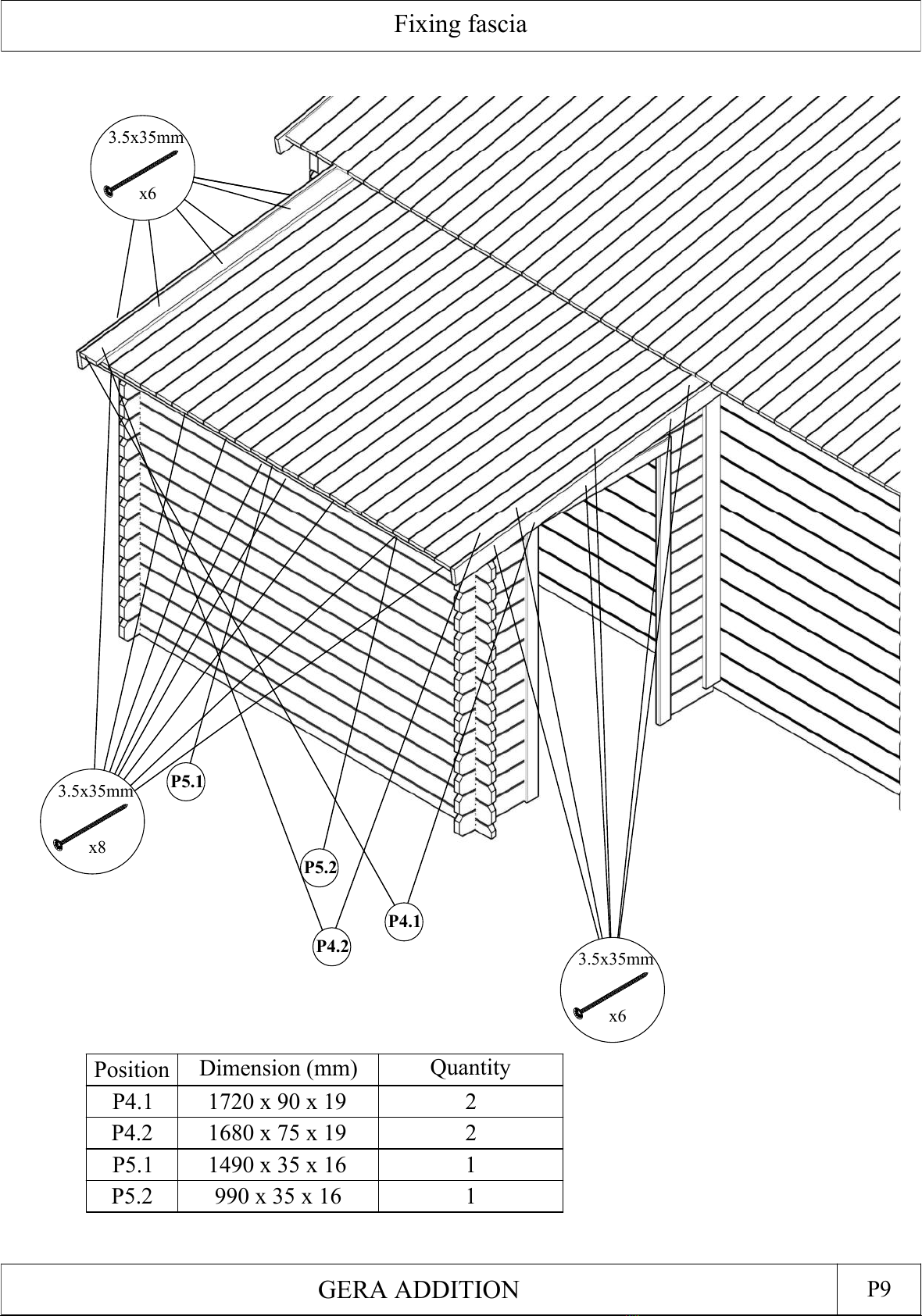

Fixing fascia

P4.1

3.5x35mm

P5.1

3.5x35mm

P5.2

P4.2

All manuals and user guides at all-guides.com

GERA ADDITION P10

Position Dimension (mm) Quantity

P6 1175 x 75 x 19 2

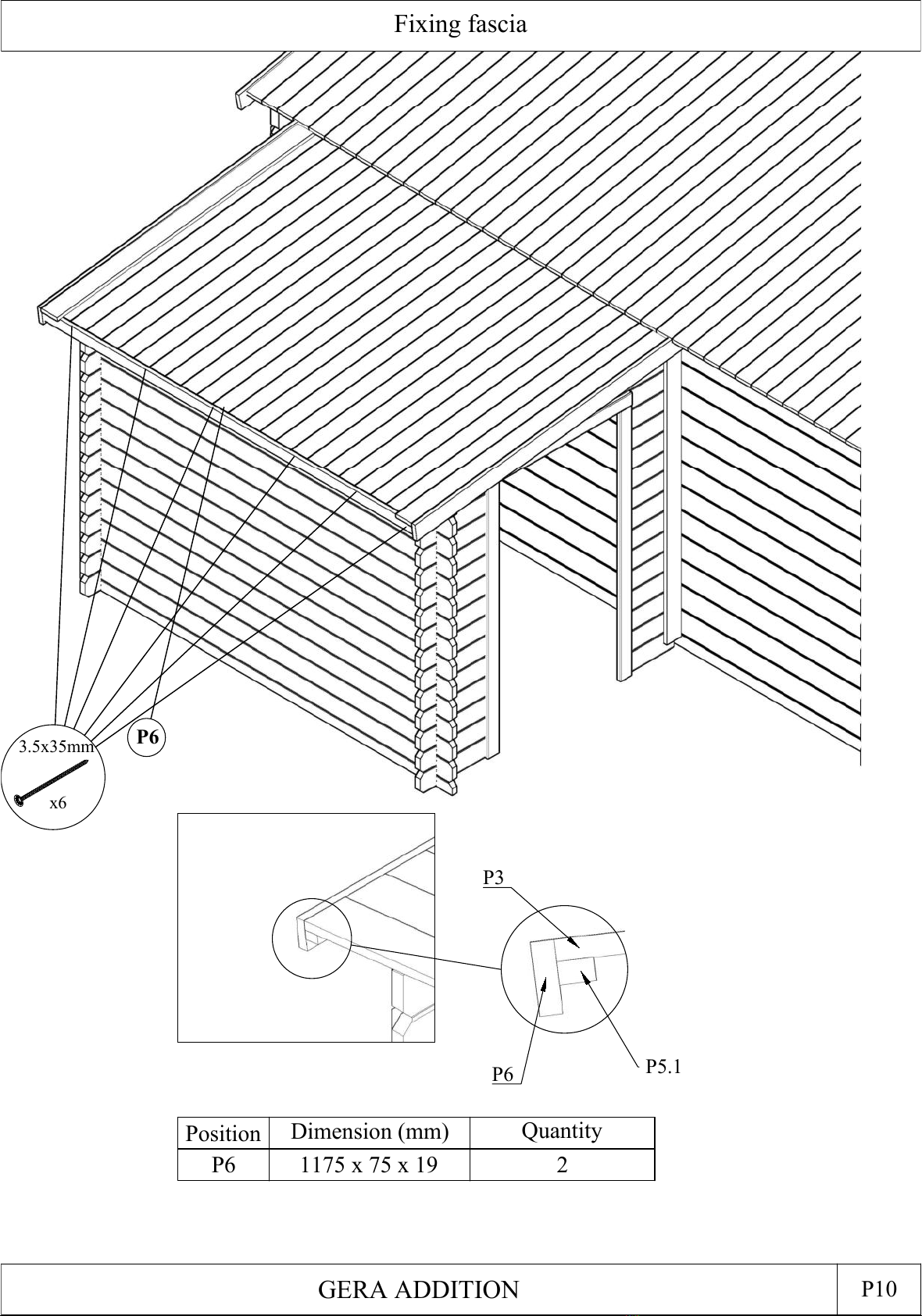

Fixing fascia

3.5x35mm

P5.1
