Hiyasu HSE-7C User manual

OPERATING MANUAL

ROOM AIR CONDITIONER

WALL MOUNTEDTYPE

Indoor Unit

HSE-7C / HSE-7R

HSE-9C / HSE-9R

HSE-12C / HSE-12R

HSE-16C / HSE-16R

HSE-17C / HSE-17R

HSE-20C / HSE-20R

HME-9C2 / HME-9R2

HME-127C3

HME-127C4

Outdoor Unit

HOE-7C / HOE-7R

HOE-9C / HOE-9R

HOE-12C / HOE-12R

HOE-16C / HOE-16R

HOE-17C / HOE-17R

HOE-20C / HOE-20R

HOME-18C2 / HOME-18R2

HOME-24C3

HOME-24C4

KEEPTHIS OPERATION MANUAL

FOR FUTURE REFERENCE

English

Operat-parete EN 21/12/00 05:07 pm Página 1

En-2

SAFETY INSTRUCTIONS

• Please read the following Safety Instructions carefully prior to use.

Safety instructions and symbols explanation

• The Instructions are classified into WARNING and CAUTION according to the seriousness of the possible risks and

damages.

• Compliance to the Instructions is strictly required for safe use.

This symbol is used with two different meanings as follows.

WARNING! indicates actions which, if not performed in the proper way, may cause serious harm to

people.

CAUTION! indicates actions and procedures which, if not performed in the proper way, may cause

harm to people and damages to the unit and things.

Safety symbol which is usually used to indicate WARNING or CAUTION.

Safety symbol which indicates prohibited operations.

Symbol which indicates particular actions to be necessarily performed by the user.

CONTENTS

SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

PARTS AND FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

TROUBLE SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Operat-parete EN 21/12/00 05:07 pm Página 2

En-3

WARNING

Please call Sales/Service Points for installation.

Do not attempt to install the air conditioner by yourself because improper actions may cause electric

shock, fire, water leakage.

Connect the“earth” cable.

PROHIBITION

Do not install the air conditioner in places where there might be inflammable gas leakages around

the unit.

PROHIBITION

Do not get the unit exposed to vapor or oil steam.

STRICT ENFORCEMENT

Check for proper installation of drainage hose.

Please call Sales/Service Points for repairs.

Do not attempt to repair the air conditioner by yourself because improper actions may cause electric

shock, fire, water leakage.

Please call Sales/Service Points for relocation.

Do not attempt to relocate the air conditioner by yourself because improper actions may cause

electric shock, fire, water leakage.

Operat-parete EN 21/12/00 05:07 pm Página 3

En-4

WARNING

Do not stop or start the air conditioner by pulling out or in the plug of the power supply cord.

PROHIBITION

Connect the power supply cord to the outlet completely.

STRICT ENFORCEMENT

Use 220V-230V voltage.

STRICT ENFORCEMENT

Do not power supply cord extended or connected at halfway.

PROHIBITION

Do not use the power supply cord in a bundle.

PROHIBITION

Take care not to damage the power supply cord.

PROHIBITION

Do not insert any objects into the air inlet or outlet.

PROHIBITION

Do not stop or start unit operation by disconnecting or connecting the power supply cord.

PROHIBITION

Do not channel the airflow directly at people, especially infants and old people.

PROHIBITION

Do not try to repair or reconstruct the air conditioner by yourself.

PROHIBITION

When abnormalities are observed, such as burning smell, stop the unit immediately.Cut off the

power supply by turning the power switch in the OFF position.

STRICT ENFORCEMENT

Operat-parete EN 21/12/00 05:07 pm Página 4

En-5

CAUTION

Do not use the air conditioner to store food, art work and precise equipment, to breed animals and

grow plants.

PROHIBITION

Let fresh air into the room from time to time, especially if a gas appliance is running at the same

time.

STRICT ENFORCEMENT

Do not operate the power switch with wet hands.

PROHIBITION

Do not install the unit near a fireplace or any other heating devices.

PROHIBITION

Check for good conditions of the unit installation stand.

PROHIBITION

Do not pour water onto the unit for cleaning.

PROHIBITION

Do not place animals or plants directly in the airflow.

PROHIBITION

Do not place any objects on the unit and do not climb on it.

PROHIBITION

Do not place flower vases or water containers on the top of the unit.

PROHIBITION

Operat-parete EN 21/12/00 05:07 pm Página 5

En-6

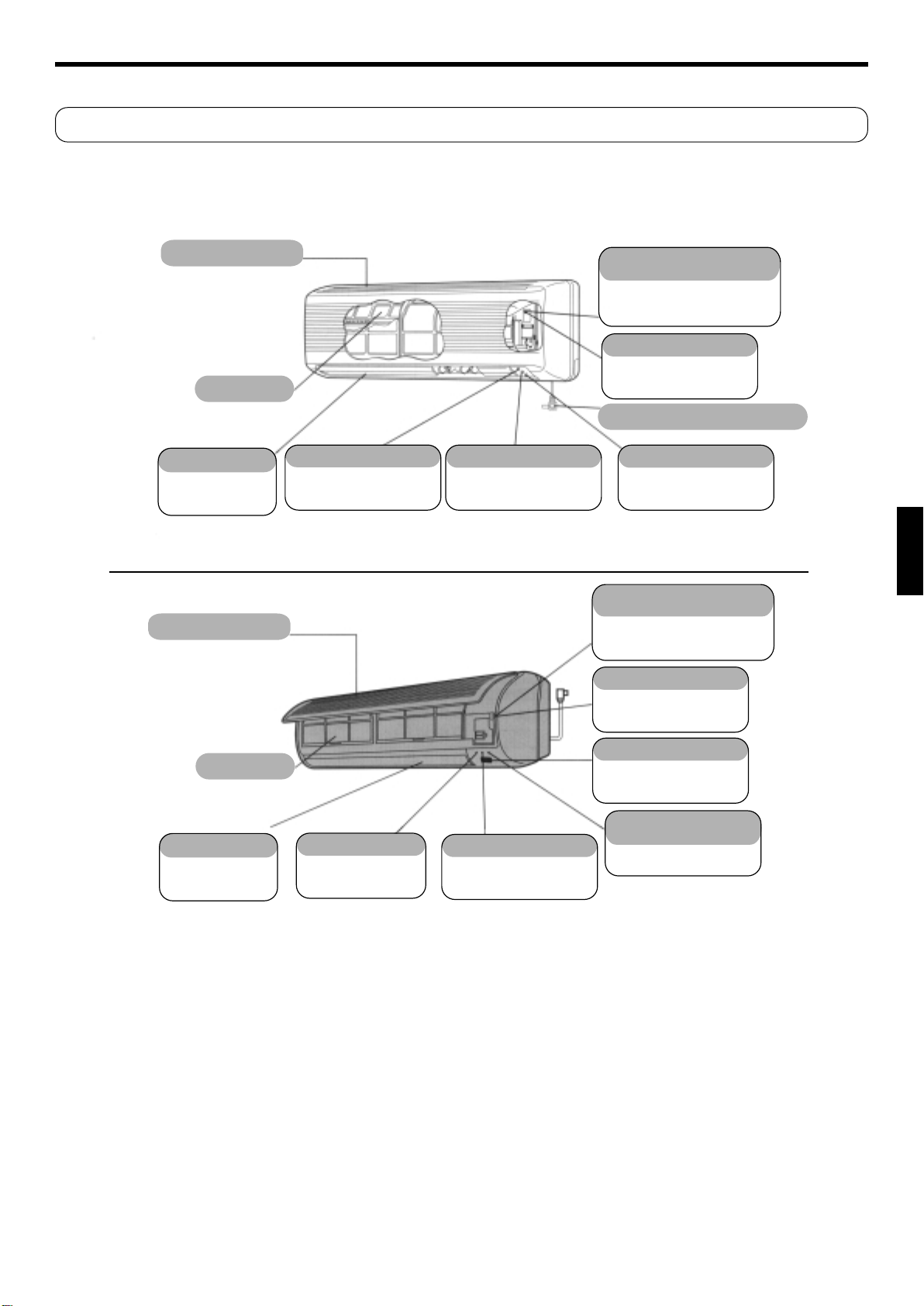

Inlet grill

Air filter

Vertical flap

Use remote controller to

adjust up and down air flow.

(Don't adjust it manually).

Power indicator

Lights up when unit starts. Lights up when timer operation

is selected.

Timer mode indicator

The air flow direction is

ajusted with the vertical

and horizontal louvers.

A digital beeping sound is generated

when a signal from the wireless

remote controller is received.

INLET GRILL

MILDEWPROOF

AIR FILTER

OUTLET REMOTE SIGNAL

RECEIVER

For models: HSE-7C HSE-9R HME-9C (2x1)

HSE-7R HSE-12C HME-9R (2x1)

HSE-9C HSE-12R HME-127C (3x1)

HME-127C (4x1)

For models: HSE-16C HSE-17C HSE-20C

HSE-16R HSE-17R HSE-20R

Lights up during compressor

running.

Operation mode indicator

PARTS AND FUNCTIONS

INDOOR UNIT

For multi-split type, the power plug is on the outdoor unit.

Operat-parete EN 21/12/00 05:07 pm Página 6

En-7

Inlet grill

Air filter

Power plug

Vertical flap

Use remote controller to

Adjust up and down air flow.

(Don't adjust it manually).

Vertical flap

Use remote controller to

Adjust up and down air flow.

(Don't adjust it manually).

Power indicator

Lights up when unit starts. Lights up when Timer operation

is selected.

Timer mode indicator

Lights up when unit starts.

Power indicator

Lights up when Timer operation

is selected.

Timer mode indicator

Lights up during compressor

running.

Operation mode

indicator

A beeping sound is generated

when a signal from remote

controller is received.

Remote signal receiver

Used when remote controller is lost

or defective. Unit will run temporanly.

Emergency switch (manual)

Used when remote controller is

lost or defective. Unit will run

temporanly.

Emergency switch (manual)

Used only for test running in cooling when

room temp.is bellow 16°C.Don't use it in

normal operation.

Test running switch

(manual)

Used only for test running in cooling when

room temp.is bellow 16°C.Don't use it in

normal operation.

Test running switch

(manual)

For models: HSE-12C HSE-12R

For models: HSE-7C HSE-9C

HSE-7R HSE-9R

Lights up during compressor

running.

Operation mode indicator

PARTS AND FUNCTIONS

INDOOR UNIT

For multi-split type, the power plug is on the outdoor unit.

Operat-parete EN 21/12/00 05:07 pm Página 7

En-8

Apparecchio esterno

L'apparecchio funziona nelle seguenti situazioni:

1. Gamma utile delle temperature ambiente:

DRAIN

HOSE

CONNECTING PIPING AND

ELECTRICAL WIRING

OUTLET

INLET

Cooling

Indoor

Outdoor

Indoor

Outdoor Maximum: D.B. / W.B. 24°C / 18°C

Minimum: D.B. / W.B. -7°C / -8°C

Maximum: D.B. 27°C

Minimum: D.B. 15°C

Maximum: D.B. 43°C

Minimum: D.B. 15°C

Maximum: D.B. / W.B. 32°C / 23°C

Minimum: D.B. / W.B. 18°C / 14°C

Heating

For models:

HSE-7C HSE-7R

HSE-9C HSE-9R

HSE-12C HSE-12R

PARTS AND FUNCTIONS

OUTDOOR UNIT

2.If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar

qualified person.The type of connecting wire is H05RN-F or HO7RN-F.

3.If the fuse on PC board is broken please change it with the type of 50F.3.15A/250V. (for series 16,17,20) or

50F.2.5A/250V (for series 07,09,12).

4.The distance between the indoor unit and the floor should be more than 1.8m.

5.The wiring method should be in line with the local wiring standard.

6.After installation, the power plug should be easily reached.

7.The waste battery should be disposed properly.

8.The appliance is not intented for use by young children or infirm persons without supervision.

9.Young children be supervised to ensure that they do not play with the appliance.

The machine is adaptive in following situation

1. Applicable ambient temperature range:

*Warm air comes out when cooling,

cool air comes out when heating.

D.B = Dry Bulb

W.B= Wet Bulb

Operat-parete EN 21/12/00 05:07 pm Página 8

En-9

For models:

Multi Split Type 3 indoor units (cooling) For models:

Multi Split Type 4 indoor units (cooling)

For models:

16-17-20.000 BTU

PARTS AND FUNCTIONS

OUTDOOR UNIT

Operat-parete EN 21/12/00 05:07 pm Página 9

En-10

PARTS AND FUNCTIONS

OPERATION

Cautions

On cooling unit heating mode is not available.

After replacing batteries, press ON/OFF, and display

becomes as follows:

Operation mode: AUTO, Temp.No

Timer mode: No, Fan speed: AUTO

Note

The above information is the

explanation of the displayed

information therefore varies

with those displayed in actual

operation.

Power ON/OF

Use for unit start and Stop.

SWING

Used to set auto fan direction.

MODE

Used to select AUTO run, COOL,

DRY, HEAT and FAN operation.

CLOCK

Used to set correct time.

TIMER

Used to select TIMER ON,

TIMER OFF, TIMER ON/OFF.

LOCK

Used to lock buttons and LCD

display.

TEMP

Used to select your desired

temp.

FAN

Used to select fan speed:

LO, MED, HI, AUTO.

SLEEP

Used to select sleep mode.

SET

Used to confirm Timer and Clock

settings.

HOUR

Used to set clock and timer

setting.

RESET

Used to reset the controller back

to normal condition.

Buttons and display of the remote controller

Operat-parete EN 21/12/00 05:07 pm Página 10
