Hirschmann MICE MS20-1600 Series User manual

Installation MS20/MS30

Release

07/2013

Technische Unterstützung

https://hirschmann-support.belden.eu.com

User Manual

Installation

Industrial ETHERNET Switch MICE

MS20/MS30

MICE MS20 MICE MS30

The naming of copyrighted trademarks in this manual, even when not specially indicated, should

not be taken to mean that these names may be considered as free in the sense of the trademark

and tradename protection law and hence that they may be freely used by anyone.

translation, conversion into any electronic medium or machine scannable form is not permitted,

either in whole or in part. An exception is the preparation of a backup copy of the software for

your own use. For devices with embedded software, the end-user license agreement on the

enclosed CD/DVD applies.

The performance features described here are binding only if they have been expressly agreed

when the contract was made. This document was produced by Hirschmann Automation and

Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right

to change the contents of this document without prior notice. Hirschmann can give no guarantee

in respect of the correctness or accuracy of the information in this document.

Hirschmann can accept no responsibility for damages, resulting from the use of the network

components or the associated operating software. In addition, we refer to the conditions of use

specified in the license contract.

You can get the latest version of this manual on the Internet at the Hirschmann product site

(www.hirschmann.com).

Printed in Germany

Hirschmann Automation and Control GmbH

Stuttgarter Str. 45-51

72654 Neckartenzlingen

Deutschland

Tel.: +49 1805 141538

Installation MS20/MS30 039 530-001-11-0713 – 25.7.13

Installation MS20/MS30

Release

07/2013 3

Contents

Safety instructions 5

About this Manual 14

Legend 14

1 Description 15

1.1 General device description 15

1.2 Device name and product code 16

1.3 Description of the device variants 17

1.3.1 Number of ports and connections 18

1.3.2 Media modules 21

1.3.3 Digital I/O Module MM24 25

1.3.4 MB20 extender module 26

1.3.5 SFP Transceiver 26

1.4 Display elements 26

1.4.1 Device status 28

1.4.2 Display status 29

1.4.3 Port status 29

2 Assembly and start-up 31

2.1 Unpacking and checking 31

2.2 Installing the media modules 32

2.3 Filling out and attaching labels 32

2.4 Installing the SFP transceivers (optional) 33

2.5 Adjusting the DIP switch settings on the basic module (4-pin

DIP switch) 34

2.6 Adjusting the DIP switch settings on the MS20/MS30-...E...

basic module (3-pin DIP switch) 35

2.7 Adjusting the DIP switch settings on the

MM20-A8A89999SAHH media module 37

2.8 Connecting the MM22-T1T1T1T1 PoE media module 37

2.9 Terminal block for supply voltage and signal contact 39

2.9.1 Supply voltage 39

2.9.2 Signal contacts 39

Installation MS20/MS30

Release

07/2013 4

2.10 Connecting the terminal blocks, start-up procedure 40

2.10.1 Terminal blocks on MS20/MS30-...A... and

MS20/MS30-...C... 40

2.10.2 Terminal block on MS20/MS30-...E... 41

2.10.3 Startup procedure 41

2.11 Installing the device on the DIN rail, grounding 42

2.11.1 Mounting on the DIN rail 42

2.11.2 Grounding 42

2.12 Connecting the data lines 43

2.12.1 10/100 Mbit/s twisted pair port 43

2.12.2 10/100 Mbit/s PoE/PSE port 43

2.12.3 10/100/1000 Mbit/s twisted pair port 44

2.12.4 100 Mbit/s F/O port 45

2.12.5 1000 Mbit/s F/O port 45

2.12.6 AUI port 45

2.13 Assembly of the MB20 extender module 47

2.14 Defining the meaning of the display LEDs 47

3 Basic set-up 48

4 Maintenance and service 50

5 Deinstallation 51

6 Technical data 52

A Further Support 75

Installation MS20/MS30

Release

07/2013 5

Safety instructions

Certified usage

Only use the device for application cases that are described in the

Hirschmann product information, including this manual. Only operate the

device according to the technical specifications.

Supply voltage

For safety reasons the devices have been designed to operate at low

voltages. Thus, they may only be connected to the supply voltage

connections and to the signal contact with SELV circuits with the voltage

restrictions in accordance with IEC/EN 60950-1.

The supply voltage is electrically isolated from the housing.

Use undamaged parts.

Relevant for North America:

The device may only be connected to a Class 2 supply voltage that

fulfills the requirements of the National Electrical Code, Table 11(b). If

the voltage is being supplied redundantly (two different voltage

sources), the combined supply voltages must fulfill the requirements of

the National Electrical Code, Table 11(b).

Relevant for North America: For use in Class 2 circuits.

Only use copper wire/conductors of class 1, 75 °C (167 °F).

Relevant for North America for modules certified for Hazardous

Locations:

This equipment is suitable for use in Class 1, Division 2, Groups A, B,

C and D or Non-Hazardous (unclassified) locations only.

Make sure that peripheral devices are suitable for the application

environment. The wiring for the voltage supply and for the inputs and

outputs (I/O) must adhere to the wiring regulations for Class 1,

Division 2 [article 501(b) of the National Electrical Code (USA),

NFPA 70] and to the applicable statutory regulations.

Note: Observe the control drawing (document number

000160011DNR) on the following pages.

Relevant for Europe

for devices installed in explosive gas atmospheres according to ATEX

directive 94/9 EC:

Make sure that the device has the following label:

II 3G (... followed by additional specifications).

Note: Observe the control drawing (document number

000160011DNR) on the following pages.

6Installation MS20/MS30

Release

07/2013

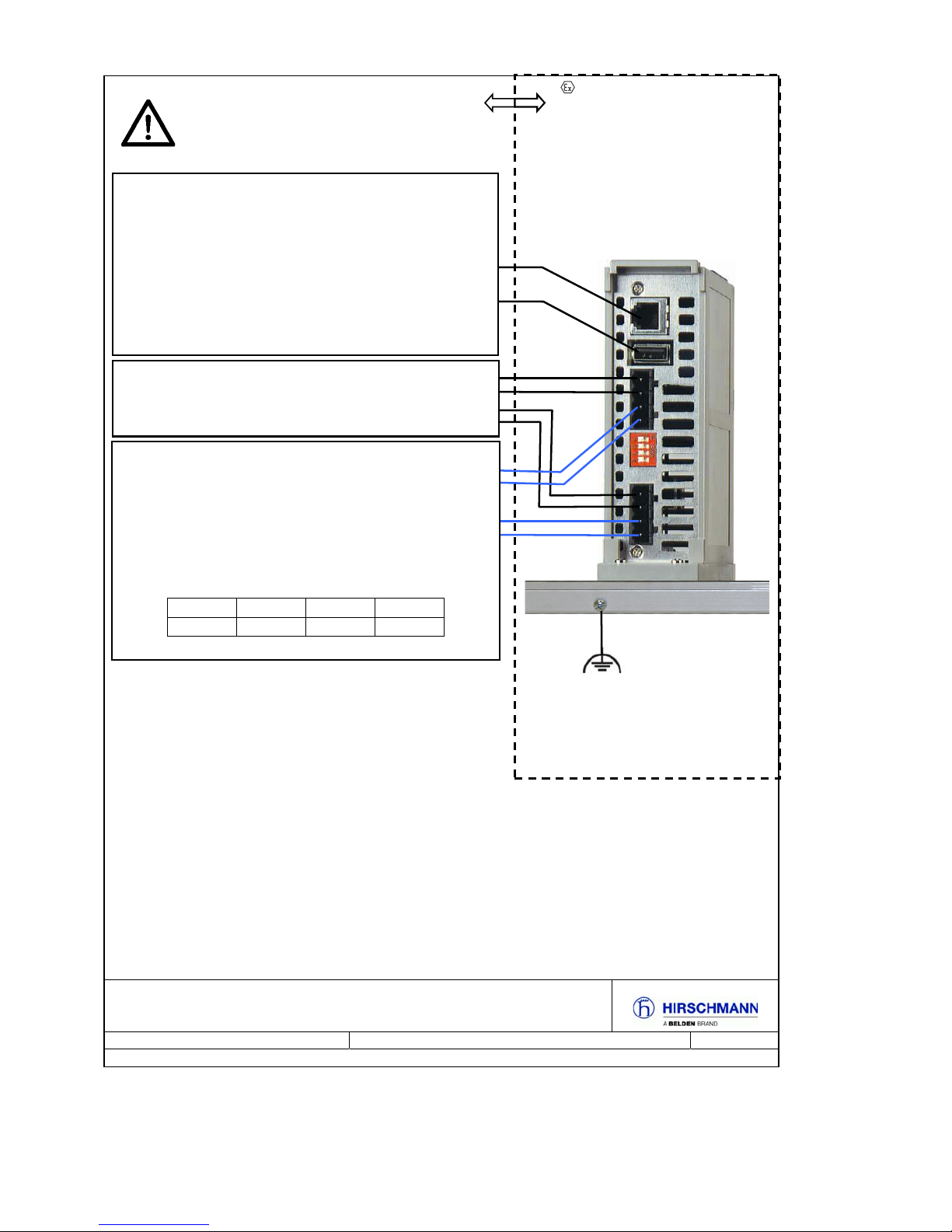

CONTROL DRAWING IRU,QGXVWULDO(7+(51(75DLO6ZLWFK06DQG06GHYLFHV



943-435-999 according to the directive 94/9/EC

or Class I Division 2 Hazardous Locations

Version: 2 Document No.: 000160011DNR Page 1/4



2UGLQDU\ RFDWLRQ

1RQ+D]DUGRXV$UHD

QRQH[SORVLYHDWPRVSKHUH

WARNING! The USB connection and the V.24

Interface connection are for temporary

connection only, for maintenance use. Do not

use, connect or disconnect unless the area is

known to be non-hazardous. Connection or

disconnection in an explosive atmosphere could

result in an explosion!

Relay

Rela

The earth conductor must be at

least the same wire size (mm²

or AWG) as the supply

conductors.

Power Supply range “C” (P1, P2 Redundant)

18 – 60 VDC;

4.0 – 1.2 A; max. 72 W

Relay contacts:

Equipment with nonincendive field wiring

parameters.

Polarity is not relevant.

THE RELAY TERMINALS ARE DEPENDENT

UPON THE FOLLOWING ENTITY

PARAMETERS:

)

Temperature Code: T4

Ambient Temperature rating:

Ta: 0 °C to +60 °C for “S” types

Ta: -40 °C to +70 °C for “T” or “E” types

²UHIHUWRWKHW\SHGHVLJQDWLRQRQWKHGHYLFH

 3RVLWLRQRIQRPHQFODWXUH´7HPSHUDWXUHUDQJHµ

MS20/30 switch basic module

with voltage range type “C”

=RQH([SORVLYH$WPRVSKHUH

RU&ODVV,'LYLVLRQ

*URXSV$%&'

+D]DUGRXV RFDWLRQ

30 V 90 mA 2 nF 1 µH

Installation MS20/MS30

Release

07/2013 7

CONTROL DRAWING IRU,QGXVWULDO(7+(51(75DLO6ZLWFK06DQG06GHYLFHV



943-435-999 according to the directive 94/9/EC

or Class I Division 2 Hazardous Locations

Version: 2 Document No.: 000160011DNR Page 2/4

WARNING! The USB connection and the V.24

Interface connection are for temporary

connection only, for maintenance use. Do not

use, connect or disconnect unless the area is

known to be non-hazardous. Connection or

disconnection in an explosive atmosphere could

result in an explosion!

Relay

Power Supply range “A” (P1, P2 Redundant)

18 – 32 VDC;

4.0 – 2.25 A; max. 72 W

Temperature Code: T4

Ambient Temperature rating:

Ta: 0°C to +60°C for “S” types

Ta: -40°C to +70°C for “T” or “E” types

²UHIHUWRWKHW\SHGHVLJQDWLRQRQWKHGHYLFH

3RVLWLRQRIQRPHQFODWXUH´7HPSHUDWXUHUDQJHµ

=RQH([SORVLYH

$WPRVSKHUH

RU&ODVV,'LYLVLRQ

*URXSV$%&'

+D]DUGRXV RFDWLRQ

2UGLQDU\ RFDWLRQ

1RQ+D]DUGRXV$UHD

QRQH[SORVLYHDWPRVSKHUH

The earth conductor must be at

least the same wire size (mm²

or AWG) as the supply

conductors.

MS20/30 switch basic module

with voltage range type “A”

Relay contacts:

Equipment with nonincendive field wiring

parameters.

Polarity is not relevant.

THE RELAY TERMINALS ARE DEPENDENT

UPON THE FOLLOWING ENTITY

PARAMETERS:

)

30 V 90 mA 2 nF 1 µH

8Installation MS20/MS30

Release

07/2013

For Use in explosive atmospheres under the European directive 94/9/EC:

Applied Standards: EN60079-0, 2009

EN60079-15, 2010

EN60079-11, 2012

7KH8VHLQ+D]DUGRXV RFDWLRQVZLWKH[SORVLYHDWPRVSKHUHVLVRQO\DOORZHGIRU06RU06PRGHO

1RVZKLFKDUHLQGLYLGXDOO\ODEHOOHG



´,,*µDQG´([Q$LF,,&7*FµDQG´'(.5$$7(;;µIRU06[[GHYLFHV

´,,*µDQG´([Q$,,&7*FµDQG´'(.5$$7(;;µIRU0%GHYLFHV



6SHFLDOFRQGLWLRQVIRUVDIHXVH



7KHPRGXOHVVKDOOEHLQVWDOOHGLQDVXLWDEOHHQFORVXUHLQDFFRUGDQFHZLWK(1WDNLQJLQWR

DFFRXQWWKHHQYLURQPHQWDOFRQGLWLRQVXQGHUZKLFKWKHHTXLSPHQWZLOOEHXVHG



3URYLVLRQVVKDOOEHPDGHWRSUHYHQWWKHUDWHGYROWDJHIURPEHLQJH[FHHGHGE\WUDQVLHQW

GLVWXUEDQFHVRIPRUHWKDQ9



:KHQWKHWHPSHUDWXUHXQGHUUDWHGFRQGLWLRQVH[FHHGV&DWWKHFDEOHRUFRQGXLWHQWU\SRLQWRU

&DWWKHEUDQFKLQJSRLQWRIWKHFRQGXFWRUVWKHWHPSHUDWXUHVSHFLILFDWLRQRIWKHVHOHFWHGFDEOH

VKDOOEHLQFRPSOLDQFHZLWKWKHDFWXDOPHDVXUHGWHPSHUDWXUHYDOXHV



Note

The nonincendive field wiring circuit concept allows interconnection of nonincendive field

wiring apparatus and associated nonincendive field wiring apparatus using any of the wiring

methods permitted for unclassified locations when certain parametric conditions are met.

Capacity: C

C

+ C

Cable

; Inductivity: L

L

+ L

Cable

  

The maximum cable length has to be determined as follows:

(a) max. Cable Length < (L

-L

) / Cable

(“Cable

” denotes the inductance per unit length of used cable) and

(b) max. Cable Length < (C

-C

) / Cable

(“Cable

C”

denotes the capacitance per unit length of used cable).

The lower value of (a) and (b) is to apply.

Manufactured in 72654 Neckartenzlingen / Germany by Hirschmann Automation and Control GmbH.

DOM: ww/yyyy (Date of manufactur: w - week, y - year. Refer to the device label).

CONTROL DRAWING IRU,QGXVWULDO(7+(51(75DLO6ZLWFK06DQG06GHYLFHV

943-435-999 according to the directive 94/9/EC

or Class I Division 2 Hazardous Locations

Rev.: 2 Document No.: 000160011DNR Page 3/4

Installation MS20/MS30

Release

07/2013 9

For Use in Hazardous Locations Class I Division 2 Groups A, B, C, D:

Applied standard: ANSI/ISA 12.12.01-2011.



2QO\DOORZHGIRU06RU06PRGHO1RVZKLFKDUHLQGLYLGXDOO\ODEHOOHG

 ´)2586(,1+$=$5'286 2&$7,216µ 

1RQLQFHQGLYHILHOGZLULQJFLUFXLWVPXVWEHZLUHGLQDFFRUGDQFHZLWKWKH

1DWLRQDO(OHFWULFDO&RGH1(&1)3$DUWLFOH

WARNING – EXPLOSION HAZARD – SUBSTITUTION OF ANY COMPONENTS MAY

IMPAIR SUITABILITY FOR HAZARDOUS LOCATIONS OR EXPLOSIVE

ATMOSPHERES.

WARNING – EXPLOSION HAZARD – DO NOT DISCONNECT EQUIPMENT UNLESS

POWER HAS BEEN SWITCHED OFF OR THE AREA IS KNOWN TO BE NON-

HAZARDOUS.

Use 60/75 or 75 °C copper (CU) wire only.

Only for connection to a Class 2 power supply.

Note

The nonincendive field wiring circuit concept allows interconnection of nonincendive field

wiring apparatus and associated nonincendive field wiring apparatus using any of the

wiring methods permitted for unclassified locations when certain parametric conditions are

met.

Capacity: C

C

+ C

Cable

; Inductivity: L

L

+ L

Cable



  

The maximum cable length has to be determined as follows:

(a) max. Cable Length < (L

-L

) / Cable

(“Cable

” denotes the inductance per unit length of used cable) and

(b) max. Cable Length < (C

-C

) / Cable

(“Cable

” denotes the capacitance per unit length of used cable).

The lower value of (a) and (b) is to apply.

Manufactured in 72654 Neckartenzlingen / Germany by Hirschmann Automation and Control

GmbH.

DOM: ww/yyyy (Date of manufactur: w - week, y - year. Refer to the device label).

CONTROL DRAWING IRU,QGXVWULDO(7+(51(75DLO6ZLWFK06DQG06GHYLFHV



943-435-999 according to the directive 94/9/EC

or Class I Division 2 Hazardous Locations

Rev.: 2 Document No.: 000160011DNR Page 4/4

10 Installation MS20/MS30

Release

07/2013

Shielded ground

The shielded ground wire of the twisted pairs lines is connected to the

front panel as a conductor.

Beware of possible short circuits when connecting a cable section with

conductive shield braiding.

Housing

Only technicians authorized by the manufacturer are permitted to open

the housing.

The lower panel of the device is grounded by means of the DIN rail and

optionally by means of the separate ground screw.

The switch basic module is an inseparable unit. The switch basic

module may be damaged by detachment of the display and

connection part.

Verify that the electrical installation meets locally or nationally

applicable safety regulations.

Keep the ventilation slits free to ensure good air circulation.

Make sure there is at least 10 cm of space in front of the ventilation

slits of the housing.

The device has to be mounted in an upright position (see figure 18).

If you are operating the device in a living area or office environment,

only operate it in switch cabinets with fire protection characteristics in

accordance with EN 60950-1.

WARNING

ELECTRIC SHOCK

Never insert sharp objects (small screwdrivers, wires, etc.) into the inside of

the device.

Never insert sharp objects (small screwdrivers, wires, etc.) into the

connection terminals for the supply voltage or the signal contact, and do not

touch the terminals!

Failure to follow these instructions can result in death, serious injury,

or equipment damage.

CAUTION

OVERHEATING OF THE DEVICE

When installing the device, ensure that the ventilation slots are not covered.

Make sure there is at least 10 cm (3.94 in) of space.

Failure to follow these instructions can result in injury or equipment

damage.
