HIK VISION XE61 Series User manual

Explosion-Proof Dome Network Camera

Quick Start Guide

UD08535B

05050620171218

Network Dome Camera·Quick Start Guide

Quick Start Guide

Any and all information, including, among others, wordings, pictures,

graphs are the properties of Hangzhou Hikvision Digital Technology

Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”).

This user manual (hereinafter referred to be “the Manual”) cannot

be reproduced, changed, translated, or distributed, partially or

wholly, by any means, without the prior written permission of

Hikvision. Unless otherwise stipulated, Hikvision does not make any

warranties, guarantees or representations, express or implied,

regarding to the Manual.

About this Manual

This manual is applicable to XE61 Series Explosion-Proof Dome

Network Camera.

The Manual includes instructions for using and managing the

product. Pictures, charts, images and all other information

hereinafter are for description and explanation only. The

information contained in the Manual is subject to change, without

notice, due to firmware updates or other reasons. Please find the

latest version in the company website

(http://overseas.hikvision.com/en/).

Please use this user manual under the guidance of professionals.

Trademarks Acknowledgement

and other Hikvision’s trademarks and logos are the

properties of Hikvision in various jurisdictions. Other trademarks and

Network Dome Camera·Quick Start Guide

logos mentioned below are the properties of their respective

owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE

PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND

FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS,

AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED,

INCLUDING WITHOUT LIMITATION, MERCHANTABILITY,

SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND

NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL

HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE

LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR

INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR

LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF

DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF

THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF

PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL

NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION,

PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER

ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET

SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY

TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL

RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS

PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE

Network Dome Camera·Quick Start Guide

APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT

THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE

APPLICABLE LAW, THE LATER PREVAILS.

Regulatory Information

FCC Information

Please take attention that changes or modification not expressly

approved by the party responsible for compliance could void the

user’s authority to operate the equipment.

FCC compliance: This equipment has been tested and found to

comply with the limits for a Class A digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and

used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment

in a residential area is likely to cause harmful interference in which

case the user will be required to correct the interference at his own

expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including

interference that may cause undesired operation.

Network Dome Camera·Quick Start Guide

EU Conformity Statement

This product and - if applicable - the supplied

accessories too are marked with "CE" and comply

therefore with the applicable harmonized

European standards listed under the EMC Directive 2014/30/EU, the

RoHS Directive 2011/65/EU, the ATEX Directive 2014/34/EU.

2012/19/EU (WEEE directive): Products marked

with this symbol cannot be disposed of as unsorted

municipal waste in the European Union. For proper

recycling, return this product to your local supplier

upon the purchase of equivalent new equipment, or dispose of it at

designated collection points. For more information see:

www.recyclethis.info

2006/66/EC (battery directive): This product

contains a battery that cannot be disposed of as

unsorted municipal waste in the European Union.

See the product documentation for specific battery

information. The battery is marked with this symbol,

which may include lettering to indicate cadmium (Cd), lead (Pb), or

mercury (Hg). For proper recycling, return the battery to your

supplier or to a designated collection point. For more information

see:www.recyclethis.info

Intended use of the camera

ATEX: II 2 G D Ex db IIC T6 Gb/Ex tb IIIC T80℃Db IP68

IECEx: Ex db IIC T6 Gb/Ex tb IIIC T80℃Db IP68

Hazardous Area Classification: Zone 1, Zone 2, Zone 21, Zone 22.

Network Dome Camera·Quick Start Guide

IP Degree: IP68 (2m, 2h)

Ex Standards:

IEC 60079-0: 2011

EN 60079-0: 2012/All: 2013

IEC 60079-1: 2014

EN 60079-1: 2014

IEC 60079-31: 2013

EN 60079-31: 2014

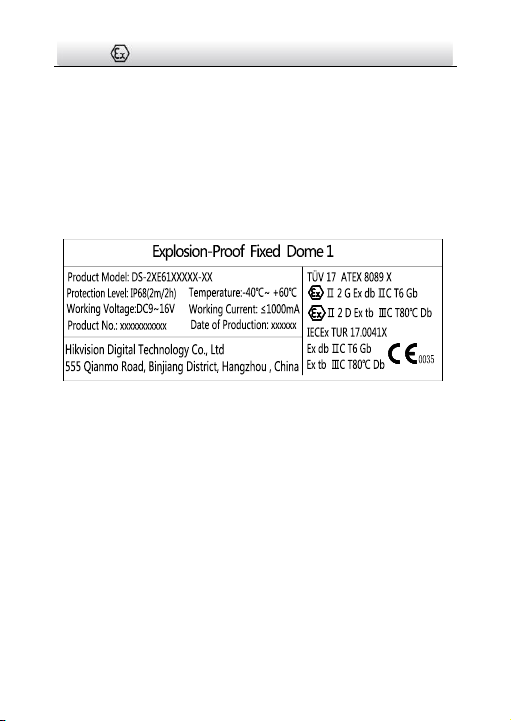

Nameplate:

Special Conditions for Safe Use:

1. Ambient Temperature: -40°C to +60°C.

2. DO NOT OPEN WHEN ENERGIZED.

3. POTENTIAL ELECTROSTATIC CHARGING HAZARD –SEE

INSTRUCTIONS.

4. When assembly, operation and maintenance, the operator must

follow the requirements of the IEC 60079-14: latest version

Explosive atmosphere- Part 14: Electrical installation design,

selection and erection, beside of the manufacturer’s operation

instruction or its National equivalent.

Network Dome Camera·Quick Start Guide

5. Repair and overhaul shall comply with IEC 60079-19: latest version

or its National equivalent.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards

requirements.

Warning:

This is a class A product. In a domestic environment this product may

cause radio interference in which case the user may be required to

take adequate measures.

Safety Instruction

These instructions are intended to ensure that user can use the

product correctly to avoid danger or property loss.

The precaution measure is divided into “Warnings” and “Cautions”

Warnings: Serious injury or death may occur if any of the warnings

are neglected.

Cautions: Injury or equipment damage may occur if any of the

cautions are neglected.

Warnings Follow these

safeguards to prevent

serious injury or death.

Cautions Follow these precautions

to prevent potential injury or

material damage.

Network Dome Camera·Quick Start Guide

Warnings

●Grounding:

The both internal and external earthing shall be connected

reliably.

Ground wire cross-sectional area of not less than the phase

connector cross-sectional area level, at least 4 mm2.

●All the electrical operation should be strictly compliance with

the electrical safety regulations, fire prevention regulations and

other related regulations of the nation and region.

●Make sure that the power has been disconnected before you

wire, install or disassemble the camera. Never wire, install or

disassemble the camera in explosive environment.

●Do not connect several devices to one power adapter as

adapter overload may cause over-heating or a fire hazard.

●To avoid fire danger caused by electrostatic charge, never touch

or wipe the camera in explosive environment. Perform the

wiping and replacing accessories only under non-explosive

environment with the provided glove.

●When the camera is installed on wall or ceiling, the device shall

be firmly fixed.

●If smoke, odors or noise rise from the camera, turn off the

power at once and unplug the power cable, and then contact

the service center.

Network Dome Camera·Quick Start Guide

●If the camera does not work properly, contact your dealer or

the nearest service center. Never attempt to disassemble the

speed dome yourself. (We shall not assume any responsibility

for problems caused by unauthorized repair or maintenance.)

Cautions

●Make sure the power supply voltage is correct before using the

camera.

●Do not drop the camera or subject it to physical shock.

●To ensure explosion-proof performance, do not damage

explosion-proof surface.

●Do not touch sensor modules with fingers. If cleaning is

necessary, use clean cloth with a bit of ethanol and wipe it

gently. If the camera will not be used for an extended period,

please replace the lens cap to protect the sensor from dirt.

●Do not aim the camera at the sun or extra bright places.

Blooming or smearing may occur otherwise (which is not a

malfunction), and affect the endurance of sensor at the same

time.

●The sensor may be burned out by a laser beam, so when any

laser equipment is in using, make sure that the surface of

sensor will not be exposed to the laser beam.

●Do not place the camera in extremely hot, cold (the operating

temperature shall be-40°C to +60°C), dusty or damp locations,

and do not expose it to high electromagnetic radiation.

Network Dome Camera·Quick Start Guide

●To avoid heat accumulation, good ventilation is required for

operating environment.

●To prevent accumulation of electrostatic charge, only damp

cloth can be used during the cleaning.

●Keep the camera away from liquid while in use.

●While in delivery, the camera shall be packed in its original

packing, or packing of the same texture.

●Regular part replacement: a few parts (e.g. electrolytic

capacitor) of the equipment shall be replaced regularly

according to their average enduring time. The average time

varies because of differences between operating environment

and using history, so regular checking is recommended for all

the users. Please contact with your dealer for more details.

●Improper use or replacement of the battery may result in

hazard of explosion. Replace with the same or equivalent type

only. Dispose of used batteries according to the instructions

provided by the battery manufacturer.

●If the product does not work properly, please contact your

dealer or the nearest service center. Never attempt to

disassemble the camera yourself. (We shall not assume any

responsibility for problems caused by unauthorized repair or

maintenance.)

This manual suits for next models

Table of contents

Other HIK VISION Security Camera manuals

HIK VISION

HIK VISION DS-2TD2117-6/V1 User manual

HIK VISION

HIK VISION HWP-N2404IH-DE3 User manual

HIK VISION

HIK VISION TURBO HD D8T PIR Series User manual

HIK VISION

HIK VISION iDS-TCV500-B(I)/IM User manual

HIK VISION

HIK VISION ECI-B12F4 User manual

HIK VISION

HIK VISION iDS-TCV907-BIR User manual

HIK VISION

HIK VISION Hilook T6 Series User manual

HIK VISION

HIK VISION DS-2XS6A25G0-I/CH20S40 User manual

HIK VISION

HIK VISION DS-2CD2142FWD-IWS User manual

HIK VISION

HIK VISION TurboHD DS-2CE38D8T-PIR User manual

HIK VISION

HIK VISION DS-2CC11A1P User manual

HIK VISION

HIK VISION DS-2CD2942F-I User manual

HIK VISION

HIK VISION UD04334B User manual

HIK VISION

HIK VISION DS-2AE7230T User manual

HIK VISION

HIK VISION DS-2CE12KF0T-FS User manual

HIK VISION

HIK VISION TurboHD DS-2CE56D7T-IT Z Series User manual

HIK VISION

HIK VISION DS-2CD1043G0E-I User manual

HIK VISION

HIK VISION HiWatch Series Installation and user guide

HIK VISION

HIK VISION DS-2CD2332-I User manual

HIK VISION

HIK VISION iDS-2CD7A G0-IZH Series User manual

HIK VISION

HIK VISION DS-2CE16D0T-EXLF User manual

HIK VISION

HIK VISION TURBO HD H5T Series User manual

HIK VISION

HIK VISION DS-2CE10DFT-F User manual

HIK VISION

HIK VISION DS-2CD6D82G0-IHS User manual

Popular Security Camera manuals by other brands

Okina USA

Okina USA SIR36-870VF650LP user manual

Divio

Divio NDR155PA user manual

Canon

Canon VB-C500D Specifications

Easy Access

Easy Access EasyGuard user manual

Vivotek

Vivotek FD9389-EHV-v2 Quick installation guide

TUYA

TUYA COSMO W2 manual

Eusso

Eusso UNC7500-IR Advanced installation guide

urmet domus

urmet domus 1096/204 user manual

VC VC20 series operating manual

Axis

Axis Q1614 installation guide

ieGeek

ieGeek DD201 manual

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Installation and user guide

Vicon

Vicon V662-D-1 Installation and operation guide

Grundig

Grundig GCH-K0274P owner's manual

Lorex

Lorex VANTAGE LBC7032 quick start guide

4xem

4xem WPT Specifications

Samsung

Samsung SCV-3082 Specifications

Vitek

Vitek VTC-C544 Specifications
