HIK VISION DS-2CD2012-I User manual
Installation Manual
www.eyesoniccctv.com
Thank you for purchasing our product. If there are any questions, or requests, please do not hesitate
to contact the dealer.
This manual applies to
Type
Model
20xx Series
DS-2CD2012-I, DS-2CD2032-I
21xx Series
DS-2CD2112-I, DS-2CD2132-I
22xx Series
DS-2CD2212-I5, DS-2CD2232-I5, DS-2CD2212-I3, DS-2CD2232-I3
23xx Series
DS-2CD2312-I, DS-2CD2332-I
26xx Series
DS-2CD2612F-I, DS-2CD2632F-I
27xx Series
DS-2CD2712F-I(S); DS-2CD2732F-I(S)
This manual may contain several technical incorrect places or printing errors, and the content is
subject to change without notice. The updates will be added to the new version of this manual. We
will readily improve or update the products or procedures described in the manual.
DISCLAIMER STATEMENT
“Underwriters Laboratories Inc. (“UL”) has not tested the performance or reliability of the security
or signaling aspects of this product. UL has only tested for fire, shock or casualty hazards as outlined
in UL’s Standard(s) for Safety, UL60950-1. UL Certification does not cover the performance or
reliability of the security or signaling aspects of this product. UL MAKES NO REPRESENTATIONS,
WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY
OF ANY SECURITY OR SIGNALING RELATED FUNCTIONS OF THIS PRODUCT.”
1
www.eyesoniccctv.com
Table of Contents
Chapter 1 Appearance Description........................................................................................................................ 3
1.1 Appearance Description of Bullet Camera ........................................................................................................... 3
1.1.1 20xx Series Bullet Camera ................................................................................................................................ 3
1.1.2 22xx Series Bullet Camera ................................................................................................................................ 4
1.1.3 26xx Series Bullet Camera ................................................................................................................................ 5
1.2 Appearance Description of Dome Camera ........................................................................................................... 6
1.2.1 21xx Series Dome Camera ................................................................................................................................ 6
1.2.2 27xx Series Dome Camera ................................................................................................................................ 7
1.3 Appearance Description of Turret Camera........................................................................................................... 8
Chapter 2 Setting the Network Camera over the LAN ........................................................................................... 9
Chapter 3 Accessing via Web Browsers ................................................................................................................11
2
www.eyesoniccctv.com
Chapter 1 Appearance Description
1.1 Appearance Description of Bullet Camera
1.1.1 20xx Series Bullet Camera
Camera Overview:
1
2
4
6
3
Figure 1-1 Bullet Camera Overview
Table 1-1 Description
No.
Description
1
Sun Shield
2
Back Box
3
Grounding Screw
4
Adjustable Bracket
5
Mounting Base
6
Reset
3
www.eyesoniccctv.com

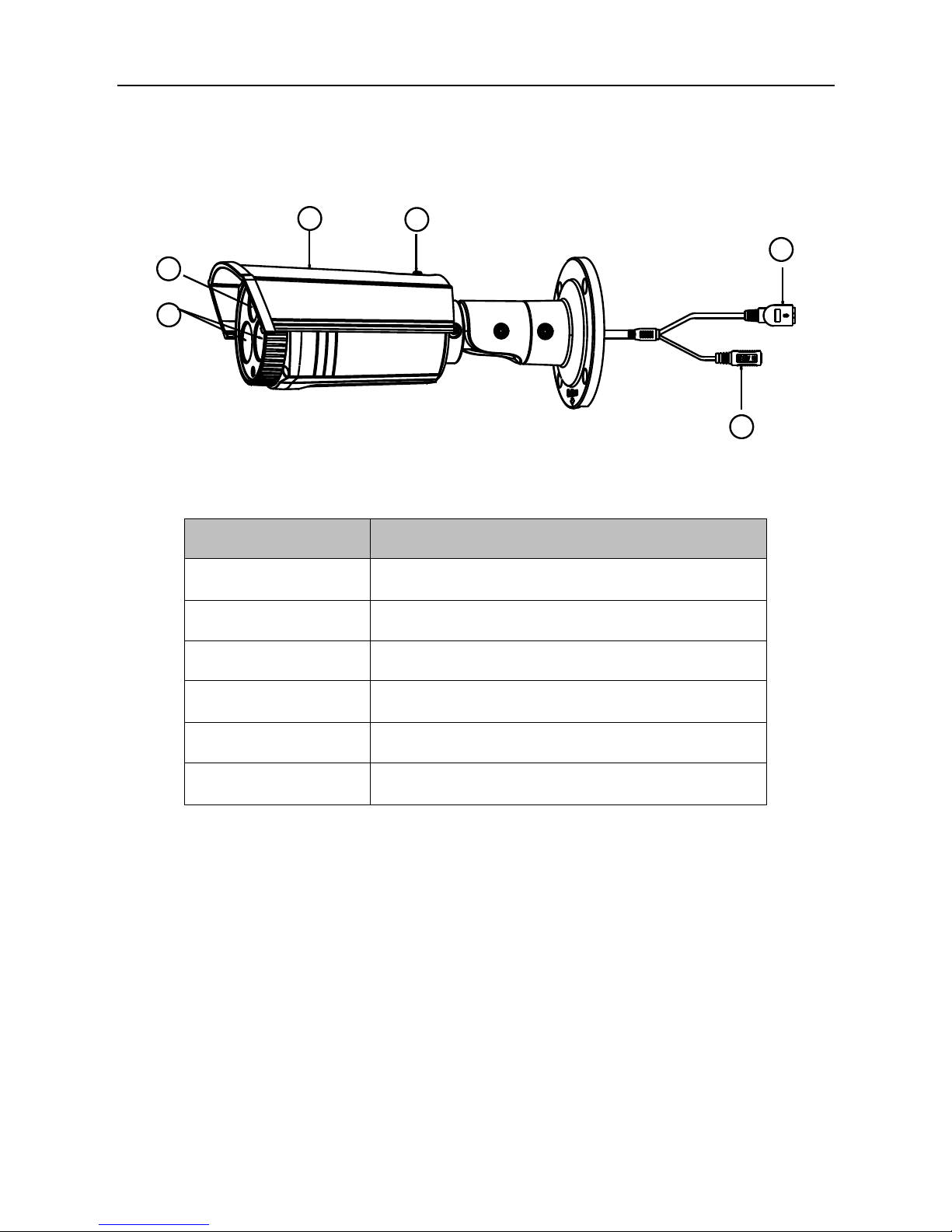

1.1.2 22xx Series Bullet Camera
Camera Overview:
1
2
4
5
6
3
Figure 1-2 Bullet Camera Overview
Table 1-2 Description
No.
Description
1
Lens
2
IR LED
3
Sun Shield
4
Adjusting Screw
5
Network Cable
6
Power Cable
4
www.eyesoniccctv.com
Quick Operation Guide of Network Camera
5
1.1.3 26xx Series Bullet Camera
Camera Overview:
5
4
10
9
7
3
8
6
1
2
12
11
Figure 1-3 Overview
Table 1-3 Overview
No.
Description
1
Sun Shield
2
Front Cover
3
Zoom and Focus Lever
4
IR LED
5
Lens
6
Air Vent
7
Video Output Interface
8
Integrated Bracket
9
Reset Button
10
SD Card Slot
11
Power Cable
12
Network Cable
5
www.eyesoniccctv.com
1.2 Appearance Description of Dome Camera
1.2.1 21xx Series Dome Camera
Camera Overview:
1
2
3
4
5
6
7
8
9
Figure 1-4 Overview
Table 1-4 Description
No.
Description
1
Mounting Base
2
Horizontal Stand
3
Vertical Stand
4
Bubble
5
Cables
6
IR LED
7
Lens
8
Black Liner
9
Safety Rope
6
www.eyesoniccctv.com

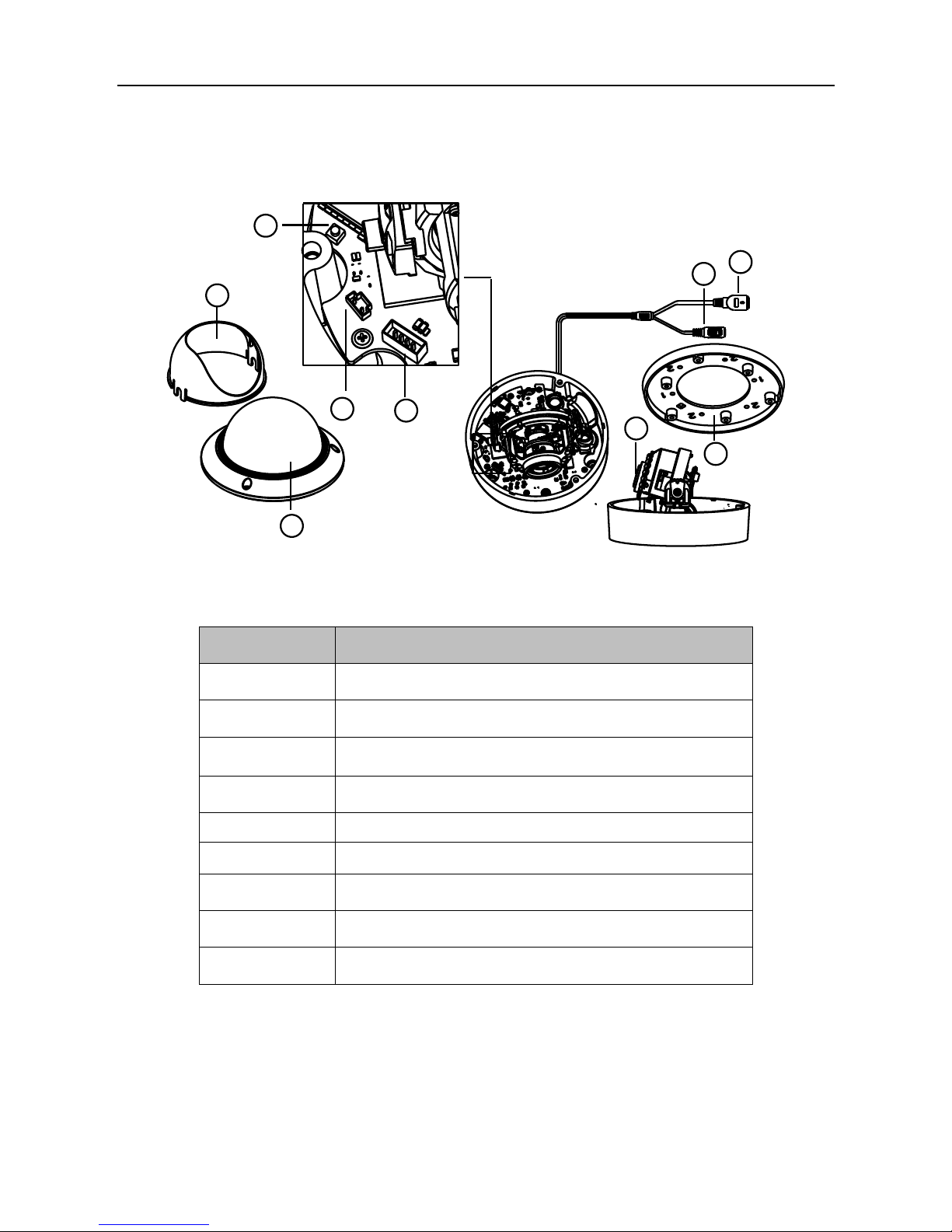

1.2.2 27xx Series Dome Camera
Camera Description
2
1
3
45
67
8
9
Figure 1-5 Overview
Table 1-5 Description
No.
Description
1
Bubble
2
Black Liner
3
Reset Button
4
AUX Video Output Interface
5
Serial Port
6
Power Cable
7
Ethernet Cable
8
Adapter Plate
9
Lens
7
www.eyesoniccctv.com
Quick Operation Guide of Network Camera
8

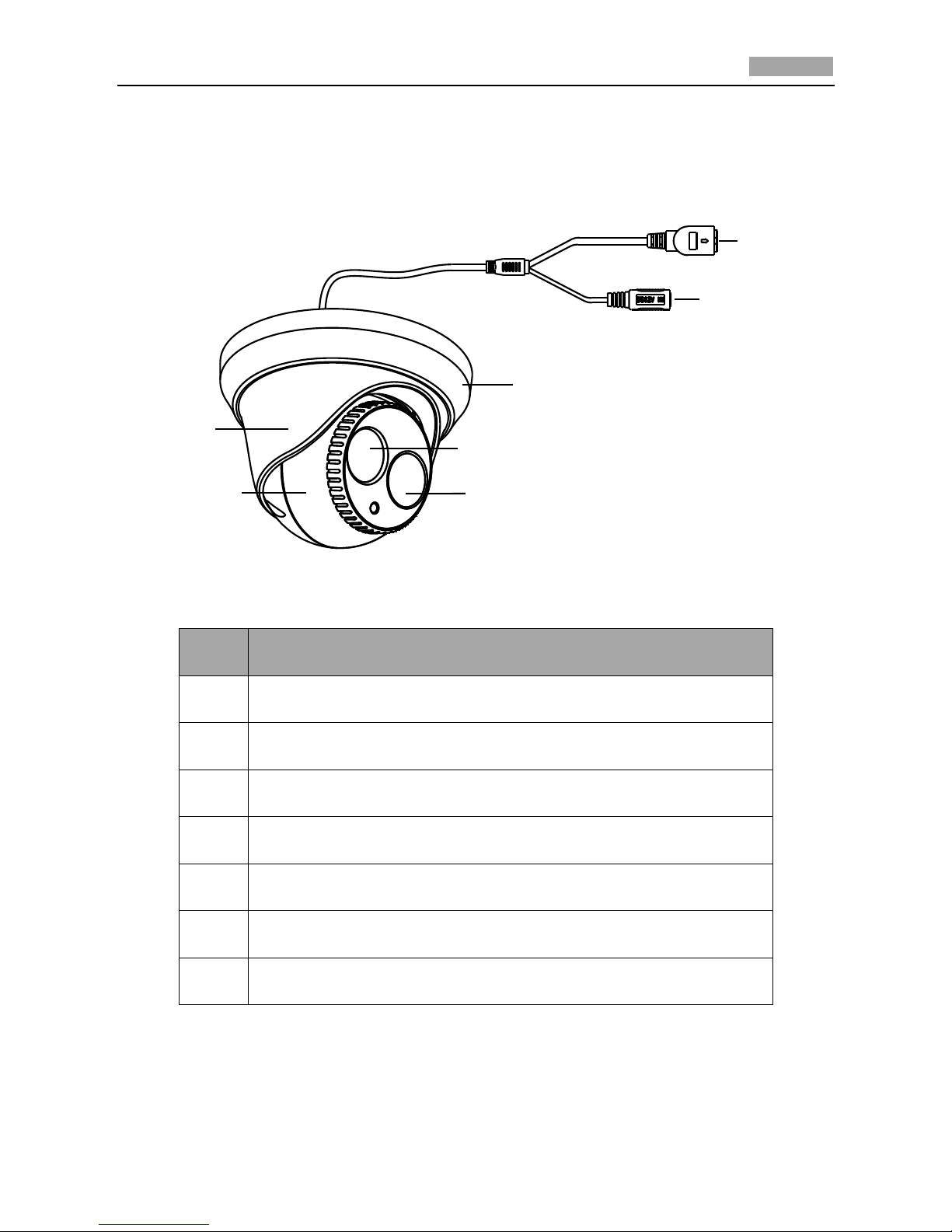

1.3 Appearance Description of Turret Camera
Camera Overview:
3
1
2
4
5
6
7
Figure 1-6 Overview
Table 1-6 Description
NO.
Description
1
10M/100M self-adaptive Ethernet interface
2
Power Cable
3
Trim Ring
4
Lens
5
IR LED
6
Enclosure
7
Camera
8
www.eyesoniccctv.com
Chapter 2 Setting the Network Camera over
the LAN
Purpose:
To view and configure the camera via LAN (Local Area Network), you need to connect the network
camera in the same subnet with your PC. Then install the iVMS-4200 software to search and change
the IP address of the network camera.
The following figure shows the cable connection of a network camera and a PC:
Figure 2-1 Wiring over LAN
Set the IP address of the camera for accessing via LAN.
Steps:
1. Use iVMS-4200 client software to detect the online devices. Please refer to the user manual of
iVMS-4200 client software for detailed information.
●Search online devices automatically
After launch iVMS-4200 software, it automatically searches the online devices every 15
seconds from the subnet where your computer locates. It displays the total number and
information of the searched devices in the Online Devices interface.
Go to Device Management, and click Server tab on the left-top of the window, and you can
see the online devices listed on the right bottom of the window.
Figure 2-2 Search Online Devices
9
www.eyesoniccctv.com
