Hikvision Technical Manual

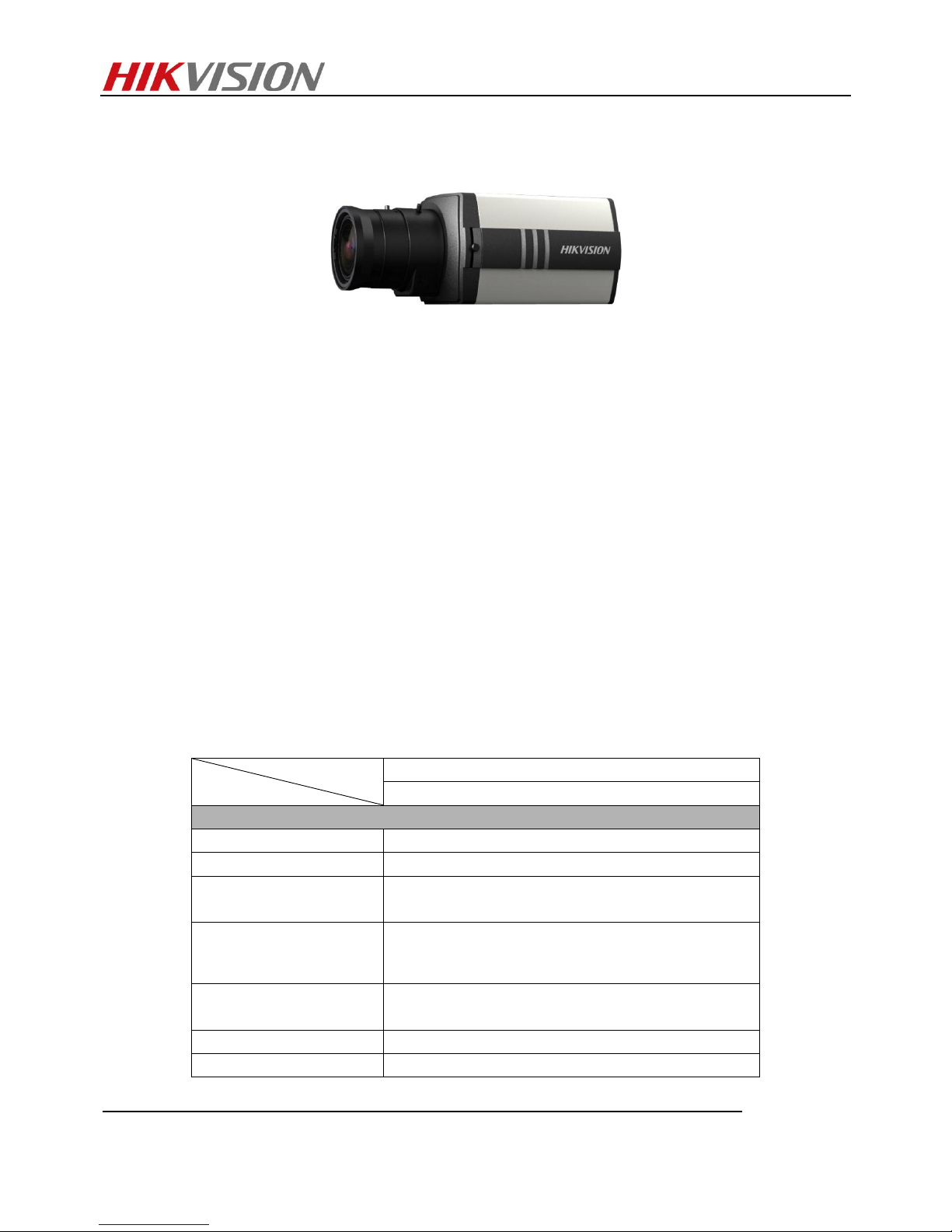

DS-2CC1181P(N)-A

Key Features

Compact design

SONY Super HAD CCD II

Digital Noise Reduction (DNR)

Digital Wide Dynamic Range

Smart IR mode

Eclipse

IR cut filter with auto switch

OSD menu

Auto iris with DC/video drive

Auto white balance, auto gain control, electronic shutter control and backlight compensation

Internal or Power Synchronization

Convenient back focus adjustment

Specification

Model

Parameter

DS-2CC1181P(N)-A

600 TVL CCD ICR Box Camera

Camera

Image Sensor

1/3” SONY Super HAD CCD II

Signal System

PAL/NTSC

Effective Pixels

PAL: 752 (H) × 582 (V)

NTSC: 768 (H) × 494 (V)

Min. Illumination

Color: 0.001 Lux @ (F1.2, AGC ON)

B/W: 0.0001 Lux @ (F1.2, AGC ON)

Shutter Time

PAL: 1/50 s to 1/100,000 s

NTSC: 1/60 s to 1/100,000 s

Lens Mount

C/CS mount

Auto Iris

DC/Video drive

Hikvision Technical Manual

Day & Night

IR cut filter with auto switch

Horizontal Resolution

600 TVL (Color), 650 TVL (B/W)

Synchronization

Internal/Power synchronization

Video Output

1Vp-p composite output (75 Ω/BNC)

S/N Ratio

More than 62 dB

Camera ID

On/Off (16 letters, position adjustable)

Auto Gain

Low/Middle/High/Off

D/N Mode

Auto1/Auto2/Day/Night

White Balance

Auto trace WB1/Auto trace WB2/Manual/Auto Control

Private Mask

On/Off, maximum 8 zones

Motion Detection

Mode 1/Mode 2/Off

BLC

Area/Value/Off

RS-485

Address/Protocol/Baud Rate

Language

English/Chinese

Function

SMART IR, Digital Wide Dynamic Range, Eclipse, Digital

Noise Reduction, Sharpness, Brightness, Saturation,

Resolution, Mirror, Defect Pixel Correction

General

Operating Conditions

-10 °C - 60 °C (14 °F - 140 °F)

Humidity 90% or less (non-condensing)

Power Supply

24 V AC ± 10%, 12 V DC ± 10%

Power Consumption

Max. 5 W

(Max. 10 W with IR cut filter on)

Dimension

69 x 56 x 113.3 mm (2.72” × 2.20” × 4.46”)

Weight

400 g (0.88 lbs)

Order Models

DS-2CC1181P-A

DS-2CC1181N-A

Hikvision Technical Manual

Dimension

Unit: mm

Accessories

Indoor wall mount Indoor/outdoor wall mount

DS-1212ZJ DS-1213ZJ

Indoor/outdoor camera housing Indoor camera housing

DS-1311HZ (DS-1312HZ, DS-1313HZ) DS-1320HZ
