Heat Controller DMC09SB-0 User manual

DMC09SB-0/DMH09SB-0, DMC12SB-0/DMH12SB-0

DMC18SB-1/DMH18SB-1, DMC24SB-1/DMH24SB-1

2Room Air Conditioner

Room Air Conditioner Installation Manual

TABLE OF CONTENTS

Safety Precautions.........................3

Introduction .....................................9

Symbols Used in This Manual....9

Features.......................................9

Installation .....................................10

Installation Parts........................10

Installation Tools ........................10

Installation Map..........................11

Confirm The Refrigerant ...........12

Select The Best Location .........13

Piping Length And Elevation.....14

How To Mount Installation Plate

..15

Drill a Hole In TheWall..............15

Flaring Work...............................16

Connecting The Piping..............17

Connection Of The Drain Hose

...22

Connection Of Piping -Outdoor

...22

Connection Of The Cable.........23

Checking The Drainage ............25

Forming The Piping...................26

Air Purging.................................27

Air Purging WithVacuum Pump

..27

Charging.....................................29

Test Running.................................30

❏ Installation plate

❏Four type "A" screws

❏Connecting cable

❏Pipes: Suction line

Evaporator line

(Refer to page 13)

❏Insulation materials

❏Additional drain pipe

(

Outer Diameter .........15.5mm(0.61in))

❏Two type "B" screws

❏Remote Control Holder

Installation

Requirements Required Parts Required Tools

❏Level gauge

❏Screwdriver

❏Electric drill

❏Hole core drill(ø70mm(2.76in))

❏Flaring tool set

❏Specified torque wrenches

4.2kg.m, 6.6kg.m

(different depending on model No.)

(Refer to page 17)

❏Spanner.....................Half union

❏A glass of water

❏Screw driver

❏Hexagonal

wrench(4mm(0.16in))

❏Gas Leak Detector

❏Vacuum pump

❏Manifold Gauge

❏Owner's manual

❏Thermometer

Installation Manual 3

Safety Precautions

To prevent the injury of the user or other people and property damage, the following instructions

must be followed.

■Incorrect operation due to ignoring instruction will cause harm or damage.The seriousness is

classified by the following indications.

■The meanings of the symbols used in this manual are as shown below.

This symbol indicates the possibility of death or serious injury.

This symbol indicates the possibility of injury or damage to properties only.

■Installation

Be sure not to do.

Be sure to follow the instruction.

Safety Precautions

For electrical work, contact the

dealer, seller, a qualified

electrician, or an Authorized

Service Center.

• There is risk of fire or electric shock.

Install the panel and the cover of

control box securely.

• There is risk of fire or electric shock.

Do not install, remove, or re-

install the unit by yourself

(customer).

• There is risk of fire, electric shock,

explosion or injury.

Be cautious when unpacking and

installing the product.

• Shape edges could cause injury. Be

especially careful of the sharp edges.

For installation, always contact

the dealer or an Authorized

Service Center.

• There is risk of fire, electric shock,

explosion, or injury.

Do not install the product on a

defective installation stand.

• It may cause injury, accident, or

damage to the product.

4Room Air Conditioner

Safety Precautions

■Operation

Be sure the installation area

does not deteriorate with age.

• If the base collapses, the air

conditioner could fall with it, causing

property damage, product failure, and

personal injury.

Install the indoor unit on the wall

where the height from the floors

more than 8ft(2.4m)

• There are sharp moving parts that

could cause personal injury.

Do not handle the pipe by

yourself(customer)

• High-Pressure refrigent may cause

personal injury.

Do not allow water to run into

electric part.

• There is risk of fire, failure of the

product, and/or electric shock.

Do not let the air conditioner run

for a long time when the

humidity is very high and a door

or a window is left open.

• Moisture may condense and wet or

damage furnishings.

Do not store of use flammable

gas or combustibles near the air

conditioner.

• There is risk of fire or product failure.

Do not use the product in a

tightly closed space for a long

time.

• Oxygen deficiency could occur.

• Some ventilation by opeing window

is necessary for the fresh air.

When flammable gas leaks, turn off

the gas and open a window for

ventilation before turning the product

on. Do not use the telephone or turn

switches on or off.

• There is risk of explosion or fire.

Turn of breaker to the unit if

strange sounds odors or smoke

comes from it.

•

There is risk of fireproduct failure

and/or electric shock.

8ft(2.4m)

Wax

Thinner

Installation Manual 5

Safety Precautions

Stop operation and close any

window in storm or hurricane.

before the hurricane arrives.

• There is risk of property damage,

failure of product, or electric shock.

Do not open the inlet grill of the

product during operation. (Do

not touch the electrostatic filter,

if the unit is so equipped.)

• There is risk of physical injury, electric

shock, or product.

When the product is soaked

(flooded or submerged), contact

an Authorized Service Center.

• There is risk of electrical shock.

Ventilate the product from

time to time when operating

it together with a stove, etc.

• There is risk of fire or electrical

shock.

Turn off breaker to the

appliance before performing

cleaning or maintenance.

• There is risk of electric shock.

When the product is not

being used for a long time

turn off the breaker.

• There is risk of product damage

or failure, or unintended

operation.

Take care to ensure that nobody could step

on or fall onto the outdoor unit.

• There could result in personal injury and product

damage.

Do not insert hands or other objects

through the air inlet or outlet while the air

conditioner is on.

• There are sharp and moving parts that could

cause personal injury.

6Room Air Conditioner

Safety Precautions

■Installation

■Operation

Do not direct airflow at

room occupants.

• This could damage your health.

Do not use the product for

special purposes, such as

preserving foods, works of

art, etc. It is a consumer air

conditioner, not a precision

refrigeration system.

• There is risk of damage or loss

of property.

Do not block the inlet or

outlet of air flow.

• It may cause product failure.

90˚

Do not install the product

where the noise or hot air

from the outdoor unit could

offend the neighbors.

•It may cause a problem for your

neighbors.

Use two or more people to

lift and transport the air

conditioner

•Avoid personal injury.

Do not install the product

where it will be exposed to

sea wind (salt spray)

directly.

•It may cause corrosion in the

product. Corrosion, particularly

on the condenser and

evaporator fins, could cause

product malfunction or inefficient

operation.

Always check for

gas(refrigerant) leakage

after installation or repair of

product.

•Low refrigerant levels may

cause product failure.

Install the drain hose to

ensure that water is drained

away properly.

•A bad connection may cause

water leakage.

Keep level even when

installing the product.

•To avoid vibration or water

leakage.

Safety Precautions

Installation Manual 7

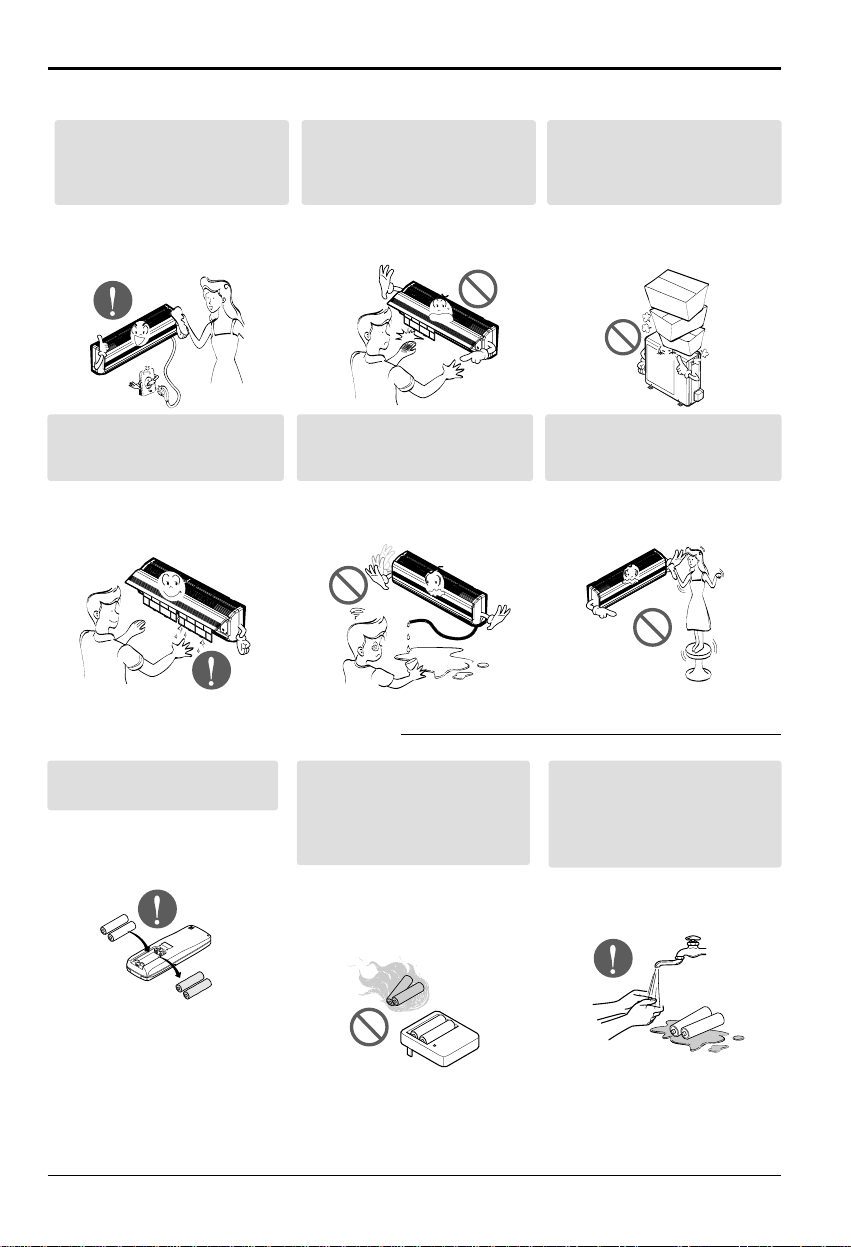

Use a soft cloth to clean.

Do not use harsh

detergents, solvents, etc.

•There is risk of fire, electric

shock or damage to the plastic

parts of the product.

Do not touch the metal

parts of the product when

removing the air filter.They

are very sharp!

•There is risk of personal injury.

Do not step on or put

anything on the product.

(outdoor unit)

•There is risk of personal injury

and failure of product.

■Disuse

Always insert the filter securely.

Clean the filter every two weeks

or more often if necessary.

•A dirty filter reduces the efficiency of

the air conditioner and could cause

product malfunction or damage.

Do not drink the water drained

from the unit.

•It is not sanitary and could cause

serious health issues.

Use a firm stool or ladder when

cleaning or maintaining the air

conditioner.

•Be careful and avoid personal injury.

Replace all the batteries in the

remote.

•There is risk of fire or explosion.

Do not recharge or disassemble

the batteries. Do not dispose of

batteries in a fire.

•They may burn or explode.

If the liquid from the batteries

gets onto your skin or clothes,

wash it well with clean water.

Do not use the remote if the

batteries have leaked.

•The chemicals in batteries could

cause burns or other health hazards.

This symbol alerts you to the risk of electric shock.

This symbol alerts you to hazards that may cause harm to

the air conditioner.

This symbol indicates special notes.

NOTICE

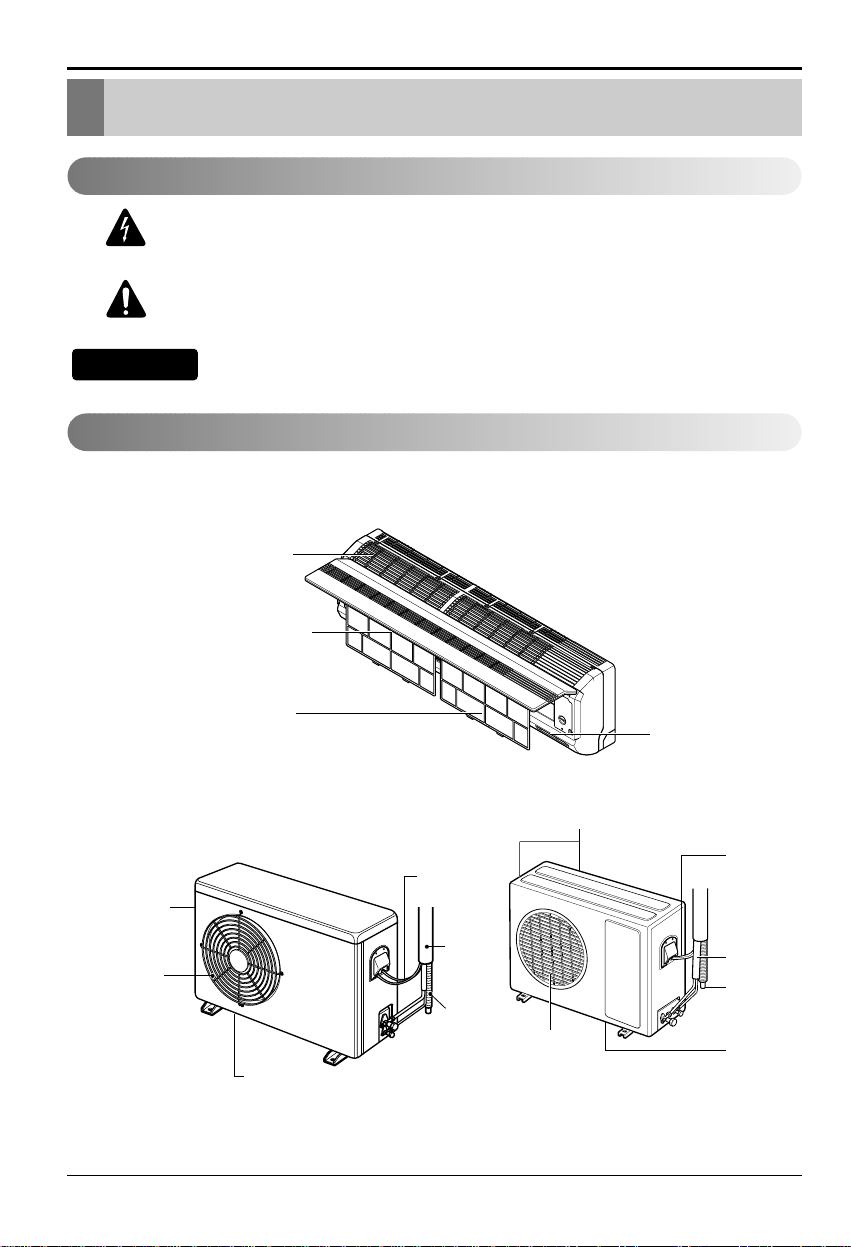

Introduction

Symbols Used In This Manual

Features

Air Intake Vents

Air Outlet Vents

Connecting

Wires

Piping

Drain Hose

Base Plate

Air Outlet

Vents

Air Intake

Vents Piping

Connecting

Wires

Drain Hose

Base Plate

Air Inlet

Front Panel

Air Filter Signal Receptor

8Room Air Conditioner

Introduction

Installation

Installation Manual 9

Type "A" screw and plastic anchor

Type "B" screw Remote Control Holder

Installation plate

Figure FigureName

Screw driver

Electric Drill

Measuring Tape, Knife

Hole Core Drill

Spanner

Torque wrench

Ohmmeter

Hexagonal wrench

Ammeter

Gas Leak Detector

Thermometer,

Level

Flaring Tool Set

Name

Installation Parts

Installation Tools

Installation

Read carefully, and then follow step by step.

10 Room Air Conditioner

Installation

Installation Map

Base Plate

Air Inlet Vents

Air Outlet Vents

Installation parts you should purchase.

Air Discharge

Forced Operation Button

Operation Indication Lamps/

Signal Receptor Vinyl tape (Wide)

•Apply after carrying out a

drainage test.

•To carry out the drainage

test, remove the air filters

and pour water into the heat

exchanger.

Saddle

Gas side piping (Optional Parts)

Liquid side piping (Optional Parts)

Additional drain pipe

Vinyl tape (Narrow)

Drain Hose

Connecting cable

(Optional Parts)

Installation plate

Sleeve

Bushing-Sleeve

Putty(Gum Type Sealer)

Bend the pipe as closely

on the wall as possible,

but be careful that it

doesn't break.

NOTICE

This manual suits for next models

Table of contents

Other Heat Controller Air Conditioner manuals

Heat Controller

Heat Controller B-MMC09FA-1 User manual

Heat Controller

Heat Controller Comfort-Aire BGE-103A User manual

Heat Controller

Heat Controller MMC18DA-1 User manual

Heat Controller

Heat Controller DMC12SB-0 User manual

Heat Controller

Heat Controller RADS-51J User manual

Heat Controller

Heat Controller Comfort-Aire RAD-61A Building instructions

Heat Controller

Heat Controller Comfort-Aire PS-81A Instruction manual

Heat Controller

Heat Controller DMC24CA-1 User manual

Heat Controller

Heat Controller VMH09SB-1 Service User manual

Heat Controller

Heat Controller BGE H-Series Application guide

Heat Controller

Heat Controller Comfort-Cire RAD-243A User guide

Heat Controller

Heat Controller Comfort-Aire BD-81 User manual

Heat Controller

Heat Controller RADS-61M User manual

Heat Controller

Heat Controller CD-101J User manual

Heat Controller

Heat Controller Comfort-Aire BGE-123A User manual

Heat Controller

Heat Controller RADS-151L User manual

Heat Controller

Heat Controller REG-81G User manual

Heat Controller

Heat Controller CD-101G User manual

Heat Controller

Heat Controller RADS-101M User manual

Heat Controller

Heat Controller BG-81J User manual

Heat Controller

Heat Controller GeoLogix HTS Series User manual

Heat Controller

Heat Controller Comfort-Aire CD-121 User manual

Heat Controller

Heat Controller COMFORT AIRE RADS-51B Building instructions

Heat Controller

Heat Controller RG-51G User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
