Hayward OmniLogic User manual

OmniLogic®

Consumer Network Troubleshooting Guide

Safety Precautions

Warning

High Voltage Electrocution Hazard

Hazardous voltage can shock, burn, cause serious injury

and or death. To reduce the risk of electrocution and or

electric shock hazards:

•Only qualified technicians should remove the dead front

•Qualified technicians should: replace damaged

wiring immediately

•Qualified technicians should: Insure panel is properly

grounded and bonded

Table of Contents

OmniLogic®

Overview & Terminology

Pg.

MSP Layout & OmniLogic Wi

-Fi Bridge (HLWLAN)

Pg.

How To:

Pg.

Download Firmware

Connect Via Wi

-Fi

Create a Web Account

OmniLogic

Check for IP Address

Safely Reboot MSP

Connect MSP

to a Hotspot

Troubleshooting:

Pg.

1. Wired

Ethernet: “MSP Not Found”

2. Wi

-Fi Connection: “MSP Not Found”

OmniLogic: Overview

•The OmniLogic is an internet and App ready,

intuitive, modular automation system.

•This elite automation system features a USB

backup and upgrade option. The USB feature

allows servicers to back up existing

configurations as well as upgrade the system

with the latest revision in minutes.

•With touch screen technology the MSP or

display allows users to navigate through screens

and commands in virtually any lighting

condition.

•Each OmniLogic base unit supports up to 10

relays, 8 valves, 8 heaters, and 8 sensors. It also

supports up to 25 themes (groups) and 50

favorites.

OmniLogic: Terminology

Term

Description

MSP

Main System Processor (display

)

MPP

Main

Panel Processor (main board)

Main Panel (enclosure)

PSU

Power Supply Unit (PWR Supply)

I/O

Input

/ Output Expansion Card

HVR

High

Voltage Relay

LVR

Low Voltage Relay

LVA

Low Voltage Actuator

Relay Bank

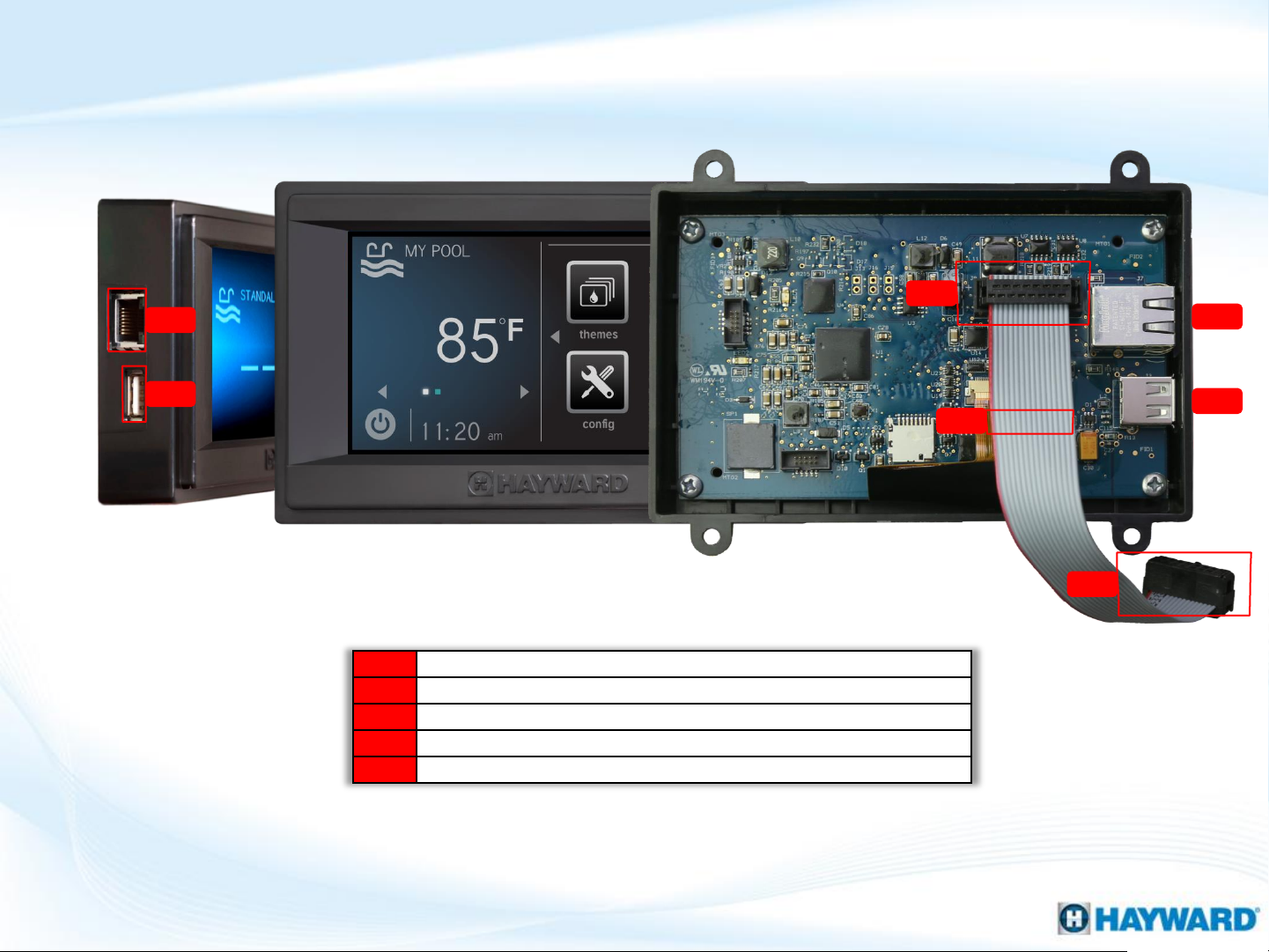

OmniLogic: Main System Processor (MSP)

Ethernet Port (used for both Wired

& Wi-Fi network operation)

B1 USB Port (uploading firmware & backing up/loading configuration)

MSP Connection (Input/Output)

MSP Ribbon Cable

MPP Connection (Input/Output)

HLX-LOC-DSP

OmniLogic: Wi-Fi Bridge (HLWLAN)

B2 E2

Injector

HLWLAN

G2 H2 I2

A3 LAN Port (Ethernet cable from LAN port to MSP)

B3 Power to Injector (power cable plugs into the MPP)

C3 PoE Port (Ethernet cable from PoE to LAN (PoE) of the HLWLAN)

D3 UNUSED

E3 LAN (PoE) Port (Ethernet cable from the LAN (PoE) to PoE of the injector)

F3 PWR LED (indicates HLWLAN has Power over Ethernet from injector)

G3 LAN LEDs (indicate connection with local area network)

H3 WLAN (should only appear when SSIDs are available)

I 3 Signal LED (should only appear when connected to Wi-Fi network)

OmniLogic®

How To:

How To: Download Firmware

To download the latest firmware to a USB drive go to www.hayward.com

Support Center> Automation > OmniLogic > Firmware Updates

Step 1: Right click on the link of the file

you wish to download.

Step 2: Within the options menu select

"Save link as..."

(Note: USB drive must already be

connected to your computer).

Step 3: From the "Save As" window

navigate to the desired USB drive.

(Note: please make sure to select the

root directory of the USB drive).

Step 4: Before saving, change the

“Save as type” to “All Files” AND

remove the “.txt” file extension that

automatically appears. Then click on

"Save" button.

(Note: failing to remove the .txt file

extension will result in an unreadable

firmware upgrade file).

Step 4

Step 1-3

This process was accomplished through Google’s Chrome Browser.

On the right of the dashboard locate and tap

the “config” icon.

Press the “wifi bridge” option on the right side

of the screen.

Select the desired network name (SSID) to

attempt connection.

*Enter the network password, followed by the

check mark to complete.

Step 2

Step 3 Step 4

For best results, make sure the MSP firmware is updated to the latest revision:

www.hayward.com Support Center> Automation > OmniLogic > Firmware Updates

Step 1

*NOTE: The network password IS CASE SENSITIVE. To confirm connection, go

to Config>Network and verify an IP address appears under the dynamic tab.

How To: Connect to a Wi-Fi Network
