Hayward WFBRNDBRS User manual

Hayward Industries

400 Connell Drive, Suite 6100

Berkeley Heights, NJ 07922

Phone: (908) 355-7995

www.hayward.com

Water Bowl

Water Feature With LED Lighting

Owner's Manual

Contents

Introduction............................2

Installation.............................2

Plumbing.........................5

Electrical Wiring......................6

Bowl Installation.....................9

Operation..............................10

Maintenance.........................12

Replacement Parts................13

Warranty...............................14

1001810 RevA

WFBRNDBRS WFBSQRBRS

WFBRNDBRNZ WFBSQRBRNZ

WFBRNDCLR WFBSQRCLR

WFBRNDCPR WFBSQRCPR

WFBRNDGRY WFBSQRGRY

WFBRNDNAT WFBSQRNAT

WFBRNDPEW WFBSQRPEW

LBCUS11100

LBCUS11150

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

IMPORTANT SAFETY INSTRUCTIONS

When using this electrical equipment, basic safety precautions should always be followed, including

the following:

READ AND FOLLOW ALL INSTRUCTIONS

WARNING - Read and follow all instructions in this owner’s manual and on the equip-

ment. Failure to follow instructions can cause severe injury and/or death.

WARNING - ELECTRIC SHOCK HAZARD. MOUNTING A LUMINAIRE THAT REQUIRES

BONDING OR GROUNDING IN THIS NICHE CAN CAUSE SEVERE INJURY AND/OR DEATH.

DO NOT MOUNT NON-UL LISTED LIGHTS OR ANY LUMINAIRE THAT REQUIRES BONDING

OR GROUNDING IN THIS NICHE.

WARNING - Risk of Electric Shock. Hazardous voltage can shock, burn, and cause

death or serious property damage. All electrical wiring MUST be in conformance with ap-

plicable local codes, regulations, and the National Electrical Code (NEC). To reduce the risk

of electric shock, do NOT use an extension cord to connect unit to electric supply. Provide

a properly located electrical receptacle. Before working on any electrical equipment, turn

off power supply to the equipment.

WARNING - Risk of Electric Shock. Opening light can cause shock, burn and severe

injury. Light has no user serviceable parts inside. Do not open light.

NOTICE - This swimming pool product is UL listed for permanently installed pools or

spas only. It is not listed for storable pools or spas. Permanently installed pools and spas

are those constructed in or partially in the ground and all others capable of holding water

in a depth greater than 42 in (1.07 m). Storable pools and spas are those constructed on

or above the ground and capable of holding water to a maximum of 42 in (1.07 m).

WARNING - Electrical shock hazard. Damage to wiring can cause severe injury or

death. To reduce the risk of electric shock replace damaged wiring immediately. Locate

conduit to prevent abuse from lawn mowers, hedge trimmers and other equipment.

SAVE THESE INSTRUCTIONS

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

Introduction

The Hayward Water Bowl is a bowl-shaped water feature containing an LED light that together cre-

ate a stunning ﬂickering ﬁre effect designed to enhance your backyard pool or spa experience. The

Water Bowl must be installed as speciﬁed by these instructions. Please follow ALL of the instructions

enclosed with this unit. It is recommended to keep the unit in its original packaging until the site is

prepared for installation.

What's Included

Refer to the table and graphic below for a list of all items included with the Hayward Water Bowl.

Item # Part Description Quantity

1Niche Assembly 1

2LED Light Assembly 1

3 Bowl Assembly (round or square) 1

4Water Spout Assembly 1

Installation

Preparation

Determine the install location(s) for the Water Bowl. Be sure to follow all NEC and local codes during

installation. For optimal performance, the lip of the bowl should be aligned with or slightly hanging

over the edge of the pool or spa. The electrical junction box and/or low voltage transformer should

be located at least 48 inches from the edge of the pool or spa and at least 4 inches above ground

and 8 inches above the bowl's water level.

Once you have determined the install location(s), gather all necessary tools and refer to the following

sections to rough-in plumbing and electrical lines.

Overview

Refer to the diagram on the following page for a basic installation overview. Note that the plumbing

for the Water Bowl requires a check valve to prevent drain off when the system is not in use. A ﬂow

control valve should also be used in order to obtain the optimal water effect in the bowl.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

MagicBowl

Water Feature

Niche

Pool/Spa

Drain

Line

1" PVC

Electrical Line

1" PVC

Water Line

1½" PVC

Check Valve Flow Control

Valve

Junction

Box

Low Voltage

Transformer

From

Pump

To Wall Switch

Omni Control

NOTE: Image not drawn to scale

USE ONLY HAYWARD GENUINE REPLACEMENT PARTSUSE ONLY HAYWARD GENUINE REPLACEMENT PARTS

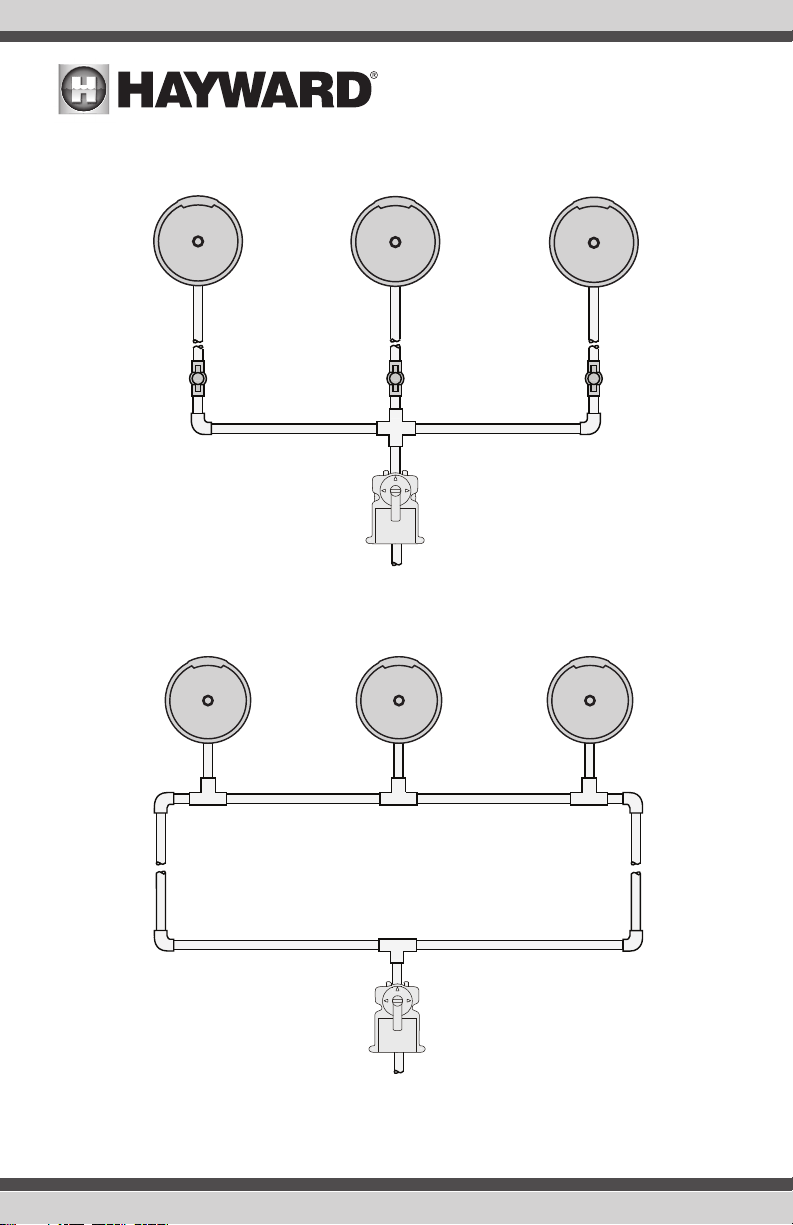

Use looped plumbing for bowls plumbed at the same distance.

Use individual ﬂow control valves for bowls plumbed at different distances.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

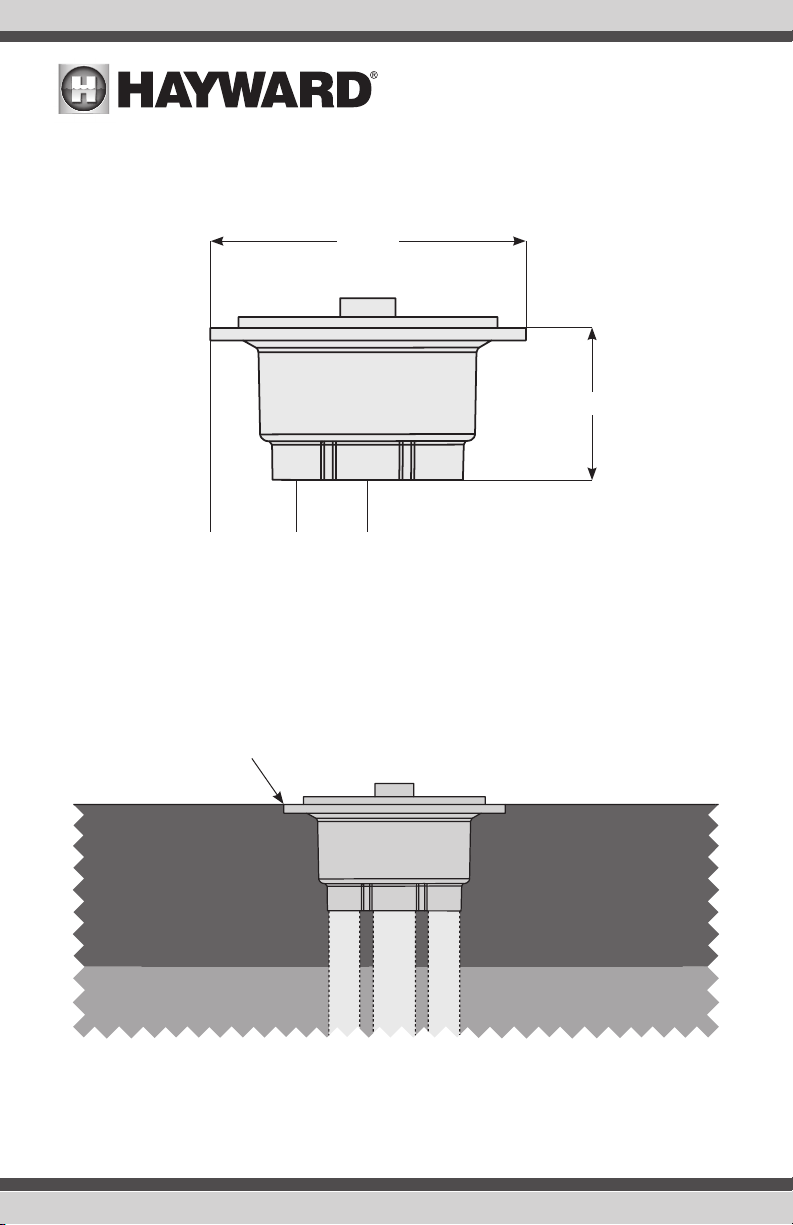

Plumbing

Before installing the Water Bowl, rough-in plumbing pipe and electrical conduit. Refer to the diagram

below for niche dimensions.

Step 1: Rough-in water supply line (A) plumbing run using 1½" Schedule 40 PVC pipe.

Step 2: Rough-in drain line (B) plumbing run using 1" Schedule 40 PVC pipe.

Step 3: Rough-in electrical line (C) plumbing run using 1" Schedule 40 PVC pipe.

Step 4: Solvent bond niche to the water line, drain line, and electrical line pipes using PVC glue.

Step 5: Backﬁll the cavity around the niche up to the ﬂange as shown in the diagram below.

Step 6: Finish plumbing water line, electrical line, and drain line as shown in the overview diagram

on page 3.

11.10"

2.50"

5.30"

3.00"

AB C

Finish Material Finish Material

Finish material

should be ﬂush with

top of niche ﬂange

Earth Earth

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

Electrical Wiring

The Water Bowl's LED Light requires the use of a low voltage transformer (not included). See chart

below to determine the type of transformer you will need based on the number of LED Lights used.

When considering the number transformers required, note that one LED Light is 25W and the load

on a transformer should not exceed 80% of the maximum wattage.

Number of Lights Type of Transformer

1-2 70W

3-9 300W

10+ Multiple Transformers

NOTE: Any lights wired to the same transformer will run together. If independent operation is

desired, then each light or group of lights will require their own separate transformer and relay.

Wiring Overview

Refer to the wiring overview diagram below and the steps on the following pages for wiring instruc-

tions.

Total distance of cable between LED Light

and Transformer should not exceed 150 feet.

Service Loop

Grommet

LED Light

Assembly

High Voltage from

Manual Wall Switch

Omni Control Relay

Hayward

LJBUY00PP1

Junction Box

Low Voltage

Transformer

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

Step 1: Running the Cable

With the niche now installed, it is time to run the wiring cable from the LED light to the junction box

or low voltage transformer. Note that the maximum cable length between the Water Bowl niche and

the low voltage transformer should not exceed 150 feet. Cable runs that are 100 feet or less should

use 14 gauge wire and more than 100 feet should use 12 gauge wire. Feed the cable through the

electrical line until you have about 12-24 inches of service loop in the niche. At the junction box/

transformer, cut the extra cord leaving enough for wiring.

If using an optional junction box - run the cable from the junction box to the low voltage transformer.

Cut the extra cord at both the junction box and the transformer leaving enough for wiring.

Run the cable from the power source – either a manual wall switch or an Omni control relay – to the

low voltage transformer. Cut the extra cord at both ends leaving enough for wiring.

Step 2: Junction Box Wiring (optional)

A junction box is useful if multiple Water Bowl LED Lights will be

wired together. To make connections easier, it is recommended

to use Wago 221 Series lever nuts (pictured in graphic to the

right) but standard electrical wire nuts can also be used.

Step 3: Low Voltage Transformer Wiring

Refer to the following graphic when using a Hayward 300W transformer. For other transformers,

refer to their included instructions. Be sure to follow all NEC and local codes when wiring.

L1 & L2 low voltage

connections

Ground

(green)

Neutral

Connection

(white)

Hot

Connection

(black)

Use 14V tap

(blue)

From power control To junction box / LED light

Bonding

Wire

To LED

Light

From

Transformer

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

Step 4: Power Control Wiring

When wiring to a wall switch, follow the directions in the manual provided with that product. When

wiring to an Omni control relay or an Omni Smart Relay, refer to the graphics below. Be sure to follow

all NEC and local codes when wiring.

Hot (black)

Connection to transformer

Neutral (white)

Connection to transformer

Ground (green)

Connection to transformer

Omni Standard Relay Wiring

Omni Smart Relay Wiring

Neutral Line 1 in

Load 1 out Neutral

Black/White

Black

Red

Red/White

Gray

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

Step 5: Set LED Light in Niche

With wiring complete, the LED light is ready to be set in the niche. Seal the gap around the power

cable in the electrical line in the niche using the rubber grommet that is pre-installed on the power

cable. Once sealed, gently set the LED light assembly onto the ribs in the niche so it is seated

properly. IMPORTANT: Since the bowl will rest on top of this surface, make sure that the LED light

assembly is seated properly so it is not damaged.

Bowl Installation

Refer to graphic below and the following steps for bowl installation.

Step 1 - For Glass Bowl Installations: When installing a glass bowl, the use of a base pad is

recommended to prevent damage to the bowl. Place the base pad over the niche collar as shown on

the following page. For square bowl installations, make sure that the edge of the base pad is aligned

with the edge of the pool deck.

Bulkhead Assembly

Bowl

Water Supply Pipe

Water Spout Assembly

Base Pad (for use

with glass bowls)

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
