Harman JBL EON600 Series User manual

User’s Guide

EON 618S

QUICK SETUP GUIDE

Congratulations on your purchase of JBL Professional EON600 Series loudspeakers! We know you are anxious to get up and

running as fast as possible, which is why you are reading this section. The following will help you get set up as soon as possible.

Packaging Contents

Your EON600 system should include the following:

1 x EON600 speaker

1 x 10'(3m) IEC Power Cable

1 x Quick Start Guide

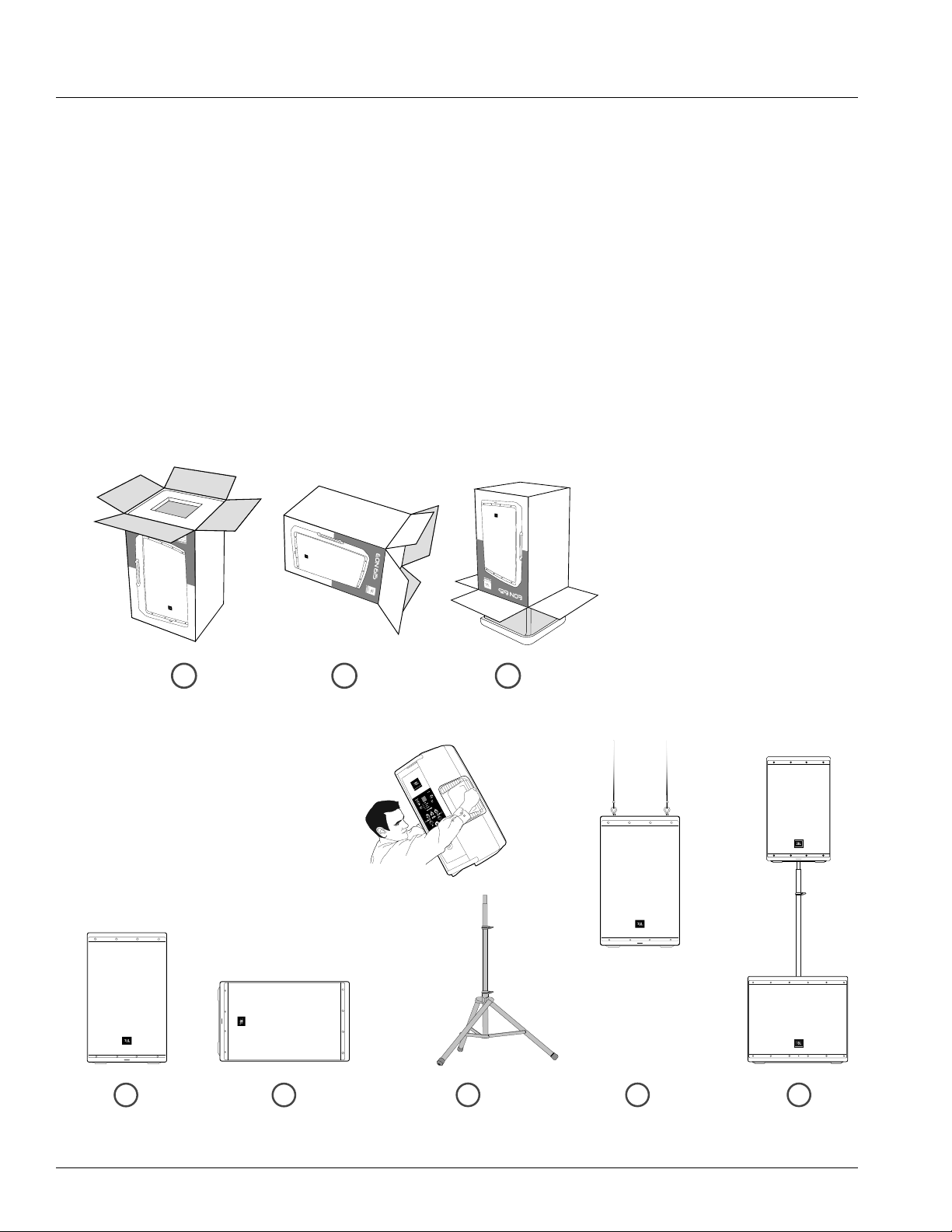

Unbox it

Open the top of the box. Turn box upside down, then lift box up to reveal speaker.Lay box on its side.

Conﬁguration Options

Floor Standing Monitor Position Pole Mounted Suspended Subwoofer Mounted

3 4 5

GAIN

LIMITSIGNAL S IGNAL

GAIN

MAIN

IN 1

MONITOR

SUB

BLUETOOTH

MASTER

VOLUME

MIC

LINE

IN 2

THRU

EQ +

PRESETS

BOOT

SPEECH

SYNC

FRONT LED

POWER

ON OFF

MIC

LINE

EON 615

CH1 CH2

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.

OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

FUSE TYPE: T3.15L250V

FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE FUSE ONLY WITH SAME TYPE OF RATING.

430W Max

100-120VAC 50/60Hz

230-240VAC 50/60Hz

MODEL: EON615

SERIAL NO:

JBL PROFESSIONAL

NORTHRIDGE, CA. USA

A HARM AN INTERNATIO NAL COMPANY

DESIGNED AND ENGINEERED IN THE USA

Made in

Mexico

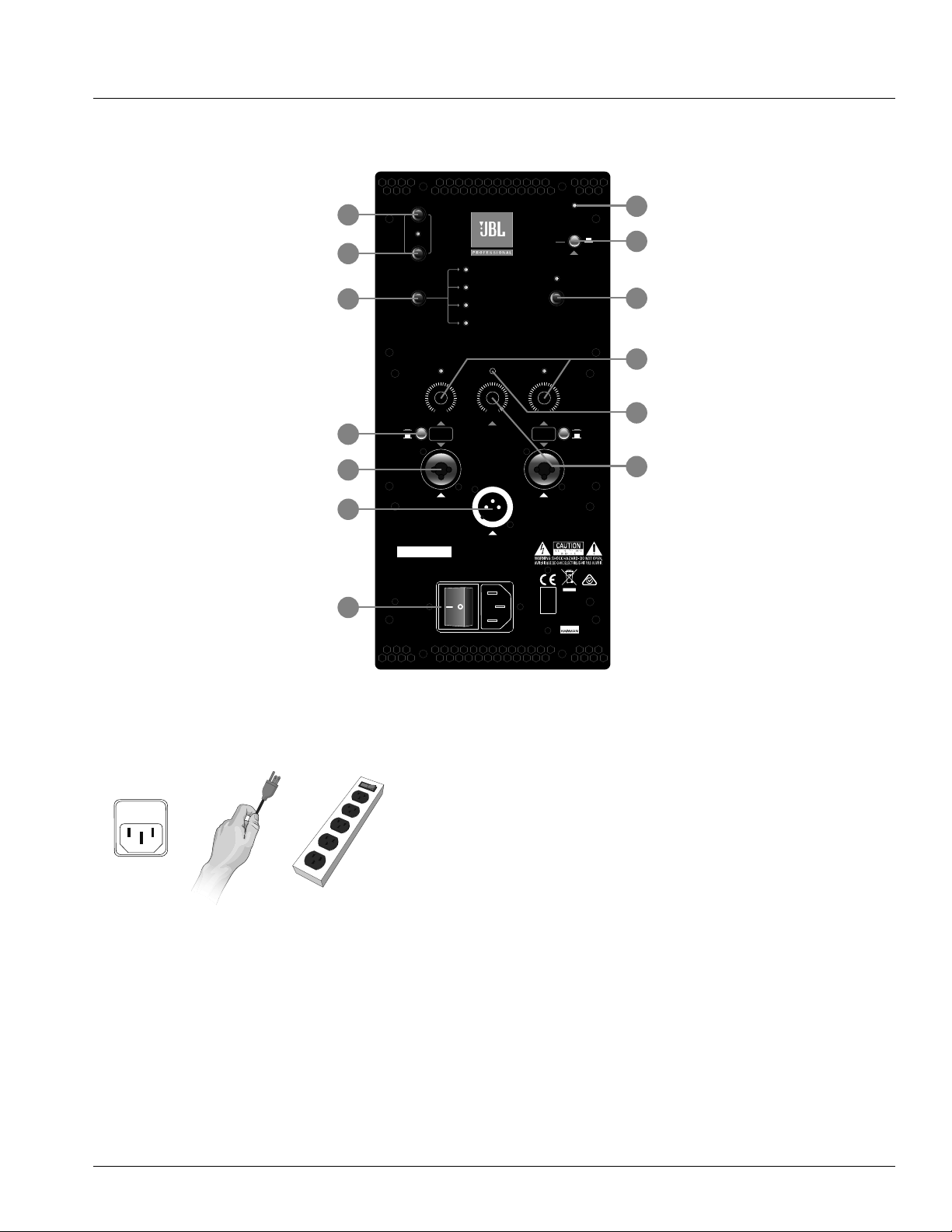

Power LED

Bluetooth Sync

Bluetooth Boot

EQ Presets

Mic/Line Button

XLR-1/4” Combo Inputs

XLR Male Loop Thru

Power Switch

Front LED On/Off

EQ+ On/Off

CH1 & CH2 Gain

Master Volume

Limit LED

SET OUTPUT LEVEL

1. Using the EQ Preset ( F ) button, select the

appropriate preset to match your application ( Full-

Range Only ).

2. Set the gain level for the input using the Channel

Gain ( H ) controls. A good starting point is to set

the pot at 12 o’clock.

3. Slowly turn Master Volume ( L ) to the right until

the desired volume is reached.

POWER IT ON

1. Conﬁrm the Power Switch ( O ) is in the OFF position.

2. Connect the supplied power cord to the power receptacle

on the rear of the speaker.

3. Connect the power cord to an available power outlet.

4. Flip on the Power Switch ( O ) and the Power LED ( A ) and

the Power LED on the front of the speaker will illuminate.

PLUG IN THE INPUTS

1. Turn Channel Gain Controls ( H ) and Master

Volume Control ( L ) all the way to the left before

connecting any inputs

2. Connect XLR or TRS cable from audio source to

CH1 or CH2 inputs ( M )

3. Select Mic or Line via the Mic/Line Button ( K;

Full-Range Only )

QUICK SETUP GUIDE

OVERVIEW - EON FAMILY

Thank you for purchasing the new JBL EON!

More than just another great JBL sound system, the new EON600 is a true step forward in technology developed speciﬁcally to

deliver the best sound possible regardless of its application. Completely rethinking how truly good an affordable self-contained,

portable PA system can be, JBL engineers purposely designed and built the EON600 from the ground up featuring JBL’s

advanced waveguide technology, JBL designed and manufactured transducers, and convenient, wireless remote control of its

onboard DSP EQ parameters via Bluetooth.

This total redesign of the EON platform leverages the latest technologies in cabinet materials, acoustic science, transducer

design and user friendliness that delivers the extraordinary quality of a high-end studio monitor in a fully professional, highly

ﬂexible, easy to use, portable system for today’s working musicians and sound providers.

With proper care your EON Series speakers should provide you with many years of ﬂawless performance, and are ﬂexible

enough to be a part of your sound reinforcement system even as it grows in scope.

10" Two-way multipurpose

self-powered sound

reinforcement

• 1000 Watt

• 26 lbs. / 11.79 kg

• 110° H / 60° V Coverage

12" Two-way multipurpose

self-powered sound

reinforcement

• 1000 Watt

• 33 lbs. / 14.96 kg

• 100° H / 60° V Coverage

15" Two-way multipurpose

self-powered sound

reinforcement

• 1000 Watt

• 39 lbs. / 17.69 kg

• 90° H / 60° V Coverage

18” multipurpose powered

subwoofer

• 1000 Watt

• 78 lbs. / 35.3 kg

EON 618S

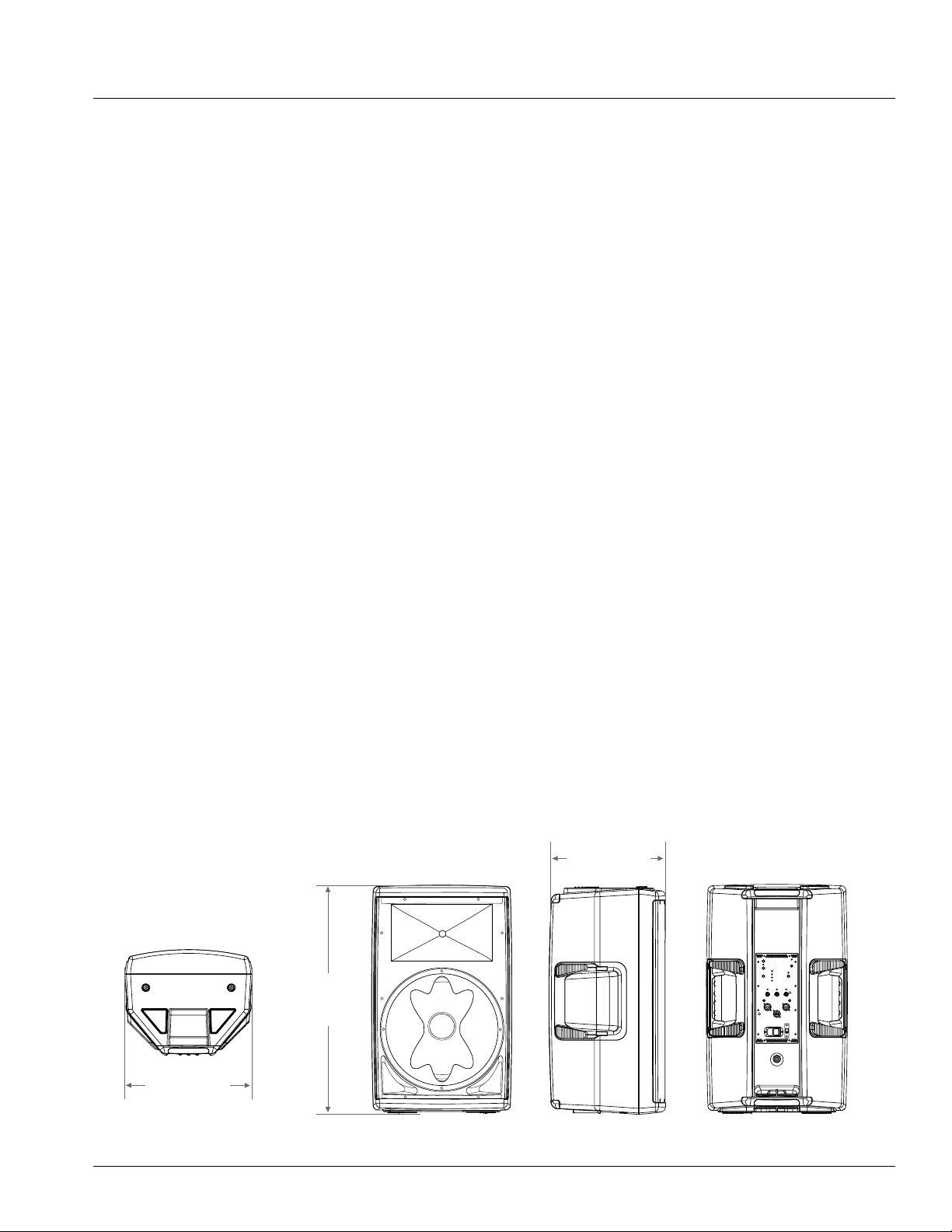

EON615 SPECIFICATIONS

Bottom View Front View Left View Rear View

439 mm

17.3 in

365 mm

14.4 in

707 mm

27.8 in

System Speciﬁcation

System Type: Self powered 15”, two-way, bass-reﬂex

Maximum SPL Output: 127 dB

Frequency Range (-10 dB): 39 Hz - 20 kHz

Frequency Response (±3 dB): 50 Hz - 20 kHz

EQ: 3 Parametric EQ’s, High and Low Shelf (Available via Bluetooth app only)

Ampliﬁcation

Ampliﬁer Design: High Efﬁciency Class D

System Power Rating: 1000W Peak (700 LF + 300HF); 500W Continuous (350W LF + 150W HF)

Input Impedance: 20K ohms (Balanced)

Line Input Gain: Inﬁnity to +26.8dB (+14dBu max input level)

Mic Input Gain: Inﬁnity to +29dB (in addition to line input gain)

Connectors: 2 x Balanced XLR-1/4” combination inputs; 1 x male XLR loop thru out

LED Indicators: Power, Bluetooth, EQ Preset, EQ +, Signal CH1, Signal CH2, Limit

Cooling: Passively Cooled (No Fan)

AC Power Input: 100-120VAC 50/60Hz; 230-240VAC 50/60Hz

AC Power Consumption (120VAC): 1/8th Power – 1.14A (Max), 1/4th Power – 1.71A (Max), 1/3rd Power – 2.03A (Max)

Speaker Speciﬁcation

LF Driver: 1 x JBL 615H 380mm (15”) woofer with 2” voice coil

HF Driver: 1 x JBL 2414H-1 25.4mm (1”) annular polymer diaphragm, neodymium compression driver

Coverage Pattern: 90º H x 60º V

Crossover Frequency: 1.8kHz

Enclosure

Material: Polypropylene, multi-purpose main & monitor

Suspension / Mounting: 36mm pole socket with stabilizing screw, 3 x M10 suspension points

Handles: One left, one right, one top, one bottom (4 total)

Finish: Black Granite

Grille: Powder coated perforated steel with acoustically transparent screen backing

Dimensions (H x W x D): 707mm x 439mm x 365mm (27.8” x 17.3” x 14.4”)

Gross Weight: 17.69 kg (39 lbs)
