Harbor Breeze LP8115LAZ User manual

Español p. 22

ITEM #0356999

MODEL #LP8115LAZ

HIGHLANDER CEILING FAN

ATTACH YOUR RECEIPT HERE

Serial Number Purchase Date

Harbor Breeze® is a registered trademark

Questions, problems, missing parts? Before returning to your retailer, call our customer

service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday and

8 a.m. - 5 p.m., EST, Friday.

TABLE OF CONTENTS

Safety Information .........................................................................................................................

Package Contents .........................................................................................................................

Hardware Contents .......................................................................................................................

Preparation ...................................................................................................................................

Assembly Instructions ...................................................................................................................

Hanging Instructions .....................................................................................................................

Wiring Instructions ........................................................................................................................

Canopy Housing Installation .........................................................................................................

Blade Installation .........................................................................................................................

Light Plate Assembly Installation ..................................................................................................

Pull Chain Operating Instructions .................................................................................................

Blade Balancing Installation Instructions ......................................................................................

Care and Maintenance .................................................................................................................

Troubleshooting ............................................................................................................................

Warranty .......................................................................................................................................

Replacement Parts List ................................................................................................................

SAFETY INFORMATION

• Before you begin installing the fan, disconnect the power by removing fuses or turning off circuit

breakers.

• Make sure that all electrical connections comply with local codes, ordinances, or the National

Electrical code. Hire a qualified electrician or consult a do-it-yourself wiring hand-book if you are

unfamiliar with installing electrical wiring.

•Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades

to the floor and at least 30 in. from the ends of the blades to any obstruction.

•If you are mounting the fan to a ceiling outlet box, use a METAL octagonal outlet box.

Secure the box directly to the building structure. The outlet box and its support must be able to

support the moving weight of the fan (at least 35 lbs.) Do NOT use a plastic outlet box.

• After you install the fan, make sure that all connections are secure to prevent the fan from falling.

• Instructions for supply connections: conductor of a fan identified as grounded conductor to be

connected to a grounded conductor of power supply; conductor of a fan identified for equipment

grounding to be connected to an equipment-grounding conductor.

Do not install or use fan if any part is damaged or missing.

WARNING

Read all instructions and safety information before installing your new fan.

Review accompanying assembly diagrams.

CAUTION

To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided

with this fan are designed to accept only one 12 gauge house wire and two lead wires

from the fan. If your house wire is larger than 12 gauge or there is more than one house

wire to connect to the two fan lead wires, consult an electrician for the proper size wire

connectors to use.

WARNING

To reduce the risk of fire, electric shock, or personal injury, do not bend the blade arms

when installing them, balancing the blades, or cleaning the fan. Do not insert foreign

objects between the rotating fan blades. Mount to outlet box marked “ACCEPTABLE

FOR FAN SUPPORT” and use mounting screws provided with the outlet box. Most outlet

boxes commonly used for the support of lighting fixtures are not acceptable for fan sup-

port and may need to be replaced. Consult a qualified electrician if in doubt.

WARNING

Please read and understand this entire manual before attempting to assemble, operate or install

the product. If you have any questions regarding the product, please call customer service at

1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday and 8 a.m. - 5 p.m., EST, Friday.

SAFETY INFORMATION (Continued)

•The net weight of this fan is: 26.46 lbs. (12 kg).

This fan is to be used in dry locations only.

WARNING

PACKAGE CONTENTS

PART DESCRIPTION QUANTITY

Blade Holder Medallion

L 1

M Blade 5

F I

PART DESCRIPTION QUANTITY

A Motor Assembly 1

Hanger Bracket

Downrod/Hanger Ball

Assembly

Ceiling Canopy 1

Canopy Screw Cover

Motor Coupling Cover

Light Plate Assembly

Socket Plate Assembly

Glass

J Blade Holder Arm 5

Bulb

Before beginning assembly of product, make sure all parts are present. Compare parts with.

package contents list and diagram above. If any part is missing or damaged, do not attempt to

assemble the product. Contact customer service for replacement parts.

Estimated Assembly Time: 60 minutes

Tools Required for Assembly (not included): Phillips screwdriver, 1/4 in. flathead screwdriver,

wire stripper and step ladder.

Helpful Tools (not included): AC tester light, do-it-yourself wiring handbook and wire cutters.

PREPARATION

HARDWARE CONTENTS (shown actual size)

Screws

Qty. 11

Wire

Connectors

Qty. 4

CC DD

Fan Chain

Coupler

Qty. 1

Balance

Kit

(not shown

to size)

Qty. 1

FFEE

Light Kit Chain

Coupler

Qty. 1

Pan-Head

Screws

Qty. 16

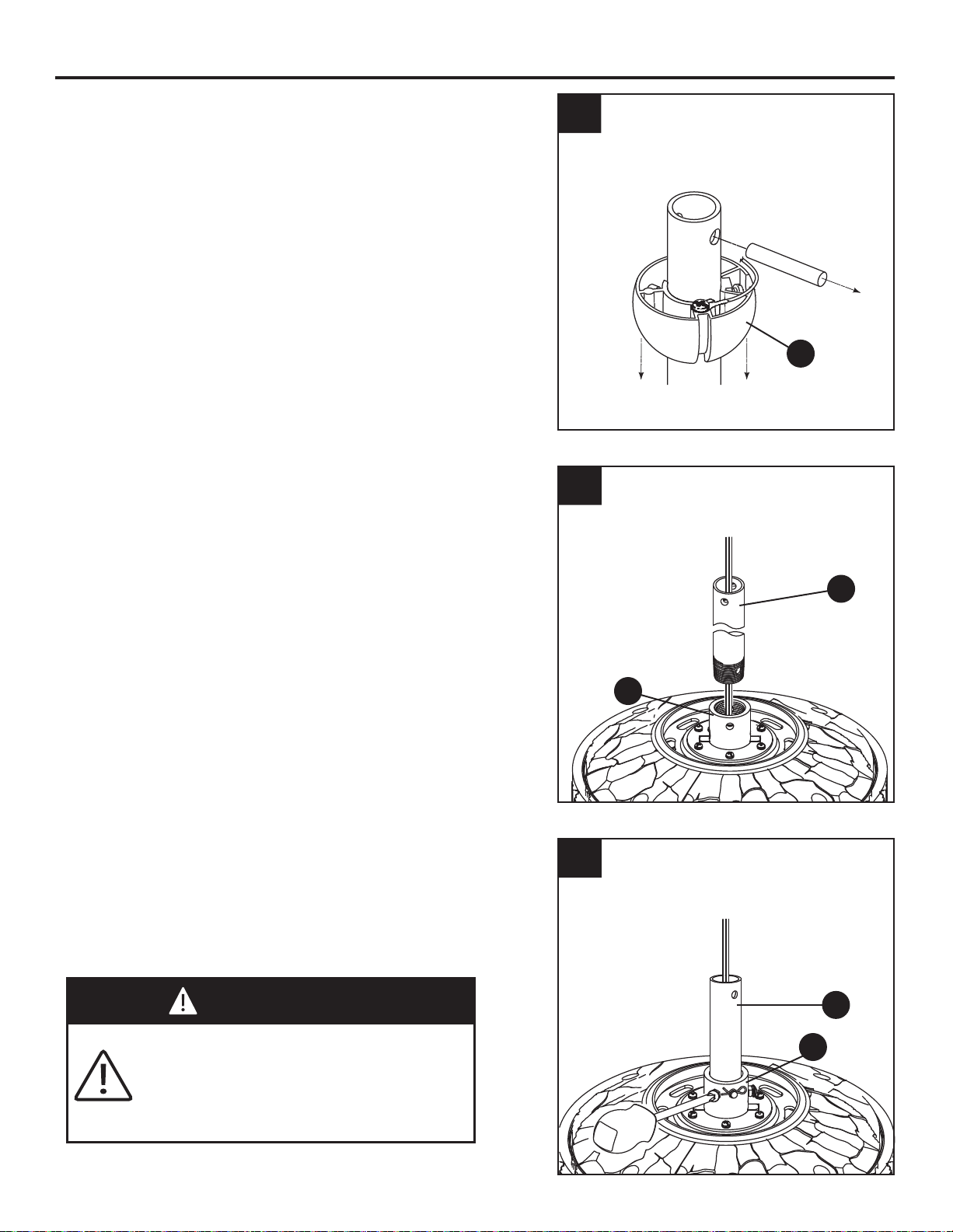

ASSEMBLY INSTRUCTIONS

1. Remove the hanger ball portion from the

downrod/hanger ball assembly (C) by loosen-

ing the set screw in the hanger ball until the

ball falls freely down the downrod. Remove the

pin from the downrod, then remove the hanger

ball. Retain the pin and hanger ball for

reinstallation in Step 5. (Fig. 1)

2. Loosen the two set screws in the downrod

support of the motor assembly (A). Route the

black, white and blue wires through the

downrod of the downrod/hanger ball assembly

(C). (Fig. 2)

WARNING

It is critical that the clevis pin in the

downrod support is properly installed and

the set screws and nuts are securely

tightened. Failure to do so could result in

the fan falling.

3. Thread the downrod of the downrod/hanger

ball assembly (C) into the downrod support

on top of the motor assembly (A). Install the

clevis pin from the downrod/hanger ball

assembly (C) by aligning the holes in the

downrod support of the motor assembly (A)

with the holes in the downrod of the

downrod/hanger ball assembly (C). Secure

clevis pin with hairpin clip from the

downrod/hanger ball assembly (C). Tighten

the two set screws with nuts in the downrod

support of the motor assembly (A). (Fig. 3)

ASSEMBLY INSTRUCTIONS (Continued)

4. Route wires through motor coupling cover (F),

canopy screw cover (E) and canopy (D).

(Fig. 4)

5. Reinstall the hanger ball on the

downrod/hanger ball assembly (C) by routing

the three 54 in. wires through the hanger ball.

Position the pin from the downrod/hanger ball

assembly (C) through the two holes in the

downrod and align the hanger ball so the pin is

captured in the groove in the top of the hanger

ball. Pull the hanger ball up tight against the

pin. Securely tighten the set screw in the

hanger ball. (Fig. 5)

CAUTION

A loose set screw could result in a wobbly

fan.

6. Cut off excess lead wire approximately 6 to 9

in. above top of the top of the downrod/hanger

ball assembly (C). Strip insulation off 1/2 in.

from the end of each lead wire. (Fig. 6)

HANGING INSTRUCTIONS

WARNING

To avoid possible electrical shock, be

sure electicity is turned off at the main

fuse box before hanging.

NOTE: If you are not sure if the outlet box is

grounded, contact a licensed electrician for

advice, as it must be grounded for safe operaion.

WARNING

The fan must be hung with at least 7 ft. of

clearance from the floor to blades.

WARNING

The outlet box must be securely

anchored. Hanger bracket must seat

firmly against outlet box. If the outlet

box is recessed, remove wallboard until

bracket contacts box. If bracket and/or

outlet box are not securely attached, the

fan could wobble or fall.

WARNING

Failure to seat tab in groove could cause

damage to electrical wires and possible

shock or fire hazard.

To avoid possible shock, do not pinch

wires between the hanger ball assembly

and the hanger bracket.

1. Securely attach the hanger bracket (B) to the

outlet box using the outlet box screws and

washers supplied with the outlet box (not

included). (Fig. 1)

2. Carefully lift the fan and seat the

downrod/hanger ball assembly (C) on the

hanger bracket (B) that was just attached to

the outlet box. Be sure the groove in the ball

is lined up with tab on the hanger bracket (B).

(Fig. 2)

WARNING

Check to see that all connections are

tight, including ground, and that no bare

wire is visible at the wire connectors

except for the ground wire. Do not

operate fan until the blades are in place.

Noise and motor damage could result.

2. After connections have been made, turn leads

upward and carefully push leads into the outlet

box, with the white and green leads to one side

of the box and the black and blue leads toward

the other side. The wires should be spread

apart with the grounded conductor and the

equipment-grounding conductor on one side of

the outlet box and the ungrounded conductor

on the other side of the outlet box. (Fig. 2)

WIRING INSTRUCTIONS

WARNING

To avoid possible electrical shock, be

sure electricity is turned off at the main fuse

box before hanging.

NOTE: If you are not sure if the outlet box is

grounded, contact a licensed electrician for

advice, as it must be grounded for safe

operation.

Hardware Used

CC x 3

Wire

Connectors

1. Connect the green grounding lead from the

downrod/hanger ball assembly (C) and the green

grounding lead from the hanger bracket (B) to the

supply grounding conductor (this may be a bare

wire or wire with green colored insulation).

Securely connect wires with wire connectors

(CC). Securely connect the white fan motor wire

to the white supply (neutral) wire using wire

connector (CC). Securely connect the black

fan motor wire and blue wire to the black supply

wire using wire connector (CC). (Fig. 1)

Green Wire

from Supply

(Ground) White Wire

from Supply

White Wire

from Fan

Green Wire

from Hanger

Bracket (Ground)

Green Wire

from Hanger

Ball (Ground)

Listed

Outlet Box

Household

Supply

Black Wire

from Supply

Blue Wire

from Fan

Black Wire

from Fan

Green Wire

from Supply

(Ground) White Wire

from Supply

White Wire

from Fan

Green Wire

from Hanger

Bracket (Ground)

Green Wire

from Hanger

Ball (Ground)

Listed

Outlet Box

Household

Supply

Black Wire

from Supply

Blue Wire

from Fan

Black Wire

from Fan

This manual suits for next models

Table of contents

Languages:

Other Harbor Breeze Fan manuals

Harbor Breeze

Harbor Breeze TG44LW3D1RS User manual

Harbor Breeze

Harbor Breeze ARMITAGE CC52WW5C1 User manual

Harbor Breeze

Harbor Breeze KEYPORT HUGGER 40141 User manual

Harbor Breeze

Harbor Breeze MARICOPA LP8013LAZ User manual

Harbor Breeze

Harbor Breeze 80202 User manual

Harbor Breeze

Harbor Breeze LP8221LCH User manual

Harbor Breeze

Harbor Breeze BUILDER'S SERIES 40698 User manual

Harbor Breeze

Harbor Breeze 873 User manual

Harbor Breeze

Harbor Breeze WINDRISE E-TLEII44BNK5C1 User manual

Harbor Breeze

Harbor Breeze 42079 User manual

Harbor Breeze

Harbor Breeze 42299 User manual

Harbor Breeze

Harbor Breeze CENTREVILLE 40117 User manual

Harbor Breeze

Harbor Breeze 00728 User manual

Harbor Breeze

Harbor Breeze Calera User manual

Harbor Breeze

Harbor Breeze AERO 00980 User manual

Harbor Breeze

Harbor Breeze KINGSBURY 40190 User manual

Harbor Breeze

Harbor Breeze PACIFIC GROVE 40101 User manual

Harbor Breeze

Harbor Breeze 40837 User manual

Harbor Breeze

Harbor Breeze FW60AGV3LR User manual

Harbor Breeze

Harbor Breeze E-WCK44ABZ5LKS User manual

Harbor Breeze

Harbor Breeze AR09-52WHT User manual

Harbor Breeze

Harbor Breeze LP8072LAZ User manual

Harbor Breeze

Harbor Breeze 40821 User manual

Harbor Breeze

Harbor Breeze BELLHAVEN II E-BLHII52VPW5C4S User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
