Harbor Breeze E-GAL52BC4GRS User manual

SOS ITEM/ARTICULO SOS #0131430

GALILEO/CEILING FAN

GALILEO

VENTILADOR DE TECHO

(página 13)

MODEL/MODELO #E-GAL52BC4GRS

WARNINGS

• READ AND SAVE THESE INSTRUCTIONS.

• Read this manual carefully and completely before attempting to assemble, install or operate this product.

• Be sure you read and understand the Safety Precautions on page 3 of these instructions.

• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for repairs, it must be

shipped in its original packaging to ensure proper protection against damage that might exceed the initial cause for

return.

• CAUTION: Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid

electrical shock.

• WARNING: To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed

control device or control fan speed with a full range dimmer switch.

• WARNING: To reduce the risk of ﬁre, electrical shock, or personal injury, do not bend the blade arms when

installing them, balancing the blades, or cleaning the fan. Do not insert foreign objects between the rotating fan

blades. Mount to outlet box marked “ACCEPTABLE FOR FAN SUPPORT” and use mounting screws provided with

the outlet box. Most outlet boxes commonly used for the support of lighting ﬁxtures are not acceptable for fan

support and may need to be replaced. Consult a qualiﬁed electrician if in doubt.

Questions, problems, missing parts? Before returning to your retailer, call or contact our customer service

department at 1-800-527-1292, 8:30 a.m.-5:00 p.m., CST, Monday-Friday.

Harbor Breeze® is a registered trademark of LF,

E192641

Federal regulations require ceiling fans with light kits manufactured or imported after

January 1, 2009, to limit total wattage consumed by the light kit to 190W. Therefore,

this fan is equipped with a wattage limiting device.

TABLE OF CONTENTS

Safety Information .....................................................................................................................................................3

Package Contents ………………………..…………………………………………………………………………………..4

Preparation …………………………………..….…………………..……………………….…………….………………..5

Initial Installation …………………………………..…………………………………………………………..………………..5

Fan Mounting .........................……………………………………………………….………………………….........6

Wiring

....

.....................................................................................................................................................................6

Final Installation …………………………….…………….……………………….…………….……………………...

...

7 - 9

Remote Control Operation ...........……………………………………………..………………………............................9

Automated Learning Process/Activating Code

........

..............................................................................................

...

Bulb Replacement for Up-light

....

.............................................................................................

.........

......1

Care and Maintenance

…

…………………………………………………………………………..……......................10

Troubleshooting …………………………...........................................................................................……...........

Warranty …………………………………………………….……………………………………………........................12

SAFETY INFORMATION

READ AND SAVE THESE INSTRUCTIONS

Please read and understand this entire manual before attempting to assemble, install or operate the product. If you

have any questions regarding the product, please call customer service at 1-800-527-1292, 8:30 a.m.-5:00 p.m.,

CST, Monday-Friday.

1.Before you begin installing the fan, disconnect the power by removing fuses or turning off circuit breakers

2. CAUTION: Read all instructions and safety information before installing your new fan. Review the

accompanying assembly diagrams.

3. CAUTION: To avoid personal injury, the use of gloves may be necessary while handling fan parts with

sharp edges.

4.Make sure that all electrical connections comply with local codes, ordinances, the National Electrical Code and

ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook, available at Lowe's, if

you are unfamiliar with installing electrical wiring.

5.Make sure the installation site you choose allows a minimum clearance of 7 feet from the blades to the floor and at

least 30 in. from the end of the blades to any obstruction.

6. WARNING: To reduce the risk of fire, electrical shock, or personal injury, mount fan to outlet box marked

"ACCEPTABLE FOR FAN SUPPORT" and use mounting screws provided with the outlet box. Most outlet boxes

commonly used for the support of lighting fixtures are not acceptable for fan support and may need to be replaced.

Consult a qualified electrician if in doubt. Secure the outlet box directly to the building structure. The outlet box and

its support must be able to support the moving weight of the fan (at least 35 lbs.). Do NOT use a plastic outlet box.

7.After you install the fan, make sure that all connections are secure to prevent the fan from falling.

8. WARNING: To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided with this

fan are designed to accept only one 12 gauge house wire and two lead wires from the fan. If your house wire is

larger than 12 gauge or there is more than one house wire to connect to the two fan lead wires, consult an

electrician for the proper size wire connectors to use.

9. WARNING: To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed

control device or control fan speed with a full range dimmer switch.

10. WARNING: To reduce the risk of fire, electrical shock, or personal injury, do not bend the blade arms when

installing them, balancing the blades, or cleaning the fan. Do not insert objects between the rotating fan blades.

11. WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use of parts

OTHER than those provided with this fan will void the warranty.

12. The net weight of this fan including the light kit is: 23.55 lbs. (10.68 kg).

PACKAGE CONTENTS

Part Description Quantity

A Downrod 1

B Canopy 1

C Mounting Bracket 1

D Scroll iron 4

E* Motor Housing 1

F Light Kit Fitter 1

G* Candelabra Base Bulb 4

(pre-installed in motor housing)

H Blade 4

I 3/16 Blade Screw (in hardware pack) 12

J Blade Washer (in hardware pack) 12

K E3 Wire Connector (4 in regular hardware pack; 10

6 in remote control hardware pack)

L Canopy Mounting Screw (attached to mounting bracket) 2

M Pin (in motor housing yoke) 1

N Clip (attached to pin) 1

O* 1.5-volt (AA) Battery (in hardware pack) 2

P Remote Control Transmitter 1

Q Cap (in hardware pack) 1

R* Halogen Bulb (for light kit) 3

S Canopy Cover (in hardware pack) 1

AB C

DE F

IJK

LMN

OPQ

NOTE:

For replacement parts, call our customer service department

at 1-800-527-1292, 8:30 a.m.-5:00 p.m., CST, Monday-Friday.

When ordering parts, please have the Model # or Item # of the

fan available, which can be found on page 1.

* The parts denoted with an asterisk (*) above are NOT

replaceable.

IMPORTANT REMINDER: You must use

the parts provided with this fan for proper

installation and safety.

INITIAL INSTALLATION

1. Turn off circuit breakers and wall switch to the fan supply line leads.

(Fig. 1)

DANGER: Failure to disconnect power supply prior to installation

may result in serious injury or death.

3. Check to make sure blades (H) are at least 30 in. from any

obstruction. Check downrod (A) length to ensure blades (H) are at

least 7 ft. above the ﬂoor. (Fig. 3)

2. Determine mounting method to use. (Fig. 2)

A. Normal mount

B. Angle mount

IMPORTANT: If using the angle mount, check to make sure the

ceiling angle is not steeper than 19°.

4. Secure mounting bracket (C) to outlet box using screws, spring

washers, and ﬂat washers provided with the outlet box. (Fig. 4)

*Note: It is very important that you use the proper hardware when

installing the mounting bracket (C) as this will support the fan.

IMPORTANT: If using the angle mount, make sure open end of

mounting bracket (C) is installed facing the higher point of the ceiling.

PREPARATION

1.Before beginning assembly and installation of product, make sure all parts are present. Compare parts with

“Package Contents” list and diagrams on the previous page. If any part is missing or damaged, do not attempt to

assemble, install or operate the product. Contact customer service for replacement parts as indicated at the bottom

of page 4.

Estimated Assembly Time: 120 minutes

Tools Required for Assembly (not included):electrical tape, Phillips screwdriver, pliers, safety glasses, stepladder

and wire strippers

Helpful Tools (not included):AC tester light, tape measure, do-it-yourself-wiring handbook, available at Lowe’s, and

wire cutters

Bulbs Required (included):4 candelabra base 15-watt max. bulbs, for up-light

3 halogen 50-watt max. bulbs, size GU10, for light kit

DANGER: When using an existing outlet box, make sure the box is securely attached to the building structure

and can support the full weight of the fan. Failure to do this can result in serious injury or death. The stability of the

outlet box is essential in minimizing wobble and noise in the fan after installation is complete.

CAUTION: Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.

2. After opening top of carton, remove mounting hardware package from foam inserts. Remove motor from packing

and place on carpet or on foam to avoid damage to ﬁnish.

CAUTION: Carefully check all screws, bolts and nuts on fan motor assembly to ensure that they are secured.

Fig. 1

Fig. 2

Fig. 3

7 ft.

min.

30 in.

min.

Fig. 4

FAN MOUNTING

4. Install ball end of downrod (A) into mounting bracket (C)

opening. Align slot in ball with tab in mounting bracket (C). (Fig. 4)

DANGER: Failure to align slot in ball with tab may result in

serious injury or death.

Ball

Fig. 4

WIRING

WARNING: To reduce the risk of fire, electrical shock, or

personal injury, wire connectors provided with this fan are designed

to accept only one 12 gauge house wire and two lead wires from the

fan. If your house wire is larger than 12 gauge or there is more than

one house wire to connect to the two fan lead wires, consult an

electrician for the proper size wire connectors to use.

CAUTION: Be sure outlet box is properly grounded and that a

ground (green or bare) wire is present.

WARNING: If house wires are different colors than referred to

in the following steps, stop immediately. A professional electrician

is recommended to determine wiring.

1. Remove pin (M) and clip (N) from motor housing yoke at top of motor

housing (E) and partially loosen set screws. (Fig. 1)

*Helpful Hint: Downrod style mounting is best suited for ceilings 8 ft.

(2.44 m) high or higher. For taller ceilings you may want to use a longer

downrod (sold separately) than the one provided. Angle style mounting

is best suited for angled or vaulted ceilings. A longer downrod is

sometimes necessary to ensure proper blade clearance.

Set

Screw

Fig. 1

3. Slip downrod (A) into motor housing yoke, align holes and re-install pin

(M) and clip (N). Re-tighten set screws in motor housing yoke and then

tighten nuts. (Fig. 3)

Fig. 3

2. Insert downrod (A) through canopy (B) and canopy cover (S). [Note:

Canopy cover (S) must be turned with the shiny side toward the motor

housing (E).] Thread wires from motor housing (E) through downrod (A).

(Fig. 2)

Fig. 2

WIRING

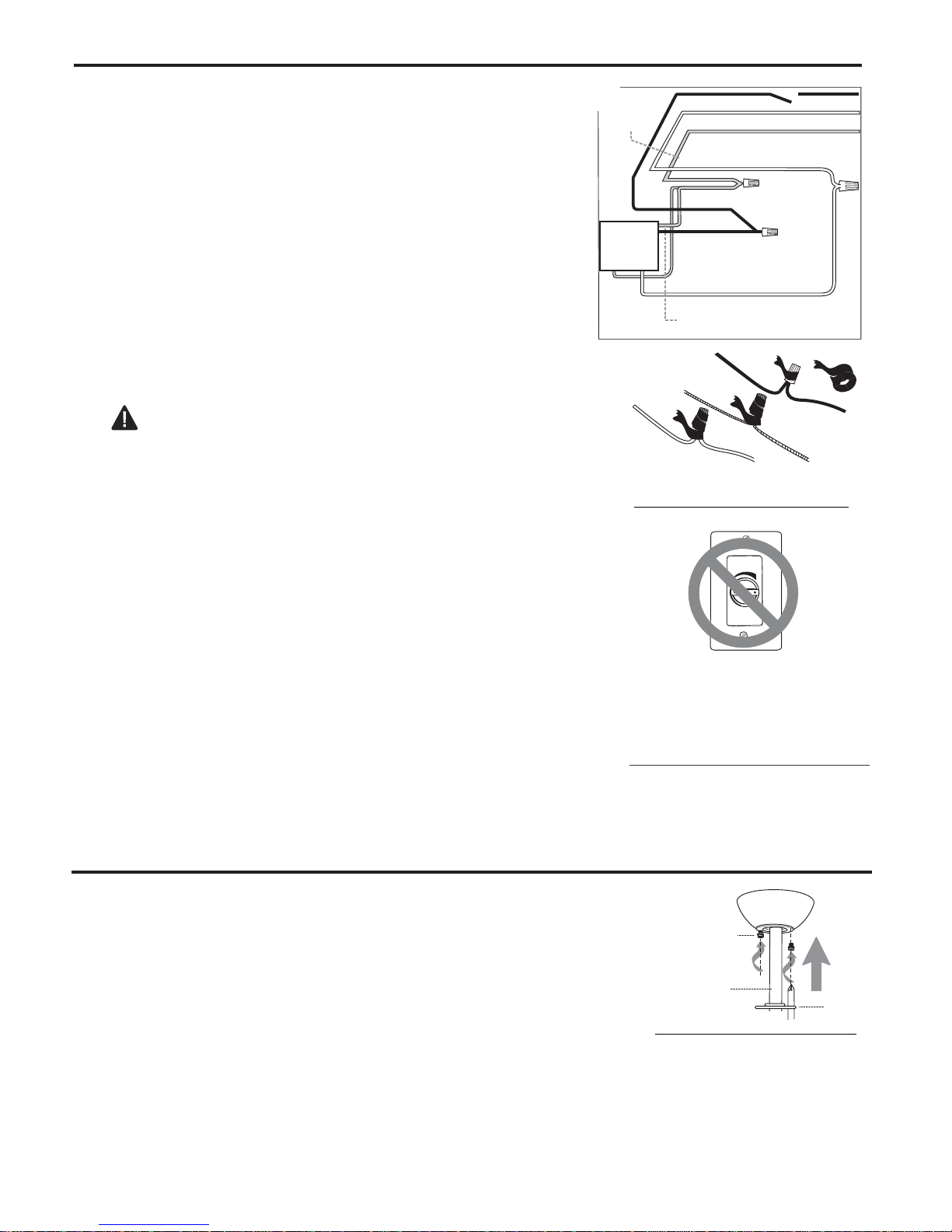

Fig. 1

BLACK

WHITE

GROUND/GREEN (BARE)

WHITE

FROM FAN

120 V Power

FROM

CEILING

GREEN

FAN

GREEN

BLACK

1. [NOTE: For each wire connection below, and use one of the

wire connectors (K) provided, making sure to screw wire

connector (K) on in a clockwise direction.]

Connect BLACK wire from fan to BLACK wire from ceiling.

Connect WHITE wire from fan to WHITE wire from ceiling.

Connect all GROUND (GREEN) wires together from fan (on

downrod and mounting bracket) to BARE/GREEN wire from

ceiling. (Fig. 1)

Note: Black wire is hot power for fan. White wire is common for

fan and light kit. Green or bare wire is ground.

2. Wrap electrical tape around each individual wire connector (K)

down to the wire as shown in Fig. 2.

WARNING: Make sure no bare wire or wire strands are

visible after making connections. Place green and white

connections on opposite side of box from the black connections.

Turn spliced/taped wires upward and gently push wires and wire

connectors (K) into outlet box.

IMPORTANT: Using a full range dimmer switch to control fan

speed will cause a loud humming noise from fan. To reduce the

risk of fire or electrical shock, do NOT use a full range dimmer

switch to control fan speed. (Fig. 3)

Fig. 3

Fig. 2

Dimmer

Switch

For illustrative purposes only--not

intended to cover all types of controls

FINAL INSTALLATION

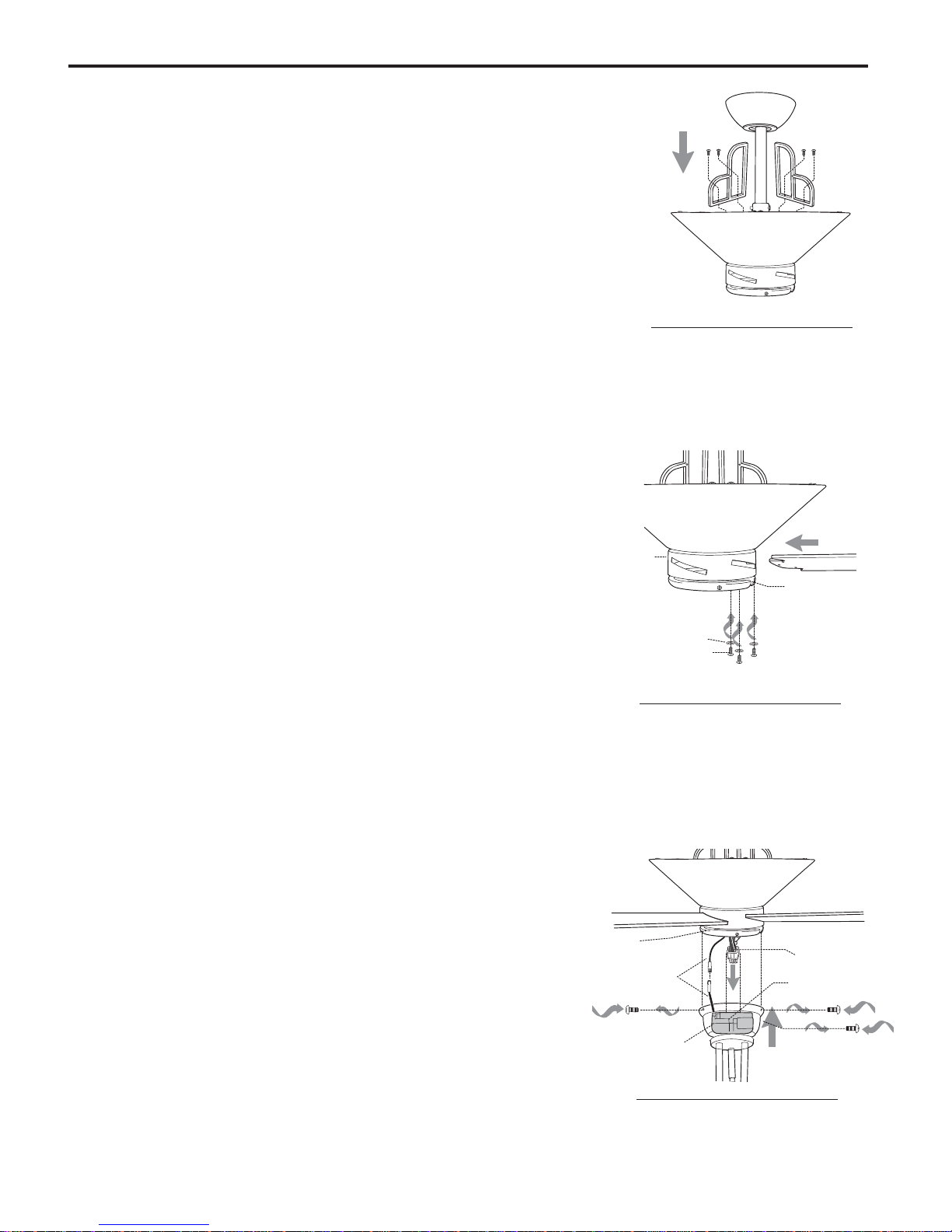

Fig. 1

1. Locate two canopy mounting screws (L) on underside of

mounting bracket (C) and remove screw (L) closest to the open

end of the hanging bracket (C). Partially loosen the other screw

(L). Lift canopy (B) to mounting bracket (C). Place rounded part

of slotted hole in canopy (B) over loosened screw (L) in hanging

bracket (C) and push up. Twist canopy (B) to lock. Re-insert

screw (L) that was removed, and then tighten both screws (L)

securely. Slide canopy cover (S) up to canopy (B), aligning

rounded part of slotted holes in canopy cover (S) with

screwheads in bottom of canopy (B). Turn canopy cover (S) to

the right (clockwise) until it stops. (Fig. 1)

FINAL INSTALLATION

Fig. 2

2. Locate the motor housing screws pre-installed in the top of the

motor housing (E) and remove screws with a Phillips screwdriver.

Align holes in scroll iron (D) with screw holes in top of motor

housing (E). Re-install motor housing screws that were previously

removed and securely tighten screws. (Fig. 2)

Repeat procedure for remaining scroll irons (D).

Motor

Housing

Screws

Fig. 3

3. Remove cardboard pieces from between ﬁtter plate and blade

band.

TIP: Use of a magnetic tip screwdriver is recommended.

Locate 12 blade screws (I) and blade washers (J) in hardware

pack. Blade washers (J) for blade screws (I) can be set on each

blade screw (I) prior to installing blades (H).

Slide blade (H) through one of the narrow, rectangular openings on

blade band, aligning holes in blade (H) with holes located inside

motor housing (E). [Note: Turn blade band in order to align/insert

blade screws (I) and blade washers (J).] Insert three blade screws

(I), along with blade washers (J), and then tighten blade screws (I)

securely with a Phillips screwdriver. (Fig. 3) Repeat procedure for

each remaining blade (H).

Fitter Plate

Blade

Band

4. Remove three screws from ﬁtter plate on underside of motor

housing (E). (Fig. 4)

Connect female plug in the receiver to male plug from motor

housing (E). Make sure plugs connect tightly. Connect

antenna wire that extends from fitter plate to antenna wire from

receiver. Make sure molex connections on these two wires

connects tightly. (Fig. 4)

Align holes in light kit ﬁtter (F) with holes in ﬁtter plate.

Re-install three screws that were previously removed. Tighten

screws securely with a Phillips screwdriver. (Fig. 4)

Fig. 4

Fitter Plate Male Plug

Receiver

Female Plug

Antenna Wire

FINAL INSTALLATION

5. Install three 50-watt max. halogen bulbs (R) included. (Fig. 5)

IMPORTANT: When replacing bulbs, allow bulbs and light kit to

cool before touching them.

Fig. 5

Operation buttons on the panel of the transmitter (P):

HI button for fan HIGH speed

MED button for fan MEDIUM speed

LOW button for fan LOW speed

OFF button for turning fan OFF

UP button for light ON/OFF, upper light

DOWN button for light BRIGHTNESS and OFF, lower light

REV button to REVERSE blade direction (fan must be on

low before reversing blade direction)

The light function is controlled by pressing the UP and/or DOWN button.

Tap either UP or DOWN button quickly to turn lights off or on. Hold

DOWN button down to increase or decrease lights. If you press DOWN

button in excess of 0.7 seconds it becomes a dimmer. The lights vary

cyclically in 0.8 seconds. The DOWN light button has an auto resume

function which keeps the lights at the same brightness as the last time

they were turned off.

REMOTE CONTROL OPERATION

BULB REPLACEMENT FOR UP-LIGHT

IMPORTANT: The motor housing (E), as well as the

bulbs (G) themselves, can become extremely hot when

the light has been on; therefore, please allow sufﬁcient

time for motor housing (E) and bulbs (G) to cool down

before touching.

Replace burnt-out bulb (G) with one candelabra base

15-watt max. bulb. Repeat for each burnt-out bulb (G).

CARE AND MAINTENANCE

At least twice each year, lower canopy (B) to check downrod (A) assembly, and then tighten all screws on the fan.

Clean motor housing (E) with only a soft brush or lint-free cloth to avoid scratching the ﬁnish. Clean blades (H)

with a lint-free cloth. You may occasionally apply a light coat of furniture polish to wood blades for added

protection.

IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a damp cloth

to clean the ceiling fan.

AUTOMATED LEARNING PROCESS/ACTIVATING CODE

CAUTION: The remote control transmitter (P) can be programmed

to multiple receivers or fans. If this is not desired, turn wall switch

off to any other programmable receiver or fan.

1. Locate the two batteries (O) and then remove plastic that is

wrapped around batteries (O). Remove battery cover from back

side of transmitter (P). Install the two 1.5-volt (AA) batteries (O)

provided--(refer to drawing at right).

2. Locate dimmer switch in the top left part of the battery

compartment labeled “DIM”. (refer to drawing at right) Set dimmer

switch to the “ON” position. [Note: If you prefer not to have

dimming capability, set dimmer switch to “OFF” position.]

3. Restore electrical power. Within 60 seconds of restoring

electrical power, press the “LEARN” button in the battery

compartment (refer to drawing at right) for 5 seconds or until fan

switches to MEDIUM speed. Test the light and fan functions to

confirm the learning process is complete.

4. Replace battery cover on transmitter (P)--refer to drawing at

right.

IMPORTANT: To prevent damage to remote control transmitter

(P), remove the batteries (O) if not used for long periods. Store the

transmitter (P) away from excess heat or humidity.

Battery

Cover

LEARN

DIM ON/OFF

LEARN

DIM ON/OFF

Table of contents

Languages:

Other Harbor Breeze Fan manuals

Harbor Breeze

Harbor Breeze 40945 User manual

Harbor Breeze

Harbor Breeze MERRIMACK II 41125 User manual

Harbor Breeze

Harbor Breeze Casual-3-2011 User manual

Harbor Breeze

Harbor Breeze JP18EB3 User manual

Harbor Breeze

Harbor Breeze BIRCHMOUNT COVE 41554 User manual

Harbor Breeze

Harbor Breeze TG52BNK3D1RC User manual

Harbor Breeze

Harbor Breeze MAZON MZ44BNK3LR User manual

Harbor Breeze

Harbor Breeze MONTCLAIR E-CM54RBZ5CRCI User manual

Harbor Breeze

Harbor Breeze CEDAR HILL User manual

Harbor Breeze

Harbor Breeze Cape Coast E-YLM52WW5C1 User manual

Harbor Breeze

Harbor Breeze POINT BREAK Instruction sheet

Harbor Breeze

Harbor Breeze AERO CEILING FAN E-AER52BRZ5LKRCI User manual

Harbor Breeze

Harbor Breeze TIEMPO E-TM52BNK5CS User manual

Harbor Breeze

Harbor Breeze QUONTA CFH52BNK5L User manual

Harbor Breeze

Harbor Breeze 41107 User manual

Harbor Breeze

Harbor Breeze CLASSIC STYLE BDB52LW5N User manual

Harbor Breeze

Harbor Breeze LARALYN LRN32 User manual

Harbor Breeze

Harbor Breeze 35061 User manual

Harbor Breeze

Harbor Breeze 40821 User manual

Harbor Breeze

Harbor Breeze FWH60BNK3LRS User manual

Harbor Breeze

Harbor Breeze ECHOLAKE 00876 User manual

Harbor Breeze

Harbor Breeze AERO 00980 User manual

Harbor Breeze

Harbor Breeze L1305 User manual

Harbor Breeze

Harbor Breeze 317058 User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
