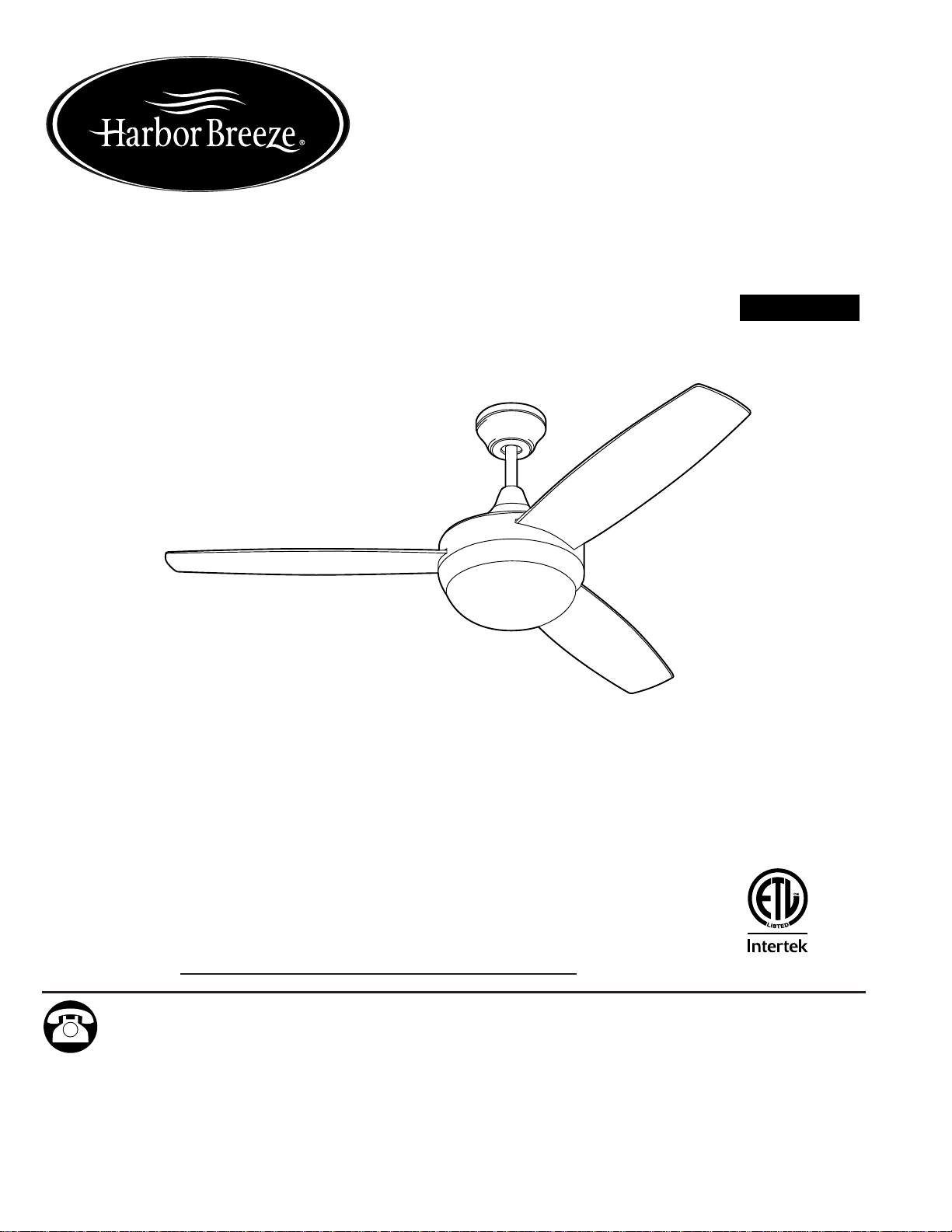

Harbor Breeze TG52BNK3D1RC User manual

ITEM #0883810

0883809

BEACH CREEK

LED CEILING FAN

Español p. 20

MODEL #TG52BNK3D1RC

TG52OSB3D1RC

ATTACH YOUR RECEIPT HERE

Purchase Date

Questions, problems, missing parts? Before returning to your retailer, call our customer

service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m.,

EST, Friday.

Harbor Breeze® is a registered trademark

PH18481

Safety Information ...............................................................................................................

. 2

Package Contents ..............................................................................................................

. 4

Hardware Contents

...........................................................................................................................

Preparation ........................................................................................................................... 5

Initial Installation ................................................................................................................... 5

Downrod-Style Fan Mounting ............................................................................................... 8

Closemount-Style Fan Mounting ........................................................................................

.10

Wiring ...................................................................................................................................12

Final Installation .................................................................................................................. 14

Operating Instructions ......................................................................................................... 15

Care and Maintenance ...................................................................................................

.... 17

Troubleshooting .................................................................................................................. 18

Limited Lifetime Warranty ................................................................................................... 19

Replacement Parts List ....................................................................................................... 19

TABLE OF CONTENTS

SAFETY INFORMATION

READ AND SAVE THESE INSTRUCTIONS

• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for

repairs, it must be shipped in its original packaging to ensure proper protection against damage

that might exceed the initial cause for return.

• Make sure all electrical connections comply with local codes, ordinances, the National Electrical

Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring

handbook if you are unfamiliar with installing electrical wiring.

• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to

the floor and at least 30 in. from the end of the blades to any obstruction.

• After you install the fan, make sure all connections are secure to prevent the fan from falling.

• The net weight of this fan is: 14.77 lbs.

SAFETY INFORMATION

WARNING

To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box

marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use

mounting screws provided with the outlet box. Most outlet boxes commonly used for the

support of lighting fixtures are not acceptable for fan support and may need to be replaced.

Consult a qualified electrician if in doubt.

When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a

plastic outlet box. Secure the outlet box directly to the building structure. The outlet box and its

support must be able to support the moving weight of the fan (at least 35 lbs.).

To avoid personal injury, the use of gloves may be necessary while handling fan parts with

sharp edges.

To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan

are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your

house wire is larger than 12-gauge or there is more than one house wire to connect to the

corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.

To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control

device or control fan speed with a full range dimmer switch.

To reduce the risk of fire, electrical shock or personal injury, do not bend the blades when

installing or balancing them, or cleaning the fan. Do not insert objects between the rotating fan

blades.

To reduce the risk of personal injury, use only parts provided with this fan. The use of parts

OTHER than those provided with this fan will void the warranty.

Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid

electrical shock.

WARNING

Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.

Before beginning installation, carefully check all screws, bolts and nuts on fan motor assembly to

ensure that they are secured.

Do NOT tamper with or attempt to repair LED component. The light source is designed for this

specific application and should not be serviced by untrained personnel. If any servicing is

required, call our customer service department.

CAUTION

NOTE: Dimmable to 10% with select dimmers. See Lowes.com for more information.

PACKAGE CONTENTS

Downrod 1

Canopy

C Mounting Bracket 1

D Motor Housing 1

Yoke Cover 1

F LED Light Kit

(preassembled)

Canopy Mounting Screw 4

(preassembled)

Motor Screw 6

(preassembled)

I Lock Washer (preassembled) 6

J Blade 3

DESCRIPTIONPART QUANTITY DESCRIPTIONPART QUANTITY

K Glass Shade 1

L Pin (preassembled) 1

M Clip (preassembled) 1

Balancing Kit 1

O Remote Control Receiver

Remote Pack

IMPORTANT REMINDER: You must use the

parts provided with this fan for proper installation

and safety.

HARDWARE CONTENTS (shown actual size)

Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on

foam to avoid damage to ﬁnish. Compare parts with package contents list and hardware contents list.

If any part is missing or damaged, do not attempt to assemble the product.

Estimated Assembly Time: 120 minutes

Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety

Glasses, Stepladder and Wire Strippers

Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and

Wire Cutters

PREPARATION

Fiber

Blade

Washer

Qty. 9

+ 1 extra

Blade

Screw

Qty. 9

+ 1 extra

Wire

Connector

Qty. 4

AA BB CC

INITIAL INSTALLATION

OFF

Turn off circuit breakers and wall switch to the fan

supply line leads.

DANGER: Failure to disconnect power supply

prior to installation may result in serious injury or

death.

INITIAL INSTALLATION

19° max.

2. Determine mounting method to use.

A. Downrod mount (standard or angled ceiling)

B. Closemount (standard ceiling only)

IMPORTANT: If using the angle mount, check to

make sure the ceiling angle is not steeper than 19°.

*Helpful Hint: Downrod-style mounting is best

suited for ceilings 8 ft. or higher. For taller ceilings

you may want to use a longer downrod (not

included). Angle-style mounting is best suited for

angled or vaulted ceilings. A longer downrod is

sometimes necessary to ensure proper blade

clearance. Closemount mounting is more suitable

for ceilings lower than 8 ft. high.

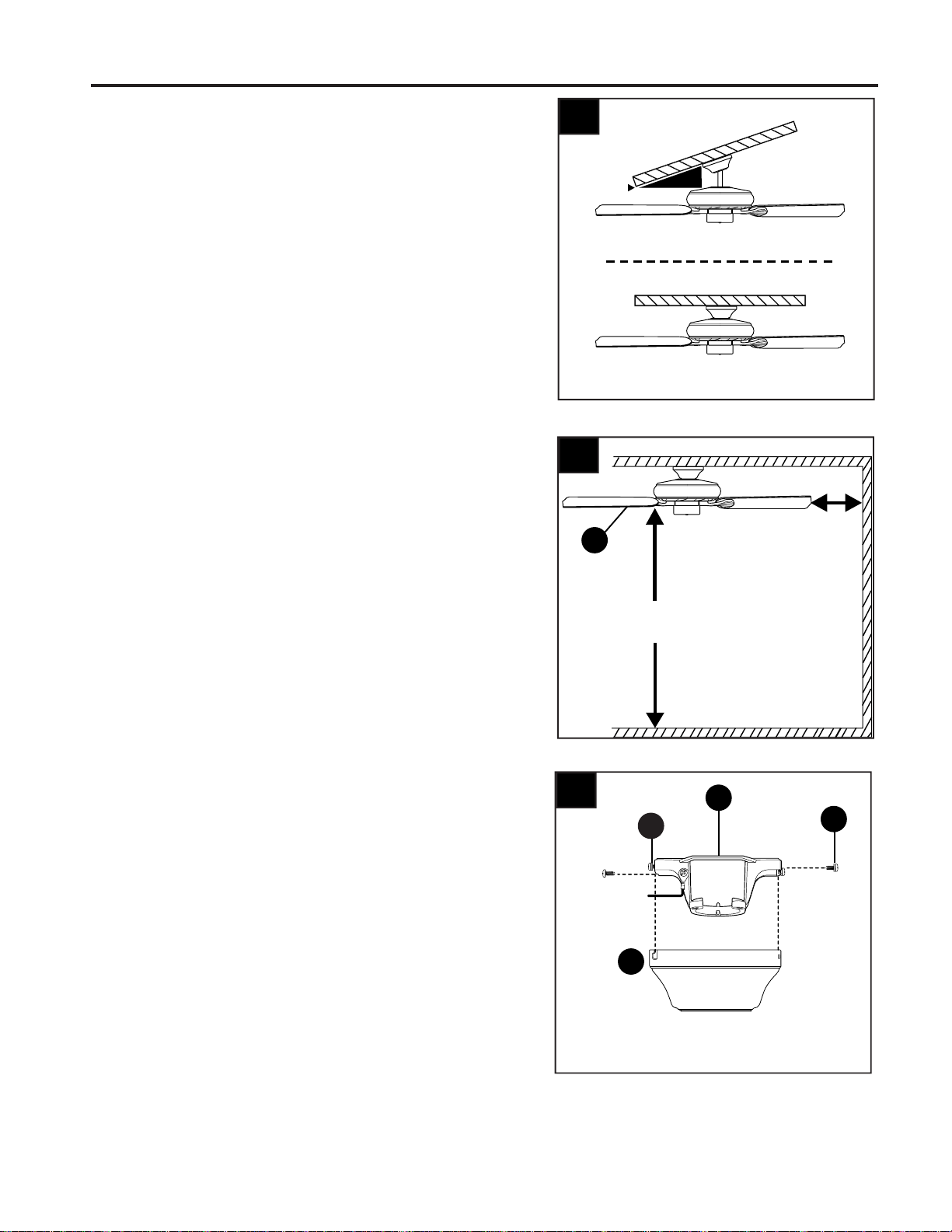

Check to make sure blades (J) will be at least 30

in. from any obstruction and at least 7 ft. above the

floor.

4. Temporarily raise canopy (B) to mounting bracket

screws (G) align with slotted holes in canopy (B).

Partially loosen these 2 canopy mounting screws

(G) and remove the other two; save for later use.

7 ft.

min.

30 in.

min.

INITIAL INSTALLATION

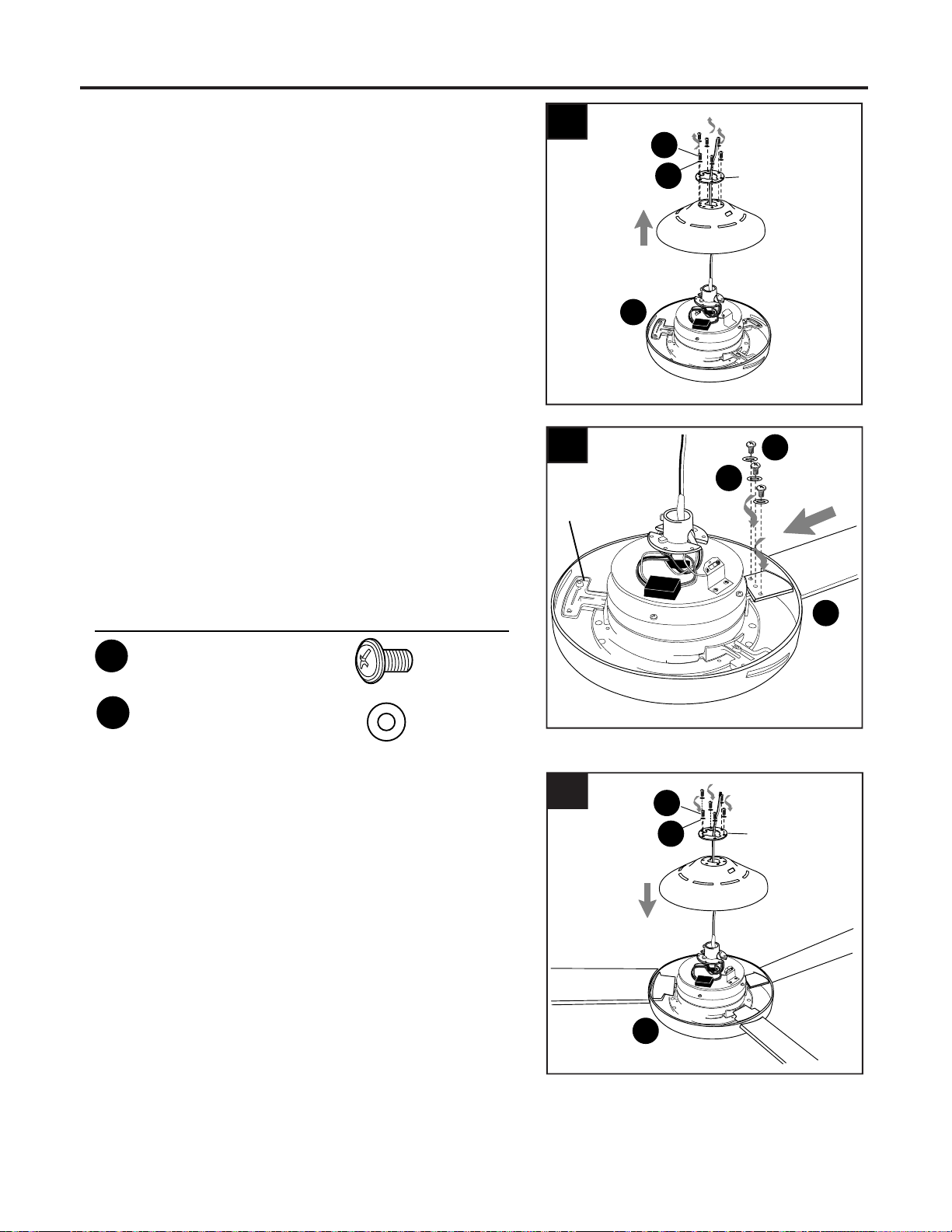

5. Remove 6 motor screws (H) and 6 lock washers (I)

from top of motor housing (D). Remove the yoke

plate and top plate from motor housing (D).

Slide one blade (J) through one of the rectangular

openings on center band of motor housing (D).

Align holes in blade (J) with holes in blade arm

located inside of motor. Attach blade (J) with 3

blade screws (AA) and fiber washers (BB).

Repeat for remaining blades (J).

Note: Make sure to completely secure each blade

(J) before proceeding to the next.

7. Reattach top plate and yoke plate to motor

housing (D) with lock washers (I) and motor

screws (H) previously removed in Step 5.

Hardware Used

Blade Screw x 9

Fiber Blade Washer x 9

top plate

yoke plate

blade

arm

top plate

yoke plate

DOWNROD-STYLE FAN MOUNTING

Open End

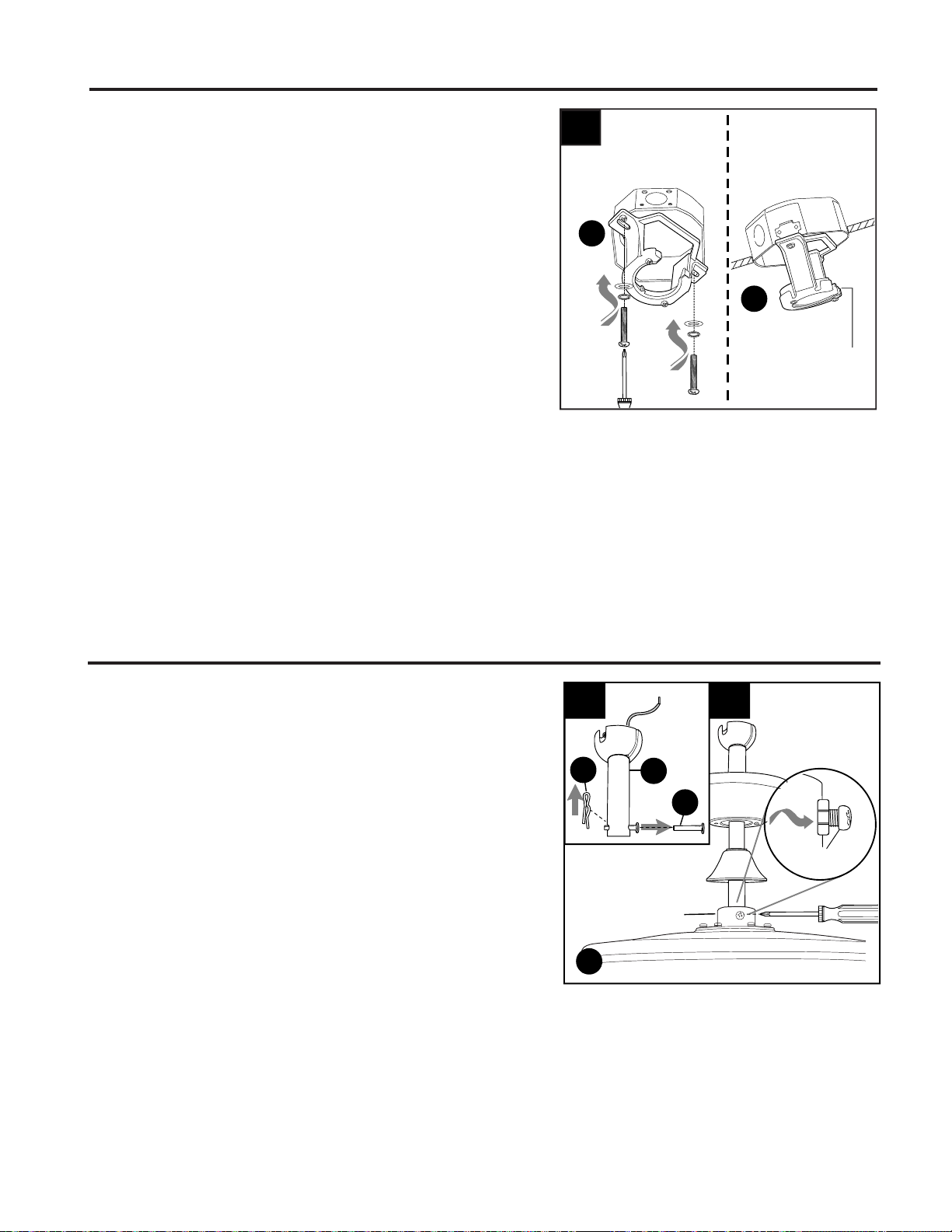

Secure mounting bracket (C) to outlet box (not

included) using screws, spring washers and flat

washers provided with the outlet box.

*NOTE: It is very important you use the proper

hardware when installing the mounting bracket

IMPORTANT: If using the angle mount, make

sure open end of mounting bracket (C) is

installed facing the higher point of the ceiling, and

ensure the ceiling angle is not steeper than 19°.

For DOWNROD-STYLE FAN MOUNTING,

proceed to step 1 below.

For CLOSEMOUNT-STYLE FAN MOUNTING,

skip to page 10.

Remove pin (L) and clip (M) from downrod (A).

Partially loosen preassembled set screws and

nuts in yoke at top of motor housing (D).

1a.

1b.

ANGLE

MOUNT

STANDARD

MOUNT

INITIAL INSTALLATION

Yoke

Set Screw

& Nut

Sideview

3. 3

Set Screw

and Nut

DOWNROD-STYLE FAN MOUNTING

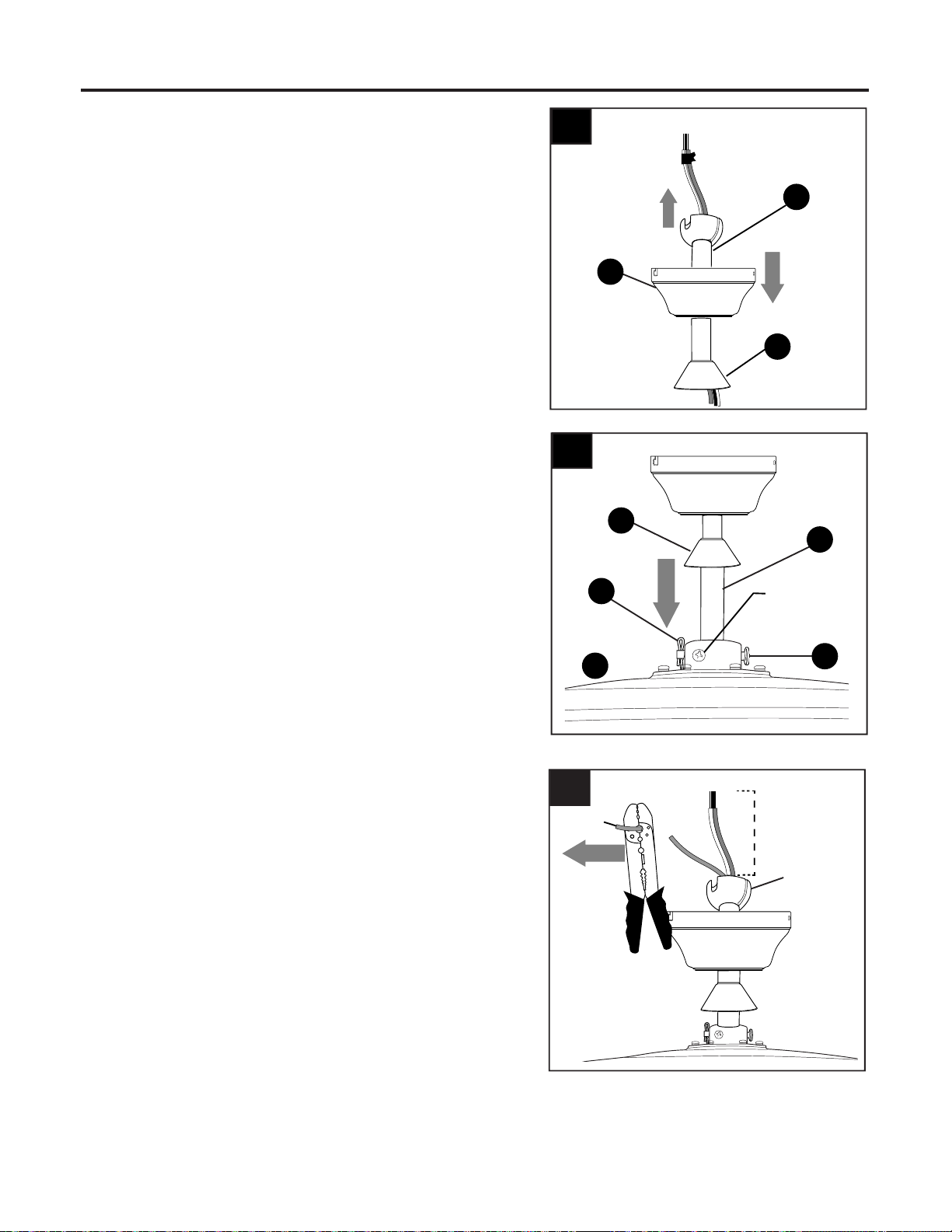

Insert downrod (A) through canopy (B), and yoke

cover (E). Thread wires from motor housing (D) up

through downrod (A).

Depending on the length of downrod you use, you

may need to cut the lead wires back to simplify the

wiring. If you decide to cut back the lead wires, it is

suggested you do so in the following manner:

Take the lead wires and make sure you have pulled

them all the way through the top of the downrod.

Start at the TOP of the hanging ball on the downrod

and measure 8 in. of lead wire, and then cut the

excess wire off with wire cutters (not included).

NOTE: If you do not cut back the lead wires, Steps

4 and 5 are not necessary and you may proceed

to Step 6 instead.

Slip downrod (A) into yoke, align holes and

re-install pin (L) and clip (M). Tighten set screws

and then tighten nuts. Slide yoke cover (E) down

until it rests on top of motor housing (D).

Hanging

Ball

8 in.

Remove preassembled canopy cover from bottom

of canopy (B). NOTE: Turn canopy cover to the

left (counterclockwise) to remove from canopy (B).

NOTE: The downrod (A), yoke cover (E) and

canopy cover are not used in this type of

installation.

CLOSEMOUNT-STYLE FAN MOUNTING

Canopy

Cover

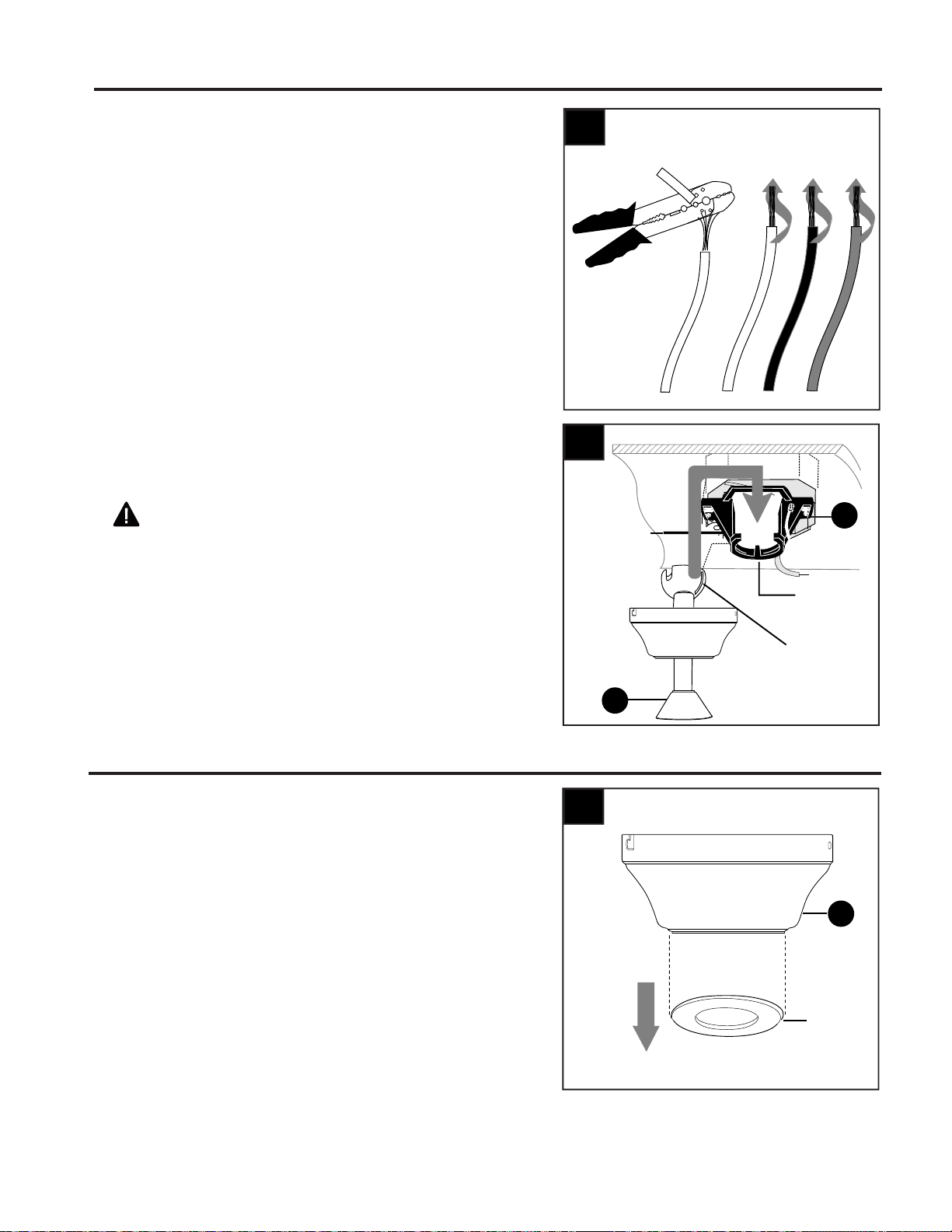

If you cut back the lead wires in Step 4, strip 1/2 in.

of insulation from end of each wire -- WHITE,

BLACK, GREEN and BLUE. Twist stripped ends of

each strand of wire within the insulation with pliers

(not included).

Install hanging ball of downrod (A) into opening of

mounting bracket (C). Align one of the slots in

hanging ball with the tab in mounting bracket (C).

DANGER: Failure to align slot in hanging ball

with the tab in mounting bracket (C) may result in

serious injury or death.

Continue to WIRING on page 12.

DOWNROD-STYLE FAN MOUNTING

Tab

Slot

This manual suits for next models

Table of contents

Other Harbor Breeze Fan manuals

Harbor Breeze

Harbor Breeze LP8072LAZ User manual

Harbor Breeze

Harbor Breeze 40959 User manual

Harbor Breeze

Harbor Breeze 00878 User manual

Harbor Breeze

Harbor Breeze ECHOLAKE 00876 User manual

Harbor Breeze

Harbor Breeze BELCARRA CE-JP13BNK6RC User manual

Harbor Breeze

Harbor Breeze L1901 User manual

Harbor Breeze

Harbor Breeze OCEANSIDE User manual

Harbor Breeze

Harbor Breeze 40360 User manual

Harbor Breeze

Harbor Breeze URBANIA E-AR54BNK5C1 User manual

Harbor Breeze

Harbor Breeze MAZON MZ44MBK3LR User manual

Harbor Breeze

Harbor Breeze E-BDB52LABZ5BC4N User manual

Harbor Breeze

Harbor Breeze C-TR56BNK3D1R User manual

Harbor Breeze

Harbor Breeze L1305 User manual

Harbor Breeze

Harbor Breeze MERRIMACK II 41125 User manual

Harbor Breeze

Harbor Breeze COGDELL COG60BNK7LR User manual

Harbor Breeze

Harbor Breeze 40821 User manual

Harbor Breeze

Harbor Breeze CGR60WW3LR User manual

Harbor Breeze

Harbor Breeze LARALYN LRN32 User manual

Harbor Breeze

Harbor Breeze Bath Ventilator with Light User manual

Harbor Breeze

Harbor Breeze LP8115LAZ User manual

Harbor Breeze

Harbor Breeze ARMORY 40087 User manual

Harbor Breeze

Harbor Breeze ARMITAGE CC52WW5C1 User manual

Harbor Breeze

Harbor Breeze Impact 00966 User manual

Harbor Breeze

Harbor Breeze BTH44ABZC5C User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
