HANYOUNG NUX TS500 User manual
MANUAL
Thermal Shock Test Controller
2
Thank you for purchasing the product of HANYOUNG NUX.
This manual describes the functions of the product, installation methods, precautions, and how to use in
detail. Please read and fully understand this manual before using the product.
In addition, please let this manual be conveyed to and used by the final user, and keep this manual
where it can be read at any time.
*The details in this manual may be changed for the improvement of product without notice.
*If you discover any question about or error in this manual, please contact this company or an office of
this company.
*It is prohibited to reprint or reproduce all or part of this manual without permission.
■ After-Sales Service
*When you apply for an after-sales service for the product of this company, please contact nearby
agency, office, or head office of this company.
*If you want a visiting service, please apply for it after first counseling with the person in charge at the
after-sales service center on the phone.
*Please check the FAQ of our Website for the questions or answers on the same issue as yours before
applying for an after-sales service.
HANYOUNG NUX
28, Gilpa-ro 71beon-gil, Nam-gu, Incheon, Korea
TEL : (82-32)876-4697
FAX : (82-32)876-4696
http://www.hynux.net
E-mail. [email protected]
To the Users
1.1 Checking the Product 4
1.2 Precautions on Safety 5
2.1 Where to Install and Precautions 6
2.2 How to Install 7
2.3 Type Composition 8
2.4 Appearance and Panel Processing Dimensions 8
2.5 Connection Diagram 9
2.6 How to Connect 11
3.1 Main Screen 13
3.2 Basic Input Methods 13
3.3 Name of Each Part of Operation Screen 15
3.4 Automatic Operation 21
3.5 Manual Operation 22
3.6 Graph Indication and Setup 24
3.7 Indication of Errors and Events 25
4.1 Screen Block Diagram 26
4.2 Operation Screen 28
4.3 Function Setup Screen 29
4.4 System Setup Screen 29
5.1 Motion Setup 30
5.2 Time/Reservation Setup 31
5.3 Pattern Setup 31
5.4 LCD Brightness Adjustment 35
6.1 Sensor Input Setup 36
6.2 Control/Transmission Output Setup 38
6.3 Alarm Setup 39
6.4 Inner Signal Setup 41
6.5 PID Setup 41
6.6 Discrete Input (DI) Setup 44
6.7 Discrete Output (DO) Setup 46
6.8 Communication Setup 49
6.9 Other Setup 50
7.1 Measurement Input Specifications 51
7.2 Control/Transmission Output Specifications 52
7.3 I/O Module 52
7.4 Communication Specifications 52
7.5 Power Supply Specifications 52
7.6 Function Specifications 53
1 Before Installation
2 How to Install
3 Control and Setup
4 Screen Composition
5 Function Setup
6 System Setup
7 Specifications
Table of Contents
3
1.1.1 Contents
4
1 Before Installation
1.1 Checking the Product
TS500
Fixing bracket
2 EA
User’s Manual
Resistance 250Ω 2EA
I/O Module
I/O Link Cable
Thank you for purchasing thermal shock test controller (model : TS500) of HANYOUNG NUX.
This user’s manual describes the functions of the product, installation methods, precautions, and how
to use in detail. Please read and fully understand this manual before using the product. In addition,
please let this manual be conveyed to and used by the final user, and keep it where you can read it
at any time. (The details in this manual may be changed following the improvement and changes in
functions of the product without prior notice.)
When you have purchased the product, please first check if it’s of the specifications you want and
whether there is any damage to appearance or any insufficient parts.
When the product is of any specifications that you don’t want or there is any damage to appearance or
any insufficient parts, please contact your purchasing place or the Sales Department of this company.
1.2.1. Precautions on Safety
•For the protection and safety of the product and the system connected to the product, please use
the product following the safety instructions on this manual.
• We shall not take responsibility about any safety issue or losses occurring due to the use or
handling of the product not following the instructions of this manual or any carelessness.
• For the protection and safety of the product and the system connected to the product, please make
sure you install any separate protective or safety circuits outside the product without fail. It is
prohibited to modify hardware or add anything inside of the product.
• Do not disassemble, repair, or modify randomly, as it may cause electric shock, fire, or malfunction.
•
Do not give any strong impact on the product, as it may cause damage to or malfunction of the product.
1.2.2 Quality Assurance
• We shall not make any guarantee or take any responsibility about this product other than those
stated in the quality assurance conditions of this company.
• When the user or a third party is damaged due to a defect, which we cannot predict, or a natural
disaster while using this product, we shall not take responsibility for the damages or indirect
damages in any case
1.2.3 On Quality Assurance Conditions of the Product
•The term of guarantee of the product is one year from the date of purchase. We repair free of charge
only for those kinds of failure that has occurred during normal use as stated in this user’s manual.
• We provide repair at the cost for those kinds of failure occurring after the expiry of term of guarantee
for the product following the standard regulated by this company.
•
In the following cases, even those kinds of failure occurring during the term of guarantee shall be
repaired at the cost.
·
Failure due to fault of the user (for example, initialization by losing password, etc.)
·Failure by natural disaster (for example, fire, flood damage, etc.)
·Failure by movements after installation of the product
·Failure by a random change of or damage to the product
·Failure by a disorder of power supply including unstable power supply
• When you need an after-sales service because of a failure or anything, please contact your
purchasing place or us.
1.2 Precautions on Safety
5
6
2 How to Install
Below is an explanation on where and how to install TS500 (Thermal Shock Test Controller).
Please read before installation.
2.1 Where to Install and Precautions
2.1.1 Where to Install
• As there is a danger of electric shock, please use this product installed on the panel.
• Do not install at places including the following.
· A place where people can contact the terminal out of awareness
· A place that is directly exposed to mechanical vibration or impact
· A place that is exposed to corrosive or combustible gas
· A place with great changes in temperature
· A place with excessively high or low a temperature
· A place that is directly exposed to the direct sunlight
· A place that is much influenced by electromagnetic waves
· A place that is very humid
· A place with inflammable things
· A place with much dust or salt.
2.1.2 Precautions
• The case of this product is made of chrome zinc plate though the bezel is made of ABS/PC fire
retardant materials, do not install this product where inflammable things are around. In particular, do
not put this product directly on an inflammable thing.
• Do not put any device or lines causing noise near this product. In particular, when using this
product at a temperature of 10 ℃ or lower, use the product after fully pre-heating it. In addition, do
not put any device providing extreme heat near this product.
• Install the product horizontally.
• Please perform wiring after blocking the power supply of all instruments.
• This product works at 100 – 240 V AC and 50 – 60 Hz without any separate control if you use
power supply other than the rated power supply, there arises a danger of electric shock and fire.
• Do not handle the product with wet hands, as there is a danger of electric shock.
• When using the product, please follow the basic precautions in order to reduce the danger of fire,
electric shock, and injury.
• Please follow the methods of installation and use specified in this manual.
• Refer to the installation methods on grounding but, never ground on things including gas pipes,
telephone lines, and lightning rods, as there is a danger of explosion and ignition.
• Do not supply power before the connection between devices of this product is finished.
• Do not block the heat release hole of this product, as it may cause a failure.
• The degree of over voltage protection is Category II the service environment is Degree II.
2.2 How to Install
(1) Use steel sheets that are 1 – 10 mm thick for installation panel.
(2) Push TS500 (main frame) inside from the front of the panel.
(3) Attach the panel to both sides of the main frame with the exclusive clamp.
(4) When attaching the main frame to the panel with the clamp, if you excessively tighten it, the
case may be deformed or the clamp may be damaged.
• Check if the power supply is blocked in order to prevent electric shock.
• Before supplying the power, perform third-class grounding or over
(grounding resistance of 100 Ω or less).
• While applying an electric current, there is a danger of electric shock thus, never
contact the terminal.
• First check if the main power supply is blocked, and then perform wiring.
• Install a switch to separate TS500 from the main power supply at the power line.
• Connect a fuse of about 2 A to the power line.
7
Panel
Direction to Insert
Clamp
Thickness 1 ~ 10 mm
8

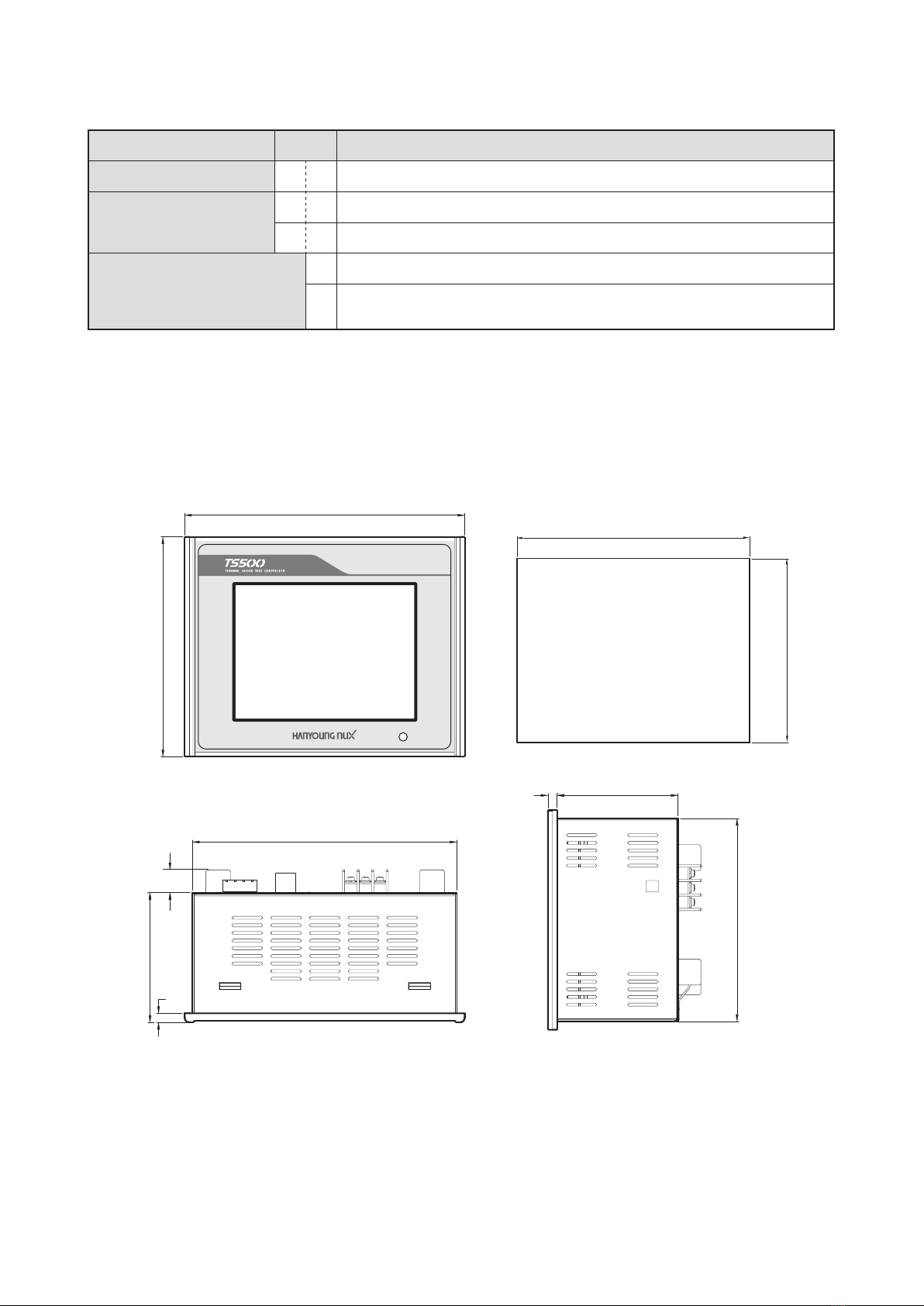

2.3 Suffix Code
2.4 Dimension and Panel cutout
2.4.1. Main Frame [Unit : mm]
183
144
679
6
85
15.0
172.8
133
174.8
+0.7
0
135
+0.7
0
Panel cutout
Model Code Description
TS500 - Thermal Shock Test Controller
Main Frame NWithout main frame (when needing only I/O Module)
1Main Frame (RS232, RS485)
I/O Module
NWithout I/O Module (when needing only the main frame)
1I/O Module
(relay of 16 points, Tr output of 8 points, contact input of 16 points)
9

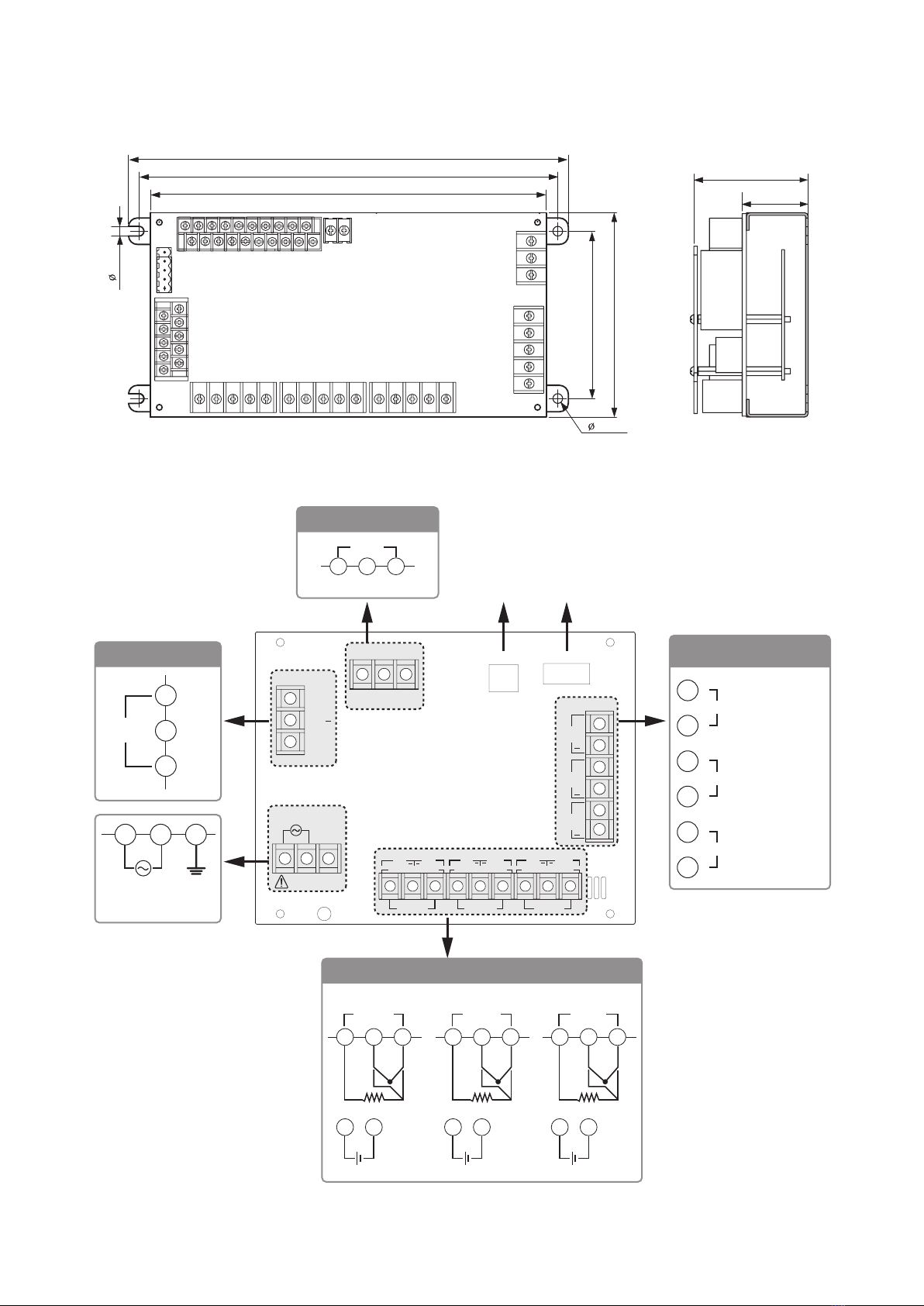

2.5 Connection Diagram
2.5.1 Connection Diagram of Main Frame
USB
CTL.OUT
H.OUT
RET
L.OUT
RS485
RS232
RXD
R TX ( )
R TX ( )
COM
CAUTION
100 - 240 V a.c
50 - 60 Hz
F . G
TXDGND
I/O
USB I/O
+
+
+
+
22
23
24
1 2 3
Sensor Input
HIGH.IN
AB
-+
B
456
45
TEST.IN
AB
-+
B
789
AB
-+
B
10 11 12
18
17
16
15
14
13
-
+
78 10 11
+
-
18
17
+
-
16
15
+
-
14
13
Control Output &
Retransmission Output
21 20 19
RXDTXD GND
RS485
RTX(+)
RTX(-)
COM
LOW.IN
F . G
Power Supply Voltage
100 - 240 V a.c
50 - 60 Hz
※Refer to communication wiring.
22
19
2021
23
24
12
3
H.OUT
(High Temp. Room Control Output)
L.OUT
(Low Temp. Room Control Output)
RET(Retransmission Output)
RS232
HIGH.IN
A
VVVTC TC TC
BBABBABB
TEST.IN LOW.IN
++++++
4 5 6 7 8 9 10 11 12
V d.c
-
+
V d.c
-
+
V d.c
Communication Output
Communication Output
250.0
238.0
225.0
95.0
116.0
65.0
37.5
5.5
5.5
2.4.2.I/O Module [Unit : mm]
10
2.5.2 Connection Diagram of I/O Module
T3
T1
DI_1
DI_9 DI_10 DI_11
DI_2 DI_3 DI_4 DI_6 DI_7 DI_8
DI_5
DI_12 DI_13 DI_14 DI_15 DI_16
RY.1 RY.2 RY.3 RY.4 COM COMRY.5 RY.6 RY.7 RY.8 COM
RY.9 RY.10 RY.11 RY.12
COM
RY.16
RY.15RY.14
RY.13
24 V OUT
Tr OUT
I/O
COM
COM
COM
COM
RELAY OUT
CONTECT IN
POWER
43 34 33 24 25 26 27 28 29 30 31 32
D.I 1 D.I 2 D.I 3 D.I 4 D.I 5 D.I 6 D.I 7 D.I 8
COM
Digital Input
35
D.I 9 D.I 10 D.I 11 D.I 12 D.I 13 D.I 14 D.I 15 D.I 16
36 37 38 39 40 41 42
24 25 26 27 28 29 30 31 32 33
34 35 36 37 38 39 40 41 42 43
44 45
21
22
23
100 - 240 V a.c
50 - 60 Hz
Power Supply Input
23
22
21
20
19
18
17
16
RY 16
RY 15
RY 14
RY 13
COM 4
16
17
18
19
20
Relay Output(D.O)
Power Supply Output
44 45
Power Supply Output
24 V d.c
200 mA Max.
OUT
+
-
-+
1
46
47
48
49
50
51
52
53
54
55
2 3 4 5 6 7 8 9 10 11 12 13 14 15
1 2 3 4 5
RY 1 RY 2 RY 3 RY 4 COM1
Relay Output(D.O)
6 7 8 9 10
RY 5 RY 6 RY 7 RY 8 COM2
Relay Output(D.O)
11 12 13 14 15
RY 9 RY 10 RY 11 RY 12 COM3
Relay Output(D.O)
Transistor Output(D.O)
COM
D.O 20
D.O 19
D.O 18
D.O 17
50
49
48
47
46
COM
D.O 24
D.O 23
D.O 22
D.O 21
55
54
53
52
51
43 25
※ In case of
transistor input
Table of contents
Other HANYOUNG NUX Controllers manuals
HANYOUNG NUX
HANYOUNG NUX TPR-2N User manual
HANYOUNG NUX
HANYOUNG NUX TPR-3SL User manual
HANYOUNG NUX
HANYOUNG NUX TPR-3SL-EP User manual
HANYOUNG NUX
HANYOUNG NUX MT100 User manual
HANYOUNG NUX
HANYOUNG NUX HY Series User manual
HANYOUNG NUX
HANYOUNG NUX TPR-3N User manual
HANYOUNG NUX
HANYOUNG NUX HY Series User manual
HANYOUNG NUX
HANYOUNG NUX ED6 User manual
HANYOUNG NUX
HANYOUNG NUX BR6 User manual
HANYOUNG NUX
HANYOUNG NUX MC9 Series User manual
HANYOUNG NUX
HANYOUNG NUX TPR-3M User manual
HANYOUNG NUX
HANYOUNG NUX TPR-3N User manual
HANYOUNG NUX
HANYOUNG NUX TH510 Series User manual
HANYOUNG NUX
HANYOUNG NUX NP100 User manual
HANYOUNG NUX
HANYOUNG NUX HY-1000 User manual
HANYOUNG NUX
HANYOUNG NUX ND4 User manual
HANYOUNG NUX
HANYOUNG NUX TPR-3SL User manual
HANYOUNG NUX
HANYOUNG NUX TPR-2 User manual
HANYOUNG NUX
HANYOUNG NUX FS-3A User manual
HANYOUNG NUX
HANYOUNG NUX NP100 User manual
Popular Controllers manuals by other brands
Digiplex
Digiplex DGP-848 Programming guide
YASKAWA
YASKAWA SGM series user manual
Sinope
Sinope Calypso RM3500ZB installation guide
Isimet
Isimet DLA Series Style 2 Installation, Operations, Start-up and Maintenance Instructions
LSIS
LSIS sv-ip5a user manual
Rockwell Automation
Rockwell Automation 1769-L31 installation instructions
