Hand Held Products 3800ESD User manual

3800, 5600, 5800

Quick Start

Getting Started

Turn off power before connecting the scanner, then

power up the computer once the scanner is fully

connected.

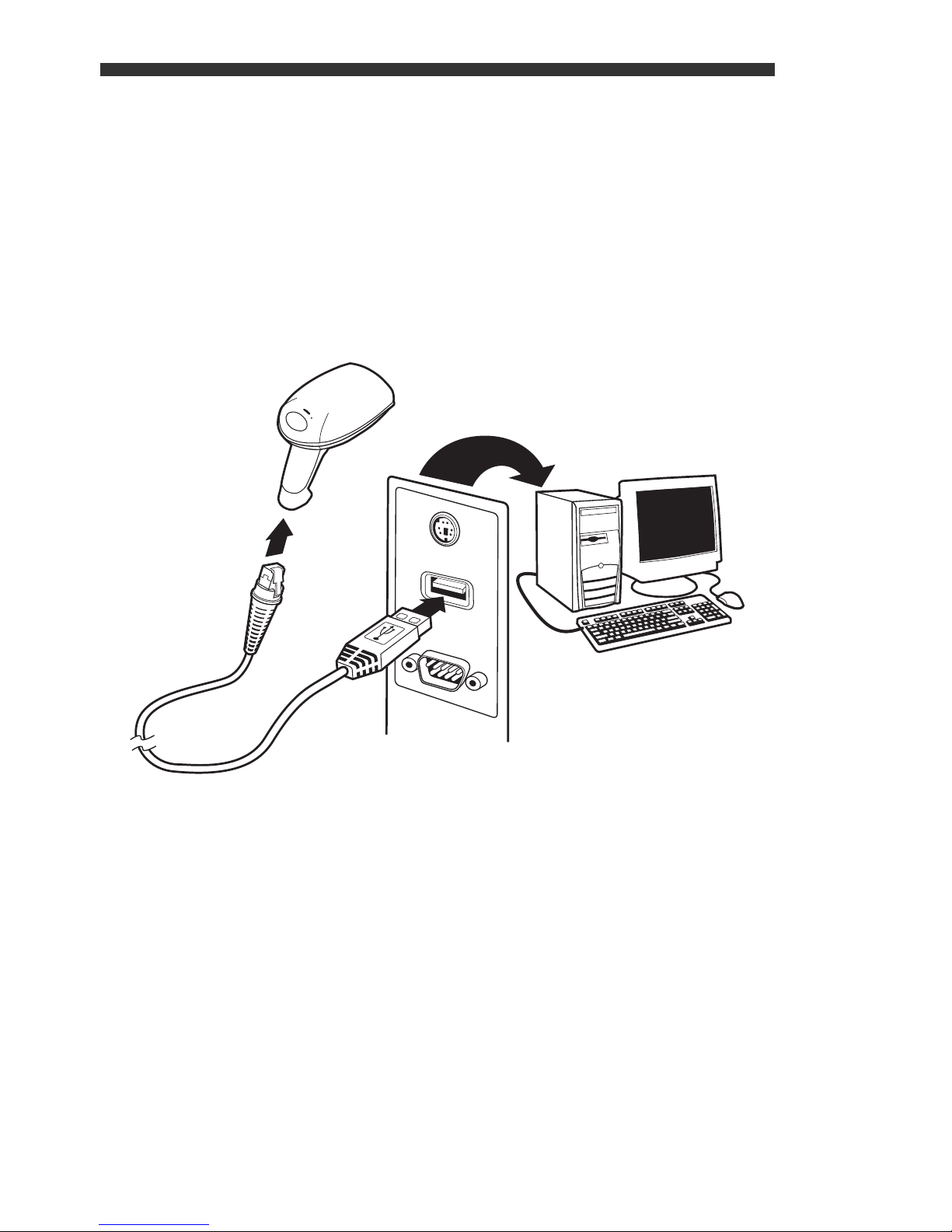

USB Connection

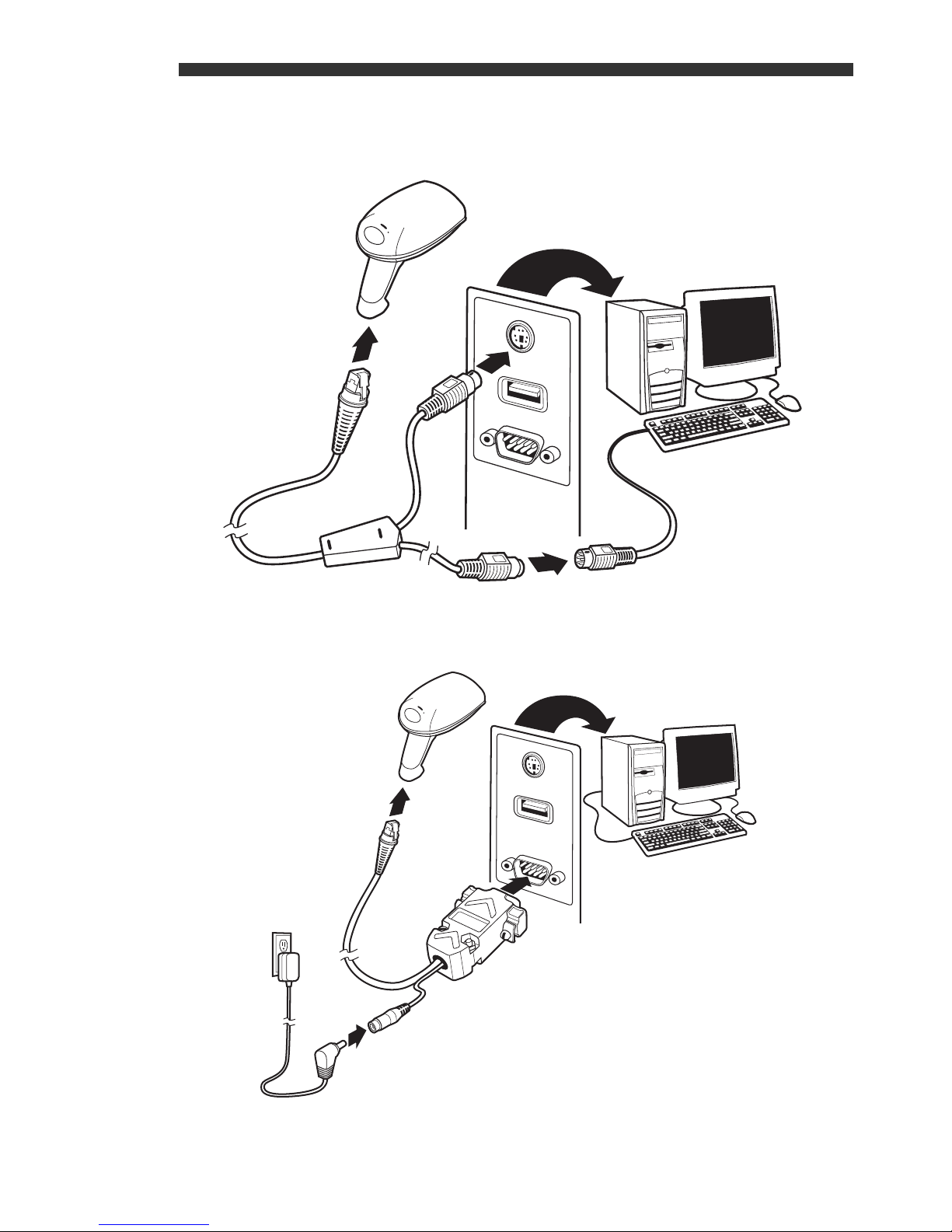

Keyboard Wedge Connection

Serial (RS-232) Connection

Reading Techniques

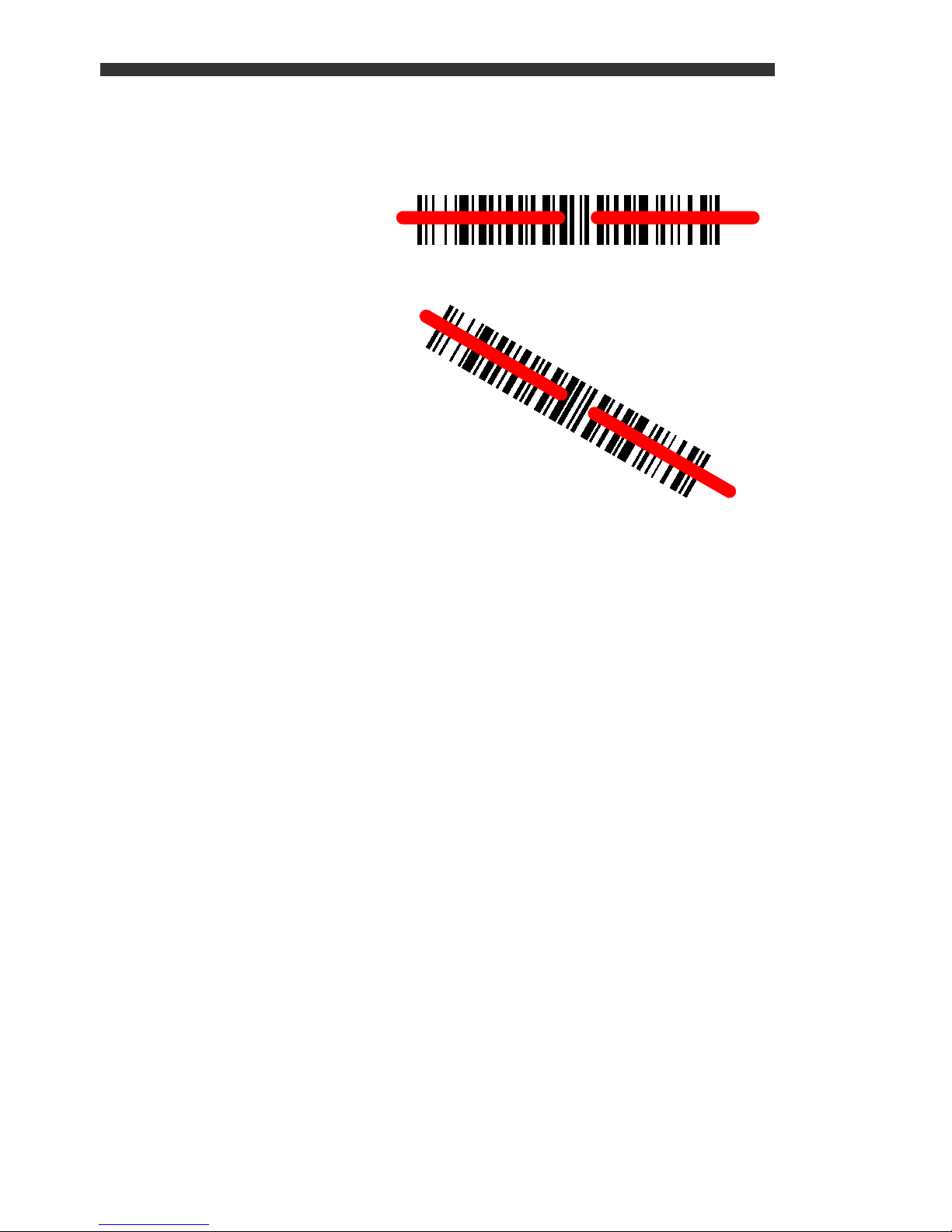

The view finder

projects a red

aiming beam that

should be

centered over the

bar code.

Hold the scanner

over the bar code,

pull the trigger,

and center the

aiming beam on

the bar code.

The aiming beam is smaller when the scanner is

closer to the code and larger when it is farther from

the code. Hold the scanner close to smaller bar

codes, and farther away from large bar codes to get

a proper read.

If the bar code is highly reflective (e.g., laminated),

you may need to tilt the scanner at an angle so the

bar code can be scanned.

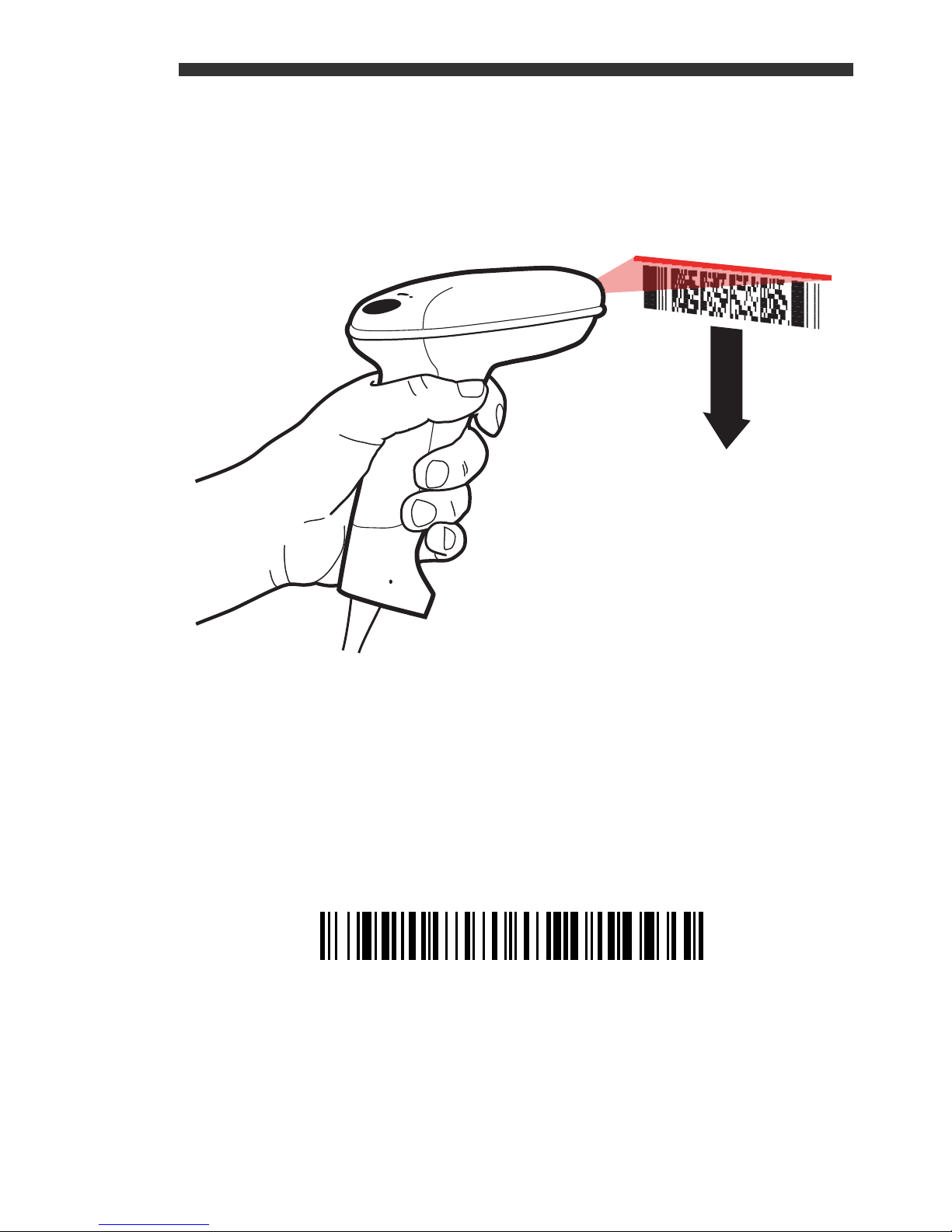

To read PDF417 bar codes with a 3800, hold the

trigger down and move the scanner up and down so

the aiming line sweeps from the top of the bar code

to the bottom, and back up.

This ensures that the entire code is scanned.

Note: This only applies to a PDF enabled 3800.

Factory Defaults

The following bar code resets all factory defaults.

Factory Default

Interface

Scan the bar code that describes the PC or

interface you are using.

AT/PS2 Keyboard Wedge

(Default)

RS-232

USB Keyboard (PC)

Emulate External Keyboard

Japan DOS/V

Keyboard Country

Scan the Program Keyboard Country bar code

below, then scan the numeric bar code(s) from

page 10, then the Save bar code to program the

keyboard for your country. As a general rule, the

following characters are not supported by the

scanner for countries other than the United States:

@ | $ # { } [ ] = / ‘ \ < > ~.

Note: For complete list of country codes, see the

User’s Guide for this product at our website,

www.handheld.com.

Country Code Scan Country Code Scan

Belgium 1 Italy 5

Denmark 8 Norway 9

Finland 2 Spain 10

France 3 Switzerland 6

Germany/Austria 4 USA (Default) 0

Great Britain 7

Program Keyboard Country

Save

Trigger

The following bar codes will allow you to use the

reader in Manual Trigger mode (need to press the

trigger to read), Automatic Trigger mode (the beam

is always on), or Presentation mode (the reader is

activated when it “sees” a bar code).

Reread Delay

This sets the time period before the scanner can

read the

same

bar code a second time. Setting a

reread delay protects against accidental rereads of

the same bar code.

Manual Trigger

(Default)

Automatic Trigger

Presentation Mode

Medium Reread Delay

for 3800

Medium Reread Delay

for 5600 and 5800

Suffix

If you want a carriage return after the bar code,

scan the Add CR Suffix bar code. To add a tab

after the bar code, scan the Add Tab Suffix bar

code. Otherwise, scan the Remove Suffix bar

code to remove the suffixes.

Add Code ID Prefix to all Symbologies

Scan the following bar code if you wish to add a

Code ID prefix to all symbologies at once.

Add CR Suffix

Remove Suffix

Add Tab Suffix

Add Code ID Prefix to all Symbologies

Data Format Editor Instructions

The following are abbreviated instructions for

entering a data format. For complete instructions

refer to your User’s Guide, available at our website,

www.handheld.com.

1. Scan the Enter Data Format symbol.

2. Primary/Alternate Format: scan 0for Primary

Format

3. Terminal Type: scan 99 for any terminal type

4. Code I.D.: scan 99 for any bar code type

5. Length: scan 9999 for any length bar code.

6. Editor commands: use the Programming Chart

that follows.

7. Scan Save to save your entries.

Enter Data Format

Clear All Data Formats

Save
