HAMPTON BAY MORESCO 14411 User manual

Item #186-051

USE AND CARE GUIDE

1-800-527-0998

HAMPTONBAY.COM

MORESCO 32 INCH CEILING FAN

Model #14411

THANK YOU

Questions, problems, missing parts? Before returning to the store,

call Hampton Bay Customer Service

8 a.m. - 6 p.m., EST, Monday-Friday

Table of Contents ..........................................................

Safety Information .........................................................

Warranty .........................................................................

Pre-installation ..............................................................

Speciﬁcations ...............................................................................

Tools Required ..............................................................................

Hardware Included .......................................................................

Package Contents .........................................................................

Installation .....................................................................

Assembly .......................................................................

Hanging the Fan Motor Assembly ................................................

Making the Electrical Connections ...............................................

Installing the Wall Switch ...........................................................

Finishing the Fan Motor Installation ...........................................

Attaching the Fan Blades ............................................................

Installing the Light Kit .................................................................

Operation ......................................................................

Wall Control Operating Instructions ............................................

Reverse Switch Operating Instructions ......................................

Care and Cleaning .......................................................

Troubleshooting ...........................................................

Service Parts ................................................................

Table of Contents

Safety Information

3 HAMPTONBAY.COM

Please contact 1-800-527-0998 for further assistance.

WARNING: To reduce the risk of electrical shock or ﬁre, do

not use this fan with any solid-state fan speed control device.

It will permanently damage the electronic circuitry.

WARNING: To reduce the risk of personal injury, do not

bend the blade arms (also referred to as ﬂanges) when

installing the brackets, balancing the blades, or cleaning the

fan.

WARNING: Do not insert foreign objects between rotating

fan blades.

WARNING: To reduce the risk of ﬁre, electric shock, or

personal injury, mount the fan to the outlet box marked

acceptable for fan support using the screws provided with the

outlet box.

□Read and save these instructions.

□To reduce the risk of electric shock, ensure electricity has

been turned off at the circuit breaker or fuse box before

beginning.

□All wiring must be in accordance with the National Electrical

Code “ANSI/NFPA 70-1999” and local electrical codes.

Electrical installation should be performed by a qualiﬁed

licensed electrician.

□The outlet box and support structure must be securely

mounted and capable of reliably supporting a minimum of 35

lbs. Use only UL-listed outlet boxes marked “FOR FAN

SUPPORT.”

□The fan must be mounted with a minimum of 7 ft. clearance

from the trailing edge of the blades to the ﬂoor.

□Avoid placing objects in the path of the blades.

□To avoid personal injury or damage to the fan and other items,

be cautious when working around or cleaning the fan.

□Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

□After making electrical connections, spliced conductors

should be turned upward and pushed carefully up into the

outlet box. The wires should be spread apart with the

grounded conductor and the equipment-grounding conductor

on one side of the outlet box and ungrounded conductor on

the other side of the outlet box.

□All setscrews must be checked and retightened where

necessary before installation.

SPECIFICATIONS

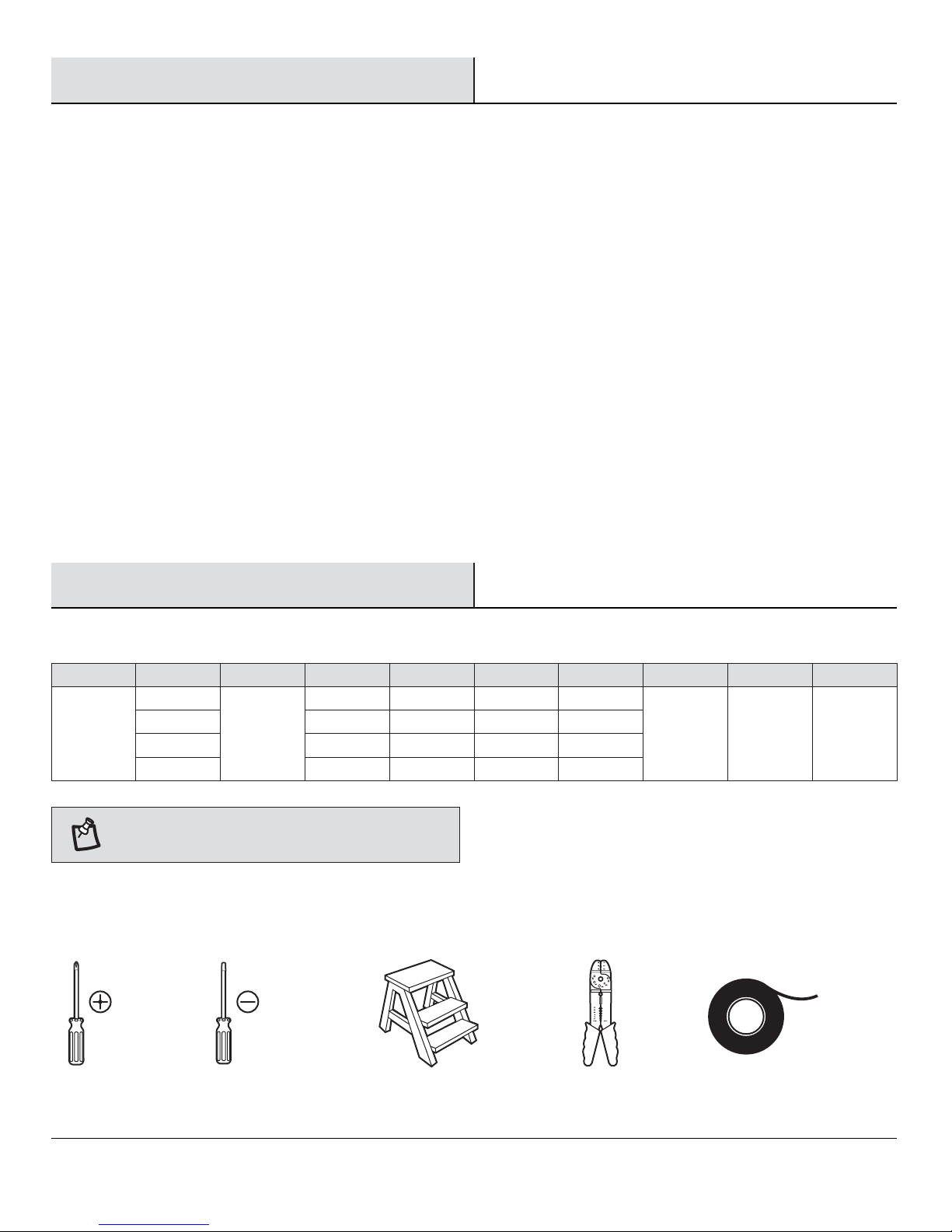

TOOLS REQUIRED

Phillips

screwdriver

Electrical

Tape

Wire

stripper

Flat blade

screwdriver

Step

ladder

NOTE: These are approximate measures. They do not

include amps and wattage used by the light kit.

Warranty

Pre-InstallationPre-Installation

We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period

of lifetime after the date of purchase by the original purchaser. We also warrant all other fan parts, excluding any glass or acrylic blades,

to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of

purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or

superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All

costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-

tion, or by afﬁxing any accessories, is not covered by this warranty. Because of varying climatic conditions, this warranty does not cover

any changes in brass ﬁnish, including rusting, pitting, corroding, tarnishing, or peeling. Brass ﬁnishes of this type give their longest useful

life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.

Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim

any and all warranties, including but not limited to those of merchantability and ﬁtness for a particular purpose to the extent permitted by

law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as speciﬁed in the express warranty.

Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall

not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as

may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above

exclusion or limitation may not apply to you. This warranty gives speciﬁc legal rights, and you may also have other rights which vary from

state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty

must be paid by the customer.

Contact the Customer Service Team at 1-800-527-0998 or visit www.hamptonbay.com.

32 in.

Low

Medium

Med. High

High

120

Fan size

Watts

RPM

CFM

Speed

Volts

Amps

1.173 ft.

N.W.

G.W.

C.F.

0.16

0.24

0.28

0.34

8.61

19.06

27.77

40.82

129

224

269

307

1032.70

1663.46

2097.44

2439.58

5.25 kgs

(11.55 lbs)

5.95 kgs

(13.09 lbs)

Pre-Installation (continued)

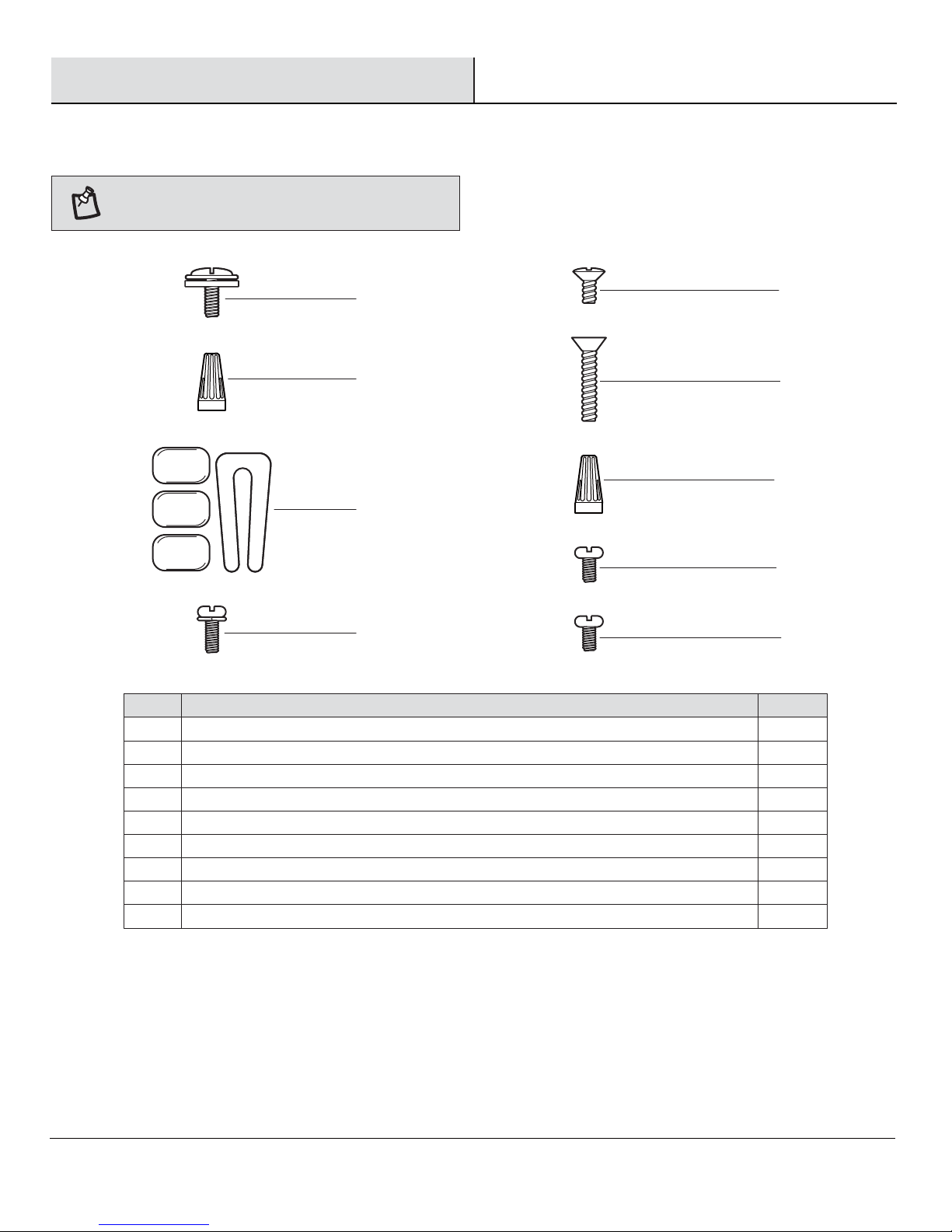

HARDWARE INCLUDED

Blade attachment hardware (3/16 in. x 12.3mm screws and ﬁber washers)

Plastic wire nut

Balance kit (not to scale)

Mounting bracket screws (preassembled) (3/16 in. x 1/2 in. screws and lock washers)

Wall plate screws (#6-32 x 8mm screws)

Wall switch screws (#6-32 x 22mm screws)

Plastic wire nut

Mounting ring screws (preassembled) (5/32 in. x 8mm screws)

Light kit plate screws (preassembled) (5/32 in. x 8mm screws)

Part

Description

Quantity

5 HAMPTONBAY.COM

Please contact 1-800-527-0998 for further assistance.

NOTE: Hardware shown to actual size unless noted

otherwise in the table below.

AA EE

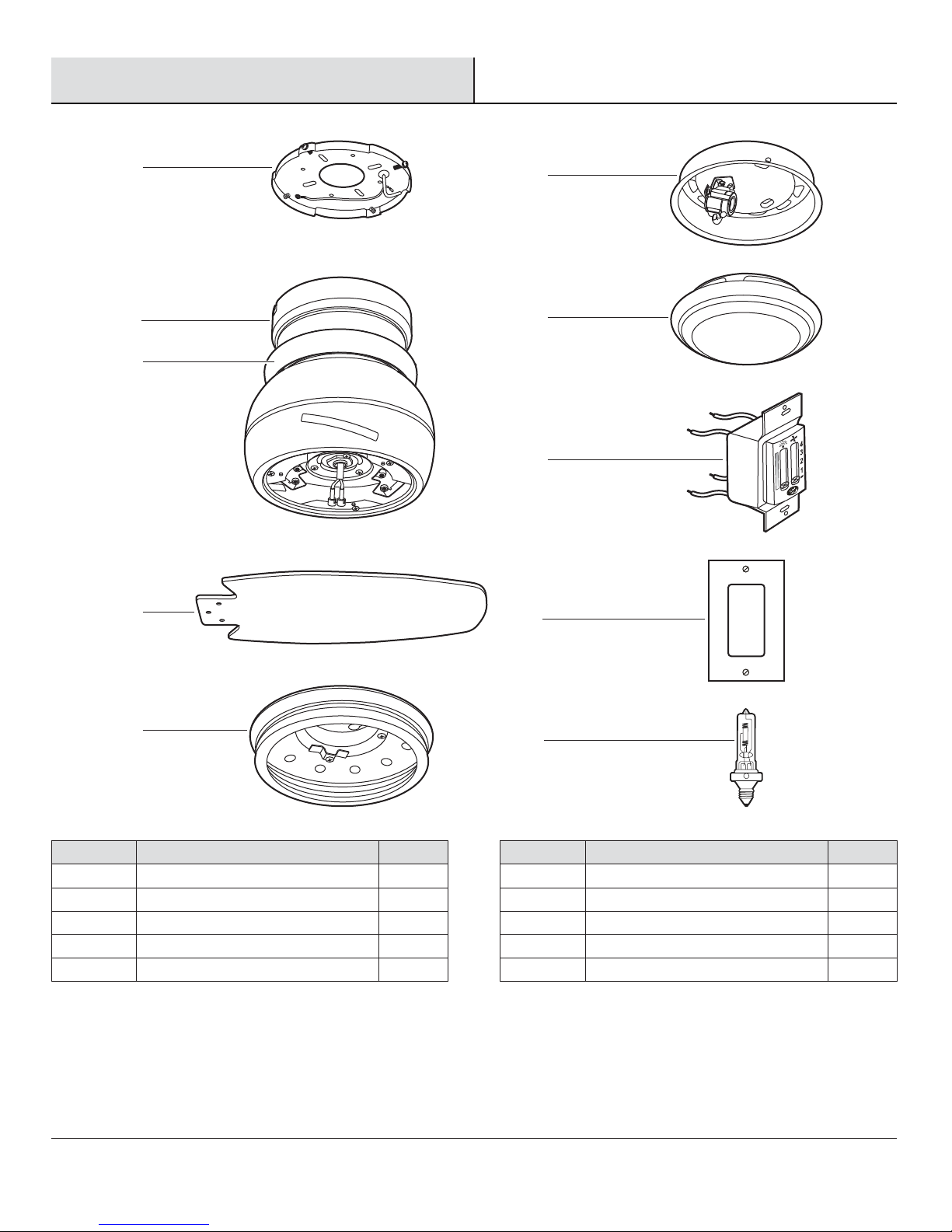

PACKAGE CONTENTS

Part

Description

Light kit plate

Glass shade

Wall switch

Wall plate

50W halogen bulb

Pre-Installation (continued)

Part

Quantity

Description

Mounting bracket

Fan motor assembly

Canopy ring (preassembled)

Blades

Light kit mounting plate

To hang your fan where there is an existing ﬁxture but no ceiling

joist, you may need an installation hanger bar (KK) (not included)

as shown above.

If your ceiling fan does not have an existing UL-listed mounting

box, then install one using the following instructions:

□Disconnect the power by removing the fuses or turning off

the circuit breakers.

□Secure the outlet box (JJ) (not included) directly to the

building structure. Use appropriate fasteners and materials

(not included). The outlet box and its bracing must be able

to fully support the weight of the moving fan (at least 35

lbs.). Do not use a plastic outlet box.

The illustrations below show two different ways to mount the

outlet box (JJ) (not included).

WARNING: To reduce the risk of ﬁre, electric shock, or

personal injury, mount the fan to an outlet box marked

acceptable for fan support using the screws provided with the

outlet box. An outlet box commonly used for the support of

lighting ﬁxtures may not be acceptable for fan support and

may need to be replaced. If in doubt, consult a qualiﬁed

electrician.

Installation

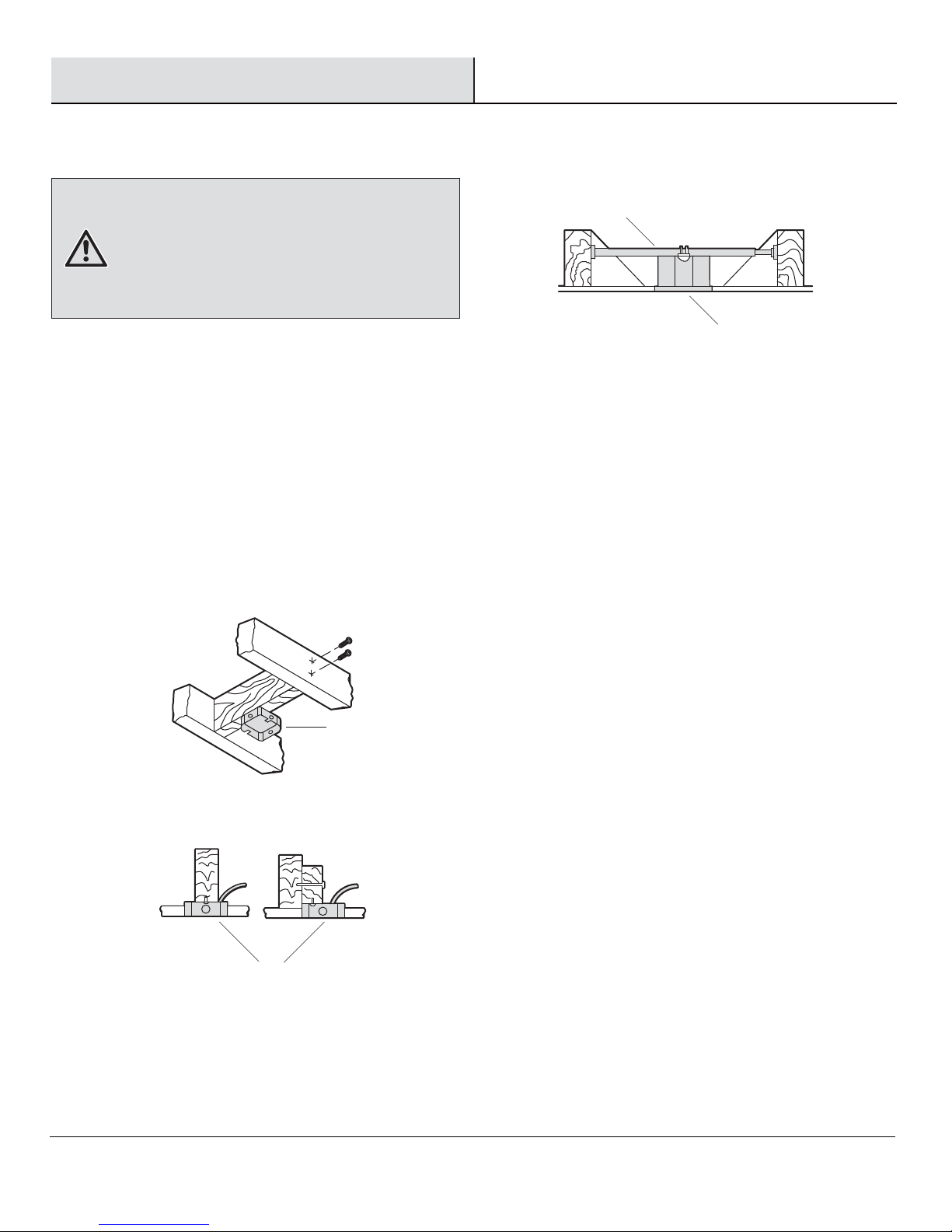

MOUNTING OPTIONS

7 HAMPTONBAY.COM

Please contact 1-800-527-0998 for further assistance.

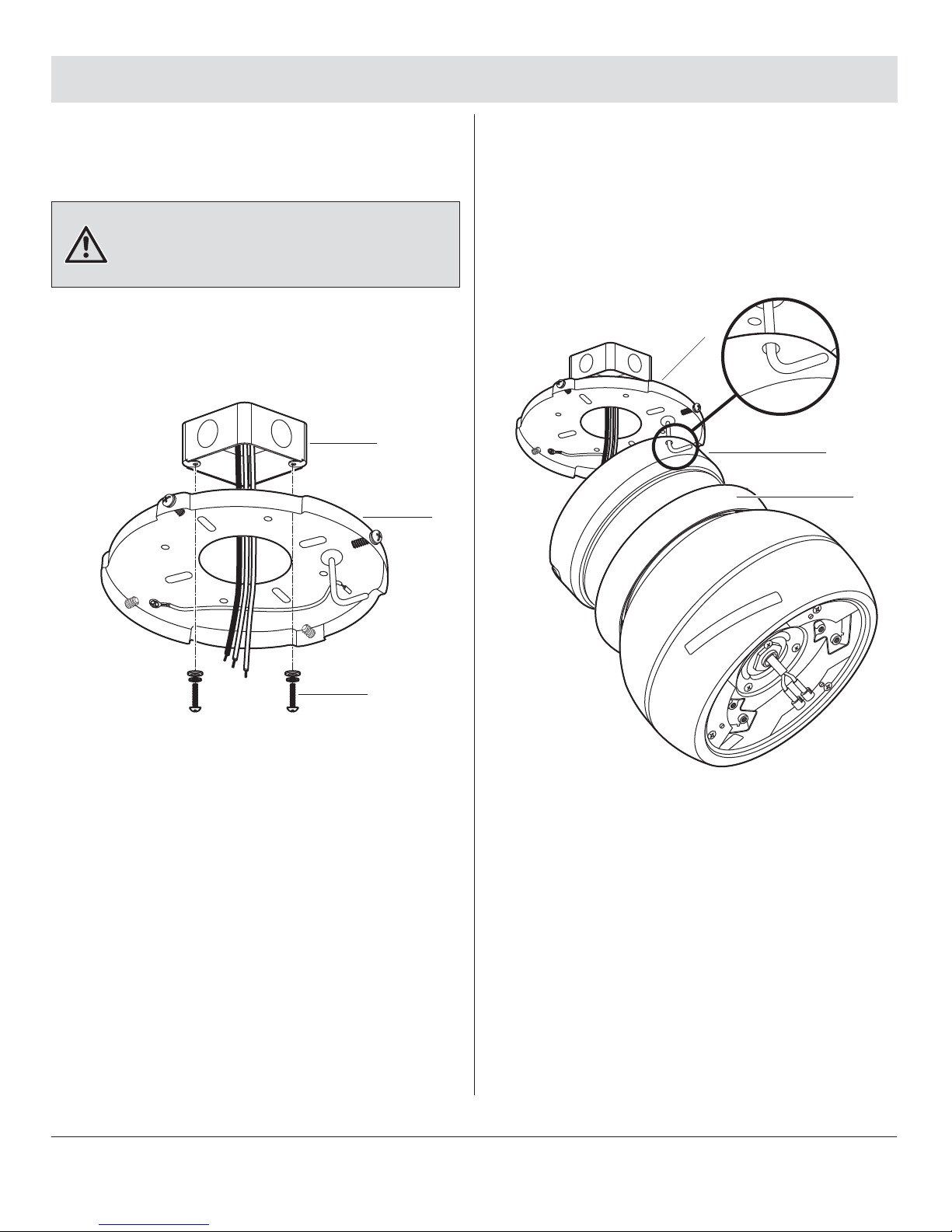

Assembly — Hanging the Fan Motor Assembly

□Attach the mounting bracket (A) to the ceiling outlet

box (JJ) (not included) with the two screws and

washers (WW) provided with the outlet box (JJ).

Ensure the mounting bracket (A) is tight and secured.

WARNING: To reduce the risk of ﬁre, electric shock, or

other personal injury, mount the fan only to an outlet box or

supporting system marked acceptable for fan support and

use the mounting screws provided with the outlet box.

□Lift the fan into position by hanging the fan motor

assembly (B) onto the hook from the ceiling mounting

bracket (A) allowing it to hang freely.

Attaching the mounting bracket

to the electrical box

Hanging the fan motor assembly

from the mounting plate

3Making the motor and wall switch

electrical connections

Assembly — Making the Electrical Connections

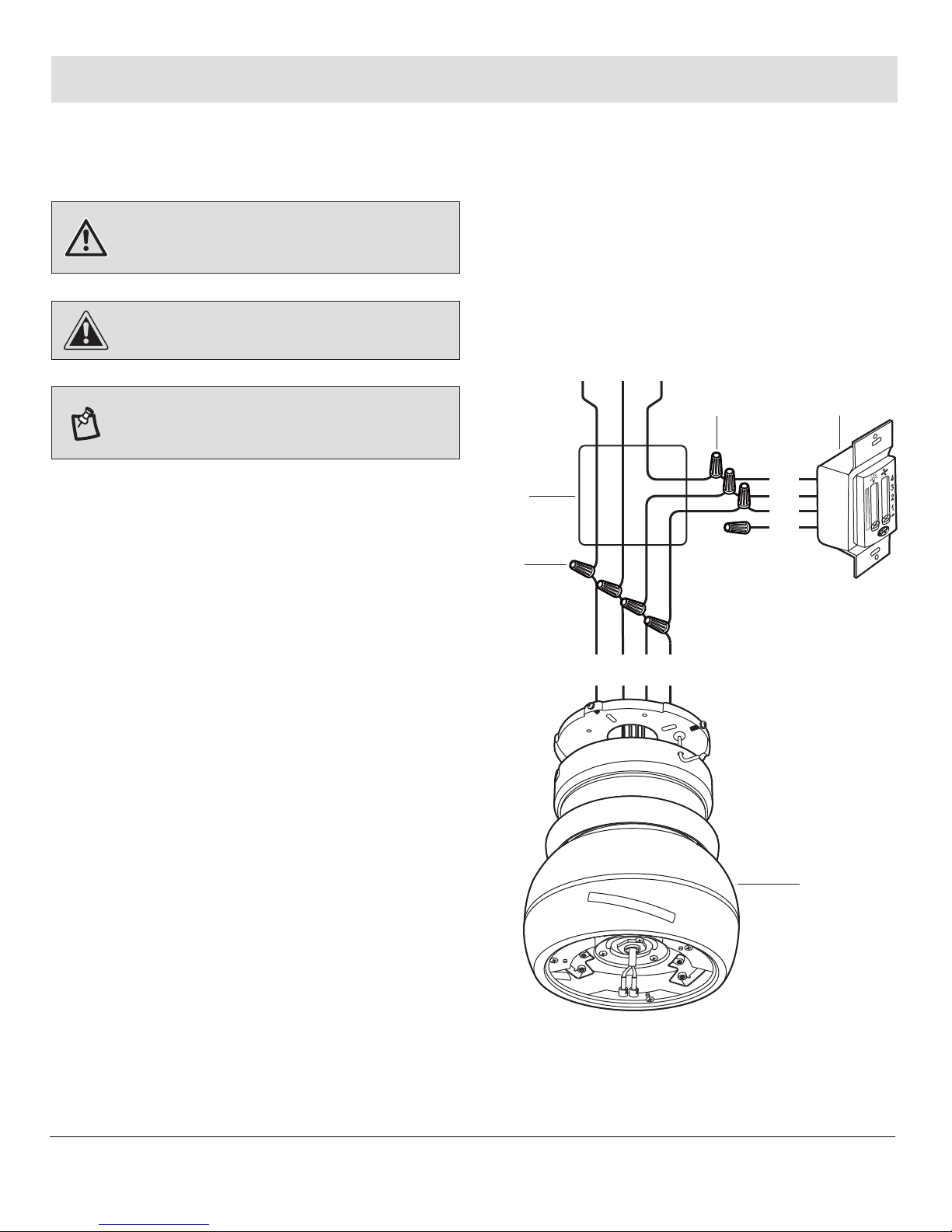

Follow the steps below to connect the fan to your

household wiring. Use the plastic wire nuts (BB) included

with your fan. Secure the wire nuts with electrical tape.

Make sure there are no loose strands or connections.

□Remove the existing wall plate and wall switch from

the wall junction box (JJ).

Motor to wall switch connections:

□Connect the black wire (NN) from the fan to the black

wire (QQ) from the wall switch (H).

□Connect the blue wire (OO) from the fan to the blue

wire (RR) from the wall switch (H).

Motor to house supply wires electrical connections:

□Connect the white (neutral) wire (UU) from the ceiling

to the white wire (MM) from the fan (B).

□Connect the ground wire (TT) from the ceiling to the

green wires (LL) from the fan (B).

Wall switch to house supply wires electrical connections:

□Connect the black (hot) wire (VV) from the ceiling to

the black/white wire (PP) from the wall switch (H).

□If your outlet box (JJ) has a ground wire (green or

bare copper), connect the wall switch's (H) ground

wire (SS) to it; otherwise, connect the wall switch's

(H) ground wire (SS) directly to one of the screws

from the outlet box (JJ).

WARNING: Check to see that all connections are tight,

including ground, and that no bare wire is visible at the wire

nuts, except for the ground wire.

NOTE: The fan must be installed at a maximum distance of

20 feet from the remote control for proper signal transmission

between the remote control and the fan's receiving unit.

CAUTION: Do not use with a wall light dimmer switch.

9 HAMPTONBAY.COM

Please contact 1-800-527-0998 for further assistance.

□Secure the wall switch (H) wire connection with the

plastic wire nut (GG) provided.

□After connecting the wires, spread them apart so that

the green and white wires are on one side of the

outlet box (JJ) and black and blue wires are on the

other side. Carefully tuck the wire connections up

into the outlet box (JJ).

VVUUTT

GG H

4Installing the wall switch

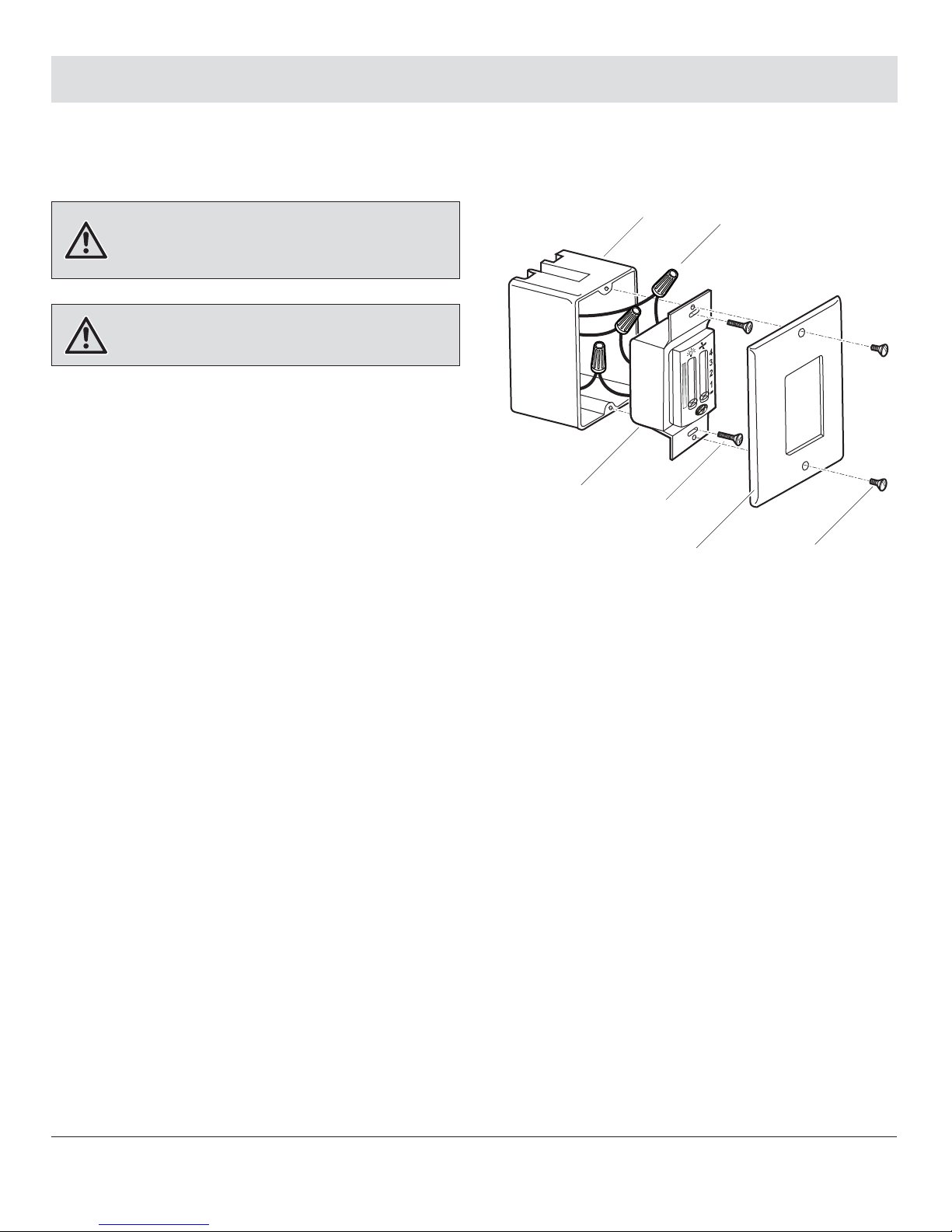

Assembly — Installing the Wall Switch

HFF

□Carefully tuck the wire connections inside the

junction box. Secure the wall switch (H) with the two

wall switch screws (FF) provided.

□Attach the wall plate (I) over the wall switch (H)

and secure with the two wall plate screws (EE)

provided.

WARNING: Hook up in "series only". Do not connect the

hot and neutral wires of the electric circuit to the transmitter

wall switch - damage to the switch and possible ﬁre could

occur.

WARNING: Remember to shut the power off at the circuit

breaker or fuse box.

Table of contents

Other HAMPTON BAY Fan manuals

HAMPTON BAY

HAMPTON BAY Vasner 529-751 User manual

HAMPTON BAY

HAMPTON BAY Miramar User manual

HAMPTON BAY

HAMPTON BAY HAWKINS YG204I-BN-D User manual

HAMPTON BAY

HAMPTON BAY BELVOY AK330-BN User manual

HAMPTON BAY

HAMPTON BAY AK438-MBK User manual

HAMPTON BAY

HAMPTON BAY Carrolton User manual

HAMPTON BAY

HAMPTON BAY 786-756 User manual

HAMPTON BAY

HAMPTON BAY 394-443 User manual

HAMPTON BAY

HAMPTON BAY STONERIDGE 51973 User manual

HAMPTON BAY

HAMPTON BAY 567-472 User manual

HAMPTON BAY

HAMPTON BAY FZ-12A User manual

HAMPTON BAY

HAMPTON BAY BANNERET YG730-MWH User manual

HAMPTON BAY

HAMPTON BAY SOVANA 14412 User manual

HAMPTON BAY

HAMPTON BAY PALM BEACH II 59299 User manual

HAMPTON BAY

HAMPTON BAY HAVANA 48-HVA User manual

HAMPTON BAY

HAMPTON BAY BPT18-34A-1 User manual

HAMPTON BAY

HAMPTON BAY Pendleton 91252 User manual

HAMPTON BAY

HAMPTON BAY WDF9-2 User manual

HAMPTON BAY

HAMPTON BAY AG524-BN User manual

HAMPTON BAY

HAMPTON BAY 120-231 User manual

HAMPTON BAY

HAMPTON BAY Devereaux II User manual

HAMPTON BAY

HAMPTON BAY HVW-18M BK User manual

HAMPTON BAY

HAMPTON BAY AK376-MBK User manual

HAMPTON BAY

HAMPTON BAY SAUTERNE AL975-BN User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
