HAMPTON BAY 567-472 User manual

Hampton Bay Lifetime Limited Warranty

The retailer warrants the fan motor to be free from defects in workmanship and material

present at time of shipment from the factory for a lifetime after the date of purchase by the

original purchaser. The retailer also warrants that all other fan parts, excluding any glass or

plexiglass blades, to be free from defects in workmanship and material at the time of

shipment from the factory for a period of one year after the date of purchase by the original

purchaser. We agree to correct such defects without charge or at our option replace with a

comparable or superior model if the product is returned to the retailer. To obtain warranty

service, you must present a copy of the receipt as proof of purchase. All costs of removing

and reinstalling the product are your responsibility. Damage to any part such as by accident

or misuse or improper installation or by affixing any accessories, is not covered by this

warranty. Because of varyingclimatic conditions inthe United States this warranty does not

cover any changesin brass finish, including rusting, pitting, corroding, tarnishing orpeeling.

Brass finishes of this type give their longest useful life when protectedfrom varying weather

conditions. A certain amount of wobble is normal and should not be considered a defect.

Servicing performed by unauthorized persons shallrender the warranty invalid. There is no

other express warranty. The retailer hereby disclaims any and all warranties,

including but not limited to. Those of merchantability and fitness for a particular

purpose to the extent permitted by law. The duration of any implied warranty which

cannot be disclaimedis limited to the time period as specified inthe express warranty. Some

states do not allow limitation on how long an implied warranty lasts, so the above limitation

may not apply to you. The retailer shall not be liable for incidental, consequential, or

special damages arising out of or in connection with product use or performance except

as may otherwise be accorded by law. Some states do not allow theexclusion of incidental

or consequential damages, so the above exclusion or limitation may not apply to you. This

warranty gives specific legal rights, and you may also have other rights which vary from

state to state. This warranty supersedes all priorwarranties.

Lifetime Limited Warranty

Date Purchased

Store Purchased

Model No.

Serial No.

Vendor No.

UPC

567-472

14826

792145351368

Safety Rules.....................................................................................................................................

Unpacking Your Fan .........................................................................................................................

Installing Your Fan ...........................................................................................................................

Installing the Light Kit......................................................................................................................

..........................................................................................................................

Care of Your Fan ..............................................................................................................................

Troubleshooting ..............................................................................................................................

Specifications .................................................................................................................................

Operating Your Fan

10.

11.

12.

13.

14.

Table of Contents

1. Safety Rules

1. To reduce the risk of electric shock, insure electricity has been turned

off at the circuit breakeror fuse boxbefore beginning.

2. All wiring must be in accordance with the National Electrical Code

and local electrical codes. Electrical installation should be

performed by aqualified licensed electrician.

3. WARNING: To reduce the risk of electrical shock and fire, do not

use this fanwith any solid-statefan speed controldevice.

4. WARNING: To reduce the risk of personal injury, use only the two

steel screws (and lock washers) provided with the fan. Most outlet

boxes commonly used for the support of lighting fixtures are not

acceptable for fan support and may need to be replaced, consult a

qualified electrician ifin doubt.

8. Avoid placing objects in the path of the blades.

9. To avoid personal injury or damage to the fan and other items, be

cautious when workingaround or cleaningthe fan.

10. Do not use water or detergents when cleaning the fan or fan blades. A

dry dust cloth or lightly dampened cloth will be suitable for most

cleaning.

11. After making electrical connections, spliced conductors should be

turned upward and pushed carefully up into outlet box. The wires

should be spread apart with the grounded conductor and the

equipment-grounding conductor onone side ofthe outlet box.

12. Electrical diagrams are reference only. Light kits that are not packed

with the fan must be CULListed and marked suitable for use with the

model fan you are installing. Switches must be CUL General Use

Switches. Refer to the Instructions packaged with the light kits and

switches for properassembly.

WARNING

TO REDUCETHE RISK OFFIRE, ELECTRIC SHOCKOR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKEDACCEPTABLE

FOR FANSUPPORT.

5. The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 50 pounds. Use only

CUL Listedoutlet boxes marked "FOR FAN SUPPORT".

6. The fan must be mounted with aminimum of 7 feet clearance from the

trailing edge ofthe blades tothe floor.

7. Do notoperate the reverseswitch while fan blades are in motion. Fan

must be turned off and blades stopped before reversing blade

direction.

WARNING

TO REDUCETHE RISK OFPERSONAL INJURY, DO NOTBEND THE

BLADE ARMS(ALSO REFERRED TO ASBRACKETS) DURING

ASSEMBLYOR AFTERINSTALLATION. DO NOTINSERT OBJECTS IN

THE PATHOF THE BLADES.

NOTE

READ AND SAVE ALLINSTRUCTIONS!

Unpack your fanand check the contents. You should havethe following items;

1. Fan blades (5)

2. Canopy assembly

4. Coupling cover

5. Fan motor assembly

6. Blade arms (5)

Ball/downrod assembly

7. Light kit

8. Glass shades

10.

11. Balancingkit

(3)

Pull chain andfob (2)

Extra switch housingcover

12. Loose partsbag containing:

a. Mounting hardware

Screws (2 PCs.)

Lock washers (2PCs.)

Metal washers (2PCs.)

Plastic wire connectors(3 PCs.)

b. Blade attachmenthardware

(16 screws)

. Light kithardware

(1 screw)

WARNING

DO NOT INSTALL ORUSE FAN

IF ANYPARTIS DAMAGED OR MISSING.

CALL TOLLFREE 1-877-902-5588

Unpacking Your Fan 2.

Provide strong support

Recessed

outlet box

Mounting bracket

opening must be

toward the top

Angled ceiling

maximum

18 angle

3. Installing Your Fan

Tools Required

Phillips screwdriver, straight slot

screwdriver, adjustablewrench, step ladder,

and wire cutters.

Mounting Options

If there isn't an existing CUL listed

mounting box, then read the following

instructions. Disconnect the power by

removing fuses or turning off circuit

breakers.

Secure the outlet box directly to the

building structure. Use appropriate

fasteners and buildingmaterials. The outlet

box and its support must be able to fully

support the moving weight of the fan (at

least 50 lbs).Do not useplastic outlet boxes.

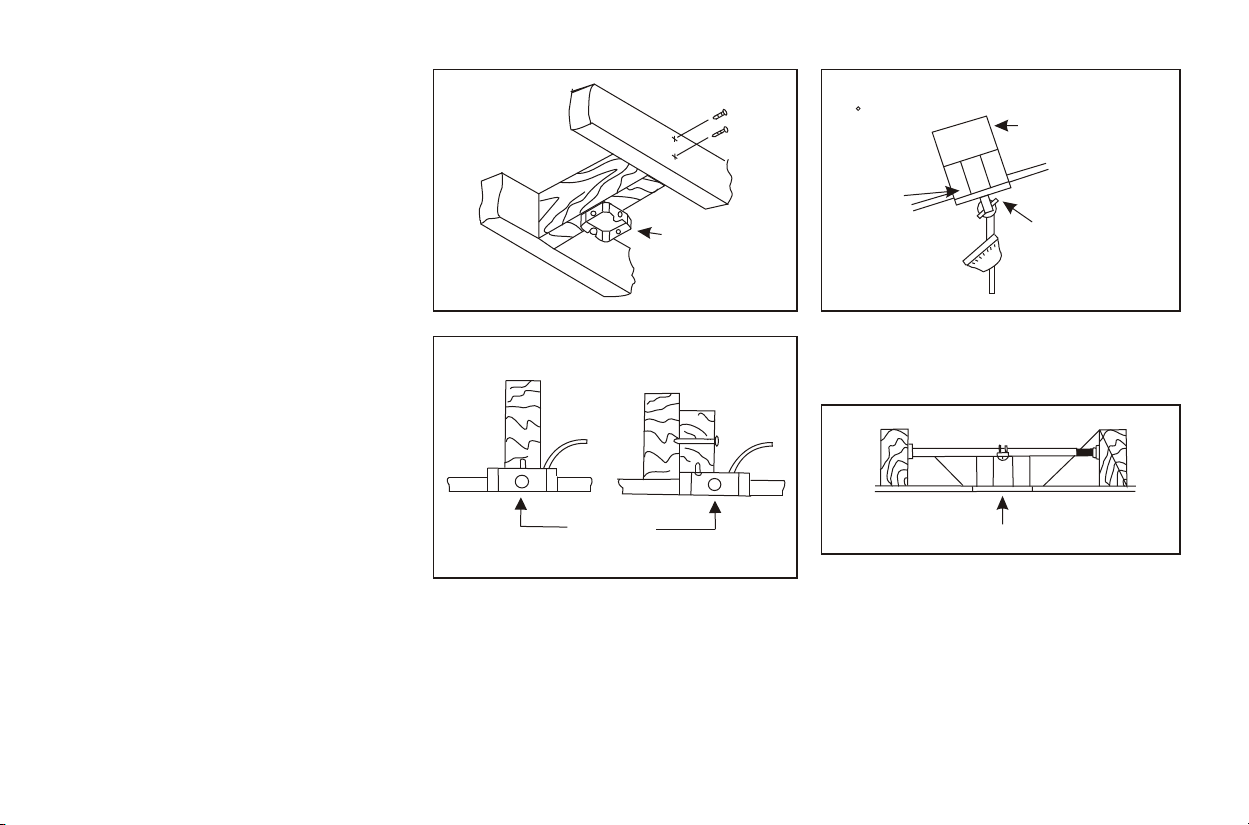

Figures 1,2 and 3 are examples of different

ways to mountthe outlet box.

Note: You may need a longer downrod to

maintain proper blade clearance when

installing on asteep, sloped ceiling.

To hang your fan where there is an existing

fixture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 4

(available at yourHampton Bay Retailer).

Outlet box

Figure 1 Figure 3

Figure 2

Figure 4

Hanging the Fan

REMEMBER to turn off the power. Follow

the steps below to hang your fan properly.

NOTE: This ceiling fan is supplied with two

types of hanging assemblies; the standard

ceiling installation using the downrod with

ball and socket mounting and the "close-to-

ceiling" installation. The "close-to-

ceiling"installation is recommended in

rooms with less than 8-foot ceilings or in

areas where additional space is desired from

the floor to the fan blades. When using the

standard 4 1/2" downrod, the distance from

the ceiling to the bottom of the fan blades

will be approximately 12 inches.Once

you have selected which mounting system

you will use, proceed with the following

instructions.Where necessary, each section

of the instructions will note the different

procedures to follow for the two types of

mounting.

1/2

STANDARD CEILING

INSTALLATION

1.Remove the canopy ring from the canopy by

turning the ring clockwise until it

9. Align the holes at the bottom of the

downrod with the holes in the collar on top

of the motor housing (Figure 6A).

Carefully insert the hanger pin through the

holes In the collar and downrod be

2. Remove thehanger bracket from the canopy

by loosening the four screws on the top of

the canopy. Remove the two non-slotted

screws and loosen the slotted screws. This

will enable you to remove the hanger

bracket. (Figure 5)

3. Pass the 120-volt supply wires through the

center hole in the ceiling hanger bracket as

shown in Fig.6

4. Loosen the two screws on the outlet box in

half way.

5. Attach the hanger bracket on the outlet box

by sliding the hanger bracket over the

screws provided withthe outlet box.

6. Tighten the two screws on the outlet box

securely.

7. Remove the hanger pin, lock pin and set

screws from thetop of themotor assembly.

8. Route wires exiting from the top of the fan

motor through the collar cover and canopy

ring. Make sure the slot openings of the

canopy ring are on top. Route the wires

through the canopy and then through the

ball/downrod assembly (Figure6A).

CAUTION

REMOVE 5 RUBBER PACKING MOUNTS

AND DISCARD BEFORE INSTALLATION.

the pin against the wiring

inside the downrod. Insert the locking pin

through the hole in locked position, as noted

in the circle inset of Figure 6A.

WARNING

FAILURE TO PROPERLY INSTALL

LOCKING PIN AS NOTED IN STEP 9

COULD RESULT IN FAN LOOSENING

AND POSSIBLY FALLING.

10. Tighten two set screws on top of the fan

motor firmly. (Figure 6A)

11. Place the downrod ball into the hanger

bracket socket.

careful not to Jam

Figure 5

Ceiling

hanger

bracket

Ceiling

canopy

Screws

Canopy ring

CLOSE-TO-CEILING INSTALLATION

1. Remove the canopy ring from the canopy by

turning the ring until it unlocks. (Fig. 5)

2. Remove the hanger bracket from the canopy by

loosening the four screws on the top of the canopy.

Remove the two non-slotted screws and loosen the

slotted screws. This will enable you to remove the

hanger bracket. (Figure 5)

4. Pass the 120-volt supply wires through the center

hole in the ceiling hanger bracket as shown in Fig.

5. Loosen the two screws on the outlet box halfway.

6. Attach the hanger bracket on the outlet box by

sliding the hanger bracket over the screws

provided with the outlet box.

7. Tighten the two screws on the outlet box securely.

8. Remove three of the six screws and lock washers

(every other one) from the collar of top motor

(Figure. 7)

9. Route the wires exiting the top of the fan motor

through the canopy ring (make sure the slot

openings of the ring are on top). then proceed to

place the ceiling canopy over the collar at the top

of the motor. Align the mounting holes with the

holes in the motor and fasten using the screws and

lock washers provided (Fig. 7).

10.Tighten the mounting screws securely. (Fig. 7)

3. Remove the decorative canopy bottom cover from

the canopy by depressing the three studs (Fig. 7A)

Mounting

screws

(supplied with

electrical box)

Tab

Ceiling

hanger

bracket

UL Listed

electrical

box

Slide mounting

bracket over

screw heads

Figure 6 120V Wires

Pin in

locked

position

Canopy ring

Hanger pin

Motor collar

Motor wires

Ball/downrod

assembly

Ceiling

canopy

Locking pin

Tighten

screws

firmly

Figure 6A

Collar cover

WARNING

FAILURE TO COMPLETELYTIGHTEN

THE THREE SCREWSIN STEP 9 COULD

RESULTIN FANLOOSENING AND

POSSIBLYFALLING

11.Hang the fan on the tab of the hanger

bracket. Be certain that the canopy is

fully locked into tab as shownin Fig.

8. This will allow you to make the

electrical connections.

the

Figure 8

Tab

Figure 7A

Canopy

bottom cover

Screw and

Lockwasher

(3 of 6places)

Ceiling

Canopy

Figure 7

Canopy

Ring

Collar

Making the Electrical

Connections

Remember to disconnect the power.

Follow the steps below to connect the fan to your household

wiring. Use the wire connecting nuts supplied with your fan.

Secure the connectors with electrical tape. Make sure there

are no loose strands or connections.

Step 1 Connect the fan supply (black) wire and light supply

(blue) wire to the black household supply wire as shown in

Figure 9.

Step 2. Connect the neutral fan (white) wire to the white

neutral household wire.

Step 3 Connect the fan ground wire (green) to the household

ground wire.

Step 4 After connecting the wires, spread them apart so that

the green and white wires are on one side of the outlet box and

the black and the blue wires are on the other side.

Step 5 Turn the connecting nuts upward and push the wiring

into the outlet box.

Figures 10 and 11 illustrate the wiring connections for

optional wall control (available at your Hampton Bay Retailer,

the wire color out of wall control may vary, see wall control's

installation manual for correct wire connections.)

NOTE

LIGHT KITS ARE AVAILABLE ATYOU

HAMPTON BAYRETAILER. THE FAN IS

ALREADY WIRED TO SUPPORT THE LIGHT KIT OPTION.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR

OTHER PERSONAL INJURY. MOUNT FAN ONLY ON AN

OUTLET BOX OR SUPPORTING SYSTEM MARKED

ACCEPTABLE FOR FAN SUPPORT.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK.

DO NOT USE THIS FANWITH ANY SOLID-STATE

VARIABLE SPEED CONTROL DEVICE.

SUPPLYCIRCUIT

Ground

Conductor

Outlet Box

Green

Ground

Lead

Ground to

Downrod

BLACK

WHITEWHITE

BLACK

BLUE

GREEN

WHITE

BLUE

BLACK WHITE

Figure 9

Diagram indicates optionallight kit wiring.

SUPPLYCIRCUIT

Ground

Conductor

Outlet Box

Green

Ground

Lead

Ground to

Downrod

BLACK

WHITE

BLACK

BLUE

GREEN

Figure 10

Diagram indicates optionallight kit wiring.

Light Switch

WHITE

BLUE

BLACK WHITE

Finishing the

Installation

STANDARD CEILINGINSTALLATION

Slide canopy up to the ceiling as shown in

Figure 13 leaving a 1/8" clearance between

the canopy and the ceiling. Make sure you

place the wires safely into outlet box.

Secure the canopy to the hanger bracket with

the four screws with your fan. Slide the

canopy ring over the canopy and tighten by

turning the ring.

CLOSE-TO-CEILING INSTALLATION

Remove the fan from the tab on the hanger

bracket. Secure the canopy to the hanger

bracket as shown in Figure 14 with four

screws included with your fan. Slide the

canopy ring over the canopy and tighten by

turning the ring.

the

WARNING

Make sure thenotch on thehanging bracket

properly sits inthe groove inthe hanger ball

before attaching thecanopy to thebracket by

turning the housinguntil it dropsinto place.

Figure 12

Safety Cable

Outlet box

Hanger

bracket

Installation of Safety

Support

An additional safety support is provided to

prevent the fan from falling. Secure the safety

cable to theceiling joist with screw and washer,

as illustrated inFigure 12.

SUPPLYCIRCUIT

Ground

Conductor

Outlet Box

Green

Ground

Lead

Ground to

Downrod

BLACK

WHITE

BLACK

BLUE

GREEN

Figure 11

Diagram indicates optionallight kit wiring.

Light

Fan

WHITE

BLUE

BLACK WHITE

Rubber

washer

Blade

arm

Figure 15

Blade

Screws

Figure 16

Motor

Blade arm

Slot

Tab

Figure 13

Figure 14

Allow 1/8"

Clearance

Allow 1/8"

Clearance

Remove the blade attachment screws from

the fan motor assembly. Attach and adjust

fan blades according to the instructions in

the following section.

Attaching the Fan

Blades

Step 1 Attach blades to blade arms using three

screws and rubber washers as shown in Figure

15. Start ascrew into thebracket, do not tighten.

Repeat for the2 remaining screwsand washers.

Step 2 Tighten each screw securely starting

with the center screw. Make sure the blade is

straight.

Step 3 Fasten the blade arms to the motor by

inserting the tab from the blade arms to the slot

in the bottom motor housing, then tighten the

two screws and washers already installed in the

blade arms (Figure16).

Step 4 Install an optional light kit if you wish.

Follow the instructionsincluded with thekit.

Table of contents

Other HAMPTON BAY Fan manuals

HAMPTON BAY

HAMPTON BAY 394-443 User manual

HAMPTON BAY

HAMPTON BAY 286-780 User manual

HAMPTON BAY

HAMPTON BAY 52-LASO User manual

HAMPTON BAY

HAMPTON BAY Lindbrook YG336-BN User manual

HAMPTON BAY

HAMPTON BAY 285-167 User manual

HAMPTON BAY

HAMPTON BAY PORTSMOUTH 51355 User manual

HAMPTON BAY

HAMPTON BAY NORTH POND 51716 User manual

HAMPTON BAY

HAMPTON BAY ROANOKE YG216-MWH User manual

HAMPTON BAY

HAMPTON BAY 411-969 User manual

HAMPTON BAY

HAMPTON BAY AL663A-LN User manual

HAMPTON BAY

HAMPTON BAY 326-722 User manual

HAMPTON BAY

HAMPTON BAY SENZE 24816-021 User manual

HAMPTON BAY

HAMPTON BAY 394-243 User manual

HAMPTON BAY

HAMPTON BAY FB50-16H User manual

HAMPTON BAY

HAMPTON BAY Gazebo II YG187-WH User manual

HAMPTON BAY

HAMPTON BAY Bercello Estates II User manual

HAMPTON BAY

HAMPTON BAY EDELWEISS User manual

HAMPTON BAY

HAMPTON BAY HAVANA 48-HVA User manual

HAMPTON BAY

HAMPTON BAY Chamblee User manual

HAMPTON BAY

HAMPTON BAY Colonial Bamboo User manual

HAMPTON BAY

HAMPTON BAY 786-756 User manual

HAMPTON BAY

HAMPTON BAY PT13-13D-1 User manual

HAMPTON BAY

HAMPTON BAY Gazebo 473-131 User manual

HAMPTON BAY

HAMPTON BAY Tahiti Breeze User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
