Hampton Bay Lifetime Motor Warranty

The retailer warrants the fan motor to be free from defects in workmanship and material

present at time of shipment from the factory for a lifetime after the date of purchase by the

original purchaser. The retailer also warrants that all other fan parts, excluding any glass or

plexiglass parts, to be free from defects in workmanship and material at the time of shipment

from the factory for a period of one year after the date of purchase by the original purchaser.

We agree to correct such defects without charge or at our optionreplace with acomparable or

superior model ifthe product isreturned to theretailer. To obtain warranty service, you must

present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the

product are your responsibility. Damage to any part such as by accident or misuse or

improper installation or by affixing any accessories, is not covered by this warranty.

Because of varying climatic conditions in the United States this warranty does not cover any

changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling. Brass

finishes of this type give their longest useful life when protected from varying weather

conditions. A certain amount of wobble is normal and should not be considered a defect.

Servicing performed by unauthorized persons shall render the warranty invalid. There is no

other express warranty. The retailer hereby disclaims any and all warranties,

including but not limited to. Those of merchantability and fitness for a particular

purpose to the extent permitted by law. The duration of any implied warranty which

cannot be disclaimedis limited to the time period as specified in the express warranty. Some

states do not allow limitation on how long an implied warranty lasts, so the above limitation

may not apply to you. The retailer shall not be liable for incidental, consequential, or

special damages arising out of or in connection with product use or performance except

as may otherwise be accorded by law. Some states do not allow the exclusion of incidental

or consequential damages, so the above exclusion or limitation may not apply to you. This

warranty gives specific legal rights, and you may also have other rights which vary from

state to state. This warranty supersedes all prior warranties.

Lifetime Motor Warranty

Table of Contents

SAFETY RULES.........................................................................................................

PACKAGE CONTENTS .............................................................................................

INSTALLING YOUR FAN..........................................................................................

HANGING THE FAN..................................................................................................

ELECTRICAL CONNECTIONS ................................................................................

FINISHING THE INSTALLATION............................................................................

............................................................

BLADE INSTALLATION ..........................................................................................

.................................................................

INSTALLING THE LIGHT KIT................................................................................

INSTALLING THE LIGHT BULBS & GLASS SHADE..............................................

OPERATING THE TRANSMITTER.........................................................................

CARE OF YOUR FAN...............................................................................................

TROUBLESHOOTING.............................................................................................

SPECIFICATIONS...................................................................................................

INSTALLING THE DECORATIVE SCROLL

INSTALLING THE MOUNTING PLATE

1. Before you begin installing the fan, shut power off at the

circuit breaker orthe fuse box.

2. Be cautious! Read all instructions and safety information

before installing your new fan. Review accompanying

assembly diagrams.

3. Make sure that all electrical connections comply with local

codes, ordinances, or National Electrical Codes. Hire a

qualified electrician or consult a do-it-yourself wiring

handbook if you are unfamiliar with installing electrical

wiring.

4. Make sure the installation site you choose allows the fan

blades to rotatewithout any obstructions.Allow aminimum

clearance of 7 feet from the floor and 18 inches from the tip

of the bladesto the wall.

5. If you are mounting the fan to a ceiling outlet box, use

U.L. Listed metal octagonal outlet box marked

"Acceptable for fan support". Secure the box directly

to the building structure. The outlet box and its support

must be able to support the moving weight of the fan (at

least 50 lbs.)Do not usea plastic box.

6. Caution: To reduce the risk of personal injury use only the

screws provided withthe outlet box.

7. If you are mounting the fan to a joist, make sure it is able to

support the movingweight of thefan (at least50 lbs.).

8. After you install the fan, make sure that all mountings are

secured to preventthe fan from falling.

1. Safety Rules

9. Do notinsert anything into the fan bladeswhile the fanis operating.

10. Turnthe fan off and wait for it to stop completely before changing the

fan direction.

ATTENTION: The Energy Policy Act of 2005 requires this fan to be

equipped with a 190 watt limiting device. If lamping exceeds 190

watts, the ceilingfan's light kit will shut off automatically.

NOTE: The important safeguards and instructions appearing in this

manual are not meant to cover all possible conditions and situations that

may occur.It must be understood that commonsense, caution andcare are

factors which can not be built into this product. These factors must be

supplied by theperson(s) installing, caring for and operatingthe unit.

TO REDUCETHE RISK OF FIRE, ELECTRIC SHOCK OR OTHER PERSONAL

INJURY. MOUNT FAN DIRECTLY TOTHE BUILDING JOISTUSING THEWOOD

SCREWS ANDWASHERSPROVIDED WITH THE FAN. THE WOODSCREWS

MUST GOTHROUGH THE OUTLETBOX VIATHE KNOCK OUTS.CONSULTA

QUALIFIED ELECTRICIAN IFIN DOUBT.

TO REDUCETHE RISK OF PERSONAL INJURY,DO NOT BENDTHE BLADE

HOLDERS WHILE INSTALLING, BALANCING THEBLADES, OR CLEANING

THE FAN.DO NOT INSERT FOREIGN OBJECTSBETWEEN ROTATING FAN

BLADES.

TO REDUCETHE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN

WITH ANYSOLID-STATE SPEED CONTROLDEVICE

WARNING

NOTE

READ AND SAVE ALLINSTRUCTIONS!

Unpack your fanand check thecontents. You should havethe following items:

1 Fan blades (5)

2a. Hanger bracketplate

2b. Hanger bracket

3. Canopy

4. Canopy cover

5. Downrod assembly

6. Decorative scroll ring

7. Decorative scrolls(3)

8. Coupling cover

9. Fan motorassembly

10. Blade holders (5)

11. Mountingplate

12. Light kit

13. Glass shade assembly

14. Receiver with 6 wire nuts

15.

16. 50W Halogen bulbs

17. Balancing kit

Transmitter+holder+2 mountingscrews

(2)

a. Mounting hardware:

Wood screws (2). Lock washers (2)

Wire nuts(3). Flat washers(2)

Star washers (2)

b. Blade attachment hardware:

Screws (16)

c. 4 mmAllen wrench

Package Contents 2.

13 16

Phillips screw driver; slotted screw driver; step-

ladder; wire cutters;electrical tape.

If there isn'tan existing mounting box, then read the

following instructions. Disconnect the power by

removing fuses orturning off circuit breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and building

materials. The outlet box and its support must be

able to fully support the moving weight of the fan

(at least 50 lbs.). Use a UL Listed metal outlet box.

Do not usea plastic outlet box.

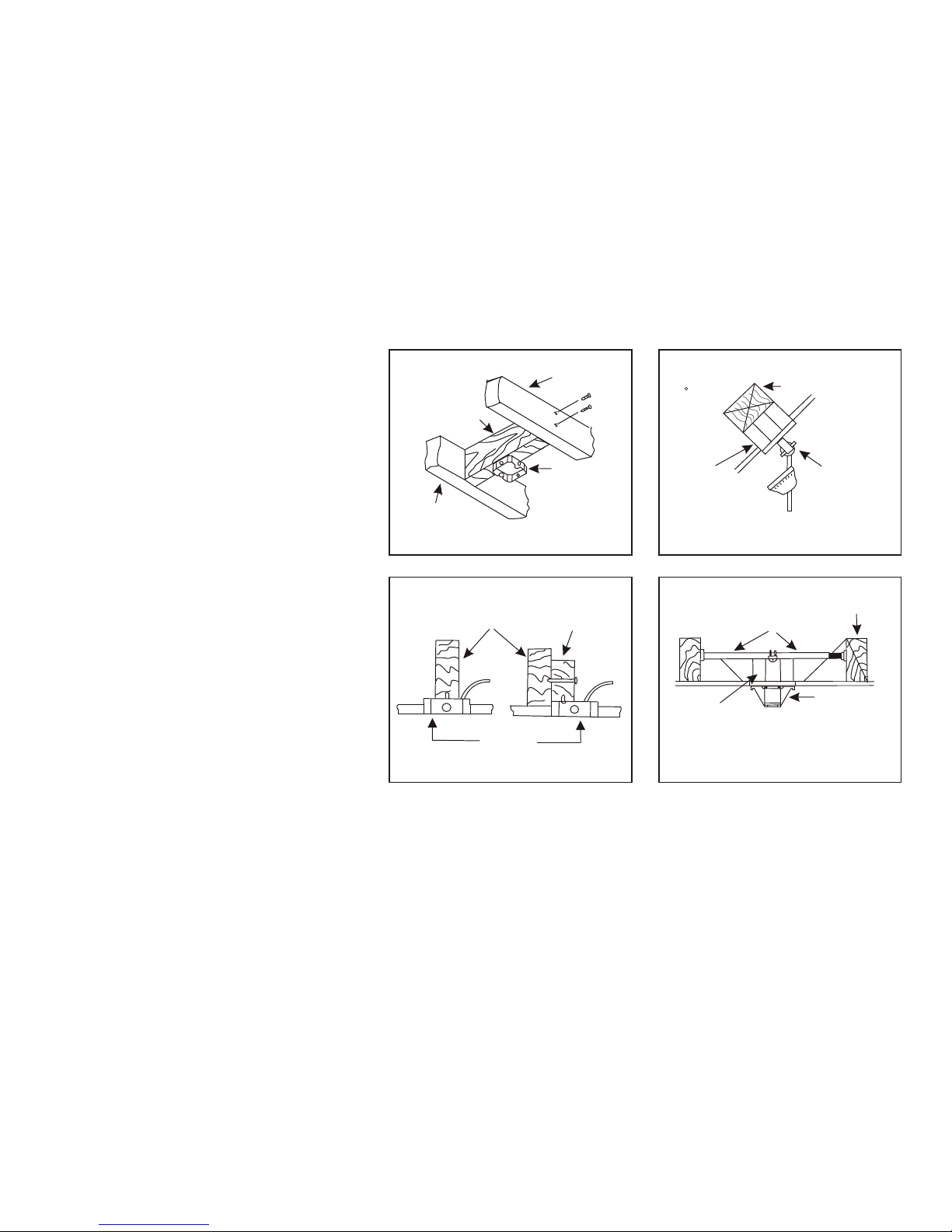

Figure 1, 2 and 3 are examples of different ways to

mount the outletbox.

Note: You may need a longer downrod to maintain

proper blade clearance when installing on a steep,

sloped ceiling. Longer downrods are available from

your Hampton Baydealer.

To hang your fan where there is an existing fixture

but no ceilingjoist, you may need to install a hanger

bar as shown in Fig. 4 (available at your Hampton

Bay dealer).

Tools Required

Mounting Options

3. Installing Your Fan

Outlet box

Figure 1

Ceiling

joist

Ceiling

joist

Cross brace

Outlet box

Figure 2

Ceiling joist

or cross brace Parallel

wood brace

Provide strong

support

Recessed

outlet box

Hanger bracket

opening must

be facing uphill

Figure 3

Angled ceiling

maximum

17 angle

Outlet box

Figure 4

Ceiling

joist

Hanger bar

(optional)

Hanger

bracket

Hanging the Fan 4.

REMEMBER to turn off the power.

Follow the steps below to hang your fan

properly:

Step 1. Remove two knock-outs from the

outlet box to expose the joist. (Fig. 5)

Step 2. Use the two wood screws and

washers to secure the hanger bracket plate

directly to the building joist via the

knockout holes from the outlet box. (Fig. 6)

CAUTION! THE HANGER BRACKET

PLATE MUST BE INSTALLED

DIRECTLY TO THE BUILDING JOIST

USING THE TWO WOOD SCREWS AND

WASHERS PROVIDED.

Step 3. Secure hanger bracket to hanger

bracket plate using the two hex nuts and

washers provided, make sure nuts are

securely tighten. (Fig. 7)

Step 4. Loosen the two set screws and

in the top

coupling of the motor assembly. (Fig. 8)

remove the hitch pin and lock pin

Step 5. Remove hanger ball from downrod

assembly by loosening set screw, removing

the cross pin, and sliding ball off rod. (Fig.9)

Step 6. Carefully feed fan wires up through

the downrod. (Fig. 10) Thread the rod into

the coupling, next line up holes and replace

lock pin and hitch pin. Tighten set screws.

Step 7. Slip coupling cover, decorative scroll

ring, canopy cover and canopy onto downrod.

(Fig. 11) Carefully reinstall hanger ball onto

rod being sure that cross pin is in correct

position, set screws are tighten and wires are

not twisted.

Step 8. Now lift motor assembly into

position and place hanger ball into hanger

bracket. Rotate until the check groove has

dropped into the registration slot and seats

firmly. (Fig. 12) Rod should not rotate if this

is done correctly.

Cross pin

Hanger

ball

Downrod

Outlet box

Hanger

bracket

plate

Flat washers

Flat

washers

Spring

washers

Hex nuts

Wood screws

Knock out

Downrod

Supply

wires

Figure 7

Figure 5

Figure 9 Figure 10

Figure 8

Figure 6

Hitch

pin Lock

Set

screws

WARNING: To avoid possible electrical

shock be sure electricity is turned off at the

main fuse orbreaker box before wiring.

NOTE: The Hand Held Remote or Wall

Control units included with your ceiling fan

are equipped with 16 code combinations to

prevent possible interference from or to other

remote units. The dip switches on your

Receiver and Transmitter units have been

preset at the factory, please re-check to make

sure the switches on both units are set to the

same positions. The frequency settings should

be changed only in case of interference or if a

second or more remote controlled ceiling fans

are installed in the same structure. Any code

combination will operate the ceiling fan and

light as long as the Receiver and Transmitter

units are setto the same codes (Fig. 13)

Step 1. Insert Receiver into Hanger Bracket

with the flat side of the Receiver facing the

ceiling. (Fig. 14)

Step 2. Motor to Receiver Electrical

Connections: Connect the WHITE wire from

the fan to the WHITE wire marked "TO

MOTOR N" from the Receiver. Connect the

BLACK wire fromthe fan to the BLACK Wire

marked "TO MOTOR L" from the Receiver.

Connect the BLUE wire from the fan to the

BLUE wire marked "For Light" from the

Receiver. NOTE: If your ceilingfan features

an UP Light: Connect the ORANGE wire

from the fan to the ORANGE wire marked

"For Up Light"from the Receiver. Otherwise

disregard this step and proceed to secure all

wire connections with the plastic wire nuts

provided. (Fig. 15)

connectors

Step 3. Receiver to House Supply Wires

Electrical Connections: Connect the WHITE

wire (Neutral) from the outlet box to the

WHITE wire marked "AC in N" from the

receiver. Connect the BLACK wire (Hot)

from the outlet box to the BLACK wire

marked "AC in L" from the receiver. Secure

all wire connections with the plastic wire

nuts provided. (Fig.15)

Step 4. If your outlet box has a GROUND

wire (Green or Bare Copper) connect this

wire to the Hanger Ball and Hanger Bracket

Ground wires. If your outlet box does not

have a Ground Wire, then connect the

Hanger Ball and Hanger Bracket Ground

Wires together. Secure wire connection with

the plastic wirenut provided. (Fig. 15 )

After all are made, checkto make

sure there are no loose strands. As an

additional precaution we suggest to secure

the plastic wire connectors to the wires with

electrical tape.

5. Electrical Connections

Figure 11

Figure 12

Registration

slot

Downrod

Coupling cover

Canopy

Canopy cover

Set screws

Decorative scroll

ring

Hitch pin

Lock pin

Hanger ball

6. Finishing the

Installation

Step 1. Tuck connections neatly into

ceiling outlet box.

Step 2. Slide the canopy up to ceiling and

over the two crews on hanger bracket.

Rotate canopy clockwise. Next, while

holding the canopywith one hand, slide the

canopy cover over the screws and rotate

clockwise until tight. Note: adjust the

canopy screws as necessary until the

canopy and canopycover are snug. (Fig. 16)

Figure 16

Outlet box

Hanger

bracket

Hanger

ball

Canopy

cover

Figure 15

White (neutral)

Green or bare

copper (ground)

White ("AC INN")

White ("to motor N")

Ground

(green)

(Connect to

ground wire on

hanger bracket

if no house

ground wire

exists.)

Outlet box

Black (hot)

Black ("AC INL")

Black ("to motor L")

Receiver

Blue ("for light")

Blue (light)

Black (motor)

Fan

Figure 13

Figure 14

Note: The transmitter only works within 40

feet from receiver.

Receiver

Hanger bracket

ONON

8. Blade Installation

Step 1. Attach fan blades to the blade

holder using thescrews and rubber washers

provided. Tighten screws securely, repeat

procedure with remainingblades. (Fig. 18)

Step 2. Align motor holes to blade holders

and secure with screws provided, tighten

screws securely. (Fig. 18)

Figure 18

Blade

Blade holders

Screws

Rubber

washers

7. Installing the

Decorative Scroll

Install the decorative scroll to the

decorative scroll ring with the screws

provided. Be sure to tighten all screws.

Then tighten the set screw on the decorative

scroll ring. (Fig.17)

Scroll ring

screws

Scroll

ring

Screws

Decorative

scroll arms

Allen wrench

Figure 17

9. Installing the Mounting

Plate

Step 1. Remove 1 of the 3 screws from the

mounting ring and loosen the other 2 screws.

(Do not remove)

Step 2. Place the key holes on the mounting

plate over the 2 screws previously loosened from

the mounting ring, turn mounting plate until it

locks in place at the narrow section of the key

holes. Secure by tightening the 2 screws

previously loosened and the one previously

removed. (Fig. 19)

Figure 19

Mounting plate

Mounting ring

Screws

10. Installing the Light

Kit

REMEMBER: To disconnect the power.

The fan blades must be already attached to

the fan.

Step 1. Loosen the 3 screws from the

mounting plate. (Donot remove)

Step 2. Raise and hold the light kit close to

the mounting plate and proceed to do the

wire connections. Connect the white wire

connector from the light kit and fan, follow

the same procedure with the black wire

connectors. (Fig. 17)

Step 3. Place the key holes on the light kit

over the 3screws previously loosened from the

mounting plate, turn light kit until it locks in

place at the narrow section of the key holes.

Secure by tightening the 3 screws previously

loosened. (Fig. 17).

Figure 20

Connector

plugs

Screws

Mounting plate

Light kit

This manual suits for next models

Table of contents

Other HAMPTON BAY Fan manuals

HAMPTON BAY

HAMPTON BAY HALPERT 52169 User manual

HAMPTON BAY

HAMPTON BAY 9100 User manual

HAMPTON BAY

HAMPTON BAY Marlston N375B-BN User manual

HAMPTON BAY

HAMPTON BAY SINCLAIR 798-072 User manual

HAMPTON BAY

HAMPTON BAY STONERIDGE EF600K-52 User manual

HAMPTON BAY

HAMPTON BAY ST. DAVID 91344 User manual

HAMPTON BAY

HAMPTON BAY Wellston User manual

HAMPTON BAY

HAMPTON BAY Edgemont 324-848 User manual

HAMPTON BAY

HAMPTON BAY 52" Huntington III User manual

HAMPTON BAY

HAMPTON BAY WITHROP 656 413 User manual

HAMPTON BAY

HAMPTON BAY 7136-01 User manual

HAMPTON BAY

HAMPTON BAY 24816-021 User manual

HAMPTON BAY

HAMPTON BAY 53701101 User manual

HAMPTON BAY

HAMPTON BAY Windward IV User manual

HAMPTON BAY

HAMPTON BAY ASHBURTON YG593-WH User manual

HAMPTON BAY

HAMPTON BAY METARIE II 24 User manual

HAMPTON BAY

HAMPTON BAY HVW-30M User manual

HAMPTON BAY

HAMPTON BAY BELVOY AK330-BN User manual

HAMPTON BAY

HAMPTON BAY Ansley User manual

HAMPTON BAY

HAMPTON BAY 1000044889 AM215-BN User manual

HAMPTON BAY

HAMPTON BAY SW18030 WH User manual

HAMPTON BAY

HAMPTON BAY 91371 User manual

HAMPTON BAY

HAMPTON BAY Altura 128 925 User manual

HAMPTON BAY

HAMPTON BAY AG524PR-BN User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
