HAMPTON BAY AG510-BN User manual

Item #635-080

USE AND CARE GUIDE

Questions, problems, missing parts? Before returning to the store,

call Hampton Bay Customer Service

8 a.m. - 6 p.m., EST, Monday-Friday

1-877-527-0313

HAMPTONBAY.COM

Model #AG510-BN

THANK YOU

WATERTON II 52 IN. CEILING FAN

Table of Contents

Table of Contents ..........................................................

Safety Information .........................................................

Warranty .........................................................................

Pre-Installation ..............................................................

Speciﬁcations ..........................................................................

Tools Required .........................................................................

Hardware Included ..................................................................

Package Contents ....................................................................

Installation .....................................................................

Assembly ........................................................................

Assembling the Fan Body..........................................................

Hanging the Fan .....................................................................

Making Electrical Connections...............................................

Completing the Fan Body........................................................

Attaching the Fan Blades .......................................................

Installing the Light Kit ............................................................

Operation ......................................................................

Pull Chain Operating Instructions ..........................................

Reverse Switch Operating Instructions ..................................

Care and Cleaning .......................................................

Troubleshooting ..........................................................

Service Parts ...............................................................

Safety Information

3 HAMPTONBAY.COM

Please contact 1-877-527-0313 for further assistance.

1. To reduce the risk of electric shock, ensure electricity has

been turned off at the circuit breaker or fuse box before

beginning.

2. All wiring must be in accordance with the National Electrical

Code “ANSI/NFPA 70-1999” and local electrical codes.

Electrical installation should be performed by a qualiﬁed

licensed electrician.

3. The outlet box and support structure must be securely

mounted and capable of reliably supporting a minimum of 35

lbs. Use only UL-listed outlet boxes marked “FOR FAN

SUPPORT.”

4. The fan must be mounted with a minimum of 7 ft. clearance

from the trailing edge of the blades to the ﬂoor.

5. Avoid placing objects in the path of the blades.

6. To avoid personal injury or damage to the fan and other

items, be cautious when working around or cleaning the fan.

7. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

8. After making electrical connections, spliced conductors

should be turned upward and pushed carefully up into the

outlet box. The wires should be spread apart with the

grounded conductor and the equipment-grounding conductor

on one side of the outlet box and ungrounded conductor on

the other side of the outlet box.

9. All setscrews must be checked and retightened where

necessary before installation.

WARNING: To reduce the risk of electrical shock or ﬁre, do

not use this fan with any solid-state fan speed control device.

It will permanently damage the electronic circuitry.

WARNING: To reduce the risk of personal injury, do not

bend the blade arms (also referred to as ﬂanges), when

installing the brackets, balancing the blades, or cleaning the

fan.

WARNING: Do not insert foreign objects between rotating

fan blades.

WARNING: Most outlet boxes commonly used for the

support of lighting ﬁxtures are not acceptable for fan support

and may need to be replaced. Consult a qualiﬁed electrician if

in doubt.

CAUTION: To reduce the risk of personal injury, use only

the screws provided with the outlet box.

SPECIFICATIONS

TOOLS REQUIRED

Phillips

screwdriver

Electrical

tape

Wire

stripper

Flat blade

screwdriver

Step

ladder

NOTE: These are approximate measures. They do not

include amps and wattage used by the light kit.

Warranty

Pre-InstallationPre-Installation

We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period

of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic

blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the

date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or

superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All

costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-

tion or by afﬁxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover

any changes in brass ﬁnish, including rusting, pitting, corroding, tarnishing or peeling. Brass ﬁnishes of this type give their longest useful

life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.

Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim

any and all warranties, including but not limited to those of merchantability and ﬁtness for a particular purpose to the extent permitted by

law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as speciﬁed in the express warranty.

Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall

not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as

may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above

exclusion or limitation may not apply to you. This warranty gives speciﬁc legal rights, and you may also have other rights which vary from

state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty

must be paid by the customer.

Contact the Customer Service Team at 1-877-527-0313 or visit www.hamptonbay.com.

52 in.

Low

Medium

High

120

Fan size Watts RPM CFMSpeed Volts Amps

2.79 ft.

N.W. G.W. C.F.

0.21

0.36

0.51

9.77

29.48

61.46

60.72

112.71

162.90

1637.31

3210.45

4734.56

11.3 kgs

(24.86 lbs)

12.8 kgs

(28.16 lbs)

5 HAMPTONBAY.COM

Please contact 1-877-527-0313 for further assistance.

Pre-Installation (continued)

HARDWARE INCLUDED

NOTE: Hardware shown to actual size unless noted

otherwise in the table below.

Plastic wire nut

Blade attachment screw and ﬁber washer

Mounting bracket screw (preassembled)

Balance kit (not to scale)

Clevis pin (preassembled)

Cotter pin (preassembled)

Collar setscrew (preassembled)

Blade arm screw (preassembled)

Light kit mounting plate screw (preassembled)

Light kit mounting screw (preassembled)

Glass shade thumbscrew (preassembled)

Part

Description

Quantity

Part

Description

Blade arm

Light kit mounting plate

Switch housing

Light kit

Glass shade

13 Watt compact ﬂuorescent bulb

Pull chain and fob

Plastic plug

Part

Quantity

Description

Mounting bracket (preassembled)

Canopy

Canopy bottom cover

Hanger ball/downrod assembly

Coupling cover

Fan motor assembly

Blade

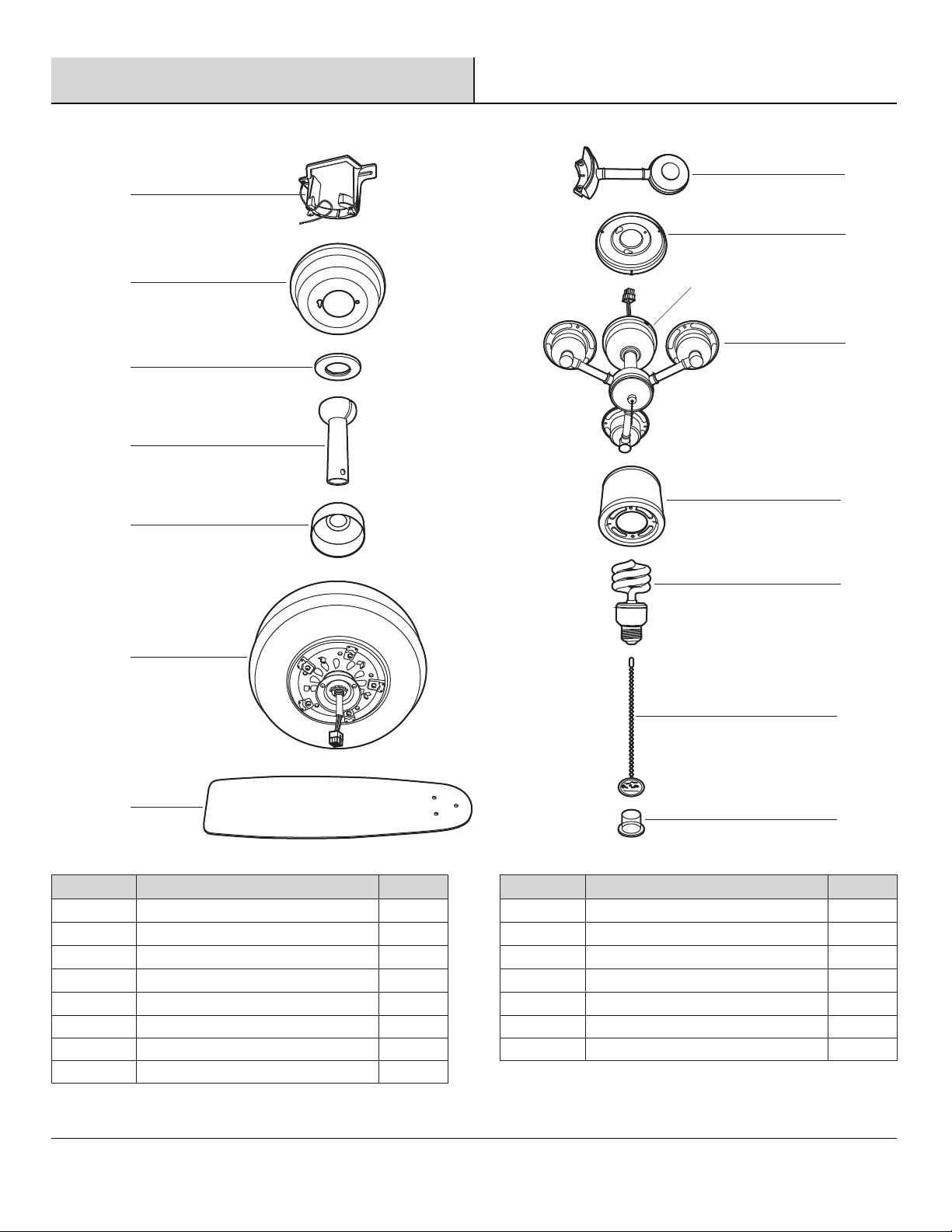

PACKAGE CONTENTS

Pre-Installation (continued)

To hang your fan where there is an existing ﬁxture but no ceiling

joist, you may need an installation hanger bar (MM) (not

included) as shown above.

If your ceiling fan does not have an existing UL-listed mounting

box, then install one using the following instructions:

□Disconnect the power by removing the fuses or turning off

the circuit breakers.

□Secure the outlet box (LL) (not included) directly to the

building structure. Use appropriate fasteners and materials

(not included). The outlet box and its bracing must be able

to fully support the weight of the moving fan (at least 35

lbs.). Do not use a plastic outlet box.

The illustrations below show three different ways to mount the

outlet box (LL) (not included).

Installation

MOUNTING OPTIONS

7 HAMPTONBAY.COM

Please contact 1-877-527-0313 for further assistance.

WARNING: To reduce the risk of ﬁre, electric shock, or

other personal injury, mount the fan only on an outlet box or

supporting system marked acceptable for fan support of 35

lbs (15.9 kg) or less and use mounting screws provided with

the outlet box. Most outlet boxes commonly used for the

support of lighting ﬁxtures are not acceptable for fan support

and may need to be replaced. Consult a qualiﬁed electrician if

in doubt.

NOTE: You may need a longer downrod to maintain proper

blade clearance when installing on a steep, sloped ceiling.

The maximum angle allowable is 18° away from horizontal. If

the canopy touches the downrod, then remove the decorative

canopy bottom cover (C) and turn the canopy (B) 180° before

attaching the canopy (B) to the mounting bracket (A).

1Preparing the canopy 2Preparing the motor

□Remove the clevis pin (EE) and cotter pin (FF), and

loosen the two collar setscrews (GG) from the fan

motor assembly (F) collar.

3Assembling the fan

□Remove the canopy bottom cover (C) from the canopy

(B) by turning the canopy bottom cover (C) counter-

clockwise.

□Remove the mounting bracket (A) from the canopy (B)

by removing the non-slotted mounting bracket screw

(CC) from the bottom of the canopy (B) and loosening

the slotted mounting bracket screw (CC) a half turn

from the screw head. Next, turn the canopy (B)

counterclockwise to remove the mounting bracket (A)

from the canopy (B).

□Route the wires exiting from the top of the fan motor

assembly (F) through the coupling cover (E) and the

canopy bottom cover (C). Ensure the slot openings

are on top.

□Route the wires through the canopy (B) and then

through the hanger ball/downrod assembly (D).

□Align the holes at the bottom of the hanger

ball/downrod assembly (D) with the holes in the collar

on top of the fan motor assembly (F).

□Carefully insert the clevis pin (EE) through the holes

in the collar and the hanger ball/downrod assembly

(D). Be careful not to jam the clevis pin (EE) against

the wiring inside the hanger ball/downrod assembly

(D).

WARNING: Failure to properly install the cotter pin (FF)

could result in the fan loosening and possibly falling.

NOTE: If a longer downrod (not included) is needed, take

out the screw located in the hanger ball, lower the hanger

ball, and remove the pin. Remove all three pieces from the

downrod and assemble them onto the new, longer downrod

before proceeding to the downrod installation.

□Insert the cotter pin (FF) through the hole near the

end of the clevis pin (EE) until it snaps into the locked

position.

□Tighten the two collar setscrews (GG) on top of the

fan motor assembly (F) ﬁrmly.

Assembly - Assembling the Fan Body

4Attaching the mounting bracket

to the electrical box

Hanging the fan from the

mounting bracket

□Pass the 120-volt supply wires through the center

hole in the mounting bracket (A).

□

□Securely tighten the two mounting screws.

□Carefully lift the fan motor assembly (F) up to the

mounting bracket (A), and seat the hanger

ball/downrod assembly (D) in the mounting bracket

(A) socket. Make sure the tab on the mounting

bracket (A) socket is properly seated in the groove in

the hanger ball/downrod assembly (D). This will help

to balance the ceiling fan.

Assembly — Hanging the Fan

MOC.YABNOTPMAH9

Please contact 1-877-527-0313 for further assistance.

WARNING: To reduce the risk of ﬁre, electric shock, or

other personal injury, mount the fan only to an outlet box or

supporting system marked acceptable for fan support and

use the mounting screws provided with the outlet box.

WARNING: The tab in the ring must rest in the groove of

the hanger ball/downrod assembly (D). Failure to properly

seat the tab in the groove could cause damage to the wiring.

Attach the mounting bracket (A) to the outlet box (LL)

(not included) with the screws and washers provided

with the outlet box (LL).

6Making the electrical

connections

If you feel you do not have enough electrical wiring

knowledge or experience, have your fan installed by a

licensed electrician.

Follow the steps below to connect the fan to your

household wiring. Use the plastic wire nuts (AA) with your

fan. Secure the wire nuts with electrical tape. Make sure

there are no loose strands or connections.

□Connect the ground conductor (TT) of the 120V supply

(this may be a bare wire or a wire with green colored

insulation) to the green ground lead(s) (QQ) of the fan

using a plastic wire nut (AA).

□Connect the fan motor white wire (PP) to the supply

white (neutral) wire (SS) using a plastic wire nut (AA).

□Connect the fan motor black wire (OO) and the blue

wire (NN) to the supply black (hot) wire (RR) using a

plastic wire nut (AA).

□Turn the wire nut connections upward, spreading

them apart so the green (ground) wire (QQ) will be on

one side of the outlet box (LL) and the white (PP),

black (OO), and blue (NN) wires will be on the other

side. Carefully tuck the connections up into the outlet

box (LL).

Assembly — Making Electrical Connections

WARNING: Check to see that all connections are tight,

including ground, and that no bare wire is visible at the wire

nuts (except for the ground wire).

WARNING: To reduce the risk of ﬁre or electric shock, do

not use this fan with any solid-state speed control device.

WARNING: To avoid possible electrical shock, be sure

electricity is turned off at the main fuse box before wiring.

RR TT

This manual suits for next models

Table of contents

Other HAMPTON BAY Fan manuals

HAMPTON BAY

HAMPTON BAY Colonial Bamboo User manual

HAMPTON BAY

HAMPTON BAY Fulton 140201 User manual

HAMPTON BAY

HAMPTON BAY RIVERWALK User manual

HAMPTON BAY

HAMPTON BAY AL975-BN 593-552 User manual

HAMPTON BAY

HAMPTON BAY DANETREE N243A-BN User manual

HAMPTON BAY

HAMPTON BAY GRANTWAY 48 RD5114B-BN User manual

HAMPTON BAY

HAMPTON BAY TF-810S User manual

HAMPTON BAY

HAMPTON BAY CARROLTON II AM215-ORB User manual

HAMPTON BAY

HAMPTON BAY Cassaro User manual

HAMPTON BAY

HAMPTON BAY YG204D-BN User manual

HAMPTON BAY

HAMPTON BAY 1005 819 968 User manual

HAMPTON BAY

HAMPTON BAY ZANDRA 92380 User manual

HAMPTON BAY

HAMPTON BAY PANACHE 92407 User manual

HAMPTON BAY

HAMPTON BAY LDS-BF3001 User manual

HAMPTON BAY

HAMPTON BAY MADISON AK30A-BN User manual

HAMPTON BAY

HAMPTON BAY GAZEBO YG188-BN User manual

HAMPTON BAY

HAMPTON BAY Palisades User manual

HAMPTON BAY

HAMPTON BAY ROTHLEY 51563 User manual

HAMPTON BAY

HAMPTON BAY BROOKHURST YG268-WH User manual

HAMPTON BAY

HAMPTON BAY Savona Tiffany User manual

HAMPTON BAY

HAMPTON BAY 593-543 AL958-ORB User manual

HAMPTON BAY

HAMPTON BAY BPT18-34A-5 User manual

HAMPTON BAY

HAMPTON BAY Colby User manual

HAMPTON BAY

HAMPTON BAY 284-485 User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
