HAMPTON BAY Chamblee User manual

52 in Ceiling Fan

Owner’s manual

Ventilador de Techo de 1,32 m

Manual del Propietario

Chamblee

538 852

Chamblee by Hampton Bay®

52 Chamblee

Ceiling Fan by Hampton Bay

Date Purchased

Store Purchased

ETL

Model No.

Serial No.

Vendor No.

UPC

Table of Contents

Safety Rules . . . . . . . . . . . . . . . . . . . . 1

Unpacking Y

our

Fan . . . . . . . . . . . . . . 2

Installing Y

our

Fan . . . . . . . . . . . . . . . 3

Installing the Light Kit. . . . . . . . . . . . . 8

Care of Y

our

Fan . . . . . . . . . . . . . . . . 10

Trouble shooting . . . . . . . . . . . . . . . . . 10

Specifications . . . . . . . . . . . . . . . . . . 11

Warranty Information . . . . . . . . . . . . 12

222875

Thank you for purchasing our ceiling fan. This product has been

manufactured with the highest standards of safety and quality.

845952000278

CF552B-CHA

Safety Rules - Read and Save These Instructions

WARNING

To reduce the risk of electric shock, ensure electricity has been

turned off at the circuit breaker or fuse box before beginning.

All wiring must be in accordance with the National Electrical

Code “ANSI/NFPA 70-1999” and local electrical codes. Electrical

installation should be performed by a qualified licensed

electrician.

WARNING: To reduce the risk of electrical shock or fire, do not

use this fan with any solid-state fan speed control device. It will

permanently damage the electronic circuitry.

CAUTION: To reduce the risk of personal injury, use only the

screws provided with the outlet box.

The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 35 pounds. Use only

UL Listed outlet boxes marked “FOR FAN SUPPORT”.

The fan must be mounted with a minimum of 7 feet clearance from

the trailing edge of the blades to the floor.

Avoid placing objects in path of the blades.

To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

Do not use water or detergents when cleaning the fan or fan blades.

A dry dust cloth or lightly dampened cloth will be suitable for most

cleaning.

After making electrical connections, spliced conductors should be

turned upward and pushed carefully up into outlet box. The wires

should be spread apart with the grounded conductor and the

equipment-grounding conductor on one side of the outlet box and

ungrounded conductor on the other side of the outlet box.

All set screws must be checked and retightened where necessary

before installation.

10.

11.

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE

BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN

INSTALLING THE BRACKETS, BALANCING THE BLADES OR

CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS IN –

BETWEEN ROTATING FAN BLADES.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR

FAN SUPPORT WITH THE SCREWS PROVIDED WITH THE OUTLET

BOX.

10.

11.

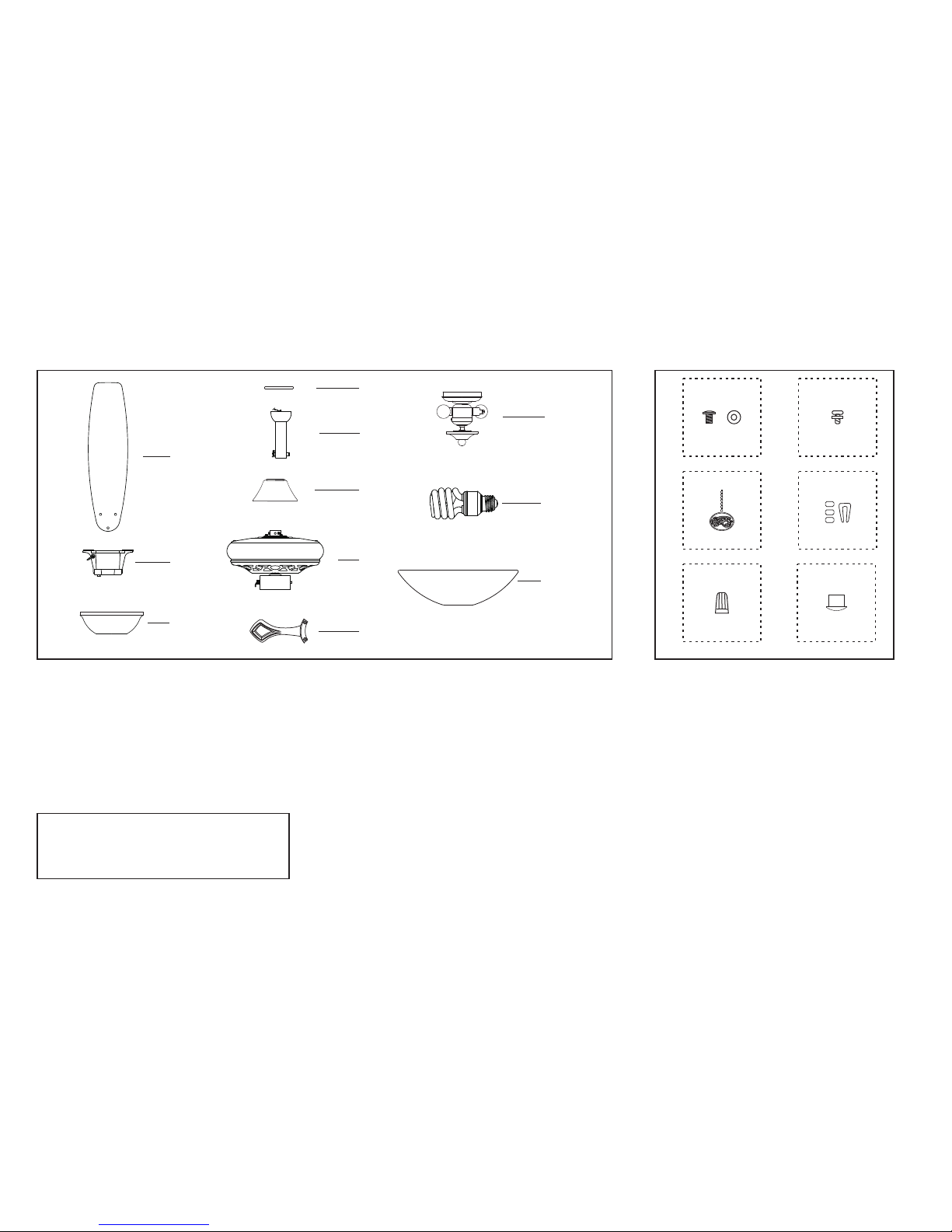

CFL bulbs(2)

Glass shade (1)

2. Mounting bracket (1)

3. Canopy (1)

4. Canopy cover (1)

5. Downrod assembly (1)

6. Coupling cover (1)

7. Fan motor assembly ( 1 )

Fan blades (5)

Blade holders ( 5 )

Light kit (1)

WARNING

DO NOT INSTALL OR USE FAN

IF ANY PART IS DAMAGED OR MISSING.

CALL TOLL FREE 1-877-262-7511

12. Loose parts bag containing:

A . Blade attachment hardware

(16 screws and paper washers)

B. Blade holder hardware

screw with lock washer (1

attachment

)

E. Wire nuts (3)

F. Extra plug (1)

Pull chain fob (2)

D. Balancing kit (1)

Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:

C D

Installing Your Fan

WARNING

Outlet Box

Figure 2

Figure 1

Ceiling

Mounting

Plate

Provide Strong

Support

Recessed

Outlet Box

Figure 3

Figure 4

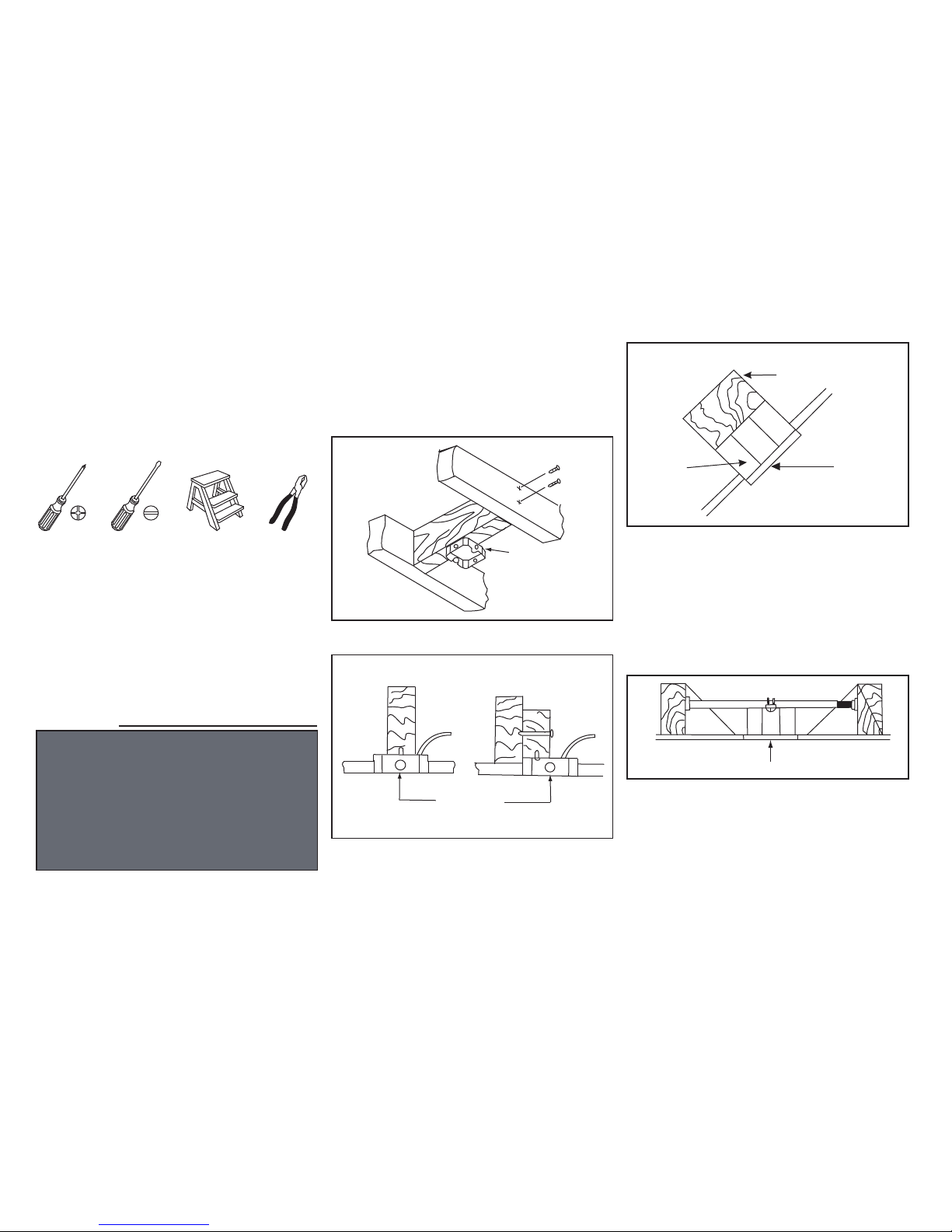

Tools Required

Mounting Options

Phillips screwdriver, straight slot

screwdriver, step ladder and wire cutters.

If there isn't an existing UL listed mounting

box, then read the following instructions.

Disconnect the power by removing fuses or

turning off circuit breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and

building materials. The outlet box and its

support must be able to fully support the

moving weight of the fan (at least 35 lbs). Do

not use plastic outlet boxes.

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT FAN

ONLY TO AN OUTLET BOX MARKED ACCEPT-

AB L E F O R FA N S U P P O RT A N D U S E T H E

MOUNTING SCREWS PROVIDED WITH THE

OUTLET BOX. OUTLET BOX COMMONLY USED

FOR THE SUPPORT OF LIGHTING FIXTURE MAY

NOT BE ACCEPTABLE FOR FAN SUPPORT AND

MAY NEED TO BE REPLACED. CONSULT A

QUALIFIED ELECTRICIAN IF IN DOUBT.

Figures 1~3 are examples of different ways to

mount the outlet box.

To hang your fan where there is an existing

fixture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 4

(available at any Home Depot store).

Note: You may need a longer downrod to

maintain proper blade clearance when

installing on a steep, sloped ceiling. The

maximum angle allowable is 18°. If the

canopy touches downrod, remove the

decorative canopy bottom cover and turn the

canopy 180° before attaching the canopy to

the mounting plate.

Figure 10

Registration

slot

Figure 9

Lead Wires

Ball/downrod

Assembly

Canopy

Lock Pin

Couping cover

Canopy cover

Hitch Pin

Tighten

Screws

Firmly

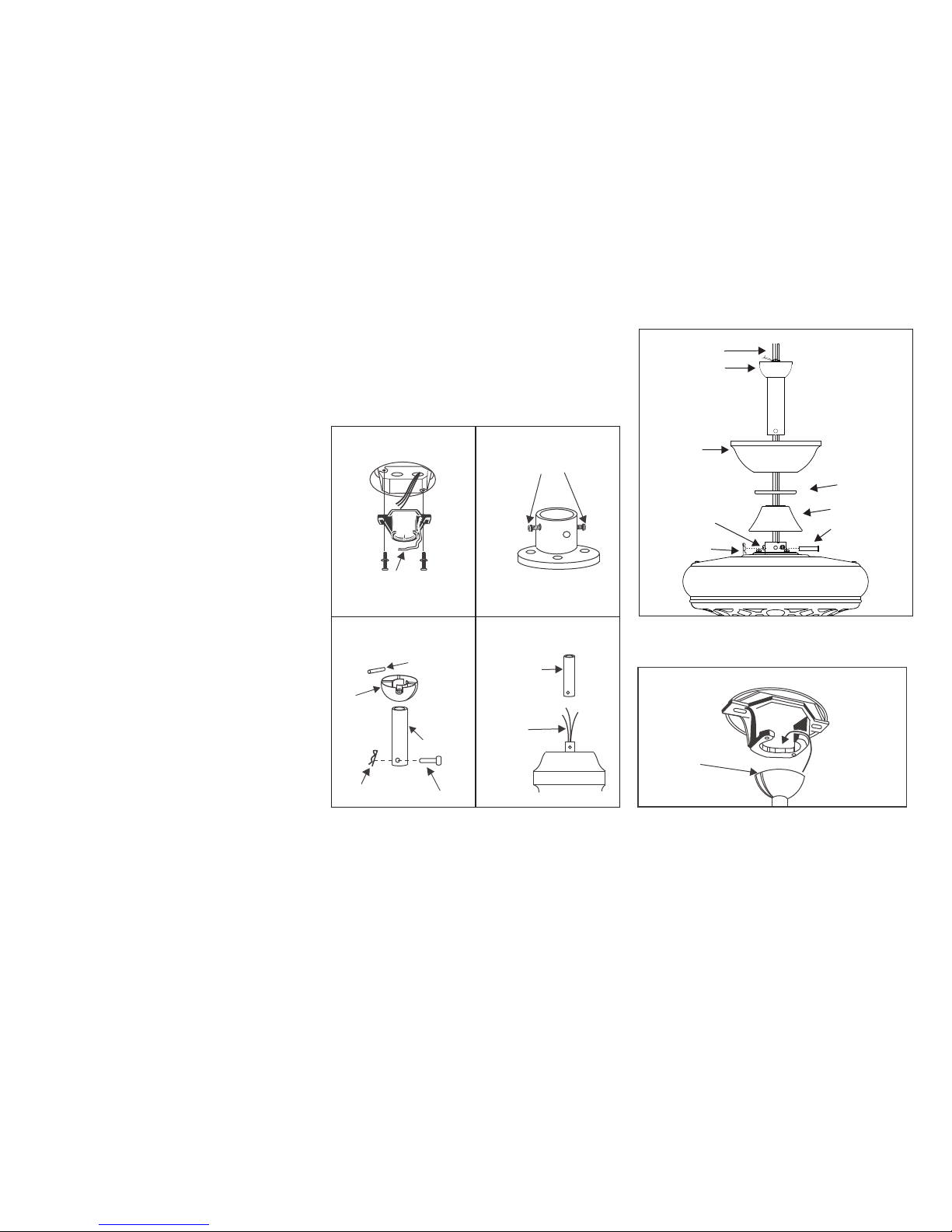

Hanging the Fan

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly:

Remove hanger ball

from downrod assembly by loosening set screw,

removing the cross pin, and sliding ball off rod.

(Figure 7)

4. Carefully feed fan wires up through the

downrod. (Figure 8) Thread the rod into the

coupling. Next, line up holes and replace lock

pin and hitch pin. Tighten set screws.

5. Slip coupling cover, canopy cover and

canopy onto downrod. (Figure 9) Carefully

reinstall hanger ball onto downrod, make sure

that cross pin is in correct position, set screws

are tighten and wires are not twisted.

Secure the mounting bracket to the

ceiling outlet box with the screws and

washers provided with your outlet box.

(Figure 5)

2. Loosen the two set screws from the

motor assembly. (Figure 6)

Remove the hitch pin and lock pin from

the downrod assembly.

6. Now lift motor assembly into position and place

hanger ball into mounting bracket. Rotate until the

check groove

should not rotate

if this is done correctly.

drops into the registration slot and

seats firmly. (Figure 10) Downrod

Figure 6

Downrod

Supply

wires

Figure 8

Figure 5

Cross pin

Hanger

ball

Downrod

Figure 7

Outlet box

Mounting bracket

Hitch pin Lock pin

Set

screws

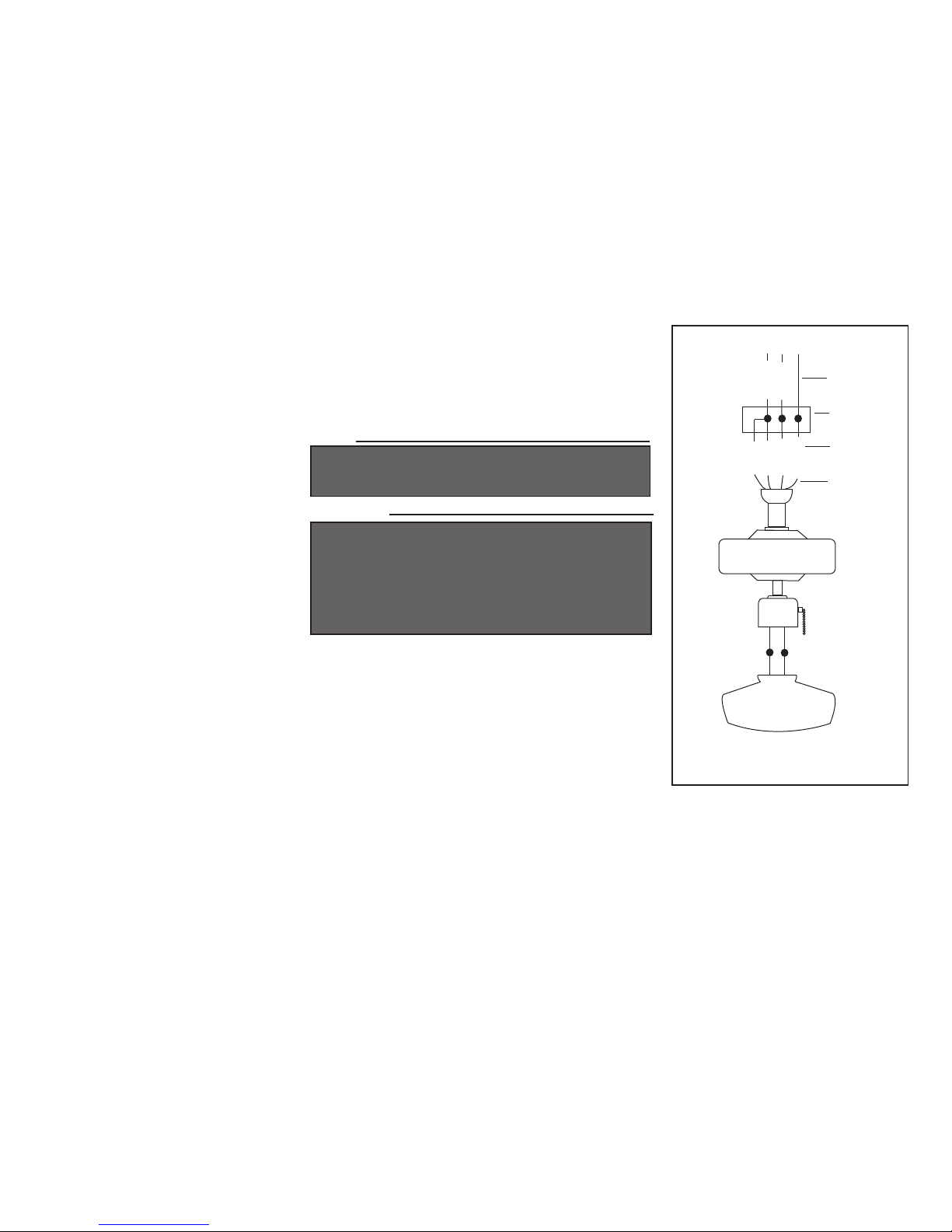

SUPPLY CIRCUIT

Ground

Conductor

Outlet Box

Green

Ground

Lead

Ground to

Downrod

BLACK

WHITEWHITE

BLACK

BLUE

GREEN

WHITE

BLUE

BLACK WHITE

Figure 11

Diagram indicates optional light kit wiring.

Making the Electrical

Connections

Remember

Follow the steps below to connect the fan to

your household wiring. Use the wire nuts

supplied with your fan. Secure the

connectors with electrical tape. Make sure

there are no loose strands or connections.

to shut off the power.

1. Connect the fan supply (black) wire and

light supply (blue) wire to the black ceiling

supply wire. (Figure 11)

2. Connect the neutral fan (white) wire t o

the w hite neutral wire from the ceiling .

(Figure 11)

3. Connect the fan ground wire (green) and

the mounting bracket ground wire (green) to

the ground wire . (Figure

11)

4. After connecting the wires, spread them

apart so that the green and white wires are

on one side of the outlet box and the black

and the blue wires are on the other side.

from the ceiling

LIGHT KITS ARE AVAILABLE AT YOU HAMPTON

BAY RETAILER. THE FAN IS ALREADY WIRED TO

SUPPORT THE LIGHT KIT OPTION.

5. Turn the wire nuts upward and push the wiring into the

outlet box. Figures 12 and Figures 13 illustrate the wiring

connections for optional wall control (available at your

Hampton Bay Retailer, the wire color out of wall control

may vary, see wall control's installation manual for correct

wire connections)

NOTE

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR

OTHER PERSONAL INJURY. MOUNT FAN ONLY ON AN

OUTLET BOX OR SUPPORTING SYSTEM MARKED

ACCEPTABLE FOR FAN SUPPORT.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK.

DO NOT USE THIS FAN WITH ANY SOLID-STATE SPEED

CONTROL DEVICE.

SUPPLY CIRCUIT

Ground

Conductor

Outlet Box

Green

Ground

Lead

Ground to

Downrod

BLACK

WHITE

BLACK

BLUE

GREEN

Figure 13

Diagram indicates optional light kit wiring.

Light

Fan

WHITE

BLUE

BLACK WHITE

SUPPLY CIRCUIT

Ground

Conductor

Outlet Box

Green

Ground

Lead

Ground to

Downrod

BLACK

WHITE

BLACK

BLUE

GREEN

Figure 12

Diagram indicates optional light kit wiring.

Light Switch

WHITE

BLUE

BLACK WHITE

Finishing the Installation

1. Tuck connections neatly into ceiling outlet box.

Remove one screw from the mounting bracket and

loosen the other screw around 1/4″.

3. Align the canopy up to ceiling and over the loose

screw. Place the canopy into key hole and rotate

canopy clockwise. (Figure 14)

4. Secure the canopy by using previous removed

screw and loosened screws.

5. Place the canopy cover to the canopy and rotate

canopy cover clockwise until it is locked into right

position.(Figure 14)

MAKE SURE TAB AT BOTTOM OF HANGER

BRACKET IS PROPERLY SEATED IN GROOVE OF HANGER

BALL BEFORE

ATTACHING CANOPY TO BRACKET. FAILURE

TO PROPERLY SEAT TAB IN GROOVE COULD CAUSE

DAMAGE TO ELECTRICAL WIRING.

WARNING

Figure 14

Outlet box

Mounting bracket

Canopy

Screw

Canopy

cover

Lead Wires

Ball/Downrod

Assembly

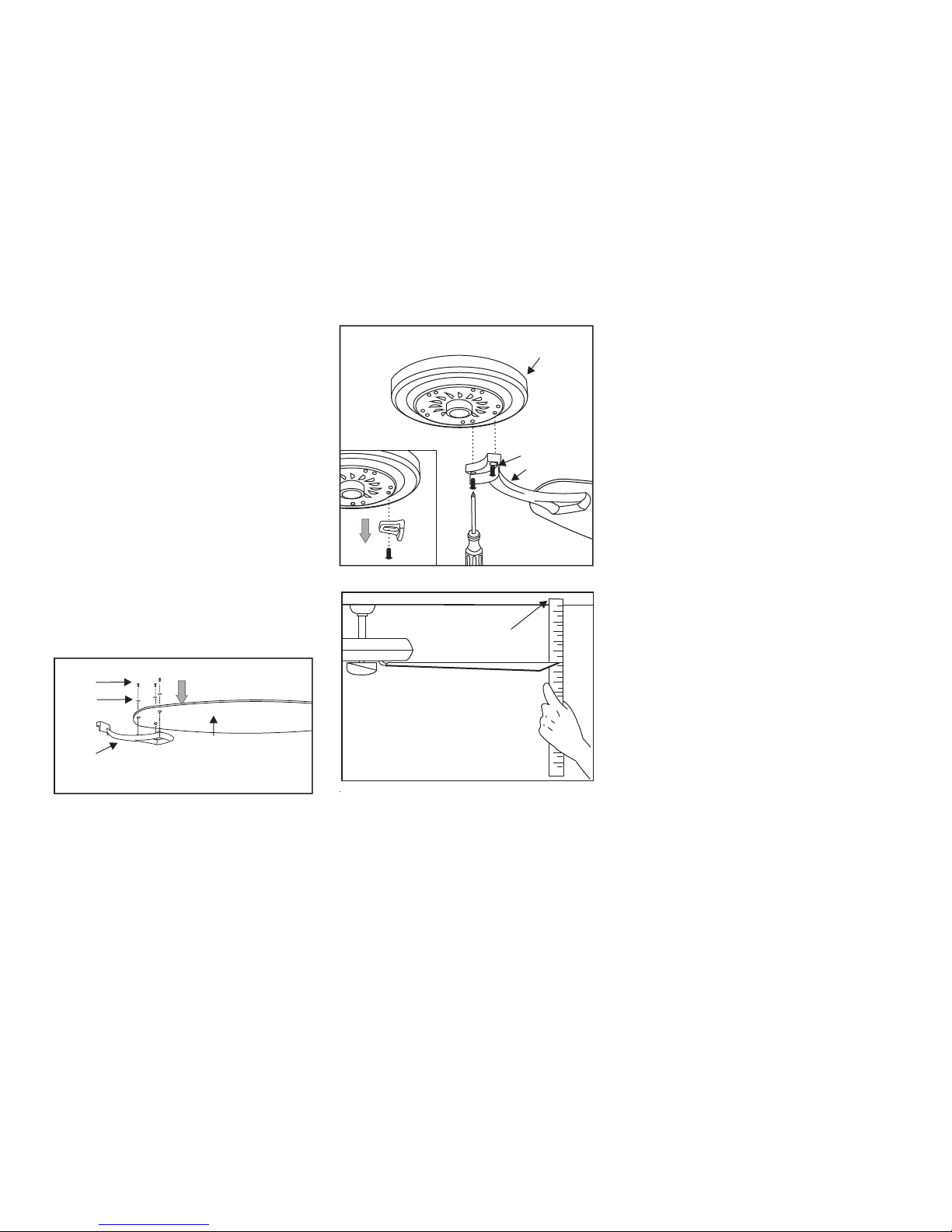

The following procedure should correct most

fan wobble issues. Check after each step.

1. Check that all blades and blade holder

screws are secure.

2. Most fan wobble problems are caused

when blade levels are unequal. Check this

level by selecting a point on the ceiling above

the tip of one of the blades. Measure this

distance as shown in Figure 17. Rotate the fan

unt il the n ex t b lade is posi ti on ed for

measurement. Repeat for each blade. The

distance should be equal within 1/8".

If all blade levels are not equal, you can

adjust the blade level with the following

procedure.

3. Use the enclosed Blade Balancing Kit if the

blade wobble is still noticeable. (Please refer

to the introduction provide in the blade

balancing kit, which is individually packed.)

4. If the blade wobble is still noticeable,

interchanging two adjacent (side by side)

blades can redistribute the weight and

possibly result in smoother operation.

Touching

ceiling

Figure 17

Figure 16

A t t a c h i n g t h e F a n

Blades

1. A ttach the blades to the blade holder

using three screws and paper washer as

shown in Figure 15. Start a screw into the

blade holder, do not tighten. Repeat for

the 2 remaining screws and washers.

2. Tighten each screw securely starting

with the center screw. Make sure the blade

is straight.

4. F asten the blade assemblies to motor

housing by tightening two previous

removed screws from the motor housing.

(Figure 16)

Remove the plastic blocks before

installing the blade holder to the bottom

motor housing, discard the plastic blocks

but keep the screws. (Figure 16).

Blade holder

Blade

Screws

Figure 15

paper

Washer

Motor housing

Blade holder

Screw

Table of contents

Other HAMPTON BAY Fan manuals

HAMPTON BAY

HAMPTON BAY Gazebo II User manual

HAMPTON BAY

HAMPTON BAY Bercello Estates II User manual

HAMPTON BAY

HAMPTON BAY Veranda II User manual

HAMPTON BAY

HAMPTON BAY 52" Huntington III User manual

HAMPTON BAY

HAMPTON BAY Alida User manual

HAMPTON BAY

HAMPTON BAY 786-756 User manual

HAMPTON BAY

HAMPTON BAY 41350 User manual

HAMPTON BAY

HAMPTON BAY SEAPORT II YG991-MBK User manual

HAMPTON BAY

HAMPTON BAY 593-548 AC324A-WH User manual

HAMPTON BAY

HAMPTON BAY HOLLIS 52196 User manual

HAMPTON BAY

HAMPTON BAY MARUCCI User manual

HAMPTON BAY

HAMPTON BAY 26613 User manual

HAMPTON BAY

HAMPTON BAY Dawson 581 645 User manual

HAMPTON BAY

HAMPTON BAY 593-543 AL958-ORB User manual

HAMPTON BAY

HAMPTON BAY Marlston N375B-BN User manual

HAMPTON BAY

HAMPTON BAY OSCW-24M BK User manual

HAMPTON BAY

HAMPTON BAY 51315 User manual

HAMPTON BAY

HAMPTON BAY Vasner 529-751 User manual

HAMPTON BAY

HAMPTON BAY Y52YH5-06 Owner's manual

HAMPTON BAY

HAMPTON BAY STONERIDGE 51973 User manual

HAMPTON BAY

HAMPTON BAY HAWKINS YG204I-BN-D User manual

HAMPTON BAY

HAMPTON BAY CLARKSTON CF544H-PEH User manual

HAMPTON BAY

HAMPTON BAY ST. DAVID 51344 User manual

HAMPTON BAY

HAMPTON BAY AK438-MBK User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
