HAMPTON BAY 553-295 User manual

Hampton Bay Lifetime Limited Warranty

The retailer warrants the fan motor to be free from defects in workmanship and

material present at time of shipment from the factory for a lifetime after the date of

purchase by the original purchaser. The retailer also warrants that all other fan parts,

excluding any glass or plexiglass blades, to be free from defects in workmanship and

material at the time of shipment from the factory for a period of one year after the date

of purchase by the original purchaser. We agree to correct such defects without charge

or at our option replace with a comparable or superior model if the product is returned

to the retailer. To obtain warranty service, you must present a copy of the receipt as

proof of purchase. All costs of removing and reinstalling the product are your

responsibility. Damage to any part such as by accident or misuse or improper

installation or by affixing any accessories, is not covered by this warranty. Because of

varying climatic conditions in the United States this warranty does not cover any

changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling.

Brass finishes of this type give their longest useful life when protected from varying

weather conditions. A certain amount of wobble is normal and should not be

considered a defect. Servicing performed by unauthorized persons shall render the

warranty invalid. There is no other express warranty. The retailer hereby disclaims

any and all warranties, including but not limited to. Those of merchantability and

fitness for a particular purpose to the extent permitted by law. The duration of any

implied warranty which cannot be disclaimed is limited to the time period as specified

in the express warranty. Some states do not allow limitation on how long an implied

warranty lasts, so the above limitation may not apply to you. The retailer shall not be

liable for incidental, consequential, or special damages arising out of or in

connection with product use or performance except as may otherwise be accorded by

law. Some states do not allow the exclusion of incidental or consequential damages,

so the above exclusion or limitation may not apply to you. This warranty gives specific

legal rights, and you may also have other rights which vary from state to state. This

warranty supersedes all prior warranties.

Lifetime Limited Warranty

Date Purchased

Store Purchased

Model No.

Serial No.

Vendor No.

UPC

553-295

11289

792145351269

Safety Rules............................................................................................................

Unpacking Your Fan ...................................................................................................

Installing Your Fan ....................................................................................................

Installing the Light Kit................................................................................................

..........................................................................................

Care of Your Fan ......................................................................................................

Troubleshooting .......................................................................................................

Specifications .........................................................................................................

Operating the Transmitter

10.

11.

12.

13.

Table of Contents

1. Safety Rules

1. To reduce the risk of electric shock, insure electricity has been

turned off at the circuit breaker or fuse box before beginning.

2. All wiring must be in accordance with the National Electrical

Code and local electrical codes. Electrical installation should be

performed by a qualified licensed electrician.

3. WARNING: To reduce the risk of electrical shock and fire, do not

use this fan with any solid-state fan speed control device.

4. WARNING: To reduce the risk of personal injury, use only the two

steel screws (and lock washers) provided with the outlet box for

mounting to the outlet box. Most outlet boxes commonly used for

the support of lighting fixtures are not acceptable for fan support

and may need to be replaced, consult a qualified electrician if in

doubt.

8. Avoid placing objects in the path of the blades.

9. To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

10. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

11. After making electrical connections, spliced conductors should

be turned upward and pushed carefully up into the outlet box.

The wires should be spread apart with the grounded conductor

and the equipment-grounding conductor on one side of the outlet

box.

12. Electrical diagrams are for reference only. Light kits that are not

packed with the fan must be UL Listed and marked suitable for

use with the model fan you are installing. Switches must be UL

General Use Switches. Refer to the Instructions packaged with

the light kits and switches for proper assembly.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLETBOX MARKED ACCEPTABLE FOR

FAN SUPPORT.

5. The outlet box and support structure must be securely mounted

and capable of reliably supporting a minimum of 50 pounds. Use

only UL Listed outlet boxes marked FOR FAN SUPPORT.

6. The fan must be mounted with a minimum of 7 feet clearance

from the trailing edge of the blades to the floor.

7. Do not operate the reverse switch while the fan blades are in

motion. The fan must be turned off and the blades stopped before

reversing the blades direction.

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE

BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING ASSEMBLY

OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN THE PATH OF

THE BLADES.

NOTE

READ AND SAVE ALL INSTRUCTIONS!

Unpack your fan and check the contents. You should have the following items;

1. Fan blades (5)

2. Canopy assembly

4. Coupling cover

5. Fan motor assembly

6. Light plate

Ball/downrod assembly

7. Light holder

9. Glass shade

10.

11.

12. Balancing kit

Fluorescent lamp

Receiver with 6 wire nuts

Transmitter+holder+2 mounting screws

13. Loose parts bag containing:

a. Blade attachment hardware

(

)

b. Mounting hardware

( 3 plastic wire connectors)

16 screws, 16 metal washers,

16 fiber washers.

WARNING

DO NOT INSTALL OR USE FAN

IF ANY PART IS DAMAGEDOR MISSING.

CALL TOLL FREE 1-877-898-1881

Unpacking Your Fan 2.

Tools Required

Phillips screwdriver, straight slot

screwdriver, adjustable wrench, step

ladder, and wire cutters.

Mounting Options

If there isn't an existing UL listed

mounting box, then read the following

instructions. Disconnect the power by

removing fuses or turning off circuit

breakers.

Secure the outlet box directly to the

building structure. Use appropriate

fasteners and building materials. The

outlet box and its support must be able to

fully support the moving weight of the fan

(at least 50 lbs). Do not use plastic outlet

boxes.

Figures 1,2 and 3 are examples of

different ways to mount the outlet box.

Note: You may need a longer downrod to

maintain proper blade clearance when

installing on a steep, sloped ceiling.

To hang your fan where there is an existing

fixture but no ceiling joist, you may need

an installation hanger bar as shown in

Figure 4 (available at your Hampton Bay

Retailer).

Outlet box

Figure 1

Figure 2

Figure 4

3. Installing Your Fan

Provide strong support

Recessed

outlet box

Mounting bracket

opening must be

toward the top

Figure 3

Angled ceiling

maximum

24 angle

Hanging the Fan

REMEMBER to turn off the power. Follow

the steps below to hang your fan properly:

Step 1. Remove the decorative canopy

bottom cover from the canopy by turning

the cover counter clockwise.(Fig. 5)

Step 2. Remove the hanger bracket from

the canopy by loosening the two screws

on the bottom of the hanging bracket

from the screw head and turning

the canopy counter clockwise.(Fig, 5)

Step 3. Pass the 120-volt supply wires

through the center hole in the ceiling

hanger bracket as shown in Fig. 6.

Step 4. Secure the hanger bracket to the

ceiling outlet box with the screws and

washers provided with your outlet box.

Step 5. Remove the hanger pin, lock pin

and set screws from the top of the motor

assembly.

Step 6. Route wires exiting from the top of

the fan motor through the collar cover,

canopy cover, canopy and then through

the ball / downrod. (Fig. 7)

NOTE: when installing the collar cover

onto motor collar, be sure the slot on the

collar cover and revise swith are aligned.

half turn

WARNING

FAILURE TOPROPERLY INSTALL LOCKING PIN

AS NOTED IN STEP 7 COULDRESULT IN FAN

LOOSENING AND POSSIBLY FALLING.

Step 8. Tighten two set screws on top of the

fan motor firmly (Figure 7)

Step 9. Place the downrod ball into the

hanger bracket socket.

Step 7. Align the holes at the bottom of the

downrod with the holes in the collar on top

of the motor housing (Fig.7). Carefully

insert the hanger pin through the holes in

the collar and downrod. Be careful not to

jam the pin against the wiring inside the

downrod. Insert the locking pin through the

hole near the end of the hanger pin until it

snaps into its locked position, as noted in

the circle inset of Fig. 7.

Figure 5

Ceiling

mounting

bracket

Ceiling

canopy

Canopy

cover

Mounting

screws

(supplied with

electrical box)

Hook

Ceiling

mounting

plate

UL Listed

electrical

box

Figure 6 120V Wires

Washers

Figure 7

Motor collar

Collar cover Slot

Reverse swith

Pin in

locked

position

Motor wires

Ball/downrod

assembly

Ceiling

canopy

Tighten screws

firmly

Locking pin

Canopy

cover

Hanger pin

Make the Electric Connections

WARNING: To avoid possible electrical

shock, be sure electricity is turned off at the

main fuse box before wiring.

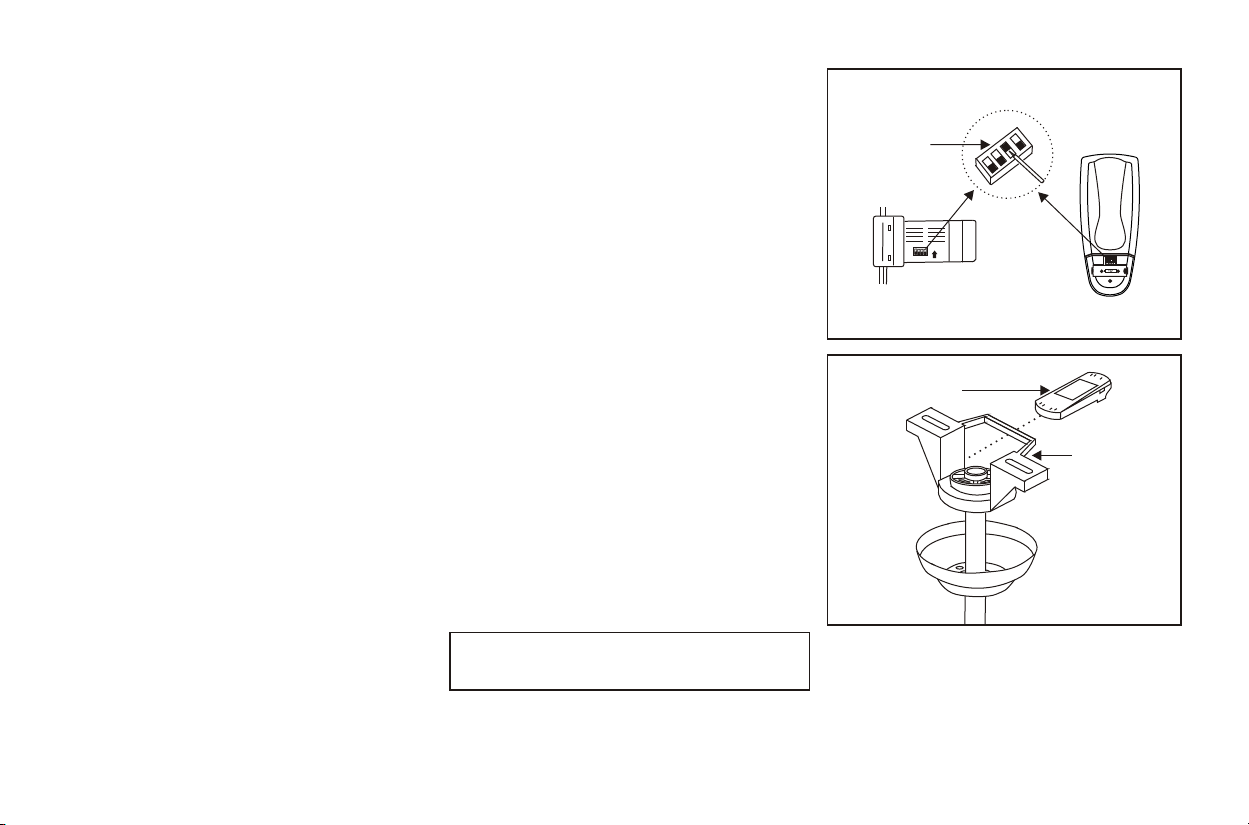

NOTE: This remote control unit is equipped

with 16 code combinations to prevent

possible interference from or to other

remote units. The frequency switches on

your receiver and transmitter have been

preset at the factory. Please recheck to

make sure the switches on transmitter

and receiver are set to the same

position, any combination of settings will

operate the fan as long as the transmitter

and receiver are set to the same

position.(Figure 8)

Step 1. (Figure 9) Insert the receiver into

the mounting bracket with the flat side of

the receiver facing the ceiling.

Step 2. (Figure 10) Motor to Receiver

Electrical Connections: Connect the black

wire from the fan to black wire marked "TO

MOTOR L". Connect the white wire from

the fan to the white wire marked "TO

MOTOR N" from the receiver. Connect the

blue wire from the fan to the blue wire

marked "For Light" from the receiver. Secure

the wire connections with the plastic wire

nuts provided.

the

Receiver

Hanger bracket

Figure 8

Figure 9

Step 3. (Figure 10) Receiver to House

Supply Wires Electrical Connections:

Connect the black (hot) wire from the

ceiling to the black wire marked "AC in

L" from the receiver. Connect the

white(neutral) wire from the ceiling to the

white wire marked "AC in N" from the

Receiver. Secure the wire connections with

the plastic wire nuts provided.

Step 4. (Figure 10) If your outlet box has a

ground wire (green or bare copper) connect

it To the fan ground wires; otherwise

connect the hanging bracket ground wire to

the mounting bracket. Secure the wire

connection with a plastic nut provided.

After connecting the wires spread them

apart so that the green and white wires are

on one side of the outlet box and black and

blue wires are on the other side. Carefully

tuck the wire connections up into the outlet

box.

Note: Fan must be installed at a maximum

distance of 20 feet from the transmitting

unit for proper signal transmission

between the transmitting unit and the fan's

receiving unit.

ONON

Code switch

CAUTION: Do not use with wall light

dimmer switch.

Figure 11

Outlet box

Hanger

bracket

Canopy

cover

Screws

Finishing the Installation

Step 1. Tuck connections neatly into

ceiling outlet box.

Step 2. Slide the canopy up to ceiling and

over the 2 screws on the hanger bracket.

Rotate canopy clockwise. Next, while

holding the canopy with one hand, slide

the canopy cover over the screws and

rotate clockwise until tight. Note: adjust

the canopy screws as necessary until the

canopy and canopy cover are snug. (Fig.

11)

WARNING

Make sure the notch on the hanging

bracket properly sits in the groove in

the hanger ball before attaching the

canopy to the bracket by turning the

housing until it drops into place.

Figure 10

SUPPLYCIRCUIT

Ground

Conductor

Outlet Box

Green

Ground

Lead

Ground to

Downrod

BLACK

WHITE

BLACK

BLUE

GREEN

WHITE

BLUE

BLACK

ONON

Attaching the Fan

Blades

THE FOLLOWING OPERATIONS MUST BE

ACCOMPLISHED BEFORE INSTALLING THE

LIGHT KIT

Step 1. Insert the blade through the slot in

housing. Align holes in blade and motor and

secure with the screws, fiber washers and

metal washers provided. (Fig. 12)

Step 2. Repeat process with other blades.

All blades are grouped by weight.

Because natural woods very in density,

the fan may wobble even though the

blades are weight matched.

The following procedure should correct

most fan wobble. Check after each step.

1. Check that all blade and blade bracket

screws are secure.

2. Most fan wobble problems are caused

when blade levels are unequal. Check

this level by selecting a point on the

ceiling above the tip of one of the

blades. Measure this distance as

shown in Figure 13. Rotate the fan

until the next blade is Positioned for

measurement. Repeat for each blade.

The distance deviation should be equal

within 1/8".

3. Use the enclosed Blade Balancing Kit if

the blade wobble is still noticeable.

4. If the blade wobble is still noticeable,

interchanging two adjacent (side by

side) blades can redistribute the

weight and possibly result in smoother

operation.

Blades

Blade Bracket

Screws

Fiber washers

Metal washers

Decorative housing

Blade Slot

Figure 12

Touching

ceiling

Figure 13

WARNING

TO REDUCE THE RISK OF PERSONALINJURY,

DO NOT BEND THE BLADE HOLDERS

WHILE INSTALLING, BALANCING THE

BLADES, OR CLEANING THE FAN. DO NOT

INSERT FOREIGN OBJECTS BETWEEN ROTATING

FAN BLADES.

Installing the Light Kit 8.

Figure 14

NOTE: Before starting installation, disconnect the power by turning off the circuit

breaker or removing the fuse at fuse box.

Turning power off using the fan switch is not sufficient to prevent electric shock.

1. Remove the 1 of 3 screws from the mounting ring and keep it for future use. Loosen

the other 2 screws. (Do not remove)

2. Place the key holes on the light plate over the 2 screws previously loosened from the

mounting ring, turn light plate until it locks in place at the narrow section of the key

holes. Secure by tightening the 2 screws previously loosened and the one previously

removed. (Figure 14 )

3. Remove the 1 of 3 screws from the light plate and keep it for future use. Loosen the

other 2 screws. (Do not remove)

4. ake the polarized plug connections:

- White to white

- Blue to black

5. Place the key holes on the light holder over the 2 screws previously loosened from

the light plate, turn light holder until it locks in place at the narrow section of the key

holes. Secure by tightening the 2 screws previously loosened and the one previously

removed. (Figure 14 )

While holding the light holder under your fan, m

Light plate Mounting ring

Screws

Connection plugs

Light holder

Table of contents

Other HAMPTON BAY Fan manuals

HAMPTON BAY

HAMPTON BAY Carrison 499 461 User manual

HAMPTON BAY

HAMPTON BAY Mediterranean 52" User manual

HAMPTON BAY

HAMPTON BAY GLENDALE AG524-FB User manual

HAMPTON BAY

HAMPTON BAY SW18030 ORB User manual

HAMPTON BAY

HAMPTON BAY 593-543 AL958-ORB User manual

HAMPTON BAY

HAMPTON BAY 68144 User manual

HAMPTON BAY

HAMPTON BAY BPT13-14HD User manual

HAMPTON BAY

HAMPTON BAY Trusseau 324-617 User manual

HAMPTON BAY

HAMPTON BAY Copperhead 184-860 User manual

HAMPTON BAY

HAMPTON BAY YG269AP-MWH User manual

HAMPTON BAY

HAMPTON BAY CAMPBELL User manual

HAMPTON BAY

HAMPTON BAY Altura 128 925 User manual

HAMPTON BAY

HAMPTON BAY LUXENBERG EF200P-36 User manual

HAMPTON BAY

HAMPTON BAY BENNINGTON 52389 User manual

HAMPTON BAY

HAMPTON BAY STANCE 52-STAN 52-STAN User manual

HAMPTON BAY

HAMPTON BAY Palm Beach II User manual

HAMPTON BAY

HAMPTON BAY 1005 228 113 User manual

HAMPTON BAY

HAMPTON BAY GLENDALE III AK338-MBK User manual

HAMPTON BAY

HAMPTON BAY Colby User manual

HAMPTON BAY

HAMPTON BAY LOWRY 52-LOWRY User manual

HAMPTON BAY

HAMPTON BAY WELLTON AM588-BN User manual

HAMPTON BAY

HAMPTON BAY SINCLAIR AL958-TB User manual

HAMPTON BAY

HAMPTON BAY Brookedale II User manual

HAMPTON BAY

HAMPTON BAY Irondale 1969 User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
