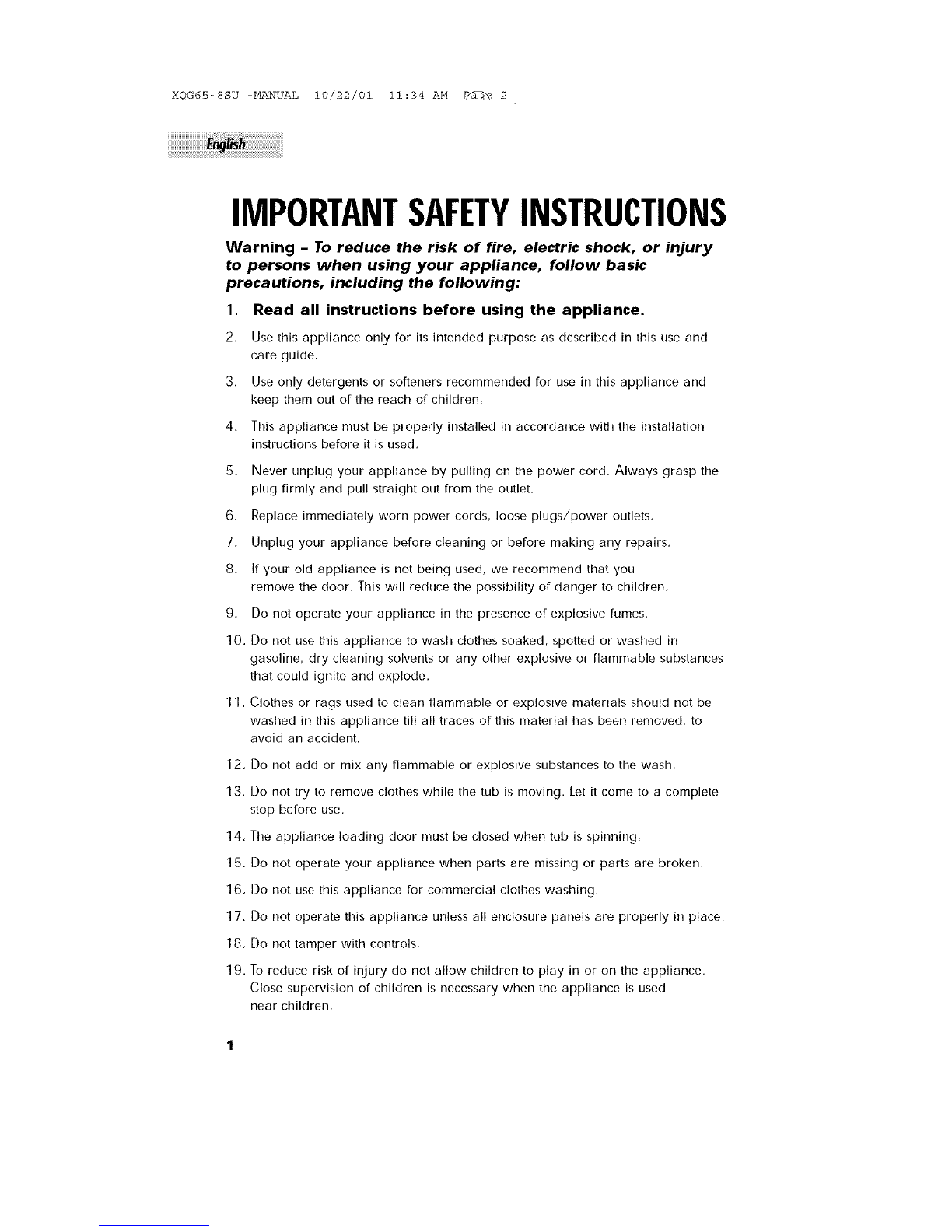

IMPORTANTSAFETYINSTRUCTIONS

Warning - To reduce the risk of fire, electric shock, or injury

to persons when using your appliance, follow basic

precautions, including the following:

1. Read all instructions before using the appliance.

2. Use this appliance only for its intended purpose as described in this use and

care guide,

3. Use only detergents or softeners recommended for use in this appliance and

keep them out of the reach of children,

4. This appliance must be properly installed in accordance with the installation

instructions before it is used,

5. Never unplug your appliance by pulling on the power cord. Always grasp the

plug firmly and pull straight out from the outlet.

6. Replace immediately worn power cords, loose plugs/power outlets,

7. Unplug your appliance before cleaning or before making any repairs.

8, If your old appliance is not being used, we recommend that you

remove the door. This will reduce the possibility of danger to children,

9, Do not operate your appliance in the presence of explosive fumes,

10, Do not use this appliance to wash clothes soaked, spotted or washed in

gasoline, dry cleaning solvents or any other explosive or flammable substances

that could ignite and explode,

11. Clothes or rags used to clean flammable or explosive materials should not be

washed in this appliance till all traces of this material has been removed, to

avoid an accident,

12, Do not add or mix any flammable or explosive substances to the wash,

13. Do not try to remove clothes while the tub is moving. Let it come to a complete

stop before use,

14, The appliance loading door must be closed when tub is spinning,

15, Do not operate your appliance when parts are missing or parts are broken.

16, Do not use this appliance for commercial clothes washing.

17, Do not operate this appliance unless all enclosure panels are properly in place,

18, Do not tamper with controls,

19. To reduce risk of injury do not allow children to play in or on the appliance.

Close supervision of children is necessary when the appliance is used

near children,

XQG65-8SU -MANUAL 10/22/01 11:34 AM F/_ 3

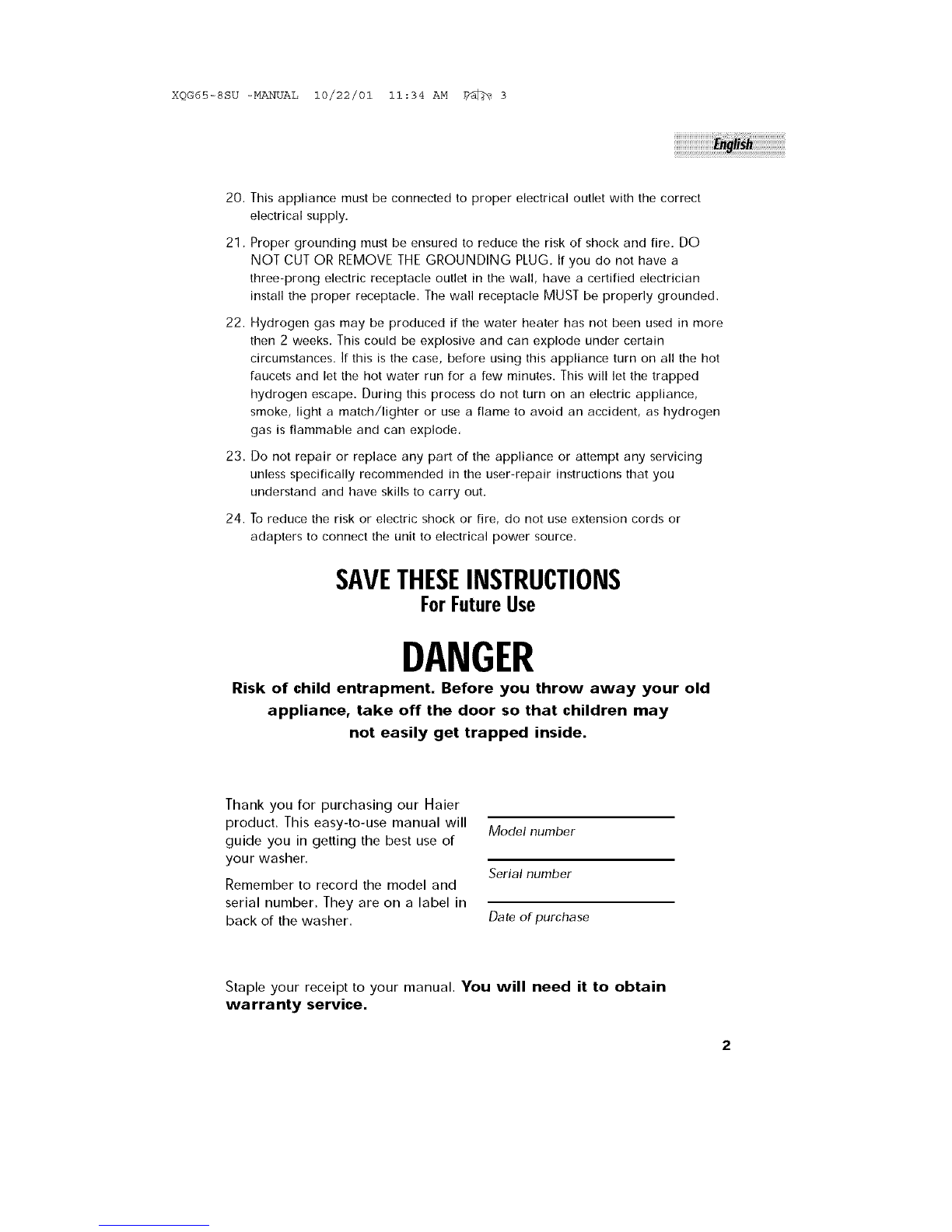

20. This appliance must be connected to proper electrical outlet with the correct

electrical supply.

21. Proper grounding must be ensured to reduce the risk of shock and fire. DO

NOT CUT OR REMOVE THE GROUNDING PLUG, If you do not have a

three-prong electric receptacle outlet in the wall, have a certified electrician

install the proper receptacle. The wall receptacle MUST be properly grounded.

22. Hydrogen gas may be produced if the water heater has not been used in more

then 2 weeks, This could be explosive and can explode under certain

circumstances. If this is the case, before using this appliance turn on all the hot

faucets and let the hot water run for a few minutes. This will let the trapped

hydrogen escape. During this process do not turn on an electric appliance,

smoke, light a match/lighter or use a flame to avoid an accident, as hydrogen

gas is flammable and can explode,

23. Do not repair or replace any part of the appliance or attempt any servicing

unless specifically recommended in the user-repair instructions that you

understand and have skills to carry out.

24. To reduce the risk or electric shock or fire, do not use extension cords or

adapters to connect the unit to electrical power source,

SAVETHESEINSTRUCTIONS

ForFutureUse

DANGER

Risk of child entrapment. Before you throw away your old

appliance, take off the door so that children may

not easily get trapped inside.

Thank you for purchasing our Haier

product. This easy-to-use manual will

guide you in getting the best use of

your washer.

Remember to record the model and

serial number. They are on a label in

back of the washer.

Model number

Serial number

Date of purchase

Staple your receipt to your manual. You will need it to obtain

warranty service.

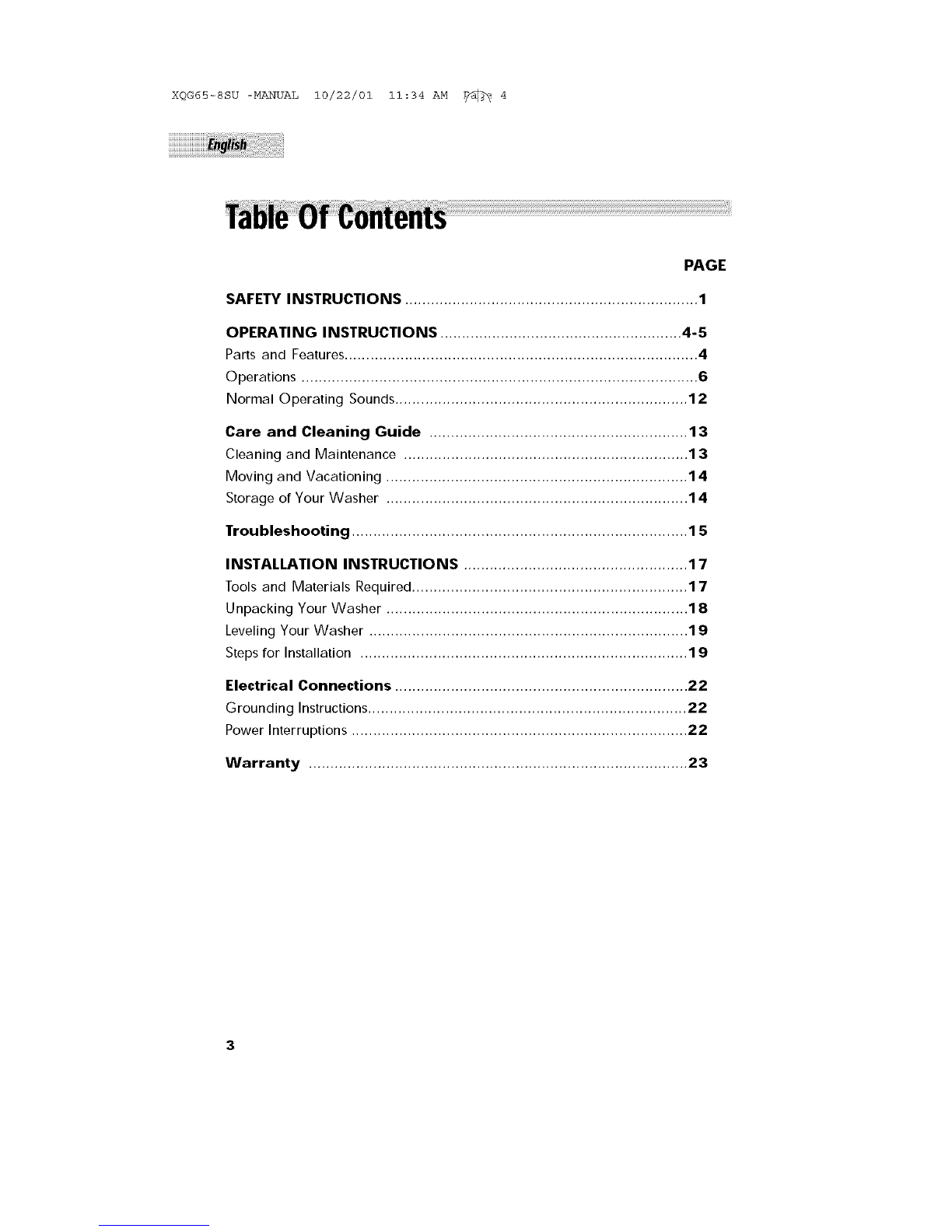

xe_6s-ssu-_UAL I0/22/0111:34AM _ 4

PAGE

SAFETY INSTRUCTIONS .................................................................... 1

OPERATING INSTRUCTIONS ........................................................ 4-5

Parts and Features.................................................................................. 4

Operations ............................................................................................ 6

Normal Operating Sounds .................................................................... 12

Care and Cleaning Guide ............................................................ 13

Cleaning and Maintenance .................................................................. 13

Moving and Vacationing ...................................................................... 14

Storage of Your Washer ...................................................................... 14

Troubleshooting .............................................................................. 15

INSTALLATION INSTRUCTIONS .................................................... 17

Tools and Materials Required ................................................................ 17

Unpacking Your Washer ...................................................................... 18

Leveling Your Washer .......................................................................... 19

Steps for Installation ............................................................................ 19

Electrical Connections .................................................................... 22

Grounding Instructions .......................................................................... 22

Power Interruptions .............................................................................. 22

Warranty ........................................................................................ 23

xe_6s-ssu-_UAL I0/22/0111:34AM _m_ S

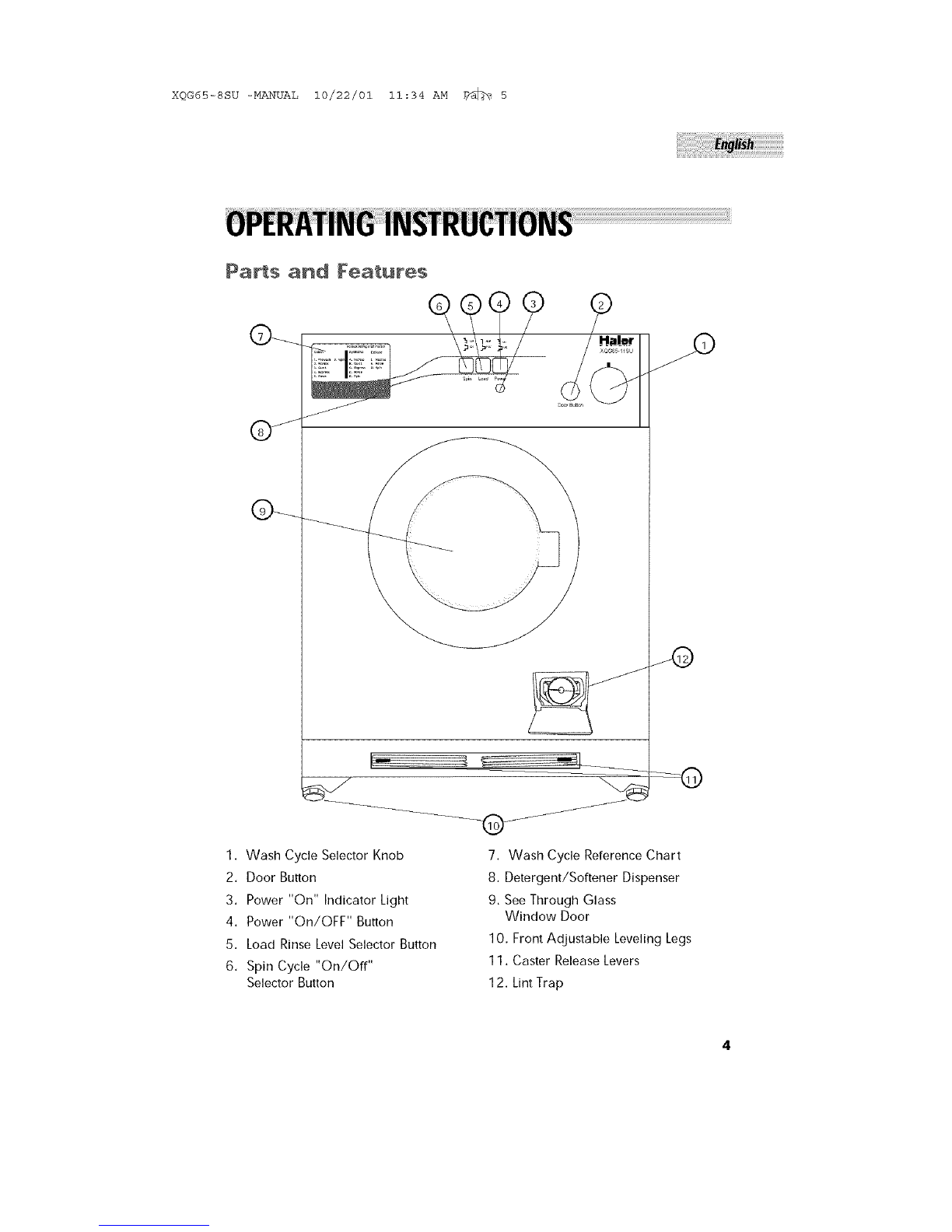

Pailsand [ea[ures

©J

1. Wash Cycle Selector Knob

2, Door Button

3. Power "On" Indicator Light

4. Power "On/OFF" Button

5. Load Rinse Level Selector Button

6, Spin Cycle "On/Off"

Selector Button

7. Wash Cycle Reference Chart

8. Detergent/Softener Dispenser

9. See Through Glass

Window Door

10. Front Adjustable Leveling Legs

11. Caster Release Levers

12. Lint Trap

XQG65-8SU -MANUAL 10/22/01 11:34 AM F_ 6

1. Water Inlets (Hot/Cold)

2. Power Cord (115 V /60 Hz)

3. Drain Hose

4. Rear Adjustable leveling legs

5. Hose Retainer Clips

XQ_6S-ssu-Mm_UALI0/22/0111:34AM _ 7

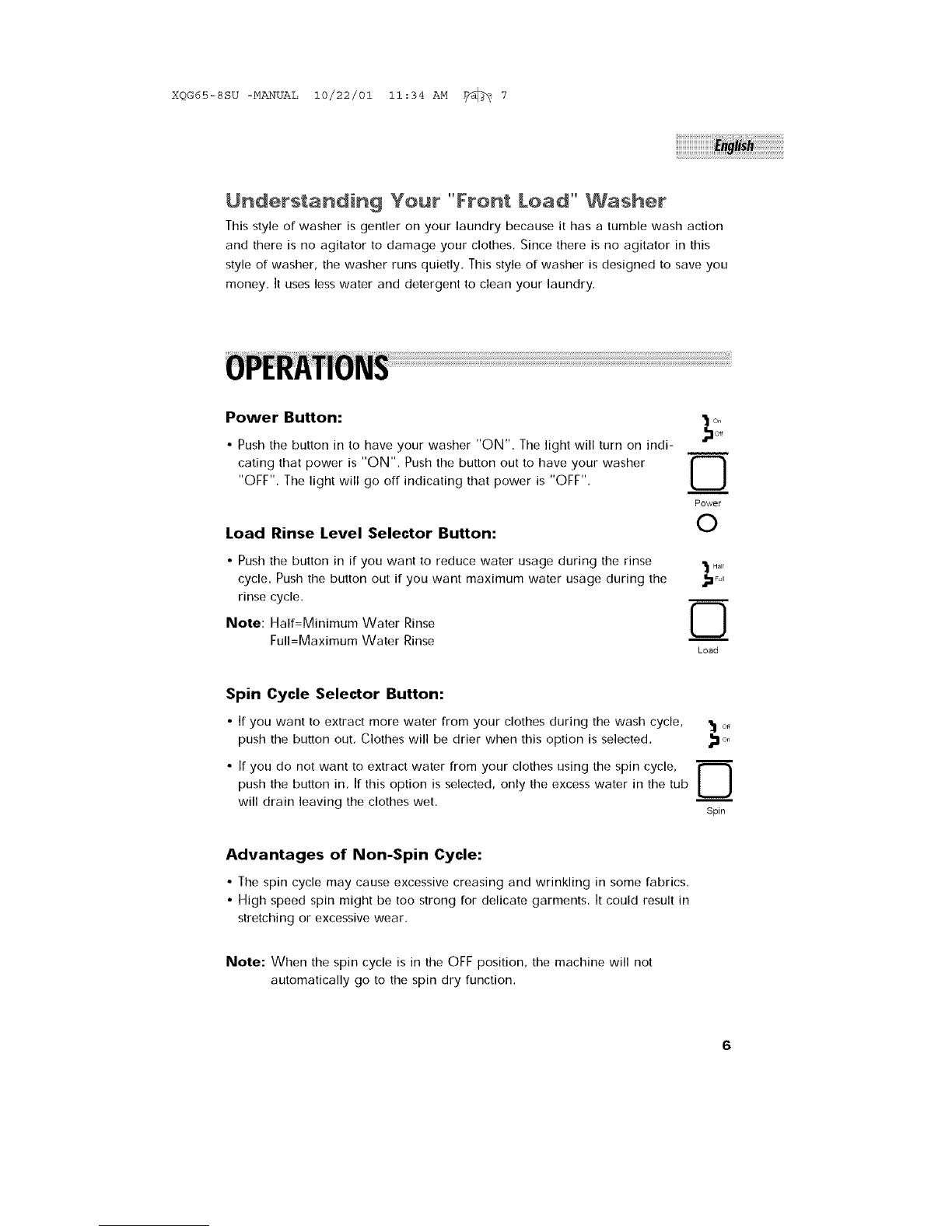

Understanding Your "Front bad" Washer

This style of washer is gentler on your laundry because it has a tumble wash action

and there is no agitator to damage your clothes, Since there is no agitator in this

style of washer, the washer runs quietly, This style of washer is designed to save you

money. It uses less water and detergent to clean your laundry.

Power Button:

• Push the button in to have your washer "ON" The light will turn on indi-

cating that power is "ON" Push the button out to have your washer

"OFF". The light will go off indicating that power is "OFF".

Load Rinse Level Selector Button:

off

Power

• Push the button in if you want to reduce water usage during the rinse _Haf

cycle. Push the button out if you want maximum water usage during the _,_F_,

rinse cycle.

Note: Half=Minimum Water Rinse I I

Full=Maximum Water Rinse Load

Spin Cycle Selector Button:

• If you want to extract more water from your clothes during the wash cycle, '_1o_

push the button out. Clothes will be drier when this option is selected. ._oo

• If you do not want to extract water from your clothes using the spin cycle,

push the button in, If this option is selected, only the excess water in the tub U

will drain leaving the clothes wet, Spin

Advantages of Non-Spin Cycle:

• The spin cycle may cause excessive creasing and wrinkling in some fabrics.

• High speed spin might be too strong for delicate garments. It could result in

stretching or excessive wear.

Note: When the spin cycle is in the OFF position, the machine will not

automatically go to the spin dry function.

XQG65-8SU -MANUAL 10/22/01 11:34 AM }f_l_ 8

Note: Button In means OFF, button Out means ON,

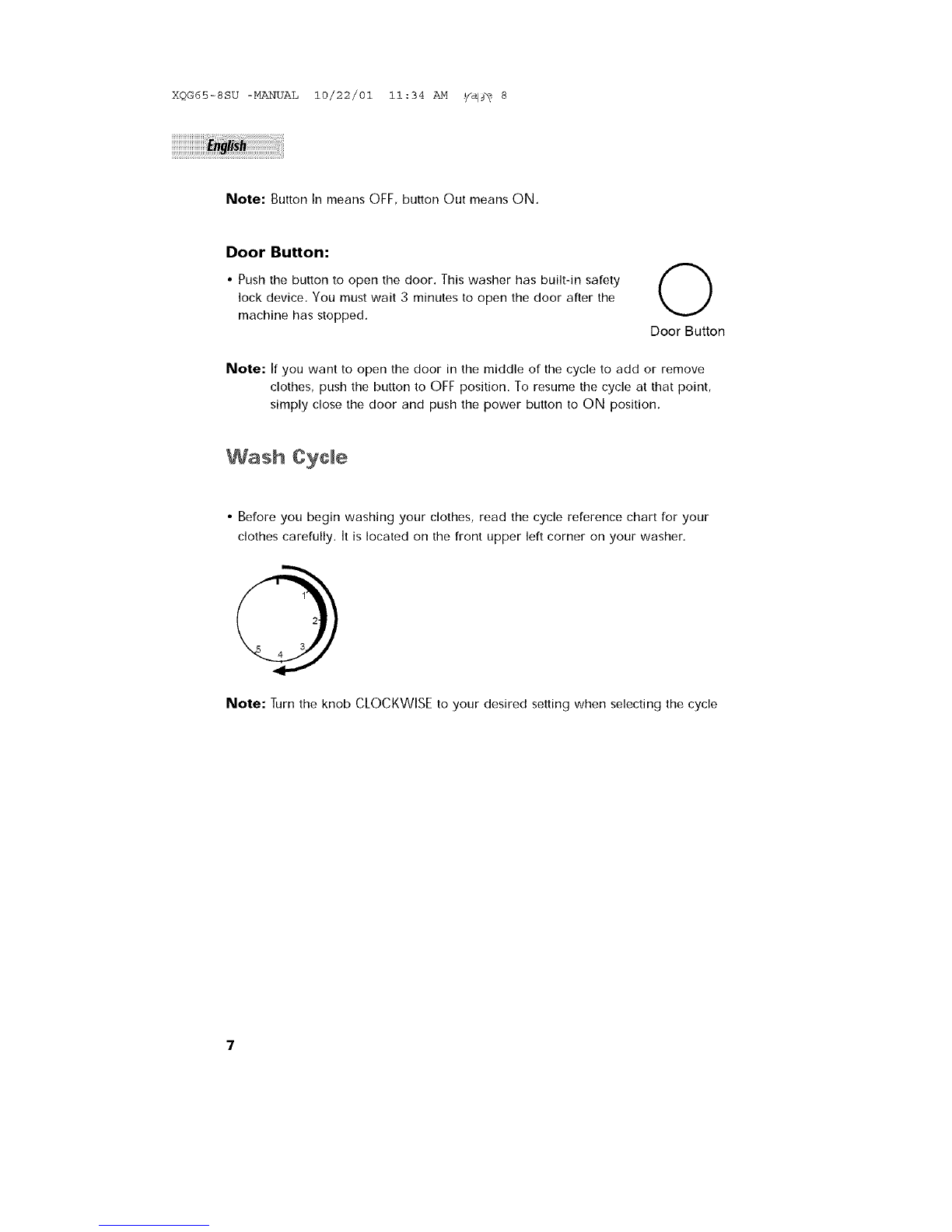

Door Button:

•Push the button to open the door, This washer has built-in safety

lock device. You must wait 3 minutes to open the door after the

machine has stopped, ©

Door Button

Note: If you want to open the door in the middle of the cycle to add or remove

clothes, push the button to OF[ position. To resume the cycle at that point,

simply close the door and push the power button to ON position,

Wash Cycle

• Before you begin washing your clothes, read the cycle reference chart for your

clothes carefully. It is located on the front upper left corner on your washer.

Note: Turn the knob CLOCKWISE to your desired setting when selecting the cycle

XQG65-8SU -MANUAL 10/22/01 11:34 AM F/_T_ 9

Below is the cycle reference chart for your clothes.

Cotton Cycle Synthetics

1-Pre-wash A-Normal

2-Normal B-Quick

3-Quick C-Express

4-Express D-Rinse

5-Rinse E-Spin

Delicate

I-Normal

II-Rinse

Ill-Spin

• Select the appropriate cycle from 1 to 4 for cottons, from A to C for synthetics or I

for delicates on your cycle selector knob.

Follow the steps below to select the proper cycle:

1. Select proper cycle number, letter or Roman numeral on the cycle reference chart.

2, Turn the knob clockwise to matching symbol, Make sure to line up the symbol

indicator on the control panel,

3. Push the power "ON" button.

Cotton Cycle:

Pre-Wash Cycle: The purpose of this cycle is that if you want to pre-wash heavily

soiled clothes before the actual wash cycle begins. This cycle is configured in such a

manner that it will go through Normal--}_"-Quick-'>"Express wash cycles time mode

including rinse and spin cycles automatically to complete the wash. The total time

for this cycle is approximately 147 minutes when selected,

Normal Wash Cycle: This is used for work & play, household linens, normal to

lightly soiled and cotton clothes. This cycle is approximately 130 minutes,

Quick Wash Cycle: This is used for a small load of lightly soiled items that needs

to be washed quickly. This cycle is approximately 80 minutes,

Express Wash Cycle: This is also used for small load of lightly soiled items that

needs to be washed quickly. This cycle is approximately 60 minutes,

Synthetics Cycle:

Normal Wash Cycle: This cycle is used for soiled permanent press, silks,

woolens, nylon and acrylic fabrics. This cycle is approximately 60 minutes.

Quick Wash Cycle: This is used for a small load of lightly soiled items that needs

to be washed quickly. This cycle is approximately 45 minutes.

Express Wash Cycle: This cycle is same as quick wash cycle except the time

difference, This cycle is approximately 40 minutes.

XQG6S-SSU-M_mUAI_I0/22/0111:34AM _ I0

Delicate Cycle:

Normal Wash Cycle: This cycle is used for delicate fabrics that are often

washed by hand. This cycle is approximately 30 minutes.

Note: If the Spin Cycle is at "OFf" position before starting a cycle, the machine

will automatically switch to drain and shut off,

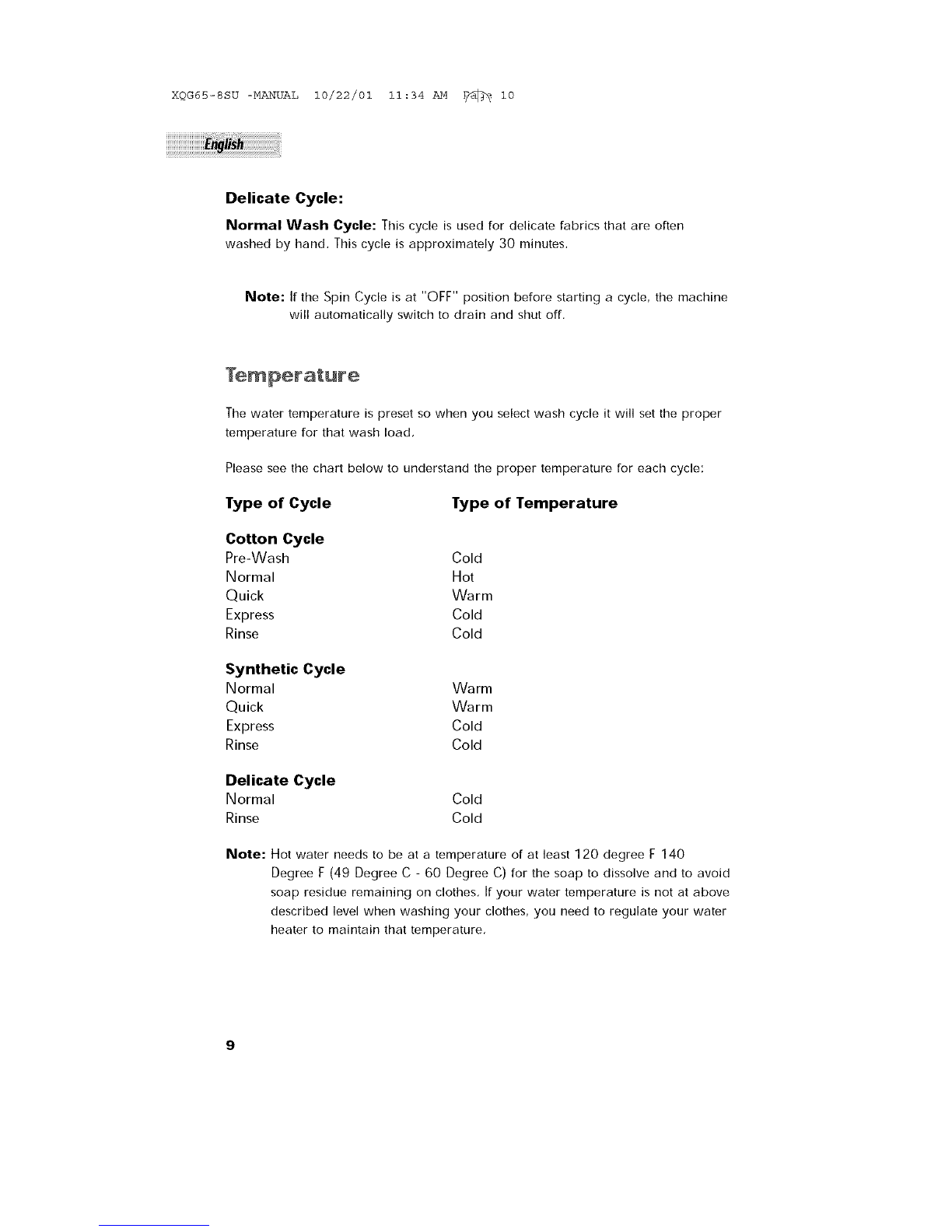

The water temperature is preset so when you select wash cycle it will set the proper

temperature for that wash load,

Please see the chart below to understand the proper temperature for each cycle;

Type of Cycle Type of Temperature

Cotton Cycle

Pre-Wash Cold

Normal Hot

Quick Warm

Express Cold

Rinse Cold

Synthetic Cycle

Normal Warm

Quick Warm

Express Cold

Rinse Cold

Delicate Cycle

Normal Cold

Rinse Cold

Note: Hot water needs to be at a temperature of at least 120 degree [ 140

Degree [ (49 Degree C - 60 Degree C) for the soap to dissolve and to avoid

soap residue remaining on clothes, If your water temperature is not at above

described level when washing your clothes, you need to regulate your water

heater to maintain that temperature,

Other manuals for XQG65-8SU

Table of contents

Languages:

Other Haier Washer manuals

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
