Haier HWM60-78 User manual

User's manual

This manual is for

Please read this manual

carefully before using.

Retain it for future reference.

Double-drive automatic washing machine

HWM60-78

0030806076A

XQS60-78

Contents

Names of the parts

Safety precautions

Trouble shooting

Packing list Specification

Installation and adjustment

Usage of the drain hose

Preparation before washing

Put in the laundries

Usage of the detergent

Use the operation buttons

Installation the water inlet hose

Disposal after washing

Finish washing

Close the top lid

Answer to question

Please check if the power receptacle has good earthing

condition before using to guarantee your safety.

Warning sign

Names of the parts

Meaning and description of the symbols

Forbidding sign

Contents marked with that symbol are related

to the safety of the product and the personal

safety of the users. Please operate in strict

conformity to the contents, otherwise it may

cause damage of the machine or injure the

personal safety of the user.

Contents marked with that symbol are actions

forbidden to perform. Performing of those

actions may result in damage of the machine

or injure the personal safety of the user.

Control panel

Outer tub cover

Lint filter

Balance ring

Inner tub

Attachment block

Cabinet

Liquid whitener inlet

Fixed leg (3 pieces)

Adjustable leg

Detergent box

Top lid component

Inner cover component

Pulsator

Water inlet valve

Water absorption

cushion

Round cover

Front control board

Cabinet handle

Drain hose

Back cover

Power cord

Cabinet base

Adjustable foot

seam

Safety precautions

Please insert the power cord into

special receptacle with rated vol-

tage. Be sure to use single-phase

three pins receptacle. The earthing

terminal of the receptacle must be

earthed reliably. If possible,please

adopt electric leakage protector.

When the machine is normally

using, please put the power plug

at the location easily to be insert-

ed and extracted by hand. Be sure

to pull the plug off when there's

power failure, or the machine is

being moved, cleaned or when it

is idle.

If the power cord is bad, to avoid risk it is required to replace it by the

technicians of our special shop or the after-sale service department.

Keep the pin of the power plug clean.

Do not put the machine at damp

place like the bathroom . Never

wash it with water. Do not place

wet laundries on the control panel.

Do not use water hotter than 50 C .

In case the washing machine is in-

stalled on ground with carpet, do not

block the ventilation hole with carpet.

The ventilation holes

at the bottom

Do not wash water-proof laundries like

the raincoat, bike covers etc. to avoid

abnormal vibrations in spinning.

Do not let the machine share one receptacle

with other electric appliances. If the power

plug is damaged, or the plugging into the

receptacle is loose, do not use the plug any

more.

Do not decompose, repair or alter the

machine by yourself.

Do not put any hot or heavy items (such

as the kettle with hot water ) on the

washing machine.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.)

The handicapped or children without

care shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the heater.

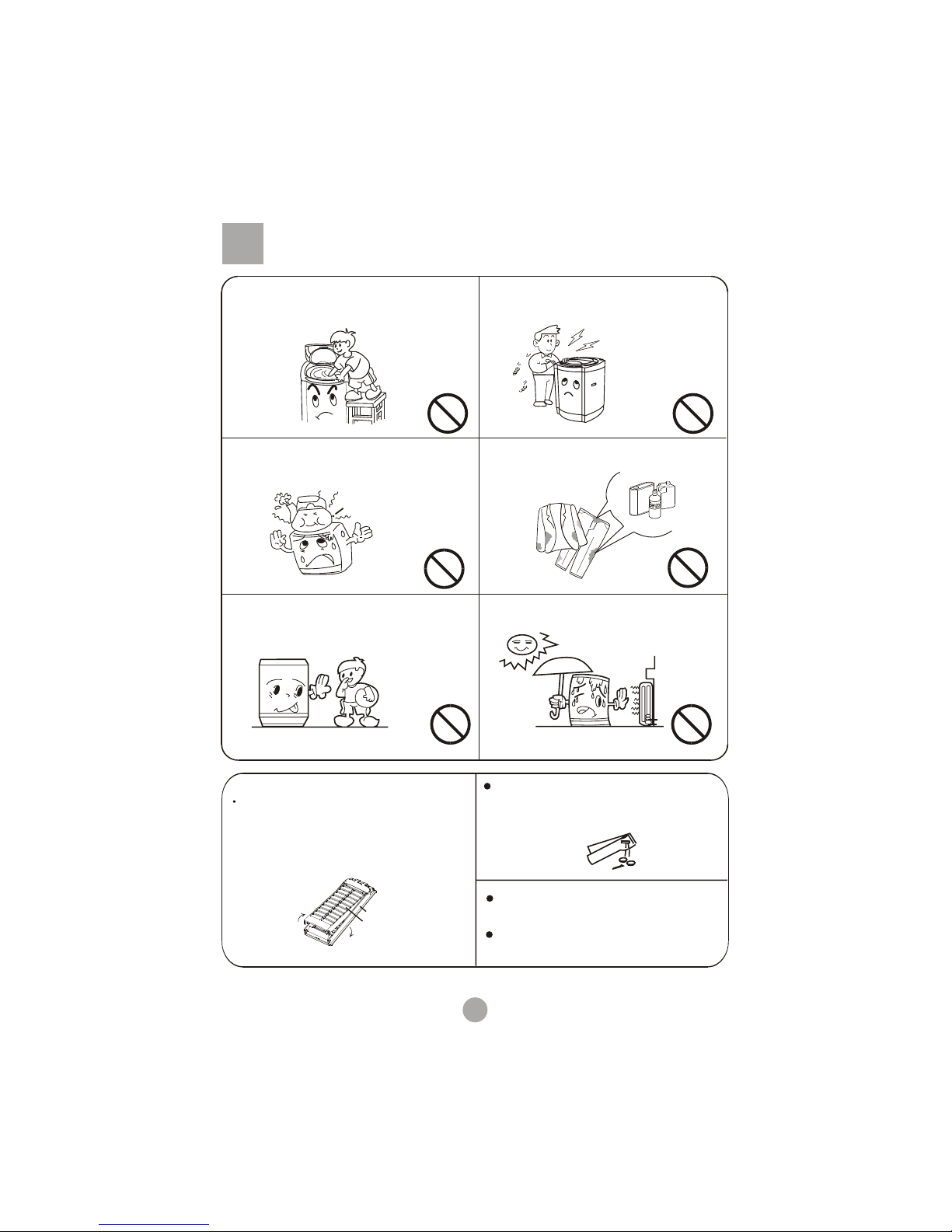

Safety precautions

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Petrol

Thinner

Toprotect your laundries and wash-

ing machine, please take out allof the

coins, buttons, sand, hairpin and

other foreign materials before washing.

Please check if the water faucet is open,

and if the connection of the water inlet

pipe is proper.

It is suggested to use foamless washing

powder.

Please keep the lint filter in good condition,

and install it to proper position during washing.

If the lint filter is lost or damaged, please

contact the local after-sales service department

of our company.

The back cover of lint filter

The front cover of lint filter

install

dismantle

Installation and adjustment

Please install and adjust the machine according to the requirement of the mannual.

It is very important to your security and correct operating the machine.

After opening the package, please lean the washing machine gently down on

soft items (like towel cloth, blanket, etc.). Install the bottom plate to the bottom of

the machine with eight screws by a cross screwdriver, then lift the machine up

gently. See to the figure:

Install the inner cover component

Install the bottom plate

Soft object

Bottom plate

Back

Screw

Front

1.Open the top lid of the washing machine.

2.Put the inner cover component on the outer tub cover, aiming the inner cover

shaft to the installation hole of the corresponding outer tub cover shaft groove.

3.Firstly insert the inner cover shaft of the left side into the corresponding outer tub

cover shaft groove(see to the figure 1), then hold the middle position of the front of

the outer tub cover with left hand forcibly , handhold the right and below position of

the inner cover with right hand, push the inner cover to the outer cover vertically,

make the inner cover shaft into the corresponding outer tub cover shaft groove(see

to the figure 2). Please install to designated position to guarantee there are no

dropping or abnormal sound in opening and closing of the inner cover, and the

operation shall be smooth. Do not dismount the inner cover component after washing.

Outer tub cover

Outer tub cover shaft groove

Inner cover shaft

Inner cover component

Figure 1

Right hand

Left hand

Figure 2

Before using the washing machine firstly, please install the inner cover component.

The drainage shall be smooth with the drain hose.

The height of the drain hose shall be less than

10cm, or the drainage will not be smooth, and cost

such long time that the machine may stop at mid

way.

Do not step on or press the drain hose.

If extra drain hose is needed, please make separate

purchase. The inner diameter of the extra hose shall

not less than 30mm, and the length shall not exceed

1.5m.

If the extra hose is too long, cut

it either at A or at B point.

<10cm

> 30mm

<1.5m

If the drain hose is too long, cut it at mid point. To make

smooth drainage, cut the front end of the hose slantingly.

Usage the drain hose

The largest allowable slope of the shank base of the machine is 1 . The slanting or rough ground will result in

unstable running or stoppage of the machine. Please adjust it with following methods:

Confirm it's horizontal:

Hang the lead line to check if it is

horizontal.

Adjust the adjustable leg:

Adjust the Installation position

FastenLoosen

High Low

The adjustable nut

The adjustable feet

1 .To twist the adjustable leg, please first lift up the

side of the leg slightly, loosen the adjustable nut,

and twist the leg.

2 . Afteradjustment, fasten thenut.

The exit end face of the faucet

Confirm the water faucet

Connection between the water inlet hose jointer and the

water faucet

water faucet, suitable water faucet, not suitable

It is required that the front end shall be longer than 10mm.

The exit end face of the faucet shall be flat and smooth. If not please file it to avoid leakage.

2 Loosen the screw till the water faucet can be accessed. Put the jointer of the water inlet hose on the faucet.

See to Figure 2. (If the faucet is too large and the jointer can not be set on the water faucet, please loosen

the four screws and take out the bushing in the jointer. The front end of the faucet must be smooth,

otherwise it may leak water. See to Figure 3.)

1.Press the lower end of the lock lever and push down the slider. Take off the water inlet hose jointer from the

water inlet hose component. See to Figure 1.

3.Fasten the four screws evenly. See to Figure 4.

remark: Before installation, the threading is 4mm above the upper surface of the nut.

After installation, the threading is 2mm above the upper surface of the nut..

water inlet hose jointer

Screw knife

water inlet hose

Figure 1

Figure 4 Figure 5

Slider

Lock lever

Installation the water inlet hose

4 Take off the nameplate.Twist the fastening nut as per the indication of the figure

to seal up the exit end face of the faucet. See to Figure 5.

About 4mm before twisting

About less than 2mm after twisting

Screw

Bushing

Sign plate

Screw nut

Figure 2 Figure 3

Figure 6

Connection between the water inlet hose and the washer

Dismantle the water inlet hose

Connection between the jointer of the water inlet hose

and the water inlet hose

Check the connection between the jointer of the water inlet

hose and the water faucet

1.Do not take off the water absorption cushion. Please check if the

cushion is dropped or damaged before each usage. If it happens

please contact our after-sale department immediately.

1.Swing the hose gently to confirm if it is fastened stable.

2.After installation, open the faucet to check if it leaks.

3.Do not bend the hose with overstrain.

1.Push down the slider. Insert the water inlet hose into the jointer.

2 Hang the lock lever to the jointer. Release the slider till a click

sound is heard.

Locking lever

Slider

the jointer of the

water inlet hose

Slider

Locking lever

water absorption

cushion.

nut of the water

inlet hose

jointer of the

water inlet valve

1. Close the water faucet.

2. Press the locking lever. Push down the slider. Then pull of the water inlet

hose.

If the machine is used frequently, the jointer of the water inlet hose can be

kept on the faucet to prevent damaging the fixing screw.

2 Put the nut of the water inlet hose on the valve jointer.

3 Fasten the nut. Swing it gently to confirm if it's suitable.

4.Before each usage please check if the connection

between the jointer of the water inlet hose and the

water faucet, and the installation of the water inlet

hose are firm, so as to prevent dropping from

improper installation position.

1 Preparation before washing

Preparation before washing

1.Connect the water inlet hose. Open

the water faucet.

2.Confirm that the washing machine is

earthed reliably. Then insert the

power plug into the receptacle. The

earth terminal shall not link to gas

pipeline and faucet water pipeline.

3.Put down the drain hose.

Pay attention to followings before washing the laundries

Check if

the laundries

has special

requirement

on washing

Clear the

pocket. Take

out the coins,

sand, hairpins

etc.

Tie the long

strips; fasten

the buttons;

close zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

The quantity of

the laundries

shall not be too

large. Stretch

and loosen the

laundries before

putting them in

the tub.

a. Check ifthe laundries are applicable forwashing with machine.

b. Divide thelaundries that are notcolorfast from other laundries.

c. Put thoselaundries difficult to absorb waterinto water with hand.

d. For thoselaundries with heavy soil, pleasefirst remove the dirtlike

mud or dust. Forthe parts with heavysoil, please apply detergent on

them in advance, which canmake it easier toremove the soil.

e. For thoselaundries that may getlint ball and those with long fur, turn

it over before puttingin.

f. Do notput those laundries polluted bychemicals into the washing

machine directly.

Other manuals for HWM60-78

This manual suits for next models

Table of contents

Other Haier Washer manuals

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
