Haier XPB58-111S User manual

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Handicapped or children without care

shall not use the machine.

Do not put any hot or heavy items

( such as the kettle with hot water )

on the washing machine.

Do not decompose, repair or alter the

machine by yourself.

Keep the machine away from direct

sunlight and heat source like the

heater.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.).

Petrol

Thinner

WARNING AND CAUTIONS

Figure 1

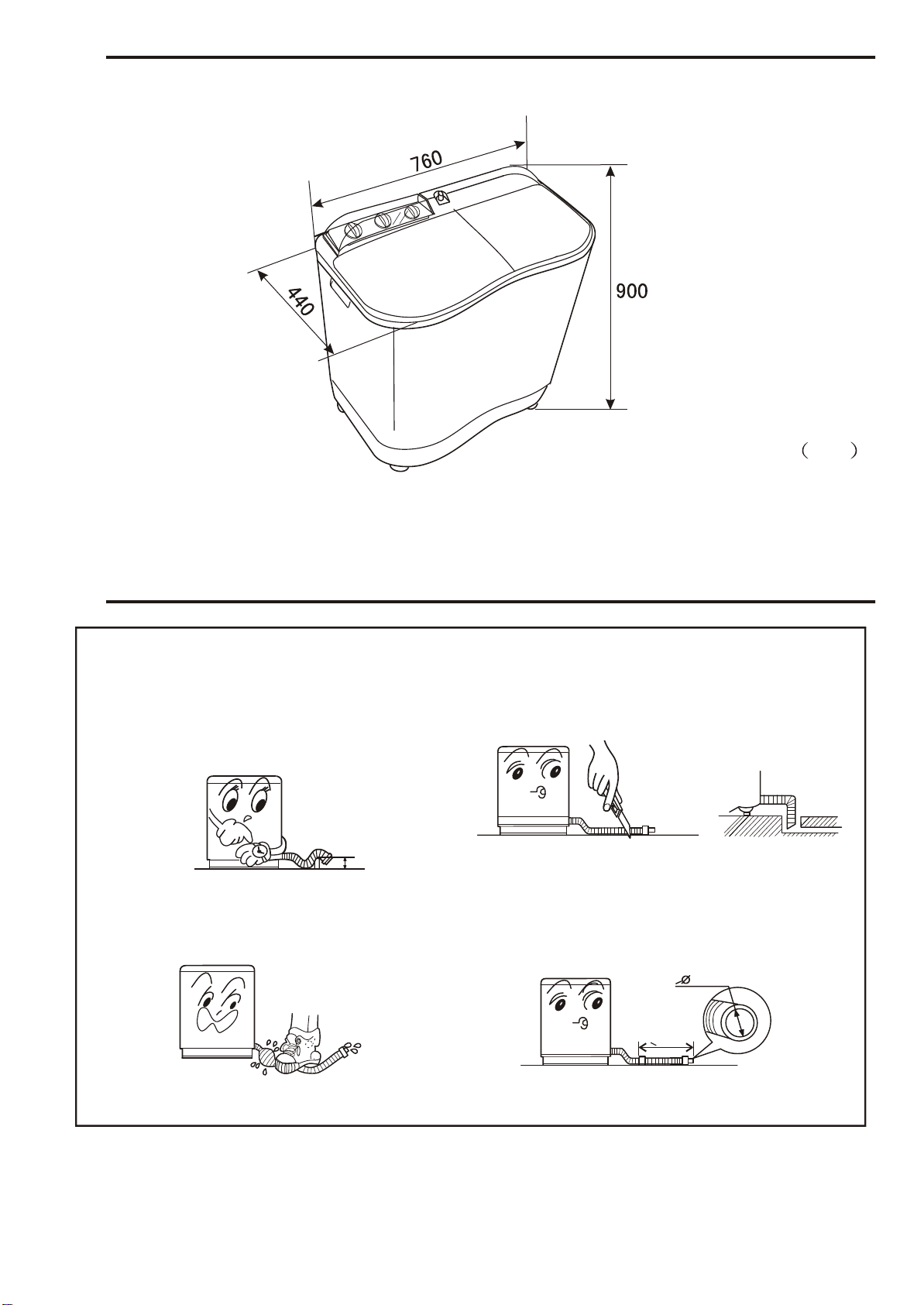

NET DIMENSION

INSTALLATION AND ACCESSORY PARTS

Unit mm

The drainage shall be smooth with the drain hose.

4.If extra drain hose is needed , the inner

diameter of the extra hose shall not less

than 30mm, and the length shall not exceed

1.5m.

<10cm

> 30mm

<1.5m

1.The height of the drain hose shall be

less than 10cm , or the drainage will

not be smooth enough and cause

incomplete drainage.

2.Do not step on or press the drain hose.

3 If the drain hose is too long, cut it at mid

point. To make smooth drainage, cut the

front end of the hose slantingly.

How to change the direction of the drain hoses

INSTALLATION AND ACCESSORY PARTS

Extend the drain hose from the rear side

Figure 21 indicates the ex factory installation

position of the drain hose.

Put soft items on the ground. Lean the machine

down gently with the front surface facing the

ground. Take off the drain hose from the cabinet.

Take the hose out of the fixing groove.

(See to Figure 3).

Embed the drain hose into the groove along the side

of the spin tub in the order of (1)~(3), heading for the

side of the spin tub. (See to Figure 4).

Embed the drain hose into the groove with

hands. Take care not to damage the drain

hose in fastening the fixing clamp.

Figure 2

Figure3

Figure 4

Figure 5

Embed into the

groove in turn

Back

Extend the drain hose from the side of spin tub

Soft item

Extend to the

spin tub side

Take out the drain hose from the fixing groove. Extend it from

the rear side as per the direction of the arrow. (When the drain

hose is extended from the rear side, it can be hung on the

point for drain hose at the two sides of the cabinet.)

(See to Figure 5).

Front

Spin tub shaft

Bearing seat

Figure 8

Oilite bearing

Inner lining of

the bearing seat

Fastening screw

Fastening screw of

the brake wheel

Inner lining of the

brake wheel

Brake wheel

Spin motor shaft

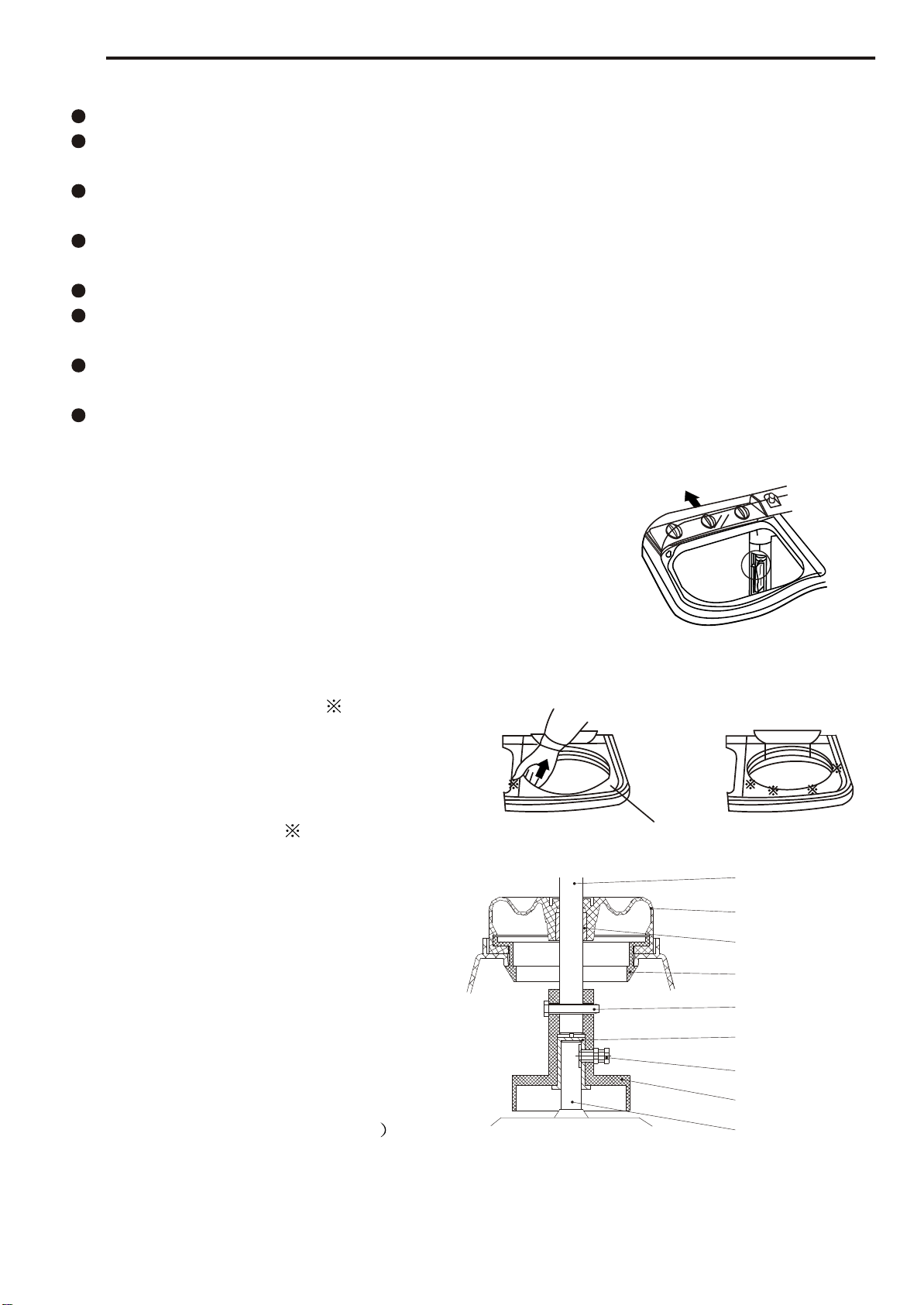

Points of Attention in After-sales Service

Be sure to switch off the power during dismantling or repair.

Be sure to use insulated wiring terminals and insulation box in connection of the wires, and

crimp and fix to proper position with suitable tools.

In welding connections with electric iron, be sure to twist the wires before welding, and insulate

with insulation tapes.

In welding the wires with electric iron, be sure not to touch the resin part and insulation part of

each switch.

The inlay connection wires and terminals shall not be loose or drop.

Do not make the wires touch the moving parts like the belt, pulley of the motor, brake bar etc.

Do not make the wires touch the sharp edges and high-temperature area.

In case that there are metal parts with the wires, do not make the wires touch the metal parts.

Insulation materials are needed between them.

After assembly, the washing machine shall act normally. Check if it leaks and if the sound and

vibration are normal.

Dismantling and installation of the control panel component

Loosen the fastening screws. Pull towards the direction

indicated in the figure to dismantle the control panel. In

installation the beard shall lock into the installation hole

of the major frame. (Figure 6)

Dismantling and installation of the spin tub

frame component

Push the points marked with " " as indicated in

the figure and pull the spin tub frame towards

upper left direction to dismantle the spin tub frame

components. In installation, after set the rear side

of the spin tub frame to proper position, push the

four points marked with " " downwards by force

to resume its original position. (Figure 7)

Dismantling and installation of

the spin tub

Dismantle the spin tub frame component.

Loosen the fastening screw of the spin tub

shaft. The spin tub then can be taken out.

In installation, be sure to inlay the bulge of

the inner lining of the brake wheel into the

groove of the spin tub shaft. (Figure 8

Figure 6

Spin tub frame

Dismantle Installation

Figure 7

INSTALLATION AND ACCESSORY PARTS

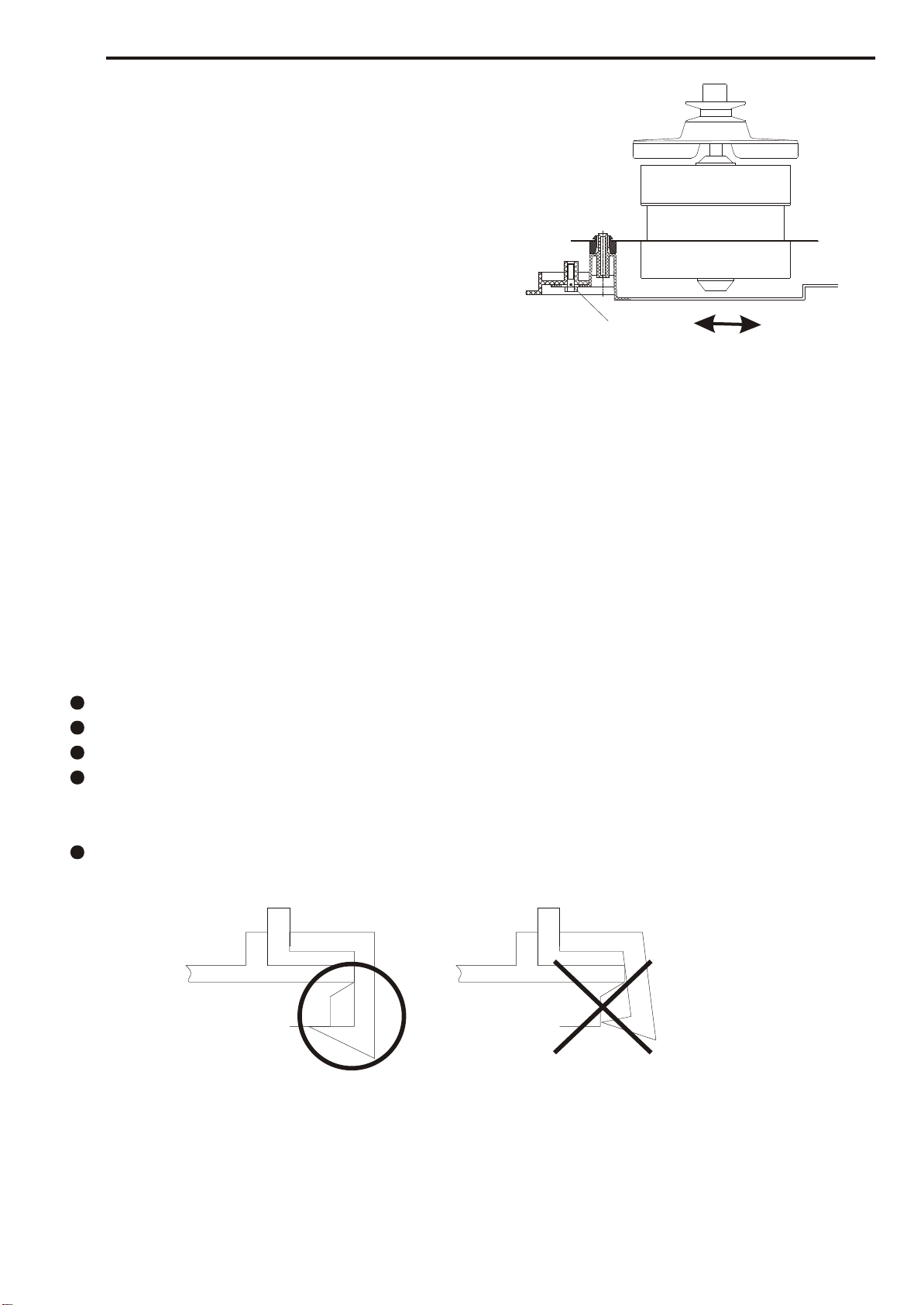

Adjust the tension of the belt

Loosen the fastening screw at the back of the

base frame. Move the shift fixing gasket along

the direction indicated in the figure to adjust

the tension of the belt. After adjusting, fasten

the screw. (Figure9)

Dismantling and installation of the base frame

Dismantle the back cover. Loosen the wires. Loosen the

fastening screw of the spin tub shaft. Separate the shaft

from the brake wheel. Loosen the brake hook. Take off

the brake cable frame from the installation groove of the

twin-tub. Take off the V-belt. Take out the drain hose from

the groove of the base frame. Loosen the fastening screw

between the base frame and the cabinet to dismantle the

base frame component.

Dismantling and installation of the bearing seat

Once the bearing seat is taken off, it can not be utilized again. Therefore do not dismantle

it as far as possible. In case that it has to be replaced, please dismantle it as per following

sequence, then install a new bearing seat.

Dismantle the spin tub as per Clause 9.4. Then pull out the bearing seat.

Cut off the inner lining claw inside the bearing seat with cutting pliers and take it out.

Install the new bearing seat and inner lining.

The bearing seat is an inlay component. Be sure to aim the claw of the inner lining at the

hole of the tub then push it in. Please use suitable tools and add even pressure around

the tub.

After inlay the bearing seat, check if the claw is installed to proper position from the outside

of the twin-tub (Figure 10).

Figure 9

Figure 10

Right Wrong

Screw

INSTALLATION AND ACCESSORY PARTS

Figure 12

Figure 11

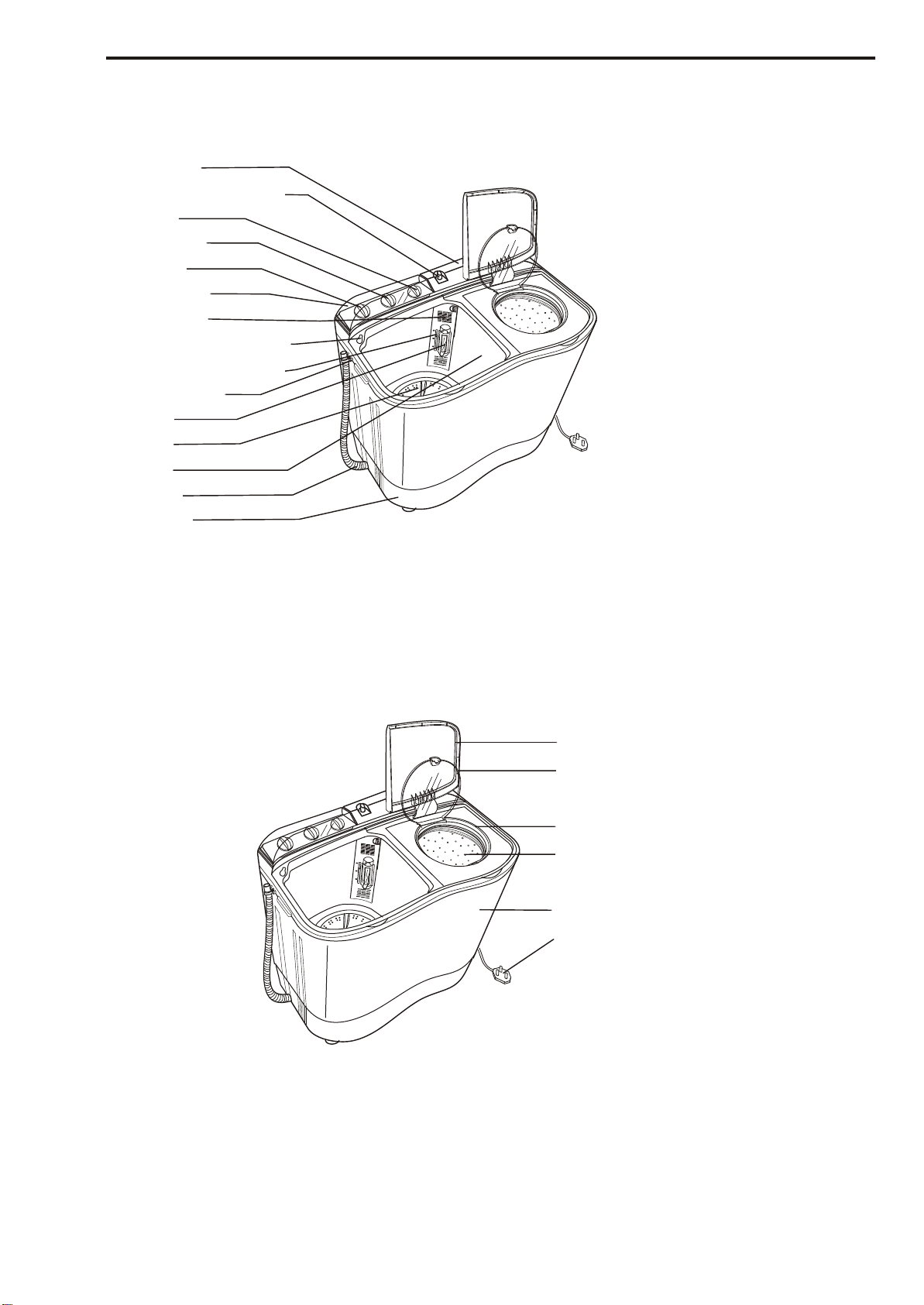

PARTS AND FUNTIONS

Control panel

Spin water-filling entrance

Spin timer

Wash selector

Wash timer

Transparent lid

Overflow filter

Wash water-filling entrance

Water level adjusting lever

Drain hose hook

Lint filter

Pulsator

Wash tub

Drain hose

Base frame

Outer cover of the spin tub

Inner cover of the spin tub

Spin tub frame

Spin tub

Cabinet

Power cord

8. Analysis Of The Common Breakdown

MAINTENANCE SERVICE AND TROUBLE SHOOTING

Insert the power plug , but the machine does not work

Wash part

YES

Switch on the power.

Replace the plug

or receptacle.

Replace with new power

supply cord.

Replace the fuse.

Inlay the connecting

wire again.

Check if the motor is good?

Replace the motor

Replace the wash timer

Replace the capacitor

Check if the capacitor

is good?

Poor contact or inferior

inside of the wash timer

Open the wash timer.

Check if the power source is available?

Check if the contact between

the plug and receptacle is good?

Check if the power supply

cord is good

Check if the fuse is good?

Check if the wash timer is opened ?

NO NO

Check if the inlay of

the connecting wire

terminal is good?
