Haier WM6602AJ User manual

Names of the parts.............the 2nd cover

Safety precautions .......................1

Introduction of the special functions.........3

Installation and adjustment ..................3

Install the water inlet hose............5

Preparation before washing .............7

Put in the laundries .........................8

Usage of the detergent .......................9

Use the operation buttons ................10

Close the top lid ........................14

Finish washing ............................14

Disposal after washing ....................15

Trouble shooting Answer to questions.....16

Packing list ...................................17

Specifications.........................the back cover

Contents

Before using

Using process

Please read this manual carefully before using.

Please retain it attentively for future reference.

User's manual

Full Automatic Washing Machine

WM6602AJ

Please check if the power receptacle is earthed

reliably before usage to guarantee your safety.

The manufacturer is not responsible for any

risks occurred owing to disobey these

stipulations.

Meaning and description of the symbols

Honourable users,

Thank you for choosing our products.

Our products integrate high-tech, precision,frontier science.To facilitate

using it, please read this manual carefully and operate this machine

according to it.

Ê¹ÓÃÖ®Ç°Ê¹ÓÃÖ®Ç°

Before Using

Names of the parts

the end connecting to

the water inlet hose jointer

the end connecting to

the washing machine

jointer connecting the

water inlet hose and

the water faucet

Warning sign

Forbidden sign

Contents marked with that symbol

are related to the safety of the

product and the personal safety

of the users. Please operate in

strict conformity to the contents,

otherwise it may cause damage

of the machine or injure the

personal safety of the user.

Contents marked with that symbol

are actions forbidden to perform.

Performing of those actions may

result in damage of the machine

or injure the personal safety of

the user.

Accessories

bottom plate

(one)

water inlet hose

(one)

Water inlet

hose jointer

(one)

tapping screws

(eight)

Adjustable foot

fixed foot (3)

back cover

Cabinet

base frame

Drain hose

Control panel

film

Control panel

Filter cover

Power line

Pulsator

Inner tub

Detergent box

Lint filter

Top lid B

Cabinet handle

water valve

Top lid A Sop mat

Lint filter

(one)

(Installed by user)

Before Using

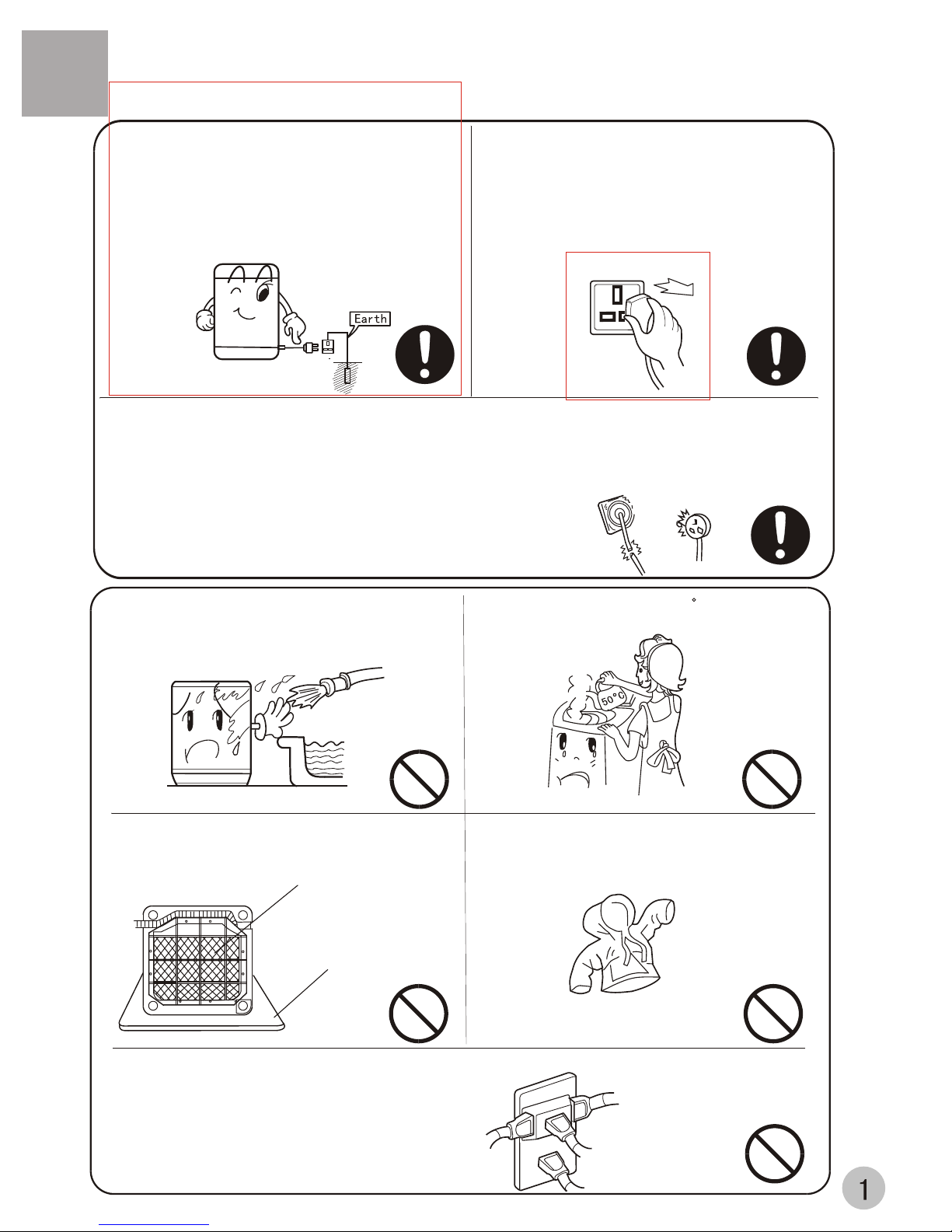

Safety precautions

Do not damage the power cord,bend ,extend,twist,bind or alter it by force.Do not press or

nip it with weight.If the power cord or the power plug is bad, or the power plug becomes

flexible,to avoid risk it is required to have it replaced by the technicians of our special

shop or the after-sale service department. Keep the pin of the power plug clean,if the

power plug is polluted with dust,please wipe with dry cloth carefully.

The power cord plug should be convenient

to be pluged in or pluged out with hand

while the washing machine runs normally.

Be sure to pull the plug out and close the

water tap when the machine is idle,when

moving the machine,or when cleaning

the machine.Do not use wet hand to ins-

ert or pull out the power plug.

In case the washing machine is installed on ground with

carpet, do not block the ventilation hole with carpet.

Do not let the machine share one receptacle with other electric appliances. If the power plug is damaged, or the

plugging into the receptacle is loose, do not use the plug any more.

Do not wash water-proof laundries like the raincoat,

bike covers etc. to avoid abnormal vibrations in spinning.

Do not use water hotter above 50 C .

Do not put the machine at damp place like

the bathroom. Never wash it with water.

Not put wet laundries on the control panel.

soft items

The ventilation holes

at the bottom

Please plug the plug on special 220V-240V

AC receptacle.Be sure to use single- phase

tow pins receptacle.Ensurethe earthing

prong of the power receptacle is earthed

reliably.Use leakage protector if possible.

Do not decompose, repair or alter the

machine by yourself.

Do not put any hot or heavy items (such

as the kettle with hot water ) on the

washing machine.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.)

The handicapped or children without

care shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the heater.

Before Using

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.Do not let the children

climb the washing machine.

Petrol

Thinner

To prevent your laundries and washing

machine from damage,be sure to take

out all of the foreign materials from your

pocket,such as coins,buttons,sand or

hairpins etc.

Before washing,please check if the water

tap is open ,and if the water inlet pipe is

connected properly.

It is suggested to use low-foaming was-

hing powder

Please keep the lint filter in good condition,

and install it to proper position. If the lint

filter is lost or damaged, please contact

the local after-sales service department of

our company.

The largest allowed slope of the

shank base of the machine is 2 .

The slanting or rough ground will

result in unstable running or

stoppage of the machine. Please

adjust it with following methods:

Adjust the adjustable foot:

Install the bottom plate

After you open the package,

please lean the washing

machine gently down on soft

items ( like the towel cloth,

blanket, etc. ). Install the

bottom plate to the bottom of

the machine with the eight

screws by a cross screwdriver,

then lift the machine up gently.

See to the figure:

Adjust the installation position

Before Using

Installation and adjustment

Please install and adjust the machine according to the requirement of the manual. It is

very important to your security and correct operating the machine.

1.Press downward to

assmble.

2.Pull upward to detach.

1.To twist the adjustable foot, please

first lift up the side of the foot slightly,

loosen the adjustable nut, and twist

the foot.

2.Fasten the nut after adjustment.

Loosen Fasten

High Low

adjustable nut

adjustable foot

"Hand scrub" wash:

The drum and pulsator rotate in opposite directions to form a washing

water flow similar to hand scrubbing movement, and meanwhile the

drum inner wall also take a share in washing, which obviously increase

the washing intensity.

Open-cover alarm function

During washing cycle except the processes of water filling and draining,

the washing machine will stop operation and automatically alarm if the

top cover is opened.

Special functions

Back

Front

Bottom plate

Screw

Soft items

Pull down Put up

Install the lint filter

1.The height of the drain hose shall be

less than 10cm, or the drainage will not

be smooth, and cost such long time that

the machine may stop at mid way.

2.Do not trample or press the drain hose.

If the drain hose is too long, cut it at mid

point. To make smooth drainage, cut the

front end of the hose slantingly.

4.If extra drain hose is needed, please

make separate purchase. The inner

diameter of the extra hose shall not

less than 30mm, and the length shall

not exceed 1.5m.

If the extra hose is too long, cut it

either at Aor at B point.

1.Lean the machine down gently with the front

surface facing the ground. Loosen the eight

screws by a cross screwdriver.

3.Extend the drain hose from the left side. Push the

drain hose into the groove with hands.

4.Install the bottom plate (as per indicated before),

then lift the machine up gently.

2.Pull out the drain hose from the groove at the

right side.

Back

Front

Bottom plate

Soft item

Use groove at

this side after

direction changing

Page 3

Push the drain hose

into the groove with

hands at this point

Before Using

How to change the direction of the drain hose

Usage of the drain hose

The drain hose shall drain smoothly

Water tap,suitable Water tap,not suitable

It is required that the front end shall be longer than 10mm.

The outlet end surface of the tap shall be flat and smooth. If not please file it to

avoid leakage.

3.Loosen the screw till the water tap can be accessed. Put the jointer of the water

inlet hose on the tap. See to Figure 2. (If the tap diameter is too large and the jointer

can not be set on the water tap, please loosen the four screws and take out the

bushing in the jointer. See to the figure3.)

2.Press the lower end of the lock lever and push down the slider. Take off the water

inlet hose jointer from the water inlet hose component. See to Figure 1.

Remarks: Before twisting the fastening nut, the thread is 4mm above the

upper surface of the nut. After twisting the fastening nut, the thread is 2mm

above the upper surface of the nut. See to Figure 6.

5.Take off the nameplate. Twist the fastening nut as per the indication of the figure.

See to Figure 5.

4.Fasten the four screws evenly. See to Figure 4.

>10mm

Outlet end surface

Nut

About 4mm before twisting

About below 2mm after twisting

Screw

Screwdriver Mark label

bushing

Figure 2

Figure 5

Figure 1

Figure 4

Figure 3

Figure 6

Slider

Water inlet pipe jointer

Water inlet pipe

Locking lever

Before Using

Install the water inlet hose

Confirm the water tap

Connection between the water inlet hose jointer and

the water tap

1.Use the new water inlet hose provided with the machine to connect to the water

faucet.Old hose sets should not be reused.

1.Do not take off the water absorption

cushion. Please check if the cushion

is dropped or damaged before each

usage. If it happens please contact

our after-sale department immediately.

2.Put the nut of the water inlet hose on

the valve jointer.

3.Fasten the nut. Swaying it gently to

confirm if it's suitable.

1.Close the water tap.

2.Press the locking lever. Push down the slider. Then

pull off the water inlet hose. If the machine is used

more than once every week, the jointer of the water

inlet hose can be kept on the tap to prevent

damaging the fixing screw.

1.Push down the slider. Insert the

water inlet hose into the jointer.

2.Hang the lock lever to the jointer.

Release the slider till a click

sound is heard.

Locking lever

Slider

Water absorption cushion

Nut of the water inlet hose

Jointer of the water inlet valve

Slider

Jointer of the

water inlet hose

Locking lever

Before Using

Connection between the water inlet hose and the

washing machine

Connection between the jointer of the water inlet

hose and the water inlet hose

Check the connection between the jointer of the

water inlet hose and the water tap

Take down the water inlet hose

1.Swaying the hose gently to confirm if it is fastened

stable.

2.After installation, open the tap to check if it leaks.

3.Do not bend the hose with overstrain.

4.Before each usage please check if

the connection between the jointer

of the water inlet hose and the water

tap, and the installation of the

water inlet hose are firm, so as to

prevent dropping from improper

Confirm if

there's special

requirment for

the laundries.

Clear the pocket.

Take out the

coins , sand,

hairpins etc.

Fasten the

buttons and

zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion,please

put the laundries

with buttons into

other laundries.

Preparation before washing

1.Connect the water inlet hose and open

the water tap .

2.Confirm that the washing machine is

earthed reliably . Then insert the power

plug into the receptacle. Do not connect

the earth terminal to the gas pipe and

tap water pipe.

3.Put down the drain hose.

The quantity of

the laundries

shall not exceed

the rated value.

The big laundries

like the jeans

shall be put in

loosely.

Using process

1 Preparation before washing

Pay attention to followings before washing the laundries

a.Please check if the laundries are applicable for washing.

b.Separate those not colorfast from other laundries.

c.For laundries not waterabsorbing,please put them into water with hands.

d.For laundries with much soil,please remove the soil first.You can add detergent on the

part with serious soil directly.It is much easier to remove the soil by that mean.

e.For laundries likely to get lint ball or with long fiber,please first turn the inside out before

putting them into the water.

f.Do not put the laundries polluted with chemicals directly into the washing machine.

g.For those small laundries ,laundries likely to be twisted or worn,and woolen laundries,

please put them into mesh bag before wasing.

Reference weight of the laundries:

working suit up,down

jeans about 800g

The capacity of washing and spinning of the

machine refer to the largest weight of the standard

laundries under dry condition that can be washed

or spinned in one time. One time washing quantity

shall be lower than the rated capacity. The largest

capacity of this machine is 6.0kg.

The thickness, size, type of the cloth will influence

the actual washing capacity. It is suitable for one

time washing to put in reasonable amount of

laundries and the laundries can be turned round in

washing.

Do not select "High" water level for laundries less

than 1.0kg, so as to avoid splashing of water.

To wash thin laundries like the stocking, silk etc.,

please first put them into washing mesh bag (which

can be purchased separately) before wash.

shirt jacket

single bed sheet

Socks

underpants

undershirt

pajamas

blanket

cotton,about 900g

cotton,about

300g

cotton,about

800g

cotton,about 600g

blending,about 50g

cotton,about 70g

cotton,about 180g

Using process

2 Put in the laundries

cotton,about 1120g

blending coat

(about 800g)

Table of contents

Other Haier Washer manuals

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
