Haier HWM90-D0658 User manual

HWM90-D0658

se ' nalUrs ma u

This manual is for

Please read this manual

carefully before using.

Retain it for future reference.

Computerized Automatic

Saving Water Washing Machine

W0030806966A

CONTENTS

Safety precautions

Installation and adjustment

Names of the parts

Install the water inlet hose

Preparation before washing

Put in the laundries

Put in the detergent

Use the operation buttons

Close the top lid

Finish washing

Disposal after washing

Trouble-Shooting *Answer to question

Packing list *Specification

Names of the parts

Water inlet valve

Drain hose

Back cover

Power cord

Hook of fixing the drain hose

Power cord hook

Wash tub cover

Control panel seat

Cabinet

Cabinet handle

Pulsator

Top lid

Back control board

Control panel film

Inner tub

Lint Filter

Decoration label

Water absorption gasket

Base frame

Pulsator

Meaning and description of the symbols

Warning sign

Forbidden sign

Contents marked with that symbol are related to the safety

of the product and the personal safety of the users. Please

operate in strict conformity to the contents, otherwise it may

cause damage of the machine or injure the personal safety

of the user.

Contents marked with that symbol are actions forbidden to

perform. Performing of those actions may result in damage

of the machine or injure the personal safety of the user.

Tub

Lint filter（Installed by user)

The ventilation

holes at the bottom

Safety precautions

In case the washing machine is installed on ground

with carpet, be careful not to block the ventilation hole

with carpet.

Do not put the machine at damp place like the

bathroom. Never wash it with water. Do not

put wet laundries on the front control panel board.

Do not let the machine share one receptacle with other

electric appliances. If the power plug is damaged, or

the plugging into the receptacle is loose, do not use

the plug any more.

Do not wash water-proof laundry like the raincoat,

bike-covers, down textiles etc. To avoid abnormal

vibrations in spinning and damages to the laundries-

Do not bend, stretch, twist, bind the power cord by force, or reform it.

Do not press or clamp it with heavy items. If the power cord and power

plug are bad, or the receptacle is loose, be sure to have it replaced by

the technicians of our special shop or our agent, or the after-sales service

department to avoid any risk. Keep the prong of the power plug clean. If

dust is found on the power plug, please wipe it off with dry cloth.

In normal usage of the washing machine, the power

plug shall be ready to be pulled or plugged with hang.

Be sure to pull the plug off and close the water faucet

when occurring power failure, delivering the machine,

setting the machine idle or cleaning the machine, do

not plug or pull the power plug with wet hand.

Do not use water with temperature higher than 50℃

Please plug the plug on special 220V AC receptacle.

Be sure to use single-phase three pins receptacle.

Ensure the earthing prong of the power receptacle is

earthed reliably. Use leakage protector if possible.

Soft items

·Do not put hand into the rotating tub. It is dangerous

even if the rotation speed is slow. Take special care of

the children. Keep children away from the washing

machine to avoid them climbing on.

· Do not decompose, repair or alter the machine by

yourself.

·Do not put any hot or heavy items (such as the

kettle with hot water) on the washing machine.

·Do not wash laundry with volatile materials

(such as thinner, petrol etc.).

·e Handicapped or Children Without Care Shall Not

use the machine.

Th ·Keep the machine away from direct sunlight and

heat source like the heater.

Please keep the lint filter in good condition, and

install it to proper position during washing. If the

lint filter is lost or damaged, please contact the local

after-sales service department of our company.

dismantle install

To protect your laundries and washing machine,

please take out all of the coins, buttons, sand, hairpin

and other foreign materials before washing.

Please check if the water faucet is open, and if the

connection of the water inlet pipe is proper.

It is suggested to use foamless washing powder.

Safety precautions

Pel

tro

Thi n rne

安装位置的调整

Please install and adjust the machine according to the requirement of

the manual. It is very important to your security and correct

operating the machine.

Installation and adjustment

Overflow filter

Lint filter

After opening the package, please take out the lint

filter from the document bag, install it to the overflow

filter of the wash tub. See to the figure.

Install the lint filter

After opening the package, please lean the washing

machine gently down on soft items (like towel cloth,

blanket, etc.). Install the bottom plate to the bottom of

the machine with five screws by a cross screw driver,

then lift the machine up gently. See to the figure:

Bottom plate

Back

Front

Soft items

Screw

Install the bottom plate

Usage the drain hose

The drainage shall be smooth with the drain hose.

1.The height of the drain hose shall be less than

10cm, or the drainage will not be smooth, and cost

such long time that the machine may stop at mid

way.

Do not step on or press the drain hose.

4.If extra drain hose is needed, please make separate

purchase. The inner diameter of the extra hose shall

not less than 30mm, and the length shall not exceed

1.5m.

If the extra hose is too long, cut

it either at A or at B point.

<10cm

> 30mm

<1.5m

3. If the drain hose is too long, cut it at mid point. To make

smooth drainage, cut the front end of the hose slantingly.

Install the water inlet hose

Confirm the water faucet

The exit end face of the faucet

water faucet, suitable water faucet, not suitable

It is required that the front end shall be longer than 10mm.

The exit end face of the faucet shall be flat and smooth. If not please file it to avoid leakage.

0m>1 m

Connection between the water inlet hose jointer

and the water faucet

2 Loosen the screw till the water faucet can be accessed. Put the jointer of the water inlet hose on the faucet.

See to Figure 2. (If the faucet is too large and the jointer can not be set on the water faucet, please loosen

the four screws and take out the bushing in the jointer. The front end of the faucet must be smooth,

otherwise it may leak water. See to Figure 3.)

1.Press the lower end of the lock lever and push down the slider. Ta k e off the water inlet hose jointer from the

water inlet hose component. See to Figure 1.

3.Fasten the four screws evenly. See to Figure 4.

About 4mm before twisting

remark: Before installation, the threading is 4mmabove the upper surface of the nut.

After installation, the threading is 2mm above the upper surface of the nut..(see to figure 6)

About less than 2mm after twisting

water inlet hose jointer

Screw knife

Screw

Bushing

Sign plate

Screw nut

water inlet hose

Figure 1

Figure 4

Figure 2

Figure 5

Figure 3

Figure 6

Slider

Lock level

4 Take off the nameplate. Twist the fastening nut as per the indication of the figure

to seal up the exit end face of the faucet. See to Figure 5.

Connection between the water inlet hose and the washer

Dismantle the water inlet hose

Connection between the jointer of the water inlet hose

and the water inlet hose

Check the connection between the jointer of the water inlet

hose and the water faucet

1.Do not take off the water absorption cushion. Please check if the

cushion is dropped or damaged before each usage. If it happens

please contact our after-sale department immediately.

1.Swing the hose gently to confirm if it is fastened stable.

2.After installation, open the faucet to check if it leaks.

3.Do not bend the hose with overstrain.

1.Push down the slider. Insert the water inlet hose into the jointer.

2 Hang the lock lever to the jointer. Release the slider till a click

sound is heard.

Locking level

Slider

water absorption

cushion.

nut of the water

inlet hose

the jointer of the

water inlet hose

Slider

Locking level

jointer of the

water inlet valve

1. Close the water faucet.

2. Press the locking lever. Push down the slider. Then pull of the water inlet

hose.

If the machine is used frequently, the jointer of the water inlet hose can be

kept

on the faucet to prevent damaging the fixing screw.

2 Put the nut of the water inlet hose on the valve jointer.

3 Fasten the nut. Swing it gently to confirm if it's suitable.

4.Before each usage please check if the connection

between the jointer of the water inlet hose and the

water faucet, and the installation of the water inlet

hose are firm, so as to prevent dropping from

improper installation position.

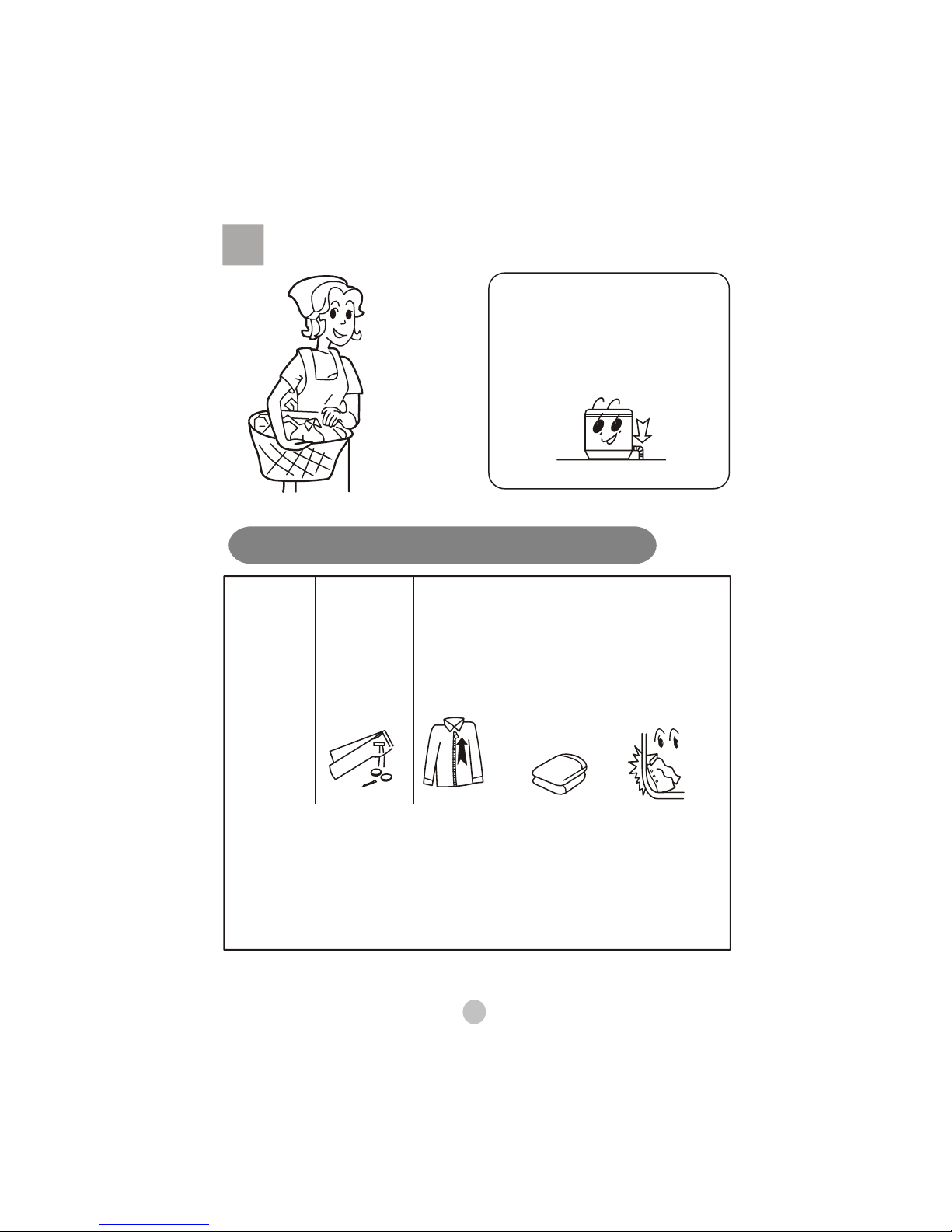

1 Preparation before washing

Confirm if there's

special requirement

for the laundries.

Clear the pocket.

Take out the coins ,

sand,hairpins etc.

Fasten the buttons

and zippers.

When the pulsator is

running ,the buttons of

the laundries may cause

noise. For the sake of

discretion ,please put

the laundries with

buttons into other

laundries.

Preparation before washing

The quantity of the

laundries shall not

exceed the rated

value. The big

laundries like the

jeans shall be put

in loosely.

Pay attention to followings before washing the laundries

1.Connect the water inlet hose.

2.Confirm that the washing machine is earthed

reliably . Then insert the power plug into the

receptacle. Do not connect the earth terminal

to the gas pipe and tap water pipe.

3.Put down the drain hose.

a. Check if the laundries are applicable for washing with machine.

b. Divide the laundries with infest color from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like mud or dust. For the parts with heavy soil,

please apply detergent in advance, which can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn it over before putting in.

f. Do not put those laundries polluted by chemicals directly into the washing machine.

3 Put in the detergent

How to use the whitener

Fill water to decided level .Dilute the whitener with

container. Pour it slowly into the washing tub.

Avoid using whitener on laundries with colour or

pattern as they are prone to lose colour.

The whitener shall not touch the laundries directly.

Refer to the user's manual for the usage and

quantity of the whitener.

For powder whitener, please dissolve it before use.

How to use softener

2 Put in the laundries

The capacity of washing of the machine refer to

the largest weight of the standard laundries under

dry condition that can be washed in one time.

Laundries quantity in one washing cycle shall

be lower than the rated capacity. The largest

capacity of this machine is 9.0 kg.

The thickness ,size , type of the cloth will influence

the actual washing capacity. It is suitable to put in

reasonable amount of laundries and the laundries

can be turned round in washing for one time

washing.

Do not select the higher than "4" water level for

laundries less than 1.0kg ,so as to avoid splashing

of water.

See to the manual of softener for the usage

and dosage. When adding softener into the

softener inlet of washing powder box, note

that it shall not exceed the lower side of the cap.

Do not leave the softener for long period after

adding it into the box. Otherwise it may be

solidified and block the inlet.

As the softener is easy to solidify, please clean

the box frequently. (You shall clean it each time

you use reserve function).

Before use softener, you must select to sterilize

function.

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
