Haier HWD 1500 User manual

Front Load Clothes Washer & Dryer Combo

Combi laveuse à chargement frontal &

Sécheuse

Combo de Lavadora y Secadora de Ropa

con Carga Frontal

User Manual

Model # HWD1500

Guide de l’Utilisateur

Modéle # HWD1500

Manual del Usuario

Para Modelo de # HWD1500

Quality Innovation Style

IMPORTANT SAFETY INSTRUCTIONS

Warning– To reduce the risk of fire, electric shock, or injury to persons when using

your appliance, follow basic precautions, including the following:

1. Read all instructions before using the appliance.

2. Use this appliance only for its intended purpose as described in this use and care

guide.

3. Use only detergents or softeners recommended for use in this appliance and keep

them out of the reach of children.

4. This appliance must be properly installed in accordance with the installation

instructions before it is used.

5. Never unplug your appliance by pulling on the power cord. Always grasp the

plug firmly and pull straight out from the outlet.

6. Replace immediately worn power cords, loose plugs/power outlets.

7. Unplug your appliance before cleaning or before making any repairs.

8. If your old appliance is not being used, we recommend that you remove the

door. This will reduce the possibility of danger to children.

9. Do not operate your appliance in the presence of explosive fumes.

10. Do not use this appliance to wash clothes soaked, spotted or washed in

gasoline, dry cleaning solvents or any other explosive or flammable substances

that could ignite and explode.

11. Clothes or rags used to clean flammable or explosive materials should not be

washed in this appliance till all traces of this material has been removed, to

avoid an accident.

12. Do not add or mix any flammable or explosive substances to the wash.

13. Do not operate your appliance when parts are missing or parts are broken.

14. Do not use this appliance for commercial clothes washing.

15. Do not operate this appliance unless all enclosure panels are properly in place.

16. Do not tamper with controls.

17. To reduce risk of injury do not allow children to play in or on the appliance.

Close supervision of children is necessary when the appliance is used near

children.

18. This appliance must be connected to proper electrical outlet with the

correct electrical supply.

19. Proper grounding must be ensured to reduce the risk of shock and fire.

English

DO NOT CUT OR REMOVE THE GROUNDING PLUG. If you do not have

athree-prong electric receptacle outlet in the wall, have a certified electrician

install the proper receptacle. The wall receptacle MUST be properly grounded.

20. Hydrogen gas may be produced if the water heater has not been used in more

than 2 weeks. This could be explosive under certain circumstances. If this is the

case, before using this appliance turn on all the hot faucets and let the hot water

run for a few minutes. This will let the trapped hydrogen escape. During this

process do not turn on an electric appliance, smoke, light a match/lighter or use

a flame to avoid an accident, as hydrogen gas is flammable and can explode.

21. Do not dry articles that have been previously cleaned in, washed in, soaked in,

or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive

substances, as they give off vapors that could ignite or explode.

22. Do not repair or replace any part of the appliance or attempt any servicing

unless specifically recommended in the user-repair instructions that you

understand and have skills to carry out.

23. Do not use heat dry for articles containing foam rubber or similarly textured

rubber-like materials.

24. Do not place items exposed to cooking oils in your dryer. Items contaminated

with cooking oils may contribute to a chemical reaction that could cause a load

to catch fire.

SAVE THESE INSTRUCTIONS

Note: These units have a self-locking device. Please wait for 3

minutes after you stop the machine before opening the door.

English

DANGER

Risk of child entrapment. Before you throw away your old

appliance, take off the door so that children may

not easily get trapped inside.

Thank you for purchasing our Haier

product. This easy-to-use manual will

guide you in getting the best use of

your washer and dryer combo.

Remember to record the model and

serial number. They are on a label in

back of the unit.

Model number

Serial number

Date of purchase

Staple your receipt to your manual. You will need it to obtain

warranty service.

English

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit,

grounding reduces the risk of electric shock by providing an escape wire for

the electric current. This appliance is equipped with a cord having a grounding

wire with a grounded plug. The plug must be inserted into an outlet that is

properly installed and grounded.

• Improper use of the plug can result in a risk of electric shock.

• Consult a qualified electrician or service person if the grounding

instructions are not completely understood or if doubt exists as to

whether the appliance is properly grounded.

Wiring Requirements:

• This appliance must be plugged into at least

15 AMP 120 VOLT, 60 HZ GROUNDED OUTLET.

Note: Where a standard two-prong outlet is

encountered, it is the personal responsibility

and obligation of the consumer to have

it replaced with a properly grounded

three-prong outlet.

Extension Cords:

We do not recommend that you use an extension cord.

Power Interruptions

Occasionally there may be power interruptions due to thunderstorms or other

causes. Remove the power cord from AC outlet when a power outage occurs. When

power has been restored re-plug power cord to AC outlet. If outage is for a pro-

longed period, clean washer before using it again. For details see "other functions"

- "Power-Off memory function" Page 18.

ELECTRICAL CONNECTIONS

English

TABLE OF CONTENTS

SAFETY INSTRUCTIONS...................................................................... 1

ELECTRICAL CONNECTING................................................................. 4

Grounding Instructions.............................................................................. 4

PARTS AND FEATURES ....................................................................... 6

Front ....................................................................................................... 6

Back........................................................................................................ 7

INSTALLATION INSTRUCTIONS ........................................................ 8

Tools and Materials Required.................................................................... 8

Unpacking Your Washer .......................................................................... 9

INSTALLATION ..................................................................................11

Power Supply .......................................................................................12

Unit Dimensions.....................................................................................12

OPERATIONAL INSTRUCTIONS.......................................................13

Control Panel.........................................................................................13

OPERATIONAL SELECTION...............................................................15

PROGRAM SELECTION .....................................................................16

Loading.................................................................................................17

Proper Use of Dispenser .........................................................................17

WASHING METHODS .......................................................................18

ADDITIONAL INFORMATION ..........................................................18

Normal Operating Sounds......................................................................19

CARE AND CLEANING GUIDE.........................................................20

Cleaning and Maintenance.....................................................................20

Moving and Vacationing ........................................................................21

Storage of Your Appliance in Cold Environment.......................................21

WARNING CODES ............................................................................22

TROUBLESHOOTING.........................................................................23

TECHNICAL SPECIFICATION.............................................................25

WARRANTY .......................................................................................26

English

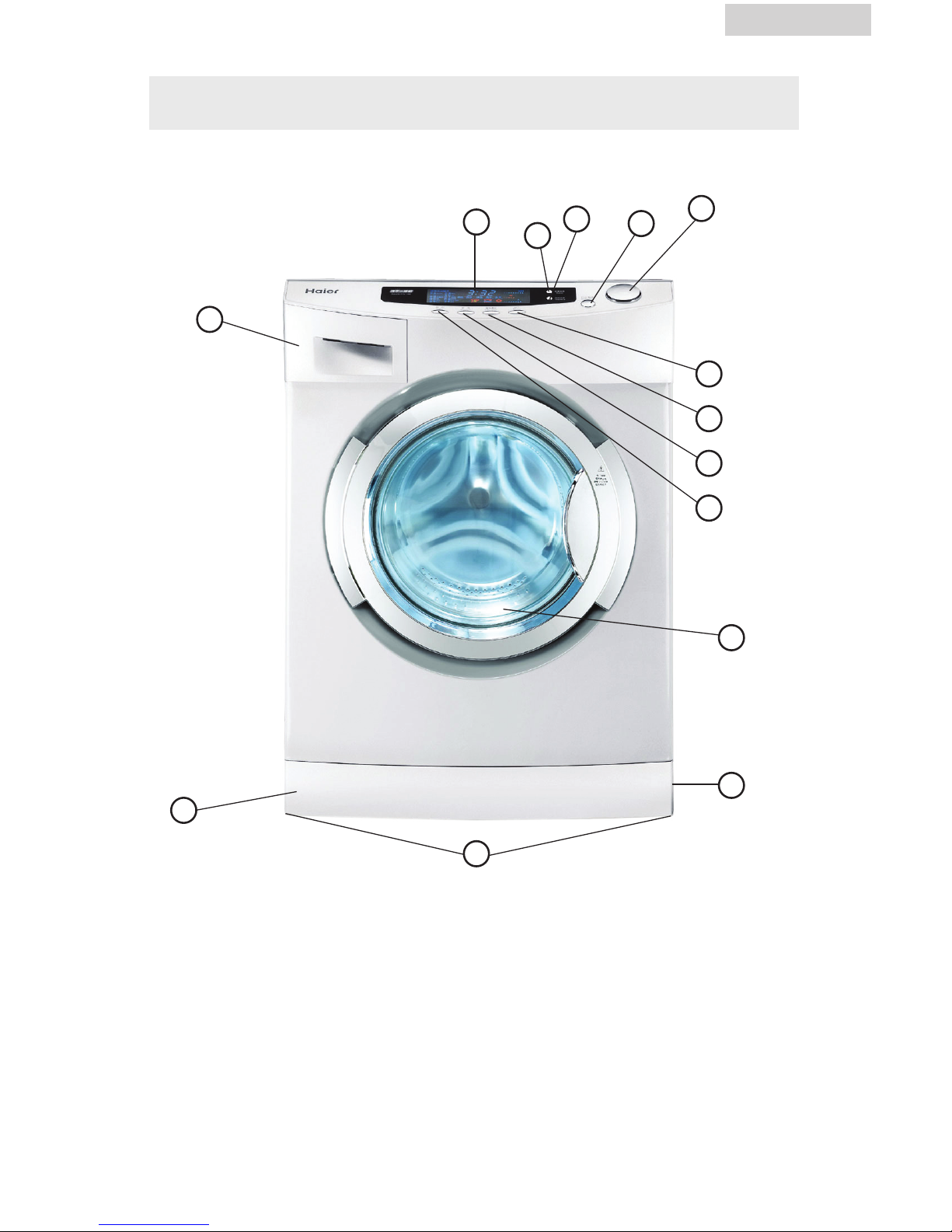

PARTS AND FEATURES

1. Cycle Selector Dial

2. Start/Pause Button

3. Dry Cycle Selector Button

4. Extra Rinse Selection Button

5. Prewash Function Button

6. Delay Button

7. Remaining Time Display

8. Spin Speed Selection Button

9. Temperature Selection Button

10. See Through Glass Window Door

11. Button Trap (not shown)

12. Front Adjustable Legs (not shown)

13. Detergent/Softener Dispenser

14. Removable Cover

789

Front

English

Back

PARTS AND FEATURES

1. Water Inlets (Hot/Cold)

2. Power Supply

(120V/60Hz, 15 Amps)

3. Drain Hose

4. Rear Adjustable Leveling Legs

(not shown)

5. Drainage Hose Clips (3)

6. Back Plate

7. Back Plate Screws (3)

8. Transportation Bolts (3)

9. Metal Bracket

English

INSTALLATION INSTRUCTIONS

Tools and Materials Required

You will need to have the following tools

to help you in the installation of your washer:

• Scissors • Tape Measure

• Standard Screwdriver • Gloves

• Pliers • Level

• Wrench

Accessories Supplied Quantity

1. Hot & Cold Water Inlet Hoses 2

2. Pressure Regulator 2

(Attached to Hot & Cold Water Inlet Hoses)

3. Flat Water Inlet Hose Washers 4

(Installed in each end of water inlet hoses)

4. Use & Care Guide (Not Shown) 1

5. Plastic Plugs to cover 3

transportation bolt holes

6. Drain hose support bracket 1

USER MANUAL

Warning – Risk of Fire

• Washer/Dryer Combo installation must be performed by a qualified installer.

• Install the Combo according to the manufacturer’s instructions and local codes.

• To reduce the risk of severe injury or death, follow all installation instructions.

• Save these instructions

English

Unpacking Your Appliance

• Remove all packing materials including transportation bolts.

• Inspect and remove any remains of packing, tape or printed materials before

using the washer.

• Transportation Bolts must be removed before using the machine. Once removed,

save them so when moving you can reinstall to protect the machine from damage

during shipping.

• Water inlet hoses and other accessories are packed and placed in the drum.

Transportation

Bolt

Transportation

Bolt

Transportation bolt
