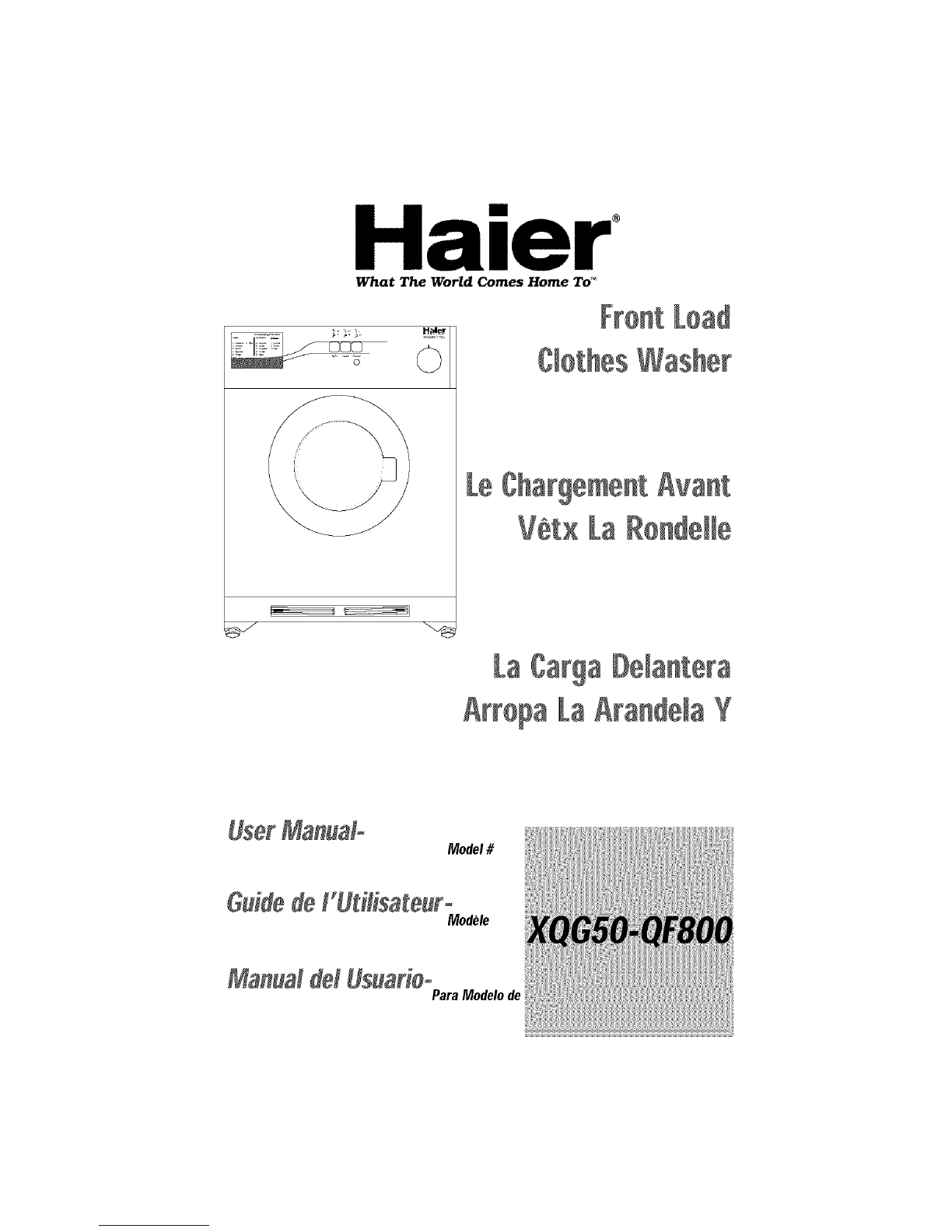

Haier XQG50-QF800 User manual

What The World Comes Home To _Front Load

e_othesWasher

LeChargementAvant

Vetx ILaRondeJle

LaCargaDelantera

Arropa ILaArandeJaY

UserManual- Model#

GuidedeFUtilisateuro

Modele

M,.u,! delUsuariOo

ParaModelode

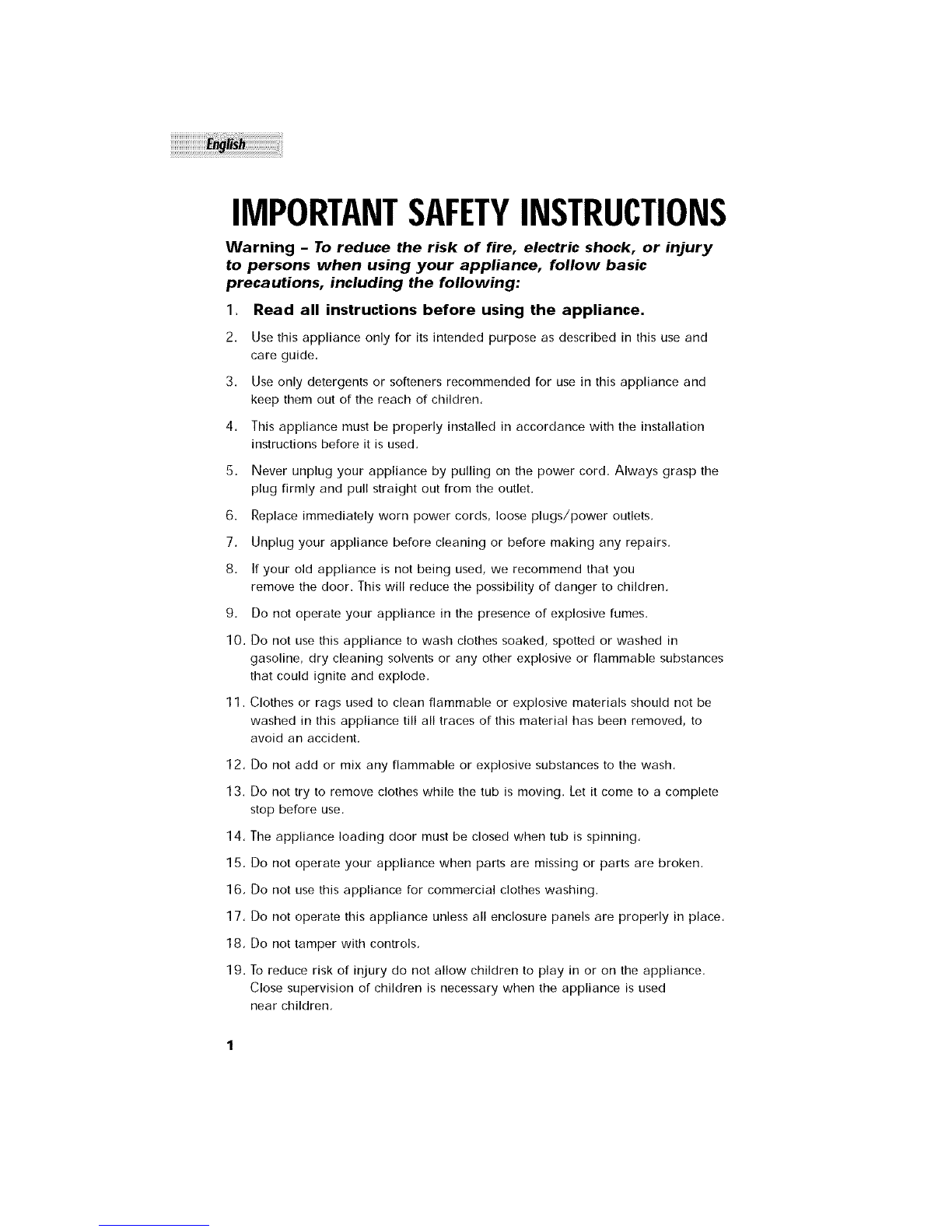

IMPORTANTSAFETYINSTRUCTIONS

Warning - To reduce the risk of fire, electric shock, or injury

to persons when using your appliance, follow basic

precautions, including the following:

1. Read all instructions before using the appliance.

2. Use this appliance only for its intended purpose as described in this use and

care guide,

3. Use only detergents or softeners recommended for use in this appliance and

keep them out of the reach of children,

4. This appliance must be properly installed in accordance with the installation

instructions before it is used,

5. Never unplug your appliance by pulling on the power cord. Always grasp the

plug firmly and pull straight out from the outlet.

6. Replace immediately worn power cords, loose plugs/power outlets,

7. Unplug your appliance before cleaning or before making any repairs.

8, If your old appliance is not being used, we recommend that you

remove the door. This will reduce the possibility of danger to children,

9, Do not operate your appliance in the presence of explosive fumes,

10, Do not use this appliance to wash clothes soaked, spotted or washed in

gasoline, dry cleaning solvents or any other explosive or flammable substances

that could ignite and explode,

11. Clothes or rags used to clean flammable or explosive materials should not be

washed in this appliance till all traces of this material has been removed, to

avoid an accident,

12, Do not add or mix any flammable or explosive substances to the wash,

13. Do not try to remove clothes while the tub is moving. Let it come to a complete

stop before use,

14, The appliance loading door must be closed when tub is spinning,

15, Do not operate your appliance when parts are missing or parts are broken.

16, Do not use this appliance for commercial clothes washing.

17, Do not operate this appliance unless all enclosure panels are properly in place,

18, Do not tamper with controls,

19. To reduce risk of injury do not allow children to play in or on the appliance.

Close supervision of children is necessary when the appliance is used

near children,

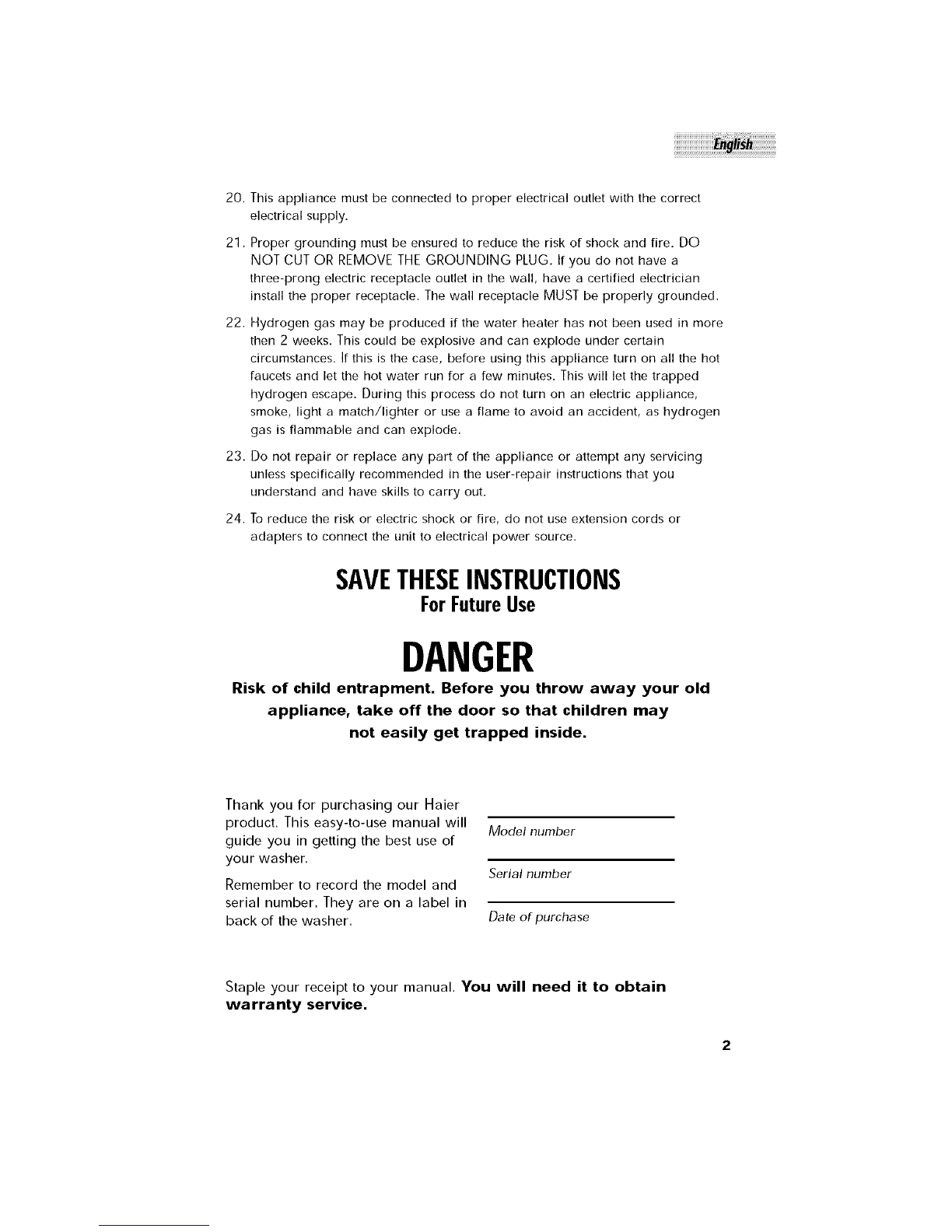

20.Thisappliancemustbeconnectedtoproperelectricaloutletwiththecorrect

electricalsupply.

21.Propergroundingmustbeensuredtoreducetheriskofshockandfire.DO

NOTCUTORREMOVETHEGROUNDINGPLUG,Ifyoudonothavea

three-prongelectricreceptacleoutletinthewall,haveacertifiedelectrician

installtheproperreceptacle.ThewallreceptacleMUSTbeproperlygrounded.

22.Hydrogengasmaybeproducedifthewaterheaterhasnotbeenusedinmore

then2weeks,Thiscouldbeexplosiveandcanexplodeundercertain

circumstances.Ifthisisthecase,beforeusingthisapplianceturnonallthehot

faucetsandletthehotwaterrunforafewminutes.Thiswillletthetrapped

hydrogenescape.Duringthisprocessdonotturnonanelectricappliance,

smoke,lightamatch/lighteroruseaflametoavoidanaccident,ashydrogen

gasisflammableandcanexplode,

23.Donotrepairorreplaceanypartoftheapplianceorattemptanyservicing

unlessspecificallyrecommendedintheuser-repairinstructionsthatyou

understandandhaveskillstocarryout.

24.Toreducetheriskorelectricshockorfire,donotuseextensioncordsor

adapterstoconnecttheunittoelectricalpowersource,

SAVETHESEINSTRUCTIONS

ForFutureUse

DANGER

Risk of child entrapment. Before you throw away your old

appliance, take off the door so that children may

not easily get trapped inside.

Thank you for purchasing our Haier

product. This easy-to-use manual will

guide you in getting the best use of

your washer.

Remember to record the model and

serial number. They are on a label in

back of the washer.

Model number

Serial number

Date of purchase

Staple your receipt to your manual. You will need it to obtain

warranty service.

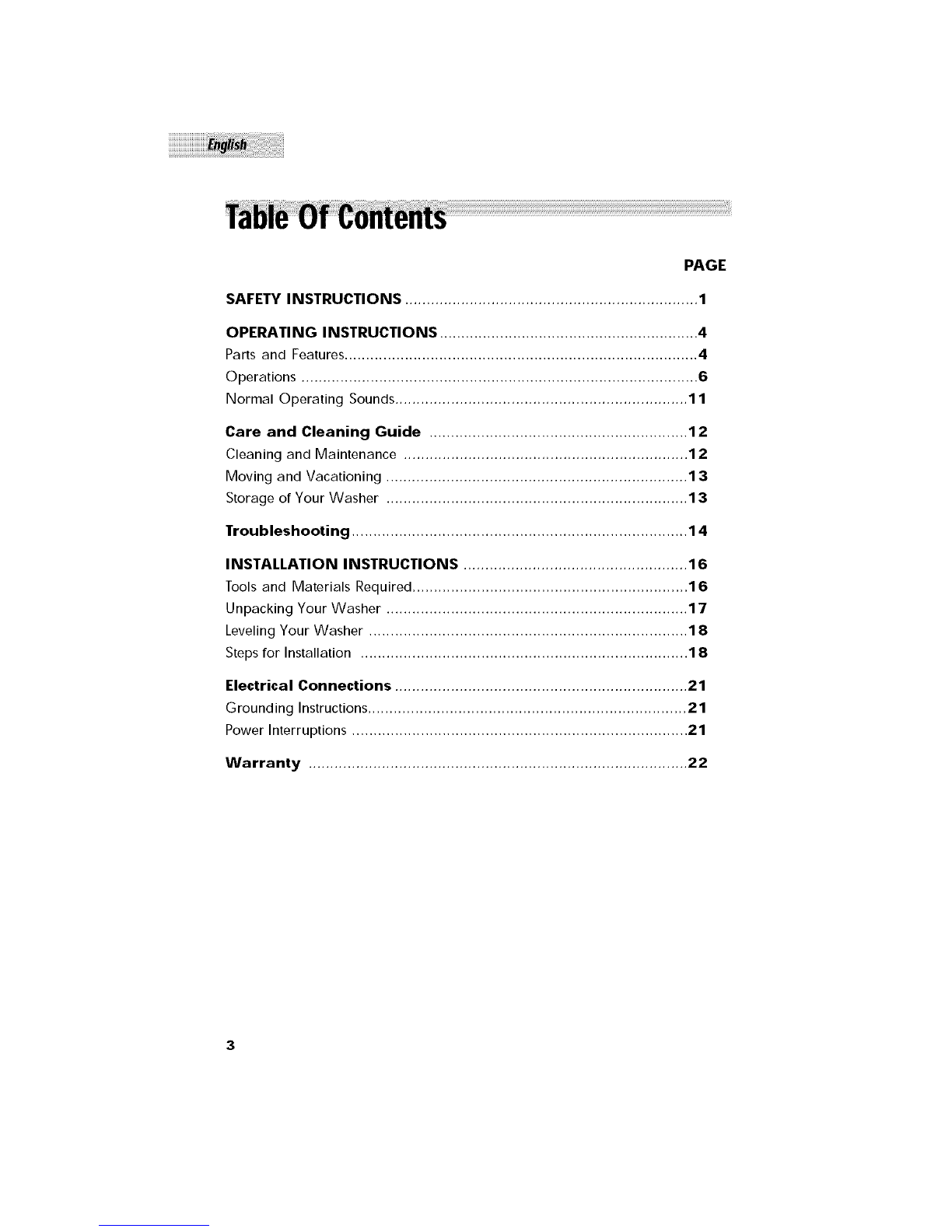

PAGE

SAFETY INSTRUCTIONS .................................................................... 1

OPERATING INSTRUCTIONS ............................................................4

Parts and Features..................................................................................4

Operations ............................................................................................ 6

Normal Operating Sounds .................................................................... 11

Care and Cleaning Guide ............................................................12

Cleaning and Maintenance .................................................................. 12

Moving and Vacationing ...................................................................... 13

Storage of Your Washer ...................................................................... 13

Troubleshooting .............................................................................. 14

INSTALLATION INSTRUCTIONS .................................................... 16

Tools and Materials Required ................................................................ 16

Unpacking Your Washer ...................................................................... 17

Leveling Your Washer .......................................................................... 18

Steps for Installation ............................................................................ 18

Electrical Connections .................................................................... 21

Grounding Instructions.......................................................................... 21

Power Interruptions .............................................................................. 21

Warranty ........................................................................................ 22

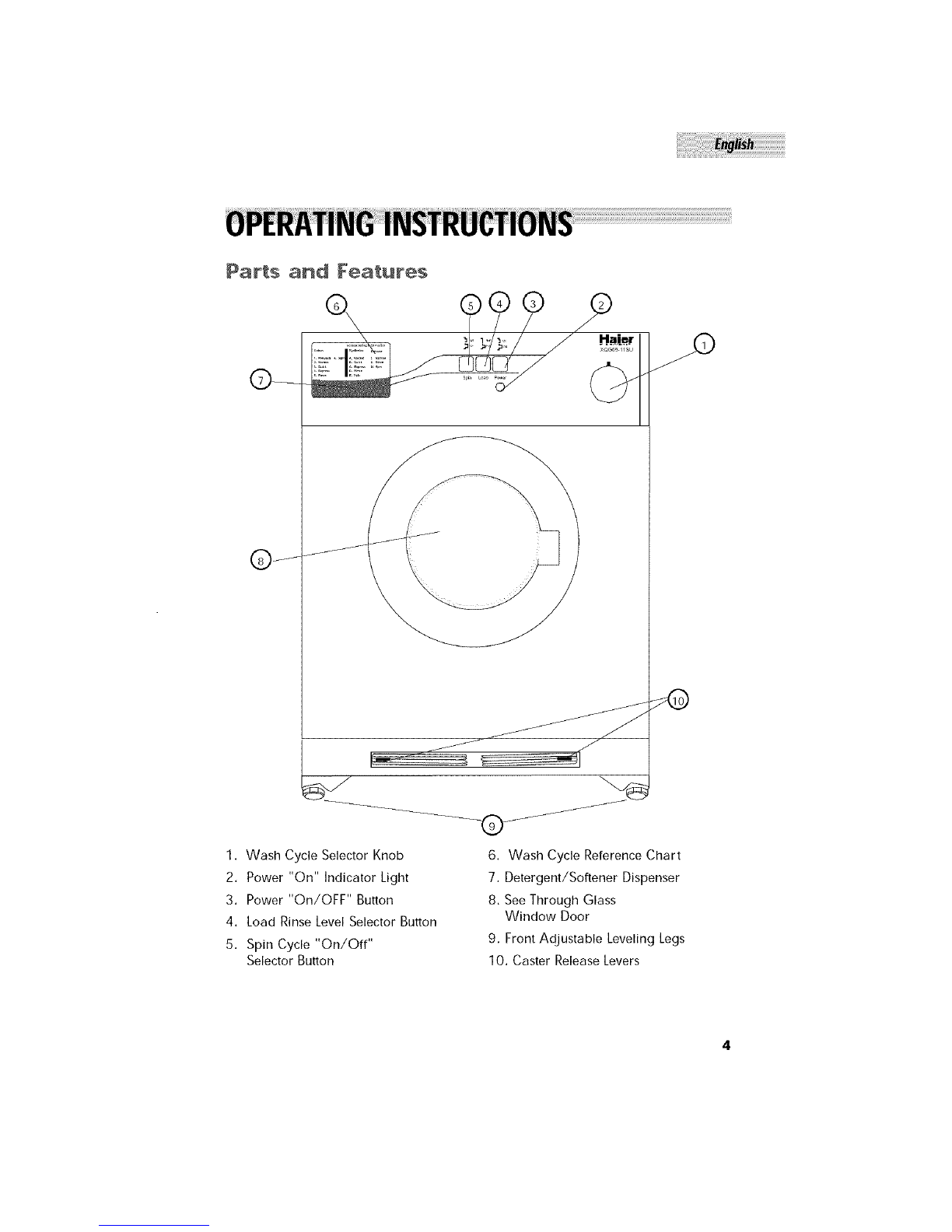

Parts and Features

1. Wash Cycle Selector Knob

2, Power "On" Indicator Light

3. Power "On/OFF" Button

4, Load Rinse Level Selector Button

5. Spin Cycle "On/Off"

Selector Button

6. Wash Cycle Reference Chart

7. Detergent/Softener Dispenser

8, See Through Glass

Window Door

9. Front Adjustable Leveling Legs

10. Caster Release Levers

riim \

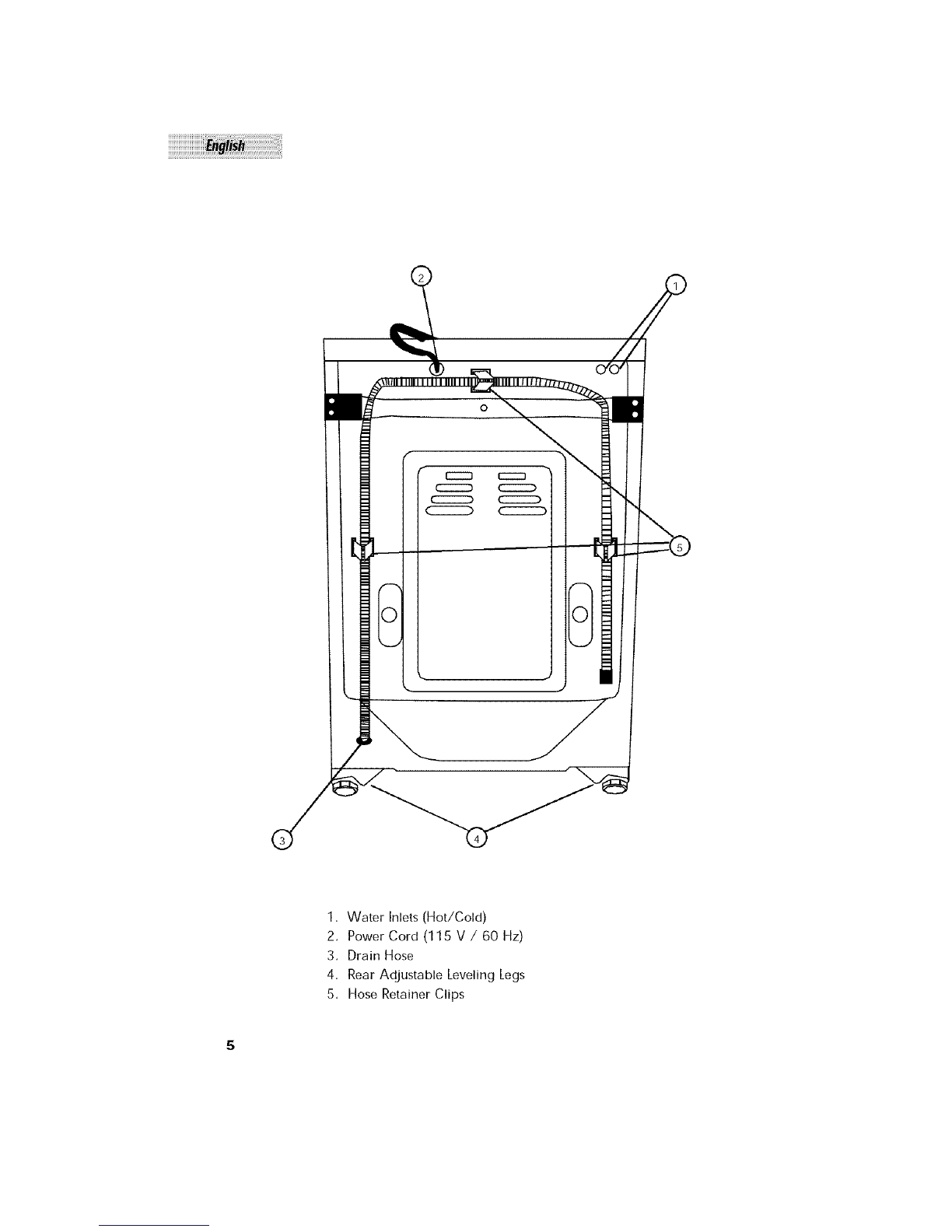

1. Water Inlets (Hot/Cold)

2. Power Cord (115 V /60 Hz)

3. Drain Hose

4. Rear Adjustable leveling legs

5. Hose Retainer Clips

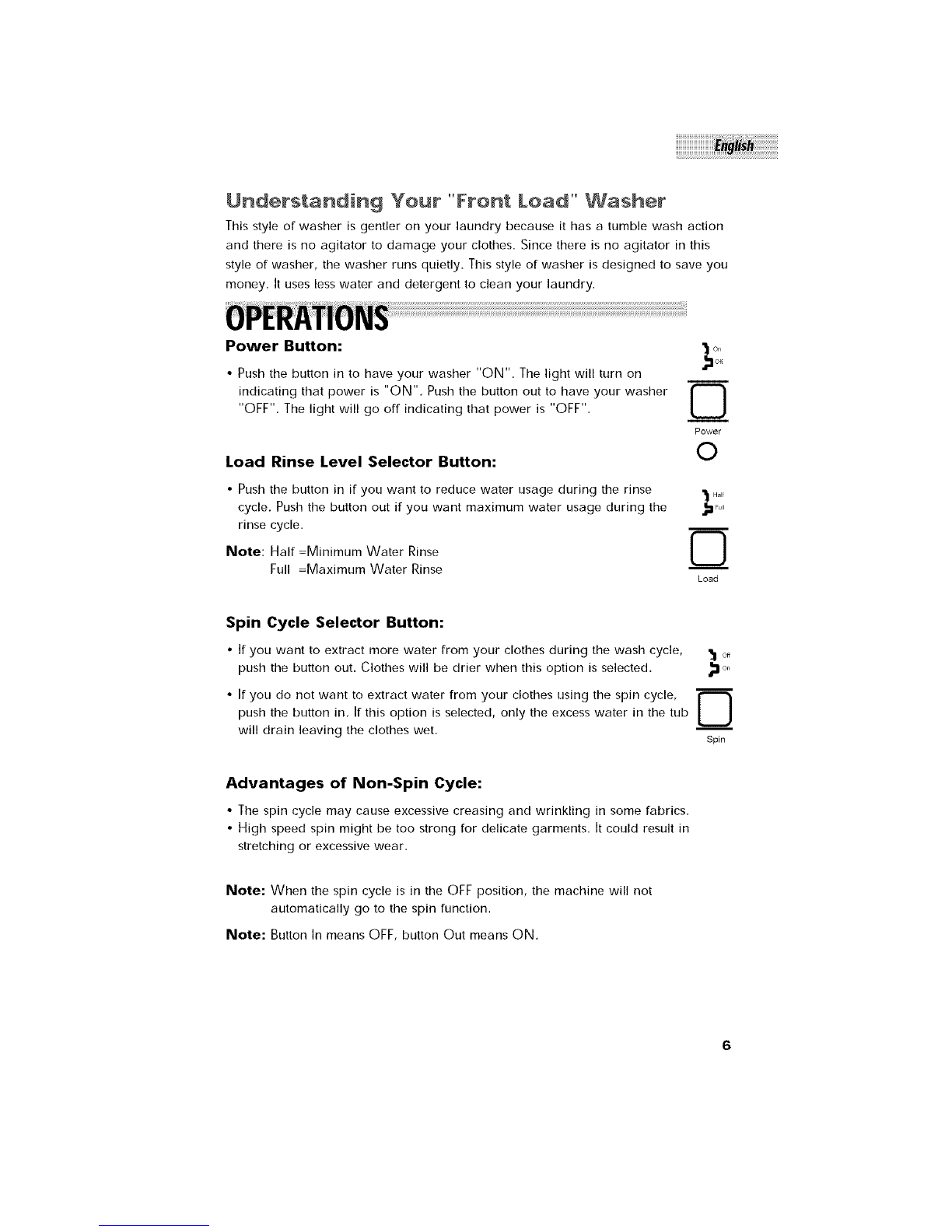

Understanding Your "Front Load" Washer

This style of washer is gentler on your laundry because it has a tumble wash action

and there is no agitator to damage your clothes. Since there is no agitator in this

style of washer, the washer runs quietly. This style of washer is designed to save you

money. It uses less water and detergent to clean your laundry.

Power Button:

• Push the button in to have your washer "ON". The light will turn on

indicating that power is "ON", Push the button out to have your washer

"OFF", The light will go off indicating that power is "OFF",

Load Rinse Level Selector Button:

0noff

Power

• Push the button in if you want to reduce water usage during the rinse _Haf

cycle, Push the button out if you want maximum water usage during the _,_F_,

rinse cycle,

Note: Half =Minimum Water Rinse I I

Full =Maximum Water Rinse Load

Spin Cycle Selector Button:

• If you want to extract more water from your clothes during the wash cycle, '_1o,

push the button out. Clothes will be drier when this option is selected, ,_oo

• if you do not want to extract water from your clothes using the spin cycle,

push the button in, if this option is selected, only the excess water in the tub U

will drain leaving the clothes wet, Spin

Advantages of Non-Spin Cycle:

• The spin cycle may cause excessive creasing and wrinkling in some fabrics,

• High speed spin might be too strong for delicate garments. It could result in

stretching or excessive wear.

Note: When the spin cycle is in the OFF position, the machine will not

automatically go to the spin function,

Note: Button In means OFF, button Out means ON,

Note: If you want to open the door in the middle of the cycle to add or remove

clothes, push the button to OFF position. To resume the cycle at that point,

simply close the door and push the power button to ON position,

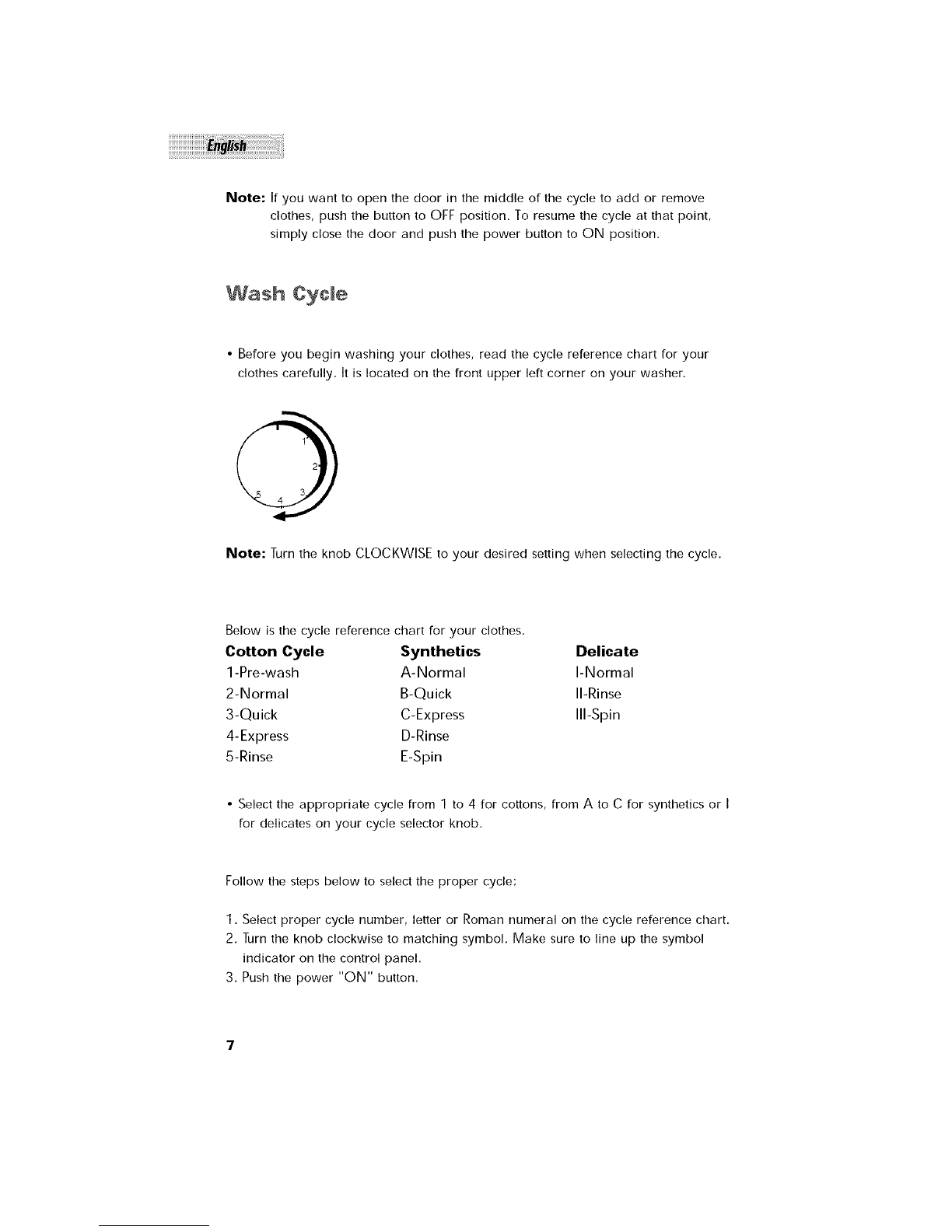

Wash Oye e

• Before you begin washing your clothes, read the cycle reference chart for your

clothes carefully, It is located on the front upper left corner on your washer.

Note: Turn the knob CLOCKWISE to your desired setting when selecting the cycle,

Below is the cycle reference chart for your clothes,

Cotton Cycle Synthetics

1-Pre-wash A-Normal

2-Normal B-Quick

3-Quick C-Express

4-Express D-Rinse

5-Rinse E-Spin

Delicate

I-Normal

II-Rinse

Ill-Spin

• Select the appropriate cycle from 1 to 4 for cottons, from A to C for synthetics or I

for delicates on your cycle selector knob,

Follow the steps below to select the proper cycle:

1. Select proper cycle number, letter or Roman numeral on the cycle reference chart,

2. Turn the knob clockwise to matching symbol, Make sure to line up the symbol

indicator on the control panel.

3. Push the power "ON" button.

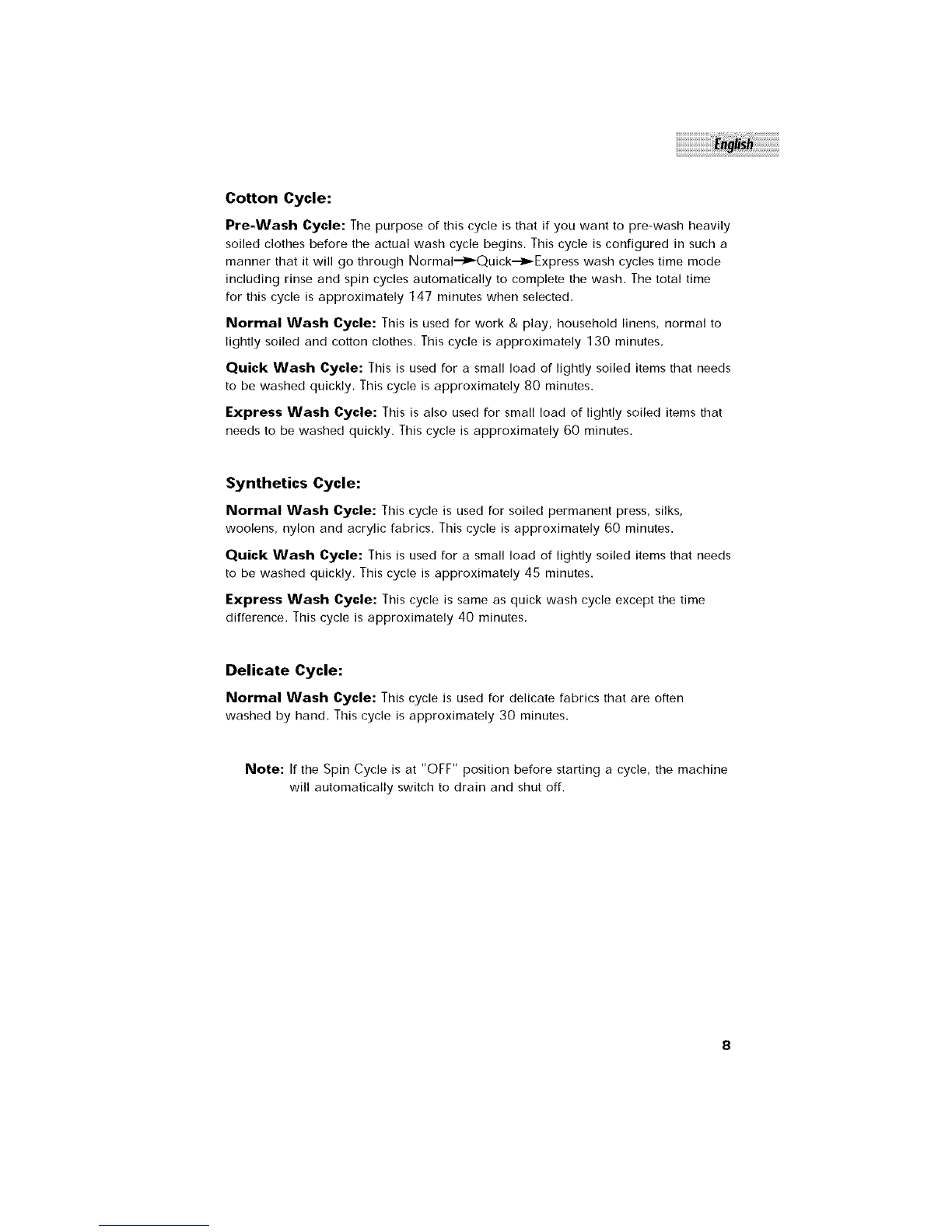

Cotton Cycle:

Pre-Wash Cycle: The purpose of this cycle is that if you want to pre-wash heavily

soiled clothes before the actual wash cycle begins, This cycle is configured in such a

manner that it will go through Normal'-_Quick--_Express wash cycles time mode

including rinse and spin cycles automatically to complete the wash. The total time

for this cycle is approximately 147 minutes when selected,

Normal Wash Cycle: This is used for work &play, household linens, normal to

lightly soiled and cotton clothes. This cycle is approximately 130 minutes,

Quick Wash Cycle: This is used for a small load of lightly soiled items that needs

to be washed quickly. This cycle is approximately 80 minutes.

Express Wash Cycle: This is also used for small load of lightly soiled items that

needs to be washed quickly. This cycle is approximately 60 minutes,

Synthetics Cycle:

Normal Wash Cycle: This cycle is used for soiled permanent press, silks,

woolens, nylon and acrylic fabrics. This cycle is approximately 60 minutes.

Quick Wash Cycle: This is used for a small load of lightly soiled items that needs

to be washed quickly, This cycle is approximately 45 minutes.

Express Wash Cycle: This cycle is same as quick wash cycle except the time

difference. This cycle is approximately 40 minutes,

Delicate Cycle:

Normal Wash Cycle: This cycle is used for delicate fabrics that are often

washed by hand. This cycle is approximately 30 minutes.

Note: If the Spin Cycle is at "OFF" position before starting a cycle, the machine

will automatically switch to drain and shut off.

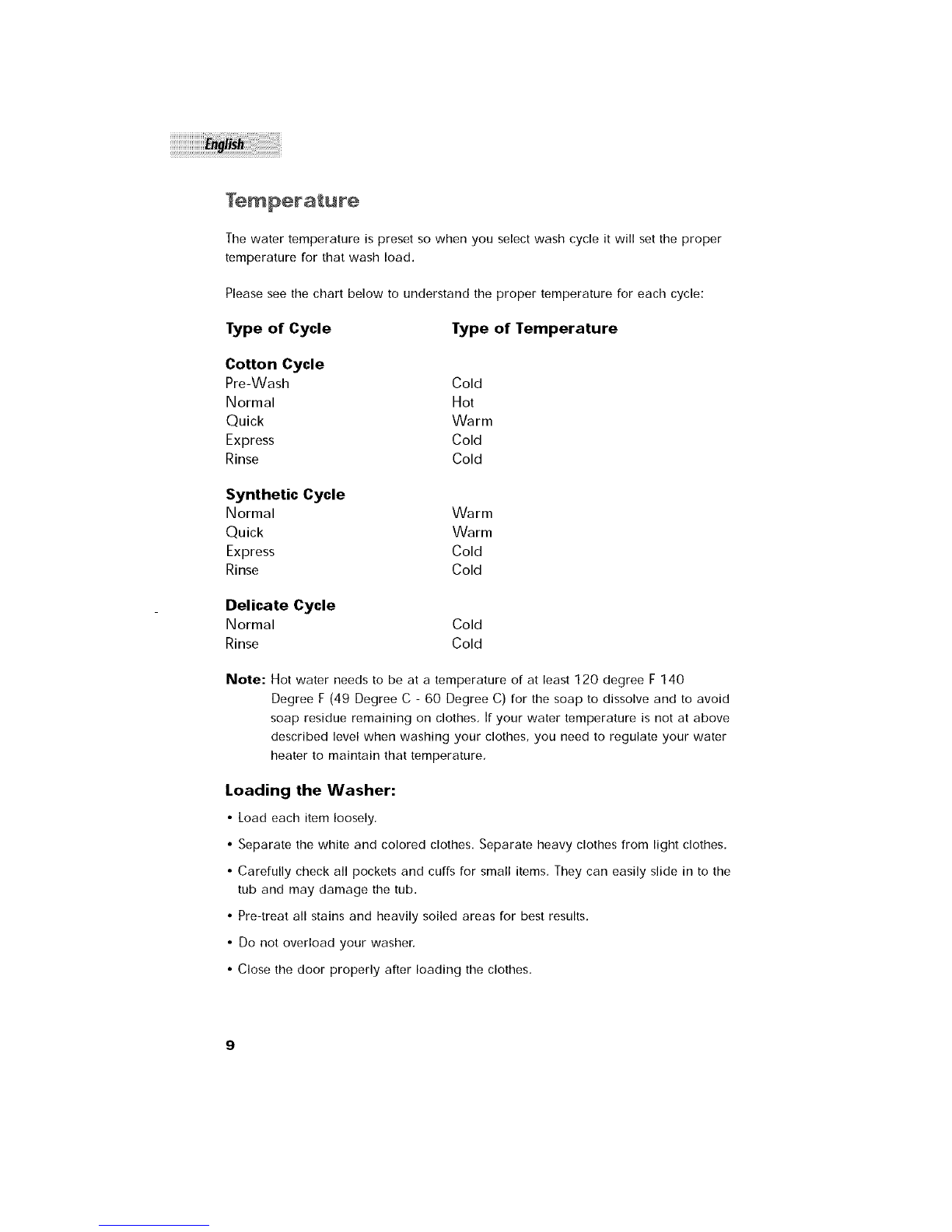

Temperature

The water temperature is preset so when you select wash cycle it will set the proper

temperature for that wash load,

Please see the chart below to understand the proper temperature for each cycle:

Type of Cycle Type of Temperature

Cotton Cycle

Pre-Wash Cold

Normal Hot

Quick Warm

Express Cold

Rinse Cold

Synthetic Cycle

Normal Warm

Quick Warm

Express Cold

Rinse Cold

Delicate Cycle

Normal Cold

Rinse Cold

Note: Hot water needs to be at a temperature of at least 120 degree F 140

Degree F (49 Degree C - 60 Degree C) for the soap to dissolve and to avoid

soap residue remaining on clothes, If your water temperature is not at above

described level when washing your clothes, you need to regulate your water

heater to maintain that temperature,

Loading the Washer:

• Load each item loosely,

• Separate the white and colored clothes. Separate heavy clothes from light clothes,

• Carefully check all pockets and cuffs for small items, They can easily slide in to the

tub and may damage the tub.

• Pre-treat all stains and heavily soiled areas for best results,

• Do not overload your washer.

• Close the door properly after loading the clothes.

Other manuals for XQG50-QF800

Table of contents

Languages:

Other Haier Washer manuals

Haier

Haier HWM60-10 User manual

Haier

Haier HWM-7.5 Configuration guide

Haier

Haier HWS60-12F2S User manual

Haier

Haier HWM50-10 User manual

Haier

Haier HN500TX User manual

Haier

Haier 50FREE-1 User manual

Haier

Haier HW-E1070TVE User manual

Haier

Haier HWM15-0501 User manual

Haier

Haier HW90-B14636 User manual

Haier

Haier HWD1000 - 1.7 cu. Ft. Washer/Dryer Combo User manual

Haier

Haier HWM65-918P User manual

Haier

Haier HWM110-0713S User manual

Haier

Haier HW-C1060TVE User manual

Haier

Haier HLP21E - Pulsator Wash With Tub User manual

Haier

Haier SBM600T User manual

Haier

Haier RWT350AW User manual

Haier

Haier HWMP60-118 User manual

Haier

Haier HW120-B14686-F User manual

Haier

Haier HW90-B14636 User manual

Haier

Haier HNS1460TVE-FD User manual

Haier

Haier HA1000TE User manual

Haier

Haier HWM75-1279 User manual

Haier

Haier HW60-1211N User manual

Haier

Haier HWM45-10B User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
