1
HAIER
WASHING MACHINE
Service Manual
PART # WD-8888-83
HAIER AMERICA TRADING, LLC
www.haieramerica.com
Service Manual
Haier Group
HLT20E(United States)
LAH1212(Mexico)
LAH1214(Mexico)
Special No.: SMXQJ100-96-02 Edition: 2004-05-18
Full automatic agitating washer
XQJ100-96
Features
Magical lint Filter
Single-directional agitator
Spray spin soak+wash
Front arranged door, convenient for users
Four adjustable feet
Cold & hot water inlet selection
Mechanical control
Drain up
1. Contents 1
2. 1
3.
4. Specifications
5.
6. 6
7. Net dimension 7
8. 7
9. Parts and functions 9
10. Maintenance service and trouble shooting 10
11. Wiring diagram 14
12. Exploded view 15
13. List of parts 17
Product code illumination and series introduction
Features 2
3
Safety precautions 5
Warning and cautions
Installation and accessory parts
1
CONTENTS
2
FEATURES
Magical lint filter
this model abides the used design method of filter lint and adopts unique magical
lint filter technology, cleaning away your lint stealthily .
Spray spin
Five-step Cold & warm water inlet selection
Soak function
Drain up function
Cabinet with the door open in the front:
It adopts the American local design , and the door which can be opened in the front
is easy to repair.
Zincking steel cabinet
the linear pure-white outlook is simple and clean.
Super capacity for more clothes
Mechanical control, operate easily.
Special structure agitator, produce welter current, wash equably and twist-free.
SPECIFICATIONS
3
Model HLT20E
(United States)
LAH1212
(Mexico)
LAH1214
(Mexico)
Features for use
Wash capacity kg 10.0 10.0 10.0
Spin capacity kg 10.0 10.0 10.0
Level/Volume L95/72/51 95/72/51 95/72/51
Residual dampness %100 100 100
Control model
controller
Normal computerized ×××
Fuzzy computerized × × ×
Frequency conversion ×××
Service features
Programs 4--
Short cycle × × ×
Inlet heating select
Heating selection ×××
Spinning cycle (selector) 500/700 500/700 500/700
Spinning cycle (variable) ---
Start/Pause ×××
Automatic balancing ×××
Aesthetics
Cabinet material P=Plastic /Z=Zincking/C =Cold ) ZZZ
Rolled stainless steel
Inner drum (stainl. steel=s / plastic=p) sss
Drain type drain up drain up drain up
Door (glass=g / plastic=p) ×××
Adjustable feet
Technical data
Voltage/frequency V/Hz 120V/60Hz 120V/60Hz 120V/60Hz
Wash power W800 800 800
Spin power W780 780 780
Special function
Air-Bubble ×××
Feet wheel ×××
Water fall current ×××
Dimensions (measurements)
Height / built under mm 1115 1115 1115
Width mm 686 686 686
Depth / with open door mm 686 686 686
Net weight kg 73 73 73
NOTES: " " FOR AVALIABLE, "×" FOR NOT AVALIABLE “-”FOR NOT BE APPLICABLE
5
SAFETY PRECAUTIONS
If the power cord is bad, to avoid risk it is required to replace it by the technicians
of our special shop or the after-sale service department. Keep the pin of the power
plug clean.
Do not share one receptacle with other
electric appliances. Do not use it in
case that the power plug is damaged
or the inserting into the receptacle is
loose.
Earth
Do not wash water-proof laundries such
as the raincoat, bicycle shelter etc. To
avoid abnormal vibration during spinning.
If the power cord is bad, to avoid risk it is required to replace it by the technicians
of our special shop or the after-sale service department. Keep the pin of the power
plug clean.
Be sure to earth the earthing wire reliably. When the machine is normally using, please
put the power plug at the location easily to
be inserted and extracted by hand. Be sure
to pull the plug off when there'spower failure,
or the machine is being moved, cleaned or
when it is idle.
Do not put the machine at damp place like
the bathroom. Never wash it with water.
Do not let the machine share one receptacle
with other electric appliances. If the power
plug is damaged, or the plugging into the
receptacle is loose, do not use the plug any
more.
Do not install or store the washer where
it will be exposed to the weather.
6
WARNING AND CAUTIONS
Do not decompose, repair or alter the
machine by yourself.
Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.
Do not put any hot or heavy items (such
as the kettle with hot water ) on the
washing machine.
The handicapped or children without
care shall not use the machine.
Under certain conditions, hydrogen gas may be produced in a hot water system that has
not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water
has not been used for such a period, before using the washing machine, turn on all hot
faucets and let the water flow from each for several minutes.
This will release any accumulated hydrogen gas. As the gas
is flammable, do not smoke or use an open flame during this time.
Keep the machine away from direct
sunlight and heat source like the heater.
Do not wash articles that have been
previously cleaned in, washed in, soaked
in, or spotted with gasoline, dry-cleaning
solvents, other flammable, or explosive
substances as they give off vapors that
could ignite or explode. Do not add
gasoline, dry-cleaning solvents, or other
flammable, or explosive substances to
the wash water. These substances give
off vapors that could ignite or explode.
Petrol
Thinner
Unit mm
Figure 1
NET DIMENSION
INSTALLATION AND ACCESSORY PARTS
7
686
686
1115
The largest allowed slope of the shank base of the machine is 2 . The slanting or rough ground will
result in unstable running or stoppage of the machine. Please adjust it with following methods:
Confirm it's horizontal
Hang the plumb to confirm it's horizontal.
Adjust the adjustable feet
1) To twist the adjustable foot, please first lift up
the side of the foot slightly, and twist the foot.
2) Fasten the nut after adjustment.
Adjust the Installation position
High Low
Adjustable foot
<2
Install the drain hose
Outer drain hose
component Drain hose hook
Drain hose joint
Drain hose clamp
First install the drain hose hook on the parts of
outer drain hose component.
Put the drain hose clamp on the outer drain hose,
insert the outer drain hose into the joint for it, and
then clutch tightly with drain hose clamp.
Please install and adjust the machine according to the requirement of the manual.
It is very important to your security and correct operating the machine.
8
INSTALLATION AND ACCESSORY PARTS
Usage the drain hose
Hang the outer drain hose on the proper place
before washing( do not use it toppled down
on the ground).
Attend that the outlet of drain hose shall be higher
than the water level in washtub to avoid siphon
phenomenon.
<1.2m
Connect the water inlet hoses
Figure 4
Figure 3
Figure 2
C
H
1. Insert a new flat washer into each end of the inlet hoses. Firmly seat the washers
in the coupling. ( As figure 2)
2. ttach the water inlet hoses to the hot water faucet and the cold water
faucet. Using pliers, tighten the coupling. ( As figure 3)
NOTE: Do not over tighten. Damage to the valves can result.
Respectively a
5. Check for leaks
(1). Swing the water inlet hose gently to confirm if it is suitable.
(2). Turn on the water faucets and check for leaks. A small amount of water might
enter the washers. You will drain this later.
3. Run water through both faucets and inlet hoses, into a bucket or laundry tub, to get
rid of particles in the water lines that might clog the inlet valves screens.
4. Attach the hose connected with hot water faucet to the HOT water inlet valve(sign
with "H'). Attach the hose connected with cold water faucet to the COLD water
valve(sign with C).
( As figure 4)
NOTE: Do not over-tighten. Damage to the valves can result.

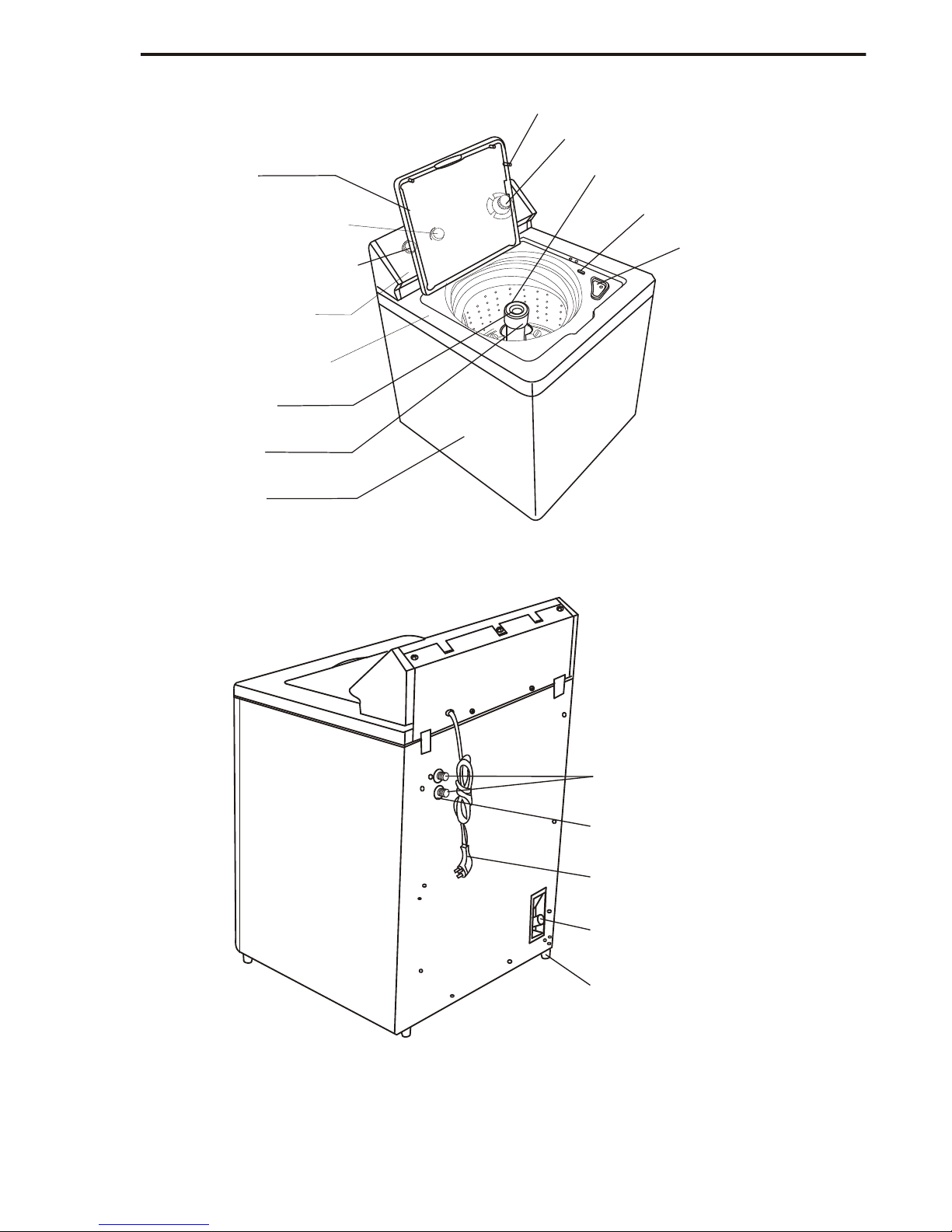

PARTS AND FUNTIONS
9
Program selector
Softener injection inlet
Bleach injection inlet
Cabinet
Control panel
Control panel seat
Inner tub
Top lid
Water level knob
Temperature knob
Control foot of door switch
Agitator
Adjustable foot
(four pieces)
Power line
Water inlet valve
Water absorption
cushion
Drain hose joint
Door switch
