Haier HWM55-10 User manual

Full Automatic Washing Machine

with Pump

This manual is for

Please read this manual

carefully before using.

Retain it for future reference.

HWM55-10

User's manual

0030806972C

Contents

Names of the parts................................................................................................1

Safety precautions ................................................................................................2

Installation and adjustment ...................................................................................4

Preparation before washing .................................................................................7

Put in the laundries ..............................................................................................8

Usage of the detergent ........................................................................................8

Use the operation buttons ..................................................................................9

Close the top lid .................................................................................................13

Finish washing ....................................................................................................13

Disposal after washing .......................................................................................14

Trouble shooting Answer to question............................................................15

Packing list *Specifications................................................................................................16

Meaning and description of the symbols

Names of the parts

Warning sign

Forbidden sign

Contents marked with that symbol are related to the

safety of the product and the personal safety of the

users. Please operate in strict conformity to the contents,

otherwise it may cause damage of the machine or

injure the personal safety of the user.

Contents marked with that symbol are actions forbidden

to perform. Performing of those actions may result

in damage of the machine or injure the personal

safety of the user.

Adjustable foot

Fixed foot (3)

ack cover

Cabinet

ase frame

Drain hose

Control panel film

Control panel

Filter cover

Pulsator

Inner tub

Detergent box

Top lid B

Cabinet handle

Water valve

Top lid A

Lint filter

(Installed by user)

Water absorption cushion

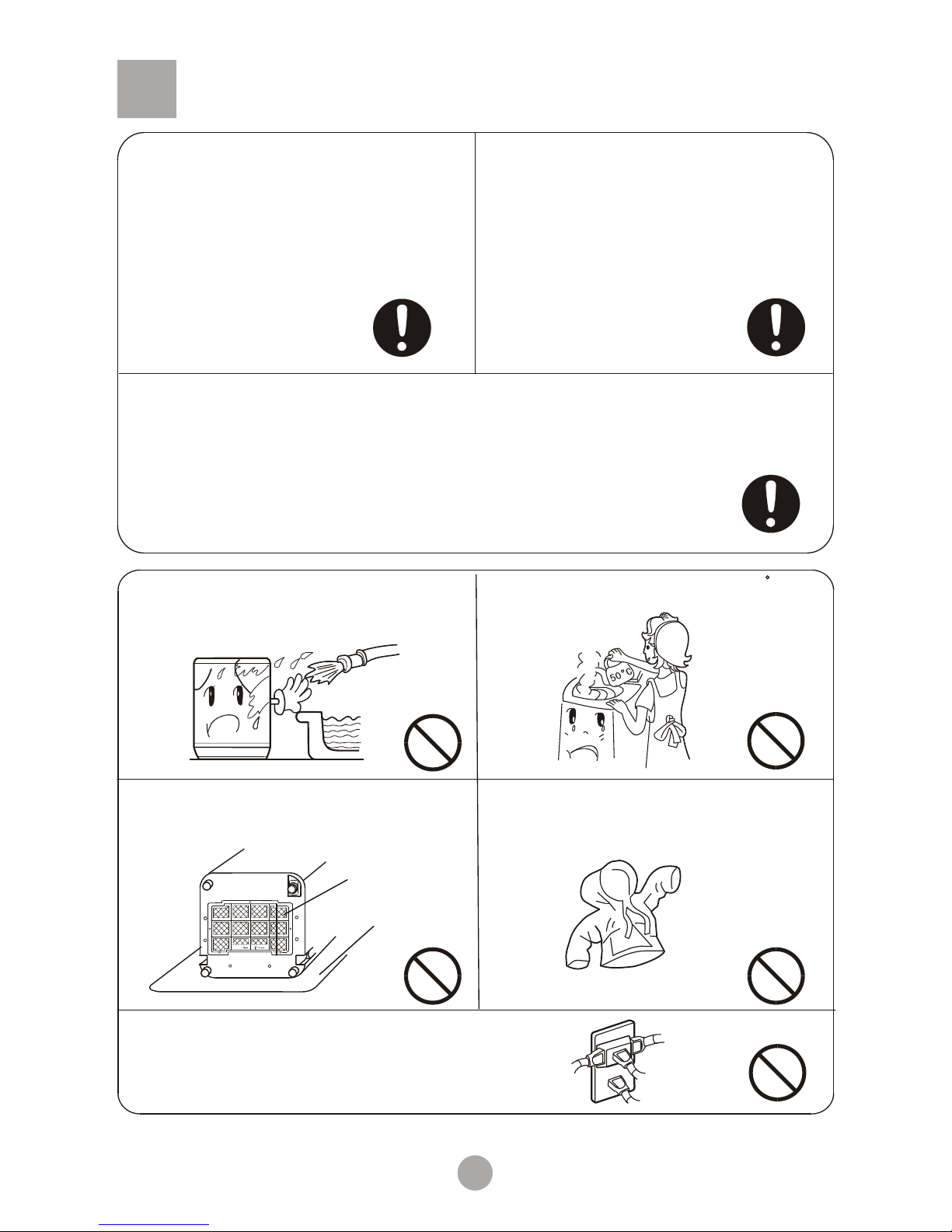

Safety precautions

Do not damage the power cord, bend , extend, twist, bind or alter it by force.

Do not press or nip it with weight. If the power cord or the power plug is bad,

or the power plug becomes flexible, to avoid risk it is required to have it replaced

by the technicians of our special shop or the after-sale service department.

Keep the pin of the power plug clean, if the power plug is polluted

with dust, please wipe with dry cloth carefully.

The power cord plug should be convenient

to be pluged in or pluged out with hand

while the washing machine runs normally.

Be sure to pull the plug out and close the

water tap when the machine is idle, when

moving the machine, or when cleaning

the machine. Do not use wet hand to ins-

ert or pull out the power plug.

In case the washing machine is installed

on ground with carpet, do not block the

ventilation hole with carpet.

Do not let the machine share one receptacle with other

electric appliances. If the power plug is damaged, or

the plugging into the receptacle is loose,

do not use the plug any more.

Do not wash water-proof laundries like

the raincoat, bike covers etc. to avoid

abnormal vibrations in spinning.

Do not use water hotter above 50 C .

soft items

The ventilation holes

at the bottom

Do not put the machine at damp place like

the bathroom. Never wash it with water.

Not put wet laundries on the control panel.

Please plug the plug on special receptacle

with rated voltage. Be sure to use single-

phase three pins receptacle. Ensure the

earthing prong of the power receptacle is

earthed reliably. Use leakage protector if

possible.

Safety precautions

Do not decompose, repair or alter the

machine by yourself.

Do not put any hot or heavy items (such

as the kettle with hot water ) on the

washing machine.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.)

The handicapped or children without

care shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the heater.

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children. Do not let the children

climb the washing machine.

Petrol

Thinner

Dismantle Install

To prevent the lint inside the tub from blocking

the cascade outlet during washing, please

keep the lint filter in good condition, and

install it to proper position. If the lint filter

is lost or damaged, please contact the local

after-sales service department of our company.

Toprotect your laundries and wash-

ing machine, please take out all of the

coins, buttons, sand, hairpin and

other foreign materials before washing.

Please check if the water faucet is open,

and if the connection of the water inlet

pipe is proper.

It is suggested to use foamless washing

powder.

Installation and adjustment

The largest allowed slope of the

shank base of the machine is 2 .

The slanting or rough ground will

result in unstable running or

stoppage of the machine. Please

adjust it with following methods:

Adjust the adjustable foot:

Install the bottom plate

After you open the package, please lean

the washing machine gently down on soft

items ( like the towel cloth, blanket, etc. ).

Install the bottom plate to the bottom of the

machine with the eight screws by a cross

screwdriver, then lift the machine up gently.

See to the figure:

Adjust the installation position

Please install and adjust the machine according to the requirement of the manual.

It is very important to your security and correct operating the machine.

Push the lint filter downward to

location for lint filter.

1.To twist the adjustable foot, please

first lift up the side of the foot slightly,

loosen the adjustable nut, and twist

the foot.

2.Fasten the nut after adjustment.

Loosen Fasten

High Low

adjustable nut

adjustable foot

Install the lint filter

Back

Front

Bottom plate

Screw

Soft items

How to change the direction of the drain hose

Usage of the drain hose

The drainage shall be smooth with the drain hose

1.Put the drain hose up to suitable position.

Do not put it on ground.

Notes: the mouth of drain pipe should higher

than the water level of washing tub for

avoiding to siphon phenomenon during

drain.

Do not tramp or press the drain hose.

Mouth of

drain hose

<1.2m

0.7m<H

1Dismount the back cover of the

washing machine.

3 protrude the drain hose from the hole

on the right side of the bottom, and fast

it onto the bottom with the rack and screws.

Set the bracket on the drain hose .There

is a hole on the cabinet to hang the drain

hose (as figure 3).

2Take off the drain hose frame. Put

down the drain hose. Take off the

drain hose rack. As indicated in

Figure 1 Pull the drain hose into the

cabinet from the left side of the bottom

(as figure 2).

Figure 1

Figure 2

4 install the back cover as what it looks

before.

Drain hose rack Figure 3

Install the water inlet hose

1. Attach the water inlet hoses to the water faucet. Using pliers, tighten

the coupling. ( As figure 1)

NOTE: Do not over tighten. Damage to the valves can result.

2. Connect the other ends to the water inlet valve .

( As figure 2)

Figure 1 Water absorption cushion

Jointer of the water inlet hose

Jointer of the

water inlet valve

Figure 2

1.Swaying the hose gently to confirm if it is fastened

stable.

2.After installation, open the tap to check if it leaks.

3.Do not bend the hose with overstrain.

4.Before each usage please check if the connection

between the water inlet hose and the water tap is firm,

so as to prevent dropping from improve Installation

position.

1.After using, Close the water tap.

2. Pull off the water inlet hose from the water tap and washer

Take down the water inlet hose

Check the connection between the jointer of

the water inlet hose and the water tap

Preparation before washing

Confirm if

there's special

requirment for

the laundries.

Clear the pocket.

Take out the

coins , sand,

hairpins etc.

Fasten the

buttons and

zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

Preparation before washing

1.Connect the water inlet hose and open

the water tap .

2.Confirm that the washing machine is

earthed reliably . Then insert the power

plug into the receptacle. Do not connect

the earth terminal to the gas pipe and

tap water pipe.

3.Hang up the drain hose.

The quantity of

the laundries

shall not exceed

the rated value.

The big laundries

like the jeans

shall be put in

loosely.

Pay attention to followings before washing the laundries

a.Please check if the laundries are applicable for washing.

b.Separate those not colorfast from other laundries.

c.For laundries not water absorbing, please put them into water with hands.

d.For laundries with much soil, please remove the soil first. You can add detergent on the

part with serious soil directly. It is much easier to remove the soil by that mean.

e.For laundries likely to get lint ball or with long fiber, please first turn the inside out before

putting them into the water.

f.Do not put the laundries polluted with chemicals directly into the washing machine.

g.For those small laundries ,laundries likely to be twisted or worn, and woolen laundries,

please put them into mesh bag before washing.

4.Slanting or uneven ground may result in

unstable working or abnormal noise. Please

make the machine stand horizontally.

The capacity of washing and spinning of the

machine refer to the largest weight of the

standard laundries under dry condition that

can be washed or spinned in onetime. One

time washing quantity shall be lower than the

rated capacity.

The thickness, size, type ofthe cloth will inf-

luence the actual washing capacity. It is sui-

table for one time washing to put in reasona-

ble amount of laundries and the laundries can

be turned round in washing.

Do not select high water level for laundries

less than 1.0kg, so as to avoid splashing of

water.

Towash thin laundries like the stocking, silk

etc., please first put them into washing mesh

bag (which can be purchased separately)

before wash.

Put in the laundries

How to usethe whitener

Fill water todecided level. Dilute

the whitener with container. Pour

it slowly into the washing tub.

Avoid using whitener on

laundries with color or pattern as

they are prone to lose color.

The whitener shall not touch the

laundries directly.

Refer to the user's manual for

the usage and quantity of the

whitener.

For powder whitener, please

dissolve it before use.

Inlet box of the detergent

How to use the washing

powder

Direct dissolved inthe machine

1.Fill water to"Low" water level.

2.Add the power. Run for30 seconds

to dissolve itcompletely.

3.Put in thelaundries. Select

suitable water level.

The instant dissolvingof the washing

powder:

1.Prepare warm waterof 30 and a

container.

2.Add the powderwhile stirring to

fully dissolve it.

Put in theproper quantities detergent

according to thewater level andthe

laundries quantities .

It is suggestednot to usehigh

sudsing detergent.

Washing powder with poor qualityor

long time storagemaybe caked.

Please pay attention to cleaning the

detergent box intime

Usage of the detergent

Table of contents

Other Haier Washer manuals

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
