Haier HDY60 User manual

ClothesDryer

OWNER’SUSER MANUAL

Model: HDY60

Please read this manual carefullybeforeoperating your dryer.

Retainthisfor futurereference.

Recordthe modeland serialnumber ofthe tumble dryer.

Please have thisinformationready for any service related enquiries.

IMPORTANT SAFETY INSTRUCTIONS

Warning -To reduce the risk of fire, electric shock, orpersonal

injuries, the followingbasic precautionsshould be followed:

1 This appliance should only be used for its intended purpose as described in

this owner’s user manual.

2 This appliance must be properly installed inaccordancewith the installation

instructions before itis used.

3 Neverunplugyour appliancebypulling on the power cord. Always make

sure the outlet is switched off then grasp theplug firmly andpull straight out

from theoutlet.

4 Replace worn power cords, loose plugs and faulty power outlets immediately.

5 Unplug your appliance before cleaning or before proceeding with any repairs.

Repairs should only be carried outby an authorised technician.

6 Do not operate your appliance when parts are missing, damaged or broken.

7 Do not operate your appliance in the presence of explosive fumes or toxic

flammable vapours.

8 Do not use this appliance towashclothes which are stained, spotted or

washed in gasoline, dry cleaning solvents or any other explosive or

flammable substances that may ignite and explode.

9 Do not try to remove clothes while the dryer is inmotion. Wait until it comes

to a complete stop.

10 The lid must be closed when the machine is in operation.

11 Do not use this appliance for commercial applications.

12 Do not operate this appliance unless all panels are properly intact.

13 The appliance is not to be used by children without adult supervision.

14 This appliance must be connected to an approved electrical outlet with 240V

power source.

15 Do not repair or replace any part of the appliance. This can only becarried

out by an authorised technician.

16 To reduce the risk of electric shock or fire,try not use extension cords or

adapters to connect the unit to electrical power source.

17 Items that have been previously cleaned, washed, soaked or spotted with

flammable or explosive substances should notbe placed in the tumble dryer.

18 Items containing foam rubber (latex foam) or similar texture should not be

placed in the tumble dryer.

19 Fabric softeners or similar products should not be used in the tumble dryer

unless specified by themanufacturer.

20 Undergarments that contain metal reinforcements should not be placed in the

tumble dryer. Damages caused by this, will not be covered under warranty.

21 Plastic and rubber article such as shower caps, baby waterproof napkin

covers, shoes, clothes with foamrubber pads or pillows should not be placed

in thetumble dryer.

22 Do not install this appliance where it is exposed to water or where it is damp.

23 Clean lint filter before and after each load.

TABLE OF CONTENTS

PAGE

OPERATINGINSTRUCTIONS

IDENTIFICATIONOF PARTS. . . . . ... . .. . ... . ...........3

OPERATINGINSTRUCTIONS . . . . .... . . . ...............4

CONTROL PANEL . . .... . . . .... . . . ... . ...............6

CLEANING AND CARE GUIDE

CLEANING AND MAINTAINANCE. . . ................ . . . .7

INSTALLATION

UNPACKING YOUR DRYER. . . . ... . ...................8

WALL MOUNTING INSTRUCTIONS..................... 9

TROUBLESHOOTING ANDSPECIFICATIONS

TROUBLESHOOTING.............. . ............... . 12

WIRING DIAGRAM . ...... . .. . .. . ....... . ... . ..... . .12

SPECIFICATIONS. . .. . ....... . ... . ..... . ...... . . . ..13

IDENTIFICATION OF PARTS

This diagram may slightly differ from the layoutof thedryer you have

just purchased as this is due to technical improvements and should

only be used for reference.

OPERATING INSTRUCTIONS

Attention:

1. Before operation, clean off any dust and dirt inside the drum of the dryer

with a damp towel;

2. Clean off any debris on the lint filter and in the duct, to increase the drying

efficiency.

Turning on power

Before turning on the power of the dryer, check:

- Whether the supply voltage is in accordance with the value indicated

on the nameplate;

- The dryer must be securely grounded.

Preparation of the laundry load

- The dryer can only dry laundries which have been spun dry. Do not

put in laundry which is still dripping wet or still have excess water.

- Make sure all pockets are empty before placing them in the dryer

- Pull up zippers, sew and mend up loosened fasteners and tie up

dispersed ribbons to prevent the laundry from being entangled. If

necessary, put small items in a laundry bag.

- To achieve a better drying result, loosen up heavy loads before

loading it into the dryer.

Load to dry

Laundry type Cotton fabric Synthetic fabric

Maximum load 6Kg 3Kg

Warning:

1. Avoid drying wool, silk

and other delicate fabrics,

as it may damage it.

2. Do not exceed the

laundry load as

suggested. This could

damage the dryer as well

as the laundry load.

1. Power up

Insert the power plug into an appropriate power outlet that is properly installed

and grounded. Operating power supply: 220-240V~/50Hz

2. Laundry loading

Open the door and load the laundry into the drum of the dryer. For a more

energy efficient and better drying result, make sure the load has been spin

dried. Try to loosen the load when placing in the dryer.

Note: Check labels on clothing before placing them in the dryer. Some articles

are not suitable for machine dry. High temperature may damage the fabric.

3. Setting drying time

Turn the program knob to set your desired drying program

4. Delay setting

You may choose to delay start your drying after a preset time. Delay start can

be set between 1 and 12 hours.

5. Program operation

After a program is set, gently touch the “START/PAUSE” button to start the

program.

6. Program completion

After the program is complete, the display screen will display “END.” Open the

door and remove the laundry.

If the laundry is not removed over a period of time once drying has completed,

the dryer will automatically commence in “anti-crease” protection cycle.

In the “anti-crease” protection cycle, the dryer will run in set interval to keep

your laundry loose.

7. Turning off the dryer

Turn the program knob to the “OFF” position and turn off the dryer.

Note: Clean the filter after load.

Reference weight of fabrics for drying

●

Overalls

(cotton appr 950g)

●Blended fabric

clothes

(appr 800g)

●T-shirt

(appr 300g)

●Jackets (cotton

appr 800g)

●Woolen blankets

(appr 3000g)

●Single bed sheets

(cotton appr 800g)

●Socks

(blended fabrics

appr 50g)

●

Underwear

( appr 70g)

●Jeans （８００ｇ）

●Pajamas

(appr 200g)

●Shirts

(appr 300g)

４５

CONTROL PANEL

A – Program control knob

There are 7 drying program to choose from. Turn knob to your desired program.

B – Start / Pause button

After selecting your desired drying program, press this button to start the dryer. To

pause the dryer while in operation, press this button again. The display will flash

digits and the machine will come to a halted. To resume drying, press this button

again.

C – LED screen

This screen displays the remaining cycle time for the program and if selected,

delay time.

D – Delay button

This is a delay start button. It allows you to start the dryer after a preset time.

Press this button before you start your program. The delay range is between 1 –

12 hours. Every touch of the button will be in increments of one hour. After you

have set your delay time, press the Start/Pause button to start the delay operation.

You will notice a light flash to the left of the delay button.

E – Set program

This program is used for custom setting. The shortest drying time which can be

set is 20 minutes (0:20) and longest drying time is 4 hours (4:00).

To set your drying time, select “SET” on the program. You will notice 1:40 flashing

on the LED display. To increase the drying time, press the “START/PAUSE”

button ONLY while the time is flashing. This will increase the time in 10 minute

increments. To decrease the drying time, press the DELAY button ONLY while the

time is flashing. This will decrease the time in 10 minute increments.

Once you have set your desired drying time, let the flashing time come to a stop

and press “START/PAUSE” button to commence drying.

If you happen to miss pressing either buttons while the time is not still flashing, turn

the program knob back to “OFF” and try again.

CLEANING AND MAINTAINANCE

WARNING! Unplug the power cord prior to any cleaning

Cleaning the surface

Wipe off any dust or dirt on the body of the dryer and surface off the main control

panel.

Note: Do not use excessive water. Just a damp cloth is fine.

Do not use solvent.

Do not use spray cleaners when cleaning the interior.

Do not use harsh or abrasive cleaners.

Cleaning the filter screen

To ensure a good ventilation effect during drying, the filter screen must be cleaned

before or after each use.

1. Removing the filter.

Gently push together the clip on the filter screen and

then pull out towards yourself.

2. Cleaning the filter

Remove the lint with a soft brush or

vacuum cleaner. Pay attention and do not

damage the filters.

At the same time, remove any remaining

lint from the perforated metal lint screen on

the door.

3. Re-installing the filter

After cleaning filters, put the screen back in place. Note:

Never operate your dryer without the lint filter.

６７

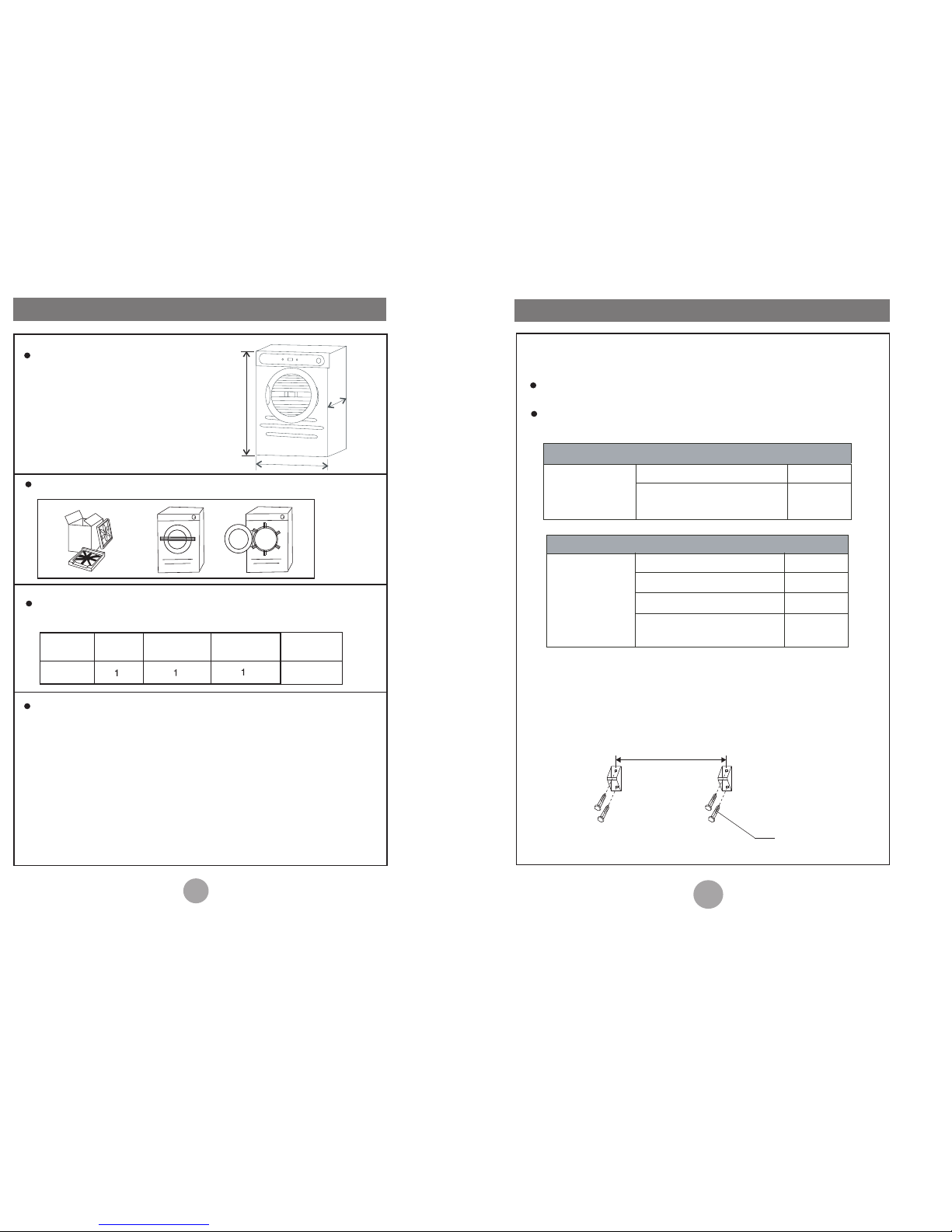

Wall Mounting Instruction

Installation

Dimensions

a = 825 mm

b = 560 mm

c = 595 mm

Weight = 30 Kg

Packing accessories

Check list of the accessories and materials provided with the machine:

Quantity

To ensure the dryer operating normally, attention must be paid to

the following in placement:

■The rear of the dryer must not have any restriction to the intake

of fresh air;

■Check whether there is any damage to the dryer during

transportation. Any damaged dryer must not be electrified. In case

of any damage, contact your dryer supplier;

■The dryer must be kept away from flammable substances;

■The surrounding environment must be dry and ventilated;

■ To allow the dryer to perform better, the ambient temperature shall

neither be lower than 10

℃

nor higher than 35

℃.

Name

Owner's

manual

Wall

mounting kit Panel film

Remove the transport packaging and the tape before starting dryer.

1.Determine the location of the dryer on the wall and mark

the bracket position.

A minimum 50mm is needed between the top of the dryer

and the ceiling for ease of installation;

If mounting above a washing machine,allow sufficient room

to open the lid of the washer.

Tools required

For plaster/

Wooden wall

Drill&3mm Bit

Philips head screw

driver

Wood screws,12g×50mm

imber screws

Description

Wall hanging brackets

Plastic Spacers

Hanging hook

Wall mounting kit includes

2.Fix the wall hanging brackets to the wall securely (eg. into

the stud). If the studs are too far apart, fit a timber slat to the

studs then mount the brackets onto the slat. The distance

between each bracket is 553mm as per diagram.

553mm

wood screw

Screw

１０

Wall Mounting Instructions

１１

Wall Mounting Instructions

3. To install the hook to the dryer, remove the 2 screws and 2

corks as indicated in Fig. 2.

4. Align hooks as shown in Fig. 3 and each hook should be fixed

up well with three screws. Install the spacers provided as Fig. 3.

2 screws

2 corks

Fig. 2

Fig. 3

Hooks

Spacers

5. With assistance, mount dryer on wall brackets. See Fig. 4

Fig. 4

6. A new control panel film with inverted symbols to suit your inverted

dryer is supplied.

Peel the release paper from the back of inverted film

then place new

control panel film on the surface so that writing is the

correct way around.

7.Hold the Start/Pause button and at the same time turn the program

dial knob from OFF position to any other program.Keep the "Start/Pause "

button until the displayed is inverted.Follow this same procedure to revert

the display.

3 screws

TROUBLE SHOOTING

WIRING CIRCUIT

SPECIFICATIONS

１２１３

Those listed below are not failures. The following must be confirmed before

calling for service:

Problem

The dryer does not start

Possible Cause

●

Is the dryer plugged in ?

●

Is the power on ?

●

Is the door closed properly ?

●Has a drying program been set ?

●Has the Start/Pause button been pressed ?

The drying result is not

good

●

Was the correct drying program set ?

●

Is the filter screen clean?

●Did the amount of the loaded laundry

exceed the rated load ?

●Was the loaded laundry spun dry ?

●

Did the laundry become twisted whilst drying?

Other manuals for HDY60

Table of contents

Other Haier Dryer manuals

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
