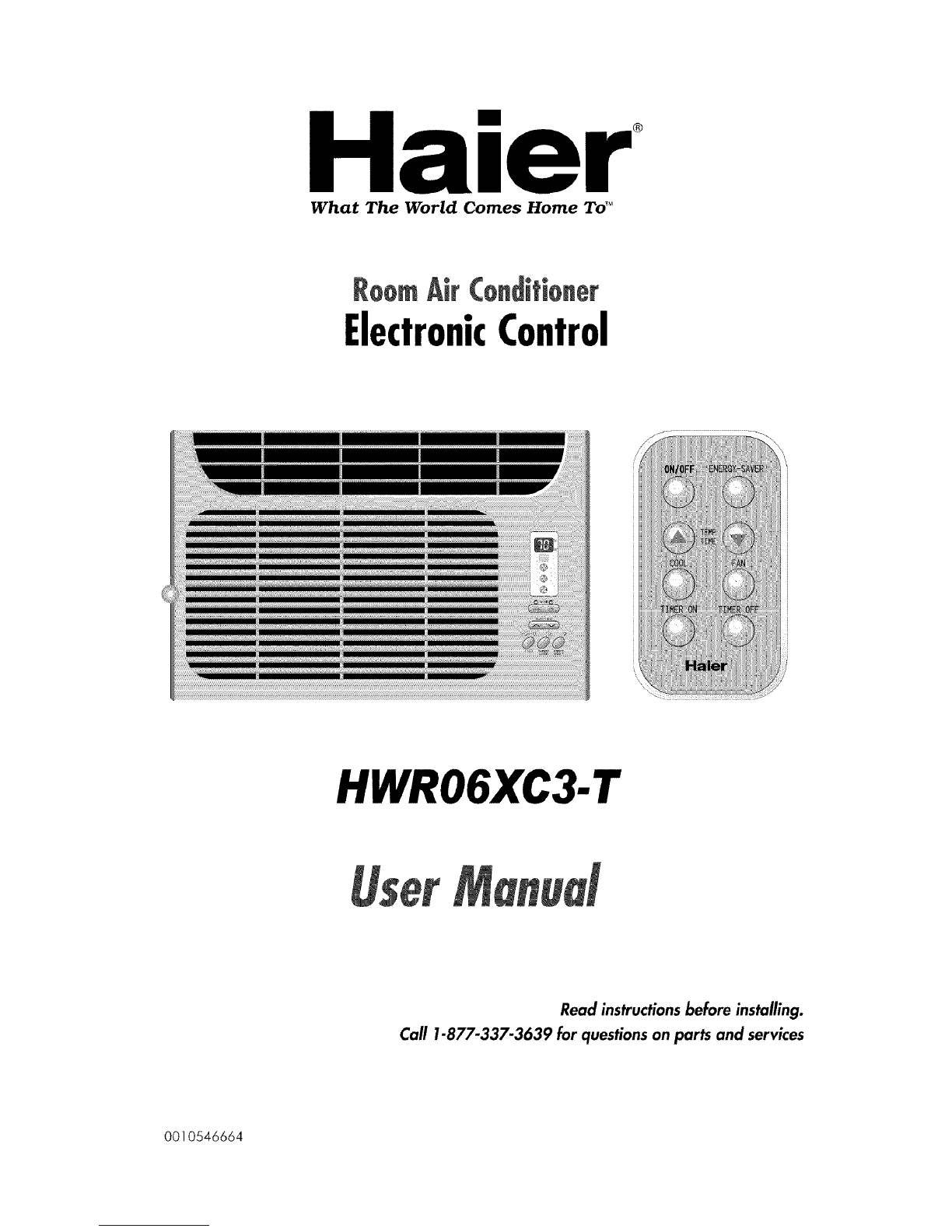

Haier HWR06XC3-T User manual

Haler

What The World Comes Home To TM

Roo_ Air

ElectronicControl

HWRO6XC3.T

Read instructionsbefore installing.

Call 1-877-337-3639 for questionson parts and services

0010546664

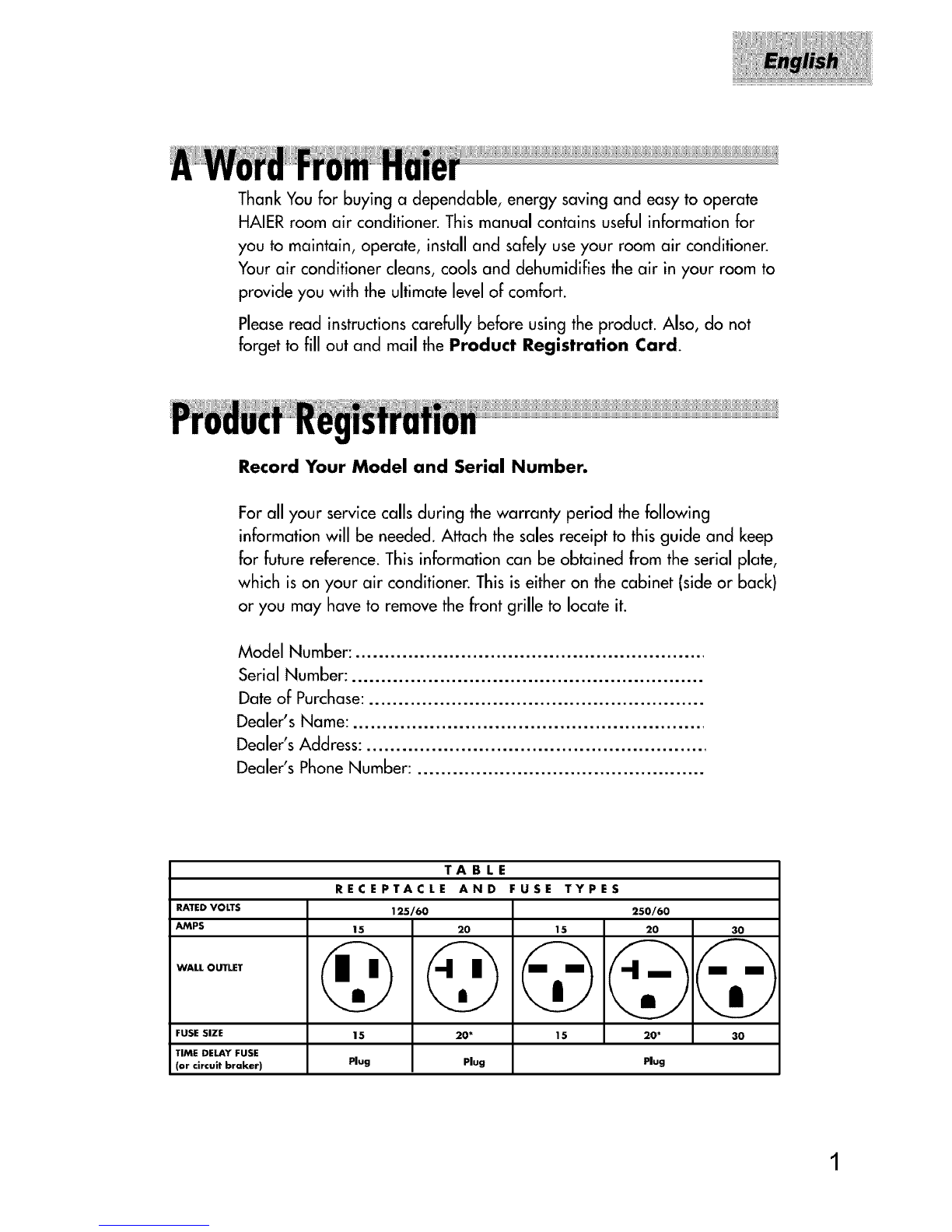

Thank You for buying a dependable, energy saving and easy to operate

HALERroom air conditioner. This manual contains useful information for

you to maintain, operate, install and safely use your room air conditioner.

Your air conditioner cleans, cools and dehumidifies the air in your room to

provide you with the ultimate level of comfort.

Please read instructions carefully before using the product. Also, do not

forget to fill out and mail the Product Registration Card.

Record Your Model and Serial Number.

For all your service calls during the warranty period the following

information will be needed. Attach the sales receipt to this guide and keep

for future reference. This information can be obtained from the serial plate,

which is on your air conditioner. This is either on the cabinet (side or back)

or you may have to remove the front grille to locate it.

Model Number: ............................................................

Serial Number: ............................................................

Date of Purchase: .........................................................

Dealer's Name: ............................................................

Dealer's Address: ..........................................................

Dealer's Phone Number: .................................................

TABLE

RECEPTACLE AND FUSE TYPES

RATED VOLTS 125/60 250/60

AMPS | 5 20 15 20 30

WOULT

FUSE SiZE 15 20* 15 20* 30

TIME DELAY FUSE

(or circuit braker) Plug Plug Plug

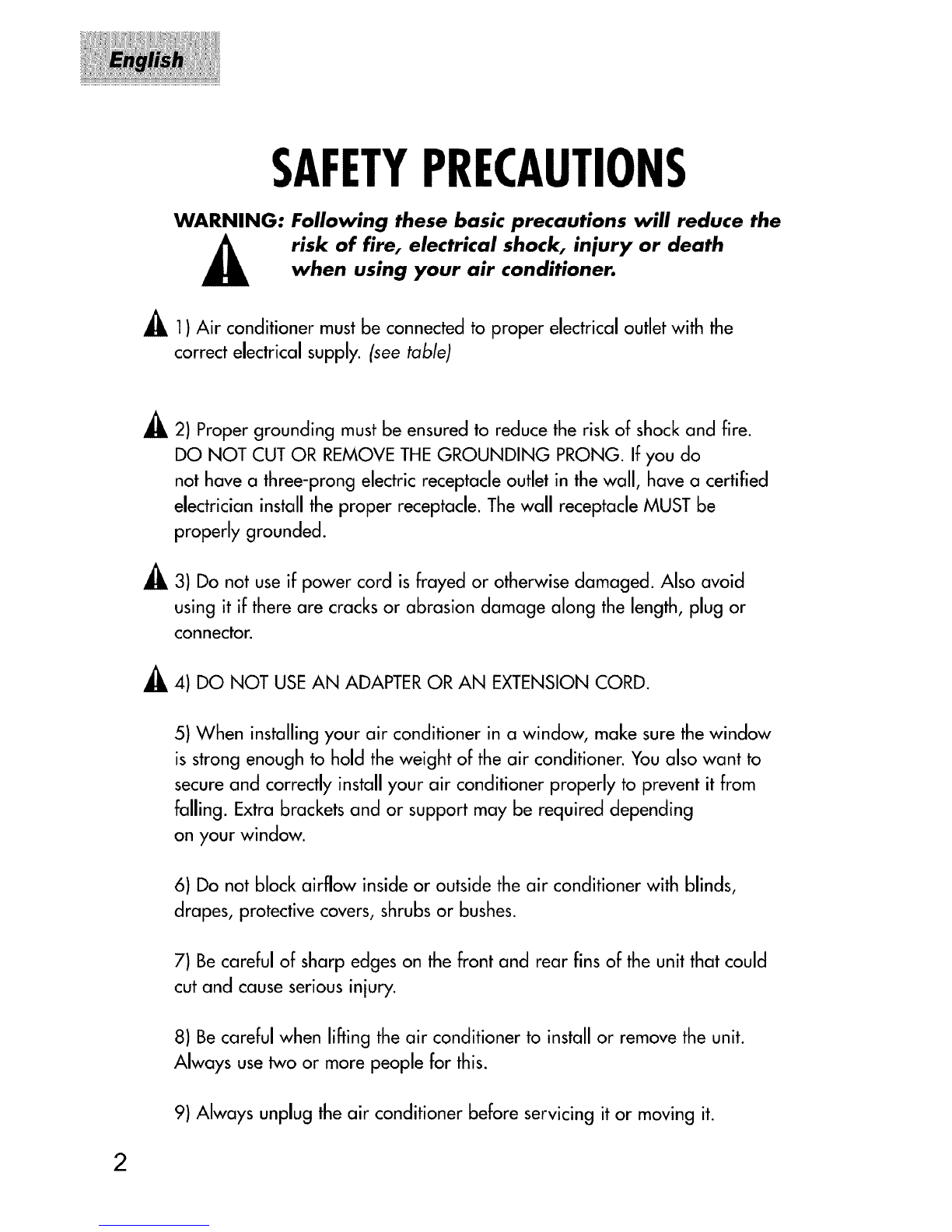

SAFETYPRECAUTIONS

WARNING: Following these basic precautions will reduce the

risk of fire, electrical shock, injury or death

when using your air conditioner.

1) Air conditioner mustbe connected to proper electrical outlet with the

correct electrical supply. (see table)

2) Proper grounding must be ensured to reduce the risk of shock and fire.

DO NOT CUT OR REMOVE THE GROUNDING PRONG. If you do

not have a three-prong electric receptacle outlet in the wall, have a certified

electrician install the proper receptacle. The wall receptacle MUST be

properly grounded.

3) Do not use if power cord is frayed or otherwise damaged. Also avoid

using it if there are cracks or abrasion damage along the length, plug or

connector.

__ 4) DO NOT USE AN ADAPTER OR AN EXTENSION CORD.

5) When installing your air conditioner in a window, make sure the window

is strong enough to hold the weight of the air conditioner. You also want to

secure and correctly install your air conditioner properly to prevent it from

falling. Extra brackets and or support may be required depending

on your window.

6) Do not block airflow inside or outside the air conditioner with blinds,

drapes, protective covers, shrubs or bushes.

7) Becareful of sharp edges on the front and rear fins of the unit that could

cut and causeserious injury.

8) Becareful when lifting the air conditioner to install or removethe unit.

Always usetwo or more people for this.

9) Always unplug theair conditioner before servicing it or moving it.

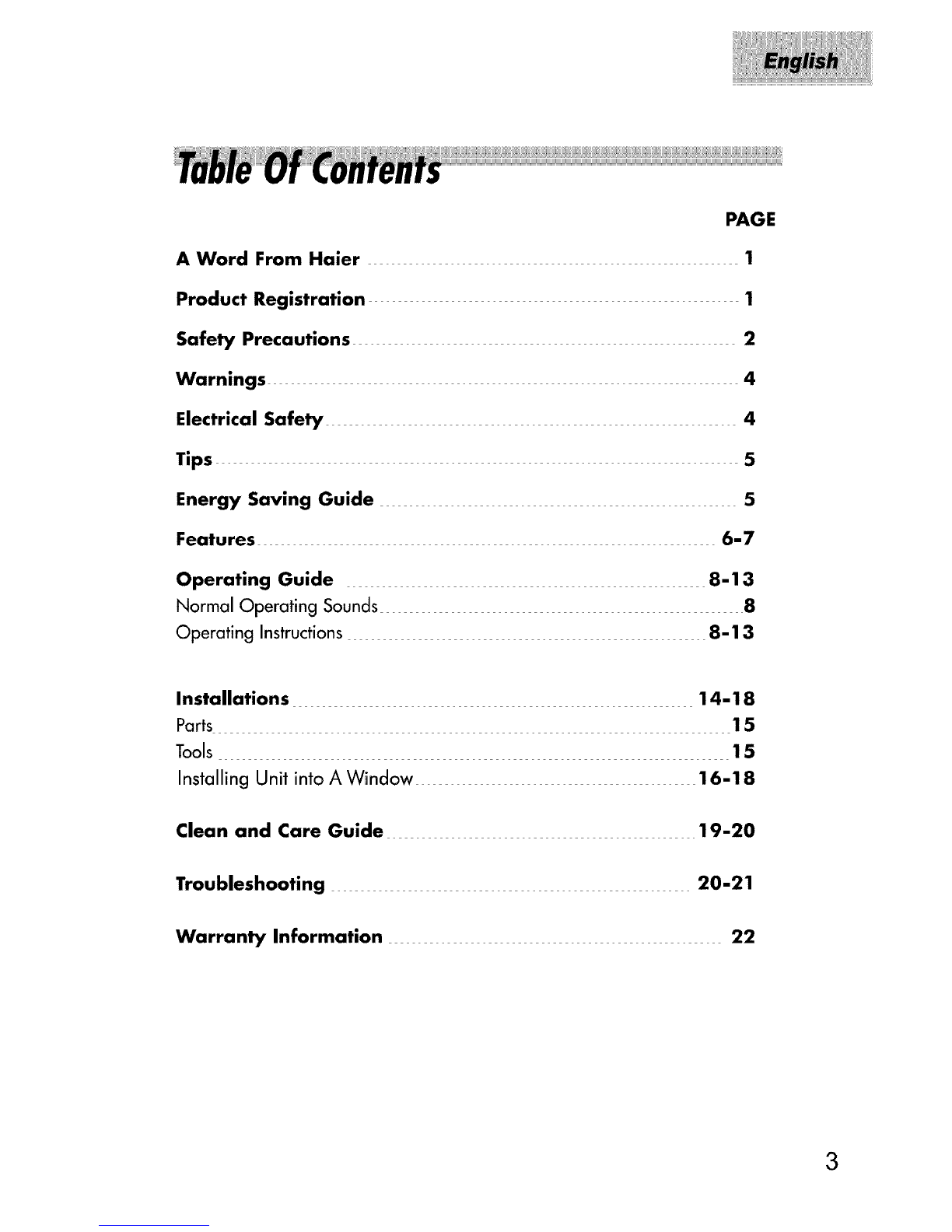

A Word From Haier

Product Registration

Safety Precautions

Warnings

Electrical Safety

Tips

Energy Saving Guide

Features

Operating Guide

Normal Operating Sounds

Operating Instructions

Installations

Parts

Tools

Installing Unit into A Window

Clean and Care Guide

Troubleshooting

Warranty Information

PAGE

6-7

8-13

14-18

16-18

19-20

20-21

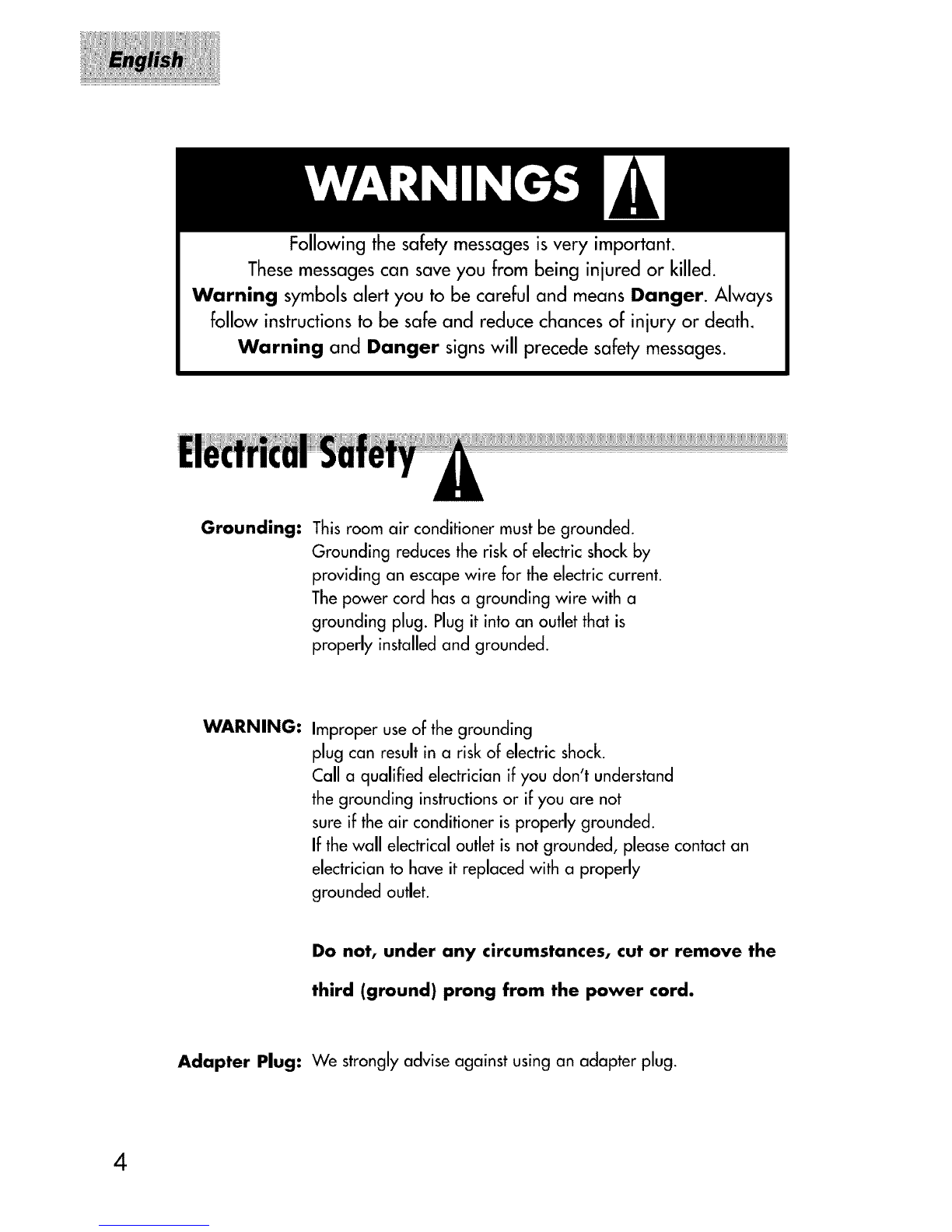

Following the safety messagesis very important.

Thesemessagescan saveyou from being injured or killed.

W'arnlng symbols alert you to be careful and means Danger. Always

follow instructionsto be safe and reduce chances of injury or death.

Warning and Danger signswill precede safety messages.

Grounding: This room air conditioner must be grounded.

Grounding reduces the risk of electric shock by

providing an escape wire for the electric current.

The power cord has a grounding wire with a

grounding plug. Plug it into an outlet that is

properly installed and grounded.

WARNING: Improper use of the grounding

plug can result in a risk of electric shock.

Call a qualified electrician if you don't understand

the grounding instructions or if you are not

sure if the air conditioner is properly grounded.

If the wall electrical outlet is not grounded, please contact an

electrician to have it replaced with a properly

grounded outlet.

Do not, under any circumstances, cut or remove the

third (ground) prong from the power cord.

Adapter Plug: We strongly advise against using an adapter plug.

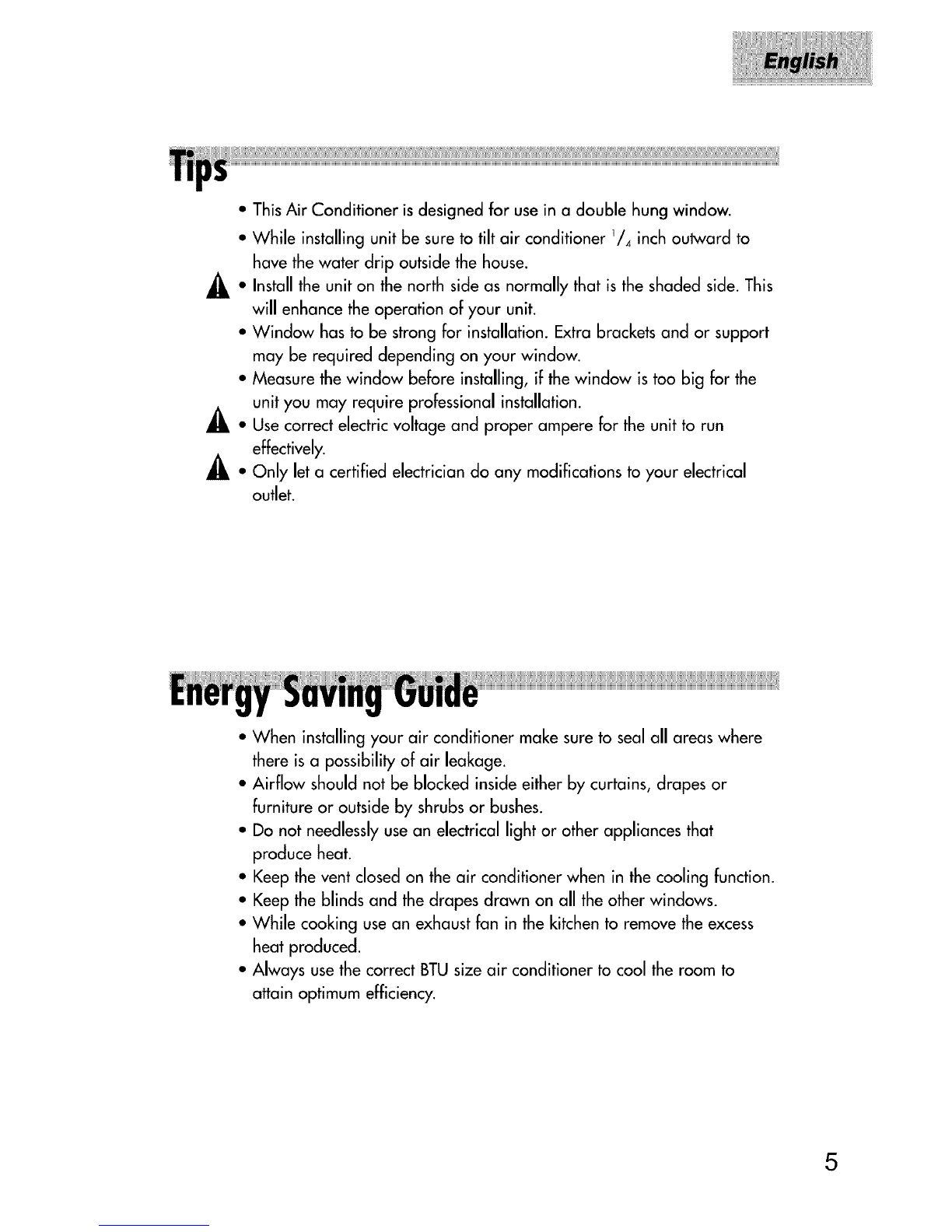

•This Air Conditioner is designed for use in a double hung window.

• While installing unit be sure to tilt air conditioner 1/4 inch ou_,ard to

have the water drip outside the house.

• Install the unit on the north side as normally that is the shaded side. This

will enhance the operation of your unit.

•Window has to be strong for installation. Extra brackets and or support

may be required depending on your window.

•Measure the window before installing, if the window is too big for the

unit you may require professional installation.

• Use correct electric voltage and proper ampere for the unit to run

effectively.

• Only let a certified electrician do any modifications to your electrical

outlet.

• When installing your air conditioner make sure to seal all areas where

there is a possibility of air leakage.

• Airflow should not be blocked inside either by curtains, drapes or

furniture or outside by shrubs or bushes.

•Do not needlessly use an electrical light or other appliances that

produce heat.

• Keep the vent closed on the air conditioner when in the cooling function.

• Keep the blinds and the drapes drawn on all the other windows.

• While cooking use an exhaust fan in the kitchen to remove the excess

heat produced.

• Always use the correct BTU size air conditioner to cool the room to

attain optimum efficiency.

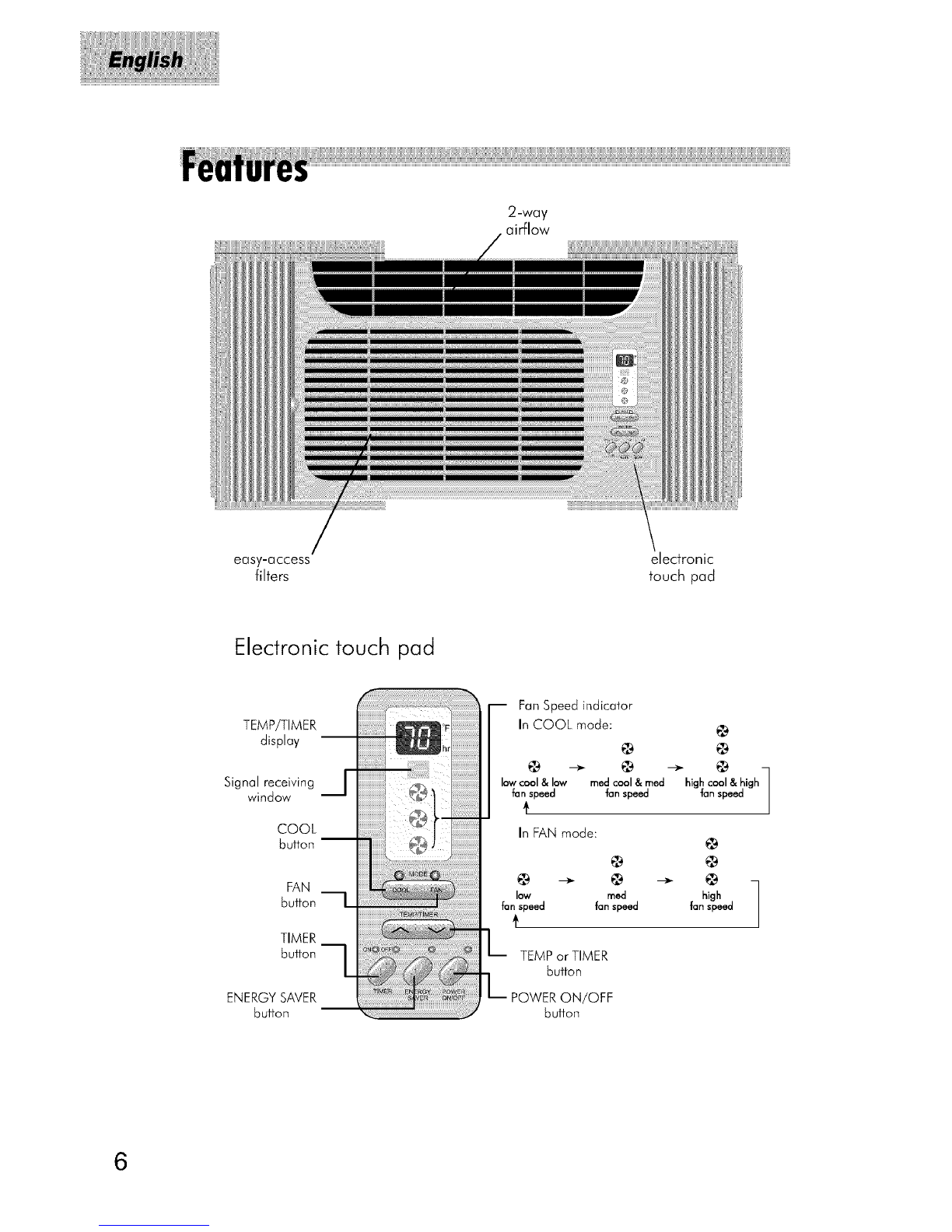

2-way

airflow

easy-access

filters electronic

touch pad

Electronic touch pad

TEMP/TIMER

display

Signal receiving

window

COOL

button

FAN

button

TIMER

button

ENERGY SAVER

button

Fan Speed indicator

In COOL mode:

lowcool&low reedcool&reed highcool&high|

fanspeed fanspeed fanspeed |

t /

In FAN mode: @

@ @

@ --_ @ --_ @

low med high

fan speed fan speed fan speed

TEMPor TIMER

button

ON/OFF

button

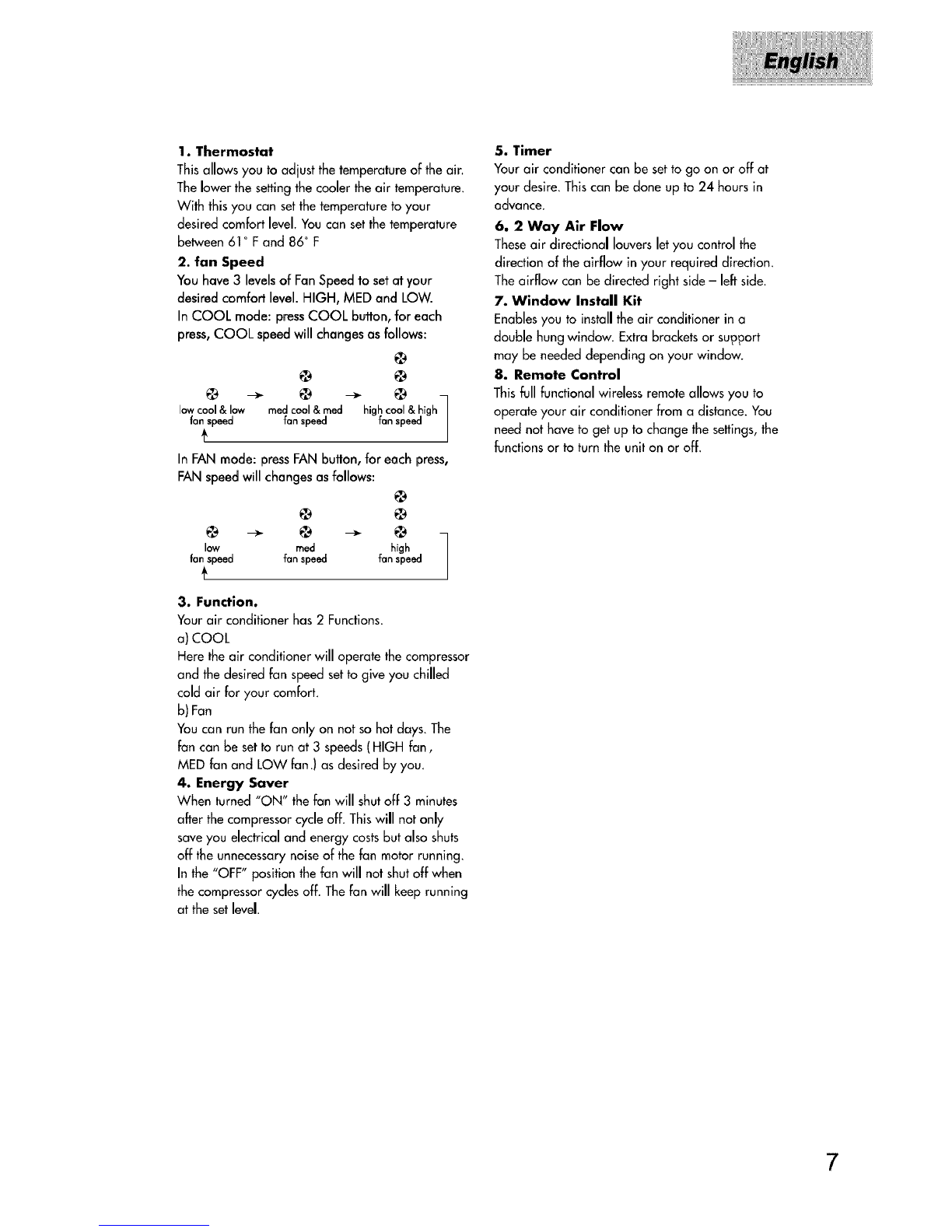

1. Thermostat

Thisallowsyou to adjustthetemperatureof the air.

Thelowerthe settingthe coolertheair temperature.

With this you can setthetemperatureto your

desiredcomfort level.Youcan setthetemperature

between61° Fand 86° F

2. fan Speed

Youhave3 levelsof FanSpeedto setat your

desiredcomfort level. HIGH, MEDand LOW.

InCOOL mode: pressCOOL bglton, for each

press,COOL speedwill changesasfollows:

--_ _ --_ _ -

low cool &low med cool & med high cool & high

fan speed fan speed fan speed

InFANmode: pressFANbutton,for eachpress,

FANspeedwill changesasfollows:

low rned high |

fan speed fan speed fan speed /

3. Function.

Yourair conditionerhas2 Functions.

a) COOL

Heretheair conditionerwill operatethecompressor

and thedesiredfan speedsetto giveyou chilled

cold air for yourcomforL

b) Fan

Youcan run thefan only on not sohotdays.The

fan can be setto run at 3 speeds(HIGH fan,

MED fan and LOW fan.) as desiredbyyou.

4. Energy Saver

When turned "ON" the fanwill shutoff 3 minutes

after thecompressorcycleoff. Thiswill notonly

saveyou electricaland energycostsbutalso shuts

off theunnecessarynoiseof thefan motor running.

In the"OFF" position thefanwill not shutoff when

thecompressorcyclesoff. Thefan will keeprunning

at the setlevel.

5. Timer

Your air conditioner canbe setto go on or off at

your desire.Thiscan be done up to 24 hoursin

advance.

6. 2 Way Air Flow

Theseair directional louversletyou control the

direction of theairflow in your required direction.

Theairflow can be directed rightside- left side.

7. Window Install Kit

Enablesyou to installtheair conditioner in a

double hungwindow. Extrabracketsor su99ort

may be neededdepending on your window.

8. Remote Control

Thisfull functionalwirelessremoteallows you to

operateyour air conditionerfrom a distance.You

neednot haveto getup to changethe settings,the

functionsor to turnthe uniton or off.

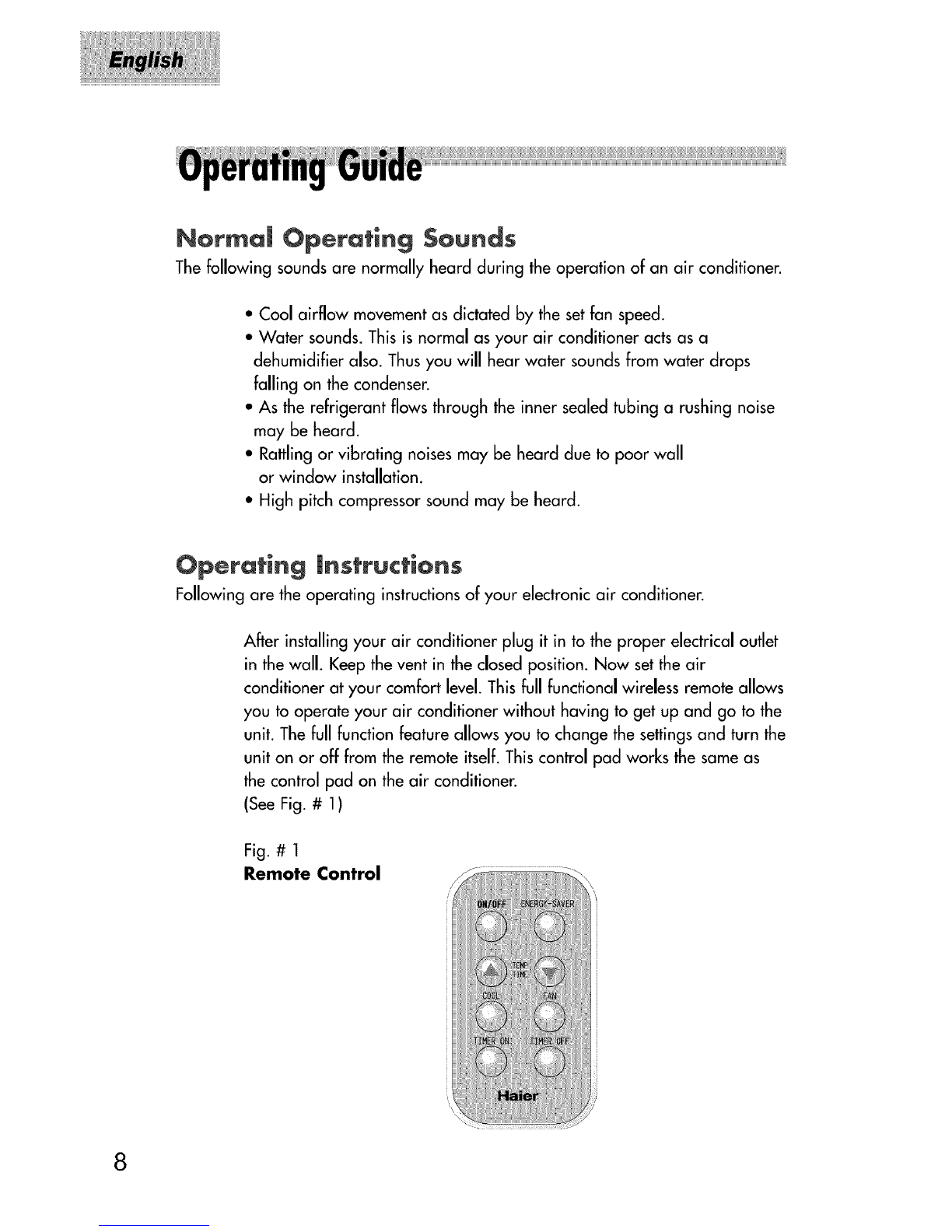

Normal Operatlng Sounds

The following sounds are normally heard during the operation of an air conditioner.

•Cool airflow movement as dictated by the set fan speed.

• Water sounds. This is normal as your air conditioner acts as a

dehumidifier also. Thus you will hear water sounds from water drops

falling on the condenser.

• As the refrigerant flows through the inner sealed tubing a rushing noise

may be heard.

• Rattling or vibrating noises may be heard due to poor wall

or window installation.

• High pitch compressor sound may be heard.

Operating |nstructions

Following are the operating instructions of your electronic air conditioner.

After installing your air conditioner plug it in to the proper electrical outlet

in the wall. Keep the vent in the closed position. Now set the air

conditioner at your comfort level. This full functional wireless remote allows

you to operate your air conditioner without having to get up and go to the

unit. The full function feature allows you to change the settings and turn the

unit on or off from the remote itself. This control pad works the same as

the control pad on the air conditioner.

(See Fig. # 1)

Fig. # 1

Remote Control

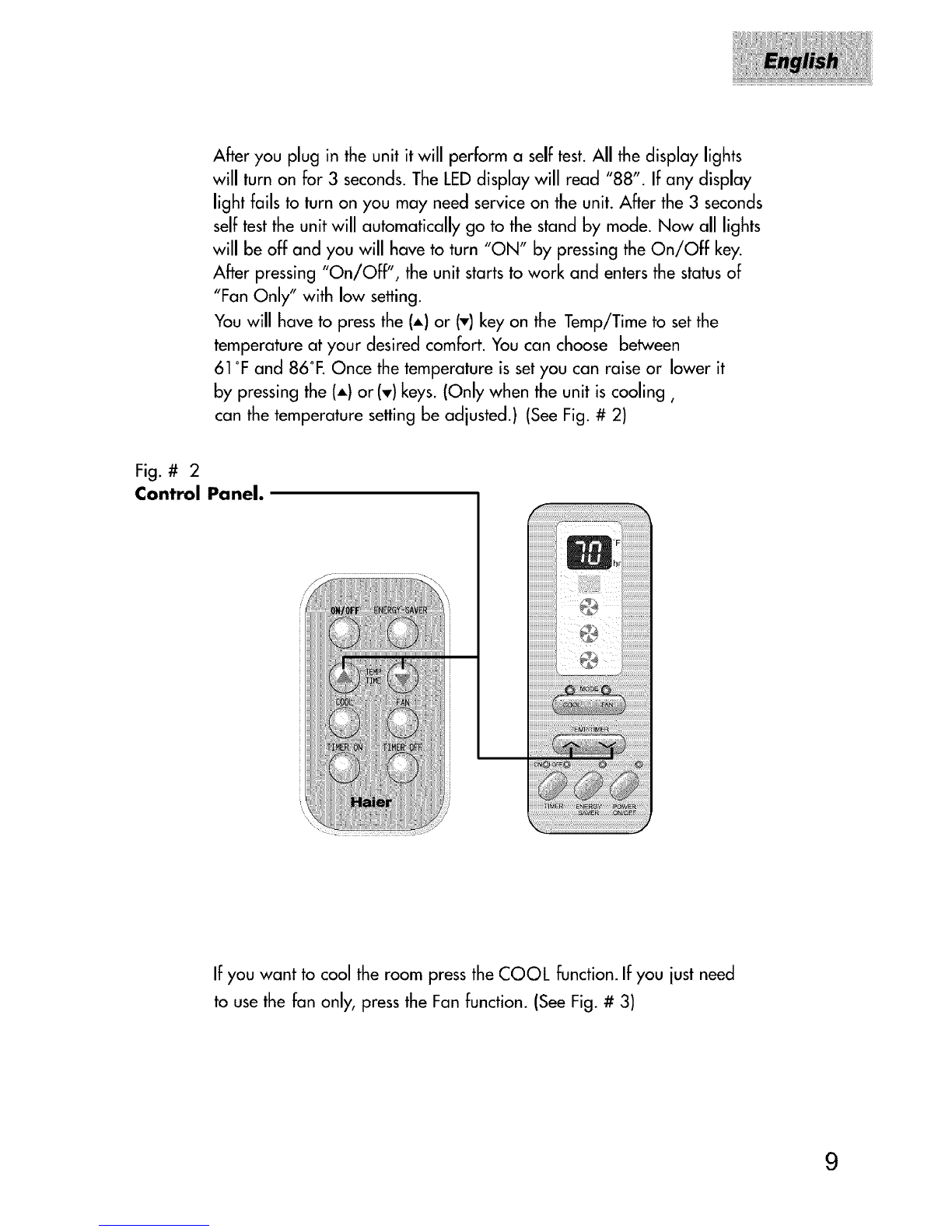

After you plug in the unit it will perform a self test. All the display lights

will turn on for 3 seconds.The LEDdisplay will read "88". If any display

light fails to turn on you may need service on the unit. After the 3 seconds

self test the unit will automatically go to the stand by mode. Now all lights

will be off and you will have to turn "ON" by pressing the On/Off key.

After pressing "On/Off", the unit startsto work and enters the statusof

"Fan Only" with low setting.

You will have to pressthe (A) or (v) key on the Temp/Time to set the

temperature at your desired comfort. You can choose between

61 °Fand 86°F. Once the temperature is setyou can raise or lower it

by pressing the (A)or (,) keys. (Only when the unit iscooling,

can the temperature setting be adjusted.) (See Fig. # 2)

Fig. # 2

Control Panel.

If you want to cool the room pressthe COOL function. If you just need

to usethe fan only, press the Fan function. (SeeFig. # 3)

Table of contents

Other Haier Air Conditioner manuals

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
