Haier 10515690 User manual
HW-09LN03
HW-12LN03
No.0010515690
WINDOW TYPE ROOM AIR CONDITIONER
4-9
10-13
14-15
16
2-3
Parts and Functions
Operation Guide
Maintenance
Installation Instruction
Wiring Diagram
1
Contents
1
POWER
MODE
SWING
1
2
3
4
5
6
7
8
ENERGY SAVER
FAN,COOL,DEHUM.
:HIGH or LOW.
FAN SPEED
FAN SPEED
Front panel
Air inlet (indoor side)
Air outlet (indoor side)
Air inlet (outdoor side)
Display
panel
Air filter (inside)
Machine body
Power plug
Used to activate ENERGY SAVER option,reduce energy consumption and noise.
2
5
1
2
3
4
5
6
7
MODE
FAN SPEED
E-S
SWING
POWER
FAN,COOL,DEHUM.
FAN SPEED
ENERGY SAVER
E-S
TIMER button
Used for TIMER start or stop .
TEMP.orTIME set
Used to set TIME or TEMP. setting.
3
If you choose the FAN SPEED mode you can run the
Press MODE button. For each press, operation mode
changes as follows: FAN COOL DEHUM
Press POWER button
2. Select operation mode
FAN SPEED
When the COOL display lights bright,the unit will
be working under the cooling function.
COOL
at outlet
E-S
FAN SPEED
fan in one of the 2 speeds: HIGH or LOW.
1.Start
3. Select temp. setting
4. Fan speed selection
Select desired setting.
Change air flow direction if necessary.
5. Stop
Press POWER button again.
Then select COOL operation.
5
4
Air conditioner is running under displayed fan speed.
In DRY mode, when room temperature becomes
lower than temp.setting+2oC,unit will run intermittently
at LOW speed regardless of FAN setting.
COOL operation starts when room
temp.is higher than temp.setting.
On reaching temp.setting +2 C
unit will run in mild DRY mode.
Ultra-low air flow
Temp.setting+2 C
Temp.setting
Press MODE button. For each press, operation mode
changes as follows: FAN COOL DEHUM
2. Select operation mode
If you need to only remove the moisture press the
Dehnmid button. Change air flow direction if necessary.
When the DEHUM display lights bright,The unit will be
working under the dehumidify function.
FAN SPEED
The compressor may cycle for 10 minutes on and 6 minuters off in
Dehumid mode.
E-S
FAN SPEED
5
4
1. Start
Press POWER button.
3. Select temp. setting
If you choose the FAN SPEED mode you can run the
fan in one of the 2 speeds:HIGH OR LOW.
4. Fan speed selection
5. Stop
3UHVV32:(5EXWWRQDJDLQ
DEHUMID mode
Then select DEHUMID operation.
5
FAN SPEED
E-S
4
4
FAN SPEED
FAN operation
Press MODE button. For each press, operation mode
changes as follows: FAN COOL DEHUM
2. Select operation mode
When the FAN display lights bright ,the unit will be
working under the fan operation.
1. Start
Press POWER button.
3. Fan speed selection
4. Stop
Press POWER button again.
In some days you may want to run the FAN function.
Press the FAN button.
Here the fan runs only at HIGH or LOW speed.
Change air flow if necessary.
Then select FAN operation.
6
Then select COOL operation.
When the COOL display lights bright,the unit will
be working under the COOL function.
Saving energy function only can be used
when A/C working on cooling condition.
FAN SPEED
When this function is selected, the fan will
shut off three minutes after the compressor
cycles off. This will reduce energy consumption
and noise. When the compressor turns back on,
the fan will turn on at the same time. If this
function is not selected, the fan will not shut
off when the compressor cycles off.
ENERGY SAVER operation
ENERGY SAVER selection
E-S
4
4
FAN SPEED
Press MODE button. For each press, operation mode
changes as follows: FAN COOL DEHUM
2. Select operation mode
1. Start
Press POWER button.
4. Stop
Press POWER button again.
3
7
TIMER ON
restarted
mode
FAN SPEED
On Off
24
On Off
cool
On
24
Press "On"of remote controller or "TIMER" of control panel,
Off
Press "Off"of remote controller or "TIMER"of control panel,
5
E-S
FAN SPEED
8
Power failure resume(please set and apply as necessary)
If sudden power failure occurs, the unit will resume original operation when power is supplied again.
Note:
When sudden power failure happens during unit operation in power failure resume mode, if the air
conditioner is not desired for use in a long period, please shut off the power supply in case that the
unit automatically resume operation when power is re-supplied, or press POWER to turn off the unit
when power resumes.
The horizontal air direction is adjusted
by setting the AUTO SWING ON .
Airflow Direction Vane
The Vertical Airflow Direction Vane is
manually controlled by positioning the
vane todischarge the air upward,
downward or straight out.
Note:
It is advisable not to keep horizontal flap at downward position for a long
time in COOL or FAN mode, otherwise , condensate water might occur.
Don't move the vertical blade with hand in order to avoid the vertical blade
abnormal, using the remote controller to adjust the move of vertical blade.
Vertical airflow direction
Operation
Adjusting of the air direction
9
This manual suits for next models
2
Table of contents
Other Haier Air Conditioner manuals
Haier
Haier HSU-24LEA03-T User manual
Haier
Haier AS09TACHRA User manual
Haier

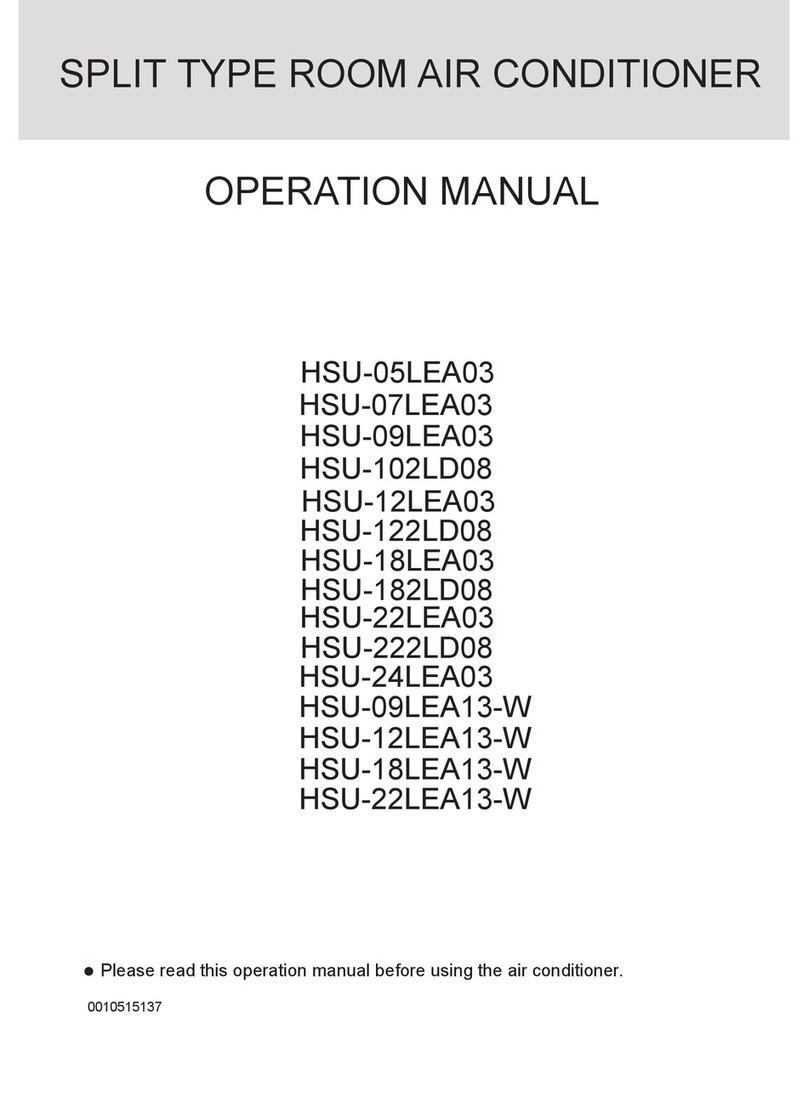

Haier HSU-09LEA13-W User manual
Haier
Haier HSU-07HEA03 - annexe 1 User manual
Haier
Haier HWS18VCA User manual
Haier
Haier H2SM- - annexe 13 User manual
Haier

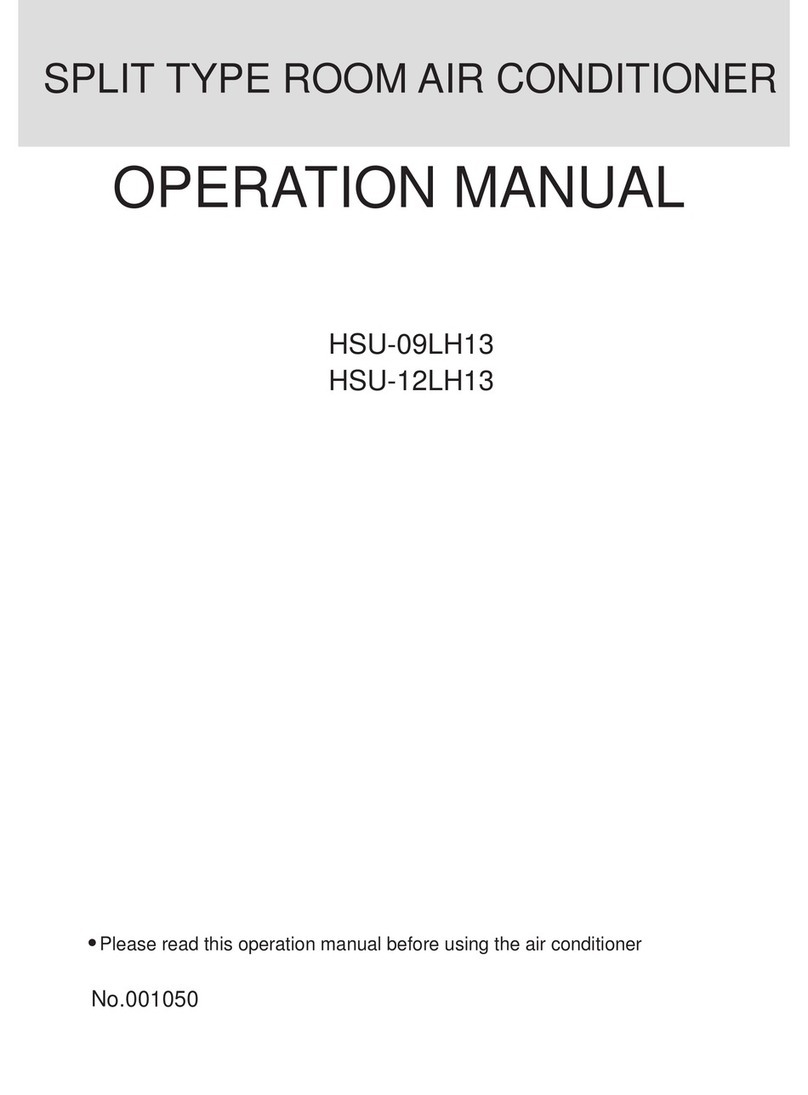

Haier 1050 User manual
Haier
Haier HPR10XC6 User manual
Haier
Haier MRVII-S AU282FHERA User manual
Haier
Haier HSU-09H03/U - annexe 1 Instruction Manual
Haier

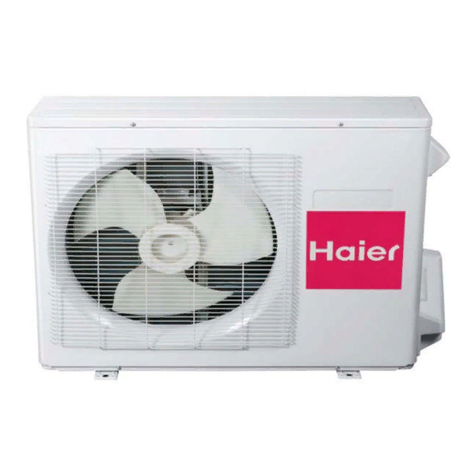

Haier 1U09JE7ERA User manual
Haier
Haier HSU-18CF13 User manual
Haier
Haier HSU-18CI03 User manual
Haier
Haier ESA3105 - MANUAL 2 User manual
Haier

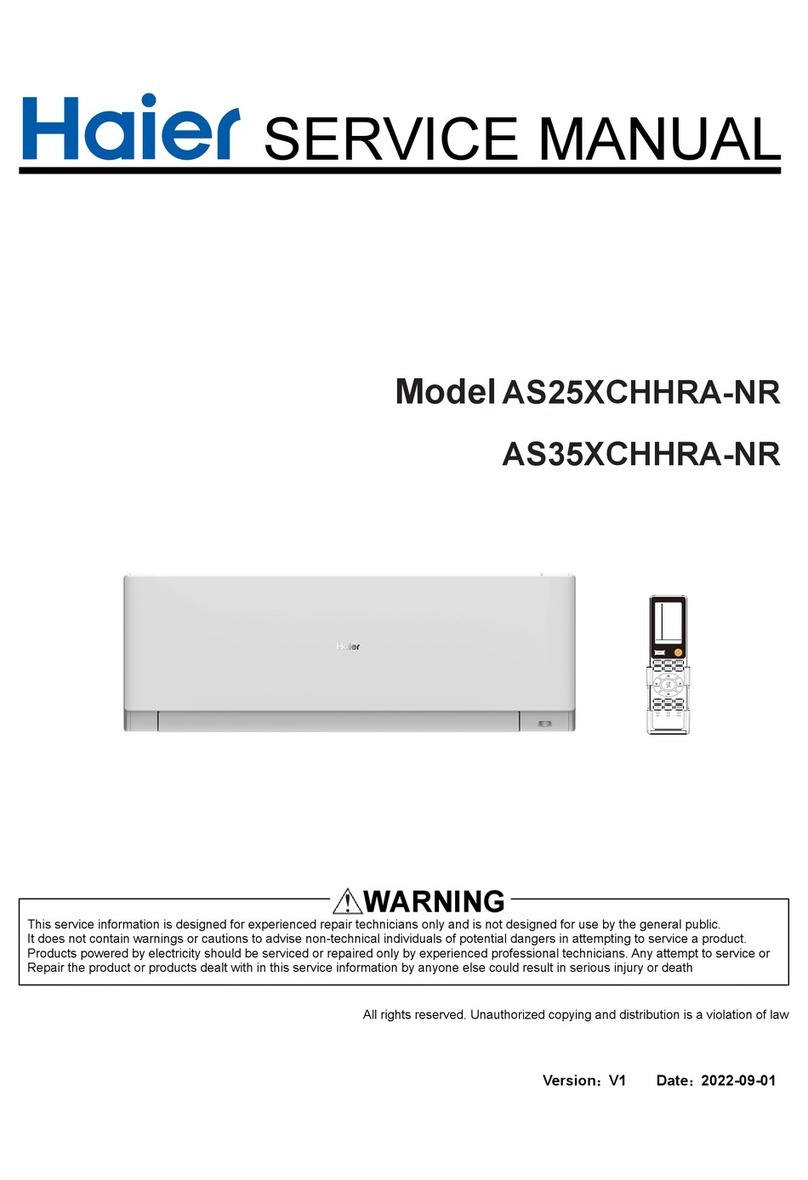

Haier AS35XCHHRA-NR User manual
Haier

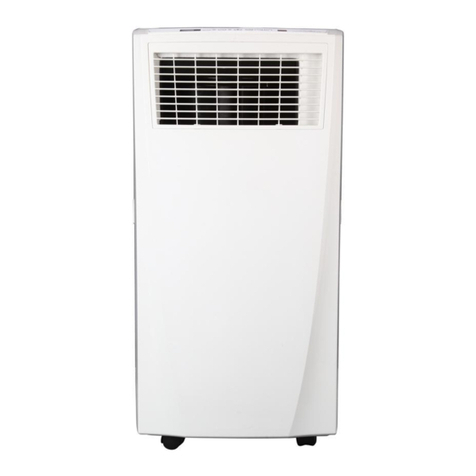

Haier Commercial Cool CPB08XCL User manual
