Haier HSU-18LEK13 User manual

Installation Manual of Room Air Conditioner

No.0010518787

Read this manual before installation

1.Driver

2.Hacksaw

3.Hole core drill

4.Spanner(17,19 and 26mm)

5.Torque wrench(17mm,22mm,26mm)

6.Pipe cutter

7.Flaring tool

8.Knife

9.Nipper 12.Reamer

10.Gas leakage detector or

soap-and-water solution

11.Measuring tape

Explain sufficiently the operating means to the user

according to this manual.

Optional parts for piping

Mark Parts name

Non-adhesive tape

Adhesive tape

Saddle(L.S) with screws

Connecting electric cable

for indoor and outdoor

Drain hose

Heating insulating material

Piping hole cover

Arrangement of piping directions

Rear left

Rear

right

Left

Below

Right

The marks from to in the figure are the parts numbers.

The distance between the indoor unit and the floor should be

more than 2m.

Attention must be paid to

the rising up of drain hose

mc5na

ter

No. Accessory parts

Remote controller

R-03 dry battery

Mounting plate

Drain hose

Steel nail, cement

Screw Plastic cap

Drain-elbow

Cover

Cushion

Number

articles

Accessory parts

4X50

4X25

Pipe supporting plate

11 Connecting cable 1

Note:Cooling only units don't have Drain-elbow

Drawing for the installation of indoor and outdoor units

Necessary Tools for Installation

Selection of pipe

To this unit, both liquid and gas pipes shall be insulated

as they become Iow temperature in operation.

Use optional parts for piping set or pipes covered with

equivalent insulation material.

Liquid pipe ( )

For 07 09

6.35mm(1/4")

Gas pipe ( ) 9.52mm(3/8")

For 12 18

12.7mm(1/2")

HSU-09HEK03

HSU-09LEK03

HSU-12HEK03

HSU-12LEK03

6.35mm(1/4")

HSU-09LEK13

HSU-12LEK13

HSU-07LEK03

HSU-07HEK03

1.Fitting of the Mounting Plate and Positioning of the wall Hole

2.Making a Hole on the Wall and Fitting the Piping Hole Cover

When the mounting plate is first fixed

1.Carry out, based on the neighboring pillars or lintels, a proper leveling for the plate to be

fixed against the wall, then temporarily fasten the plate with one steel nail.

2. Make sure once more the proper level of the plate, by hanging a thread with a weight from

the central top of the plate, then fasten securely the plate with the attachment steel nail.

3. Find the wall hole location A using a measuring tape

Make a hole of 60 mm in diameter,

slightly descending to outside the wall.

Install piping hole cover and seal it

off with putty after installation

Indoor unit

(Section of wall hole) Piping hole pipe

Outdoor side

Thickness

of wall

Indoor side

Wall hole

60mm

A=145mm

B= 60mm

30mm

HSU-09LEK03/(DB)

HSU-12LEK03/(DB)

HSU-24LEK13

HSU-18LEK13

60mm

30mm

HSU-18LEK13

HSU-09HEK03

HSU-09LEK03

HSU-12HEK03

HSU-12LEK03

HSU-09LEK13

HSU-12LEK13

HSU-07LEK03

HSU-07HEK03

HSU-09LEK03/(DB)

HSU-12LEK03/(DB)

HSU-108CH09

HSU-138CH09

HSU-108CH09

HSU-138CH09

30mm

HSU-12LEK13-M

Floor fixing dimensions

of the outdoor unit

(Unit:mm)

Floor fixing dimensions

of the outdoor unit

(Unit:mm)

140 500 140

256

113.5

583

113.5

5.91

Floor fixing dimensions

of the outdoor unit

(Unit:mm)

140 140415

280

15.88mm(5/8")

9.52mm(3/8")

For 24

HSU-24LEK13

A=145mm

B= 60mm

A=145mm

HSU-09LEK03/(DB)

HSU-12LEK03/(DB)

Indoor unit Outdoor unit

HSU-108CH09

HSU-138CH09

1(N) 2(L)3(C)

3(C)2(L)1(N)

connecting wiring:

Power cable:

-mod 09-12:

3G1.0mm

-mod 09-12:

3G1.5mm +1X0.75mm

Power cable:

3G1.0mm

5G1.0mm

Indoor unit Outdoor unit

HSU-09LEK03

Indoor unit Outdoor unit

HSU-12LEK03

HSU-07HEK03

HSU-12HEK03

HSU-09LEK13

HSU-12LEK13

HSU-07LEK03

HSU-09HEK03

HSU-12LEK13-M

connecting wiring:

-mod 07-12: 3G1.0mm

Power cable:

-mod 07-12: 3G1.0mm

)2 (N)1(L

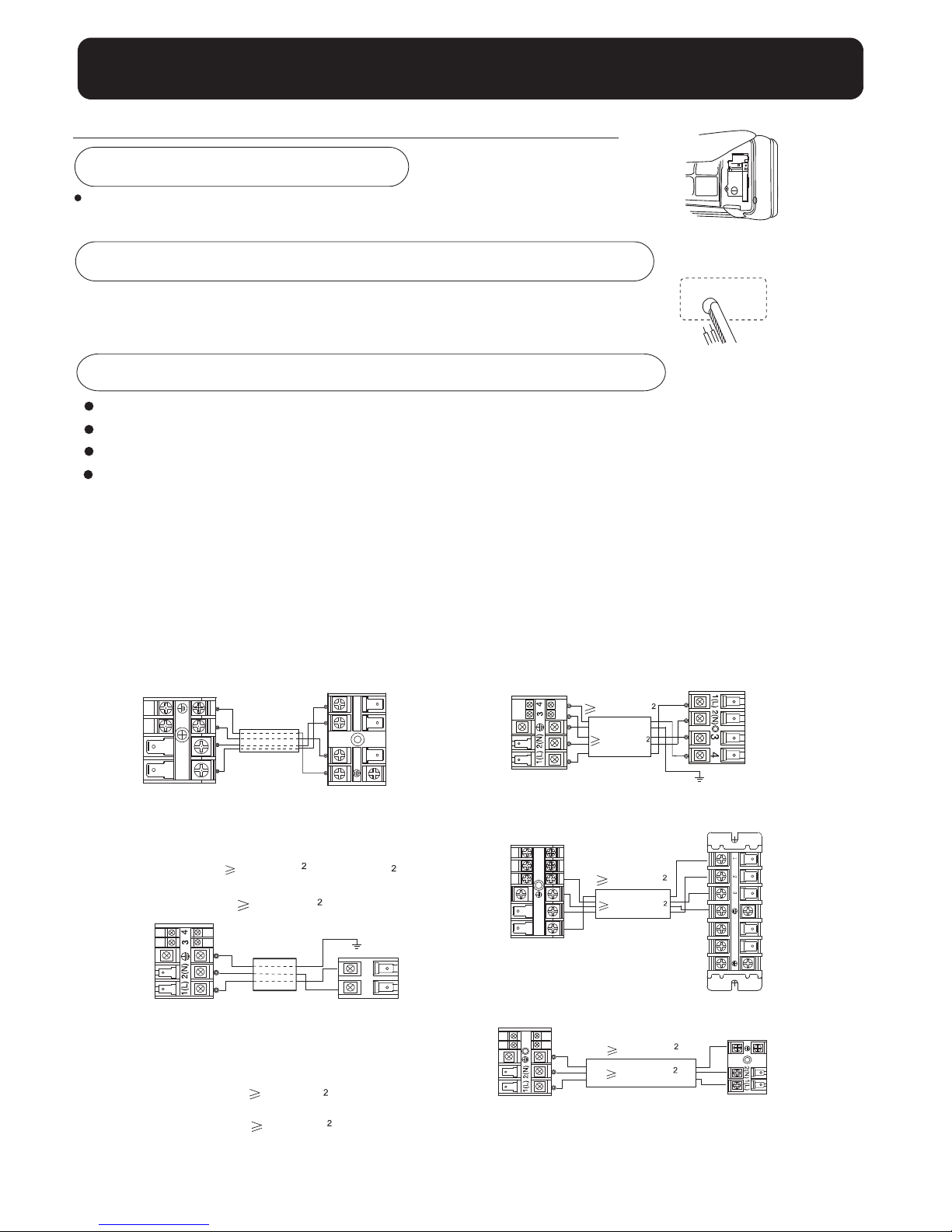

Connecting the indoor/outdoor Electric Cable

Removing the wiring cover

Remove terminal cover at right bottom corner of indoor unit, then

take off wiring cover by removing its screws.

When connecting the cable after installing the indoor unit

1. Insert from outside the room cable into left side of the wall hole, in which

the pipe has already existed.

2. Pull out the cable on the front side, and connect the cable making a loop.

Indoor unit

1. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar

qualified person. The type of connecting wire is H05/07RN-F or 245IEC57(YZW).

2. If the fuse on PC board is broken please change it with the type of T. 3.15A/250V.

3. The wiring method should be in line with the local wiring standard.

4. After installation, the power plug should be easily reached.

When connecting the cable before installing the indoor unit

Insert the cable from the back side of the unit, then pull it out on the front side.

Loosen the screws and insert the cable ends fully into terminal block, then tighten the screws.

Pull the cable slightly to make sure the cables have been properly inserted and tightened.

After the cable connection, never fail to fasten the connected cable with the wiring cover.

Note: When connecting the cable, confirm the terminal number of indoor and outdoor units carefully. If wiring

is not correct, proper operation can not be carried out and will cause defect.

5. A breaker should be incorporated into fixed wiring. The breaker should be all-pole switch and the

distance between its two contacts should be not less than 3mm.

If the fuse of outdoor unit on PC board is broken, please change it with the type of T. 25A/250V.

Power cable:

3G2.5mm

4G0.75mm

123 4 5

Indoor unit

Outdoor unit

HSU-24LEK13

3G2.0mm

Power cable:

HSU-18LEK13

Indoor unit Outdoor unit

3G1.5mm

ＬＮ

Outdoor unit

1.Connection of pipes

2.Attaching Drain-Elbow

To bend a pipe, give the roundness as large as possible not to crush the pipe

Connecting the pipe of gas side first makes working easier.

The max vertical distance between the indoor unit and the outdoor unit is 5 m.

If the drain-elbow is used, please attach it as

figure. (Note: Only for heat pump unit.)

Half union Flare nut

Spanner

Torque wrench

Outdoor unit

Forced fastening without careful centering

may damage the threads and cause a

leakage of gas.

Be careful that matters, such as wastes of sands, etc.

shall not enter the pipe.

3.Purging Method:

Push the air out of the indoor unit and piping as followes:

Tighten the caps on the valves with specified torque.

Valve rod

Valve cap

7-9

20-25

Tighten torque N.m

When connecting pipe exceeds 5 meters, 20g or 60g(only for 22k 24k) refrigerant shall be

added per exceeding meter. Charge according to the following list.

Piping length

Additional amount

5m 7m

No need 40g

10m

100g

for 5k 7k 9k 10k 12k 13k 18k

for 22k 24k

Max. Length: for 5K 7K 9K 10K: A=7m

for 12K 13K: A=10m

for 18K 22K 24K: A=20m

Max.Elevation:

for 5K 7K 9K 10K 12K 13K: B=5m

for 18K 22K 24K: B=10m

Piping length

Additional amount

5m 7m

No need 120g

10m

300g

20m

900g

Outdoor unit

Indoor unit

Outdoor unit

Indoor unit

Outdoor unit

Indoor unit

Oil trap

CAUTION

In case more than 5 metres，oil trap

should be installed every 5~7m.

Pipe Diameter ( )

Liquid side 6.35mm(1/4")

Gas side 9.52mm(3/8")

Fastening torque

18N.m

40N.m

Gas side 12.7mm(1/2") 50N.m

Gas side 15.88mm(5/8") 60N.m

Liquid side 9.52mm(3/8") 40N.m
